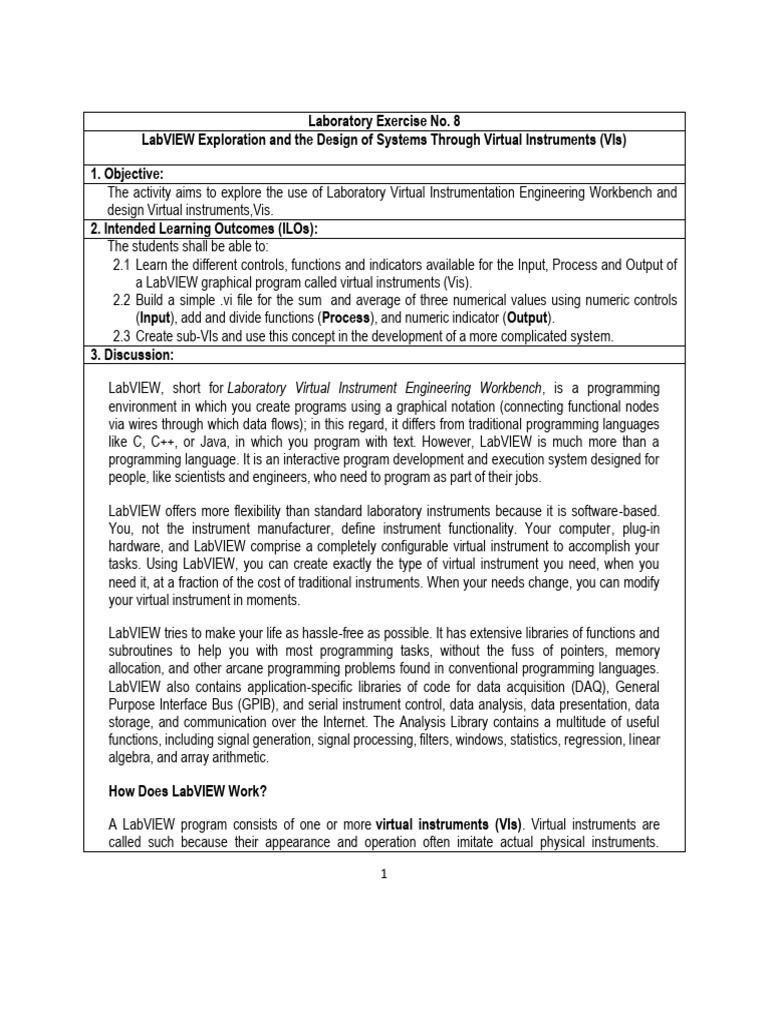

Laboratory Exercise No.

8
LabVIEW Exploration and the Design of Systems Through Virtual Instruments (VIs)

1. Objective:
The activity aims to explore the use of Laboratory Virtual Instrumentation Engineering Workbench and
design Virtual instruments,Vis.
2. Intended Learning Outcomes (ILOs):
The students shall be able to:
2.1 Learn the different controls, functions and indicators available for the Input, Process and Output of
a LabVIEW graphical program called virtual instruments (Vis).
2.2 Build a simple .vi file for the sum and average of three numerical values using numeric controls
(Input), add and divide functions (Process), and numeric indicator (Output).
2.3 Create sub-VIs and use this concept in the development of a more complicated system.
3. Discussion:

LabVIEW, short for Laboratory Virtual Instrument Engineering Workbench, is a programming

environment in which you create programs using a graphical notation (connecting functional nodes
via wires through which data flows); in this regard, it differs from traditional programming languages
like C, C++, or Java, in which you program with text. However, LabVIEW is much more than a
programming language. It is an interactive program development and execution system designed for
people, like scientists and engineers, who need to program as part of their jobs.

LabVIEW offers more flexibility than standard laboratory instruments because it is software-based.
You, not the instrument manufacturer, define instrument functionality. Your computer, plug-in
hardware, and LabVIEW comprise a completely configurable virtual instrument to accomplish your
tasks. Using LabVIEW, you can create exactly the type of virtual instrument you need, when you
need it, at a fraction of the cost of traditional instruments. When your needs change, you can modify
your virtual instrument in moments.

LabVIEW tries to make your life as hassle-free as possible. It has extensive libraries of functions and
subroutines to help you with most programming tasks, without the fuss of pointers, memory
allocation, and other arcane programming problems found in conventional programming languages.
LabVIEW also contains application-specific libraries of code for data acquisition (DAQ), General
Purpose Interface Bus (GPIB), and serial instrument control, data analysis, data presentation, data
storage, and communication over the Internet. The Analysis Library contains a multitude of useful
functions, including signal generation, signal processing, filters, windows, statistics, regression, linear
algebra, and array arithmetic.

How Does LabVIEW Work?

A LabVIEW program consists of one or more virtual instruments (VIs). Virtual instruments are
called such because their appearance and operation often imitate actual physical instruments.

1
 However, behind the scenes, they are analogous to main programs, functions, and subroutines from
popular programming languages like C or Basic. Hereafter, we will refer to a LabVIEW program as a
"VI" (pronounced "vee eye," NOT the Roman numeral six, as we've heard some people say). Also,
be aware that a LabVIEW program is always called a VI, whether its appearance or function relates
to an actual instrument or not.

A VI has three main parts: a front panel, a block diagram, and an icon.

1. The front panel is the interactive user interface of a VI, so named because it simulates the front
panel of a physical instrument (see Figure 1.4). The front panel can contain knobs, push
buttons, graphs, and many other controls (which are user inputs) and indicators (which are
program outputs). You can input data using a mouse and keyboard, and then view the results
produced by your program on the screen.

2. The block diagram is the VI's source code, constructed in LabVIEW's graphical programming
language, G (see Figure 1.5). The block diagram is the actual executable program. The
components of a block diagram are lower-level VIs, built-in functions, constants, and program
execution control structures. You draw wires to connect the appropriate objects together to
define the flow of data between them. Front panel objects have corresponding terminals on the
block diagram so data can pass from the user to the program and back to the user.

3. In order to use a VI as a subroutine in the block diagram of another VI, it must have an iconwith
a connector (see Figure 1.6). A VI that is used within another VI is called a subVI and is
analogous to a subroutine. The icon is a VI's pictorial representation and is used as an object in
the block diagram of another VI. A VI's connector is the mechanism used to wire data into the VI
from other block diagrams when the VI is used as a subVI. Much like parameters of a
subroutine, the connector defines the inputs and outputs of the VI.

Virtual instruments are hierarchical and modular. You can use them as top-level programs or
subprograms. With this architecture, LabVIEW promotes the concept of modular programming. First,
you divide an application into a series of simple subtasks. Next, you build a VI to accomplish each
subtask and then combine those VIs on a top-level block diagram to complete the larger task.

4. Resources:
LabVIEW
5. Procedure:
A. Input, process and output of a simple graphical program involving the sum and average
of three numerical values
1. Create a folder with a name Maranan_yourSurnameLabExer09 and place it on the desktop.
All your files must be saved here. Before the end of the period, the contents of this folder
must be sent to your email address and also to your instructor’s email address.
2. Open LabVIEW 15 and the Getting Started appears. Click the Blank VI option. The Block
2
 Diagram and Front Panel windows should appear.
3. Click View of the Front Panel window and choose Controls Palette, Express, Numeric
Control. Click Num Control and drop into the Front Panel window. Observe what happens in
the Block Diagram window. Change its label from numeric to x. Add two (2) more Num Ctrl
and label them as y and z (place them below one another). These x, y and z numeric
controls form part of the Input (these controls have arrow pointing outward indicating that
the data they hold serve as an input to another). Add two numeric indicators ( place them
on the right side , one on top of another) and label them as SUM and AVERAGE. The SUM
and AVERAGE numeric indicators form part of the output (these controls have arrow
pointing inward indicating that they accept data from an input).
4. Click View of the Block Diagram window and choose Function Pallete, each of which
performs a certain function and has input and output connectors. Place an ADD function in
between the input and output controls. Place also a DIVIDE function below the ADD
function. Right click each of these functions and select Visible Items, then checking the
Label option. Establish the flow of data by wiring the x, y and z to the ADD function and
then wire the output of the ADD function to the SUM indicator. Wire the output of the ADD
function to the DIVIDE function. Right click the other input of the Divide function and choose
Create < Constant. Type the number 3 when the constant node appears. Wire the output of
the Divide function to the AVERAGE indicator. Click Clean Up Diagram icon and observe
what happens. Note: While the FP window is within your view, you may use CTRL E to
view BD window.
5. Save the file as yourSurnameProcedureA and place it inside the
Maranan_yourSurnameLabExer09 folder . Provide the values of the x, y and z numeric
controls through Front Panel window and click Run. Show the output of Procedure A in
Table A.
B. Different Controls, Functions and Indicators for the Input, Process, and Output of a
LabVIEW program.
1. Determine the different controls available for the Input of a VI. Show the output of
Procedure B.1 in Table B1. Hint: Place a control in FP window, press CTL H and Hover the
control for the description.
2. Determine the different functions available for the Process of a VI. Show the output of
Procedure B.2 in Table B2. Hint: Place a function in BD window, press CTL H and Hover
the function for the description.
3. Determine the different indicators available for the Output of a VI. Show the output of
Procedure B.3 in Table B3. Hint: Place an indicator in FP window, press CTL H and Hover
the indicator for the description.
C. Creating yourSurnameProcedureA.vi as a VI that is used in higher-level VI ( called subVI)
1. Right click the icon at the top-right corner of the Front Panel window and select Show
connector to display the connector pane. Right click this connector pane and choose
3
 Patterns. Choose the connector pane pattern having three inputs (3 blank rows in the first
column) and two outputs ( 2 blank rows in the second column).
2. To assign the first row first column slot of the connector plane to the numeric control x, click
the slot on the first row first column of the connector pane and click the numeric control with
a label x. To assign the second row first column slot of the connector plane to the numeric
control y, click the slot on the second row first column of the connector pane and click the
numeric control with a label y. To assign the third row first column slot of the connector
plane to the numeric control z, click the slot on the third row first column of the connector
pane and click the numeric control with a label z.
3. To assign the first row second column slot of the connector plane to the numeric indicator
SUM, click the slot on the first row second column of the connector pane and click the
numeric indicator with a label SUM. To assign the second row second column slot of the
connector pane to the numeric indicator AVERAGE, click the slot on the second row
second column of the connector pane and click the numeric indicator with a label
AVERAGE.
4. To explicitly identify the subVI icon, double click this icon and Icon Editor window appears.
In Line 1 text, type SUM. In Line 2 text, type & . In Line 3 text, type AVERAGE. Then, click
OK.
5. Save the changes you made. Show the Front Panel and Block Diagram windows using
Table C.
D. Creating Vis for Plane and Solid Figures
1. Create a virtual instrument for the computation of area and perimeter of each of the
following plane figures:
a. Square
b. Rectangle
c. Circle
d. Right Triangle
e. Regular Pentagon
Show the output in Procedure D1
2. Create a virtual instrument for the computation of volume and surface area of each of the
following:
a. Cube
b. Rectangular Parallelipiped
c. Sphere
d. Cone
e. Right Circular Cylinder

4
Course: CHE 508 Computer Applications in ChE Laboratory Exercise No.: 8
Group No.: N/A Section: CH51FC1
Group Members: Date Performed: August 16, 2017
Percil, Queenie Rose I. Date Submitted: August 23, 2017
Instructor:
Engr. Crispulo Maranan
6. Data and Results:
A.
Table A. Front Panel and Block Diagram windows of the Simple LabVIEW graphical program
(VI) involving sum and average of three numerical values

5
B.
Table B1. Different Controls Available for the Input of VIs
Name and Icon of the Control Description of the Control

Numeric control is the simplest way to enter numeric

data. You can resize these front panel objects
horizontally to accommodate more digits.
Numeric Control

Use to send or retrieve a time and date value.

Time Stamps

Use to display numeric data in a vertical or horizontal

slide with a customizable scale.

Fill Slides

Use to display numeric data in a vertical or horizontal

slide with a customizable scale and a pointer that
helps you see the exact value.

Pointer Slides

6
 Use to enter or display numeric data in a rotary
action.

Knobs and Dials

Use to display numeric data in a vertical slide that

scrolls through data by dragging the square scroll
box, scrolling the mouse wheel, clicking the
increment and decrement arrows, or clicking empty
space in the scrollbar.

Scrollbars

Use to display a color that corresponds to a specified

value. For example, you can use color boxes to
indicate different conditions, such as out-of-range
values.
Color Boxes

Use to enter or display numeric data in a waveform.

Waveforms

Use string controls to receive text from the user such as a

password or user name.
String Control
7
 Use path controls to enter the location of a file or
directory.
File Path Control

Use as a control to select a command by rocking,

toggling, or switching the object from one position to the
other.

Rockers, Toggles, and Switches

Use as a control to select a command by depressing the

button.

Buttons

Use as a control to select a command from a list of

choices

Radio Buttons.

Use as a control to select a TRUE or FALSE state,

such as when only one option is possible.
Checkboxes
Use as a control to select a TRUE, FALSE, or
MIXED state, such as when simultaneously setting a
property of multiple objects where some are TRUE
Mixed Checkboxes and FALSE.

8

Digital Data Control
The digital data control displays digital data arranged
in rows and columns as a digital table. Use the
digital data control to build digital waveforms or to
display digital data extracted from a digital
waveform. Wire the digital waveform data control to
a digital data indicator to view the samples and
signals of a digital waveform.

Use the tree control to give users a hierarchical list

of items from which to select. You organize the items
you enter in the tree control into groups of items, or
nodes. Click the expand symbol next to a node to
expand it and display all the items in that node.
Tree Controls

Table B2. Different Functions Available for the Process of VIs

Name and Icon of the Function Description of the Function

Computes the sum of the inputs.

Add

Computes the difference of the inputs.

Subtract

Returns the product of the inputs.

Multiply

Computes the quotient of the inputs.

Divide

Computes the square root of the input value.

Square Root

Computes the square of the input value.

Square

Adds 1 to the input value.

Increment

9

Decrement
Reciprocal
Scale by Power of 2
Absolute Value
Round to Nearest
Multiply Array Elements
Add Array Elements
Quotient and Remainder
Table B3. Different Indicators Available for the Output of VIs
Name and Icon of the Indicator
Numeric Indicator
Time Stamp Indicator
10
Subtracts 1 from the input value.
Divides 1 by the input value.
Multiplies x by 2 raised to the power of n.
Returns the absolute value of the input.
Rounds the input to the nearest integer. If the value
of the input is midway between two integers, the
function returns the nearest even integer.
Returns the product of all the elements in numeric
array. If numeric array is an empty array, the function
returns a value of 1. If numeric array contains only
one element, the function returns that element.
Returns the sum of all the elements in numeric array.
Computes the integer quotient and the remainder of
the inputs. This function rounds floor(x/y) to the
nearest integer towards -inf.
Description of the Indicator
Simplest way to display numeric data.
Use to send or retrieve a time and date value.
 Use to show progress in a vertical or horizontal
bar.

Progress Bars

Use to show progress in a vertical or horizontal

bar with customizable dividers to help you
break up the value into equal parts. For
example, you can show that a value has
reached 25% of the target value.

Graduated Bars

Use to display numeric data in a rotary action.

Meters and Gauges

Use to display numeric data in a vertical slide

that resembles a real tank or thermometer
instrument.

Tanks and Thermometers

11
 Use to display numeric data with colors. As the
input value changes, the display changes to a
previously chosen color for the value.

Color Ramps

Use as an indicator to display that a condition

is met. LabVIEW turns the light ON or OFF
depending on whether the condition is met.
LEDs Indicator

Use to display text.

String Indicator

Use to display the location of a file or directory.

File Path Indicator

A table is a 2D array of strings. Use the String

functions to manipulate tables.

Table

The waveform graph displays one or more

plots of evenly sampled measurements. The
waveform graph plots only single-valued
functions, as in y = f(x), with points evenly
distributed along the x-axis, such as acquired
time-varying waveforms.

Waveform Chart

12
 The XY graph is a general-purpose, Cartesian
graphing object that plots multivalued
functions, such as circular shapes or
waveforms with a varying time base. The XY
graph displays any set of points, evenly
sampled or not.

XY Graph

C. Procedure C
Table C. Front Panel and Block Diagram windows SubVI
for the sum and average of three numerical values

D. Procedure D
Table D1.a Front Panel and Block Diagram windows
for the area and perimeter of a Square

13
Table D1.b Front Panel and Block Diagram windows
for the area and perimeter of a Rectangle
Front Panel Window

Block Diagram Window

Table D1.c Front Panel and Block Diagram windows

for the area and circumference of a Circle
Front Panel Window

14
 Block Diagram Window

Table D1.d Front Panel and Block Diagram windows

for the area and perimeter of a Right Triangle
Front Panel Window

Block Diagram Window

15
Table D1.e Front Panel and Block Diagram windows
for the area and perimeter of a Pentagon
Front Panel Window

Block Diagram Window

Table D2.a Front Panel and Block Diagram windows

for the volume and surface area of a Cube
Front Panel Window

16
 Block Diagram Window

Table D2.b Front Panel and Block Diagram windows

for the area and perimeter of a Rectangular Parallelipiped
Front Panel Window

Block Diagram Window

17
Table D2.c Front Panel and Block Diagram windows
for the area and perimeter of a Sphere
Front Panel Window

Block Diagram Window

Table D2.d Front Panel and Block Diagram windows

for the area and perimeter of a Cone
Front Panel Window

18
 Block Diagram Window

Table D2.e Front Panel and Block Diagram windows

for the area and perimeter of a Right Circular Cylinder
Front Panel Window

Block Diagram Window

19
7.Conclusion:
I therefore conclude that in this exercise, I was able to explore the use of Laboratory Virtual
Instrumentation Engineering Workbench and design Virtual instruments,Vis. Aside from that, I was able
to learn the different controls, functions and indicators available for the Input, Process and Output of a
LabVIEW graphical program called virtual instruments (Vis), build a simple .vi file for the sum and
average of three numerical values using numeric controls, add and divide functions, and numeric
indicator, and even create sub-VIs and use this concept in the development of a more complicated
system. That is I was able to apply the LabView basics in solving the perimeter and area of a specific
plane and solid figure.
8. Further Readings:
Seborg Dale E., Edgar, Thomas F., and Mellichamp Duncan A. (2004). Process Dynamics and
Control. Singapore: Wiley.
Knopf, F. C. (2012). Modeling, analysis and optimization of process and energy systems.Hoboken,
New Jersey: John Wiley and Sons.
Velten, K. (2009). Mathematical modeling and simulation: introduction for scientists and engineers.
Singapore: Wiley-VCH.

20
9. Assessment (Rubric for Laboratory Performance):
TECHNOLOGICAL INSTITUTE OF THE PHILIPPINES
RUBRIC FOR MODERN TOOL USAGE
(Engineering Programs)
Student Outcome (e): Use the techniques, skills, and modern engineering tools necessary for engineering
practice in complex engineering activities.
Program: Chemical Engineering Course: CHE 506 Section: _______ ____Sem SY ________
Performance Unsatisfactory Developing Satisfactory Very Satisfactory Score
Indicators 1 2 3 4
1. Apply Fails to identify Identifies Identifies modern Recognizes the
appropriate any modern modern techniques and is benefits and
techniques, techniques to techniques but able to apply these constraints of
skills, and perform fails to apply in performing modern engineering
modern tools discipline- these in discipline-specific tools and shows
to perform a specific performing engineering task. intention to apply
discipline- engineering discipline- them for
specific task. specific engineering
engineering engineering practice.
task. task.
2. Demonstrate Fails to apply Attempts to Shows ability to Shows ability to
skills in any modern apply modern apply fundamental apply the most
applying tools to solve tools but has procedures in appropriate and
different engineering difficulties to using modern tools effective modern
techniques problems. solve when solving tools to solve
and modern engineering engineering engineering
tools to solve problems. problems. problems.
engineering
problems.
3. Recognize Does not Recognizes Recognizes the Recognizes the
the benefits recognize the some benefits benefits and need for benefits
and benefits and and constraints constraints of and constraints of
constraints of constraints of of modern modern modern engineering
modern modern engineering engineering tools tools and makes
engineering engineering tools. and shows good use of them
tools. tools. intention to apply for engineering
them for practice.
engineering
practice.
Total Score
Mean Score = (Total Score / 3)
Percentage Rating = (Total Score / 12) x 100%
Evaluated by: Engr. Crispulo G. Maranan June 31, 2017
Printed Name and Signature of Faculty Member Date

21
