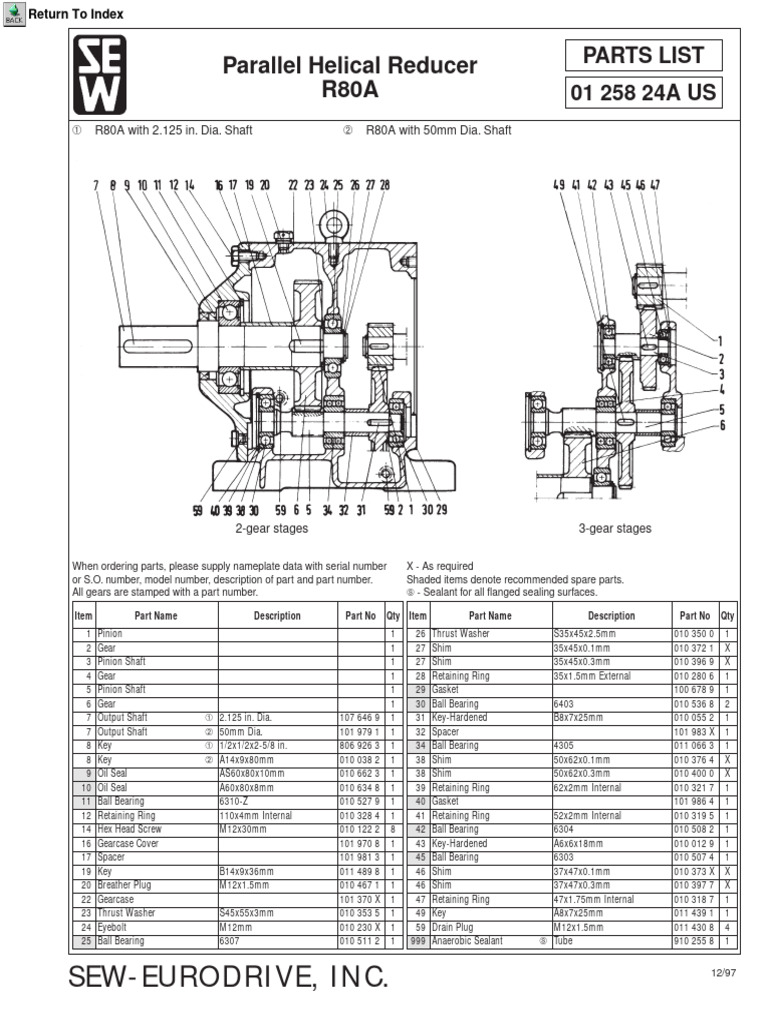

PARTS LIST
Parallel Helical Reducer
R80A 01 258 24A US
1 R80A with 2.125 in. Dia. Shaft 2 R80A with 50mm Dia. Shaft

2-gear stages 3-gear stages

When ordering parts, please supply nameplate data with serial number X - As required
or S.O. number, model number, description of part and part number. Shaded items denote recommended spare parts.
All gears are stamped with a part number. S - Sealant for all flanged sealing surfaces.

Item Part Name Description Part No Qty Item Part Name Description Part No Qty
1 Pinion 1 26 Thrust Washer S35x45x2.5mm 010 350 0 1
2 Gear 1 27 Shim 35x45x0.1mm 010 372 1 X
3 Pinion Shaft 1 27 Shim 35x45x0.3mm 010 396 9 X
4 Gear 1 28 Retaining Ring 35x1.5mm External 010 280 6 1
5 Pinion Shaft 1 29 Gasket 100 678 9 1
6 Gear 1 30 Ball Bearing 6403 010 536 8 2
7 Output Shaft 1 2.125 in. Dia. 107 646 9 1 31 Key-Hardened B8x7x25mm 010 055 2 1
7 Output Shaft 2 50mm Dia. 101 979 1 1 32 Spacer 101 983 X 1
8 Key 1 1/2x1/2x2-5/8 in. 806 926 3 1 34 Ball Bearing 4305 011 066 3 1
8 Key 2 A14x9x80mm 010 038 2 1 38 Shim 50x62x0.1mm 010 376 4 X
9 Oil Seal AS60x80x10mm 010 662 3 1 38 Shim 50x62x0.3mm 010 400 0 X
10 Oil Seal A60x80x8mm 010 634 8 1 39 Retaining Ring 62x2mm Internal 010 321 7 1
11 Ball Bearing 6310-Z 010 527 9 1 40 Gasket 101 986 4 1
12 Retaining Ring 110x4mm Internal 010 328 4 1 41 Retaining Ring 52x2mm Internal 010 319 5 1
14 Hex Head Screw M12x30mm 010 122 2 8 42 Ball Bearing 6304 010 508 2 1
16 Gearcase Cover 101 970 8 1 43 Key-Hardened A6x6x18mm 010 012 9 1
17 Spacer 101 981 3 1 45 Ball Bearing 6303 010 507 4 1
19 Key B14x9x36mm 011 489 8 1 46 Shim 37x47x0.1mm 010 373 X X
20 Breather Plug M12x1.5mm 010 467 1 1 46 Shim 37x47x0.3mm 010 397 7 X
22 Gearcase 101 370 X 1 47 Retaining Ring 47x1.75mm Internal 010 318 7 1
23 Thrust Washer S45x55x3mm 010 353 5 1 49 Key A8x7x25mm 011 439 1 1
24 Eyebolt M12mm 010 230 X 1 59 Drain Plug M12x1.5mm 011 430 8 4
25 Ball Bearing 6307 010 511 2 1 999 Anaerobic Sealant S Tube 910 255 8 1

SEW-EURODRIVE, INC. 12/97
