Product data sheet
Specifications

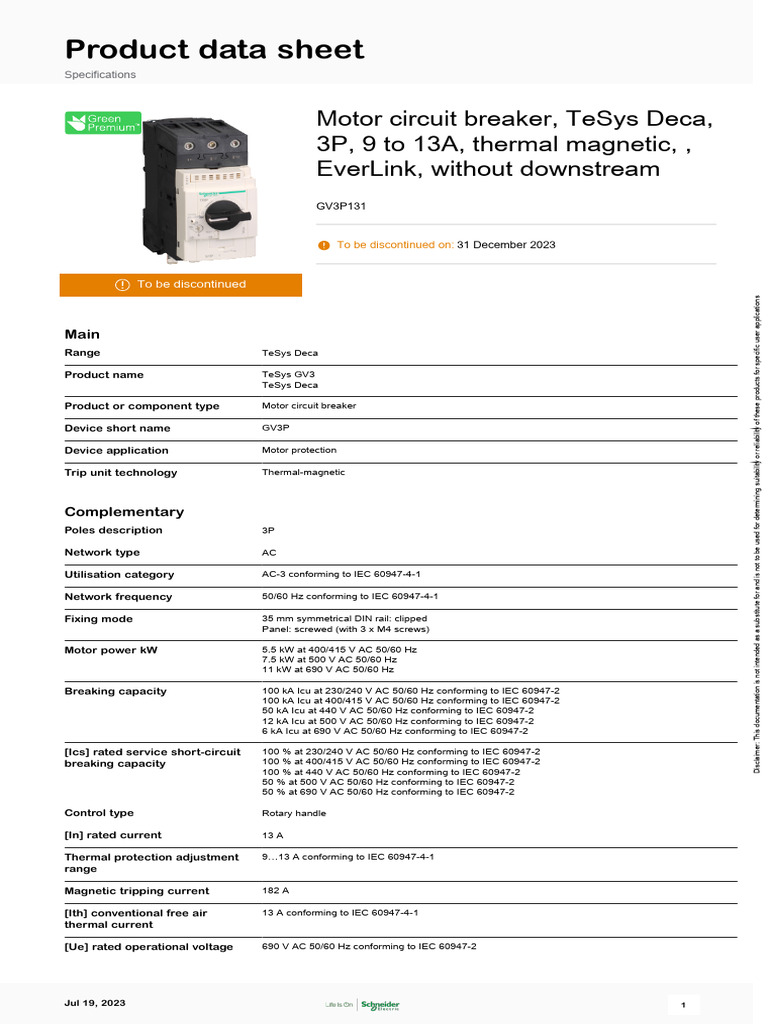

Motor circuit breaker, TeSys Deca,

3P, 9 to 13A, thermal magnetic, ,
EverLink, without downstream
GV3P131
To be discontinued on: 31 December 2023
To be discontinued
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
Main
Range TeSys Deca
Product name TeSys GV3

TeSys Deca
Product or component type Motor circuit breaker
Device short name GV3P
Device application Motor protection
Trip unit technology Thermal-magnetic
Complementary
Poles description 3P
Network type AC
Utilisation category AC-3 conforming to IEC 60947-4-1
Network frequency 50/60 Hz conforming to IEC 60947-4-1
Fixing mode 35 mm symmetrical DIN rail: clipped

Panel: screwed (with 3 x M4 screws)
Motor power kW 5.5 kW at 400/415 V AC 50/60 Hz

7.5 kW at 500 V AC 50/60 Hz
11 kW at 690 V AC 50/60 Hz
Breaking capacity 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2

100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
breaking capacity 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2
Control type Rotary handle
[In] rated current 13 A
Thermal protection adjustment 9…13 A conforming to IEC 60947-4-1

range
Magnetic tripping current 182 A
[Ith] conventional free air 13 A conforming to IEC 60947-4-1

thermal current
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
Jul 19, 2023 1

[Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand 6 kV conforming to IEC 60947-2

voltage
Phase failure sensitivity Yes conforming to IEC 60947-4-1
Suitability for isolation Yes conforming to IEC 60947-1
Power dissipation per pole 8W
Mechanical durability 50000 cycles
Electrical durability 50000 cycles for AC-3 at 415 V In
Rated duty Continuous conforming to IEC 60947-4-1
Tightening torque 5 N.m - on screw clamp terminal
Width 55 mm
Height 132 mm
Depth 136 mm
Product weight 0.96 kg
Colour Dark grey
Environment
Standards EN/IEC 60947-2
EN/IEC 60947-4-1
UL 60947-4-1
CSA C22.2 No 60947-4-1
Product certifications CCC

UL
CSA
EAC
ATEX
LROS (Lloyds register of shipping)
BV
ABS
DNV-GL
UKCA
IK degree of protection IK09 enclosure
IP degree of protection IP20 conforming to IEC 60529
Climatic withstand conforming to IACS E10
Ambient air temperature for -40…80 °C

storage
Fire resistance 960 °C conforming to IEC 60695-2-11

operation
Mechanical robustness Shocks: 15 Gn for 11 ms contactor open

Shocks: 30 Gn for 11 ms contactor closed
Vibrations: 4 Gn, 5...300 Hz
Operating altitude 3000 m
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 16.0 cm
Package 1 Width 6.5 cm
Package 1 Length 14.5 cm
Package 1 Weight 940.0 g
2
Jul 19, 2023
Offer Sustainability
Sustainable offer status Green Premium product
REACh Regulation REACh Declaration
EU RoHS Directive Compliant

EU RoHS Declaration
Mercury free Yes
China RoHS Regulation China RoHS declaration

Product out of China RoHS scope. Substance declaration for your information
RoHS exemption information Yes
Environmental Disclosure Product Environmental Profile
Circularity Profile End of Life Information
WEEE The product must be disposed on European Union markets following specific waste collection and
never end up in rubbish bins
Contractual warranty
Warranty 18 months
Jul 19, 2023 3

Product data sheet GV3P131
Performance Curves
Thermal-Magnetic Tripping Curves

Average Operating Times at 20 °C Related to Multiples of the Setting Current
1a 3 poles from cold state (Ir minimum): GV3P

1b 3 poles from cold state (Ir maximum): GV3P
2a 3 poles from hot state (Ir minimum): GV3P
2b 3 poles from hot state (Ir maximum): GV3P
Current Limitation on Short-Circuit (3-Phase 400/415 V)

Dynamic Stress
I peak = f (prospective Isc) at 1.05 Ue = 435 V
4
Jul 19, 2023
1 Maximum peak current
2 70-80 A (GV3P80), 62-73 A (GV3P73)
3 48-65 A (GV3P65)
4 37-50 A (GV3P50)
5 30-40 A (GV3P40)
6 23-32 A (GV3P32)
7 17-25 A (GV3P25)
8 12-18 A (GV3P18)
9 9-13 A (GV3P13)
Maximum Thermal Limit on Short-Circuit

2
Thermal Limit in kA s in the Magnetic Operating Zone
2
Sum of I dt = f (prospective Isc) at 1.05 Ue = 435 V
Jul 19, 2023 5

1 70-80 (GV3P80) - 62-73 (GV3P73)
2 48-65 A (GV3P65)
3 37-50 A (GV3P50)
4 30-40 A (GV3P40)
5 23-32 A (GV3P32)
6 17-25 A (GV3P25)
7 12-18 A (GV3P18)
8 9-13 A (GV3P13)
6
Jul 19, 2023
Dimensions Drawings
GVl3L, GV3P
Dimensions
(1) Blocks GVAN●●, GVAD●● and GVAM11.

(2) Blocks GV3AU●● and GV3AS●●.
X1 = Electrical clearance (ISC max) 40 mm for Ue ≤ 500 V, 50 mm for Ue ≤ 690 V
NOTE: Leave a space of 9 mm between 2 circuit breakers: either an empty space or side-mounting add-on contact blocks. Side by side
mounting is possible up to 40 °C.
Mounting on Rail AM1 DE200 or AM1 ED201
Panel Mounting, using M4 Screws
Mounting on Pre-Slotted Plate AM1 PA
Jul 19, 2023 7

Connections and Schema
GV3P••
Recommended replacement(s)
GV3P131 is replaced by:
Motor circuit breaker,TeSys Deca frame 3,3P,9-13A,thermal magnetic,EverLink

1x terminals
GV3P13
8
Jul 19, 2023
Product data sheet
Specifications
Contactor, TeSys K, 3P, AC-3/

AC-3e, <=440V 6A, aux. 1NC, 115V
AC coil
LC1K06013FE7
Main
Range TeSys
Product or component type Contactor
Product name TeSys K
Device short name LC1K
Device application Control
Contactor application Motor control
Complementary
Utilisation category AC-4
AC-3
AC-3e
Poles description 3P
Power pole contact composition 3 NO
[Ue] rated operational voltage Power circuit: 690 V AC 50/60 Hz

Signalling circuit: <= 690 V AC 50/60 Hz
[Ie] rated operational current 6 A at <= 440 V AC AC-3 for power circuit
6 A at <= 440 V AC AC-3e for power circuit
Control circuit type AC at 50/60 Hz
[Uc] control circuit voltage 115 V AC 50/60 Hz
Motor power kW 1.5 kW at 220...230 V AC 50/60 Hz AC-3

2.2 kW at 380...415 V AC 50/60 Hz AC-3
3 kW at 440 V AC 50/60 Hz AC-3
3 kW at 480 V AC 50/60 Hz AC-3
3 kW at 500...600 V AC 50/60 Hz AC-3
3 kW at 660...690 V AC 50/60 Hz AC-3
1.5 kW at 400 V AC 50/60 Hz AC-4
1.5 kW at 220...230 V AC 50/60 Hz AC-3e
2.2 kW at 380...415 V AC 50/60 Hz AC-3e
3 kW at 440 V AC 50/60 Hz AC-3e
3 kW at 480 V AC 50/60 Hz AC-3e
3 kW at 500...600 V AC 50/60 Hz AC-3e
3 kW at 660...690 V AC 50/60 Hz AC-3e
Auxiliary contact composition 1 NC
[Uimp] rated impulse withstand 8 kV

voltage
Overvoltage category III
[Ith] conventional free air 16 A (at 50 °C) for power circuit

thermal current 10 A (at 50 °C) for signalling circuit
Irms rated making capacity 110 A AC for power circuit conforming to NF C 63-110
110 A AC for power circuit conforming to IEC 60947
Jul 19, 2023 1

110 A AC for signalling circuit conforming to IEC 60947
Rated breaking capacity 110 A at 415 V conforming to IEC 60947

110 A at 440 V conforming to IEC 60947
80 A at 500 V conforming to IEC 60947
110 A at 220...230 V conforming to IEC 60947
[Icw] rated short-time withstand 90 A 50 °C - 1 s for power circuit

current 85 A 50 °C - 5 s for power circuit
80 A 50 °C - 10 s for power circuit
60 A 50 °C - 30 s for power circuit
45 A 50 °C - 1 min for power circuit
40 A 50 °C - 3 min for power circuit
20 A 50 °C - >= 15 min for power circuit
80 A - 1 s for signalling circuit
90 A - 500 ms for signalling circuit
110 A - 100 ms for signalling circuit
Associated fuse rating 25 A gG at <= 440 V for power circuit

25 A aM for power circuit
10 A gG for signalling circuit conforming to IEC 60947
10 A gG for signalling circuit conforming to VDE 0660
Average impedance 3 mOhm - Ith 16 A 50 Hz for power circuit
[Ui] rated insulation voltage Power circuit: 600 V conforming to UL 508

Power circuit: 690 V conforming to IEC 60947-4-1
Signalling circuit: 690 V conforming to IEC 60947-4-1
Signalling circuit: 690 V conforming to IEC 60947-5-1
Signalling circuit: 600 V conforming to UL 508
Power circuit: 600 V conforming to CSA C22.2 No 14
Signalling circuit: 600 V conforming to CSA C22.2 No 14
Insulation resistance > 10 MOhm for signalling circuit
Inrush power in VA 30 VA (at 20 °C)
Hold-in power consumption in 4.5 VA (at 20 °C)

VA
Heat dissipation 1.3 W
Control circuit voltage limits Operational: 0.8...1.15 Uc (at <50 °C)

Drop-out: 0.2...0.75 Uc (at <50 °C)
Connections - terminals Spring terminals 1 cable(s) 0.75…1.5 mm²solid

Spring terminals 1 cable(s) 0.75…1.5 mm²flexible without cable end
Maximum operating rate 3600 cyc/h
Auxiliary contacts type type instantaneous 1 NC
Signalling circuit frequency <= 400 Hz
Minimum switching current 5 mA for signalling circuit
Minimum switching voltage 17 V for signalling circuit
Mounting support Rail

Plate
Operating time 10...20 ms coil de-energisation and NO opening

10...20 ms coil energisation and NO closing
Safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Non overlap distance 0.5 mm
Mechanical durability 10 Mcycles
Electrical durability 1.3 Mcycles 6 A AC-3 at Ue <= 440 V

1.3 Mcycles 6 A AC-3e at Ue <= 440 V
Mechanical robustness Shocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27
Shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27
Shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27
Shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27
Shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27
Shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27
Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6
Vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
Height 58 mm
Width 45 mm
2
Jul 19, 2023
Depth 57 mm
Environment
Standards EN/IEC 60947-4-1
GB/T 14048.4
UL 60947-4-1
CSA C22.2 No 60947-4-1
JIS C8201-4-1
Product certifications CB Scheme

CCC
UL
CSA
EAC
CE
UKCA
IP degree of protection IP2X conforming to VDE 0106
Protective treatment TC conforming to IEC 60068

TC conforming to DIN 50016

storage
Operating altitude 2000 m without derating
Flame retardance V1 conforming to UL 94

Requirement 2 conforming to NF F 16-101
Packing Units
REACh free of SVHC Yes

EU RoHS Declaration
Toxic heavy metal free Yes
Mercury free Yes

Pro-active China RoHS declaration (out of China RoHS legal scope)
Warranty 18 months
Jul 19, 2023 3

4
Jul 19, 2023
Product data sheet
Specifications
Auxiliary contact block, TeSys K,

4NC, front mounting, screw clamp
terminals
LA1KN04
Main
Range TeSys
Product name TeSys K
Product or component type Auxiliary contact block
Device short name LA1
Range compatibility TeSys K LC1K

TeSys K CA2K
TeSys K CA3K
Mounting location Front
Pole contact composition 4 NC
Contacts operation Instantaneous
[Ue] rated operational voltage 690 V AC 25...400 Hz
[Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1

600 V conforming to UL 60947-5-1
600 V conforming to CSA C22.2 No 60947-5-1
[Ith] conventional free air 10 A (at 50 °C)

thermal current

UL 60947-5-1
CSA C22.2 No 60947-5-1
GB/T 14048.5
JIS C8201-5-1
Product certifications CB Scheme

CCC
UL
CSA
CE
UKCA
Complementary
Irms rated making capacity 110 A at <= 690 V AC conforming to IEC 60947
Permissible short-time rating 80 A 1 s

60 A 500 ms
110 A 100 ms
Associated fuse rating 10 A gG at <= 690 V conforming to IEC 60947
Minimum switching current 5 mA
Minimum switching voltage 17 V
Non overlap distance 0.5 mm
Insulation resistance > 10 MOhm
Jul 19, 2023 1

Connections - terminals Screw clamp terminals 1 cable(s) 0.34…1.5 mm²flexible with cable end
Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end
Screw clamp terminals 1 cable(s) 1.5…4 mm²rigid
Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible with cable end
Screw clamp terminals 2 cable(s) 1.5…4 mm²rigid
Tightening torque 1.3 N.m - with screwdriver Philips No 2

1.3 N.m - with screwdriver pozidriv No 2
Height 30 mm
Width 38 mm
Depth 35 mm
Environment
Environmental characteristic Normal environment

storage

operation
Operating altitude 2000 m
Packing Units
Package 1 Height 4 cm
Package 1 Length 4 cm
Package 1 Weight 40 g
Unit Type of Package 2 BB1
Package 2 Width 19 cm
Unit Type of Package 3 S02
Package 3 Width 30 cm
Package 3 Weight 4.535 kg
2
Jul 19, 2023
EU RoHS Declaration
Mercury free Yes

Pro-active China RoHS declaration (out of China RoHS legal scope)
Jul 19, 2023 3

Product data sheet
Specifications
differential thermal overload relay,

TeSys K, 8...11.5A, class 10A
LR2K0316
Main
Range TeSys
Product name TeSys LRK
Product or component type Differential thermal overload relay
Device short name LR2K
Relay application Motor protection
Product compatibility LC7K

LP1K
LC1K
LP4K
Network type DC
AC
Thermal overload class Class 10A conforming to IEC 60947-4-1
Thermal protection adjustment 8…11.5 A

range
[Ui] rated insulation voltage Power circuit: 690 V conforming to BS 4941

Power circuit: 690 V conforming to IEC 60947
Power circuit: 750 V conforming to VDE 0110 group C
Power circuit: 600 V conforming to CSA C22.2 No 14
Complementary
Network frequency <= 400 Hz
Mounting support Under contactor

Plate, with specific accessories
Rail, with specific accessories
Auxiliary contact composition 1 NO + 1 NC
[Ith] conventional free air 6 A for signalling circuit

thermal current
[Ue] rated operational voltage <= 690 V for power circuit

690 V AC AC-15 for signalling circuit
250 V DC DC-13 for signalling circuit
Associated fuse rating 6 A gG for signalling circuit conforming to VDE 0660

6 A gG for signalling circuit conforming to IEC 60947
[Uimp] rated impulse withstand 6 kV

voltage
Power dissipation per pole 2W
Phase failure sensitivity Yes conforming to IEC 60947-4-1
Local signalling Trip indicator (yellow)
Jul 19, 2023 1

Control type Red push-button: trip test function
Blue push-button: stop and manual reset
selector switch: manual or automatic reset
Connections - terminals Screw clamp terminals 1 cable(s) 1.5…4 mm²solid

Screw clamp terminals 2 cable(s) 1.5…4 mm²solid
Tightening torque 1.3 N.m - on screw clamp terminals - with screwdriver Philips No 2
1.3 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
1.3 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Height 58 mm
Width 45 mm
Depth 65 mm
Environment
Standards IEC 60947
VDE 0660
BS 4941
NF C 63-650
Product certifications UL
CSA
UKCA

TC conforming to DIN 50016
IP degree of protection IP2X conforming to IEC 60529
Ambient air temperature for -20…55 °C without derating conforming to IEC 60947
operation -30…60 °C with derating conforming to IEC 60947

storage
Operating altitude 2000 m without derating
Fire resistance 850 °C conforming to IEC 60695-2-1
Flame retardance V1 conforming to UL 94

Mechanical robustness Shocks NO contact: 10 Gn for 11 ms conforming to IEC 60068-2-27

Shocks NC contact: 10 Gn for 11 ms conforming to IEC 60068-2-27
Vibrations NO contact: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
Vibrations NC contact: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
Packing Units
2
Jul 19, 2023

EU RoHS Declaration
Mercury free Yes

Product out of China RoHS scope. Substance declaration for your information
California proposition 65 WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony
trioxide, which is known to the State of California to cause cancer. For more information go to
www.P65Warnings.ca.gov
Warranty 18 months
Jul 19, 2023 3

Product data sheet
Specifications
Emergency stop switching off,

Harmony XB4, metal, red mushroom
40mm, 22mm, trigger latching turn
to release, 2NC+1NO
XB4BS84441
Main
Range of product Harmony XB4
Product or component type Emergency stop push-button

Emergency switching off push-button
Device short name XB4
Bezel material Chromium plated metal
Fixing collar material Zamak
Mounting diameter 22 mm
Sale per indivisible quantity 1
Shape of signaling unit head Round
Type of operator trigger action and mechanical latching
Head type Standard
Reset Turn to release
Operator profile Red mushroom Ø 40 mm, unmarked
Contact operation Slow-break
Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1
Complementary
Height 47 mm
Width 40 mm
Depth 82 mm
Terminals description ISO n°1 (13-14)NO
Resistance to high pressure 7000000 Pa at 55 °C, distance : 0.1 m

washer
Contacts usage Standard contacts
Positive opening With conforming to EN/IEC 60947-5-1 appendix K
Operating travel 1.5 mm (NC changing electrical state)

2.6 mm (NO changing electrical state)
4.3 mm (total travel)
Tightening torque 0.8…1.2 N.m conforming to EN 60947-1
Shape of screw head Cross compatible with Philips no 1 screwdriver

Cross compatible with pozidriv No 1 screwdriver
Jul 19, 2023 1

Slotted compatible with flat Ø 4 mm screwdriver
Slotted compatible with flat Ø 5.5 mm screwdriver
Contacts material Silver alloy (Ag/Ni)
Short-circuit protection 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
[Ith] conventional free air 10 A conforming to EN/IEC 60947-5-1

thermal current
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to EN 60947-1
[Uimp] rated impulse withstand 6 kV conforming to EN 60947-1

voltage
[Ie] rated operational current 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1
6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1
0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1
Electrical durability 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC
60947-5-1 appendix C
1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC
1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/
IEC 60947-5-1 appendix C
Electrical reliability Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to EN/IEC 60947-5-4
Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to EN/IEC 60947-5-4
Device presentation Complete product
Environment
Protective treatment TH

storage

operation
Electrical shock protection Class I conforming to IEC 60536

class

IP69
IP69K
NEMA degree of protection NEMA 13

NEMA 4X
IK degree of protection IK06 conforming to IEC 50102
Standards EN/ISO 13850

EN/IEC 60947-1
EN/IEC 60947-5-5
IEC 60364-5-53
EN/IEC 60947-5-4
EN/IEC 60204-1
UL 508
EN/IEC 60947-5-1
CSA C22.2 No 14
JIS C8201-5-1
JIS C8201-1
Product certifications UL listed

BV
CSA
DNV
GL
Vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
2
Jul 19, 2023
Packing Units
Unit Type of Package 3 P06
EU RoHS Directive Pro-active compliance (Product out of EU RoHS legal scope)

EU RoHS Declaration
Mercury free Yes
California proposition 65 WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is
known to the State of California to cause birth defects or other reproductive harm. For more information
go to www.P65Warnings.ca.gov
Warranty 18 months
Jul 19, 2023 3

Product data sheet XB4BS84441
Dimensions Drawings
Dimensions
e : clamping thickness: 1 to 6 mm / 0.04 to 0.24 in.
4
Jul 19, 2023
Mounting and Clearance
Panel Cut-out for Pushbuttons, Switches and Pilot Lights (Finished Holes, Ready for Installation)
Connection by Screw Clamp Terminals or Plug-in Connectors or Connection by Faston Connectors

on Printed Circuit Board
(1) Diameter on finished panel or support

(2) 40 mm min. / 1.57 in. min.
(3) 30 mm min. / 1.18 in. min.
+0.4 +0.016
(4) Ø 22.5 mm / 0.89 in. recommended (Ø 22.3 mm 0 / 0.88 in. 0 )
(5) 45 mm min. / 1.78 in. min.
(6) 32 mm min. / 1.26 in. min.
Jul 19, 2023 5

Technical Illustration
Dimensions
6
Jul 19, 2023
Product data sheet
Specifications
Pilot light, Harmony XB4,

incandescent light, orange, 22mm,
with plain lens, BA9s bulb, 110…
120V
XB4BV35
Main
Product or component type Pilot light
Head type Standard
Cap/Operator or lens colour Orange
Operator additional information With plain lens
Light source Incandescent
Bulb base BA 9s
Light block supply Via integral transformer 1.2 VA 6 V
[Us] rated supply voltage 110...120 V AC at 50/60 Hz
Complementary
Height 47 mm
Width 30 mm
Depth 78 mm
Terminals description ISO n°1 (X1-X2)PL

washer
Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1

voltage
Signalling type Steady
Jul 19, 2023 1

Environment

storage

operation

class

IP67
IP69
IP69K

NEMA 4X

UL 508
JIS C8201-5-1
EN/IEC 60947-5-4
EN/IEC 60947-5-1
EN/IEC 60947-1
CSA C22.2 No 14
JIS C8201-1

CSA
Packing Units

EU RoHS Declaration
Mercury free Yes
2
Jul 19, 2023
California proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is
known to the State of California to cause cancer and birth defects or other reproductive harm. For more
information go to www.P65Warnings.ca.gov
Warranty 18 months
Jul 19, 2023 3

Product data sheet XB4BV35
Dimensions Drawings
Dimensions
a in mm a in in. b in mm b in in. c in mm c in in.
66 2.60 30 1.18 46.5 1.83
4
Jul 19, 2023


(2) 40 mm min. / 1.57 in. min.
(3) 30 mm min. / 1.18 in. min.
+0.4 +0.016
(5) 45 mm min. / 1.78 in. min.
(6) 32 mm min. / 1.26 in. min.
Jul 19, 2023 5

Product data sheet
Specifications
Pilot light, Harmony XB4, metal, red,

22mm, plain lens with BA9s bulb,
110…120V AC
XB4BV34
Main
Head type Standard
Cap/Operator or lens colour Red
Bulb base BA 9s
Complementary
Height 47 mm
Width 30 mm
Depth 78 mm

washer

voltage
Jul 19, 2023 1

Environment

storage

operation

class

IP67
IP69
IP69K

NEMA 4X

JIS C8201-5-1
EN/IEC 60947-5-4
CSA C22.2 No 14
EN/IEC 60947-5-1
EN/IEC 60947-1
UL 508
JIS C8201-1

CSA
Packing Units
2
Jul 19, 2023

EU RoHS Declaration
Mercury free Yes
Warranty 18 months
Jul 19, 2023 3

Dimensions Drawings
Dimensions
66 2.60 30 1.18 46.5 1.83
4
Jul 19, 2023


(2) 40 mm min. / 1.57 in. min.
(3) 30 mm min. / 1.18 in. min.
+0.4 +0.016
(5) 45 mm min. / 1.78 in. min.
(6) 32 mm min. / 1.26 in. min.
Jul 19, 2023 5

Dimensions
6
Jul 19, 2023
Product data sheet
Specifications
Pilot light, Harmony XB4, metal,

green, 22mm, plain lens with BA9s
bulb, 110…120V AC
XB4BV33
Main
Head type Standard
Cap/Operator or lens colour Green
Bulb base BA 9s
Complementary
Height 47 mm
Width 30 mm
Depth 78 mm

washer

voltage
Jul 19, 2023 1

Environment

storage

operation

class

IP67
IP69
IP69K

NEMA 4X
Standards JIS C8201-5-1

EN/IEC 60947-5-1
UL 508
EN/IEC 60947-5-4
EN/IEC 60947-5-5
CSA C22.2 No 14
EN/IEC 60947-1
JIS C8201-1
Product certifications CSA

UL listed
Packing Units
2
Jul 19, 2023

EU RoHS Declaration
Mercury free Yes
Warranty 18 months
Jul 19, 2023 3

Dimensions Drawings
Dimensions
66 2.60 30 1.18 46.5 1.83
4
Jul 19, 2023


(2) 40 mm min. / 1.57 in. min.
(3) 30 mm min. / 1.18 in. min.
+0.4 +0.016
(5) 45 mm min. / 1.78 in. min.
(6) 32 mm min. / 1.26 in. min.
Jul 19, 2023 5

Dimensions
6
Jul 19, 2023
Product data sheet
Specifications
black selector switch Ø22 2-position

stay put 1NO+1NC 600V
XB4BD281
Main
Product or component type Selector switch
Type of operator stay put
Operator profile Black standard handle
Operator position information 2 positions 90°
Contacts type and composition 1 NO + 1 NC
Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1
Complementary
Height 47 mm
Width 30 mm
Depth 68 mm
Terminals description ISO n°1 (21-22)NC

(13-14)NO

washer
Torque value 0.14 N.m NO changing electrical state
Jul 19, 2023 1


thermal current

voltage
Electrical durability 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN
1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN
1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN
1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN
1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN
Environment

storage

operation
Overvoltage category Class I conforming to IEC 60536
IP degree of protection IP69

IP69K
IP67 conforming to IEC 60529

NEMA 4X

CSA C22.2 No 14
UL 508
EN/IEC 60947-5-1
JIS C8201-5-1
EN/IEC 60947-1
EN/IEC 60947-5-4
JIS C8201-1

BV
UL
GL
DNV
Packing Units
2
Jul 19, 2023
Jul 19, 2023 3

Product data sheet
Specifications
Push button, metal, Harmony XB4,

flush, green, 22mm, spring return,
unmarked, 1NO
XB4BA31
Main
Product or component type Push-button
Type of operator spring return
Operator profile Green flush, unmarked
Head type Standard
Contacts type and composition 1 NO
Complementary
Height 47 mm
Width 30 mm
Depth 52 mm
Terminals description ISO n°1 (13-14)NO

washer
Positive opening Without
Operating travel 2.6 mm (NO changing electrical state)

Operating force 3.8 N NO changing electrical state
Jul 16, 2023 1


thermal current
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to EN/IEC 60947-1
[Uimp] rated impulse withstand 6 kV conforming to EN/IEC 60947-1

voltage
Environment

storage

operation

IP67
IP69
IP69K

NEMA 4X
Standards JIS C8201-5-1

EN/IEC 60947-5-5
UL 508
EN/IEC 60947-1
EN/IEC 60947-5-4
EN/IEC 60947-5-1
CSA C22.2 No 14
JIS C8201-1

GL
BV
UL listed
DNV
2
Jul 16, 2023
Packing Units

EU RoHS Declaration
Mercury free Yes
Warranty 18 months
Jul 16, 2023 3

Product data sheet XB4BA31
Dimensions Drawings
Dimensions

(1) Additional row of contacts or double contact.
4
Jul 16, 2023


(2) 40 mm min. / 1.57 in. min.
(3) 30 mm min. / 1.18 in. min.
+0.4 +0.016
(5) 45 mm min. / 1.78 in. min.
(6) 32 mm min. / 1.26 in. min.
Jul 16, 2023 5

Dimensions
6
Jul 16, 2023
Product data sheet
Specifications
Push button, Harmony XB4, metal,

flush, red, 22mm, spring return,
unmarked, 1NC
XB4BA42
Main
Product or component type Push-button
Type of operator spring return
Operator profile Red flush, unmarked
Head type Standard
Contacts type and composition 1 NC
Complementary
Height 47 mm
Width 30 mm
Depth 52 mm
Terminals description ISO n°1 (21-22)NC

washer
Operating travel 1.5 mm (NC changing electrical state)

Operating force 3.5 N NC changing electrical state
Jul 16, 2023 1


thermal current
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to EN/IEC 60947-1
[Uimp] rated impulse withstand 6 kV conforming to EN/IEC 60947-1

voltage
Environment

storage

operation

IP67
IP69
IP69K

NEMA 4X

UL 508
CSA C22.2 No 14
EN/IEC 60947-5-4
EN/IEC 60947-1
JIS C8201-5-1
EN/IEC 60947-5-1
JIS C8201-1
Product certifications LROS (Lloyds register of shipping)

GL
BV
CSA
DNV
UL listed
2
Jul 16, 2023
Packing Units

EU RoHS Declaration
Mercury free Yes
Warranty 18 months
Jul 16, 2023 3

Dimensions Drawings
Dimensions

(1) Additional row of contacts or double contact.
4
Jul 16, 2023


(2) 40 mm min. / 1.57 in. min.
(3) 30 mm min. / 1.18 in. min.
+0.4 +0.016
(5) 45 mm min. / 1.78 in. min.
(6) 32 mm min. / 1.26 in. min.
Jul 16, 2023 5

Dimensions
6
Jul 16, 2023

Data Sheet Components

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Data Sheet Components

Uploaded by

Copyright:

Available Formats

Product data sheet

Motor circuit breaker, TeSys Deca,

To be discontinued on: 31 December 2023

Product name TeSys GV3

Product or component type Motor circuit breaker

Device short name GV3P

Device application Motor protection

Trip unit technology Thermal-magnetic

Utilisation category AC-3 conforming to IEC 60947-4-1

Network frequency 50/60 Hz conforming to IEC 60947-4-1

Fixing mode 35 mm symmetrical DIN rail: clipped

Motor power kW 5.5 kW at 400/415 V AC 50/60 Hz

Breaking capacity 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2

Control type Rotary handle

[In] rated current 13 A

Thermal protection adjustment 9…13 A conforming to IEC 60947-4-1

Magnetic tripping current 182 A

[Ith] conventional free air 13 A conforming to IEC 60947-4-1

[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2

Jul 19, 2023 1

[Uimp] rated impulse withstand 6 kV conforming to IEC 60947-2

Phase failure sensitivity Yes conforming to IEC 60947-4-1

Suitability for isolation Yes conforming to IEC 60947-1

Power dissipation per pole 8W

Mechanical durability 50000 cycles

Electrical durability 50000 cycles for AC-3 at 415 V In

Rated duty Continuous conforming to IEC 60947-4-1

Tightening torque 5 N.m - on screw clamp terminal

Product weight 0.96 kg

Colour Dark grey

Product certiﬁcations CCC

IK degree of protection IK09 enclosure

IP degree of protection IP20 conforming to IEC 60529

Climatic withstand conforming to IACS E10

Ambient air temperature for -40…80 °C

Fire resistance 960 °C conforming to IEC 60695-2-11

Ambient air temperature for -20…60 °C

Mechanical robustness Shocks: 15 Gn for 11 ms contactor open

Operating altitude 3000 m

Number of Units in Package 1 1

Package 1 Height 16.0 cm

Package 1 Width 6.5 cm

Package 1 Length 14.5 cm

Package 1 Weight 940.0 g

REACh Regulation REACh Declaration

EU RoHS Directive Compliant

Mercury free Yes

China RoHS Regulation China RoHS declaration

RoHS exemption information Yes

Environmental Disclosure Product Environmental Profile

Circularity Proﬁle End of Life Information

Jul 19, 2023 3

Thermal-Magnetic Tripping Curves

1a 3 poles from cold state (Ir minimum): GV3P

Current Limitation on Short-Circuit (3-Phase 400/415 V)

Maximum Thermal Limit on Short-Circuit

Jul 19, 2023 5

(1) Blocks GVAN●●, GVAD●● and GVAM11.

Mounting on Rail AM1 DE200 or AM1 ED201

Panel Mounting, using M4 Screws

Mounting on Pre-Slotted Plate AM1 PA

Jul 19, 2023 7

Motor circuit breaker,TeSys Deca frame 3,3P,9-13A,thermal magnetic,EverLink
