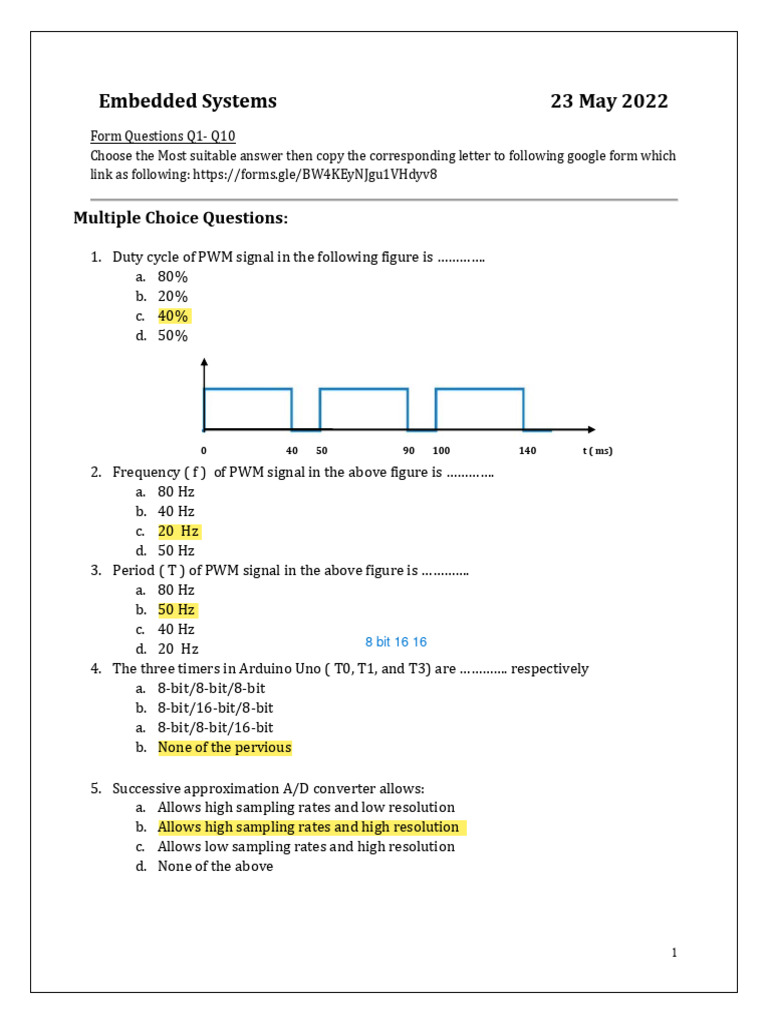

Embedded Systems 23 May 2022

Form Questions Q1‐ Q10

Choose the Most suitable answer then copy the corresponding letter to following google form which
link as following: https://forms.gle/BW4KEyNJgu1VHdyv8

Multiple Choice Questions:

1. Duty cycle of PWM signal in the following figure is ………….

a. 80%
b. 20%
c. 40%
d. 50%

0 40 50 90 100 140 t ( ms)

2. Frequency ( f ) of PWM signal in the above figure is ………….

a. 80 Hz
b. 40 Hz
c. 20 Hz
d. 50 Hz
3. Period ( T ) of PWM signal in the above figure is ………….
a. 80 Hz
b. 50 Hz
c. 40 Hz
8 bit 16 16
d. 20 Hz
4. The three timers in Arduino Uno ( T0, T1, and T3) are …………. respectively
a. 8‐bit/8‐bit/8‐bit
b. 8‐bit/16‐bit/8‐bit
a. 8‐bit/8‐bit/16‐bit
b. None of the pervious

5. Successive approximation A/D converter allows:

a. Allows high sampling rates and low resolution
b. Allows high sampling rates and high resolution
c. Allows low sampling rates and high resolution
d. None of the above

1
6. N‐bit Flash A/D converters require ………………………… comparators and are used
where…………………………………………………….
a. 2n parallel, High speeds are required with higher resolution
b. 3n serial, low speeds are required with higher resolution
c. 2n‐1 parallel, High speeds are required with lower resolution
d. 4n serial, low speeds are required with lower resolution
7. What type of converter is illustrated in the figure below?
a) Successive approximation A/D converter b) Flash D/A converters
c) Successive approximation D/A converter d) Flash A/D converters

8. Successive approximation A/D converter allows ……………. sampling rates and ………….
resolution
a) high, low b) high, high
c) low high d) low, low
9. The R‐2R ladder D/A converter uses resistors of only two values
a. R and 8R.
b. R and 2R.
c. R and 4R.
d. None of the above
10. According to Nyquist theorem, the sampling rate should be _________ as fast as the
highest frequency of the signal being measured or sampled.
a) ten times b) thrice
c) Twice d) hundred times
