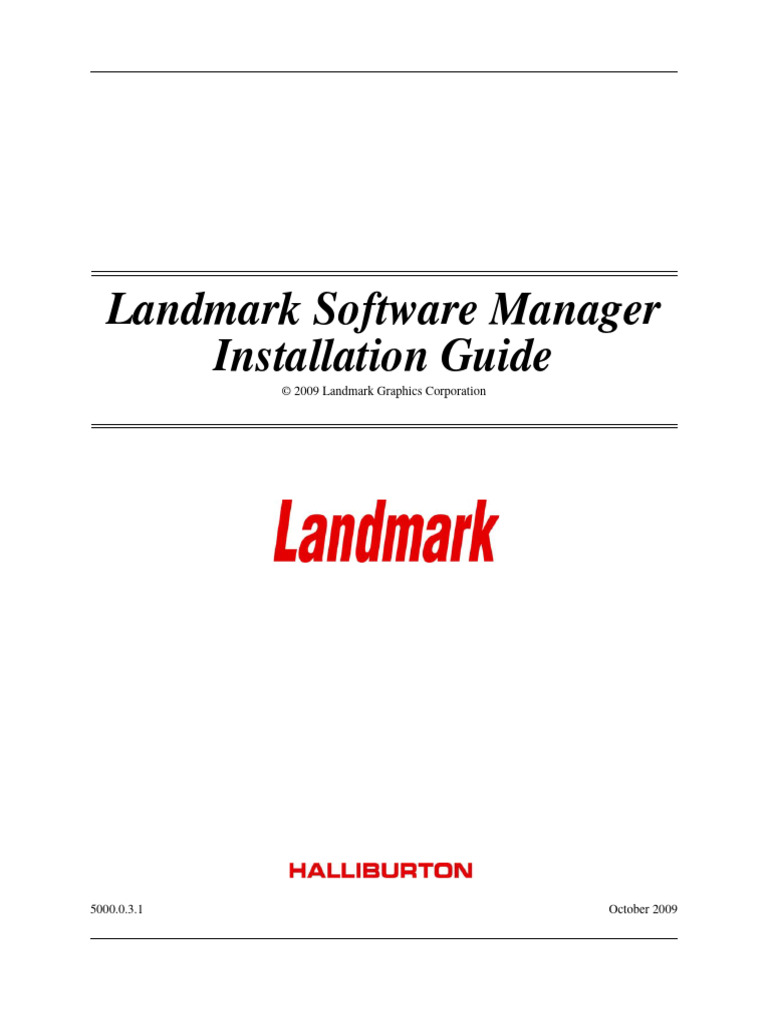

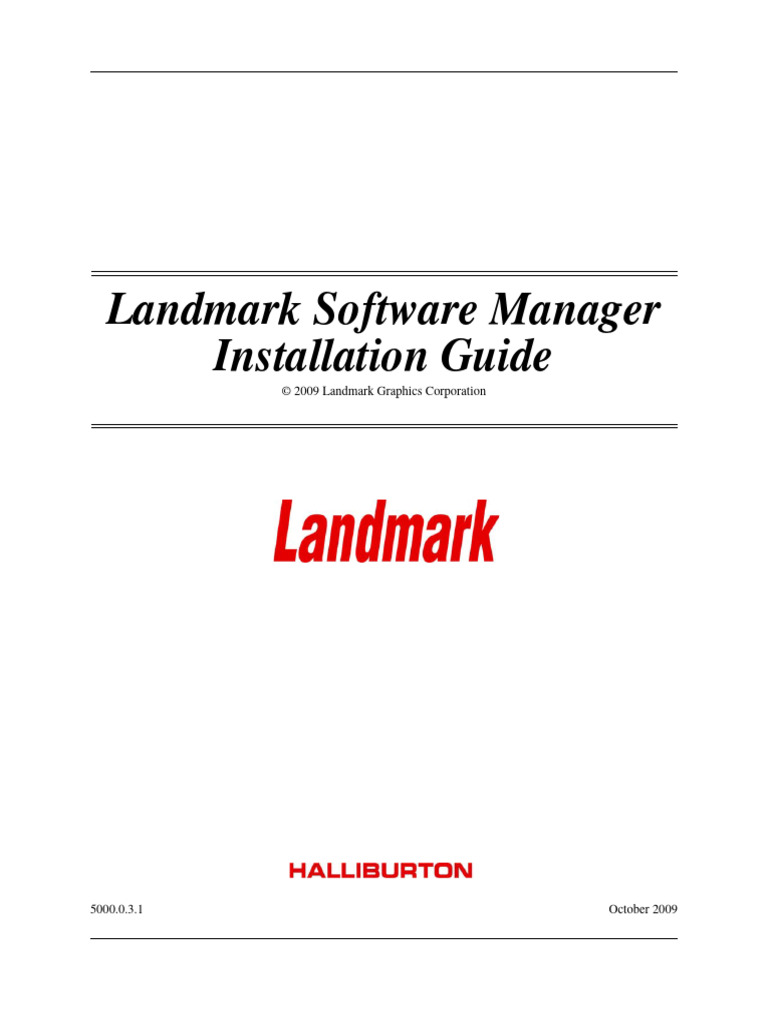

Landmark Software Manager

Installation Guide
© 2009 Landmark Graphics Corporation

5000.0.3.1 October 2009

Landmark Software Manager Landmark

© 2009 Landmark Graphics Corporation

All Rights Reserved Worldwide

This publication has been provided pursuant to an agreement containing restrictions on its use. The publication is also
protected by Federal copyright law. No part of this publication may be copied or distributed, transmitted, transcribed,
stored in a retrieval system, or translated into any human or computer language, in any form or by any means,
electronic, magnetic, manual, or otherwise, or disclosed to third parties without the express written permission of:

Landmark Graphics Corporation

2107 CityWest Blvd, Building 2, Houston, Texas 77042-3051, USA
P.O. Box 42806, Houston, Texas 77242, USA
Phone:713-839-2000, FAX: 713-839-2015
Internet: www.halliburton.com/landmark

Trademark Notice
3D Drill View, 3D Drill View KM, 3DFS, 3D Surveillance, 3DView, Active Field Surveillance, Active Reservoir Surveillance, ADC, Advanced
Data Transfer, ARIES, ARIES DecisionSuite, AssetConnect, Asset Decision Solutions, Asset Development Center, AssetDirector, Asset Journal,
AssetLink, AssetLink Advisor, AssetLink Director, AssetLink Observer, AssetObserver, AssetObserver Advisor, Asset Performance,
AssetPlanner, AssetSolver, AssetSolver Online, AssetView, BLITZPAK, CasingLife, CasingSeat, COMPASS, Corporate Data Archiver,
Corporate Data Store, Data Analyzer, DataManager, DataStar, DBPlot, Decision Management System, DecisionSpace, DecisionsSpace 3D Drill
View KM, DecisionSpace AssetLink, DecisionSpace AssetPlanner, DecisionSpace AssetSolver, DecisionSpace AssetView 2D, DecisionSpace
AssetView 3D, DecisionSpace Atomic Meshing, DecisionSpace Decision Management Systems(DMS), DecisionSpace for Production,
DecisionSpace Infrastructure, DecisionSpace Nexus, DecisionSpace PowerModel, DecisionSpace PrecisionTarget, DecisionSpace Reservoir,
DecisionSpace TracPlanner, DecisionSpace Well Seismic Fusion, DecisionSpace WellSolver, DecisionSuite, DepthTeam, Depth Team,
DepthTeam Explorer, Depth Team Explorer, DepthTeam Express, Depth Team Express, DepthTeam Extreme, Depth Team Extreme, DepthTeam
Interpreter, Depth Team Interpreter, Desktop Navigator, DESKTOP-PVT, DESKTOP-VIP, DEX, DIMS, Discovery, Discovery Asset, Discovery
FrameBuilder, DMS, Drillability Suite, Drilling Desktop, DrillModel, Drill-to-the-Earth Model, Drillworks, Drillworks ConnectML, DSS,
Dynamic Reservoir Management, Dynamic Surveillance System, EarthCube, EDM, EDT, eLandmark, Engineer’s Data Model, Engineer's
Desktop, Engineer’s Link, ESP, Event Similarity Prediction, ezFault, ezModel, ezSurface, ezTracker, FastTrack, FG+, FieldPlan, Field Scenario
Planner, FZAP!, GeoAtlas, GeoDataLoad, GeoGraphix, GeoGraphix Exploration System, GeoLink, GeoProbe GF DataServer, GES, GES97,
GESXplorer, GMAplus, GMI Imager, GRIDGENR, Handheld Field Operator, HHFO, I2 Enterprise, iDIMS, IsoMap, iWellFile, i Wellfile,
KnowledgeSource, Landmark, Landmark Decision Center, Landmark & Design, Landmark Logo and Design, Landscape, Lattix, LeaseMap, LMK
Resources, LogEdit, LogM, LogPrep, Make Great Decisions, MathPack, MIMIC, MIMIC+, Model Builder, MyLandmark, Nexus, Object MP,
OpenBooks, OpenJournal, OpenSGM, OpenVision, OpenWells, OpenWire, OpenWorks, OpenWorks Development Kit, OpenWorks Well File,
OpenWorks Production, PAL, Parallel-VIP, PetroBank, PetroBank Explorer, PetroBank Master Data Store, PetroWorks, PetroWorks Asset,
PetroWorks Pro, PetroWorks ULTRA, PlotView, Point Gridding Plus, Pointing Dispatcher, PostStack, PostStack ESP, PostStack Family,
PowerCalculator, PowerExplorer, PowerExplorer Connect, PowerGrid, PowerHub, Power Interpretation, PowerJournal, PowerModel, PowerView,
PrecisionTarget, Presgraf, Pressworks, PRIZM, Production Asset Manager, Production, PROFILE, Project Administrator, ProMAGIC,
ProMAGIC Connect, ProMAGIC Server, ProMAX, ProMAX 2D, ProMAX 3D, ProMAX 3DPSDM, ProMAX 4D, ProMAX Family, ProMAX
MVA, ProMAX VSP, pSTAx, Query Builder, Quick, Quick+, QUICKDIF, QuickWell, QuickWell+, QUIKRAY, QUIKSHOT, QUIKVSP, RAVE,
RAYMAP, RAYMAP+, Real Freedom, Real Time Asset Management Center, Real Time Decision Center, Real Time Operations Center, Real
Time Production Surveillance, Real Time Surveillance, Real-Time View, Reference Data Manager, Reservoir Framework Builder, RESev,
ResMap, RightTime, RTOC, SCAN, SeisCube, SeisMap, SeisModel, SeisSpace, SeisVision, SeisWell, SeisWorks, SeisWorks 2D, SeisWorks 3D,
SeisWorks PowerCalculator, SeisWorks PowerJournal, SeisWorks PowerSection, SeisWorks PowerView, SeisXchange, Semblance Computation
and Analysis, Sierra Family, SigmaView, SimConnect, SimConvert, SimDataStudio, SimResults, SimResults+, SimResults+3D, SIVA+, SLAM,
smartSECTION, Spatializer, SpecDecomp, StrataAmp, StrataMap, StrataModel, StrataSim, StrataWorks, StratWorks, StratWorks 3D, StreamCalc,
StressCheck, STRUCT, Structure Cube, Surf & Connect, SynTool, SystemStart, SystemStart for Clients, SystemStart for Servers, System Start for
Servers, SystemStart for Storage, Tanks & Tubes, TDQ, Team Workspace, TERAS, The Engineer’s Desktop, Total Drilling Performance, TOW/cs,
TOW/cs Revenue Interface, TracPlanner, TracPlanner Xpress, Trend Form Gridding, Turbo Synthetics, VESPA, VESPA+, VIP, VIP-COMP, VIP-
CORE, VIPDataStudio, VIP-DUAL, VIP-ENCORE, VIP-EXECUTIVE, VIP-Local Grid Refinement, VIP-THERM, WavX, Web Editor,
Wellbase, Wellbore Planner, Wellbore Planner Connect, WELLCAT, Well Cost, WELLPLAN, Well Seismic Fusion, WellSolver, WellXchange,
WOW, Xsection, You're in Control. Experience the difference, ZAP!, and Z-MAP Plus are trademarks, registered trademarks or service marks of
Landmark Graphics Corporation.

All other trademarks, service marks and product or service names are the trademarks or names of their respective owners.

Note
The information contained in this document is subject to change without notice and should not be construed as a commitment by Landmark Graphics
Corporation. Landmark Graphics Corporation assumes no responsibility for any error that may appear in this manual. Some states or jurisdictions
do not allow disclaimer of expressed or implied warranties in certain transactions; therefore, this statement may not apply to you.

2 : 5000.0.3.1
Landmark Landmark Software Manager

Installation Procedures

Welcome to Landmark Software Manager

Welcome to the Landmark Software Manager (LSM). This simple-to-

install application provides access to Landmark software product
updates via electronic software download over the Internet. The LSM
allows you to:

• See all the latest releases and patches that are available for your
Landmark products.

• Obtain Landmark products faster after the release as CD

manufacturing time is eliminated.

• View release notes, readme files, and installation information

about the products before you download them.

• Download just the software you need, when you need it.

• Download all your product releases, patches, or updates to a

specified location in one easy step.

• Contact Landmark Customer Support for licenses or additional

assistance.

This guide helps you download and install the LSM in a variety of
operating systems, including Linux, Solaris, and Windows.

5000.0.3.1 Installation Procedures: Welcome to Landmark Software Manager 3

Landmark Software Manager Landmark

Requirements

Platform Requirements

Landmark Software Manager is a java-based application that runs on

any of the standard Release 5000.0.0 platforms. A description of the
platforms is below:


• Microsoft Products: 
For DecisionSpace and Select Landmark Classic Technologies
Microsoft Windows XP IA32 X86_64
and Microsoft Windows 2003 Server 
32-bit
Microsoft Windows XP X86_64
and Microsoft Windows 2003 Server
64-bit
• Red Hat Enterprise Linux 5.0 — 64-bit
Note: This OS was built on Red Hat X86_64 — (Note: The supported platform is the x86_64
Enterprise Linux v4.4, but v5.0 will be architecture, but some applications will be built in a 32-bit for-
tested and evaluated as it is now avail- mat.)
able.
• Solaris:
For Landmark Classic Technologies Only
Sun Solaris 10 SPARC (Note: This supported platform is the SPARC64
64-bit architecture, but some applications will be built in a 32-bit for-
mat.)

Other Requirements

To download the Landmark Software Manager, you need one of the

following types of hardware:

• Personal computer with Intel Pentium/Xeon

• Sun Workstation
• Linux Workstation
• Windows-based Personal Computer or Mobile Workstation

In addition, to download the Landmark Software Manager, you need a

Landmark Support login ID and Password and Adobe Acrobat Reader
7.0 or above.

4 Installation Procedures: Requirements 5000.0.3.1

Landmark Landmark Software Manager

Terminology

Following are some terms that you may need to familiarize yourself
with before proceeding with the installation.

• Installation folder – This is the folder you have installed the Landmark Software
Manager to. For example the default installation folder would be
c:\Landmar\LSM5000.3.0.

• Proxy server – Server name or IP address where the Landmark Software

Manager will route your network traffic to.

• Proxy port – The port number where LSM will route your network traffic to.

• Lsm.properties file – The configuration file.

• Lsm.log file – The log file.

• Log4j.xml file – The configuration use by Landmark Software Manager to set

up logging.

• lsm.ws.validate.corp – The configuration where we can force the Landmark

Software Manager to check connection with the internal server.

• esd.ws.server – The configuration for an external server.

• esd.ws.corp.server – The configuration to an internal server.

• DNS server esd.halliburton.com – An external server.

• DNS server esd.corp.halliburton.com – An internal server.

5000.0.3.1 Installation Procedures: Terminology 5

Landmark Software Manager Landmark

Installation Process

The installation process for Linux, Solaris, and Windows systems are
basically the same.

New Install

If you have not previously downloaded the Landmark Software

Manager application, go to PeopleSoft and read Solution Document
Number 150523. This document contains the appropriate file(s) needed
for the installation.

Upgrade Install

If you have previously installed the Landmark Software Manager

application, open your current version of the Landmark Software
Manager application and download version 5000.0.3.1. If you have not
installed 5000.0.3.0 then the upgrade path is from 5000.0.0, 5000.0.1,
or 5000.0.2 to 5000.0.3.1.

While installing the application, the default directory for the 5000.0.3.1
version is Landmark\LSM5000.0.3.0 which is different from the
previous installations which were at Landmark\LSM. We suggest that
you do not write over your existing installation since it contains the
download history file. This file contains all the items that you have
downloaded in xml format. If you want to delete the previous version
of the Landmark Software Manger application, you can copy the
existing history file (Landmark\LSM\Landmark\history.xml) to another
directory for future reference.

Note:

If you have already installed Landmark Software Manger version 5000.0.3.0,

please install version 5000.0.3.1 immediately.

Installation

1. On a Windows-based system, double-click setup.exe or setup.bin

to begin the installation.
or
On a Linux-based system, in the bin directory, at the command line
type ./setup.bin; otherwise, type setup.bin

6 Installation Procedures: Installation Process 5000.0.3.1

Landmark Landmark Software Manager

The Preparing to Install dialog, similar to the following, appears.



Next, the Landmark splash dialog, similar to the following,

appears.

An Introduction dialog,similar to the one below displays.

5000.0.3.1 Installation Procedures: Installation Process 7

Landmark Software Manager Landmark

2. Click Next to continue.

The License Agreement dialog, similar to the following, appears.

3. Read the License Agreement and if you agree, click the radio
button that corresponds to “I accept the terms of the License
Agreement” and click Next to continue.

Note: If you do not accept the terms of the License Agreement,

you will not be able to proceed with the installation. You will only
be able to click the “Previous” or “Cancel” button.
8 Installation Procedures: Installation Process 5000.0.3.1
Landmark Landmark Software Manager

The Choose Install Folder dialog, similar to the following,

appears.

4. Type the location where you want the Landmark Software

Manager to install and click Next to continue.

The Pre-installation dialog similar to the following appears:

If this information is correct, click Install to continue.

5000.0.3.1 Installation Procedures: Installation Process 9

Landmark Software Manager Landmark

During the installation, a dialog with a progress bar, similar to the

following, appears.

Once the installation is complete, a dialog with a congratulatory

message, similar to the following, appears.

5. Click Done and the installation is complete.

For information on using the Landmark Software Manager, log on

to the Landmark Software Manager and refer to the Online Help.

10 Installation Procedures: Installation Process 5000.0.3.1

Landmark Landmark Software Manager

Logon Procedure

Once the installation of the Landmark Software Manager is complete,

you are ready to log on and use the application.

• In Windows, the Landmark Software Manager installation wizard

installs an icon on your desktop. To access the application in
Windows, double-click the icon or click Start > All Programs >
Landmark > Landmark Software Manager.

• In Linux, enter:

cd<installdir>/LSM

./lsm.sh

Where <installdir> is the directory you specified during the installation

process.

If you need a proxy server to access the Internet, the Proxy Settings
dialog, similar to the following, appears. (The Proxy dialog only
appears when the system requires proxy settings.)

If you do not have the required information, contact your System

Administrator.

Note that a checkmark appears in the Proxy Required checkbox.

5000.0.3.1 Installation Procedures: Logon Procedure 11

Landmark Software Manager Landmark

To specify the Proxy server:

1. Enter the Host Name.

This should be a fully-qualified server name (typically
<servername>.<company>.org or
<servername>.<domain>.<company>.org) or network address (of
the form XXX.XX.XX.XX).

2. Enter the Port Number.

3. If required, enter the proxy User Name and Password.

4. Click Save Proxy.

Note that you only need to enter this information the first time you start
the LSM on this computer, or if the proxy settings for this computer
change.

If the information is entered correctly, a Login dialog, similar to the

following, appears. If the entered information is incorrect, you will
receive an error message that reads “Unable to set Proxy: contact
administrator.

Note: When you select the company information from the drop-down
menu, on the Login dialog, it will include a company ID number.

12 Installation Procedures: Logon Procedure 5000.0.3.1

Landmark Landmark Software Manager

To log in to the Landmark Software Manager:

1. Enter your PeopleSoft Login ID, password, and select the

company name.

2. Click Login.

A Welcome dialog, similar to the following, appears:

Note: The company ID number will appear at the top, on the left
of the Welcome dialog.

3. Click the Help button to view the Online Help and Release Notes.

4. Select your available downloads and start downloading your

Landmark products.

You can also edit your Proxy settings from this dialog by accessing
Tools > Preferences.

5000.0.3.1 Installation Procedures: Logon Procedure 13
