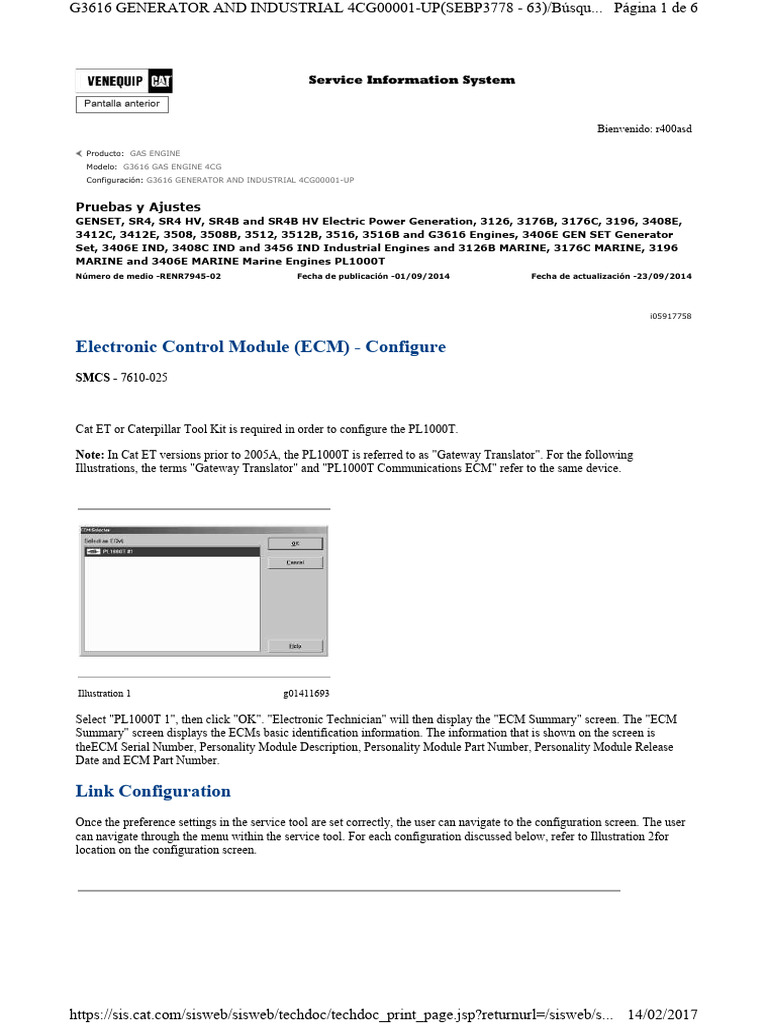

G3616 GENERATOR AND INDUSTRIAL 4CG00001-UP(SEBP3778 - 63)/Búsqu...

Página 1 de 6

Pantalla anterior

Bienvenido: r400asd

Producto: GAS ENGINE


Modelo: G3616 GAS ENGINE 4CG
Configuración: G3616 GENERATOR AND INDUSTRIAL 4CG00001-UP

Pruebas y Ajustes
GENSET, SR4, SR4 HV, SR4B and SR4B HV Electric Power Generation, 3126, 3176B, 3176C, 3196, 3408E,
3412C, 3412E, 3508, 3508B, 3512, 3512B, 3516, 3516B and G3616 Engines, 3406E GEN SET Generator
Set, 3406E IND, 3408C IND and 3456 IND Industrial Engines and 3126B MARINE, 3176C MARINE, 3196
MARINE and 3406E MARINE Marine Engines PL1000T
Número de medio -RENR7945-02 Fecha de publicación -01/09/2014 Fecha de actualización -23/09/2014

i05917758

Electronic Control Module (ECM) - Configure


SMCS - 7610-025

Cat ET or Caterpillar Tool Kit is required in order to configure the PL1000T.

Note: In Cat ET versions prior to 2005A, the PL1000T is referred to as "Gateway Translator". For the following
Illustrations, the terms "Gateway Translator" and "PL1000T Communications ECM" refer to the same device.

Illustration 1 g01411693

Select "PL1000T 1", then click "OK". "Electronic Technician" will then display the "ECM Summary" screen. The "ECM
Summary" screen displays the ECMs basic identification information. The information that is shown on the screen is
theECM Serial Number, Personality Module Description, Personality Module Part Number, Personality Module Release
Date and ECM Part Number.

Link Configuration
Once the preference settings in the service tool are set correctly, the user can navigate to the configuration screen. The user
can navigate through the menu within the service tool. For each configuration discussed below, refer to Illustration 2for
location on the configuration screen.

https://sis.cat.com/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/s... 14/02/2017
G3616 GENERATOR AND INDUSTRIAL 4CG00001-UP(SEBP3778 - 63)/Búsqu... Página 2 de 6

Illustration 2 g01411704

Cat Datalink Module Identifier Configuration

Each module that resides on a Cat Datalink network must use a unique identifying address or name. On Cat Datalink this
unique name or identifying address is referred to as a "Module Identifier" (MID). The PL1000T has been designed with the
ability to occupy up to three MIDs on the Cat Datalink. Each PL1000T on the same Cat Datalink must occupy a unique
MID. Each PL1000T will default to using the "PL1000T 1" configuration. Manually change each PL1000T when connected
to the same Cat Datalink network with other PL1000Ts.

• PL1000T 1 - Configures the PL1000T to occupy the first of the three available MID's on the Cat Datalink.

• PL1000T 2 - Configures the PL1000T to occupy the second of the three available MID's on the Cat Datalink.

• PL1000T 3 - Configures the PL1000T to occupy the third of the three available MID's on the Cat Datalink.

Cat Datalink Boost Function Enable Status

The PL1000T contains special circuitry that can provide a boost function for the Cat Datalink. When this boost function is
enabled, the Cat Datalink wiring harness length limitations are extended to 305 m (1000 ft).

• Enabled - Cat Datalink harness length limitation is 305 m (1000 ft).

• Disabled - Cat Datalink harness length limitation is 31 m (100 ft).

Note: Enabling the boost function when Cat Datalink is less than 31 m (100 ft) can cause communication failures. Only
enable the boost function when harness lengths greater than 31 m (100 ft) are required. When multiple PL1000Ts are
connected to the same Cat Datalink, "CDL Boost" should be enabled on only one of the devices. Enabling "CDL Boost" on
multiple PL1000Ts connected to the same Cat Datalink network will prevent normal communications.

Cat Datalink over J1939 Tunnel Function Enable Status

The Tunnel Function Enable Status is a specialized feature for integration of 3500B Series II Caterpillar engines. Tunnel
Function Enable Status is used for multiple engine connection to a single display device on Cat Datalink. The engine
"Application and Integration guide" provides information on whether this feature is required in the application.

CAN Extension Bridge Function Enable Status

Possible Values

• Enabled

• Disabled (Default)

https://sis.cat.com/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/s... 14/02/2017
G3616 GENERATOR AND INDUSTRIAL 4CG00001-UP(SEBP3778 - 63)/Búsqu... Página 3 de 6

When this feature is enabled, the PL1000T will bridge communications between CAN port 1 and the RS-485 connection, as
well as between CAN port 2 and the RS-485 connection.

J1939 Bridge Function Enable Status

Possible Values

• Enabled

• Disabled (Default)

When this feature is enabled, the PL1000T will bridge communications between CAN port 1 and CAN port 2.

Note: The operation of the J"1939 Bridge" and "CAN Extension Bridge" features of the PL1000T is mutually exclusive. If
the "J1939 Bridge" functionality is enabled, the "CAN Extension Bridge" functionality will be automatically "Disabled".
Therefore, if the "J1939 Bridge" functionality is "Disabled", the "CAN Extension Bridge" functionality will be
automatically "Enabled". Refer to Systems Operation, "General Information" for more information on feature compatibility.

Customer Communications Module (CCM


) Configuration
CCM

Function Port Selection

Possible values:

• Disabled

• Serial Port 1

• Serial Port 2

Possible Values:

• 300

• 600

• 1200

• 2400

• 4800

• 9600

• 19200

• 38400

CCM

Stop Bits

Possible Values

• 1

• 2

CCM

Data Bits

https://sis.cat.com/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/s... 14/02/2017
G3616 GENERATOR AND INDUSTRIAL 4CG00001-UP(SEBP3778 - 63)/Búsqu... Página 4 de 6

Possible Values

• 7

• 8

CCM

Parity

Possible Values:

• Even

• Mark

• None

• Odd

• Space

CCM

Protocol Auto-Detect Enable Status

Possible Values

• Enabled

• Disabled

CCM

Protocol Configuration

Possible Values

• M5X

• M50

CCM

Unit Configuration

Possible Values

• Primary

• Service

CCM

Password Protection Enable Status

Possible Values

• Enabled

• Disabled

CCM

Function Baud Rate Change Enabled Status

https://sis.cat.com/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/s... 14/02/2017
G3616 GENERATOR AND INDUSTRIAL 4CG00001-UP(SEBP3778 - 63)/Búsqu... Página 5 de 6

Possible Values

• Enabled

• Disabled

CCM

Connection Type Configuration

Possible Values

• Direct

• Modem

Table 1
CCM Example Message Table
Description and Command String sent to CCM Response from CCM
Set access security to Level 1 using password "ABCDEF123"
"5001350B61AA874142434445313233F8"
"5000340C0061AA874142434445313233F9"
Set access security Level 2 using password "XYZ12345"
5001350B61AA8858595A3132333435D2
5000340C0061AA88585955A3132333435D3
Set access security to Level 3 using password
"5001350B61AA8941424358595A3132A7"
"5000340C0061AA8941424358595A3132A8"
"Standard Broadcast List 01" Setup for Parameters ($40, $44, $54,
$F118, $F50E, $F509, $F119, $F58E)
"50015010099"
"5000A13150124030020004000440054F118F50eF509F119F58ED1"

Activate Standard Broadcast List 01


"500115010099"
"50001101019D"
Deactivate Standard Broadcast List 01
"50011501099"
"50001201019C"
Advanced Broadcast List 01 Setup for Parameters ($40, $44, $54,
$F118, $F50E, $F509, $F119, $F58E) "50011F0D1E012401000000000845150000DD"
"50001E1F012401000000000000400000044000054"
"00F11800F50900F58EDE"
Activate Advanced Broadcast List 01 "5001F0D1C012401000000000845150000DF"
"50001C010192"
Deactivate Advanced Broadcast List 01 "5001F0DFD012401000000000845150000DE"
"50001D010191"
Activate Event Broadcasts
"5001850B24000000AAFA0E0001010047"
"50008109240000AAFA0E0101004E"
Deactivate Event Broadcasts
"5001850B00000000AAFA0E000201006A"
"50008109000000AAFA0E02010071"
Activate Diagnostics Broadcasts
"5001850B00000000AAFA0D000201006B"
"50008109000000AAFA0D02010072"
Activate Event Composite 01 (M50 Only)
"50611508200B6"
"50008209580000AAFA0E01020018"
Deactivate Diagnostic Composite 01 (M50 Only)
"506115028200B6"
"50008209580000AAFA0E01020018"
Activate Events Composite 01 (M50 Only) "5001850B58000000AAFA0E0001020012"
Deactivate Events Composite 01 (M50 Only) "5001850B00010000AAFA0E0002020068"
"50008109000100AAFA0E0202006F"

https://sis.cat.com/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/s... 14/02/2017
G3616 GENERATOR AND INDUSTRIAL 4CG00001-UP(SEBP3778 - 63)/Búsqu... Página 6 de 6

Engine Vision Interface Module (EVIM) Configuration


EVIM Function Port Selection

Possible Values

• Disabled (Default)

• Serial Port 1

• Serial Port 2

Engine Vision Interface Serial Port Baud Rate

Possible Values

• 19200 (Default)

• 38400

Global Position System Interface Module (GPSIM) Configuration


GPSIM Function Port Selection

Possible Values

• Disabled (Default)

• Serial Port 1

• Serial Port 2

Sea Water Module Interface (SWMI) Configuration


SWMI Function Port Selection

Possible Values

• Disabled (Default)

• Serial Port 1

• Serial Port 2

Copyright 1993 - 2017 Caterpillar Inc. Tue Feb 14 16:39:52 UTC-0400 2017
Todos los derechos reservados. r400asd
Red privada para licenciados del SIS.

https://sis.cat.com/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/s... 14/02/2017
