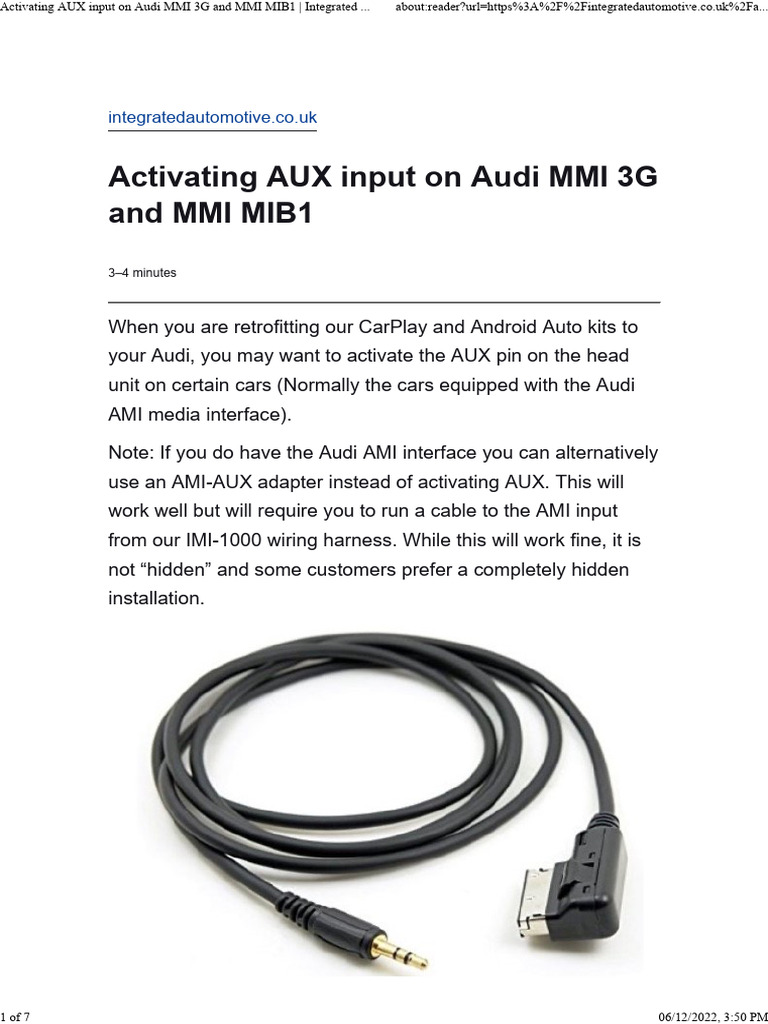

Activating AUX input on Audi MMI 3G

and MMI MIB1
3–4 minutes

When you are retrofitting our CarPlay and Android Auto kits to
your Audi, you may want to activate the AUX pin on the head
unit on certain cars (Normally the cars equipped with the Audi
AMI media interface).

Note: If you do have the Audi AMI interface you can alternatively
use an AMI-AUX adapter instead of activating AUX. This will
work well but will require you to run a cable to the AMI input
from our IMI-1000 wiring harness. While this will work fine, it is
not “hidden” and some customers prefer a completely hidden
installation.

1 of 7 06/12/2022, 3:50 PM
Activating AUX input on Audi MMI 3G and MMI MIB1 | Integrated ... about:reader?url=https%3A%2F%2Fintegratedautomotive.co.uk%2Fa...

An AMI to AUX adapter can be used instead of activating AUX

on the Audi head unit

This is because our retrofit CarPlay and Android Auto Kits

connect directly to the AUX pin on the MMI head unit via our
plug and play wiring loom, so activating of the pin is an elegant
solution and completely hidden.

This tutorial will show you the steps required to activate the AUX
pin on the rear of the head unit, you will also see “AUX” as an
option in the media menu on the central display once you have
performed the activation process.

1. Install VCDS

To perform the activation you will need VCDS, this is available

from Ross Tech.

2. Connect to OBD port

Connect your OBD interface to the OBD port in the car and
connect to the vehicle via VCDS.

2 of 7 06/12/2022, 3:50 PM
Activating AUX input on Audi MMI 3G and MMI MIB1 | Integrated ... about:reader?url=https%3A%2F%2Fintegratedautomotive.co.uk%2Fa...

Connect to the vehicle using VCDS

3. Enter “Select Control Module” menu

View the control modules in VCDS

4. Enter the “Electronics 2” tab

3 of 7 06/12/2022, 3:50 PM
Activating AUX input on Audi MMI 3G and MMI MIB1 | Integrated ... about:reader?url=https%3A%2F%2Fintegratedautomotive.co.uk%2Fa...

The electronics 2 tab focuses upon the infotainment system

5. Enter the “5F module”

The 5F module allows you to reconfigure the MMI head unit

6. Enter “Coding”

The first action to take before performing any coding changes is

to save current current configuration. This can be done by
saving the “current code” highlighted in the dialogue below.
Store this in a .txt file, as you can recode back to this coding
value if something goes wrong.

4 of 7 06/12/2022, 3:50 PM
Activating AUX input on Audi MMI 3G and MMI MIB1 | Integrated ... about:reader?url=https%3A%2F%2Fintegratedautomotive.co.uk%2Fa...

The highlighted hexadecimal number is the current “long code”

for the connected vehicle

7. Deselect AMI and Select AUX-IN

In order to successfully activate the AUX-IN[PR-UE3] on your

MMI head unit, you will need to first deselect AMI[PR-UE7].

Deselect AMI[PR-UE7] abs select AUX-IN[PR-UE3]

8. Copy Long Code

Copy the “long code” in row 1 and go back to the 5F module tab

9. Apply coding to 5F module

5 of 7 06/12/2022, 3:50 PM
Activating AUX input on Audi MMI 3G and MMI MIB1 | Integrated ... about:reader?url=https%3A%2F%2Fintegratedautomotive.co.uk%2Fa...

Paste the new coding string into the empty box in the dialogue
below and hit “Do it!”

Paste new coding string into empty dialogue box above

Once the new coding string has been pasted into the dialogue
box above, you are ready to code the 5F module.

Apply the coding to the 5F module and the AUX-IN[PR-UE3] will

be activated

You will now see AUX-IN in the Media menu, this option should

6 of 7 06/12/2022, 3:50 PM
Activating AUX input on Audi MMI 3G and MMI MIB1 | Integrated ... about:reader?url=https%3A%2F%2Fintegratedautomotive.co.uk%2Fa...

be selected when using our retrofit CarPlay and Android Auto

Kits in order to pass audio signals from the IMI-1000 and the
MMI sound system.
