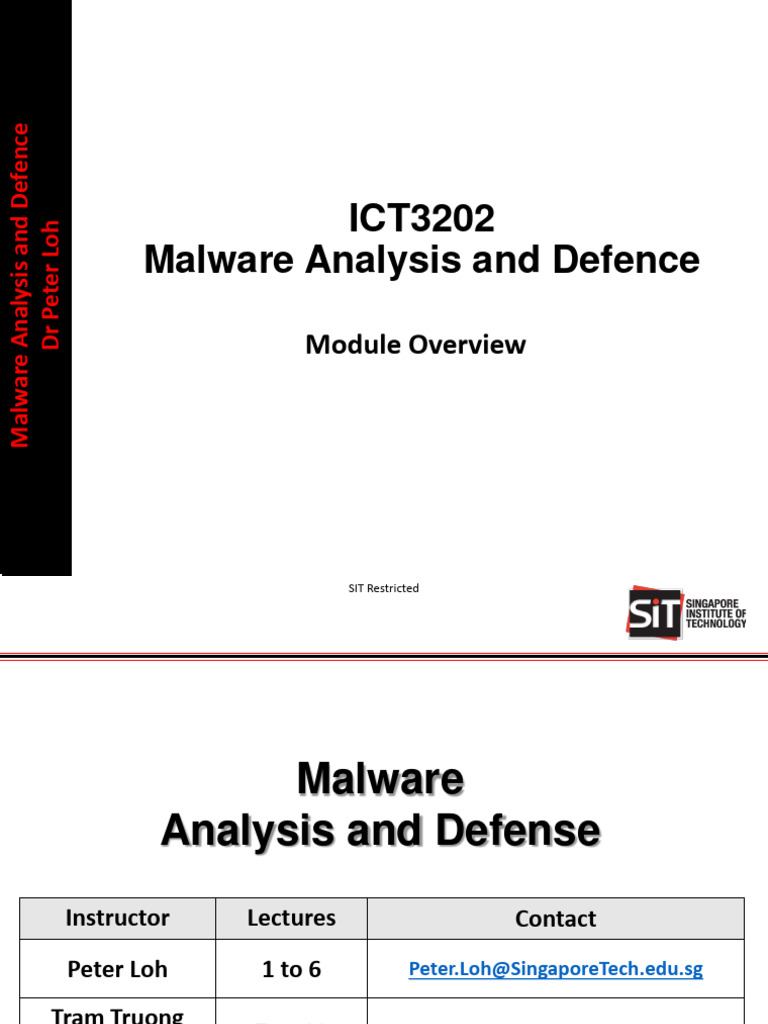

Malware Analysis and Defence

ICT3202
Dr Peter Loh

Malware Analysis and Defence

Module Overview
 SIT Restricted

Malware
Analysis and Defense
Instructor Lectures Contact
Peter Loh 1 to 6 Peter.Loh@SingaporeTech.edu.sg

Tram Truong
7 to 12 TruongHuu.Tram@singaporetech.edu.sg
Huu

2
 SIT Restricted

Module Overview – Topic Schedule 1/2

Thursday - am Thursday - pm
Week Topic
(Lecture) (Lab)
1 Module Introduction 31/08/23

2 Basic Static Analysis 07/09/23 07/09/23

Advanced Static Analysis –
3 14/09/23 14/09/23
Understanding Reverse Engineered Malware 1
Advanced Static Analysis –
4 Understanding Reverse Engineered Malware 2 21/09/23 21/09/23
Quiz 1 – Basic Static Analysis

5 Dynamic Analysis – Basic and Advanced 28/09/23 28/09/23

Mid-Trimester Revision
6 05/10/23 05/10/23
Deliverable 1 – Advanced Static Analysis

7 Trimester Break 09/10/23 13/10/23

3
 SIT Restricted

Module Overview – Topic Schedule 2/2

Thursday - am Thursday - pm
Week Topic
(Lecture) (Lab)

8 Windows APIs 19/10/23 19/10/23

Malware Process Injection

9 and Hooking 26/10/23 26/10/23
Quiz 2 – Basic Dynamic Analysis

10 Self-Defending (Evasive) Malware 02/11/23 02/11/23

Countering Malware Defenses

11 Deliverable 2 – Advanced Static 09/11/23 09/11/23
and Dynamic Analyses

12 Virtualization Technology 16/11/23 16/11/23

Malware Analysis and Defence 4

13 End-Trimester Revision 23/11/23 23/11/23
 Module Assessment
Quiz 1 (10%) D1 (20%) Quiz 2 (20%) D2 (20%)
Malware Analysis and Defence

Basic Static Analysis Advanced Static Basic Dynamic Advanced Static and
Analysis Analysis Dynamic Analyses
Doc and submit Doc and submit Doc and submit Doc and submit
analyses and results analyses and results analyses and results analyses and results
Dr Peter Loh

1 lab session 2 weeks 1 lab session 2 weeks

Individual Team Individual Team

Quiz 1, Quiz 2: Absentees taking quiz on following

Exam (30%) week will have progressively larger quiz scope; max
Closed Book (2 consecutive MCs after which 0 awarded).
4 Questions
D1,D2: FORM YOUR OWN TEAMS (SEE XSITE)
2 hours
This is NOT an assembly
Individual language programming course
 What are Your Learning Objectives?
• To distinguish among different malware types and behaviors
• To apply a suitable approach to reverse engineer an
Malware Analysis and Defence

executable or dynamic link library

• To select and apply suitable techniques and tools for static
malware analysis
Dr Peter Loh

• To select and apply suitable techniques and tools for

dynamic malware analysis
• To distinguish among different defense techniques employed
by self-defending malware
• To select suitable disabling/prevention techniques and tools
to counter specified malware defenses
• To extract investigative evidence to support identification of
a malware infection/attack
• Expected to recall assembly language programming studied in ICT1003
• Supplementary Intel x86 assembly language material on LMS (xSiTe)
Malware Analysis and Defence
Dr Peter Loh What is Malware?

• Malware is an abbreviation for Malicious Software

• A program that executes with harmful results that may not
be immediately obvious
• Modern malware can defend itself against a variety of
security measures (e.g. evade traditional Anti-Virus tools,
Analysis Sandboxes)
Malware Analysis and Defence
Dr Peter Loh
WannaCry vs Lazarus APT

• WannaCry (2017) shares code with Lazarus APT (2015)

• Modern malware unlikely to be an ideal zero-day due to complexity and purpose
Malware Analysis and Defence
Dr Peter Loh Trojan.Alphanc vs Backdoor.Duuzer

• Common strings between Trojan.Alphanc and Backdoor.Duuzer

• Trojan.Alphanc (2017) is a modified version of Backdoor.Duuzer (2015)
• Common strings show common executables as components
Malware Analysis and Defence
How Do We Begin?

• A modern, complex malware (customized zero-day) is a sum of

its parts – not all parts are zero-days
• Is your traditional Anti-Virus Scanner useless?
Dr Peter Loh

• There are many scanners – many are (very) good, others not so
• Do we know which ones are good?
• VirusTotal – subsidiary of Google, free online service that
analyses files and URLs
• VirusTotal runs multiple anti-virus and website scanners
Malware Analysis and Defence
Dr Peter Loh Virustotal – Malware Analysis

• https://www.virustotal.com/gui/
 Free Malware Samples – 1/2
• https://zeltser.com/malware-sample-sources/
Malware Analysis and Defence
Dr Peter Loh
 Free Malware Samples – 2/2
• http://www.tekdefense.com/downloads/malware-samples/
Malware Analysis and Defence
Dr Peter Loh
 The Malware Zoo
• Daily discovery rate of new malware samples in order of 100s of thousands
• Manage and keep pace with analysis demand (identify, categorize and store)
•
Malware Analysis and Defence

Analysis automation and efficient, secure information organization needed

• A malware zoo combines these requirements into a unified solution
• Private zoo - https://www.sec.in.tum.de/i20/research/malware-zoo
•
Dr Peter Loh

Public zoo - https://github.com/ytisf/theZoo (needs analysis engine)

• Public analysis automation - https://github.com/rieck/malheur
• Sharing of information and resources is, however, necessary
 Types of Malware
•
Malware Analysis and Defence

Viruses
• Worms
• Trojans
Dr Peter Loh

• Rootkits
• Adware / Scareware
• Malicious Scripts
• Blended Threats
• Advanced Malware
• Fileless Malware
Malware Analysis and Defence
Dr Peter Loh
 Viruses
• A malicious piece of code
that spreads itself from file
Malware Analysis and Defence

to file

• Needs a host file

Dr Peter Loh

• Requires user interaction

• Eg. opening a file, invoking an
executable, system boot

• Different types of viruses

➢ Boot sector viruses
➢ Macro viruses
➢ File / Program viruses
 Boot Sector Virus Execution
Load Master Boots active Load IO.SYS
Malware Analysis and Defence

DOS loaded
Boot Record (DOS) partition MSDOS.SYS

Virus learns Write itself to

Dr Peter Loh

Boot virus Move DOS to

location of the original
loads into mem new location
DOS partition location

Virus goes Runs original

Load Master
Boot virus runs memory DOS boot and
Boot Record
resident loads DOS

• Examples: Stoned (1988), Michelangelo (1992), Parity Boot.A (1998)

Symantec/Norton AVS
• More recent: DarkSeoul (2013), Rombertik (2015), Petya (2018)
 SIT Restricted

Boot Sector Virus Example (Petya) – 1/2

• 2nd sector before and after being overwritten

• Try examining the Petya sample with Virustotal
 SIT Restricted

Boot Sector Virus Example – 2/2

• AVP.exe – Kaspersky’s Anti-Virus (NotPetya – Petya variation but is a

worm)
• If AVP found, Function corrupt_mbr writes bytes from uninitialized
memory to first 10 disk sectors - renders the disk unbootable
• If AVP not found, overwrite_mbr_func, is where the malware attempts
to overwrite the MBR with its own code
 Macro Virus
• Macro: an executable embedded in a document to automate
Malware Analysis and Defence

repetitive tasks (save keystrokes)

• Application-dependent, e.g., Microsoft Word, Excel
• Causes sequence of actions when app is opened
Dr Peter Loh

• Examples: Melissa (1999), Mimir (1999)

• More recently: Hancitor (2019):
➢ Also known as Chanitor, Tordal
➢ Executable embedded in Excel spreadsheets or Word documents
• Why virus writers like macro viruses?
➢ Easy to learn
➢ Easy to write
➢ Popularity of certain software packages eg. MS Office, Excel
 How macro virus works in MS Word
Malware Analysis and Defence

• Every word document is based on a template

• When an existing or new document is opened, the
Dr Peter Loh

template settings are applied first

• A global template: NORMAL.DOTM

Infected Macros copy New

Macros loaded Auto macro
document themselves to documents
into memory executed
opened global template infected
Malware Analysis and Defence
Dr Peter Loh
Hancitor (Chanitor) Macro Virus Flowchart

Non-persistent
attack payloads

• Uses phishing emails as an infection method to run malicious attachment

• Downloads the Pony/Evil Pony fileless malware or Ursnif executables,
which then steals data and connects to C&C server
 Hancitor Macro Virus – Macro Code
Malware Analysis and Defence
Dr Peter Loh

Macro code checks for the following antivirus solutions:

• PSUAMain - Panda Cloud Antivirus
• n360 - Norton 360
• PccNT - Trend Micro PC-cillin
• uiSeAgnt - Trend Micro Worry-Free Business Security
• mbam - Malwarebytes
• mbamtray - Malwarebytes
Malware Analysis and Defence
Dr Peter Loh
Hancitor Macro Virus Analysis Demo

Any indication of AVS checking?

 Mimir Macro Virus – In Action Clip
Malware Analysis and Defence

https://www.youtube.com/watch?v=Ug5C9KoTR8g
Dr Peter Loh
 File / Program Virus
• Overwriting target
Malware Analysis and Defence

Original Program File

• Appending (Pre-pending) to
target
What’s left of
• Popular host files infected − Virus code
Dr Peter Loh

original program
.EXE, .COM, .BIN, .DRV and
.SYS
• Examples: Cascade (1989),
Sality (2003), Sality variant Header Original Program File
with rootkit (2010),
Ransomware (2012 -> ),
Virus
• Cryptolocker Ransomware Header
code
Original Program File

(2013 - 2014)

What about inserting itself in the middle of the file/program?

 Ransomware Virus Variant – CryptoLocker
Malware Analysis and Defence

https://www.youtube.com/watch?v=Gz2kmmsMpMI
Dr Peter Loh
 Companion Virus – File / Program virus variant
Filename.com
Malware Analysis and Defence

Execute
DOS 2 Filename.exe
filename
Dr Peter Loh

Assume user enters C>chkdsk command

Filename.bat

• Do not need to modify the original files (may be difficult to detect)

• Creates a new file with a legitimate name but different ext eg. chkdsk.com
• When malicious chkdsk.com completes running, it transfers control to
chkdsk.exe (legitimate command) to avoid detection
• Examples: Stator.worm (2001), Win2K/Stream (2005), Pilsen (2006)
 Companion Virus – Execution Order

• Previous slide – execution order based on file type order specified

Malware Analysis and Defence

• Execution order can also be based on path search order ($PATH)

Dr Peter Loh

• Assume standard (legitimate) gcc exists in /usr/bin

• Where should the attacker place a malicious gcc copy?
Malware Analysis and Defence
Dr Peter Loh

Worms
 Worms
• A malicious piece of code that spreads itself (self-replicating)
from computer to computer by exploiting vulnerabilities
Malware Analysis and Defence

➢ A worm needs no host file

➢ Spreads without user interaction

• Can spread via

Dr Peter Loh

➢ e-mail attachments
➢ LAN or Internet

• Worms search for vulnerable computers and infect them

➢ Whole Internet can be infected in less than 20 minutes

• Morris worm (1988), Blaster worm (2003), Conficker worm

(2008), Stuxnet (2010), Server Message Block (SMB) Worm
Tool (Dec 2014), EternalRocks (2017 - 2018)
Malware Analysis and Defence
EternalRocks in Action - Clip

https://www.youtube.com/watch?v=94NkaQGbTa4
Dr Peter Loh
 EternalRocks in Action – VirusTotal
• EternalRocks does not contain killswitch that was used to
block WannaCry
Malware Analysis and Defence

• Sleeps 24-hour to avoid detection / dynamic analysis

Dr Peter Loh
 State of Worm Technology
• Multi-platform / cross-platform: Windows, Unix, OS-X etc.
Malware Analysis and Defence

• Multi-channel: network, browser, email etc.

• Ultrafast spreading: host/port scanning.
• Typically attacks discovered or implanted vulnerabilities or uses
Dr Peter Loh

pre-programmed zero-day exploits (eg. EternalBlue and

EternalRomance).
• Transport vehicles: for the payloads (spread attacking tools and
bots) – eg. Stuxnet’s use of PLC attack payload, NotPetya’s use
of Mimikatz, WannaCry’s use of EternalBlue exploit.
• Polymorphic: Each copy protected with new encryption-
decryption technique or key.
• Metamorphic: different behavior patterns.
Malware Analysis and Defence
Dr Peter Loh

Trojans
 Trojans
• “Trojan Horse” – malware disguised
as innocent software (need not be
Malware Analysis and Defence

hidden); may need user interaction

• Different hidden malicious

functionalities – payload, typically
Dr Peter Loh

does not spread

• Examples:
➢ BlackEnergy APT (2015) -
http://www.welivesecurity.com/2016/
01/04/blackenergy-trojan-strikes-
again-attacks-ukrainian-electric-
power-industry/
➢ Silence APT (Sept 2017) -
https://securityboulevard.com/2017/1
1/trojan-silence-uses-stealth-attack-
banks/
Malware Analysis and Defence
Dr Peter Loh
BlackEnergy Trojan Sample Analysis

https://www.virustotal.com/en/file/bc062acda428f55782710f9c4f2df88c26d
slide 38
fbc004b94b479459f8572b1219444/analysis/
Malware Analysis and Defence
Dr Peter Loh
Silence connecting to Command & Control

slide 39
https://securelist.com/the-silence/83009/
 zwShell RAT
• Packed with ASprotect 2.x SKE; unpack files with 7z [password
Malware Analysis and Defence

is NoNh]
• When launched, it presents a fake crash error:
Dr Peter Loh

• Type “zw.china” into the hidden password field to start RAT

• Can create a custom trojan or launching a C&C server
➢ Select listening port, password for encrypting C&C traffic, custom
sound notifications when infected machines connect or disconnect
slide 40
 What a Trojan can do
• Remote Administration Trojan (RAT): attackers can get
Malware Analysis and Defence

(complete) control of a PC
• Distributed attacks: zombie network
• Backdoor: secret direct access point – usually by APTs and
Dr Peter Loh

Botnets (typically sets-up link to C & C server)

• Keyloggers: capture authentication, personal, financial info
• Audio, video capturing: control devices
• Downloader
➢ Exists only to download other malicious code
➢ Used when attacker first gains access
• Logic bomb: only executed when a specific trigger condition
is met
Malware Analysis and Defence
Dr Peter Loh

Rootkits
 Rootkits
• Rootkits
➢ An application (or set of applications) that hides its presence or
Malware Analysis and Defence

presence of another application on the computer

➢ Modifies system calls and utilities to avoid detection
➢ Main characteristics: stealthiness and persistence
➢ Rubyilyn (OSX, 2012), Flame (Windows, 2012), Umbreon (Linux, 2016),
Dr Peter Loh

Spicy Hot Pot (2020)

Spicy Hot Pot puts malicious filter drivers in “WindowsApps” folder. Rename folder to see them.
Filter drivers prevent removal of registry keys, services or the kernel drivers themselves.
https://www.youtube.com/watch?v=goyiuyA-Ckw
Malware Analysis and Defence
Dr Peter Loh Flame Rootkit Infection Vectors
Malware Analysis and Defence
Dr Peter Loh Flame Rootkit - VirusTotal
 Umbreon Rootkit
• Cross-platform – Intel x86, x86-64, ARM (Raspberry PI)
• Creates valid Linux user account used as backdoor
• Backdoor account via SSH is invisible – libc functions hooked by rootkit
Malware Analysis and Defence

• If seq no, ack no, and IP values are matched, reverse shell connects to attacker
Dr Peter Loh
Malware Analysis and Defence
Dr Peter Loh Umbreon Rootkit - VirusTotal
