25/11/2022, 14:51 IP Phone Registration Process(SIP/SCCP) – CRAZY NETWORKING

CRAZY NETWORKING

PHONES

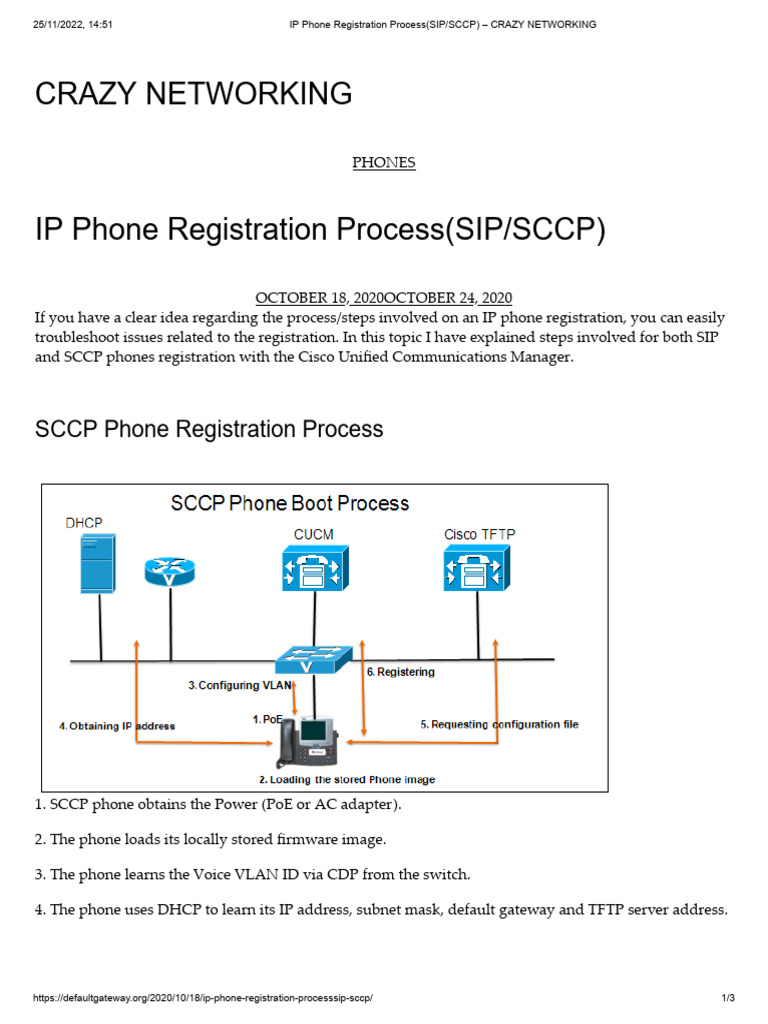

IP Phone Registration Process(SIP/SCCP)

OCTOBER 18, 2020OCTOBER 24, 2020


If you have a clear idea regarding the process/steps involved on an IP phone registration, you can easily
troubleshoot issues related to the registration. In this topic I have explained steps involved for both SIP
and SCCP phones registration with the Cisco Unified Communications Manager.

SCCP Phone Registration Process

1. SCCP phone obtains the Power (PoE or AC adapter).

2. The phone loads its locally stored firmware image.

3. The phone learns the Voice VLAN ID via CDP from the switch.

4. The phone uses DHCP to learn its IP address, subnet mask, default gateway and TFTP server address.

[Link] 1/3
25/11/2022, 14:51 IP Phone Registration Process(SIP/SCCP) – CRAZY NETWORKING

5. The phone contacts the TFTP server and requests its configuration file. Each phone has a customized
configuration file named SEP<mac_address>.[Link] created by CUCM and uploaded to TFTP when the
administrator creates or modifies the phone.

Advertisements

REPORT THIS AD

6. The phone registers with the primary CUCM server listed in its configuration file. CUCM then sends
the softkey template to the phone using SCCP messages.

SIP Phone Registration Process

SIP Phones use a different set of steps to achieve the same goal. Steps 1 to 4 are the same as SCCP
Phones, refer the steps as illustrated in the figure: SCCP Phone Boot Process .

1. The phone contacts the TFTP server and requests the Certificate Trust List file (only if the cluster is
secured).

[Link] 2/3
25/11/2022, 14:51 IP Phone Registration Process(SIP/SCCP) – CRAZY NETWORKING

2. The phone contacts the TFTP server and requests its SEP<mac-address>.[Link] configuration file.

3. If the SIP Phone has not been provisioned before boot time, the SIP Phone downloads the default
configuration [Link] file from the TFTP server.

4. The SIP phone requests a firmware upgrade (Load ID file), if one was specified in the configuration
file. This process allows the phone to upgrade the firmware image automatically when required for a
new version of CUCM.

5. The phone downloads the SIP dial rules configured for that phone.

6. The phone Establish connection with the primary CUCM and the TFTP server end to end.

7. The phone Registers with the primary CUCM server listed in its configuration file.

8. The phone downloads the appropriate localization files from TFTP.

9. The phone downloads the softkey configurations from TFTP.

10. The phone downloads custom ringtones (if any) from TFTP.

About TFTP server:

TFTP is a critical service for IP Phones. The Phone use TFTP to download their config files, firmware and
other data. Without TFTP, the phones simply do not function properly. When you make a configuration
change to a device, CUCM creates or modifies a config file for the device and uploads it to the TFTP
server. TFTP service much therefore provided by one or more CUCM servers in the cluster.

[Link] 3/3
