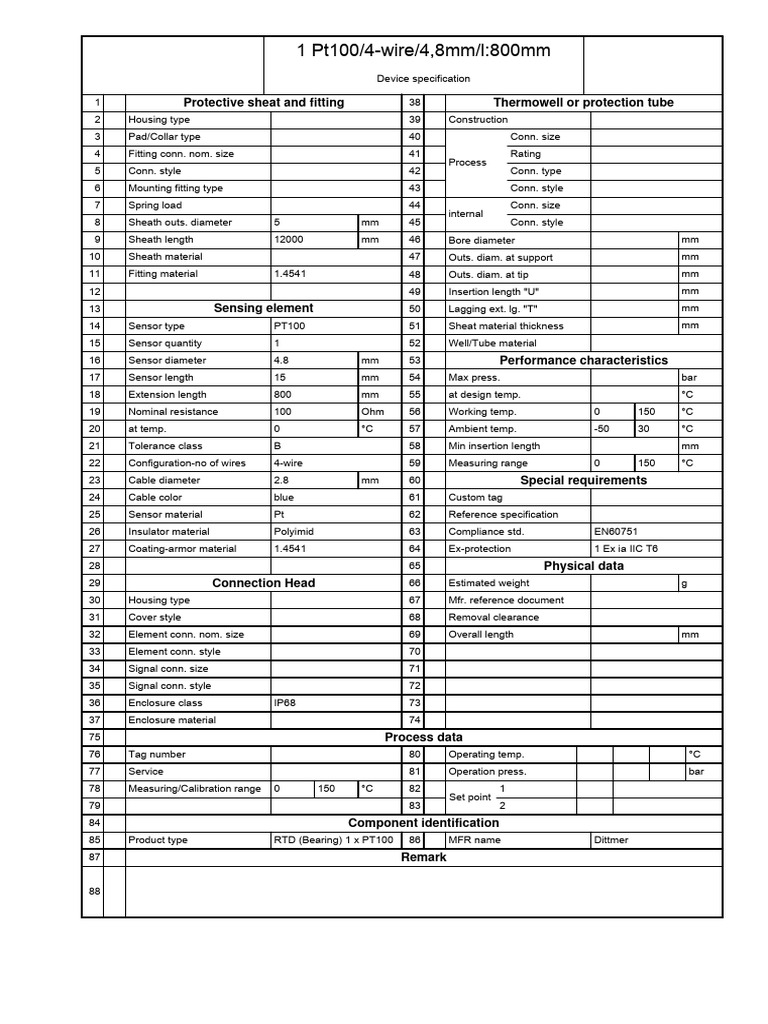

1 Pt100/4-wire/4,8mm/l:800mm

Device specification

1 Protective sheat and fitting 38 Thermowell or protection tube


2 Housing type 39 Construction
3 Pad/Collar type 40 Conn. size
4 Fitting conn. nom. size 41 Rating
Process
5 Conn. style 42 Conn. type
6 Mounting fitting type 43 Conn. style
7 Spring load 44 Conn. size
internal
8 Sheath outs. diameter 5 mm 45 Conn. style
9 Sheath length 12000 mm 46 Bore diameter mm
10 Sheath material 47 Outs. diam. at support mm
11 Fitting material 1.4541 48 Outs. diam. at tip mm
12 49 Insertion length "U" mm
13 Sensing element 50 Lagging ext. lg. "T" mm
14 Sensor type PT100 51 Sheat material thickness mm
15 Sensor quantity 1 52 Well/Tube material
16 Sensor diameter 4.8 mm 53 Performance characteristics
17 Sensor length 15 mm 54 Max press. bar
18 Extension length 800 mm 55 at design temp. °C
19 Nominal resistance 100 Ohm 56 Working temp. 0 150 °C
20 at temp. 0 °C 57 Ambient temp. -50 30 °C
21 Tolerance class B 58 Min insertion length mm
22 Configuration-no of wires 4-wire 59 Measuring range 0 150 °C
23 Cable diameter 2.8 mm 60 Special requirements
24 Cable color blue 61 Custom tag
25 Sensor material Pt 62 Reference specification
26 Insulator material Polyimid 63 Compliance std. EN60751
27 Coating-armor material 1.4541 64 Ex-protection 1 Ex ia IIC T6
28 65 Physical data
29 Connection Head 66 Estimated weight g
30 Housing type 67 Mfr. reference document
31 Cover style 68 Removal clearance
32 Element conn. nom. size 69 Overall length mm
33 Element conn. style 70
34 Signal conn. size 71
35 Signal conn. style 72
36 Enclosure class IP68 73
37 Enclosure material 74
75 Process data
76 Tag number 80 Operating temp. °C
77 Service 81 Operation press. bar
78 Measuring/Calibration range 0 150 °C 82 1
Set point
79 83 2
84 Component identification
85 Product type RTD (Bearing) 1 x PT100 86 MFR name Dittmer
87 Remark

88
