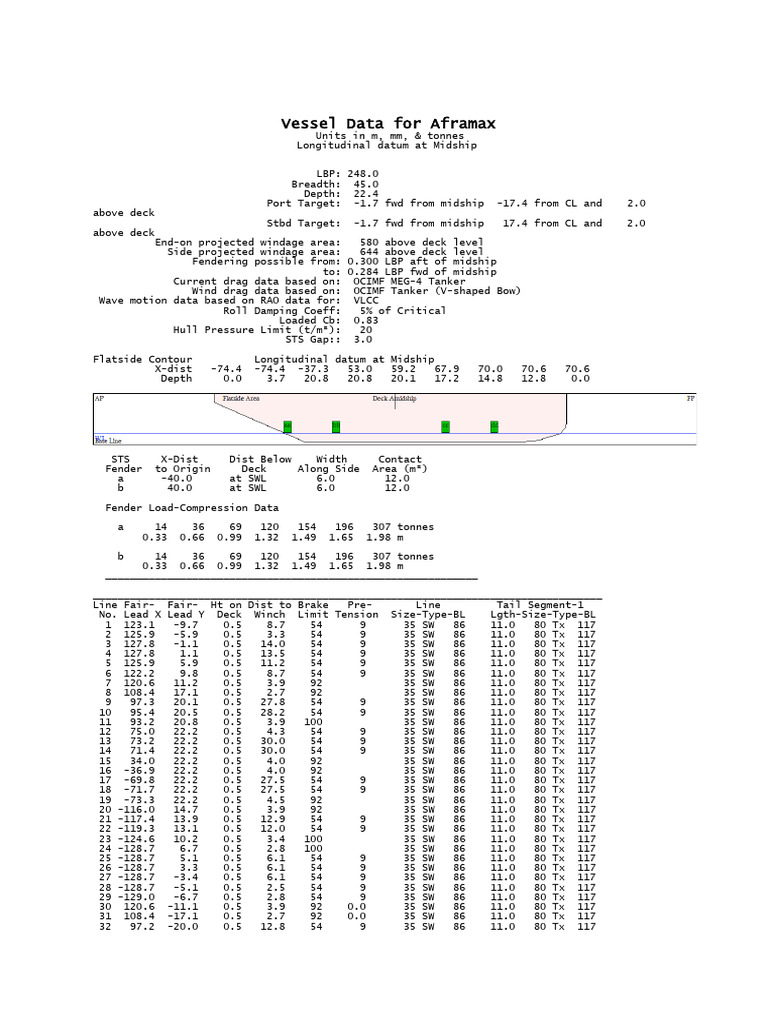

Vessel Data for Aframax

Units in m, mm, & tonnes

Longitudinal datum at Midship

LBP: 248.0
Breadth: 45.0
Depth: 22.4
Port Target: -1.7 fwd from midship -17.4 from CL and 2.0
above deck
Stbd Target: -1.7 fwd from midship 17.4 from CL and 2.0
above deck
End-on projected windage area: 580 above deck level
Side projected windage area: 644 above deck level
Fendering possible from: 0.300 LBP aft of midship
to: 0.284 LBP fwd of midship
Current drag data based on: OCIMF MEG-4 Tanker
Wind drag data based on: OCIMF Tanker (V-shaped Bow)
Wave motion data based on RAO data for: VLCC
Roll Damping Coeff: 5% of Critical
Loaded Cb: 0.83
Hull Pressure Limit (t/m²): 20
STS Gap:: 3.0
Flatside Contour Longitudinal datum at Midship
X-dist -74.4 -74.4 -37.3 53.0 59.2 67.9 70.0 70.6 70.6
Depth 0.0 3.7 20.8 20.8 20.1 17.2 14.8 12.8 0.0

STS X-Dist Dist Below Width Contact

Fender to Origin Deck Along Side Area (m²)
a -40.0 at SWL 6.0 12.0
b 40.0 at SWL 6.0 12.0

Fender Load-Compression Data

a 14 36 69 120 154 196 307 tonnes
0.33 0.66 0.99 1.32 1.49 1.65 1.98 m
b 14 36 69 120 154 196 307 tonnes
0.33 0.66 0.99 1.32 1.49 1.65 1.98 m
____________________________________________________________

__________________________________________________________________________________
Line Fair- Fair- Ht on Dist to Brake Pre- Line Tail Segment-1
No. Lead X Lead Y Deck Winch Limit Tension Size-Type-BL Lgth-Size-Type-BL
1 123.1 -9.7 0.5 8.7 54 9 35 SW 86 11.0 80 Tx 117
2 125.9 -5.9 0.5 3.3 54 9 35 SW 86 11.0 80 Tx 117
3 127.8 -1.1 0.5 14.0 54 9 35 SW 86 11.0 80 Tx 117
4 127.8 1.1 0.5 13.5 54 9 35 SW 86 11.0 80 Tx 117
5 125.9 5.9 0.5 11.2 54 9 35 SW 86 11.0 80 Tx 117
6 122.2 9.8 0.5 8.7 54 9 35 SW 86 11.0 80 Tx 117
7 120.6 11.2 0.5 3.9 92 35 SW 86 11.0 80 Tx 117
8 108.4 17.1 0.5 2.7 92 35 SW 86 11.0 80 Tx 117
9 97.3 20.1 0.5 27.8 54 9 35 SW 86 11.0 80 Tx 117
10 95.4 20.5 0.5 28.2 54 9 35 SW 86 11.0 80 Tx 117
11 93.2 20.8 0.5 3.9 100 35 SW 86 11.0 80 Tx 117
12 75.0 22.2 0.5 4.3 54 9 35 SW 86 11.0 80 Tx 117
13 73.2 22.2 0.5 30.0 54 9 35 SW 86 11.0 80 Tx 117
14 71.4 22.2 0.5 30.0 54 9 35 SW 86 11.0 80 Tx 117
15 34.0 22.2 0.5 4.0 92 35 SW 86 11.0 80 Tx 117
16 -36.9 22.2 0.5 4.0 92 35 SW 86 11.0 80 Tx 117
17 -69.8 22.2 0.5 27.5 54 9 35 SW 86 11.0 80 Tx 117
18 -71.7 22.2 0.5 27.5 54 9 35 SW 86 11.0 80 Tx 117
19 -73.3 22.2 0.5 4.5 92 35 SW 86 11.0 80 Tx 117
20 -116.0 14.7 0.5 3.9 92 35 SW 86 11.0 80 Tx 117
21 -117.4 13.9 0.5 12.9 54 9 35 SW 86 11.0 80 Tx 117
22 -119.3 13.1 0.5 12.0 54 9 35 SW 86 11.0 80 Tx 117
23 -124.6 10.2 0.5 3.4 100 35 SW 86 11.0 80 Tx 117
24 -128.7 6.7 0.5 2.8 100 35 SW 86 11.0 80 Tx 117
25 -128.7 5.1 0.5 6.1 54 9 35 SW 86 11.0 80 Tx 117
26 -128.7 3.3 0.5 6.1 54 9 35 SW 86 11.0 80 Tx 117
27 -128.7 -3.4 0.5 6.1 54 9 35 SW 86 11.0 80 Tx 117
28 -128.7 -5.1 0.5 2.5 54 9 35 SW 86 11.0 80 Tx 117
29 -129.0 -6.7 0.5 2.8 54 9 35 SW 86 11.0 80 Tx 117
30 120.6 -11.1 0.5 3.9 92 0.0 35 SW 86 11.0 80 Tx 117
31 108.4 -17.1 0.5 2.7 92 0.0 35 SW 86 11.0 80 Tx 117
32 97.2 -20.0 0.5 12.8 54 9 35 SW 86 11.0 80 Tx 117
 33 95.4 -20.5 0.5 13.2 54 9 35 SW 86 11.0 80 Tx 117
34 93.2 -20.9 0.5 3.9 100 0.0 35 SW 86 11.0 80 Tx 117
35 75.0 -22.2 0.5 4.3 54 9 35 SW 86 11.0 80 Tx 117
36 73.3 -22.2 0.5 14.9 54 9 35 SW 86 11.0 80 Tx 117
37 71.4 -22.2 0.5 14.9 54 9 35 SW 86 11.0 80 Tx 117
38 34.1 -22.2 0.5 4.0 92 0.0 35 SW 86 11.0 80 Tx 117
39 -36.9 -22.2 0.5 4.0 92 0.0 35 SW 86 11.0 80 Tx 117
40 -69.9 -22.2 0.5 12.5 54 9 35 SW 86 11.0 80 Tx 117
41 -71.6 -22.2 0.5 12.5 54 9 35 SW 86 11.0 80 Tx 117
42 -73.4 -22.2 0.5 4.5 92 0.0 35 SW 86 11.0 80 Tx 117
43 -116.1 -14.7 0.5 3.9 92 0.0 35 SW 86 11.0 80 Tx 117
44 -117.4 -13.9 0.5 8.6 54 9 35 SW 86 11.0 80 Tx 117
45 -119.3 -13.1 0.5 12.0 54 9 35 SW 86 11.0 80 Tx 117
46 -124.6 -10.2 0.5 3.4 100 0.0 35 SW 86 11.0 80 Tx 117
__________________________________________________________________________________
Codes for Types of Line:
SW: Steel Wire (steel core)
Tx: Polyolefin & Polyester Rope.
