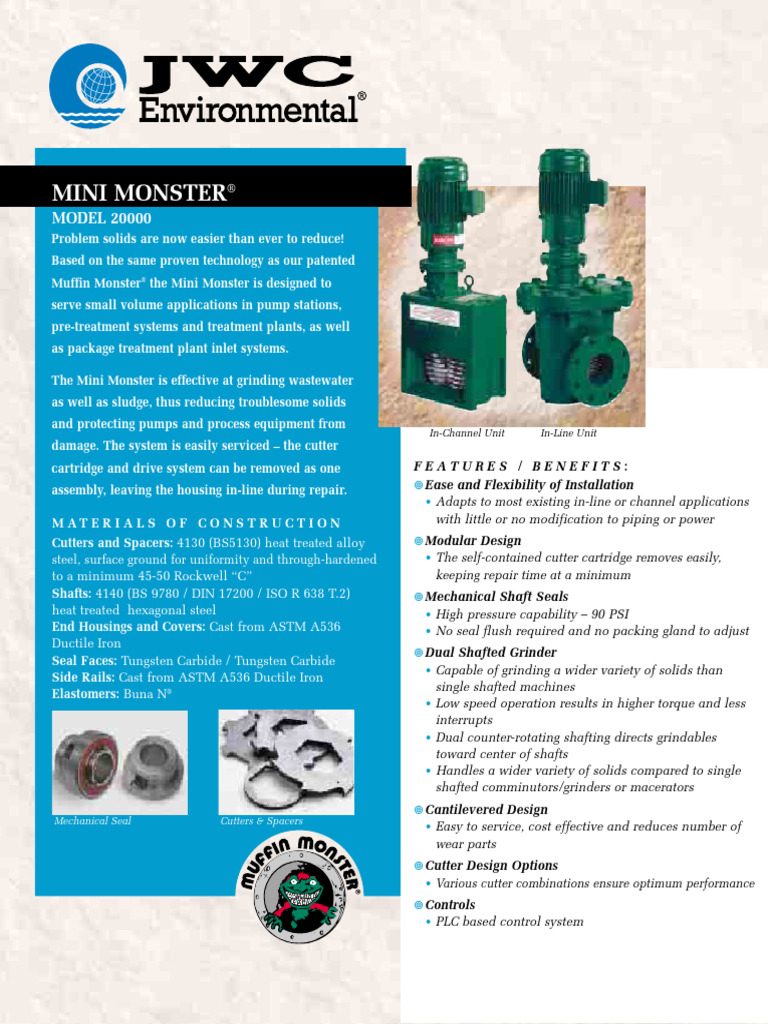

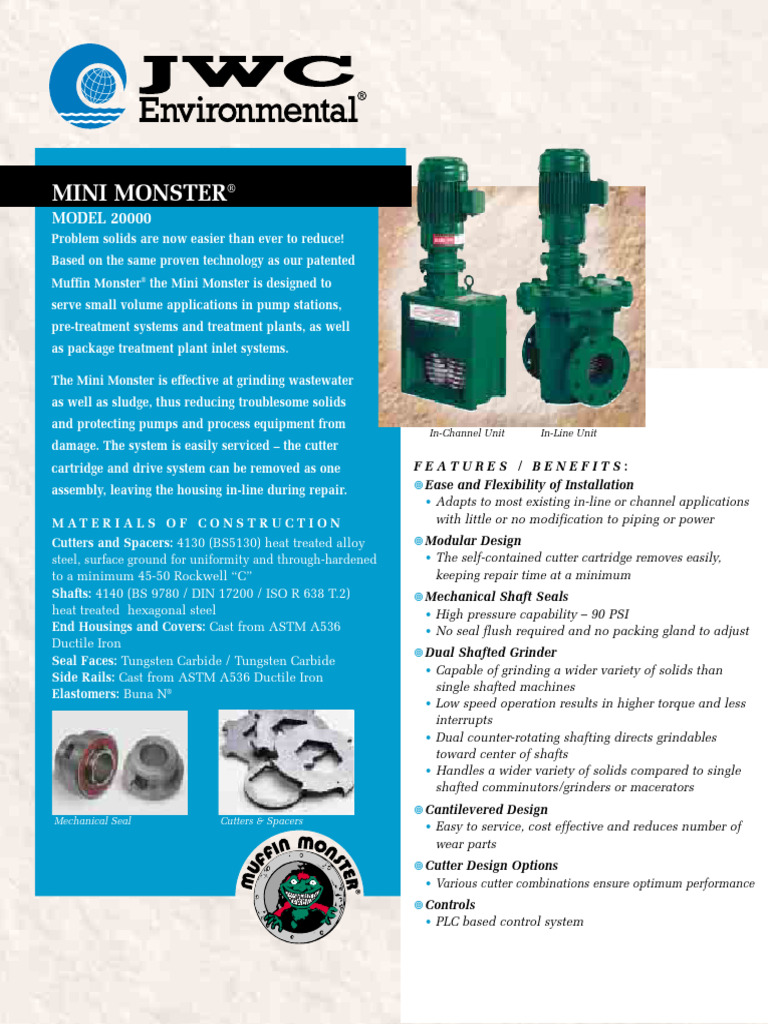

MINI MONSTER®

MODEL 20000
Problem solids are now easier than ever to reduce!
Based on the same proven technology as our patented
Muffin Monster® the Mini Monster is designed to
serve small volume applications in pump stations,
pre-treatment systems and treatment plants, as well
as package treatment plant inlet systems.

The Mini Monster is effective at grinding wastewater

as well as sludge, thus reducing troublesome solids
and protecting pumps and process equipment from
In-Channel Unit In-Line Unit
damage. The system is easily serviced – the cutter
cartridge and drive system can be removed as one FEATURES / BENEFITS:
assembly, leaving the housing in-line during repair.
Ease and Flexibility of Installation
• Adapts to most existing in-line or channel applications
M AT E R I A L S O F C O N S T R U C T I O N with little or no modification to piping or power
Cutters and Spacers: 4130 (BS5130) heat treated alloy
Modular Design
steel, surface ground for uniformity and through-hardened • The self-contained cutter cartridge removes easily,
to a minimum 45-50 Rockwell “C” keeping repair time at a minimum
Shafts: 4140 (BS 9780 / DIN 17200 / ISO R 638 T.2)
Mechanical Shaft Seals
heat treated hexagonal steel • High pressure capability – 90 PSI
End Housings and Covers: Cast from ASTM A536 • No seal flush required and no packing gland to adjust
Ductile Iron

Dual Shafted Grinder
Seal Faces: Tungsten Carbide / Tungsten Carbide
• Capable of grinding a wider variety of solids than
Side Rails: Cast from ASTM A536 Ductile Iron
single shafted machines
Elastomers: Buna N®
• Low speed operation results in higher torque and less
interrupts
• Dual counter-rotating shafting directs grindables
toward center of shafts
• Handles a wider variety of solids compared to single
shafted comminutors/grinders or macerators

Cantilevered Design
Mechanical Seal Cutters & Spacers
• Easy to service, cost effective and reduces number of
wear parts

Cutter Design Options
• Various cutter combinations ensure optimum performance

Controls
• PLC based control system
 MINI MONSTER®
In-Line Product Specifications
Installation
Flow: In-Line: 265 GPM (60 m3/Hr)
In-Channel: 80 GPM (18 m3/Hr)
Pressure Drop (In-Line): 1.1 PSI (7.5 kPa)
Head Drop (In-Channel): 4" (102 mm)
Pressure: 90 PSI (6 bar)
Motor: 1 HP (2 HP, 3 HP Optional)
Torque: 2622 in. lbs (296 Nm)
Force at Cutter Tip: 1113 lbs (4954 N)
Weight: In-Line: 275 lbs (125 kg)
In-Channel: 225 lbs (102 kg)

OPERATION
1 Wastewater solids are transported to the Mini Monster
via the waste stream.
Open Channel
Installation 2 The solids are passed through the cutters for size
reduction.
3 The ground material is again transported by the waste
stream, however, the small particles pose no threat to
down stream equipment.

Cutter cartridge pulls out for

easy repair

ANSI B16.42 CLASS 150 ISO 2531 AS2129-198 JIS2210 10K

4" FLANGE SIZE 100 MM PN 10 FLANGE 100 MM TABLE D FLANGE 100 MM FLANGE
A 9.00" 220 215 210
B 7.5" 180 178 175
C 0.75" 19 18 19
D 8" 8 4 8
All dimensions in millimeters unless otherwise noted

FACILITIES l SERVICE l SALES

Headquarters and Eastern Regional Sales/ Service Western Regional Service
Western Regional Sales Buford, GA 30518 Santa Ana, CA 92707
Costa Mesa, CA 92626 (770) 925-7376 (714) 751-8100
(949) 833-3888 (800) 331-8783 (800) 331-2277
(800) 331-2277 (770) 925-9406 Fax (714) 751-1913 Fax
(949) 833-8858 Fax
e-mail: jwce@jwce.com www.jwce.com
JWC, JWC Environmental and logo are registered trademarks. Auger Monster and Logo are registered trademarks. Muffin Monster and Logo are
registered trademarks. Auger Monster and Logo are registered trademarks. Mini Monster and Logo are registered trademarks. This equipment is
covered by one or more United States patents: 4,046,324; 4,253,713; 4,482,194; 4,702,422; 4,707,150; 4,919,346; 5,060,872; 5,320,286; 5,333,801; © Copyright JWC Environmental 2001.
5,354,004; 5,478,020; 5,505,388; 5,593,100; 6,176,443; 09/228,682.Other patent applications and foreign patents are pending. Bulletin No. D100 2001
