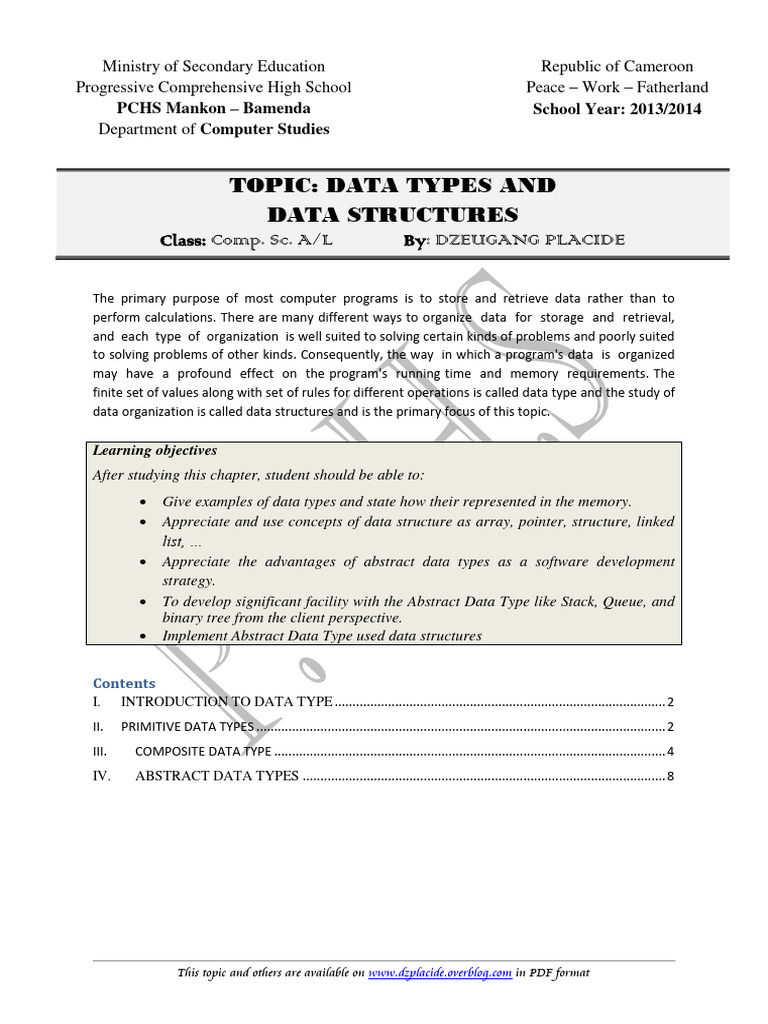

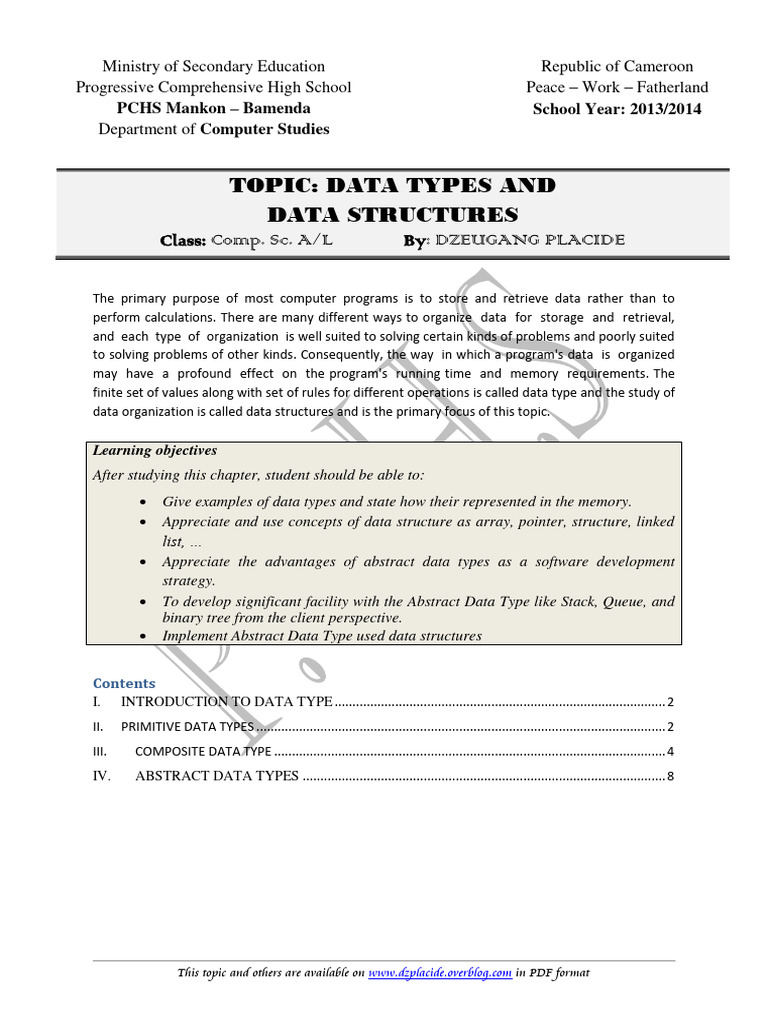

Ministry of Secondary Education Republic of Cameroon
Progressive Comprehensive High School Peace – Work – Fatherland

PCHS Mankon – Bamenda School Year: 2013/2014
Department of Computer Studies
TOPIC: DATA TYPES AND

DATA STRUCTURES
Class: Comp. Sc. A/L By: DZEUGANG PLACIDE
The primary purpose of most computer programs is to store and retrieve data rather than to
perform calculations. There are many different ways to organize data for storage and retrieval,
and each type of organization is well suited to solving certain kinds of problems and poorly suited
to solving problems of other kinds. Consequently, the way in which a program's data is organized
may have a profound effect on the program's running time and memory requirements. The
finite set of values along with set of rules for different operations is called data type and the study of
data organization is called data structures and is the primary focus of this topic.
Learning objectives
After studying this chapter, student should be able to:
 Give examples of data types and state how their represented in the memory.
 Appreciate and use concepts of data structure as array, pointer, structure, linked
list, …
 Appreciate the advantages of abstract data types as a software development
strategy.
 To develop significant facility with the Abstract Data Type like Stack, Queue, and
binary tree from the client perspective.
 Implement Abstract Data Type used data structures
Contents
I. INTRODUCTION TO DATA TYPE ............................................................................................. 2
II. PRIMITIVE DATA TYPES ................................................................................................................... 2
III. COMPOSITE DATA TYPE .............................................................................................................. 4
IV. ABSTRACT DATA TYPES ...................................................................................................... 8
This topic and others are available on www.dzplacide.overblog.com in PDF format

Topic: Computer System Architecture 2 By DZEUGANG Placide
I. INTRODUCTION TO DATA TYPE
A programming language is proposed to help programmer to process certain kinds of

data and to provide useful output. The task of data processing is accomplished by executing
series of commands called program. A program usually contains different types of data
types (integer, float, character etc.) and need to store the values being used in the program.
C language is rich of data types. A programmer has to employ proper data type as per his
requirements.
Data type exists in various types:
- Primitive or primary, or atomic data type

- Composite, or complex, or secondary data type
- Abstract data type
NB: The size a data type is compiler dependent. One can be using 2 bytes to represent an
integer while another is using 4 bytes. In C, the size of a data type can be obtained using the
function sizeof() defined in the library stdio.h. For instance, with the declaration int p, we
have sizeof(p) = sizeof(int) = 4;
II. PRIMITIVE DATA TYPES
Primitive data types are standard predefined types that you can use as the basis for variables,
record fields, or your own Data Item parts. Though exact names may vary, many of these
types (like INT) are common to most programming languages. C and other procedural
languages often refer to these types as "elementary items" because they are not based on any
other type.
Classic basic primitive types may include:
 Character (character, char);

 Integer (integer, int, short, long, byte) with a variety of precisions;
 Floating-point number (float, double, real, double precision);
 Fixed-point number (fixed) with a variety of precisions and a programmer-selected
scale.
 Boolean, logical values true and false.
 Reference (also called a pointer or handle), a small value referring to another object's
address in memory, possibly a much larger one.
II.1 Boolean type
The Boolean type represents the values: true and false. Although only two values are
possible, they are rarely implemented as a single binary digit for efficiency reasons.
Many programming languages like C do not have an explicit boolean type, instead
interpreting (for instance) 0 as false and other values as true.

II.2 Integer Data Types:
Integers are whole numbers with a range of values, which are machine dependent.
Generally an integer occupies 2 bytes memory space and its value range limited to -32768 to
+32767(that is, -215 to +215-1). (A signed integer use one bit for storing sign and rest 15 bits
for number.)
To control the range of numbers and storage space, C has three classes of integer storage
namely short int, int and long int. All three data types have signed and unsigned forms. A
short int requires half the amount of storage than normal integer. Unlike signed
integer, unsigned integers are always positive and use all the bits for the magnitude of
the number. Therefore , the range of an unsigned integer will be from 0 to 65535. The long
integers are used to declare a longer range of values and it occupies 4 bytes of storage space.
Data Type Bytes Range Format

short int or signed short int 2 -32768 to +32767 %d
unsigned short int 2 0 to 65535 %u
long int or signed long int or long 4 -2147483648 to +2147483647 %ld
unsigned long int or unsigned long 4 0 to 4294967295 %Ld
II.3 Floating Point Data Types:
The floating point data type is used to store fractional numbers (real numbers) with 6
digits of precision. Floating point numbers are denoted in C by the keyword float. When the
accuracy of the floating point number is insufficient, we can use the double to define the
number. The double is same as float but with longer precision and takes double space (8
bytes) than float. To extend the precision further we can use long double which occupies
10 bytes of memory space.

float 4 -3.4e 38 to +3.4e38 %f
double 8 -1.7e 308 to +1.7e 308 %lf
long double 12 -1.7e 4932 to +1.7e 4932 %Lf
II.4 Character Data Type:

The character data types are used to store the special character and alphabets. It consists of
ASCII characters. It occupies one byte of memory. It can be signed and unsigned i.e they
have the range of -128 to +127 and 0 to 255 respectively. The following table shows the
different character data types.

Signed char or char 1 -128 to 127 %c
Unsigned char 1 0 to 255 %c

III. COMPOSITE DATA TYPE
In computer science, a composite data type is any data type which can be constructed in a
program using its programming language's primitive data types and other composite types.
The act of constructing a composite type is known as composition.
III.1 Record
A record also called a structure is a group of related data items stored in fields, each with its
own name and datatype. Suppose you have various data about an employee such as name,
salary, and hire date. These items are logically related but dissimilar in type. A record
containing a field for each item lets you treat the data as a logical unit. Thus, records make it
easier to organize and represent information.
Such a declaration can be as follow:

pseudocode In C
Type employee = record struct person
Name: string {
Salary: number char name[50];
float salary;
sex: character
char sex;
Endrecord };
The size of a structure depends on the data type of its each field. For instance, for example
with the structure defined above,
Sizeof (struct person) = 50 * sizeof(char) + sizeof(float) + sizeof(char)

= 50*1 + 4 + 1
= 55 bytes
III.2 Array data type

An array is a sequenced collection of elements of the same data type with a single
identifier name. Arrays can have multiple axes (more than one axis). Each axis is a
dimension. Thus a single dimension array is also known as a list. A two dimension array is
commonly known as a table (a spreadsheet like Excel is a two dimension array).
We refer to the individual values as members (or elements) of the array.

Programming languages implement the details of arrays differently. Because there is only one
identifier name assigned to the array, we have operators that allow us to reference or access
the individual members of an array. The operator commonly associated with referencing
array members is the index operator. It is important to learn how to define an array and
initialize its members.
Declaration
In pseudocode In C
Age = array[1 to 5] of integer int age[5];

Age is an array of 5 integers. Notice that in C the index is not defined by the user but the first
is always 0
Here, the size of array age is 5 times the size of int because there are 5 elements. Suppose,
the starting address of age[0] is 2120d and the size of int be 4 bytes. Then, the next address
(address of a[1]) will be 2124d, address of a[2] will be 2128d and so on.
Accessing array elements
In pseudocode In C
Age[2] ← 4 Age[2] = 4;
Read(Age[1]) Scanf(“%d”, &Age[1])
C Programming Multidimensional Arrays

C programming language allows creating arrays of arrays known as multidimensional arrays.
For example:
In pseudocode In C
A=array[1to 2, 1 to 6] of real float A[2][6];
Here, A is an array of two dimension, which is an example of multidimensional array. This

array has 2 rows and 6 columns In C the first element of the array is A[0][0], then the next
A[0][1], A[0][2], …
For better understanding of multidimensional arrays, array elements of above example can be
thinked of as below:
III.3 String
A string is any finite sequence of characters (i.e., letters, numerals, symbols and punctuation
marks). An important characteristic of each string is its length, which is the number of

characters in it.The syntax of most high-level programming languages allows for a string,
usually quoted I n some way, to represent an instance of a string datatype
In C, a string is represented as an array of characters
In pseudocode In C
Name : string Char name[20]
Here the variable name cannot be more than 20 characters. In the variable name contain
“placide”, then we have name[0]=’p’, name[1]=’l’, name[2]=’a’ and so on.
III.4 POINTER
Pointers are widely used in programming; they are used to refer to memory location of
another variable without using variable identifier itself. They are mainly used in linked lists
and call by reference functions. The figure below illustrates the idea of pointers. As you can
see below; Yptr is pointing to memory address 100.
Figure: Pointer and memory relationship
“POINTERS CONTAIN MEMORY ADDRESSES, NOTDATA VALUES!”
When you declare a simple variable, like int i; a memory location with a certain address is set
aside for any values that will be placed in i. We thus have the following picture:
• After the statement i=35; the location corresponding to I will be filled
You can find out the memory address of a variable by simply using the address operator &.
Here is an example of its use: &v

The above expression should be read as “address of v”, and it returns the memory address of
the variable v.
Pointer Declaration
A pointer is a C variable that contains memory addresses. Like all other C variables, pointers
must be declared before they are used. The syntax for pointer declaration is as follows:
Datatype * identifier;
Examples
int*p;
double*offset;
Note that the prefix *defines the variable to a pointer. In the above example, p is the type
“pointer to integer” and offset is the type “pointer to double”.
Once a pointer has been declared, it can be assigned an address. This is usually done with the
address operator. For example,
int *p;
int count;
p=&count;
After this assignment, we say that p is “referring to” the variable count or “pointing to” the
variable count. The pointer p contains the memory address of the variable count.
Linked list
A linked list is a finite sequence of nodes each of which contains a pointer field pointing to
the next node. In many languages, a pointer to the first node must be supplied. In a simply
linked list, the pointer in the last node points to nil. In an empty list, the pointer in the first
node points to nil.
An empty linked list an integer linked list
The definition
For the purpose of this document, we shall define a list as a pointer to a structure of type cell
like this:
typedef struct cell

{
void *element;
struct cell next;

}*list;
Doubly linked list
In a doubly linked list, each node contains, besides the next-node link, a second link field
pointing to the previous node in the sequence. The two links may be called forward(s) and
backwards, or next and prev(ious).
A doubly linked list whose nodes contain three fields: an integer value, the link forward to the
next node, and the link backward to the previous node
IV. ABSTRACT DATA TYPES
IV.1 Definition
The data types you have seen so far are all concrete, in the sense that we have completely
specified how they are implemented. An abstract data type, or ADT, specifies a set of
operations (or methods) and the semantics of the operations (what they do), but it does not
specify the implementation of the operations. That’s what makes it abstract. the inclusion of
the term abstract means that an ADT does not mention implementation details; an ADT is
conceptual, not concrete.
Data structure: an implementation of an ADT; a data structure is concrete, i.e., a data

structure makes an ADT a reality by specifying how to represent instances of the data type
and how to perform operations on those instances
Components of Abstract Data Types
An abstract data type is an encapsulation mechanism. In general it is composed of several

components
 A data type
 A set of operations (called the methods or operations).
 A specification
 A signature: A precise description of the types of the methods.
 A set of axioms: A precise set of rules about how it behaves
 A set of implementation hidden from the programmer who uses the data type.
In an ADT, operation can be a function or a predicate. An example ADT already familiar to

you appears below.
integer: a whole number
operations and signatures:
 addition (+) : interger x integer → integer

 subtraction (-) : interger x integer → integer

 multiplication (*) : interger x integer → integer
 division (/) : interger x integer → real
 modulus (%) : interger x integer → integer
There exist two main types of abstract data types: Linear ADT (vector, queue, stark, …) and
NON-Linear ADT (binary tree, …)
IV.2 Common examples of ADT
IV.2.1 A vector data type
a) Definition and Representation
A vector is a random-access collection of elements
b) Operations and signatures:
Operation Signature specification

append(element) vector x element → vector Add a new element to the end of
the collection.
clear() Vector → vector (with no element) Make the collection empty.
contains(element) Vector x element → Boolean Does the collection contain the
given element?
elementAt(index) Vector x index → element Access the element at the given
index.
indexOf(element) Vector x element → index What is the index of the given
element?
insertAt(index, Vector x element x index → Vector Insert a new element at the given
element) index.
isEmpty() vector → Boolean Is the collection empty?
removeAt(index) Vector x index → element Remove the element at the given
index.
remove(element) Vector x element → Vector Remove the given element from
the collection.
size() Vector → integer How many elements are in the
collection?
c) Implementation
It may have already occurred to you that a vector is very much like an array. A vector is so
much like an array that we may think of a vector as an "intelligent" array, for we can do
anything with a vector that we can do with an array, yet a vector offers something more
in the way of convenience. Clearing an array, for example, requires a loop, whereas clearing
a vector requires only an invocation of the clear operation, as the code below illustrates.

Let’s consider the following declaration: Vector vec = new Vector(); and let’s suppose that it
has been filled by some elements. This is the specification using of the operation clear() using
an array and a vector
Clear the array. Clear the vector.

for (int j = 0; j < size; j++) vec.clear(); or clear(vec);
array[j] = null;
size = 0;
IV.2.2 The Queue
a) Definition
A queue is a linear collection of items, where an item to be added to the queue must be
placed at the end of the queue and items that are removed from the queue must be removed
from the front. The end of the queue is known as the tail and the front of the queue is known
as the front. The term enqueue means to add an item to the queue, and the term dequeue
means to remove an item from the queue. A queue is refered to as a FIFO data structure:
First In, First Out.
b) The operations
There are actually very few operations on a queue.

Enqueue() queue x item → queue add an item to the queue
Dequeue() queue → item x queue remove an item from the queue
Front() queue → item access the first item at the front of the queue
Emptyqueue() queue → Boolean Test if the queue is empty
Fullqueue() queue → Boolean Test if the queue is full
queueSize() Queue → integer return the number of element in a queue
c) Example
Table 1: Example Queue Operations

Queue Operation Queue Contents Return Value
q.isEmpty() [] True
q.enqueue(4) [4]
q.enqueue('dog') ['dog',4]
q.enqueue(True) [True,'dog',4]
q.size() [True,'dog',4] 3
q.isEmpty() [True,'dog',4] False
q.enqueue(8.4) [8.4,True,'dog',4]
q.dequeue() [8.4,True,'dog'] 4
q.dequeue() [8.4,True] 'dog'

q.size() [8.4,True] 2
d) Queue implementation
 Array implementation
Since a queue usually holds a bunch of items with the same type, we could implement a
queue with an array. Let's simplify our array implementation of a queue by using an array of
a fixed size, MAX_QUEUE_SIZE. One of the things we'll need to keep track of is the
number of elements in the queue, i.e., not all the elements in the array may be holding
elements of the queue at any given time. So far, the pieces of data we need for our array
implementation of the queue are: an array, a count
 Linked list implementation
The diagrams in Figures below show a simple queue before and after adding a new item
and before and after removing an item. At each point, you can add a new item only at the
rear of the queue and can remove an item only from the front of the queue. (Note that the
front of the queue, where you delete items, is at the left of the diagrams. The rear of the
queue, where you add items, appears to the right.)
Figure a: A simple queue just before a fourth item is added
Figure b: The simple queue after the fourth item is added and before an item is
removed
Figure c: The simple queue after an item has been removed
IV.2.3 The Stack
a) The definition
A stack is a linear collection of similar items, where an item to be

added to the stack must be placed on top of the stack and items that
are removed from the stack must be removed from the top. The top
of the stack is known as the top. The term push means to add an

item to the stack, and the term pop means to remove an item from the stack. A stack is
refered to as a LIFO data structure: Last In, First Out.
b) The operations
There are actually very few operations on a stack.

Push() stack x item → stack add an item to the stack
Pop() stack → item remove an item from the stack
Top() stark → item access item at the top of the stack
emptyStack() Stack → Boolean test if the stack is empty
fullStack() stark → Boolean test if the stack is full
c) Using a stack to evaluate postfix
In most programming languages, mathematical expressions are written with the operator
between the two operands, as in 1 + 2. This format is called infix. An alternative used by
some calculators is called postfix. In postfix, the operator follows the operands, as in 1 2 +.
The reason postfix is sometimes useful is that there is a natural way to evaluate a postfix
expression using a stack:
1. Starting at the beginning of the expression, get one term (operator or operand) at a
time.
o If the term is an operand, push it on the stack.
o If the term is an operator, pop two operands off the stack, perform the
operation on them, and push the result back on the stack.
2. When you get to the end of the expression, there should be exactly one operand left
on the stack. That operand is the result.
d) Implementation of a stack
Implementation of a stack can be done using an array or a linked list
1) Implementing a stack with an array:
Since a stack usually holds a bunch of items with the same type, we could implement a stack
as an array.
Consider how we could have an array of characters, contents, to hold the contents of the
stack, and an integer top that holds the index of the element at the top of the stack.
2) Implementing a stack with a linked list:
Using a linked list is one way to implement a stack so that it can handle essentially any
number of elements. Here is what a linked list implementing a stack with 3 elements might
look like:

IV.2.4 Binary Tree
a) Abstract idea of a tree:
A tree is another data structure that you can use to store

information. Unlike stacks and queues, which are linear data
structures, trees are hierarchical data structures. Here is an
example of a tree holding letters:
b) Tree Vocabulary
Let's now introduce some vocabulary with our sample

tree... The element at the top of the tree is called the
root. The elements that are directly under an element
are called its children. The element directly above
something is called its parent. For example, a is a
child of f and f is the parent of a. Finally, elements
with no children are called leaves. A tree can be
viewed, as a recursive data structure, for it is made up
of subtrees
c) Uses of trees
(1) File systems
A file system can be represented as a
tree, with the top-most directory as
the root
(2) Arithmetic expressions
An arithmetic expression can be represented

by a tree the leave nodes are the
variables/values the internal nodes are the
operations
(3) Organization chart

(4) Family tree
d) Binary Trees
A tree whose elements have at most 2 children is called a binary tree. For the rest of this
example, we will enforce this to be the case.

Since each element in a binary tree can have only 2 children, we typically name them the left
and right child.
e) Tree operations:
As mentioned, there are different kinds of trees (e.g., binary search trees, 2-3 trees, AVL
trees, tries, just to name a few). What operations we will need for a tree, and how they work,
depends on what kind of tree we use. However, there are some common operations we can
mention:
 Add: Places an element in the tree (where elements end up depends on the kind of
tree).
 Remove: Removes something from the tree (how the tree is reorganized after a
removal depends on the kind of tree).
 IsMember: Reports whether some element is in the tree.
Other operations may be necessary, depending on the kind of tree we use.
f) Tree Traversals
A tree traversal is a specific order in which to trace the nodes of a tree. To perform a traversal
of a data structure, we use a method of visiting every node in some predetermined order.
Traversals can be used
 to test data structures for equality

 to display a data structure
 to construct a data structure of a give size
 to copy a data structure
There are 3 common tree traversals.
1. in-order: left, root, right

2. pre-order: root, left, right
3. post-order: left, right, root
In order to illustrate few of the binary tree traversals, let us consider the below binary tree:
1) Preorder traversal: To traverse a binary tree in

Preorder, following operations are carried-out
(i) Visit the root,

(ii) Traverse the left subtree, and
(iii) Traverse the right subtree.
Therefore, the Preorder traversal of the above tree

will outputs: 15, 5, 3, 12, 10, 6, 7, 13, 16, 20, 18, 23
2) Inorder traversal: To traverse a binary tree in

Inorder, following operations are carried-out
(iv) Traverse the left most subtree starting at the left external node,
(v) Visit the root, and
(vi) Traverse the right subtree starting at the left external node.
Therefore, the Inorder traversal of the above tree will outputs: 3, 5, 6, 7, 10, 12, 13, 15, 16,
18, 20, 23
3) Postorder traversal: To traverse a binary tree in Postorder, following operations are

carried-out
(i) Traverse all the left external nodes starting with the left most subtree which is then
followed by bubble-up all the internal nodes,
(ii) Traverse the right subtree starting at the left external node which is then followed
by bubble-up all the internal nodes, and
(iii) Visit the root.
Therefore, the Postorder traversal of the above tree will outputs: 3, 7, 6, 10, 13, 12, 5, 18, 23,
20, 16, 15
Another example
The 3 different types of traversal
Pre-order Traversal In-order Traversal Post-order Traversal

FBADCEGIH ABCDEFGHI ACEDBHIGF
Exercise: Binary Tree Traversal
3) For the following binary tree perform the following:
 Pre-order traversal
 In-order traversal
 Post-order traversal
Answer :
 Pre-order traversal: GEBDFKMR

 In-order traversal: BDEFGKMR

 Post-order traversal: DBFERMKG
4) Using the following binary tree: what would be the

outputs for:
 Pre-order traversal
 In-order traversal
 Post-order traversal
Answer :
 Pre-order traversal: 7,5,4,2,3,8,9,1

 In-order traversal: 4,2,5,3,7,9,8,1
 Post-order traversal: 2,4,3,5,9,1,8,7
5) For each tree shown in Figure show the order in which the nodes are visited during the
following tree traversals:
1. preorder traversal,
2. inorder traversal (if defined),
3. postorder traversal, and
4. breadth-first traversal.
EXERCISES ON BINARY TREES
1. Give the inorder and postorder traversal for the tree whose preorder
traversal is A B C - - D - - E - F - -. The letters correspond to
labeled internal nodes; the minus signs to external nodes.
2. (Sedgewick, Exercise 5.79). Give the preorder, inorder, postorder, and level-order
traversals of the following binary trees.
3. (a) Write a function that counts the number of items in a binary tree.
(b) Write a function that returns the sum of all the keys in a binary tree.

(c) Write a function that returns the maximum value of all the keys in a binary tree.
Assume all values are nonnegative; return -1 if the tree is empty.

Algorithm Data Type and Data Structure Secured

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Algorithm Data Type and Data Structure Secured

Uploaded by

Copyright:

Available Formats

Ministry of Secondary Education Republic of Cameroon

Progressive Comprehensive High School Peace – Work – Fatherland

TOPIC: DATA TYPES AND

This topic and others are available on www.dzplacide.overblog.com in PDF format

I. INTRODUCTION TO DATA TYPE

A programming language is proposed to help programmer to process certain kinds of

Data type exists in various types:

- Primitive or primary, or atomic data type

II. PRIMITIVE DATA TYPES

Classic basic primitive types may include:

 Character (character, char);

II.1 Boolean type

This topic and others are available on www.dzplacide.overblog.com in PDF format

II.2 Integer Data Types:

Data Type Bytes Range Format

II.3 Floating Point Data Types:

Data Type Bytes Range Format

II.4 Character Data Type:

Data Type Bytes Range Format

This topic and others are available on www.dzplacide.overblog.com in PDF format

III. COMPOSITE DATA TYPE

Such a declaration can be as follow:

Sizeof (struct person) = 50 * sizeof(char) + sizeof(float) + sizeof(char)

III.2 Array data type

We refer to the individual values as members (or elements) of the array.

This topic and others are available on www.dzplacide.overblog.com in PDF format

Accessing array elements

C Programming Multidimensional Arrays

Here, A is an array of two dimension, which is an example of multidimensional array. This

This topic and others are available on www.dzplacide.overblog.com in PDF format

In C, a string is represented as an array of characters

Figure: Pointer and memory relationship

“POINTERS CONTAIN MEMORY ADDRESSES, NOTDATA VALUES!”

• After the statement i=35; the location corresponding to I will be filled

This topic and others are available on www.dzplacide.overblog.com in PDF format

An empty linked list an integer linked list

typedef struct cell

This topic and others are available on www.dzplacide.overblog.com in PDF format

Doubly linked list

IV. ABSTRACT DATA TYPES

Data structure: an implementation of an ADT; a data structure is concrete, i.e., a data

Components of Abstract Data Types

An abstract data type is an encapsulation mechanism. In general it is composed of several

In an ADT, operation can be a function or a predicate. An example ADT already familiar to

This topic and others are available on www.dzplacide.overblog.com in PDF format

 subtraction (-) : interger x integer → integer

IV.2 Common examples of ADT

IV.2.1 A vector data type

a) Definition and Representation

A vector is a random-access collection of elements

b) Operations and signatures:

Operation Signature specification

This topic and others are available on www.dzplacide.overblog.com in PDF format

Clear the array. Clear the vector.

IV.2.2 The Queue

There are actually very few operations on a queue.

Operation Signature specification

Table 1: Example Queue Operations

This topic and others are available on www.dzplacide.overblog.com in PDF format

 Linked list implementation

Figure a: A simple queue just before a fourth item is added

Figure c: The simple queue after an item has been removed

IV.2.3 The Stack

A stack is a linear collection of similar items, where an item to be
