[Link].007.

00(06/10/13)

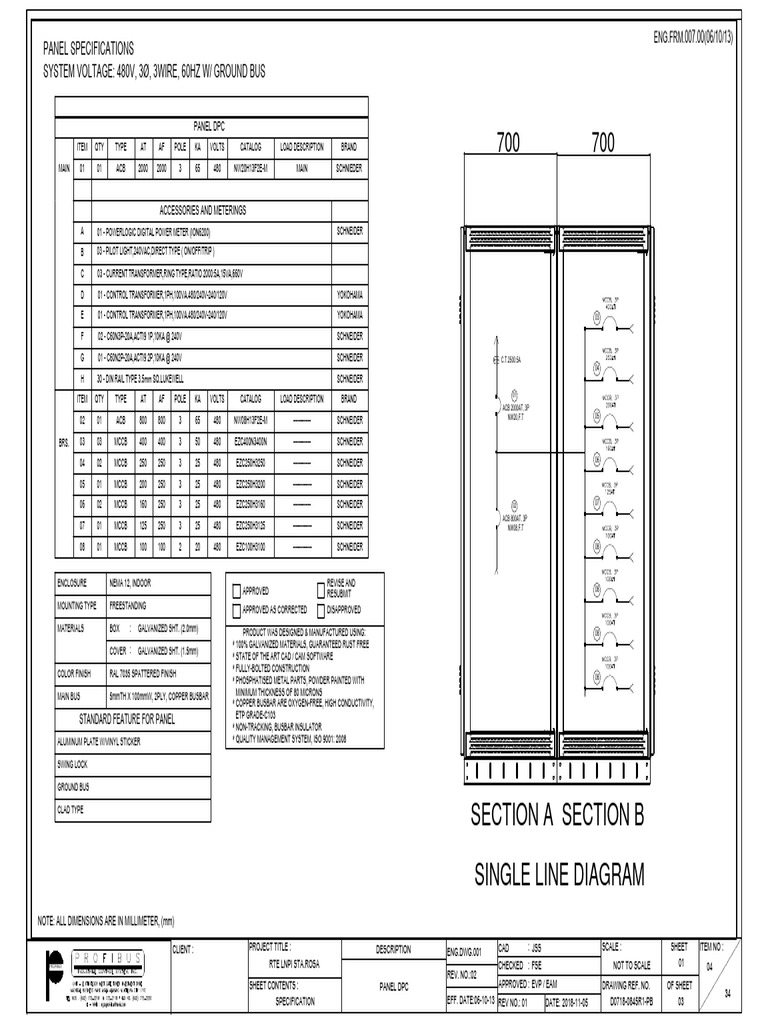

PANEL SPECIFICATIONS

PANEL DPC
ITEM QTY TYPE AT AF POLE KA VOLTS CATALOG LOAD DESCRIPTION BRAND 700 700
MAIN 01 01 ACB 2000 2000 3 65 480 NW20H13F2E-M MAIN SCHNIEDER

ACCESSORIES AND METERINGS


A 01 - POWERLOGIC DIGITAL POWER METER (ION6200) SCHNEIDER
B 03 - PILOT LIGHT,240VAC,DIRECT TYPE ( ON/OFF/TRIP )

C 03 - CURRENT TRANSFORMER,RING TYPE,RATIO 2000:5A,15VA,660V


D 01 - CONTROL TRANSFORMER,1PH,100VA.480/240V-240/120V YOKOHAMA
E 01 - CONTROL TRANSFORMER,1PH,100VA.480/240V-240/120V YOKOHAMA 03

F 02 - C60N3P-20A,ACTI9 1P,10KA @ 240V SCHNEIDER


G 01 - C60N2P-20A,ACTI9 2P,10KA @ 240V SCHNEIDER C.T.2500:5A
04
H 30 - DIN RAIL TYPE 3.5mm [Link] SCHNEIDER
01
ITEM QTY TYPE AT AF POLE KA VOLTS CATALOG LOAD DESCRIPTION BRAND
ACB 2000AT, 3P
NW20,F.T 05
02 01 ACB 800 800 3 65 480 NW08H13F2E-M ------------ SCHNEIDER

BRS. 03 03 MCCB 400 400 3 50 480 EZC400N3400N ------------ SCHNEIDER


06
04 02 MCCB 250 250 3 25 480 EZC250H3250 ------------ SCHNEIDER
05 01 MCCB 200 250 3 25 480 EZC250H3200 ------------- SCHNEIDER
06 02 MCCB 160 250 3 25 480 EZC250H3160 ------------ SCHNEIDER 02 07
ACB 800AT, 3P
07 01 MCCB 125 250 3 25 480 EZC250H3125 ------------- SCHNEIDER NW08,F.T

08 01 MCCB 100 100 2 20 480 EZC100H3100 ------------- SCHNEIDER 08

ENCLOSURE NEMA 12, INDOOR REVISE AND


APPROVED 08
RESUBMIT
MOUNTING TYPE FREESTANDING APPROVED AS CORRECTED DISAPPROVED
MATERIALS BOX : GALVANIZED SHT. (2.0mm) PRODUCT WAS DESIGNED & MANUFACTURED USING: 08
* 100% GALVANIZED MATERIALS, GUARANTEED RUST FREE
COVER : GALVANIZED SHT. (1.5mm) * STATE OF THE ART CAD / CAM SOFTWARE
COLOR FINISH RAL 7035 SPATTERED FINISH * FULLY-BOLTED CONSTRUCTION
* PHOSPHATISED METAL PARTS, POWDER PAINTED WITH 08

MAIN BUS 5mmTH X 100mmW, 2PLY, COPPER BUSBAR MINIMUM THICKNESS OF 80 MICRONS
* COPPER BUSBAR ARE OXYGEN-FREE, HIGH CONDUCTIVITY,
STANDARD FEATURE FOR PANEL ETP GRADE-C103
* NON-TRACKING, BUSBAR INSULATOR
ALUMINUM PLATE W/VINYL STICKER * QUALITY MANAGEMENT SYSTEM, ISO 9001: 2008

SWING LOCK
GROUND BUS
CLAD TYPE
SECTION A SECTION B
SINGLE LINE DIAGRAM
NOTE: ALL DIMENSIONS ARE IN MILLIMETER, (mm)

CLIENT : PROJECT TITLE : DESCRIPTION [Link].001 CAD : JSS SCALE : SHEET ITEM NO :
PROFIBUS RTE LNPI [Link] CHECKED : FSE NOT TO SCALE 01 04
REV. NO.:02
SHEET CONTENTS : PANEL DPC APPROVED : EVP / EAM DRAWING REF. NO. OF SHEET
EFF. DATE:06-10-13 REV NO.: 01 34
SPECIFICATION DATE: 2018-11-05 D0718-0845R1-PB 03
