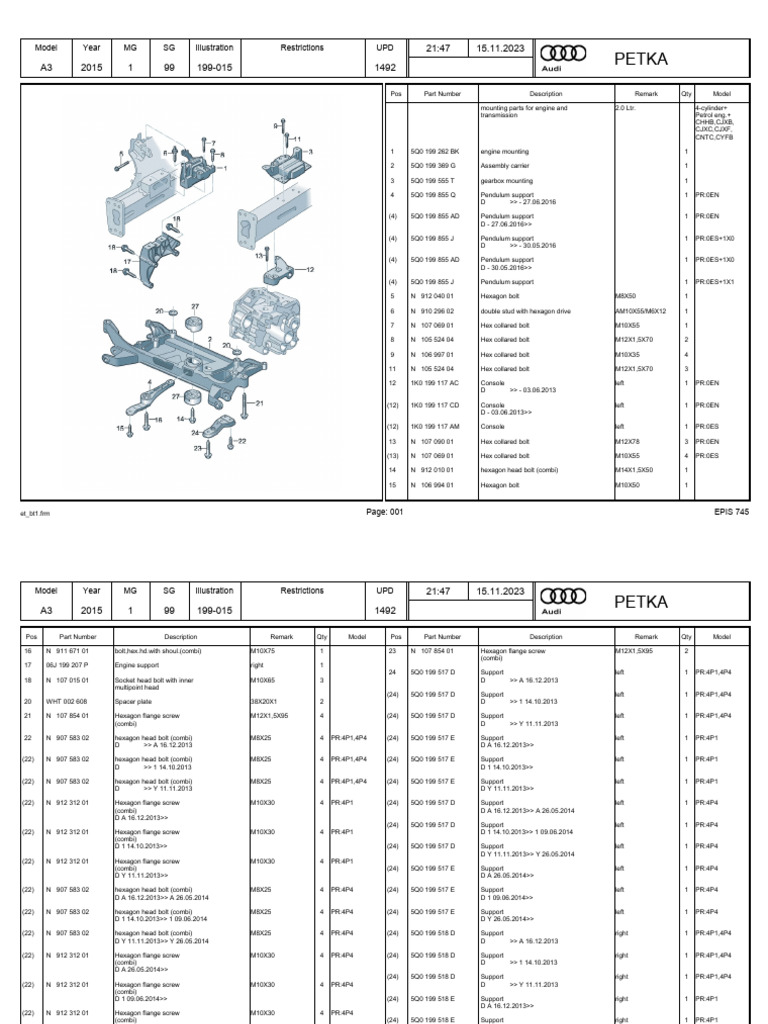

Model Year MG SG Illustration Restrictions UPD 21:47 15.11.

2023
A3 2015 1 99 199-015 1492
PETKA
Pos Part Number Description Remark Qty Model

mounting parts for engine and 2.0 Ltr. 4-cylinder+


transmission Petrol eng.+
CHHB,CJXB,
CJXC,CJXF,
CNTC,CYFB

1 5Q0 199 262 BK engine mounting 1

2 5Q0 199 369 G Assembly carrier 1

3 5Q0 199 555 T gearbox mounting 1

4 5Q0 199 855 Q Pendulum support 1 PR:0EN


D >> - 27.06.2016

(4) 5Q0 199 855 AD Pendulum support 1 PR:0EN


D - 27.06.2016>>

(4) 5Q0 199 855 J Pendulum support 1 PR:0ES+1X0


D >> - 30.05.2016

(4) 5Q0 199 855 AD Pendulum support 1 PR:0ES+1X0


D - 30.05.2016>>

(4) 5Q0 199 855 J Pendulum support 1 PR:0ES+1X1

5 N 912 040 01 Hexagon bolt M8X50 1

6 N 910 296 02 double stud with hexagon drive AM10X55/M6X12 1

7 N 107 069 01 Hex collared bolt M10X55 1

8 N 105 524 04 Hex collared bolt M12X1,5X70 2

9 N 106 997 01 Hex collared bolt M10X35 4

11 N 105 524 04 Hex collared bolt M12X1,5X70 3

12 1K0 199 117 AC Console left 1 PR:0EN


D >> - 03.06.2013

(12) 1K0 199 117 CD Console left 1 PR:0EN


D - 03.06.2013>>

(12) 1K0 199 117 AM Console left 1 PR:0ES

13 N 107 090 01 Hex collared bolt M12X78 3 PR:0EN

(13) N 107 069 01 Hex collared bolt M10X55 4 PR:0ES

14 N 912 010 01 hexagon head bolt (combi) M14X1,5X50 1

15 N 106 994 01 Hexagon bolt M10X50 1

et_bt1.frm Page: 001 EPIS 745


Model Year MG SG Illustration Restrictions UPD 21:47 15.11.2023
A3 2015 1 99 199-015 1492
PETKA
Pos Part Number Description Remark Qty Model Pos Part Number Description Remark Qty Model

16 N 911 671 01 bolt,hex.hd.with shoul.(combi) M10X75 1 23 N 107 854 01 Hexagon flange screw M12X1,5X95 2
(combi)
17 06J 199 207 P Engine support right 1
24 5Q0 199 517 D Support left 1 PR:4P1,4P4
18 N 107 015 01 Socket head bolt with inner M10X65 3 D >> A 16.12.2013
multipoint head
(24) 5Q0 199 517 D Support left 1 PR:4P1,4P4
20 WHT 002 608 Spacer plate 38X20X1 2 D >> 1 14.10.2013

21 N 107 854 01 Hexagon flange screw M12X1,5X95 4 (24) 5Q0 199 517 D Support left 1 PR:4P1,4P4
(combi) D >> Y 11.11.2013

22 N 907 583 02 hexagon head bolt (combi) M8X25 4 PR:4P1,4P4 (24) 5Q0 199 517 E Support left 1 PR:4P1
D >> A 16.12.2013 D A 16.12.2013>>

(22) N 907 583 02 hexagon head bolt (combi) M8X25 4 PR:4P1,4P4 (24) 5Q0 199 517 E Support left 1 PR:4P1
D >> 1 14.10.2013 D 1 14.10.2013>>

(22) N 907 583 02 hexagon head bolt (combi) M8X25 4 PR:4P1,4P4 (24) 5Q0 199 517 E Support left 1 PR:4P1
D >> Y 11.11.2013 D Y 11.11.2013>>

(22) N 912 312 01 Hexagon flange screw M10X30 4 PR:4P1 (24) 5Q0 199 517 D Support left 1 PR:4P4
(combi) D A 16.12.2013>> A 26.05.2014
D A 16.12.2013>>
(24) 5Q0 199 517 D Support left 1 PR:4P4
(22) N 912 312 01 Hexagon flange screw M10X30 4 PR:4P1 D 1 14.10.2013>> 1 09.06.2014
(combi)
D 1 14.10.2013>> (24) 5Q0 199 517 D Support left 1 PR:4P4
D Y 11.11.2013>> Y 26.05.2014
(22) N 912 312 01 Hexagon flange screw M10X30 4 PR:4P1
(combi) (24) 5Q0 199 517 E Support left 1 PR:4P4
D Y 11.11.2013>> D A 26.05.2014>>

(22) N 907 583 02 hexagon head bolt (combi) M8X25 4 PR:4P4 (24) 5Q0 199 517 E Support left 1 PR:4P4
D A 16.12.2013>> A 26.05.2014 D 1 09.06.2014>>

(22) N 907 583 02 hexagon head bolt (combi) M8X25 4 PR:4P4 (24) 5Q0 199 517 E Support left 1 PR:4P4
D 1 14.10.2013>> 1 09.06.2014 D Y 26.05.2014>>

(22) N 907 583 02 hexagon head bolt (combi) M8X25 4 PR:4P4 (24) 5Q0 199 518 D Support right 1 PR:4P1,4P4
D Y 11.11.2013>> Y 26.05.2014 D >> A 16.12.2013

(22) N 912 312 01 Hexagon flange screw M10X30 4 PR:4P4 (24) 5Q0 199 518 D Support right 1 PR:4P1,4P4
(combi) D >> 1 14.10.2013
D A 26.05.2014>>
(24) 5Q0 199 518 D Support right 1 PR:4P1,4P4
(22) N 912 312 01 Hexagon flange screw M10X30 4 PR:4P4 D >> Y 11.11.2013
(combi)
D 1 09.06.2014>> (24) 5Q0 199 518 E Support right 1 PR:4P1
D A 16.12.2013>>
(22) N 912 312 01 Hexagon flange screw M10X30 4 PR:4P4
(combi) (24) 5Q0 199 518 E Support right 1 PR:4P1
D Y 26.05.2014>> D 1 14.10.2013>>

et_bt2.frm Page: 002 EPIS 745


Model Year MG SG Illustration Restrictions UPD 21:47 15.11.2023
A3 2015 1 99 199-015 1492
PETKA
Pos Part Number Description Remark Qty Model Pos Part Number Description Remark Qty Model

(24) 5Q0 199 518 E Support right 1 PR:4P1


D Y 11.11.2013>>

(24) 5Q0 199 518 D Support right 1 PR:4P4


D A 16.12.2013>> A 26.05.2014

(24) 5Q0 199 518 D Support right 1 PR:4P4


D 1 14.10.2013>> 1 09.06.2014

(24) 5Q0 199 518 D Support right 1 PR:4P4


D Y 11.11.2013>> Y 26.05.2014

(24) 5Q0 199 518 E Support right 1 PR:4P4


D A 26.05.2014>>

(24) 5Q0 199 518 E Support right 1 PR:4P4


D 1 09.06.2014>>

(24) 5Q0 199 518 E Support right 1 PR:4P4


D Y 26.05.2014>>

27 5Q0 198 037 1 set bonded rubber bushes upper/lower 1


D >> - 09.02.2015

(27) 5Q0 198 037 B 1 set bonded rubber bushes upper/lower 1


D - 09.02.2015>> - 01.06.2015

(27) 5Q0 198 037 B 1 set bonded rubber bushes upper/lower 1 PR:1X0
D - 01.06.2015>>

(27) 5Q0 198 037 A 1 set bonded rubber bushes upper/lower 1 PR:1X1
D - 01.06.2015>>

et_bt2.frm Page: 003 EPIS 745
