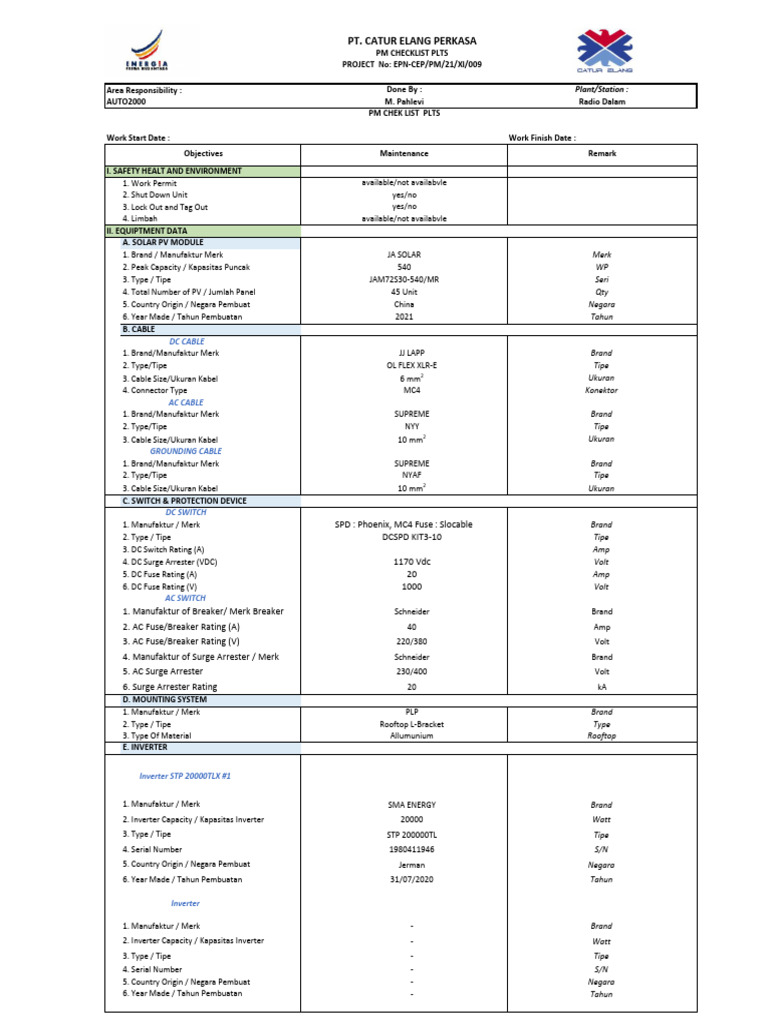

PT.

CATUR ELANG PERKASA


PM CHECKLIST PLTS
PROJECT No: EPN-CEP/PM/21/XI/009

Area Responsibility : Done By : Plant/Station :


AUTO2000 M. Pahlevi Radio Dalam
PM CHEK LIST PLTS

Work Start Date : Work Finish Date :


Objectives Maintenance Remark
I. SAFETY HEALT AND ENVIRONMENT
1. Work Permit available/not availabvle
2. Shut Down Unit yes/no
3. Lock Out and Tag Out yes/no
4. Limbah available/not availabvle
II. EQUIPTMENT DATA
A. SOLAR PV MODULE
1. Brand / Manufaktur Merk JA SOLAR Merk
2. Peak Capacity / Kapasitas Puncak 540 WP
3. Type / Tipe JAM72S30-540/MR Seri
4. Total Number of PV / Jumlah Panel 45 Unit Qty
5. Country Origin / Negara Pembuat China Negara
6. Year Made / Tahun Pembuatan 2021 Tahun
B. CABLE
DC CABLE
1. Brand/Manufaktur Merk JJ LAPP Brand
2. Type/Tipe OL FLEX XLR-E Tipe
3. Cable Size/Ukuran Kabel 6 mm2 Ukuran
4. Connector Type MC4 Konektor
AC CABLE
1. Brand/Manufaktur Merk SUPREME Brand
2. Type/Tipe NYY Tipe
3. Cable Size/Ukuran Kabel 10 mm2 Ukuran
GROUNDING CABLE
1. Brand/Manufaktur Merk SUPREME Brand
2. Type/Tipe NYAF Tipe
3. Cable Size/Ukuran Kabel 10 mm2 Ukuran
C. SWITCH & PROTECTION DEVICE
DC SWITCH
1. Manufaktur / Merk SPD : Phoenix, MC4 Fuse : Slocable Brand
2. Type / Tipe DCSPD KIT3-10 Tipe
3. DC Switch Rating (A) Amp
4. DC Surge Arrester (VDC) 1170 Vdc Volt
5. DC Fuse Rating (A) 20 Amp
6. DC Fuse Rating (V) 1000 Volt
AC SWITCH
1. Manufaktur of Breaker/ Merk Breaker Schneider Brand
2. AC Fuse/Breaker Rating (A) 40 Amp
3. AC Fuse/Breaker Rating (V) 220/380 Volt
4. Manufaktur of Surge Arrester / Merk Schneider Brand
5. AC Surge Arrester 230/400 Volt
6. Surge Arrester Rating 20 kA
D. MOUNTING SYSTEM
1. Manufaktur / Merk PLP Brand
2. Type / Tipe Rooftop L-Bracket Type
3. Type Of Material Allumunium Rooftop
E. INVERTER

Inverter STP 20000TLX #1

1. Manufaktur / Merk SMA ENERGY Brand


2. Inverter Capacity / Kapasitas Inverter 20000 Watt
3. Type / Tipe STP 200000TL Tipe
4. Serial Number 1980411946 S/N
5. Country Origin / Negara Pembuat Jerman Negara
6. Year Made / Tahun Pembuatan 31/07/2020 Tahun

Inverter

1. Manufaktur / Merk - Brand


2. Inverter Capacity / Kapasitas Inverter - Watt
3. Type / Tipe - Tipe
4. Serial Number - S/N
5. Country Origin / Negara Pembuat - Negara
6. Year Made / Tahun Pembuatan - Tahun
PT. CATUR ELANG PERKASA
PM CHECKLIST PLTS
PROJECT No: EPN-CEP/PM/21/XI/009

Area Responsibility : Done By : Plant/Station :


AUTO2000 M. Pahlevi Radio Dalam
PREVENTIVE MAINTENANCE PLTS

Objectives Task List To Do Remark


III. VISUAL INSPECTION CHECKLIST Check Clean Retighten
ROOFTOP
1. PV Module
2. Mounting PV
3. Rail
4. Rail Joint
5. L Bracket
6. Mid clamp
7. End Clamp
8. Kabel DC
9. Connector MC4
10. Kabel Tray
11. Wiring kabel DC
INVERTER
1. Inverter
2. Bracket Inverter
3. Monitor LCD Inverter
4. MC4 Fuse
5. Kabel Tray
6. Isolation Kabel
7. Scun kabel
8. Label kabel
9. Gland kabel
10. Wiring diagram
11. Soket LAN
Panel ACDB
1. Box Panel ACDB
2. Wiring Diagram
3. Scun
4. Label
5. Isolation kabel
6. Surge Arrester
7. Breker
8. Gland kabel
9. Bus Bar
Panel Monitoring
1. Box Panel Monitoring
2. Wiring Diagram
3. Scun
4. Label
5. Isolation kabel
6. Router Wifi
7. Kabel LAN &RJ 45
Inspected By : Checked By :
Name : Name :
Company : Company :
Date : Date :

Approved By :
Name :
Company :
Date :
PT. CATUR ELANG PERKASA
PM CHECKLIST PLTS
PROJECT No: EPN-CEP/PM/21/XI/009

Area Responsibility : Done By : Plant/Station :


AUTO2000 M. Pahlevi Radio Dalam

DC System

INVERTER STP20000TLX #1 SN : 1980411946


MPPT Jumlah PV Jam Voc Jam Vmp Arus Remark
String 1
String 2
String 3
String 4
String 5
String 6

INVERTER - #2 SN : -
MPPT Jumlah PV Jam Voc Jam Vmp Arus Remark
String 1
String 2
String 3
String 4
String 5
String 6

AC System

Item Time Result Item Time Result


Remark
Current (Ampere) Output Power (kW)
Inverter #1 Inverter #2
R R
S S
T T
Inverter #2 Inverter #2
R R
S S
T T
Voltage (Volt) Remark
Inverter #1 Inverter #2

R-S R-S
S-T S-T
T-R T-R
R-N R-N
S-N S-N
T-N T-N
G-N G-N
Voltage on ACDB (Volt) Remark
R-S S-N
S-T T-N
T-R G-N
R-N

Inspected By : Checked By :
Name : Name :
Company : Company :
Date : Date :

Approved By :
Name :
Company :
Date :
