Serial Number:

Navigated Path: New Holland CE EUR > LIGHT EQUIPMENT >SKID STEER LOADERS >200 SERIES >L223 - SKID STEER LOADER (4/11-)
>55 - ELECTRICAL SYSTEMS >55.100.02[01] - ELECTRICAL ELECTRO-HYDRAULIC (L223-L230,C232,C238) >
Serial Number:

Navigated Path: New Holland CE EUR > LIGHT EQUIPMENT >SKID STEER LOADERS >200 SERIES >L223 - SKID STEER LOADER (4/11-)
>55 - ELECTRICAL SYSTEMS >55.100.02[01] - ELECTRICAL ELECTRO-HYDRAULIC (L223-L230,C232,C238) >

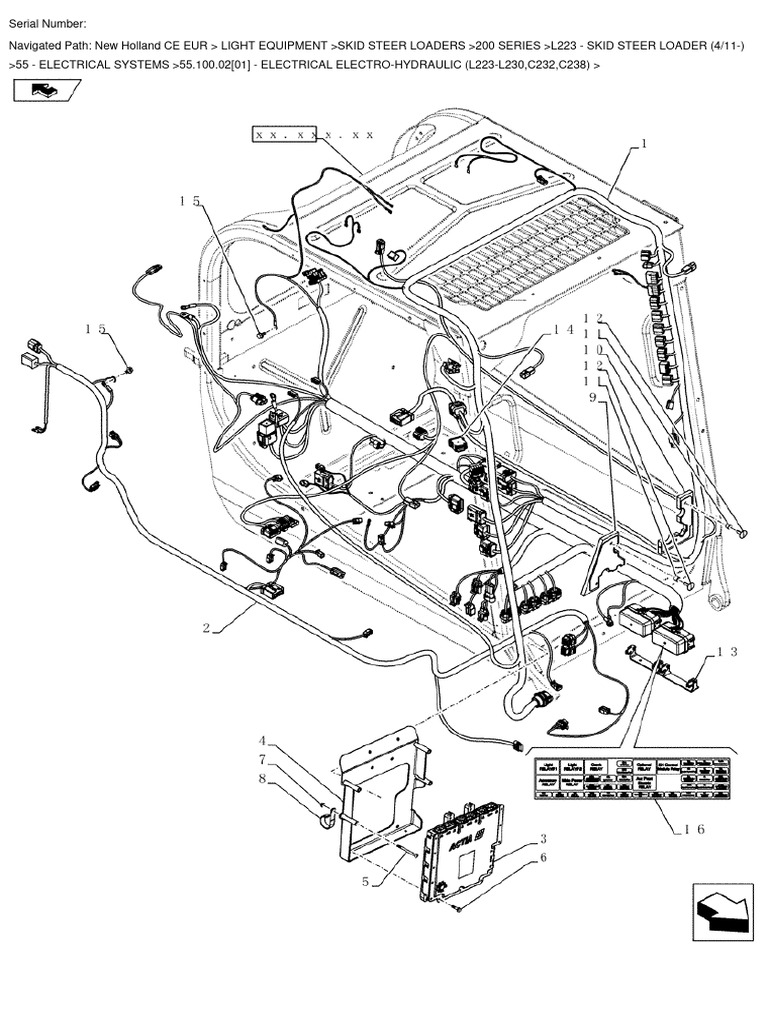

Ref Qty Part # Part Description Usage
1 1 84352401 WIRE HARNESS Cab EH
2 1 84605443 WIRE HARNESS Chassis EH Controls, Incl. Ref. 20, Years: -
30-APR-13
2 1 47377779 WIRE HARNESS Chassis, EH Controls, Start Year: 01-MAY-13
2 1 47523496 WIRE HARNESS Chassis, EH Controls, Start Year: 01-JUN-13
3 1 84348127 ECU UCM SSL
4 1 84332287 BRACKET ECM Black
5 4 86512442 CARRIAGE BOLT Carriage 8.8 P M6 X 80
6 4 9804257 FLANGE BOLT
7 4 9804276 FLANGE NUT
8 2 87313355 CLAMP 38.1MM J Insul 5/16 Bolt
9 1 84309937 SEAL Assy, LH
10 1 84309938 SEAL Assy, LH
11 4 87035448 SPACER
12 4 86620930 FASTENER
13 1 84285504 BRACKET, SUPPORTING Double Fuse Box
14 1 84251343 SWITCH Rocker, Drive Pattern
15 4 86511841 BOLT
16 1 84380452 DECAL Fuse Box Layout EH
16 1 47544620 DECAL Fuse Box Layout EH, Start Year: 01-JUN-13
17 10 84420768 FASTENER Push-in Fastener (Not Shown)
18 10 84420746 STRAP Tie (Not Shown)
19 1 84392527 SWITCH Rocker, Aux Electric On/Off, Side Post (Not
Shown)
20 1 L71879 DIODE ELEMENT
21 REF 86503942 FUSE Chart Autofuse
22 REF 10395890 FUSE Mini 5 AMP
23 REF 87522597 FUSE Mini 10 AMP
24 REF 87524877 FUSE Mini 15 AMP
25 REF 10401190 FUSE Mini 20 AMP
26 REF 10401290 FUSE Mini 25 AMP
27 REF 87472238 FUSE 60 AMP
28 REF 87355337 RELAY A/C, 45A
29 REF 87655334 RELAY 35A N.O. ISO280 Micro
30 1 84074633 COVER CAN Diagnostic Connector, EST (Not
Shown)
31 1 87271930 NUT CAN Diagnostic Connector, EST (Not
Shown)
32 1 87516075 MULTIPOLE CONNECTOR CAN Diagnostic Connector, EST (Not
Shown)
