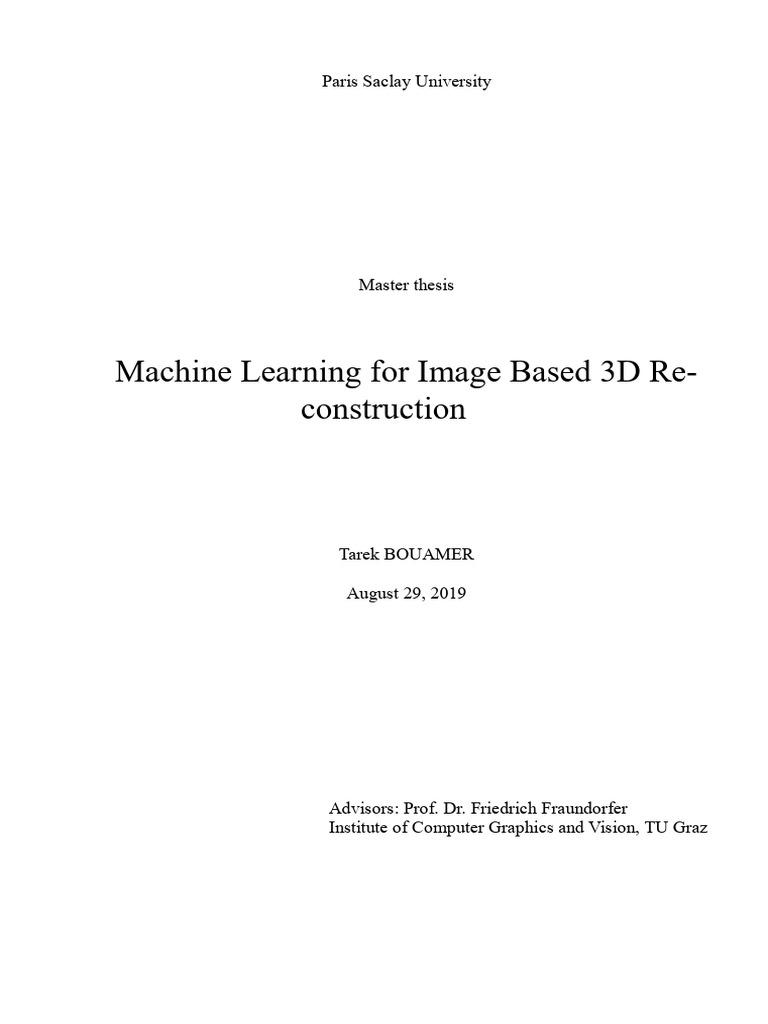

Paris Saclay University

Master thesis

Machine Learning for Image Based 3D Re-

construction

Tarek BOUAMER

August 29, 2019

Advisors: Prof. Dr. Friedrich Fraundorfer

Institute of Computer Graphics and Vision, TU Graz
Abstract

In 3D reconstruction; depth and normal maps estimates based on multi view stereo Patch Match has
shown a great results in terms of accuracy; however; in textureless surfaces; photo consistency based cor-
respondence fails to match and provide pixel-wise depth estimate for large portion in the scenes.

In this master thesis, we assume that textureless areas are smooth and piecewise planar, we combine
between low-level segmentation and Plane masks generated using Convolutional Neural Network (CNN)
to construct local planes. The plane estimates are used to fill the missing depth and normal surfaces.

Finally; we evaluate our algorithm in terms of accuracy and completeness on the ETH 3D high
resolution dataset.

2
Acknowledgement

Firstly, I would like to express my sincere gratitude to my advisor Prof. Friedrich Fraundorfer for
the continuous support in this interesting research topic, motivation, and immense knowledge.

Besides my advisor, I would like to thank Dr. Andrea Kuhn for his feedbacks and encouragement,
and my project partner Christian Sormann for his support the great discussions.

I thank also all members of Computer Graphic and Vision (ICG) for their support, knowledge shar-
ing and for all the fun we have had in the last four months. Many thanks also go out to Graz Technical
University for the great welcoming and making this internship possible.

Lastly, I want to thank my family members for their support and helping me through my education.

3
Table of content

Abstract......................................................................................................................................... 2
Acknowledgement ........................................................................................................................ 3
Table of content ............................................................................................................................. 4
I. Introduction ............................................................................................................................ 5
II. Principles ............................................................................................................................ 6
1. Image Description ............................................................................................................ 6
2. Multi View Geometry ...................................................................................................... 6
2.1. Camera Calibration ...................................................................................................... 6
2.2. Two View Geometry .................................................................................................... 8
2.3. N-View Geometry ........................................................................................................ 9
III. 3D Reconstruction ............................................................................................................. 10
1. Correspondence Search .................................................................................................. 10
2. Sparse Reconstruction .................................................................................................... 10
3. Dense Reconstruction: ................................................................................................... 11
IV. Depth Completion: ............................................................................................................ 13
1. Motivation: .................................................................................................................... 13
2. 3D Plane Detection: ....................................................................................................... 13
2.1. Plane R-CNN: ............................................................................................................ 14
2.2. Plane R-CNN on ETH 3D .......................................................................................... 15
2.3. Low-Level feature segmentation: ............................................................................... 16
2.4. Merging Algorithm:.................................................................................................... 17
2.5. Plane Parameter Estimation: ....................................................................................... 20
2.6. Completion: ............................................................................................................... 21
V. Evaluation: ........................................................................................................................ 26
VI. Conclusion ........................................................................................................................ 29
References .................................................................................................................................. 30

4
 Chapter 1

I. Introduction

Multi-View Stereo (MVS) Reconstruction aims to recover a dense 3D representation of the scene
from a set of views; in last decade, several successful MVS algorithms have been proposed with variety of
datasets.

Among these algorithms; Patch Match based algorithms [1] are still the best and outperforming
learning methods; for instance, Colmap [2] produces an accurate depth maps estimates and better than the
recently developed DeepMVS [3] Multi view stereo network. The resulting depth and normal maps are then
fused geometrically into scene point clouds. However, Patch Match based methods fails to estimates depth
in textureless surfaces for their smoothness and similarity appearance.

The problem of completion in textureless surfaces has been recently addressed in TAPA-MVS [4]
and PCF-MVS [5] assuming that textureless surfaces are often smooth piecewise planar. Both method uses
low level segmentation superpixels to generate plane hypothesis based on their photo consistency metric.
In this thesis, we propose a new plane segmentation method based on instance plane segmentation CNN
model; combined with low-level superpixel similarity appearance segmentation as in [4] [5]. As in PCF-
MVS, a fitted plane parameters for each plane-superpixel are used to estimate depth for missing pixels in
Colmap depth maps.

To validate our method; we perform an evaluation on the recently published training dataset ETH
3D for its scene variety, high resolution view with a precise ground truth measures.

This master thesis text is structured as follows:

- Chapter 2: Principles and fundamentals of Structure of Motion (SFM) and Multi View Geome-
try.
- Chapter 3: 3D Reconstruction (sparse, dense).
- Chapter 4: Depth Completion process and Plane fitting.
- Chapter 5: Evaluation on ETH 3D benchmark.
- Chapter 6, Conclusion and future work are given.

5
 Chapter 2

II. Principles
In this chapter, we introduce the main principles of multi view stereo (MVS) and the general struc-
ture of our 3D Reconstruction pipelines.

1. Image Description

In multi view stereo system, the main interest is to extract locally the geometrical association be-
tween a multiple of views to reconstruct the 3D model of the scene.
Typically, each view is described by its local features with high colour gradient as an edges, cor-
ners, …; and Ideally, these points features should be sparsely detected and robust against the photometric
(illumination, noise) and geometric (rotation, scale) variations. The Scale Invariant Feature Transform
(SIFT) [6]; most popular and widely used descriptor; encodes the spatial information of an image using
local interest points and neighbouring pixels as gradient (orientation and magnitude). Features matching
finds the pixel level correspondence between the features in the source image and others images that points
to the same object in terms of correlation.

2. Multi View Geometry

Before moving to Multi View Geometry and discussing the general problem of pose calculation
using the detected point features, it is necessary to present the camera model and perspective projection
that describes the image formation through a linear mapping from 3D homogenous world frame 𝑋 ∈ ℜ3 to
2D representation 𝑥 ∈ ℜ2 in image frame. Thus; this projection is formulated as:
𝑥 = 𝐾 [𝑅 𝑇 ] 𝑋
𝑥 𝑓𝑥 0 𝑐𝑥 𝑟11 𝑟12 𝑟13 𝑡1 𝑋
(2.1)
𝑥 = (𝑦 ) ~ [ 0 𝑓𝑦 𝑐𝑦 ] [𝑟21 𝑟22 𝑟23 𝑡2 ] ( 𝑌 )
𝑍
1 0 0 1 𝑟31 𝑟32 𝑟33 𝑡3
1

In 2.1, 𝐾 represents the intrinsic parameters that describes the properties of the camera; while 𝑅 ∈
𝑆𝑂(3) and 𝑇 ∈ ℜ3 defines the Euclidean transformation “The 3 × 3 Rotational and Translation vector”
from the world to the camera coordinates system; known as extrinsic parameters.

2.1. Camera Calibration

Camera calibration is the process to determine the intrinsic and extrinsic parameters of the camera
model for an uncalibrated camera; one of the most used camera calibration techniques is the one proposed
by Tsai [6]; that requires more than six 3D points 𝑛𝑝 > 6 to identify the 12 unknown parameters of camera
model.

6
 Figure 2.1: Camera Calibration from 2D-3D correspondence.

Given a 2D observations 𝑥 and its corresponding 3D point 𝑋, the camera parameters are estimated
as:
𝑢 𝑚1 𝑇 𝑋
(𝑚 𝑇 − 𝑢𝑖 𝑚3 𝑇 ). 𝑋𝑖 = 0
𝑥 = (𝑣 ) ~ 𝑀 𝑋 = [𝑚2 𝑇 ] . (𝑌 ) => { 1𝑇 (2.2)
𝑍 (𝑚2 − 𝑣𝑖 𝑚3 𝑇 ). 𝑋𝑖 = 0
1 𝑚3 𝑇 1

The problem can be then re-arranged to obtain a system of equation with 𝑛 observations (figure
2.1):
𝑋1 𝑇 0𝑇 − 𝑢1 𝑋1 𝑇 0
0𝑇 𝑋1 𝑇 − 𝑣1 𝑋1 𝑇 𝑚1 0
… … … . ( 𝑚2 ) = ⋮ => 𝑄. 𝑀 = 0 (2.3)
𝑋𝑛 𝑇 0 𝑇
− 𝑢𝑛 𝑋𝑛 𝑇 𝑚3 0
[ 0𝑇 𝑋𝑛 𝑇 𝑇
− 𝑣𝑛 𝑋𝑛 ] (0 )

A solution is to minimize ‖𝑄. 𝑀‖2 subjected to the constraint ‖𝑀‖2 . It can be solved through Sin-
gular Value Decomposition (SVD) where the solution is the eigenvector corresponding to the smallest ei-
genvalue of the matrix 𝑄 𝑇 𝑄 ; since it is the unit vector 𝑥 that minimizes‖𝑄. 𝑀 ‖2 = 𝑥 𝑇 𝑄𝑇 𝑄 𝑥.
The reverse process, Triangulation, is to determine 3D point 𝑋 by intersecting multiple visual rays
from the corresponding 2D projections 𝑥𝑖 . With known camera model of at least two observations; 3D pose
is estimated using Direct Linear Transformation (DLT) as in camera calibration.

Figure 2.2: Two View triangulation for homography.

7
 2.2. Two View Geometry

In uncalibrated multiple view geometry; a reconstruction of both cameras and scene structure can
be computed from point feature correspondence.
a. Homography
Homography is projective transformation that relates pixel coordinates between two images
𝑥2 = ℎ( 𝑥1 ) if both images are viewing the same plane (parallax); we say, the homography induced
by two image planes (figure 2.2); therefore, 𝑍 = 0 and the system of equation in camera calibration
2.3 can be rewritten as follows:

𝑢 ℎ1 𝑇 𝑋
𝑥 = (𝑣 ) ~ 𝐻 𝑋 = [ ℎ2 𝑇 ] . ( 𝑌 ) => 𝐻. 𝑀 = 0 (2.4)
1 ℎ 𝑇 1
3

The model matrix 𝐻 has 8 degrees of freedoms; we use DLT to estimate the homography
and we require at least 4 non-collinear points.

b. Epipolar
For general scenes; we introduce the epipolar concept in modelling two view geometry. We
define the epipolar geometry between two views as the intersection of the image planes with pencil
of planes joining the centres of the cameras with a baseline line. The epipole is the point of inter-
section of the line joining the camera centres with epipolar plane as shown in figure 2.3.

Figure 2.3: Two View geometry and epipolar with necessary condition for correspondence.

We have 𝑥′ = 𝐻 𝑥 and 𝑙 ′ = [𝑒′]× 𝑥′, implies that 𝑙 ′ = [𝑒′]× (𝐻 𝑥 ) = 𝐹 𝑥; where 𝐹 is de-

fined to be the fundamental matrix. If 𝑥 and 𝑥′ corresponds, then 𝑥′ lies in the epipolar line 𝑙 ′ =
𝐹 𝑥. In other words, 𝑥′𝑇 𝑙 ′ = 0 implies that 𝑥′𝑇 𝐹 𝑥 = 0 as necessary condition for correspondence.
In case of calibrated cameras, we define 𝑥 ′′ = 𝐾 −1 𝑥 as inverse point to 𝑥 in normalized coordi-
nates; and by rewriting the condition for correspondence formula (𝐾 ′ 𝑥′)𝑇 𝐹 (𝐾 𝑥 ) = 0 =>
𝑥′𝑇 𝐸 𝑥 = 0 with 𝐸 = 𝐾′𝑇 𝐹 𝐾. The fundamental matrix can be estimated from 8 points corre-
spondences up to a scale factor enforcing the rank to 2; for more details, refer to [7] page 279.

8
 2.3. N-View Geometry

In large number of views, linear estimation methods are not sufficient and robust to produce an
accurate estimation due to redundancy and outliers (noise, occlusions, …); therefore, we wish to estimate
the projection matrix 𝑃 and 3D points 𝑋 assuming that the measurements follows Gaussian distribution
𝑥̂ = 𝑃̂ 𝑋̂ in minimizing cost function 2.5 between the projected points and measured image points in every
view; known as Bundle Adjustment (BA):

2
min
𝑖
∑ 𝑑(𝑃̂𝑖 𝑋̂𝑗 , 𝑥̂𝑗𝑖 ) (2.5)
𝑃̂ , 𝑋̂𝑗
𝑖𝑗

Where 𝑑(𝑥 ′ , 𝑥) is the distance between point 𝑥 and reprojection 𝑥′. BA refinement is used as final
step in reconstruction and it requires a good initialization of 𝑋 and 𝑃 which can be done using DLT as
described previously.

RANSAC (Random Sample Consensus) is another robust model fitting algorithm in presence of
outliers; that can be applied to estimate the camera calibration, Structure of motion, Homography, Primi-
tives …; so that the estimate is unaffected by outliers.
RANSAC algorithm is described as follows:
 Randomly select 𝑛 sample of set 𝐴 that have 𝑁points.
 Fit the model using the 𝑛 points.
 Determine the set of points 𝑆 which are within distance threshold 𝑑𝑡 to the fitted model
(number of inliers).
 Compute the distances of all other points in 𝑆 from this model.
 We choose the model that has maximum of inliers after 𝑘 iterations.
According to the previous description, RANSAC aims to maximize the number of inliers points
with 𝜎 = 0.95 confidence level; mathematically, we define this optimization problem with the following
robust cost function (Huber):

𝑑𝑖 2 𝑑𝑖 2 < 𝑑𝑡 2 𝐼𝑛𝑙𝑖𝑒𝑟𝑠
𝐷 = ∑ 𝛾(𝑑𝑖 ) 𝑤𝑖𝑡ℎ 𝛾 (𝑑𝑖 ) = { (2.6)
𝑖
𝑑𝑡 2 𝑑𝑖 2 ≥ 𝑑𝑡 2 𝑂𝑢𝑡𝑙𝑖𝑒𝑟𝑠

A typical stopping criterion 𝑘 for RANSAC with 𝑝 confidence level, 𝜀 inlier ratio and 𝑠 samples is
set to:

log(1 − 𝑝)
𝑘= (2.7)
log(1 − (1 − 𝜀)𝑠 )

9
 Chapter 3

III. 3D Reconstruction

Figure 3.1: Colmap 3D reconstruction pipeline.

1. Correspondence Search

The first stage in 3D reconstruction, is the correspondence search that processes set of input images
aiming to generate a 3D point clouds and construct a visibility graph, it consists of the following steps:
- Local features extraction from the source images and match them with different images using
SIFT, a hierarchical indexing approach is used to search for correspondences in most similar
views.
- The matched features are geometrically verified if they point to the same scene point or not by
estimating the transformation between two views using RANSAC. The geometrically verified
features are registered in database with their images indexes constructing a graph.

2. Sparse Reconstruction

In the second stage, we use the visibility graph and the triangulated correspondences in database to
estimate the camera parameters in incremental reconstruction approach that repeatedly add a new image to
the existing reconstruction followed by triangulation and refinement BA. The two pair views has to be
carefully selected for a good initialization in estimating the intrinsic and extrinsic parameters of camera;
likewise, to register a new view it has to be well chosen to produce an accurate pose estimation in the
presence of outliers.
In the other hand; to register a new image; it has to share part of the reconstructed scene points and
shares seen points that are not constructed yet with at least one registered view; therefore, the new set of
3D point points will be extended and decisive in selecting next best view.
To mitigate the accumulated drift in in incremental reconstruction; Full BA is necessary to refine
the camera parameters and 3D point poses jointly as introduced in [43]. Some outliers may survive in the
robust estimation leading to non-valid triangulation; in multi view, redundancy is key to strictly remove the
triangulation mismatches.

10
 3. Dense Reconstruction

In dense reconstruction; we aim to densify the captured wold representation using a dense corre-
spondence starting from depth/normal maps estimation, fusion in scene point clouds then surface meshing
step.
Once the camera parameters are estimated; Depth and normal maps can be recovered by construct-
ing epipolar geometries between the corresponding images to aggregate the appearance similarity between
the views. Therefore; the depth is estimated through stereo comparison among patches from different views
referred as photometric measures as Normalized Cross Correlation (NCC); where the normal is deduced
directly from the recovered depth map as gradient information.
The depth and normal estimates will be then fused to the scene as a dense point clouds. To improve
the quality and accuracy of fusion; we perform depth/ normal consistency check (figure 3.1) between the
view to filter out the outliers and invalid information.
0636

0639

0640

0643

11
 0646

Input Image Depth Map Normal Map

Figure 3.1(a): 3D Dense Reconstruction for pipes scene in ETH 3D dataset
(left) RGB image (middle) depth map (right) normal map

9257

9266

9261

Input Image Depth Map Normal Map

Figure 3.1(b): 3D Dense Reconstruction for Electro scene in ETH 3D dataset
(left) RGB image (middle) depth map (right) normal map

12
 Chapter 4

IV. Depth Completion

1. Motivation

The quality of fused scene depends on the accuracy and completeness of depth and normal maps
which is critical for robotic and virtual reality applications. For indoor scenes; depth information is missing
in large bright and texture less surfaces which can be critical in autonomous navigation where these surfaces
represents an obstacles.
So far; our current 3D dense reconstruction pipeline produces an accurate and reliable depth maps,
however these information is sparse and missing in large portion in the scenes. Thus through this thesis; we
address the problem of the completeness from initial sparse accurate input depth maps.
In upcoming section; we present the related works that addresses the depth completion from sparse
depth maps, then we present our depth completion algorithm based on plane detection network and fitting.
Last; we evaluate our approach on ETH3D bench mark in terms of accuracy and completeness.

Many methods have been proposed for predicting depth in missing pixels, as depth inpainting with
smoothness prior [8], fast marching methods [9], patch based image synthesis [10] and back ground surface
extrapolation [11]. In high resolution images, several methods have been proposed to improve the spatial
resolution of depth map which is more challenging than low resolution images including Markov random
Filed [12], Segmentation [13].

One strategy to enhance depth maps is to leverage scene shape; for indoor scenes for examples;
planes and quadratic surfaces fitting has been proposed to improve depth maps completeness and filling
local holes as in [14] [15].

In this work, to detect surface regions; we use plane detector network to extract large textureless sur-
faces as side walls, floor…; additionally, superpixel segmentation is used to cluster the input RGB image
into regions. We aim to estimate plane parameters locally in each cluster and perform merging mechanism
based on potential relationship between clusters and improve the segmentation mask. The plane parameters
will be used to complete the sparse input depth and normal from our 3D reconstruction pipeline.

2. 3D Plane Detection

Human are remarkably effective in using salient global structure such as planes, symmetric and
smooth surfaces; taking this global information can an advantage in to produce an accurate and complete
reconstruction. However; traditional techniques [16] are computationally challenging and rely on low level
features by global optimization procedure makes those methods less robust. Recently, deep learning based
methods have shown promising results in detecting planes and room layouts PlanNet [17], Plane Recover
[18] and recently PlaneR-CNN [19].

13
 2.1. Plane R-CNN

Figure 4.1: Plane R-CNN model framework.

In PlanNet and PlaneRecover, the concept of plane segmentation task was introduced through Con-
volutional Neural Networks (CNNs); however, the segmentation was in general poor (1) limited to fixed
number of planes about 10 plane per view and misses small surfaces. These two main drawbacks were
addressed in Plane R-CNN in sophisticated architectures (figure 4.1) that consists of:
a. Plane Detection Network
In the first block, the network segments the scene into planar and non-planar regions in ge-
ometric sense using the original Mask R-CNN [20] instance segmentation network. The network
jointly predicts the normal and depth of the planar regions where the non-planar regions are repre-
sented by their depth only.
The normal is predicted by regressing the residuals of the closest anchor norm (7 fundamen-
tal norms) using a L1 cross entropy loss that replaces boding boxes anchors in the original imple-
mentation of Mask R-CNN.

Figure 4.2: Seven (7) fundamental normal anchors.

At the end of Feature Pyramid Network (FPN) [21]; a decoder is used to estimate the pixel
wise depth information. The plane offset 𝑑 is estimated as follows:

∑𝑖 𝑚𝑖 (𝑛𝑇 (𝑧𝑖 𝐾 −1 𝑥𝑖 ))
𝑑= (4.1)
∑𝑖 𝑚𝑖

Where 𝐾 is the intrinsic parameters, 𝑥𝑖 is the pixel coordinates, 𝑧𝑖 is the predicted depth, 𝑛
is the norm of the plane and 𝑚𝑖 indicator variable.

14
 b. Mask Refinement Network
The refinement aims to refine jointly all planes masks and maximize the number of detected
planes. For this U-Net architecture [22] is proposed, to compare the plane masks against the ground
truth planes with cross entropy loss whenever they overlap. As consequence; the depth map and
plane normal are also adapted accordingly to the refined the mask.
c. Warping Loss module
The refined planes parameters are adapted between the nearby views using 3D point maps
in minimizing the re-projection error L2 distance norm. This differentiable module enforces the
geometrical consistency in depth estimation network and boosts the global plane detection accuracy.
The plane R-CNN was trained in Scannet indoor dataset [23]with the generated plane ground
truth. Plane R-CNN outperforms other plane detectors in terms of accuracy and recall in indoor and
outdoor scenes. For this reasons; we adopt the Plane RCNN as segmentation network for planar
region.

2.2. Plane R-CNN on ETH 3D

For demonstration purpose; we choose two high resolution indoor and outdoor scenes from
ETH 3D dataset to evaluate the performance of Plane R-CNN, we chose multiple neighbouring
views per scenes:
 Indoor views (Pipes Scene):
0634 0636

0639 0640

0643 0644

0646 0647

15
 First View Planes Masks V1 Second View Planes Masks V2
Figure 4.3(a): Plane Mask for neighbouring views in pipes scene
left to right: first view, plane masks v1, neighbouring view, plane masks of neighbouring view.

 outdoor views (electro scene):

9257 9258

9266 9267

9261 9262

First View Planes Masks V1 Second View Planes Masks V2

Figure 4.3(b): Plane Mask for neighbouring views in Electro scene
left to right: first view, plane masks v1, neighbouring view, plane masks of neighbouring view.

In general; Plane RCNN successfully detects the most dominant planes and textureless surfaces in
indoor and outdoor scenes mainly side walls, floor, doors and flat surface as the emergency and electricity
boxes in view P-0636 and E-9266 respectively.
The network detects the closest surfaces better than the farther ones and sometimes it fails to detect
it as in P-0646 and P-0647; where the exit door at the end of the corridor was not detected. However the
network totally fails to detect all windows appearing in E-9261 and E-9261 and sometimes wrong segmen-
tation appears between two neighbouring textureless surfaces as in P-0640 and P-0646; where a part of side
wall is included with the floor mask (poor recall to borders).

2.3. Low-Level feature segmentation

We use superpixel segmentation algorithm to describe a group of pixels which are perceptually
similar forming clusters. Superpixel are the basics shapes that forms smooth and large surfaces, commonly
16
superpixel are built around an energy function that assigns each pixel to superpixel centres on their simi-
larity appearance or other pixel wise information (depth, normal). Among the large list of developed super-
pixel algorithm, we adopt the SEED superpixel [24] for two main factors (1) number of generated super-
pixel are controllable, (2) compactness and better boundary recall which is important in plane segmentation,
refer to superpixel evaluation [25] for more details.
P-0636 P-0647

E-9257 E-9261

Input image Superpixels Input image Superpixels

Figure 4.4: SEED superpixels segmentation in Pipes & Electro scenes

Although, the superpixel based on similarity appearance over segments the scene; however, it deals
perfectly with different edges and shapes boundaries unlike the plane mask. Therefore combination between
the low level feature segmentation (superpixel) and high level plane (primitive) segmentation will improve
the plane detection part and parameter estimation.

2.4. Merging Algorithm

In superpixel merging; we combine superpixels shapes to construct planes and reduce the number
of cluster; non planar region should remain unmerged. We propose two merging stages based on (1) simi-
larity appearance; as in [5]; and (2) on plane masks based on Plane R-CNN detections:
a. Plane Primitives Merging
On top of superpixel; we use Plane R-CNN detected masks to group superpixels that over-
laps with planes as first merging, we perform this merging operation carefully under the following
conditions:
 A superpixel is merged to a plane only if most of its pixels overlaps with plane, otherwise
the superpixel remains without merging, therefore we define overlapping coefficient 𝛿 =
75%.
 Shared superpixel between two planes masks or more is assigned to the most dominant
plane, otherwise it will not be merger with any.
b. Appearance Merging

We use the fact that superpixel on textureless surfaces are smooth and have same colour dis-
tribution; as further merging process, we pick the most similar superpixel in neighbouring to initial
plane-superpixel cluster then we merge them forming a new plane-superpixel.

17
 With these two merging mechanisms; we avoid wrong plane segmentation in including non-
planar regions to a real plane that will lead to wrong depth estimation. We notice also that wrong
plane detections disappear after the merging process. To provide depth and normal information to
the missing pixel, we perform robust plane estimation in each cluster.
0636

Planes Masks

Superpixels
Plane Merging

Final Merging
0639
Planes Masks

Superpixels
Plane Merging

Final Merging

0640
Planes Masks

Superpixels
Plane Merging

Final Merging

0643
Planes Masks

Superpixels

18
 Plane Merging Planes Masks Plane Merging Planes Masks Plane Merging Planes Masks Plane Merging

9261
9266
9257
0646

19
Final Merging Superpixels Final Merging Superpixels Final Merging Superpixels Final Merging
Figure 4.5(a): Plane-Superpixel merging in Pipes scene.
 Planes Masks

Superpixels
Plane Merging

Final Merging
Figure 4.5(b): Plane-Superpixel merging in Electro scene.

2.5. Plane Parameter Estimation

In 3d dimension; a plane can be defined geometrically using the following plane equation:
𝑛𝑥 𝑥 + 𝑛𝑦 𝑦 + 𝑛𝑧 𝑧 + 𝑑 = 0 (4.2)

Where 𝑛 = (𝑛𝑥 , 𝑛𝑦 , 𝑛𝑧 )𝑇 is the plane normal vector and 𝑑 is the offset or the distance from the
origin. As there are only three 3 degrees of freedom for a plane, the length of normal vector must be nor-
malized to unity ‖𝑛‖ = 1 as constraint. A set of 3D point clouds will be used to estimate the plane param-
eters, then the distance of any point 𝑝 = ( 𝑝𝑥 , 𝑝𝑦 , 𝑝𝑧 ) from the plane is given by 𝑑𝑖𝑠𝑡 = 𝑛𝑇 . 𝑝 − 𝑑 pro-
vided that 𝑛𝑇 . 𝑛 = 1.
We use RANSAC to search for best plane estimate in all superpixel clusters using local 3D point
clouds. As described in section 2.3 – Chapter two, we select randomly three 3 points and we calculates the
parameters of the corresponding plane; then we calculate the number of inliers according to the current
plane estimate model confidence score”. The best plane fitting is obtained after at most 𝑁 iterations and
with high confidence.
Algorithm 1, details the pseudocode of the RANSAC for plane estimation. Three 3 points are ran-
domly chooses from 3D point cloud 3𝐷𝑃𝑜𝑖𝑛𝑡𝑠 to calculate the norm and offset 𝑜𝑑𝑒𝑙 ; we set the threshold
distance to 𝑑𝑡 = 10 𝑐𝑚. We look for all superpixel point clouds that in line with plane 𝑀𝑜𝑑𝑒𝑙 with
𝑎𝑏𝑠(𝑑𝑖𝑠𝑡) less than the defined threshold 𝑑𝑡 . The 𝑏𝑒𝑠𝑡𝑆𝑢𝑝𝑝𝑜𝑟𝑡 aims to remove the 3D point outliers and
maximize the set of inliers 𝑠, in addition; 𝜎 search for the best 3D points that minimizes the total standard
deviation within the set 𝑠. The process is repeated 𝑁 Times and the best with highest confidence score.
Table 1: Robust plane fitting using RANSAC.
Algorithm 1: RANSAC for Plane estimation
Inputs: {3D point cloud, plane-superpixel segmentation}
Outputs: {Plane parameters estimates}
1: 𝑛 = (0,0,0)𝑇
𝑏𝑒𝑠𝑡𝑆𝑢𝑝𝑝𝑜𝑟𝑡 = 0 𝑏𝑒𝑠𝑡𝑆𝑡𝑑 = ∞ 𝑏𝑒𝑠𝑡𝑀𝑜𝑑𝑒𝑙 = {𝑑 = 0 }
𝑞=0

𝑝 = 0.99 (𝑐𝑜𝑛𝑓𝑖𝑑𝑒𝑛𝑐𝑒)
𝑁 = 𝑟𝑜𝑢𝑛𝑑 (𝑘) 𝑤𝑖𝑡ℎ 𝑠 = 3 (𝑛𝑢𝑚𝑃𝑜𝑖𝑛𝑡𝑠)
𝑖𝑛𝑙𝑖𝑒𝑟𝑅𝑎𝑡𝑖𝑜 = 𝑛𝑢𝑚𝐼𝑛𝑙𝑖𝑒𝑟𝑠/𝑛𝑢𝑚𝑃𝑜𝑖𝑛𝑡𝑠
2: 𝒘𝒉𝒊𝒍𝒆 𝑖 ≤ 𝑁 𝑑𝑜
3: 𝑣𝑒𝑐𝑡3𝐷 = 𝑟𝑎𝑛𝑑 (3𝐷𝑃𝑜𝑖𝑛𝑡𝑠) sample 3 point randomly

20
 4: 𝑀𝑜𝑑𝑒𝑙 = 𝑝𝑡2𝑝𝑙𝑎𝑛𝑒(𝑣𝑒𝑐𝑡3𝐷)
5: 𝑑𝑖𝑠𝑡 = 𝑑𝑖𝑠𝑡2𝑝𝑙𝑎𝑛𝑒(𝑀𝑜𝑑𝑒𝑙 , 3𝐷𝑃𝑜𝑖𝑛𝑟𝑠)
6: 𝑠 = 𝑓𝑖𝑛𝑑 (𝑎𝑏𝑠(𝑑𝑖𝑠𝑡) < 𝑑𝑡 )
7: 𝜎 = 𝑠𝑡𝑑(𝑠)
8: 𝒊𝒇 ( 𝑙𝑒𝑛𝑔𝑡ℎ(𝑠) > 𝑏𝑒𝑠𝑡𝑆𝑢𝑝𝑝𝑜𝑟𝑡 𝑜𝑟 𝜎 < 𝑏𝑒𝑠𝑡𝑆𝑡𝑑 ) then
9: 𝑏𝑒𝑠𝑡𝑆𝑢𝑝𝑝𝑜𝑟𝑡 = 𝑙𝑒𝑛𝑔𝑡ℎ(𝑠) 𝑏𝑒𝑠𝑡𝑀𝑜𝑑𝑒𝑙 = 𝑝𝑙𝑎𝑛𝑒𝑃𝑎𝑟𝑎𝑚 𝑏𝑒𝑠𝑡𝑆𝑡𝑑 = 𝜎
10: 𝒆𝒏𝒅 𝒊𝒇

11: 𝑖 = 𝑖+1
12: 𝒆𝒏𝒅 𝒘𝒉𝒊𝒍𝒆

2.6. Completion

In our method, depth completion is achieved using the fitted planes in previous step; isolated super-
pixels that have no 3D point clouds has not been merged or included in plane estimation. We distinguish
three 3 pixel wise depth information in the input depth map provided by dense reconstruction stage:
- Missing pixels: appearing with zero depth values; are either filtered in geometric consistency
check or unmatched pixel in the correspondence.
- Outliers: or spikes; appearing as high depth values managed to survive in the consistency check
and unconsidered in plane fitting.
- Valid pixels: are geometrically consistent between 𝑁 views and provide a good pixel depth esti-
mate used for plane fitting.

In our depth Completion process; we change outliers’ depth values and we fill the missing pixels
with their estimate, using equation (4.1), the pixel wise depth is calculated as:
𝑑 𝑑
𝑧𝑖 = = (4.3)
𝑛𝑇 . 𝑋 𝑛𝑇 . (𝐾 −1 𝑥 𝑖)

The incomplete pixels are set to high numerical values 𝑧𝑖 = ∞; accordingly, we complete the nor-
mal map for the correspondingly pixels 𝑛𝑖 = (𝑛𝑥 , 𝑛𝑦 , 𝑛𝑧 )𝑇 . We integrate mutli-view geometric consistency
check as forward-backward reprojection error between a source and reference image; similar to [2], we give
reprojection error 𝑒𝑠𝑟 = ‖ 𝑥𝑟 − 𝐻𝑟𝑠 𝐻𝑟 𝑥𝑟 ‖; where 𝐻𝑟𝑠 is the projective backward transformation from
source to reference view.
The depth value in reference frame 𝑥𝑟 is wrapped to the source frame at 𝑥𝑟𝑠 = 𝐻𝑟 𝑥𝑟 where 𝐻𝑟 =
𝐾𝑠 [𝑅 𝑇] 𝐾𝑟−1 as describe in section 2.2.b chapter two. The estimated depths and normal are consistent if
the reprojection error is small 𝑒𝑠𝑟 ≤ 1 𝑝𝑥.
0636

21
0639

0640

0643

22
 0646

Figure 4.6(a): Completed Depth and Norma maps in Pipes scene.

Top-left: RGB Image, Top-middle: Input depth map, Top-right: input normal map
Bottom-left: Completed depth, Bottom -middle: Filtered depth , Bottom –right: Filtered normal

9257

23
 9266

9261

Figure 4.6(b): Completed Depth and Norma maps in Electro scene.

Top-left: RGB Image, Top-middle: Input depth map, Top-right: input normal map
Bottom-left: Completed depth, Bottom -middle: Filtered depth , Bottom –right: Filtered normal

In order to evaluate our work; we fuse the depth normal map of each scene as point clouds, the 3D
model of pipes and electro scenes are show in figure 4.7. The generated 3D point clouds of each scene are
evaluated against its ground truth provided in ETH 3D Training dataset.

24
 Pipes
Depth Completion
Colmap

Figure 4.7(a): Pipes Fused 3D model (Top) Plane Depth Completion (Bottom) Colmap.

Electro
Depth Completion
Colmap

Figure 4.7(b): Electro Fused 3D model (Top) Plane Depth Completion (Bottom) Colmap.

25
 Chapter 5

V. Evaluation

We perform evaluation on the ETH 3D high resolution training dataset in terms of accuracy and
completeness as described [26]. The dataset contains 13 indoor/outdoor scenes recorded using DSLR cam-
era and the ground truth geometry has been obtained using high-precision laser scanner. We generate the
sparse depth maps using COLMAP [27] in machine of 32 core 2.4 GHz with 16 GPUs Nvidia Tesla K80
of 11 GB memory.
For better control, we use SEED to generate 200 superpixels in each view and we require 75% as
minimum plane overlapping in the first stage of merging. For each cluster, we estimate the plane parameters
with 30% inlier ratio and 0.99 confidence. We consider at least two 2 views that has to be geometrically
consistent with 1 pixels in projection and reprojection error.
In the 3d fusion stage, we require a maximum reprojection error of 2 pixels and two 2 points at least
for good scene representation quality with maximum depth error of 0.1 and 25 maximum normal error.
Table 5.1.a and 5.2.b shows the evaluation results of our Plane-Superpixel depth Completion process
in Pipes and Electro scenes. For each scene; we compare the MVS reconstruction as point clouds against
the laser scan ground truth; we evaluate Colmap and our Plane-Superpixel depth Completion in terms of
accuracy and completeness in range of distances thresholds 𝑟 from 1 cm to 50 cm.
We define the accuracy (a) as a fraction of all points within a distance radius 𝑟 of the ground truth
point and completeness (c) as the amount of the ground truth points with the radius. The F1 score is a global
reconstruction score defined as harmonic mean 𝐹1 = 2 × (𝑎. 𝑐)/(𝑎 + 𝑐).

Table 5.1(a): Plane Depth Completion reconstruction evaluation in terms of completeness and accuracy
against Colmap in Pipes scene.
Pipes
Tolerances (m) 0.01 0.02 0.05 0.1 0.2 0.5
Colmap 0.252746 0.33798 0.465243 0.558864 0.650544 0.750019
Completeness
Depth Completion 0.409780 0.490407 0.577670 0.628898 0.679316 0.750330
Colmap 0.934714 0.969448 0.983854 0.988988 0.993955 0.99881
Accuracies
Depth Completion 0.915554 0.958032 0.98090 0.987324 0.993399 0.999079
Colmap 0.3979 0.501219 0.631747 0.714164 0.786394 0.856718
F1-Scores
Depth Completion 0.56616 0.648734 0.727124 0.768368 0.80687 0.85702

Table 5.1(b): Plane Depth Completion reconstruction evaluation in terms of completeness and accuracy
against Colmap in Electro scene.
Electro
Tolerances (m) 0.01 0.02 0.05 0.1 0.2 0.5
Colmap 0.570057 0.695369 0.804491 0.872414 0.923713 0.968071
Completeness
Depth Completion 0.664289 0.791398 0.880407 0.923921 0.947172 0.971636

26
 Colmap 0.813764 0.910184 0.973879 0.988934 0.993558 0.996368
Accuracies
Depth Completion 0.815456 0.906377 0.968492 0.985663 0.991788 0.995604
Colmap 0.670451 0.788406 0.881118 0.927027 0.957363 0.982016
F1-Scores
Depth Completion 0.732151 0.844995 0.922351 0.953793 0.968967 0.983474

We have achieved a better a better 3D reconstruction in terms of completion and accuracy in in-
door/outdoor high resolution images in comparison to Colmap, we provide also in the Table 5.2, evaluation
for all 13 Scenes in terms of F1 Score only.
In general; depth completion based on Plane-superpixel segmentation provides a high scene com-
pletion with a good accuracy; we notice that our algorithm provides better scene completion in indoor scene
as in Pipes, Office and Kicker, and satisfactory performance in outdoor scenes for the following reasons:
- Indoor Scenes; our depth completion algorithm based on Plane-Superpixel segmentation suc-
cessfully provides depth information for missing pixels in large textureless areas which are dom-
inant and numerous.

- The number of views per scene also play a role in performance of both algorithm; for large
number of views a slight difference in performance between colmap and our depth completion
algorithm (redundancy) as in courtyard (38 views) and Delivery area (44 views).

- The large presence of sky and windows lead to unsatisfactory depth completion due the fact that
the sky is also detected as plane by the network, where the reflection in windows also prevent
the network to extract its plane mask. The network has been trained on Scannet dataset where
only few scenes includes large windows and sky.

- Since our plane estimation is based on 3D point clouds, plane segments with no sufficient points;
as the left side wall in Pipes 0646; are not included in the depth completion.

27
Table 5.2: 3D reconstruction evaluation in terms F1-score for all ETH 3D high resolution dataset
comparing depth completion against colmap.
Tolerances (m)
0.01 0.02 0.05 0.1 0.2 0.5
Colmap 0.629295 0.819978 0.90647 0.942959 0.957633 0.97004
Courtyard
Depth Completion 0.615622 0.820336 0.906509 0.940758 0.953561 0.968998
Colmap 0.667562 0.802857 0.900584 0.939063 0.965004 0.986292
Delivery_area
Depth Completion 0.692918 0.831981 0.925545 0.953765 0.970637 0.985557
Colmap 0.670451 0.788406 0.881118 0.927027 0.957363 0.982016
Electro
Depth Completion 0.732151 0.844995 0.922351 0.953793 0.968967 0.983474
Colmap 0.468573 0.661183 0.835533 0.887234 0.914967 0.940241
Facade
Depth Completion 0.456521 0.645729 0.828742 0.884052 0.914696 0.934206
Colmap 0.539274 0.636944 0.761775 0.859078 0.944242 0.990958
Kicker
Depth Completion 0.72988 0.816431 0.893462 0.93801 0.970412 0.992623
Colmap 0.374174 0.530808 0.674868 0.754573 0.827516 0.904809
Meadow
Depth Completion 0.464044 0.589917 0.708272 0.76926 0.825841 0.894436
Colmap 0.427731 0.528466 0.66375 0.761791 0.850255 0.951334
Office
Depth Completion 0.600556 0.689161 0.782626 0.84154 0.894904 0.960659
Colmap 0.3979 0.501219 0.631747 0.714164 0.786394 0.856718
Pipes
Depth Completion 0.56616 0.648734 0.727124 0.768368 0.80687 0.85702
Colmap 0.521271 0.682413 0.845518 0.91095 0.945754 0.973094
Play_Ground
Depth Completion 0.53022 0.692895 0.856412 0.921031 0.95105 0.974347
Colmap 0.704322 0.804553 0.880108 0.921156 0.953362 0.979029
Relief
Depth Completion 0.723707 0.825141 0.897729 0.932395 0.957934 0.975867
Colmap 0.676665 0.788244 0.874211 0.91684 0.949031 0.974282
Relief_2
Depth Completion 0.688115 0.803549 0.88559 0.921755 0.948532 0.970945
Colmap 0.760262 0.861278 0.937537 0.970564 0.988105 0.996787
Terrace
Depth Completion 0.779455 0.876898 0.94359 0.973467 0.988118 0.996195
Colmap 0.695597 0.787254 0.880995 0.935029 0.973722 0.994064
Terrains
Depth Completion 0.805346 0.886269 0.943516 0.968479 0.983312 0.993836

28
VI. Conclusion

We have presented a plane segmentation and depth completion for high resolution images, our al-
gorithm; includes low level feature segmentation and plane primitives mask to segment planes present in
the scene. We perform robust estimation to estimate the plane parameters using the 3D point cloud in each
plane segment, then; we complete the missing pixels in the input depth maps with their estimates.

We have shown a significant improvement in evaluating our depth completion reconstruction ap-
proach in terms of completeness on the ETH 3D dataset benchmark while keeping high level of accuracy.
Further improvements can be done in different level in the pipeline:
- Further training to Plane R-CNN network for indoor and outdoor scenes; will enhance the plane
detection for specific planes as windows.

- Multi-view Plane-Superpixel segmentation and refinement (merging) is needed to propagate

planes between views (more planes per single view) to obtain same plane segmentation per K
views having the same 3D point clouds, such scene global plane segmentation leads to a better
plane estimation, and K views depth map consistency.

- Better plane segmentation; allow us to create a new plane dataset for high resolution images;
building a CNN model that jointly detects scene planes by grouping superpixels based on their
similarity appearance and geometrical constraints; in an objective to overlap the planes with
their ground truths, and complete the input sparse depth maps by minimizing the number of the
invalid pixels.

29
References

[1] E. Zheng, E. Dunn, V. Jojic and J. M. Frahm, “PatchMatch Based Joint View Selection and
Depthmap Estimation,” IEEE Conference on Computer Vision and Pattern Recognition, 2014 .
[2] J. L. Schonberger, E. Zheng, M. Pollefeys and J.-M. Frahm, “Pixelwise view selection for
unstructured multi-view stereo,” European Conference on Computer Vision, 2016.
[3] P. H. Huang, K. Matzen, J. Kopf, N. Ahuja and J. B. Huang, “DeepMVS: Learning Multi-view
Stereopsis,” IEEE Computer Vision and Pattern Recognition, 2018.
[4] A. Romanoni and M. Matteucci, “TAPA-MVS: Textureless-Aware PAtchMatch Multi-View Stereo,”
IEEE Computer Vision and Pattern Recognition, 2019.
[5] A. Kuhn, S. Lin and O. Erdler, “Plane Completion and Filtering for Multi-View Stereo
Reconstruction,” 41th German Conference on Pattern Recognition, 2019.
[6] R. Tsai, “A versatile camera calibration technique for high-accuracy 3D machine vision metrology
using off-the-shelf TV cameras and lenses,” IEEE Journal on Robotics and Automation, 1987.
[7] R. Hartley and A. Zisserman, Multiple view geometry in computer vision, Cambridge Univesity
Press, 2003.
[8] C. D. Herreramm, J. Kannala, L. Ladicky and J. Heikkila, “Depth map inpainting under a second-
order smoothness prior,” 7944, pp. 555-566, June 2013.
[9] X. Gong, J. Liu, W. Zhou and J. Liu, “Guided depth enhancement via a fast marching method,”
Image and Vision Computing, vol. 31, no. 10, pp. 695-703, 2013.
[10] D. Doria and R. J. Radke, “Filling large holes in LiDAR data by inpainting depth gradients,” IEEE
Computer Society Conference on Computer Vision and Pattern Recognition Workshops, 2012.
[11] K. Matsuo and A. Y, “Depth image enhancement using local tangent plane approximations,” IEEE
Conference on Computer Vision and Pattern Recognition (CVPR), 2015.
[12] J. Lu, D. Min, S. Pahwa and M. N. Do, “A revisit to MRF-based depth map super-resolution and
enhancement,” IEEE International Conference on Acoustics, Speech and Signal Processing
(ICASSP), 2011.
[13] J. Lu and D. Forsyth, “Sparse depth super resolution,” IEEE Conference on Computer Vision and
Pattern Recognition (CVPR), 2015.
[14] Z. Jia, Y. Chang, T. H. Lin and T. Chen, “Dense interpolation of 3D points based on surface and
color,” 18th IEEE International Conference on Image Processing, 2011.
[15] A. Sampath and J. Shan, “Segmentation and Reconstruction of Polyhedral Building Roofs From
Aerial Lidar Point Clouds,” IEEE Transactions on Geoscience and Remote Sensing, vol. 48, no. 3,
pp. 1554 - 1567, 2010.
[16] A. G. Schwing, T. Hazan, M. Pollefeys and R. Urtasun, “Efficient structured prediction for 3D
indoor scene understanding,” IEEE Conference on Computer Vision and Pattern Recognition, 2012.
[17] C. Liu, J. Yang, D. Ceylan, E. Yumer and Y. Furukawa, “PlaneNet: Piece-wise Planar Reconstruction
from a Single RGB Image,” Conference on Computer Vision and Pattern Recognition, 2018.

30
[18] Z. F and Z. Yang, “Recovering 3D Planes from a Single Image via Convolutional Neural Networks,”
European Conference on Computer Vision, 2018.
[19] C. Liu, K. Kim, J. Gu, Y. Furukawa and J. Kautz, “PlaneRCNN: 3D Plane Detection and
Reconstruction from a Single Image,” IEEE Conference on Computer Vision and Pattern
Recognition, 2019.
[20] K. He, G. Gkioxari, P. Dollár and R. B. Girshick, “Mask R-CNN for Object Detection and
Segmentation,” IEEE Conference on Computer Vision and Pattern Recognition, 2017.
[21] T. Lin, P. Dollar, R. Girshick, K. He, B. Hariharan and S. Belongie, “Feature Pyramid Networks for
Object Detection,” IEEE Conference on Computer Vision and Pattern Recognition (CVPR), pp.
2117-2125, 2017.
[22] O. Ronneberger, P. Fischer and T. Brox, “U-Net: Convolutional Networks for Biomedical Image
Segmentation,” Medical Image Computing and Computer-Assisted Intervention (MICCAI),
Springer, LNCS, vol. 9351, pp. 234--241, 2015.
[23] D. Angela, C. X. Angel, S. Manolis, H. Maciej, F. Thomas and N. Matthias, “ScanNet: Richly-
annotated 3D Reconstructions of Indoor Scenes,” IEEE Computer Vision and Pattern Recognition
(CVPR) Proceeding., 2017.
[24] M. v. d. Bergh, X. Boix, G. Roig, B. d. Capitani and L. v. Gool., “SEEDS: Superpixels extracted via
energy-driven sampling,” Proceedings of the European Conference on Computer Vision, p. 13–26,
2012.
[25] D. Stutz and L. B, “Superpixel Segmentation: An Evaluation,” German Conference on Pattern
Recognition, pp. 555-562, 2015.
[26] T. Schöps, J. L. Schönberger, S. Galliani, T. Sattler, K. Schindler, M. Pollefeys and A. Geiger, “A
Multi-View Stereo Benchmark with High-Resolution Images and Multi-Camera Videos,” IEEE
Conference on Computer Vision and Pattern Recognition (CVPR), 2017.
[27] J. L. Schönberger and J. Frahm, “Structure-from-Motion Revisited,” IEEE Conference on Computer
Vision and Pattern Recognition, 2016.

31
