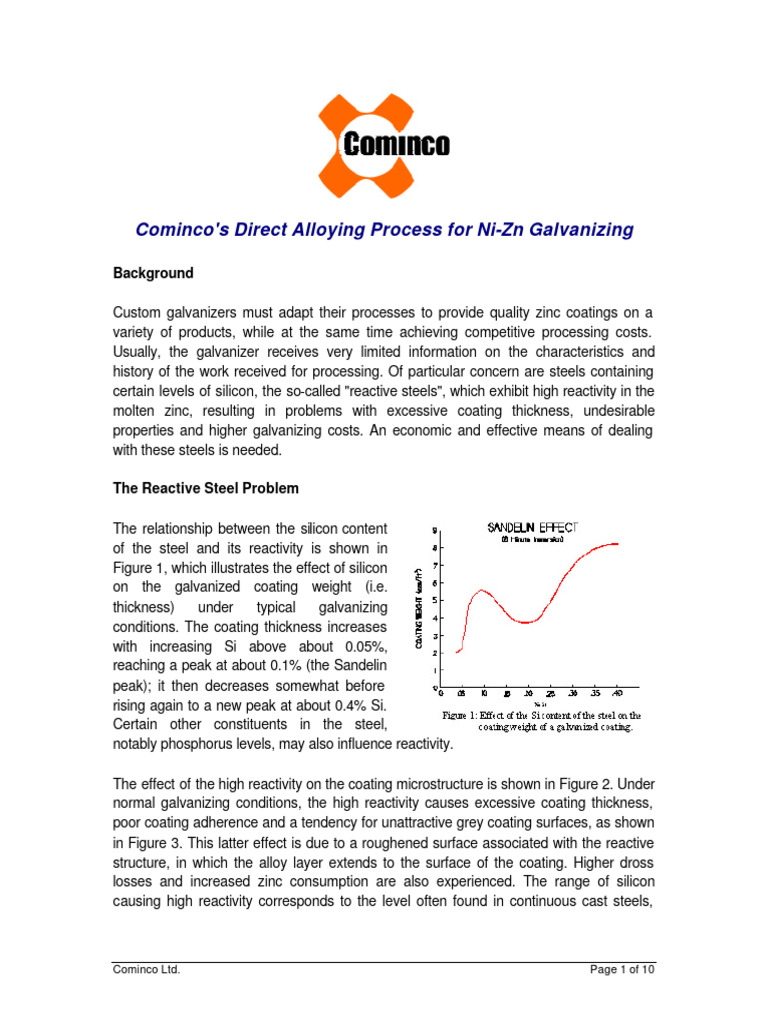

Cominco's Direct Alloying Process for Ni-Zn Galvanizing

Background

Custom galvanizers must adapt their processes to provide quality zinc coatings on a
variety of products, while at the same time achieving competitive processing costs.
Usually, the galvanizer receives very limited information on the characteristics and
history of the work received for processing. Of particular concern are steels containing
certain levels of silicon, the so-called "reactive steels", which exhibit high reactivity in the
molten zinc, resulting in problems with excessive coating thickness, undesirable
properties and higher galvanizing costs. An economic and effective means of dealing
with these steels is needed.

The Reactive Steel Problem

The relationship between the silicon content

of the steel and its reactivity is shown in
Figure 1, which illustrates the effect of silicon
on the galvanized coating weight (i.e.
thickness) under typical galvanizing
conditions. The coating thickness increases
with increasing Si above about 0.05%,
reaching a peak at about 0.1% (the Sandelin
peak); it then decreases somewhat before
rising again to a new peak at about 0.4% Si.
Certain other constituents in the steel,
notably phosphorus levels, may also influence reactivity.

The effect of the high reactivity on the coating microstructure is shown in Figure 2. Under
normal galvanizing conditions, the high reactivity causes excessive coating thickness,
poor coating adherence and a tendency for unattractive grey coating surfaces, as shown
in Figure 3. This latter effect is due to a roughened surface associated with the reactive
structure, in which the alloy layer extends to the surface of the coating. Higher dross
losses and increased zinc consumption are also experienced. The range of silicon
causing high reactivity corresponds to the level often found in continuous cast steels,

Cominco Ltd. Page 1 of 10

Cominco's Direct Alloying Process for Ni-Zn Galvanizing

which now make up a large portion of structural steels. Thus, the problem is widely
experienced within the galvanizing industry.

Since the undesirable effects are due to excessive reaction between the steel and the
molten zinc galvanizing bath, one approach to the problem is simply to provide less
reactive conditions and reduced reaction time. This involves lowering the temperature of
the bath and minimizing the immersion time. Such an approach can be helpful but it has
significant limitations, especially where there are mixed steels and the reactive materials
cannot be identified. Other approaches, involving more drastic process changes, have
included high temperature galvanizing and new bath alloys (e.g. Polygalva), but they
have had only partial success. The most practical and effective solution has been the
use of an addition of nickel to the galvanizing bath. One of its principal merits is that it
requires very little modification to normal galvanizing techniques and conditions. The
addition of nickel can be used with either Prime Western Grade or lead-free zinc.

The Ni-Zn Process

The beneficial effect of nickel in counteracting the high reactivity of Si-containing steels
was discovered in the early 1960s in research carried out in Canadian government
laboratories under the auspices of the Canadian zinc, steel and galvanizing industries
[1], and later supported by ILZRO. Further development and first commercial use of the
process occurred in Europe in the 1980s, where the process was given the trade name
"Technigalva". Since then, the Ni-Zn process has seen widespread commercial use in
Europe, Australia and North America.

The Ni-Zn process involves the addition of nickel, in the range of 0.05 to 0.14%, to a
normal galvanizing bath. This addition has proved effective in reducing the detrimental
effect of Si in steels, up to levels of about 0.2% Si. Figures 4 and 5 illustrate the effect of
the nickel on the thickness and structure of coatings on reactive steels [2]. The alloy
layer thickness is greatly reduced for Si levels below about 0.2%, but there is little effect

Cominco Ltd. Page 2 of 10

Cominco's Direct Alloying Process for Ni-Zn Galvanizing

at higher levels. The structures of the coatings on reactive steels from the Ni-Zn bath are
similar to those formed on low silicon steels in conventional galvanizing.

The coatings produced on reactive steels by the Ni-Zn process are of good quality. The
surfaces are typically smooth and bright, in contrast to the grey mottled surfaces often
encountered with conventional galvanized coatings on such steels. The coatings provide
good corrosion protection, which has been found to be equivalent to that of conventional
coatings [3]. They also exhibit good formability and resistance to mechanical damage.

One disadvantage of the process, as compared to conventional galvanizing, is increased

dross production. This is due to a reduction in iron solubility in the bath, associated with
the introduction of nickel. Iron in excess of the solubility limit combines with the nickel
and zinc to form solid intermetallic particles that report to the dross layer. Dross
production has been estimated at about 15% more than with conventional galvanizing
[5]. An associated problem has been the relatively large amount of nickel lost to the
dross. Some plants using the Ni-Zn process have reported that typically about one-half
(40-60%) of the nickel added reports to the bottom dross; a small proportion goes to the
ash; and the remainder reports to the coating. Since both the intermetallic particles of
the dross and the alloy layers of the coating are enriched in nickel, it is normally
necessary for the makeup additions to the bath to include nickel at approximately four
times the targeted bath level. However, as discussed below, dross production, nickel
losses to the dross, and the extent of nickel enrichment in the coating are all very much
dependent on the alloying method and the bath operating procedures.

There can be additional disadvantages if the nickel content of the bath is at the high end
of the range (>0.1%). In such cases, the coating growth on low Si steels can be reduced
to the extent that there may be problems in achieving sufficiently thick coatings to meet
the specifications. High nickel levels also contribute to high dross production and rough
coatings due to entrapped dross particles in the coatings. For these reasons, there has

Cominco Ltd. Page 3 of 10

Cominco's Direct Alloying Process for Ni-Zn Galvanizing

been a tendency in recent years to keep nickel levels toward the low end of the range
(0.05 to 0.08%).

Nickel Additions and the Cominco Direct Alloying Process

The most efficient method of introducing nickel is by direct alloying. In this technique,
nickel is alloyed into the zinc bath in a specially designed mixing unit. The strong mixing
action of the mixer results in complete dissolution of the nickel in a very short period of
time. For example, the initial changeover of a typical conventional galvanizing bath to a
Ni-Zn bath can be accomplished in a few hours; for ongoing makeup of nickel during
operation, the nickel addition can typically be achieved in about 15 minutes. This rapid
alloying is advantageous in allowing fast changes from conventional baths to Ni-Zn
baths and also in facilitating frequent adjustments to the nickel level. The Direct Alloying
Process has proven to be an easy and convenient means for initial bath alloying and for
ongoing nickel level maintenance.

Prior to the introduction of the Direct Alloying Process, nickel was usually added in the
form of a master alloy containing about 2% nickel. The nickel in the master alloy is
present as a NiZn compound (NiZn 8) within a zinc-rich matrix. Solution of the nickel from
the intermetallic compound tends to be a slower process, and there is the added
disadvantage of possible settling of the NiZn compound to the dross layer before
solution can take place. The extent of this settling will be dependent on the fineness of
the intermetallic particles and the bath turbulence, as well as other bath operating
conditions. It has been reported that, in the initial alloying with master alloy, the
proportion of nickel reporting to the bath is high; however, during ongoing operation of
the bath, as more makeup master alloy is added, the nickel efficiency drops greatly and
may be as low as 20 to 30% in some cases [4].

A Ni-Zn prealloy (e.g. 0.5% nickel) has also been used for making nickel additions.
Compared to the master alloy, this method is advantageous because, in this case, the
proportion of nickel intermetallics is much lower and the intermetallics are likely to be
more uniformly distributed. The nickel efficiency for additions using a prealloy has been
reported at 33%, compared to 20% when using a 2% master alloy [5].

The Direct Alloying Process provides the galvanizer with a cost advantage in
comparison to the other alloying approaches. With both the master alloy and prealloy
methods, there are prior zinc-nickel alloying costs that must be reflected in the price of
the alloy. This means that the cost of the nickel added to the bath by the alloy approach
is significantly greater than that for the Direct Alloying Process. A comparison with the
prealloy approach, using estimated current costs and typical conditions, is shown in
Appendix A. The example estimates savings and costs (in US dollars) for a plant
processing about 15,000 tons of reactive steel annually. For the calculation shown, an

Cominco Ltd. Page 4 of 10

Cominco's Direct Alloying Process for Ni-Zn Galvanizing

annual nickel cost of $90,000 using the prealloy method compares to a cost of $28,000
using the Direct Alloying Process, a reduction in cost of about 70%. (An additional cost
with the Direct Alloying Process is the initial investment in the mixer costing
approximately $4,000.) Also shown in the calculation is the zinc savings realized from
using the Ni-Zn process; this is estimated at about $75,000 as a result of the reduced
zinc consumption.

In view of the toxicological nature of nickel, it is essential that good industrial hygiene
practice be employed when making the nickel additions. This is particularly true in the
case of the nickel powder additions. Regulations and reliable guidance are readily
available [6,7]. An independent air sampling program in a plant using the Direct Alloying
Process showed that airborne nickel was less than 1% of the allowable levels. The
investigators concluded that, for the conditions tested, ". . .occupational overexposure to
nickel is unlikely to occur during the handling of nickel powder" and "background nickel
exposure levels are not likely to exceed existing or proposed occupational exposure
limits . . . "[8].

Ni-Zn Alloy Bath Management

Recent research by Cominco and others has increased the knowledge of the Zn-Ni-Fe
alloy system and helped to clarify factors influencing the operation of the process [9]. It
has shown that the solubility of iron in the zinc bath at 450C decreases from 0.029% in a
nickel-free bath to less than 0.01% at a nickel level of about 0.229%, as shown in Figure
6. When the combined levels of iron and nickel exceed the solubility limit, intermetallic
phases are formed which then settle to the bottom dross layer or, in some cases, may
be trapped in the galvanized coating. From the phase diagrams developed, and
confirmed by observation, it has been established that, when the nickel content of the
bath is below 0.06 %, the zeta phase is the intermetallic phase formed. When the nickel
content exceeds 0.06%, a ternary Zn-Ni-Fe phase, gamma 1, is formed. The zeta phase
contains less than 1% nickel, while the gamma 1 phase contains nickel in the range of 2
to 3%.

Cominco Ltd. Page 5 of 10

Cominco's Direct Alloying Process for Ni-Zn Galvanizing

This improved understanding of the phase diagram indicates factors important to the
nickel use efficiency. The gamma 1 phase intermetallic, which forms when the nickel is
>0.06% and contains a higher level of nickel, adds to the loss of nickel to the bottom
dross. Furthermore, if the nickel level is much above 0.06%, the higher level of gamma 1
phase formed can result in intermetallic particles being trapped in the coating, resulting
in the roughness and excessive coating thickness sometimes encountered.

The effect of bath nickel level on the loss of nickel from the bath is illustrated in Figure 7.
[9] This figure shows a plot of nickel content of two different operating galvanizing baths
as a function of time. For Bath No.1, the nickel consumption was 45 ppm per day for a
bath nickel above 0.06% and 11 ppm per day for a bath nickel below 0.06%. For Bath
No.2, the nickel consumption was 48 ppm per day for bath nickel contents above 0.05%
and 12 ppm per day for bath nickel contents below 0.05%. The reduced rate of nickel
loss when the nickel content dropped below about 0.06% is believed to be due to the
change in the intermetallic dross particles forming in the bath and the degree of nickel
enrichment in the coating. As noted above, below the 0.06% level, the only intermetallic
formed would be zeta phase, which has significantly lower nickel content than the
ternary gamma 1 phase.

Cominco Ltd. Page 6 of 10

Cominco's Direct Alloying Process for Ni-Zn Galvanizing

As shown in Figure 6, the solubility limits of iron and nickel in liquid zinc are very much
affected by the bath temperature. Reductions in temperature result in reduced
solubilities. Thus, if the temperature of a Ni-Zn galvanizing bath falls significantly, the
solubility of iron and nickel in the bath will be decreased, resulting in the formation of
increased amounts of intermetallics. These will tend to settle to the bottom of the pot
contributing to more dross losses. Increases in temperature would cause more iron and
nickel to go into solution, but if the temperature was later reduced, then additional
intermetallics would be produced. It is, therefore, advisable to avoid wide swings in
temperature as much as possible.

It has been found that as little as 0.02% nickel can partially suppress the reactive coating
tendency [2] (Figure 4), while 0.1% can completely suppress it. Earlier Cominco work
(Figure 8) showed that most of the reactivity suppression effect can actually be obtained
with nickel levels as low as 0.06% [10]. For example, the results with a reactive steel
containing 0.17% Si indicated that a 0.064% nickel addition achieved more than 80% of
the coating weight reduction given by 0.095 and 0.13% nickel baths. Thus, in this case,
a doubling of the nickel level in the bath resulted in less than 20% further reduction in the
coating thickness.

It is clear from the above discussion that the optimal nickel content for the process is at
the low end of the range that provides effective reactivity control. Keeping the nickel
content low will contribute to process efficiencies and will avoid problems of below-
specification coatings on low Si steels. The recommended range for nickel content in the
bath is 0.05 to 0.06%. The use of frequent additions of nickel powder, using the Cominco
Direct Alloying Process, is believed to be the best method of maintaining this narrow
range in order to optimize the process from the point of view of cost, efficiency and
product quality.

Cominco Ltd. Page 7 of 10

Cominco's Direct Alloying Process for Ni-Zn Galvanizing

Conclusions and Recommendations

The Ni-Zn process has been found to be an effective method of coping with the
problems associated with the galvanizing of reactive steels.

The Cominco Direct Alloying Process provides the most cost effective method of adding
nickel to the bath and controlling the process for maximum efficiency.

The following processing practices will help optimize the operation of the process:

1. Maintain bath nickel content in the range of 0.05 to 0.06%. This should give the
best balance between product properties and process efficiencies.

2. Make small nickel additions frequently so that the recommended nickel level can
be maintained without large variations above or below the target level.

3. Keep the bath temperature within a narrow range, as far as is practical; wide
swings in temperature will contribute to increased dross production.

Further Information

More information on Ni-Zn galvanizing and the Cominco Direct Alloying Process can be
obtained by contacting Cominco's Technology Sales Group.

References

1. J.J. Sebisty and R.H. Palmer, "Hot Dip Galvanizing with Less Common Bath
Additions", in Proceedings 7th International Conference on Hot Dip Galvanizing,
Paris, France, June, 1964, Pergamon Press, 1967, pp. 235-265.

2. B.D. Notowidjojo, N.F. Kenon and A.L. Wingrove, "Zinc-nickel Coating -- A New
Galvanizing Technology", in Proceedings Step into the 90's Conference,
Queensland, Australia, August 27-31, 1989, Australasian Institute of Metal
Finishing, Parkville, Victoria, Australia, pp. 623-632.

3. R. Sokolowski, "Zinc-nickel Baths: A Response to Developments in

Steelmaking", in Proceedings 15th International Galvanizing Conference, Rome,
Italy, June 5-10, 1988, Zinc Development Association, London, England, 1988,
pp. GE1/1-GE1/8.

4. D. Stroud, "Galvanizing with Zinc-Nickel Alloy", in Proceedings 1st Asian-Pacific

General Galvanizing Galvanizing Conference, Taipei, Taiwan, September 15-18,
1992, Asian-Pacific General Galvanizing Association, 1992, pp.169-175.

Cominco Ltd. Page 8 of 10

Cominco's Direct Alloying Process for Ni-Zn Galvanizing

5. A.F. Skenazi. and D. Rollez, "Hot Dip Galvanizing of Semi-Killed Steels with the
Zinc- Nickel Bath", in Proceedings 15th International Galvanizing Conference,
Rome, Italy, June 5-10, 1988, Zinc Development Association, London, England,
1988, pp. GE2/1-GE2/5.

6. Safe Use of Nickel in the Workplace, Nickel Development Institute and Nickel
Producers Environmental Research Association, May 1994.

7. Nickel Powder, Material Safety Data Sheet, Westaim Specialty Products, August
29, 1996.

8. M.M. Dillon Limited, Nickel Survey Report, Cominco Ltd., June 1993.

9. N. Qiang, N.Y. Tang and G.R. Adams, "A Study of the Zn Corner of the Fe-Ni-Zn
System", Project No. 641-027, Report No. 2, Cominco Ltd., Product Technology
Centre, Mississauga, ON, July 21, 1995.

10. L. Battiston and G.R. Adams, "New NiZn Galvanizing Alloy for Plant Trial",
Project No. 541-010, Report No. 1, Cominco Ltd., Product Technology Centre,
Mississauga, ON, January 24, 1985.

Cominco Ltd. Page 9 of 10

Cominco's Direct Alloying Process for Ni-Zn Galvanizing

APPENDIX A

Ni-Zn Galvanizing Operation -- Example of Savings and Costs

Prealloy Nickel Additions Compared to Direct Alloying Process

Assumptions

1. 1,000 cu. ft. kettle processing 15,000 tons of reactive steel annually.

2. Nickel addition at 0.25% of zinc feed, to maintain bath nickel content at target
level (0.06%). 0.5% Ni prealloy blended 1:1 with zinc feed.

3. Zinc consumption reduced from 7.0% of steel throughput, for a conventional

bath, to 6.5% for a Ni-Zn bath.

4. Metal costs (in US dollars):

Zinc . . . . . . . . . . . . . . . . . . . . . . . . . $1,000 per ton

0.5% Ni prealloy premium . . . . . . . . . .$185 per ton
Nickel powder . . . . . . . . . . . . . . . . . . $5.80 per lb

Annual Savings and Costs (US dollars)

Zinc Savings from Ni-Zn Process

(7.0% - 6.5%) x 15,000 tons x $1,000=$75,000

Prealloy Method
Nickel Addition Costs
6.5% x 15,000 tons x $185 x ½(blend ratio) = $90,187

Direct Alloying Process

Nickel Addition Costs
6.5% x 15,000 tons x (0.25% x 2,000 lbs) x $5.80 = $28,275
(Additional one-time investment for special mixer = $4,000)

Cominco Ltd. Page 10 of 10
