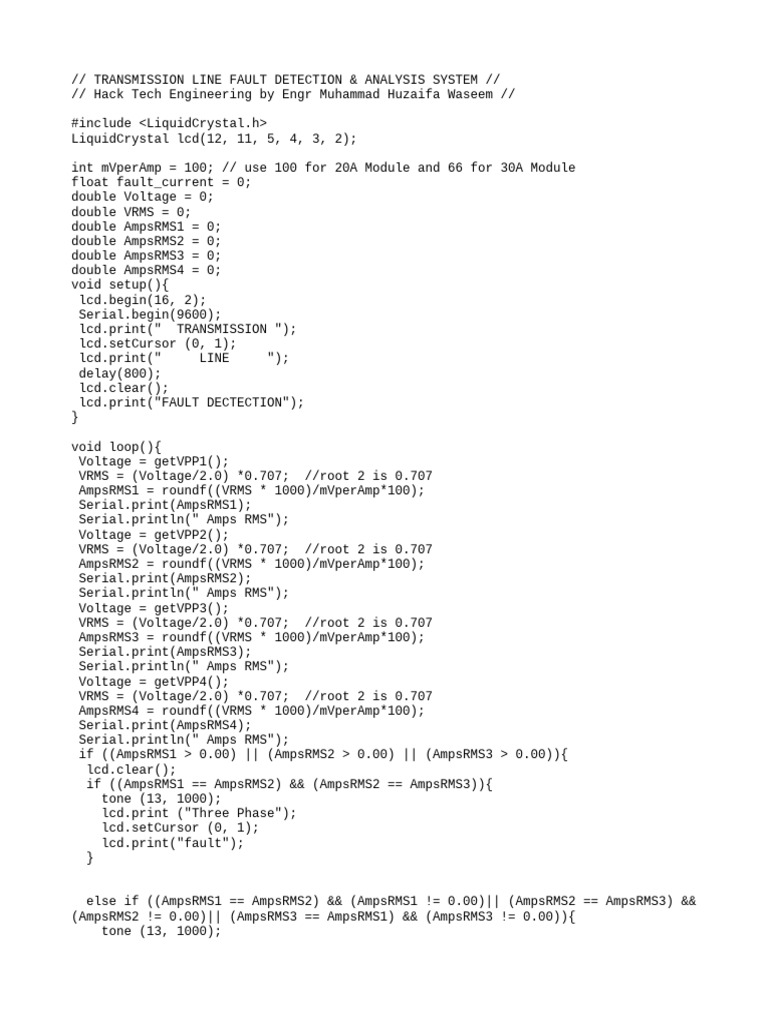

// TRANSMISSION LINE FAULT DETECTION & ANALYSIS SYSTEM //

// Hack Tech Engineering by Engr Muhammad Huzaifa Waseem //

#include <LiquidCrystal.h>
LiquidCrystal lcd(12, 11, 5, 4, 3, 2);

int mVperAmp = 100; // use 100 for 20A Module and 66 for 30A Module
float fault_current = 0;
double Voltage = 0;
double VRMS = 0;
double AmpsRMS1 = 0;
double AmpsRMS2 = 0;
double AmpsRMS3 = 0;
double AmpsRMS4 = 0;
void setup(){
lcd.begin(16, 2);
Serial.begin(9600);
lcd.print(" TRANSMISSION ");
lcd.setCursor (0, 1);
lcd.print(" LINE ");
delay(800);
lcd.clear();
lcd.print("FAULT DECTECTION");
}

void loop(){
Voltage = getVPP1();
VRMS = (Voltage/2.0) *0.707; //root 2 is 0.707
AmpsRMS1 = roundf((VRMS * 1000)/mVperAmp*100);
Serial.print(AmpsRMS1);
Serial.println(" Amps RMS");
Voltage = getVPP2();
VRMS = (Voltage/2.0) *0.707; //root 2 is 0.707
AmpsRMS2 = roundf((VRMS * 1000)/mVperAmp*100);
Serial.print(AmpsRMS2);
Serial.println(" Amps RMS");
Voltage = getVPP3();
VRMS = (Voltage/2.0) *0.707; //root 2 is 0.707
AmpsRMS3 = roundf((VRMS * 1000)/mVperAmp*100);
Serial.print(AmpsRMS3);
Serial.println(" Amps RMS");
Voltage = getVPP4();
VRMS = (Voltage/2.0) *0.707; //root 2 is 0.707
AmpsRMS4 = roundf((VRMS * 1000)/mVperAmp*100);
Serial.print(AmpsRMS4);
Serial.println(" Amps RMS");
if ((AmpsRMS1 > 0.00) || (AmpsRMS2 > 0.00) || (AmpsRMS3 > 0.00)){
lcd.clear();
if ((AmpsRMS1 == AmpsRMS2) && (AmpsRMS2 == AmpsRMS3)){
tone (13, 1000);
lcd.print ("Three Phase");
lcd.setCursor (0, 1);
lcd.print("fault");
}

else if ((AmpsRMS1 == AmpsRMS2) && (AmpsRMS1 != 0.00)|| (AmpsRMS2 == AmpsRMS3) &&


(AmpsRMS2 != 0.00)|| (AmpsRMS3 == AmpsRMS1) && (AmpsRMS3 != 0.00)){
tone (13, 1000);
if (AmpsRMS4 > 0.00){
lcd.print ("Double line to");
lcd.setCursor (0, 1);
lcd.print("Ground fault");
}
else{
lcd.print("line to line");
lcd.setCursor (0, 1);
lcd.print("fault");
}
}
else if ((AmpsRMS1 == AmpsRMS4) || (AmpsRMS2 == AmpsRMS4) || (AmpsRMS3 ==
AmpsRMS4)){
tone (13, 1000);
lcd.print ("Single line to");
lcd.setCursor (0, 1);
lcd.print("Ground fault");
}
delay(1000);
lcd.clear();

if ((AmpsRMS1 == AmpsRMS2) && (AmpsRMS1 > 0.00))


{
fault_current = AmpsRMS1;

lcd.setCursor (0, 0);


lcd.print("RED");
lcd.setCursor (0, 1);
lcd.print("YELLOW");

}
else if ((AmpsRMS2 == AmpsRMS3) && (AmpsRMS2 > 0.00))
{
fault_current = AmpsRMS2;

lcd.setCursor (0, 0);


lcd.print("YELLOW");
lcd.setCursor (0, 1);
lcd.print("BLUE");

}
else if ((AmpsRMS3 == AmpsRMS1) && (AmpsRMS1 > 0.00))
{
fault_current = AmpsRMS3;

lcd.setCursor (0, 0);


lcd.print("BLUE");
lcd.setCursor (0, 1);
lcd.print("RED");

}
if ((AmpsRMS1 == AmpsRMS4) && (AmpsRMS4 > 0.00))
{
fault_current = AmpsRMS4*2;

lcd.setCursor (0, 0);


lcd.print("RED");
lcd.setCursor (0, 1);
lcd.print("GROUND");
}
if ((AmpsRMS2 == AmpsRMS4) && (AmpsRMS4 > 0.00))
{
fault_current = AmpsRMS4*2;

lcd.setCursor (0, 0);


lcd.print("YELLOW");
lcd.setCursor (0, 1);
lcd.print("GROUND");

}
if ((AmpsRMS3 == AmpsRMS4) && (AmpsRMS4 > 0.00))
{
fault_current = AmpsRMS4*2;

lcd.setCursor (0, 0);


lcd.print("BLUE");
lcd.setCursor (0, 0);
lcd.print("GROUND");

}
if (fault_current >= 135.0){
lcd.setCursor(8, 0);
lcd.print("2 KM");
lcd.setCursor(8, 1);
lcd.print("2 KM");
if ((AmpsRMS1 == AmpsRMS2) && (AmpsRMS2 == AmpsRMS3)){
delay(1500);
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("BLUE");
lcd.setCursor(8, 0);
lcd.print("2 KM");
}

}
if ((fault_current >= 66.0) && (fault_current < 135.0)){
lcd.setCursor(8, 0);
lcd.print("4 KM");
lcd.setCursor(8, 1);
lcd.print("4 KM");
if ((AmpsRMS1 == AmpsRMS2) && (AmpsRMS2 == AmpsRMS3)){
delay(1500);
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("BLUE");
lcd.setCursor(8, 0);
lcd.print("4 KM");
}
}
if ((fault_current >= 45.0) && (fault_current < 66.0)){
lcd.setCursor(8, 0);
lcd.print("6 KM");
lcd.setCursor(8, 1);
lcd.print("6 KM");
if ((AmpsRMS1 == AmpsRMS2) && (AmpsRMS2 == AmpsRMS3)){
delay(1500);
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("BLUE");
lcd.setCursor(8, 0);
lcd.print("6 KM");
}
}
if ((fault_current >= 35.0) && (fault_current < 45.0)){
lcd.setCursor(8, 0);
lcd.print("8 KM");
lcd.setCursor(8, 1);
lcd.print("8 KM");
if ((AmpsRMS1 == AmpsRMS2) && (AmpsRMS2 == AmpsRMS3)){
delay(1500);
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("BLUE");
lcd.setCursor(8, 0);
lcd.print("8 KM");
}
}
}
else {
noTone(13);
lcd.clear();
lcd.print(" NO FAULT ");
}
}

float getVPP1()
{
float result;
int readValue; //value read from the sensor
int maxValue = 0; // store max value here
int minValue = 1024; // store min value here

uint32_t start_time = millis();


while((millis()-start_time) < 1000) //sample for 1 Sec
{
readValue = analogRead(A0);
// see if you have a new maxValue
if (readValue > maxValue)
{
/*record the maximum sensor value*/
maxValue = readValue;
}
if (readValue < minValue)
{
/*record the minimum sensor value*/
minValue = readValue;
}
}

// Subtract min from max


result = ((maxValue - minValue) * 5.0)/1024.0;

return result;

}
float getVPP2()
{
float result;
int readValue; //value read from the sensor
int maxValue = 0; // store max value here
int minValue = 1024; // store min value here

uint32_t start_time = millis();


while((millis()-start_time) < 1000) //sample for 1 Sec
{
readValue = analogRead(A1);
// see if you have a new maxValue
if (readValue > maxValue)
{
/*record the maximum sensor value*/
maxValue = readValue;
}
if (readValue < minValue)
{
/*record the minimum sensor value*/
minValue = readValue;
}
}

// Subtract min from max


result = ((maxValue - minValue) * 5.0)/1024.0;

return result;

}
float getVPP3()
{
float result;
int readValue; //value read from the sensor
int maxValue = 0; // store max value here
int minValue = 1024; // store min value here

uint32_t start_time = millis();


while((millis()-start_time) < 1000) //sample for 1 Sec
{
readValue = analogRead(A2);
// see if you have a new maxValue
if (readValue > maxValue)
{
/*record the maximum sensor value*/
maxValue = readValue;
}
if (readValue < minValue)
{
/*record the minimum sensor value*/
minValue = readValue;
}
}

// Subtract min from max


result = ((maxValue - minValue) * 5.0)/1024.0;

return result;

}
float getVPP4()
{
float result;
int readValue; //value read from the sensor
int maxValue = 0; // store max value here
int minValue = 1024; // store min value here

uint32_t start_time = millis();


while((millis()-start_time) < 1000) //sample for 1 Sec
{
readValue = analogRead(A3);
// see if you have a new maxValue
if (readValue > maxValue)
{
/*record the maximum sensor value*/
maxValue = readValue;
}
if (readValue < minValue)
{
/*record the minimum sensor value*/
minValue = readValue;
}
}

// Subtract min from max


result = ((maxValue - minValue) * 5.0)/1024.0;

return result;
