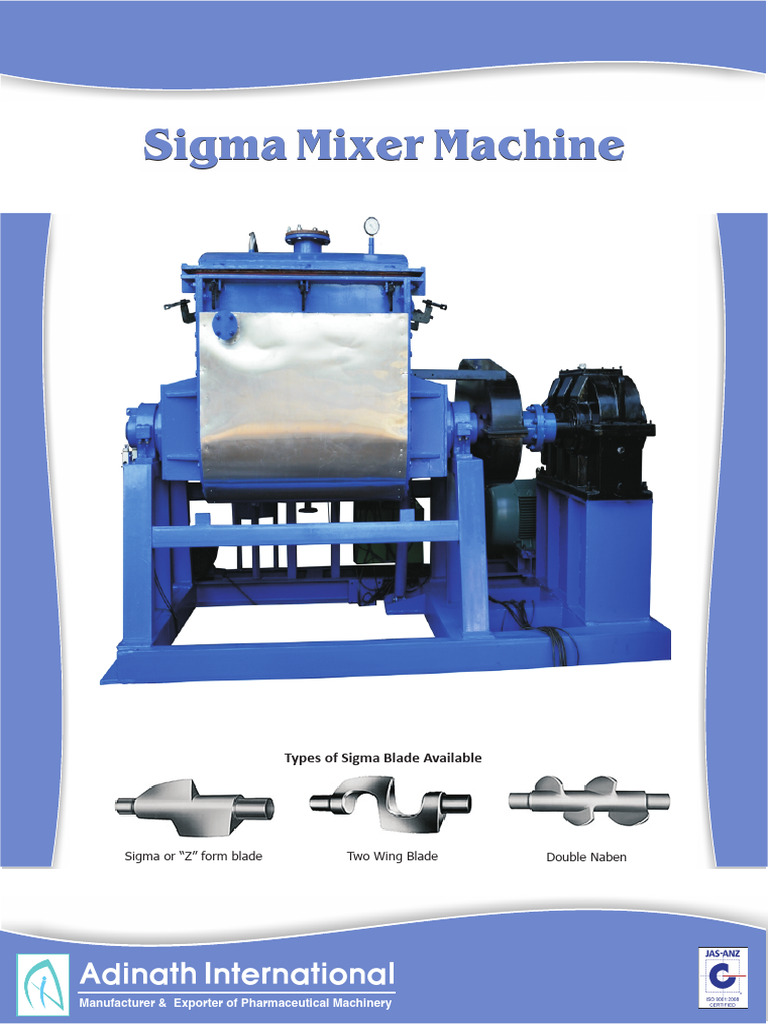

Types of Sigma Blade Available

Sigma or “Z” form blade Two Wing Blade Double Naben

A
d
i
na
th
I
nt
er
na
t
io
n
al
Manufacturer & Exporter of Pharmaceutical Machinery
 S
i
g
maM
i
x
erM
a
c
hi
n
e

Sigma Mixer Machine specially designed to produce uniform mixing, blending & kneading of highly viscous paste & dough type materials.
Sigma Mixer is uses for preparation of chocolate, bubble gum, bakery and other various products.

PROCESS OPERATION :
The tangential action of mixing and kneading is thoroughly obtained by two 'Z' shaped kneading blades, which rotates very accurately at
different speed towards each other causing the product to be transferred from one blade to the other.
The mixing action is a combination of bulk movement, stretching, folding, dividing, and recombining of the material. The shearing &
tearing action of the material against blades and the side walls causes size reduction of the solids. After the time period required for
sterilizing the batch has elapsed, the heating circuit shuts of the pneumatics damper (exhaust) opens and cooling operation commences.

TANGENTIAL AND OVERLAPPING BLADE ACTION :

In the tangential design, the blades rotate in the trough meeting tangentially. The front blade generally rotates faster than
the rear blade usually in the ratio of 3:2. Tangential blades are generally used for material of higher viscosities such as
adhesives, rubber compounds, flush colors, dyes, and pigments.
In the overlapping design, the blades overlap above the saddle of the container. Due to the overlapping action it is necessary
that the relative position of the two blades is unchanged, and as a result, both the blades rotate at the same speed.
Materials that flow freely or creep down into the blades are mixed using the overlapping blade action.
This design offers a faster interchange of material from one blade compartment of the mixer to the other. Overlapping
blade action is used for materials of lighter viscosities such as carbon pastes, clay coating, creams, and ointments.
The overlapping blade produces a lower kneading and shearing compared to the tangential blade action.

Capacity – Litres Motor (H.P.)

Model
Working Capacity Gross Capacity General Heavy Duty
ASM – 50 50 80 5 H.P. 7.5 H.P.

ASM – 75 75 110 7.5 H.P. 10 H.P.

ASM – 100 100 150 10 H.P. 15 H.P.

ASM – 200 200 200 15 H.P. 20 H.P.

ASM – 400 400 300 20 H.P. 25 H.P.

ASM – 500 500 550 30 H.P. 40 H.P.

ASM – 750 750 750 40 H.P. 50 H.P.

ASM – 1000 1000 1150 50 H.P. 60 H.P.

ASM – 1500 1500 1500 60 H.P. 70 H.P.

ASM – 2000 2000 2100 75 H.P. 80 H.P.

ASM – 2500 2500 2600 80 H.P. 90 H.P.

ASM – 3000 3000 3800 100 H.P. 120 H.P.

APPLICATION OF SIGMA MIXER :

Chemicals, Chewing gum, Crayon, Pencil lead, Explosives, Fiberglass resin dough, Food and confectionery products, Gaskets
and Gland Packing, Grinding wheel preparations, Hot-Melts, Inks and pigment products, Marzipan, Mastics, Metal powders,
Moulding preparations, Pencil erasers, Pharmaceuticals, Plastics, Putties, Refractory, Solid propellants, Sugar pastes, Sealing,
compounds, Silicone rubber, Soaps and detergents, Viscous rubber solutions.

Note: Electrical characteristics can be adjusted as per customer's domestic power requirements.

* Rights of technical improvements & modification reserved.

* Illustration & dimensions are shown for information purpose only.
