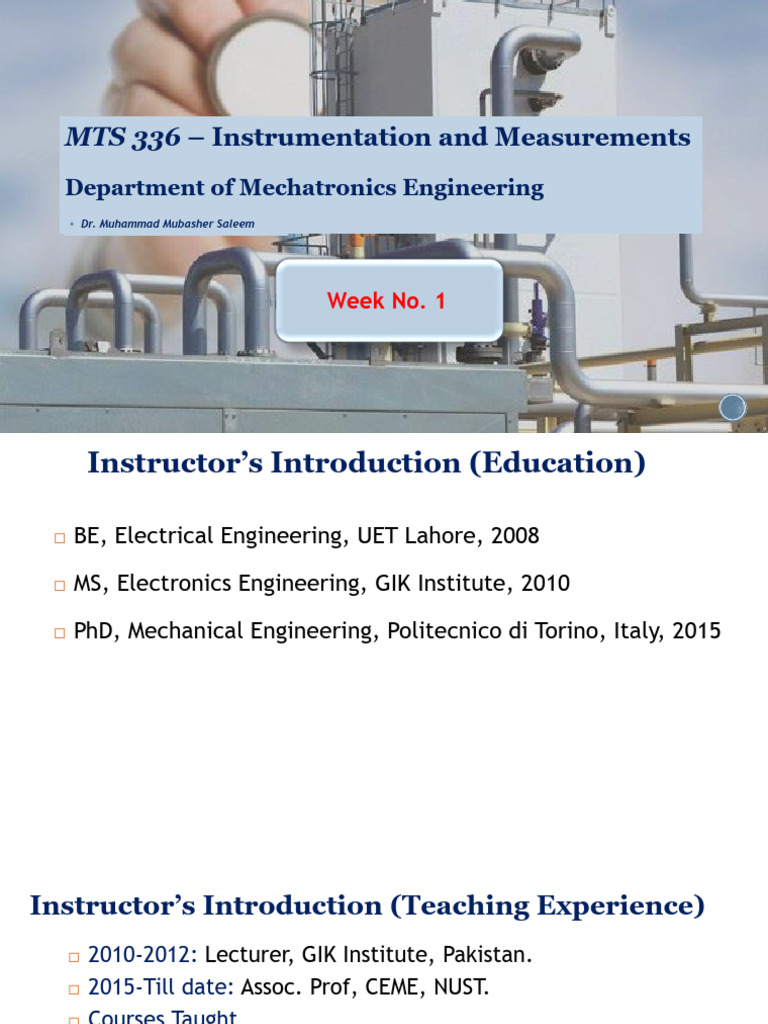

MTS 336 – Instrumentation and Measurements
Department of Mechatronics Engineering
▪ Dr. Muhammad Mubasher Saleem
Week No. 1
Instructor’s Introduction (Education)
BE, Electrical Engineering, UET Lahore, 2008
MS, Electronics Engineering, GIK Institute, 2010
PhD, Mechanical Engineering, Politecnico di Torino, Italy, 2015
2
Instructor’s Introduction (Teaching Experience)
2010-2012: Lecturer, GIK Institute, Pakistan.
2015-Till date: Assoc. Prof, CEME, NUST.
Courses Taught
Mechanical Vibrations (Undergraduate)
Microprocessor Interfacing (Undergraduate)
Computer Architecture (Undergraduate)
Digital Integrated Circuit Design (Undergraduate)
VLSI Design (Undergraduate)
Digital Logic Design (Undergraduate)
Data Acquisition and Control (Postgradute)
Introduction to MEMS (Postgradute)
3
MTS 336: Instrumentation & Measurements
▪ Credit Hour : 3-1
▪ Text Book :
▪ “Process Control Instrumentation Technology”
8th Edition by Curtis D. Johnson
▪ Reference Books:
▪ “Principles of Measurement Systems” by John P. Benetly
▪ “Sensors and Actuators control system Instrumentation”
by Clarence W. de Silva
▪ “Measurement and Instrumentation Principles”3rd Edition by
Butterworth by Heineman
4
MTS 336: Instrumentation and Measurements
▪ Grading
▪ The grade of this course will be weighted average of following
activities.
Activities Percentage Marks
End Semester Exam 50%
Mid Term Exam 30%
75
Assignments 5%
Quizz 15%
Lab Work/Exam 25
5
Course Outline
Sr. No Date Topic
1 Week 1-2 Introduction, Static Characteristics of Sensors
2 Week 3-4 Dynamic Characteristics of Sensors and Loading Effect
3 Week 5-6 Analog Signal Conditioning of Sensors
4 Week 7-8 Digital Signal Conditioning of Sensors
5 Week 9-10 Thermal and Mechanical Sensors
6 Week 11 Different Actuator Types and their Working
6
Course Outline
Sr. No Date Topic
7 Week 12-15 Discrete-State and Continuous Process Control Systems
8 Week 16 Motor and Drive Systems
7
Questions ?
8
What makes a machine a robot?
Sensing Planning Acting
information action
about the on the
environment environment
where
is the
truck?
where should I dig?
9
Why do robots need sensors?
Where am I? Will I hit something? Where is cropline?
Localization Obstacle Detection Autonomous Harvesting
10
Year 2023; Forecast for Sensors & Actuators
Markets per Application
A $75B Market for Sensors and Actuators 11
Sensors for a Humanoid Robot
12
Sensors for a Autonomous Vehicle
There are
30 different
sensors in a
smart
vehicle
13
Future of Machine Health Monitoring in
Manufacturing Industry
14
Design a Sensor That Can Measure Force
15
Example- Airbag Deployement System
16
Example- Airbag Deployement System
17
Example- Airbag Deployement System
18
Example- Airbag Deployement System
19
Example- Airbag Deployement System
Manufactured/Fabricated Capacitive
Micro-Accelerometer
20
A Typical Data Acquisition System
A data-acquisition system is the portion of a measurement system that quantifies
and stores data.
Transducer DAQ Hardware
Analog Input
ADC
Real World Process. Eg., Force, Digital
Analog Voltage/
Velocity, Light etc. Voltage/Current Current
DAC
Analog Output
21
A Typical Measurement System
22
The General Measurement
System
23
Significance of Measurement
▪ The primary objective in any measurement system is to establish the
value or the tendency of some variable.
▪ Measurement provides quantitative information on the actual state of
the physical variables and processes that otherwise could only be
estimated.
Input Output
Measurement
Process
System
True Measured value
Value of of variable
Observer
variable
24
Basic Définitions
▪ Process: A system which generates information, e.g. a chemical reactor, a car,
a human heart, or a weather system
▪ Observer: A person (or another system) that needs the information, e.g. a
plant operator, a driver (or engine control system), or a nurse
▪ Measurement system: A system that measures information carrying quantities,
processes them, and presents them to the observer
25
Structure of a Measurement System
1 2 3 4
Sensing Element Signal Conditioning Signal Processing Data Presentation
Element Element Element
True Value of Variable Measured Value of Variable
Input Output
26
Sensor+Processing+Transmission = Smart Sensors
Noise
Noise
True value of
the variable SCE* Display/Recording
to be Sensor SPE* /
(VCE)* Analysis
measure
Output:
Transducer (Sensor + SCE)
v,i,f,
ON/OFF Measured
value of the
Transmitter (Sensor + SCE + SPE)
variable
*SCE: Signal Conditioning Element
*VCE: Variable Conversion Element
*SPE: Signal Processing Element
27
1 Sensing Element
▪ In contact with the process and gives output that depends
on the variable(s) to be measured.
▪ Thermocouple – voltage depends on temperature.
▪ Strain gauge – resistance depends on mechanical strain.
▪ Ultrasonic transducer – electrical output depends on mechanical forces
(vibrations) acting on the surface of the transducer.
▪ Some sensing elements (sensors) depend directly on the physical variable of
interest, while others have a more complex connection to the underlying
mechanisms.
1 2 3 4
Sensing Element Signal Conditioning Signal Processing Data Presentation
Element Element Element
True Value of Variable Measured Value of Variable
28
Input Output
2 Signal conditioning element
Converts sensor outputs to more suitable forms!
▪ Deflection bridge – converts impedance changes to voltage changes.
▪ Amplifier – amplifies millivolts to volts, for example.
▪ Oscillator – converts impedance changes to variable frequency
voltage.
▪ Filters – noise removal
1 2 3 4
Sensing Element Signal Conditioning Signal Processing Data Presentation
Element Element Element
29
3 Signal processing elements
▪ Analog-to-Digital converter (ADC) – samples a continuous voltage to a
digital signal for input to a computer, micro processor (μP), DSP, etc.
▪ Computer, μP, DSP – calculates the values of measured variables given
digital input.
1 2 3 4
Sensing Element Signal Conditioning Signal Processing Data Presentation
Element Element Element
True Value of Variable Measured Value of Variable
Input Output
30
4 Data Presentation Element
Pointer scale
Analog indicator
LEDs
Displays
CRTs
Digital
Data Presentation
elements LCDs
Chart
Recorder
Electro-
luminescence
Recorder/Printers
Paperless
recorder
Laser
Printer
31
Example : Weight Measurement
32
System/Sensor Characteristics
❑ The system characteristics are to be known, to choose an instrument that
most suited to a particular measurement application.
▪ The performance characteristics may be broadly divided into two groups,
namely ‘static’ and ‘dynamic’ characteristics.
▪ Static characteristics : the performance criteria for the measurement of
quantities that remain constant, or vary only quite slowly.
▪ Dynamic characteristics: the relationship between the system input and
output when the measured quantity (measurand) is varying rapidly.
33
System/Sensor Characteristics
▪ Static characteristics Example
▪ The measurand (weight) is unchanging in time and the measurement system
instantaneously shows an equilibrium response to the measurand
34
System/Sensor Characteristics
▪ Dynamic characteristics Example
▪ The measurand (water temperature) is changing in time and the
measurement system response is dependent on the rate of change of
temperature.
35
