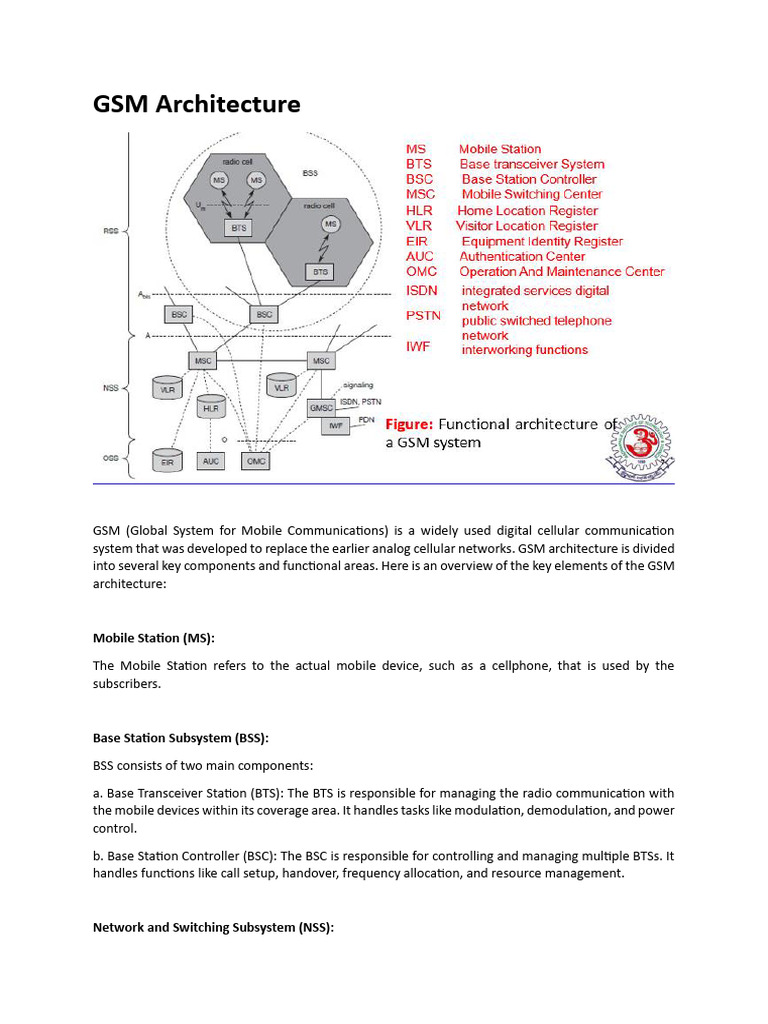

GSM Architecture

GSM (Global System for Mobile Communications) is a widely used digital cellular communication
system that was developed to replace the earlier analog cellular networks. GSM architecture is divided
into several key components and functional areas. Here is an overview of the key elements of the GSM
architecture:

Mobile Station (MS):

The Mobile Station refers to the actual mobile device, such as a cellphone, that is used by the
subscribers.

Base Station Subsystem (BSS):

BSS consists of two main components:

a. Base Transceiver Station (BTS): The BTS is responsible for managing the radio communication with
the mobile devices within its coverage area. It handles tasks like modulation, demodulation, and power
control.

b. Base Station Controller (BSC): The BSC is responsible for controlling and managing multiple BTSs. It
handles functions like call setup, handover, frequency allocation, and resource management.

Network and Switching Subsystem (NSS):

NSS is responsible for call routing and switching within the GSM network. It includes the following key
components:

a. Mobile Switching Center (MSC): The MSC is the central component responsible for call routing,
switching, and establishing connections between the mobile network and external networks (e.g.,
PSTN, other mobile networks).

b. Home Location Register (HLR): The HLR is a database that stores subscriber information, including
the subscriber's profile, current location, and other relevant data.

c. Visitor Location Register (VLR): The VLR is a temporary database that stores information about
subscribers currently within a specific MSC's coverage area.

d. Authentication Center (AUC): The AUC is responsible for authenticating the subscriber's identity and
ensuring the security of the network.

e. Equipment Identity Register (EIR): The EIR is responsible for tracking the mobile equipment's identity
and status, which can help in preventing the use of stolen or unauthorized mobile devices.

Operation and Support Subsystem (OSS):

The OSS is responsible for managing and maintaining the overall network operation. It includes
elements like the Operation and Maintenance Center (OMC) and the Mobile Switching Center Server
(MSC Server).

GSM Services:

GSM supports various services, including voice calls, SMS (Short Message Service), data services e.g.,
GPRS (General packet radio service) and EDGE (Enhanced Data rates for GSM Evolution), HSDPA (High
Speed Downlink Packet Access) and more.

The GSM architecture is a hierarchical and distributed network, allowing for scalability and efficient
communication. Mobile stations communicate with the base stations, which in turn communicate with
the base station controllers. The MSCs manage call routing and switching, and the NSS manages the
network's core functions, including subscriber information and security. This architecture has been a
foundation for subsequent mobile communication systems, such as 3G and 4G (LTE), with
enhancements in terms of data services and speed.

GSM radio subsystem

The GSM radio subsystem is a critical component of the GSM (Global System for Mobile
Communications) network architecture responsible for handling the radio communication between
mobile devices and the network infrastructure. It plays a crucial role in providing wireless voice and
data services. The GSM radio subsystem includes several key elements:

Base Transceiver Station (BTS):

The Base Transceiver Station is the primary component responsible for managing the radio
communication within a specific cell. Each BTS covers a specific geographic area and serves as a
transceiver, meaning it can transmit and receive signals to and from mobile devices. The BTS handles
functions such as modulation, demodulation, and power control. It also manages the timeslots used
for communication within the cell.

Transcoder and Rate Adaptation Unit (TRAU):

The TRAU is responsible for converting the voice signal from the mobile device into a format suitable
for transmission over the GSM network. It also handles the rate adaptation for data services.

Base Station Controller (BSC):

The Base Station Controller controls and manages multiple BTSs within its coverage area. It plays a
crucial role in managing the radio resources, handovers, and call setup. The BSC also manages
frequency hopping and power level adjustments.

Mobile Station (MS):

The Mobile Station refers to the actual mobile devices used by subscribers. It includes the user
equipment (e.g., mobile phones) and the SIM (Subscriber Identity Module) card, which contains the
subscriber's identity and security information.

Air Interface:

The air interface is the wireless communication link between the mobile device (MS) and the BTS. It
uses time-division multiple access (TDMA) technology, where the available frequency spectrum is
divided into time slots, and different conversations or data transmissions share these time slots.

Frequency Bands:

GSM operates in various frequency bands, depending on the region. For example, it can use 900 MHz
and 1800 MHz frequency bands in Europe and Asia, while in North America, it uses 850 MHz and 1900
MHz frequency bands.

Handover:

Handover is the process of transferring an ongoing call or data session from one BTS to another as the
mobile device moves between cells. The BSC manages this process to ensure uninterrupted
communication.

The GSM radio subsystem is responsible for establishing and maintaining connections between mobile
devices and the core network, ensuring the quality of service and coverage. It also plays a critical role
in optimizing the use of radio resources, minimizing interference, and managing power levels to
maximize network efficiency. The radio subsystem is a fundamental part of GSM and has evolved in
subsequent generations of mobile communication technology, such as 3G (UMTS) and 4G (LTE), with
improvements in data speed and capacity.

The four possible handover scenarios in GSM is shown in FIGURE:

Intra-cell handover: Within a cell, narrow-band interference could make transmission at a certain
frequency impossible. The BSC could then decide to change the carrier frequency (scenario 1).

Inter-cell, intra-BSC handover: This is a typical handover scenario. The mobile station moves from one
cell to another, but stays within the control of the same BSC. The BSC then performs a handover,
assigns a new radio channel in the new cell and releases the old one (scenario 2).

Inter-BSC, intra-MSC handover: As a BSC only controls a limited number of cells; GSM also has to
perform handovers between cells controlled by different BSCs. This handover then has to be
controlled by the MSC (scenario 3).

Inter MSC handover: A handover could be required between two cells belonging to different MSCs.
Now both MSCs perform the handover together (scenario 4).

GSM Channel Types

In GSM (Global System for Mobile Communications), there are several types of radio channels used
for different purposes in the communication network. These channel types are designed to facilitate
various services, including voice calls, SMS, and data transmission. Here are the primary GSM channel
types:
Traffic Channels (TCH):

Full Rate (TCH/F): These channels are used for standard voice calls. They provide a full-rate voice
transmission with a data rate of 13 Kbps.

Half Rate (TCH/H): Half-rate channels are used to accommodate more voice calls within the available
bandwidth. They provide voice transmission at a rate of 6.5 Kbps.

Control Channels:

Broadcast Control Channel (BCCH): The BCCH is used for broadcasting network information, such as
cell identity, location area, and system information. It allows mobile devices to identify and register
with the network.

Frequency Correction Channel (FCCH): The FCCH helps the mobile device synchronize its receiver to
the correct carrier frequency.

Synchronization Channel (SCH): The SCH carries information that enables the mobile device to
synchronize with the network's timing and frame structure.

Random Access Channel (RACH): The RACH is used for initiating calls or data sessions and requesting
channel access. Mobile devices use the RACH to establish contact with the network.

Paging Channel (PCH): The PCH is used by the network to page a specific mobile device, indicating an
incoming call or SMS message.

Access Grant Channel (AGCH): The AGCH is used to grant access to mobile devices after a successful
RACH request.
Standalone Dedicated Control Channel (SDCCH): SDCCHs are used for signaling purposes, such as call
setup, SMS transmission, and authentication.

Common Control Channels:

Common Control Channel (CCCH): CCCHs are used for general control and access management tasks,
including system information broadcasts and location updates.

Dedicated Control Channels (DCCH):

Fast Associated Control Channel (FACCH): FACCH is used for urgent signaling within a voice call, such
as handover requests.

Slow Associated Control Channel (SACCH): SACCH is used for monitoring and control functions,
including signal quality measurements, power control, and handover preparation.

Broadcast Channels:

Frequency Correction Channel (FCCH): This channel helps mobile devices synchronize to the correct
frequency.

Synchronization Channel (SCH): The SCH provides synchronization information.

Broadcast Control Channel (BCCH): The BCCH broadcasts network-related information.

These channel types collectively form the communication structure within the GSM network. They
allow for the management of voice calls, data services, network information broadcasting, and
signalling, ensuring the smooth operation of the mobile communication system. Different channel
types are allocated specific time slots and frequencies within the GSM spectrum to efficiently handle
various communication tasks.

Location Updating and Call Setup

In a GSM (Global System for Mobile Communications) network, location updating and call setup are
fundamental processes that enable mobile devices to establish communication with the network,
update their current location information, and set up voice or data calls. Here's an overview of how
location updating and call setup work in a GSM network:

Location Updating:

Location updating is the process by which a mobile device informs the network of its current location
when it moves into a new cell or location area. This ensures that the network always knows the
approximate location of the mobile device for routing calls and messages.

The steps involved in location updating are as follows:

a. Cell Change: When a mobile device moves from one cell to another, it continuously monitors signal
strength and quality from nearby cells. When it determines that the signal from a neighboring cell is
stronger and better, it initiates a cell change.

b. Registration Request: The mobile device sends a Location Update Request to the network. This
request contains the device's identity and the new location area or cell information.

c. Authentication: The network authenticates the mobile device by verifying the subscriber's identity
and security information stored on the SIM card.

d. Location Update Confirmation: Once the authentication is successful, the network updates its
database with the new location information, and the mobile device receives a Location Update
Confirmation.

Call Setup:

Call setup is the process of establishing a voice or data call between two parties, one of which may be
a mobile device. This process includes several steps to ensure that the call is routed correctly and
securely.

The steps involved in call setup are as follows:

a. Call Origination: When a user initiates a call, the mobile device sends a call setup request to the
network. The request contains the dialed number and information about the calling party.

b. Call Routing: The network determines the routing for the call based on the dialed number, the
location of the calling party, and the availability of network resources. It identifies the destination and
establishes a connection to the destination MSC (Mobile Switching Center).

c. Destination Identification: The destination MSC receives the call request and identifies the
subscriber or network element associated with the dialed number.

d. Authentication and Authorization: The network checks the calling party's authorization and
performs authentication, ensuring that the call is allowed.

e. Call Establishment: If all conditions are met, the network establishes a voice or data connection
between the calling and receiving parties, enabling the call to take place.

f. Call Termination: When the call is complete, the network manages the call termination, releases the
allocated resources, and updates the call records.

Both location updating and call setup are crucial processes for the proper functioning of a GSM
network. They ensure that mobile devices can roam seamlessly, update their location information, and
establish voice and data connections with other subscribers or network elements. These processes are
managed by various network components, including the Mobile Switching Center (MSC), Home
Location Register (HLR), Visitor Location Register (VLR), and Base Station Subsystem (BSS).
GPRS and packet Architecture GPRS Network
Architecture
General Packet Radio Service (GPRS) is a mobile data service used for transmitting data over cellular
networks. It is an important technology that played a crucial role in the evolution of mobile data
services and the development of 2G and 2.5G (2.5 generation) networks. GPRS introduced packet-
switching technology, which made it possible to send and receive data in packets, similar to how data
is transmitted over the internet. Here's an overview of the GPRS network architecture and its packet-
switched architecture:

GPRS Network Architecture:

In addition to the GSM elements, the main new network that were added in GPRS are SGSN (Serving
GPRS Support Node), GGSN (Gateway GPRS Support Node), PCU (Packet Control Unit). The GPRS
network architecture is an overlay on top of the existing 2G (GSM) network architecture. It introduces
packet-switching capabilities to the circuit-switched GSM network. The GPRS architecture comprises
several key components, including:

Mobile Station (MS): The MS is the user's mobile device, such as a mobile phone or a GPRS modem,
that communicates with the GPRS network. It includes the GPRS mobile equipment (GPRS ME) and the
GPRS subscriber identity module (SIM).

Base Station Subsystem (BSS): The BSS consists of two main components:

Base Transceiver Station (BTS): The BTS is responsible for radio transmission and reception. It
communicates with the MS and controls the radio link.
Base Station Controller (BSC): The BSC manages multiple BTSs, handling call setup, handovers, and
radio resource allocation.

Serving GPRS Support Node (SGSN): The SGSN is responsible for routing and forwarding GPRS packets.
It maintains information about the mobile's location and manages security and mobility within the
GPRS network. The SGSN or Serving GPRS Support Node element of the GPRS network provides a
number of services focused on the IP elements of the overall system. It provides a variety of services
to the mobiles, that includes:

1. Packet routing and transfer

2. Mobility management
3. Attach/detach
4. Logical link management Authentication
5. Charging data

There is a location register within the SGSN and this stores location information (e.g., current cell,
current VLR). It also stores the user profiles (e.g., IMSI, packet addresses used) for all the GPRS users
registered with the particular SGSN.

Gateway GPRS Support Node (GGSN): The GGSN is the gateway between the GPRS network and
external packet-switched networks, such as the internet. It is responsible for routing data packets to
their destination networks. The GGSN, Gateway GPRS Support Node is one of the most important
entities within the GPRS network architecture. The GGSN organizes the interworking between the
GPRS network and external packet switched networks to which the mobiles may be connected. The
GGSN can be considered to be a combination of a gateway, router and firewall as it hides the internal
network to the outside. In operation, when the GGSN receives data addressed to a specific user, it
checks if the user is active, then forwarding the data. In the opposite direction, packet data from the
mobile is routed to the right destination network by the GGSN.

Packet Control Unit (PCU): It is a hardware router that is added to the BSC. It differentiates data
destined for the standard GSM network (circuit switched data) and data destined for the GPRS network
(Packet Switched Data). The PCU itself may be a separate physical entity, or more often these days it is
incorporated into the base station controller, BSC, thereby saving additional hardware costs.

GPRS Core Network: This core network is responsible for the packet-switched data transfer in GPRS. It
connects the SGSN and GGSN and ensures the end-to-end delivery of data packets.

Home Location Register (HLR) and Authentication Centre (AUC): These components are responsible
for subscriber data and authentication within the GSM/GPRS network.

Packet-Switched Architecture:

GPRS introduced the concept of packet-switched data transmission, which is different from the circuit-
switched technology used in traditional voice calls. In GPRS, data is divided into packets and sent over
the network in a more efficient and flexible manner. Here are some key aspects of GPRS's packet-
switched architecture:

Packet Data Units (PDUs): Data is divided into packets, called Packet Data Units (PDUs), which are sent
independently over the network. This allows for efficient use of network resources, as data is only
transmitted when needed.
Dynamic Allocation: GPRS dynamically allocates network resources based on demand. Resources are
assigned to a mobile device only when it has data to transmit, and they are released when the
communication is complete.

IP Connectivity: GPRS enables IP connectivity, which means that GPRS devices can have their own IP
addresses. This facilitates internet connectivity and various data services, including web browsing,
email, and messaging.

Efficiency: Packet-switched technology is more efficient for handling bursty data traffic, making it well-
suited for mobile data services where users may intermittently send and receive data.

GPRS laid the foundation for the evolution of mobile data services, and its principles continue to
influence modern mobile networks like 3G, 4G, and 5G. It's important to note that GPRS is now
considered an outdated technology, but it played a pivotal role in the development of mobile data
services and the transition to higher-speed networks.

GPRS Network Operations

General Packet Radio Service (GPRS) network operations involve various processes and procedures to
enable data transmission over cellular networks. Here are the key network operations associated with
GPRS:

1. GPRS Attach and Detach:

GPRS Attach: When a mobile device is powered on or enters a GPRS coverage area, it performs a GPRS
attach procedure to establish a connection with the GPRS network. During this procedure, the device
registers its presence in the GPRS network and is assigned a temporary IP address.

GPRS Detach: When the mobile device wants to disconnect from the GPRS network, it performs a
GPRS detach procedure. This informs the network that the device is no longer available for GPRS
services.

2. Packet Data Protocol (PDP) Context Activation and Deactivation:

PDP Context Activation: To initiate data transmission, a mobile device establishes a PDP context, which
defines the data connection parameters. This includes information like the APN (Access Point Name)
for the desired service, quality of service (QoS) parameters, and the type of address assignment (e.g.,
dynamic or static IP).

PDP Context Deactivation: When the data session is complete or if the device no longer needs the
data connection, the PDP context is deactivated to release network resources.

3. Routing and Forwarding:

After a PDP context is established, data packets are routed through the GPRS network to reach their
destination. This involves packet routing through the Serving GPRS Support Node (SGSN) and Gateway
GPRS Support Node (GGSN). The GGSN acts as a gateway to external packet-switched networks, such
as the internet.
4. Quality of Service (QoS) Management:

GPRS allows for the assignment of different QoS parameters to data sessions, which can prioritize
specific services or applications over others. QoS parameters include latency, throughput, and
reliability. The network manages and enforces these parameters for each data session.

5. Mobility Management:

GPRS networks support mobile devices that can move between different cells and locations. Mobility
management procedures, including cell reselection and handovers, ensure that the device maintains
an active data connection while moving within the network.

6. Security and Authentication:

GPRS networks employ security measures to protect data during transmission. Authentication and
encryption mechanisms are used to ensure the confidentiality and integrity of the data. The
Authentication Center (AUC) is responsible for authenticating subscribers, and encryption keys are
used to secure data transmission.

7. Billing and Charging:

GPRS usage is monitored for billing purposes. Information about data usage, session duration, and
other parameters is collected for subscriber billing. This data is typically sent to the Charging Gateway
Function (CGF) for charging and billing processes.

8. Error Handling and Recovery:

GPRS networks must handle errors and recover from failures to maintain a reliable data connection.
Procedures like retransmission of lost packets and network reconfiguration are used to ensure data
integrity and reliability.

9. Roaming and Interoperability:

When a GPRS subscriber travels to a different network's coverage area (roaming), the GPRS network
must establish a connection with the visited network. This involves authentication and billing
agreements between different network operators.

10. Location Update:

Mobile devices periodically update their location with the GPRS network. These updates are essential
for the network to know the device's current location for call routing and other services.

GPRS network operations are critical for providing mobile data services efficiently, securely, and with
a focus on ensuring a smooth user experience. These operations are managed by various network
components, including the SGSN, GGSN, HLR, and AUC, which work together to deliver data services
to mobile subscribers.

Data Services in GPRS

General Packet Radio Service (GPRS) introduced data services to mobile networks, enabling users to
access a wide range of data applications and services beyond traditional voice calls and SMS. GPRS
paved the way for mobile data services and laid the foundation for later mobile data technologies like
3G, 4G, and 5G. Here are some of the key data services that GPRS enabled:

1. Internet Access: GPRS allowed mobile devices to connect to the internet, opening the door to web
browsing, email, and access to online services. Users could access websites, perform online searches,
and retrieve information from the internet.

2. Email: With GPRS, mobile users gained the ability to send and receive emails on their devices.
Mobile email clients were developed to provide a similar experience to desktop email.

3.Instant Messaging: GPRS facilitated the use of instant messaging (IM) applications on mobile
devices. Users could chat with friends and colleagues in real time using IM services like ICQ, AIM, and
later, WhatsApp and other messaging apps.

4.MMS (Multimedia Messaging Service): GPRS made it possible to send multimedia messages that
included text, images, audio, and video. MMS allowed users to share rich content with other mobile
users.

5.Mobile Apps: While GPRS provided limited bandwidth compared to modern mobile networks, it
allowed for the development and use of basic mobile applications. Early mobile apps, such as weather
apps, news apps, and basic games, became popular.

6.Location-Based Services: GPRS enabled location-based services, which used the mobile device's
position to provide information relevant to the user's location. For example, users could access local
weather updates or find nearby restaurants and services.

7. Push Email: GPRS paved the way for push email services that automatically delivered new emails to
the mobile device in real time. This was a significant advancement for professionals and business users.

8.Remote Access to Corporate Networks: GPRS allowed employees to remotely access their corporate
networks and data, enabling mobile professionals to work more effectively while on the move.

9.File Transfer: Users could send and receive files and documents using GPRS. This was particularly
useful for sharing documents in a business context.

10.Social Networking: GPRS contributed to the rise of mobile social networking, with users accessing
social media platforms on their mobile devices and sharing updates, photos, and videos.

11.Mobile Banking and Commerce: GPRS enabled mobile banking and mobile commerce applications,
allowing users to check their account balances, make payments, and perform financial transactions
using their mobile devices.

12.Mobile News and Information: GPRS allowed users to access news updates, weather forecasts, and
other information services on their mobile devices.

13.Mobile Entertainment: Users could access mobile entertainment content, such as mobile games,
music, and streaming services, over GPRS connections.

14.Online Shopping and E-commerce: GPRS paved the way for mobile shopping and e-commerce,
allowing users to browse online stores and make purchases using their mobile devices.

15.VoIP (Voice over Internet Protocol): While voice calls were primarily circuit-switched in GPRS
networks, some applications enabled VoIP calls over GPRS data connections, which foreshadowed the
evolution of mobile voice services.
GPRS revolutionized the mobile industry by offering a broad range of data services and creating
opportunities for developers to build mobile applications. While GPRS has been succeeded by faster
and more advanced mobile data technologies, it played a pivotal role in shaping the mobile data
landscape we see today.

Application and Limitation of GPRS

Applications of GPRS (General Packet Radio Service):
1.Mobile Internet Access: GPRS provided the first viable method for mobile devices to access the
internet, enabling users to browse websites, access online services, and retrieve information from the
web.

2.Email and Messaging: GPRS enabled users to send and receive emails on their mobile devices, as
well as use instant messaging apps for real-time communication.

3.Multimedia Messaging Service (MMS): GPRS made it possible to send multimedia messages,
including images, audio, and video, enhancing the communication experience.

4.Mobile Applications: GPRS paved the way for early mobile applications, such as basic games,
weather apps, and news apps.

5.Location-Based Services: GPRS allowed location-based services that utilized a mobile device's
position to provide location-specific information and recommendations.

6.Push Email: GPRS introduced push email services, enabling real-time email delivery to mobile
devices.

7.Remote Access to Corporate Networks: GPRS allowed professionals to access their corporate
networks and data remotely, improving productivity for mobile workers.

8.Social Networking: Users could access social media platforms on their mobile devices and share
updates, photos, and videos.

9.Mobile Banking and Commerce: GPRS facilitated mobile banking and commerce, allowing users to
perform financial transactions and check account balances on their mobile devices.

10.File Transfer: Users could send and receive files and documents using GPRS, which was useful for
business and personal purposes.

11.Mobile Entertainment: GPRS allowed access to mobile games, music, and streaming services,
enhancing the mobile entertainment experience.

12.Online Shopping and E-commerce: GPRS enabled mobile shopping and e-commerce, with users
able to browse online stores and make purchases using their mobile devices.

13.Mobile News and Information: Users could access news updates, weather forecasts, and various
information services on their mobile devices.

14.VoIP (Voice over Internet Protocol): Some applications supported VoIP calls over GPRS data
connections, offering an early glimpse of mobile voice services' evolution.
Limitations of GPRS:
1.Low Data Speeds: GPRS offered relatively slow data transfer speeds, with a maximum theoretical
speed of around 115 Kbps. This limited the quality of multimedia content and real-time applications.

2.Latency: GPRS had higher latency compared to modern mobile data technologies, which could lead
to delays in data transmission, affecting real-time applications like online gaming and video
conferencing.

3.Network Congestion: GPRS networks could become congested during peak usage times, resulting in
slower data speeds and less reliable connections.

4.Limited Bandwidth: GPRS networks had limited available bandwidth, which could hinder
simultaneous data usage by multiple users in the same cell.

5.Incompatibility with Voice Calls: GPRS was primarily designed for data services and could not
simultaneously support voice calls and data connections. Voice calls still relied on circuit-switched
networks.

6.Data Costs: Data usage over GPRS networks was often charged based on the amount of data
transferred, which could result in high data costs for users.

7.Coverage Gaps: While GPRS networks expanded rapidly, coverage gaps were still present in some
regions, limiting access to GPRS services in remote or less developed areas.

8.Device Compatibility: Not all mobile devices were initially equipped to use GPRS services, and users
needed GPRS-capable devices to access these services.

9.Security Concerns: GPRS introduced security challenges, and data transmitted over GPRS networks
was vulnerable to interception. Security mechanisms improved over time but were not as robust as
those in later technologies.

10.Evolution: GPRS was a 2G technology and was eventually succeeded by faster and more advanced
mobile data technologies, such as 3G, 4G, and 5G, which provided better data speeds and capabilities.

While GPRS was groundbreaking in its time, it had its limitations and paved the way for subsequent
advancements in mobile data technology. These limitations were addressed in later generations of
mobile networks, making them more suitable for a broader range of applications and services.

WAP
WAP, which stands for Wireless Application Protocol, is a technical standard for accessing information
and services over mobile wireless networks. It was designed to enable mobile devices, such as mobile
phones and PDAs (Personal Digital Assistants), to access web-like content and services, albeit in a more
simplified format, given the limited capabilities and small screens of early mobile devices. WAP was
particularly popular in the late 1990s and early 2000s, before smartphones and advanced mobile data
services became widespread. WAP is a technical standard for accessing information and services over
mobile wireless networks, designed to work with GSM networks initially.

WAP was developed to enable mobile devices, such as mobile phones and PDAs, to access web-like
content and services. It introduced a mobile browser, WML (Wireless Markup Language), for rendering
web content on small screens. WAP was not designed for voice calls but for accessing data and services,
making it a complement to the voice and SMS services provided by GSM networks.

The relationship between WAP and GSM can be summarized as follows:

WAP was an application layer protocol and technology that operated on top of GSM and other 2G
networks. It was used to provide data services and content access to mobile users.

GSM provided the underlying network infrastructure for mobile voice and text communication, while
WAP extended the capabilities of GSM by enabling mobile data services, such as mobile web browsing,
email, and access to information services.

Key components and aspects of WAP include:

1.WAP Browser: WAP introduced a web browser specifically designed for mobile devices. This browser
rendered web content in a format suitable for small screens and limited processing power. It used a
markup language called WML (Wireless Markup Language) for displaying content.

2.WML: WML is a markup language similar to HTML (Hypertext Markup Language) but optimized for
mobile devices. It allowed the creation of simplified web pages and provided support for text, images,
links, and forms.

3.WAP Gateway: WAP content and services were often hosted on servers with a WAP gateway. The
gateway adapted web content to the WML format and handled interactions between mobile devices
and web servers. It also helped with data compression and optimizing content for mobile delivery.

4.WAP Stack: The WAP protocol stack includes several layers, such as the Wireless Session Layer (WSP),
Wireless Transaction Protocol (WTP), and Wireless Transport Layer Security (WTLS). These layers
ensured secure and reliable data communication between mobile devices and servers.

5.WAP Push: WAP supported a feature called "WAP Push," which allowed content providers to send
messages or notifications to mobile devices. For example, users could receive notifications about new
email messages or news updates.

6.Security: WAP included security measures to protect data transmitted over wireless networks. WTLS
provided encryption and authentication to secure data transfer.

In the early days of mobile data services, WAP was the primary means of accessing internet-like
content on mobile devices over GSM networks. However, as mobile data technologies evolved, and
smartphones became more widespread, WAP was gradually replaced by more advanced data
technologies, such as 3G, 4G, and 5G.

It's important to note that both WAP and GSM have seen significant advancements and have evolved
over the years. While the term "GSM" is often used to refer to 2G mobile networks in general, the
technology itself has been improved and extended with subsequent generations of mobile networks,
and GSM networks have been largely phased out in favor of these newer technologies. Similarly, WAP
is no longer in common use, as it has been superseded by modern mobile web technologies and apps.
MMS
MMS, which stands for Multimedia Messaging Service, is a messaging service that enables users to
send multimedia content, including text, images, audio, and video, from one mobile device to another.
MMS is an evolution of the traditional Short Message Service (SMS), which only supports the
transmission of text messages. Here are some key aspects of MMS:

1.Multimedia Content: MMS allows users to send a wide range of multimedia content in a single
message. This can include images, photos, audio clips, video clips, and text.

2.Rich Media Messaging: MMS messages are often referred to as "rich media messages" because they
can contain multimedia elements, making communication more expressive and engaging.

3.Cross-Platform Compatibility: MMS is designed to work across different mobile devices and
platforms. As long as the devices and mobile networks support MMS, users can send and receive
multimedia messages.

4.Storage Capacity: MMS messages typically have larger storage capacity compared to SMS messages,
allowing for the transmission of higher-quality media content.

5.Message Composition: Users can create MMS messages by combining various media elements. This
includes attaching images, audio recordings, and videos to the message and adding text descriptions
or captions.

6.Recipient Experience: Recipients of MMS messages can view and interact with the multimedia
content directly within their messaging apps, making it a seamless experience.

7.Network Support: MMS requires network support, and both the sender's and recipient's mobile
carriers must have MMS functionality enabled for successful message exchange.

8.Data Usage: MMS messages often use mobile data to transmit multimedia content, so users should
be aware of their data plan's limitations and any associated data charges.

9.International Compatibility: MMS is designed to work across international borders, allowing users
to send multimedia messages to contacts in different countries.

10.Group Messaging: MMS can support group messaging, allowing multiple recipients to participate
in a multimedia conversation.

11.Delivery and Read Receipts: Some MMS services provide delivery and read receipts to inform
senders when a message has been successfully delivered and read by the recipient.

12.Mobile Applications: Many mobile messaging apps, such as WhatsApp, Facebook Messenger, and
iMessage, offer MMS-like features, allowing users to send multimedia content within the app.

While MMS offers a versatile way to share multimedia content, it has some
limitations, including:
1.Network Compatibility: The successful exchange of MMS messages depends on the compatibility
and support of the sender's and recipient's mobile carriers and devices.
2.Size Limitations: MMS messages may have size limitations, and if the multimedia content exceeds
these limits, the message may not be delivered or may be compressed and reduced in quality.

3.Data Usage and Charges: Sending and receiving MMS messages often incurs data usage, which can
be costly for users with limited data plans.

4.Platform Differences: The way MMS is handled can vary between different mobile operating systems
and devices, which can lead to inconsistencies in the user experience.

5.Limited Security: MMS messages are not as secure as some other messaging platforms, and users
should exercise caution when sharing sensitive information through MMS.

In recent years, many users have turned to over-the-top (OTT) messaging apps and services that
provide similar multimedia messaging capabilities, often with added features and improved security.
These OTT services have become popular alternatives to traditional MMS messaging.

3G W-CDMA; CDMA digital cellular standard

3G (third-generation) wireless technology and CDMA (Code Division Multiple Access) are two separate
but related concepts in mobile communications. Here 3G technology, specifically W-CDMA (Wideband
Code Division Multiple Access), and CDMA as a digital cellular standard are described:

3G (Third-Generation) Technology:

3G refers to the third generation of mobile wireless technology, following the first-generation (1G) and
second-generation (2G) technologies. It introduced significant advancements in mobile
communication, particularly in terms of data services. Key features of 3G technology include:

1.Data Transmission: 3G significantly improved data transmission capabilities compared to earlier 2G

networks. It provided faster data speeds, making it suitable for mobile internet access, video calling,
and multimedia content.

2.Wideband Code Division Multiple Access (W-CDMA): W-CDMA is one of the multiple standards used
for 3G technology. It is based on CDMA principles and provides a wider bandwidth, enabling higher
data transfer rates. W-CDMA is also known as UMTS (Universal Mobile Telecommunications System),
and it was one of the predominant 3G technologies.

3.Increased Capacity: 3G networks offered increased capacity, supporting more simultaneous users
and accommodating the growing demand for mobile data services.

4.Multimedia Services: 3G technology enabled a wide range of multimedia services, including mobile
video streaming, mobile TV, and video calling.

5.Higher-Quality Voice Calls: 3G networks provided improved voice call quality and allowed for
simultaneous voice and data transmission, known as circuit-switched fall-back.

6.Global Roaming: 3G networks were designed for international compatibility, allowing users to roam
between different 3G networks around the world.
7.Advanced Data Services: 3G laid the groundwork for more advanced data services like mobile apps,
mobile web browsing, and mobile email.

CDMA (Code Division Multiple Access):

CDMA is a digital cellular technology used to access and transmit information over wireless networks.
It is based on a spread-spectrum technique that assigns a unique code to each conversation, allowing
multiple users to share the same frequency spectrum simultaneously. Key aspects of CDMA include:

1.Code Division: CDMA assigns a unique code to each user's data stream, and these codes are used to
differentiate and separate users on the same frequency.

2.Increased Capacity: CDMA's method of assigning unique codes to users increased the capacity and
efficiency of wireless networks. It allows more simultaneous users on the same spectrum compared
to older analog technologies.

3.Better Call Quality: CDMA offers improved call quality, reduced background noise, and increased call
privacy.

4.Data Services: CDMA supports data services, and it was used for 2G and 3G data transmission
technologies, including IS-95 (2G CDMA) and W-CDMA/UMTS (3G CDMA).

5.Interoperability: CDMA technology is known for its interoperability, allowing users to roam between
different CDMA networks, including international roaming.

In summary, 3G technology, including W-CDMA or UMTS, represents the third generation of mobile
wireless technology with a focus on data services and advanced multimedia capabilities. CDMA is a
digital cellular standard that underpinned both 2G and 3G mobile technologies, offering advantages
such as increased capacity and improved call quality. W-CDMA, as part of 3G technology, extended
these benefits to mobile data services. However, it's important to note that 3G networks have largely
been replaced by faster 4G and 5G technologies, which offer even greater data speeds and capabilities.

Comparison between GSM and CDMA

GSM (Global System for Mobile Communications) and CDMA (Code Division Multiple Access) are two
different technologies for cellular communication. Both have been widely used for mobile
communication, and while they achieve the same goal, they do so in different ways. Here's a
comparison of GSM and CDMA in various aspects:

1. Technology:

GSM: GSM is a digital cellular technology that uses time-division multiple access (TDMA) for channel
access.

CDMA: CDMA is a digital cellular technology that uses code-division multiple access, where each user's
signal is spread over a wide bandwidth using a unique code.
2. Subscriber Identity:

GSM: GSM uses a SIM (Subscriber Identity Module) card, which can be easily removed and transferred
to different devices.

CDMA: CDMA doesn't use SIM cards. Subscriber identity is stored on the device, making it less
straightforward to switch devices.

3. Network Architecture:

GSM: GSM networks use a cell-based architecture where each cell is served by a base station and
controlled by a Mobile Switching Center (MSC).

CDMA: CDMA networks typically have a more distributed architecture, with less centralized control.

4. Call Quality:

GSM: GSM typically offers better call quality in terms of voice clarity and fewer dropped calls in areas
with strong signal strength.

CDMA: CDMA often provides better call quality in areas with weaker signals due to its use of soft
handoffs and signal diversity.

5. Network Compatibility:

GSM: GSM is widely used worldwide, making it easier for international roaming and compatibility with
different networks.

CDMA: CDMA has historically been more popular in North America, which can make it less compatible
with other networks, especially when traveling internationally.

6. Data and Internet Services:

GSM: GSM paved the way for the development of 2G, 3G, 4G, and 5G data networks, offering various
data services, including mobile internet access.

CDMA: CDMA also evolved to support data services, with technologies like 1xRTT and EV-DO.

7. Device Availability:

GSM: GSM devices are more widely available and tend to offer a greater variety of choices due to its
global popularity.

CDMA: CDMA devices, especially in the past, were more limited in terms of device selection and
availability.

8. Carrier Control:

GSM: GSM networks allow for easier swapping of devices, as long as the new device accepts the same
SIM card.

CDMA: CDMA devices are often more closely tied to specific carriers due to the subscriber identity
being stored on the device.

9. Security:

GSM: GSM has better security features, including encryption, to protect voice and data transmissions.
CDMA: CDMA also has security features but has faced security concerns in the past.

10. Migration and Evolution:

GSM: GSM networks have evolved to support 2G (GPRS/EDGE), 3G (UMTS), 4G (LTE), and 5G
technologies, providing a clear path for migration.

CDMA: CDMA networks have evolved to support various 2G (CDMA2000), 3G (EV-DO), and 4G (LTE)
technologies, but the migration path has not always been as straightforward as GSM.

In summary, both GSM and CDMA are digital cellular technologies, but they use different methods for
channel access and have unique features and characteristics. The choice between GSM and CDMA
often depends on factors such as regional availability, device compatibility, and the specific
requirements of the mobile carrier. Over the years, the differences between the two technologies have
become less pronounced as both have evolved to support data services and high-quality voice calls.

3G CDMA 2000
CDMA2000, also known as CDMA2000 1x or simply 1x, is a family of 3G (third-generation) mobile
communication standards based on CDMA (Code Division Multiple Access) technology. CDMA2000
was developed as an upgrade to 2G CDMA networks and is designed to offer higher data speeds,
improved call quality, and enhanced data capabilities. There are different generations and standards
within the CDMA2000 family, each offering various features and data speeds. The most notable
standards within the CDMA2000 family include:

CDMA2000 1xRTT (IS-2000):

CDMA2000 1xRTT, often referred to as just 1x, was the first implementation of the CDMA2000
standard. It offered data speeds of up to 144 Kbps (kilobits per second), which was a significant
improvement over 2G CDMA networks. 1xRTT provided support for both voice and data services,
allowing simultaneous voice calls and data connections. It became widely adopted, particularly in
North America.

CDMA2000 1xEV-DO (IS-856):

CDMA2000 1xEV-DO, often referred to as 1x EV-DO or simply EV-DO, stands for "Evolution-Data
Optimized." It offered higher data speeds than 1xRTT, with multiple revisions (Rev. 0, Rev. A, Rev. B)
providing progressively faster data rates. EV-DO was primarily focused on data services, making it well-
suited for mobile internet access and data-intensive applications. It was widely used for mobile
broadband services and was a competitor to other 3G technologies like UMTS (GSM-based) and HSPA
(High-Speed Packet Access).

CDMA2000 1xEV-DV (IS-2000):

CDMA2000 1xEV-DV, or simply EV-DV, stood for "Evolution-Data and Voice." It was designed to provide
even greater data speeds and simultaneous voice and data capabilities, improving upon the limitations
of 1xRTT. However, it faced limited deployment and was eventually overshadowed by the success of
EV-DO.
CDMA2000 technologies played a significant role in the transition from 2G to 3G mobile networks,
particularly in North America and some parts of Asia. They offered faster data speeds and advanced
data services, enabling mobile internet access, multimedia messaging, and more. CDMA2000 was a
competitor to other 3G technologies like UMTS (used in GSM networks) and was an important step
toward the development of 4G (LTE) networks.

It's important to note that with the evolution of mobile technology, CDMA2000 networks have become
less relevant, and most network operators have transitioned to 4G LTE and, more recently, 5G networks
for higher data speeds and advanced services. Many CDMA2000 networks have been shut down or
repurposed for newer technologies.

IMT-2000
IMT-2000, which stands for International Mobile Telecommunications-2000, is a global standard for
third-generation (3G) mobile communication and mobile broadband technologies. It represents a set
of standards and specifications developed by the International Telecommunication Union (ITU) to
enable high-quality, high-speed mobile communication services on a global scale. IMT-2000 was
designed to unify and standardize 3G technologies worldwide, allowing for seamless international
roaming and interoperability between different mobile networks and devices.

Key points and features of IMT-2000 include:

Global Standardization: IMT-2000 was developed to create a single global standard for 3G mobile
communications. It encompasses a variety of technologies and standards, including CDMA2000,
WCDMA (UMTS), and TD-SCDMA.

1.Multiple Access Technologies: IMT-2000 incorporates multiple access technologies, such as CDMA
(Code Division Multiple Access), TDMA (Time Division Multiple Access), and FDMA (Frequency Division
Multiple Access), providing flexibility for network operators to choose the technology that best suits
their needs.

2.High Data Rates: IMT-2000 was designed to offer significantly higher data rates compared to 2G
(second-generation) networks, enabling services like mobile internet access, video streaming, and
multimedia messaging.

3.International Roaming: One of the primary goals of IMT-2000 was to ensure that mobile devices
could roam seamlessly between different networks and countries, regardless of the underlying
technology used by each network.

4.Quality of Service (QoS): IMT-2000 defines quality of service parameters to ensure a consistent user
experience, including voice call quality and data service reliability.

5.Interoperability: IMT-2000 standards promote interoperability between various network elements,

such as core network infrastructure and mobile devices, to facilitate compatibility between different
network operators.

6.Transition from 2G to 3G: IMT-2000 marked a significant transition from 2G to 3G mobile networks,
introducing advanced data services and enabling new mobile applications and services.
7.Support for Voice and Data: IMT-2000 standards support both voice services (circuit-switched) and
data services (packet-switched), making it versatile for various communication needs.

IMT-2000 paved the way for the deployment of 3G networks and services around the world, providing
users with faster data speeds and a wider range of communication options. It also laid the foundation
for subsequent generations of mobile communication, including 4G (LTE) and 5G, which further
enhanced data speeds, coverage, and capabilities.

While 3G networks based on IMT-2000 standards were widespread in the early 2000s, they have been
largely replaced by 4G and 5G networks, which offer even higher data rates and advanced features.
However, IMT-2000 remains an important milestone in the history of mobile telecommunications,
representing the transition to a new era of mobile communication.

4G LTE-A
4G LTE-A, or 4G LTE-Advanced, is an enhanced version of 4G LTE (Long-Term Evolution), which is a
standard for wireless broadband communication. LTE-A was developed to provide even faster data
speeds, improved network capacity, and enhanced performance compared to the initial 4G LTE
technology. It is considered a stepping stone towards 5G (fifth-generation) mobile networks. Here are
the key features and benefits of 4G LTE-A:

1.Higher Data Speeds: LTE-A significantly boosts data speeds compared to standard 4G LTE. It can
provide peak download speeds of up to 1 Gbps (gigabit per second) and peak upload speeds of up to
100 Mbps, although real-world speeds may vary based on network conditions.

2.Carrier Aggregation: LTE-A introduces the concept of carrier aggregation, where multiple LTE carriers
(also known as frequency bands or channels) are combined to transmit data simultaneously. This
increases the available bandwidth and boosts data speeds.

3.Advanced Antenna Techniques: LTE-A incorporates advanced antenna technologies, including

Multiple-Input Multiple-Output (MIMO) and beamforming, which improve signal reception, coverage,
and network efficiency.

4.Improved Network Capacity: By utilizing carrier aggregation and advanced antenna techniques, LTE-
A networks can support more users and devices simultaneously, resulting in improved network
capacity and reduced congestion.

5.Low Latency: LTE-A aims to reduce network latency, which is the delay between sending and
receiving data. Lower latency is essential for real-time applications like online gaming and video
conferencing.

6.Enhanced Voice and Data Services: LTE-A supports both circuit-switched and packet-switched
services, ensuring high-quality voice calls and faster data services. It can handle multimedia content,
video streaming, and large file downloads with ease.

7.Global Compatibility: LTE-A is designed to work globally, and many network operators around the
world have upgraded their networks to support LTE-A. This allows for international roaming and broad
device compatibility.
8.Improved Network Efficiency: LTE-A networks are more efficient in their use of available spectrum,
making it possible to serve more users and offer better service quality.

9.Backward Compatibility: LTE-A networks are designed to be backward compatible with standard 4G
LTE devices. So, even if your device doesn't support LTE-A, it can still connect to the network, albeit at
standard 4G LTE speeds.

10.Evolutionary Step Toward 5G: LTE-A is often considered a bridge between 4G LTE and 5G networks.
It introduced several technologies and concepts that have been further developed and expanded in
5G networks.

LTE-A has been widely adopted by mobile operators in many regions as an upgrade to their 4G LTE
networks. It has allowed for faster internet access, improved multimedia streaming, and enhanced
support for a growing number of connected devices. While 5G networks have started to roll out, LTE-
A continues to play a crucial role in providing high-speed mobile connectivity, especially in areas where
5G deployment is ongoing or not yet widespread.

5G

5G, or fifth-generation wireless technology, represents the latest and most advanced standard for
mobile communication. It builds upon the foundations of 4G (LTE) and previous generations to deliver
significantly improved network performance and capabilities. Here are key features and aspects of 5G:

1.Higher Data Speeds: One of the primary objectives of 5G is to provide faster data speeds. It can
deliver peak download speeds of up to several gigabits per second (Gbps) and upload speeds in the
multi-gigabit range. This allows for quicker downloads, seamless 4K and 8K video streaming, and low-
latency gaming.

2.Low Latency: 5G networks aim to offer extremely low latency, with some applications requiring less
than one millisecond of delay. Low latency is crucial for real-time applications, such as autonomous
vehicles, remote surgery, and virtual reality experiences.

3.Greater Network Capacity: 5G networks are designed to support a much higher number of
connected devices in a given area, making them ideal for the Internet of Things (IoT) and smart city
applications.

4.Enhanced Mobile Broadband: 5G significantly improves mobile broadband connectivity, allowing

users to access the internet with higher speeds and bandwidth, even in densely populated urban areas.

5.Network Slicing: 5G enables network slicing, which means the network can be partitioned into
multiple virtual networks, each customized for specific use cases. This ensures the right quality of
service for various applications, from industrial automation to augmented reality.

6.Millimeter Wave (mmWave) Frequencies: 5G networks use higher frequency bands, including
mmWave, which offer greater bandwidth but shorter propagation distances. mmWave is particularly
well-suited for urban environments and high-density locations.
7.Massive MIMO: 5G networks make extensive use of Massive Multiple-Input, Multiple-Output
(MIMO) technology, which involves multiple antennas on base stations and mobile devices to improve
network performance.

8.Beamforming: Beamforming techniques are employed to direct wireless signals more precisely to
devices, enhancing coverage and reducing interference.

9.Full Duplex: 5G enables full-duplex communication, allowing devices to transmit and receive data
simultaneously, improving network efficiency.

10.Network Densification: To provide comprehensive 5G coverage, networks are densified, with more
small cells and base stations installed in urban areas.

11.Security Enhancements: 5G networks include advanced security measures, such as improved

encryption and authentication, to protect data and network integrity.

12.Energy Efficiency: 5G networks are designed to be more energy-efficient, with technologies like
"sleep modes" for devices and network elements.

13.Ubiquitous Connectivity: 5G aims to provide seamless and ubiquitous connectivity, with the ability
to connect in various environments, from cities to rural areas.

14.Evolving Standards: 5G is built upon evolving standards and specifications, with various phases and
releases to enhance its capabilities further.

15.Use Cases: 5G technology enables a wide range of applications, including smart cities, connected
vehicles, augmented and virtual reality, industrial automation, telemedicine, and more.

It's important to note that 5G is not just an evolution of 4G but represents a significant leap in terms
of speed, capacity, and capabilities. As 5G continues to be deployed globally, it is expected to
revolutionize industries and create new possibilities for communication, automation, and connectivity
in the years to come. 5G is still in its early stages of development, but it has the potential to
revolutionize the way we use our mobile devices and the world around us. Here are some examples of
how 5G is already being used:

1.Streaming ultra-high-definition video: 5G makes it possible to stream ultra-high-definition video

without any lag, even on mobile devices. This is a major improvement over 4G LTE, which often
struggles to stream HD video smoothly.

2.Online gaming: 5G's low latency makes it ideal for online gaming. Gamers can experience real-time
gameplay with no lag or delay.

3.Augmented reality: 5G's low latency and high bandwidth make it possible to use augmented reality
(AR) applications on mobile devices. AR applications overlay digital information onto the real world,
and 5G is essential for providing a smooth and immersive AR experience.

4.Self-driving cars: 5G is essential for self-driving cars to communicate with each other and with
infrastructure. 5G's low latency and high bandwidth will allow self-driving cars to make decisions
quickly and safely.
5.Smart cities: 5G can be used to create smart cities, where sensors and devices are connected to the
network and can communicate with each other. 5G can be used to collect data from these devices and
use that data to improve traffic flow, reduce energy consumption, and improve public safety.
