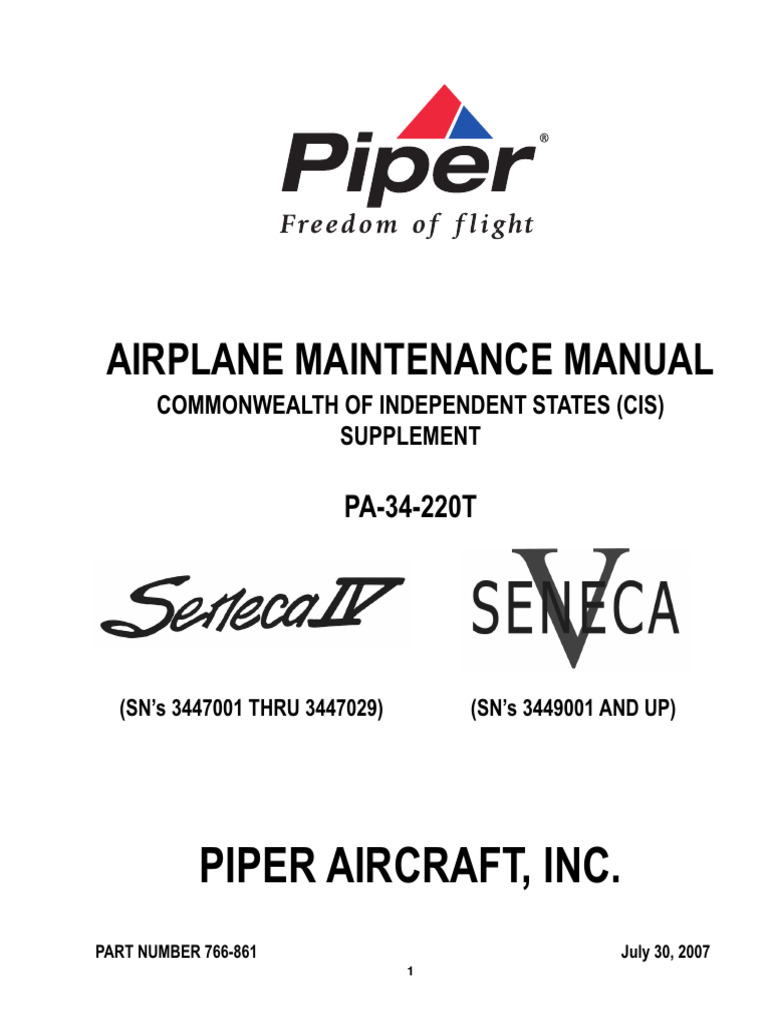

AIRPLANE MAINTENANCE MANUAL

COMMONWEALTH OF INDEPENDENT STATES (CIS)

SUPPLEMENT

PA-34-220T

(SN’s 3447001 THRU 3447029) (SN’s 3449001 AND UP)

PIPER AIRCRAFT, INC.

PART NUMBER 766-861 July 30, 2007
1
 Published by
Technical Publications

© Piper Aircraft, Inc.

2926 Piper Drive
Vero Beach, Florida 32960
U.S.A.

Member
General Aviation
Manufacturers Association

2
 PIPER AIRCRAFT, INC.
PA-34-220T, SENECA IV / V
MAINTENANCE MANUAL CIS SUPPLEMENT

REVISION STATUS

Revisions to this maintenance manual supplement (P/N 766-861) originally issued July 30, 2007, are as
follows:
Revision Publication Date Aerofiche Card Effectivity
ORG070730 * July 30, 2007 None (Paper only)

* INITIAL ISSUE OF MAINTENANCE MANUAL CIS SUPPLEMENT 766-861

There have been no revisions to this supplement.

Consult the Customer Service Information Aerofiche (P/N 1753-755) for current revision dates for this
manual.

3 REVISIONS PAGE 1
Jul 30/07
 PIPER AIRCRAFT, INC.
PA-34-220T, SENECA IV / V
MAINTENANCE MANUAL CIS SUPPLEMENT

THIS PAGE INTENTIONALLY BLANK

PAGE 2
Jul 30/07 REVISIONS 4
 PIPER AIRCRAFT, INC.
PA-34-220T, SENECA IV / V
MAINTENANCE MANUAL CIS SUPPLEMENT

INTRODUCTION

LIST OF EFFECTIVE PAGES

CHAPTER CHAPTER
SECTION PAGE DATE SECTION PAGE DATE

Supl-List of 1 Jul 30/07

Effective Pages 2 Jul 30/07

Supl-Table of Contents 1 Jul 30/07

2 Jul 30/07

Introduction 1 Jul 30/07

2 Jul 30/07

4-00-00 1 Jul 30/07

2 Jul 30/07

5 LIST OF EFFECTIVE PAGES PAGE 1

Jul 30/07
 PIPER AIRCRAFT, INC.
PA-34-220T, SENECA IV / V
MAINTENANCE MANUAL CIS SUPPLEMENT

THIS PAGE INTENTIONALLY BLANK

PAGE 2
Jul 30/07 LIST OF EFFECTIVE PAGES 6
 PIPER AIRCRAFT, INC.
PA-34-220T, SENECA IV / V
MAINTENANCE MANUAL CIS SUPPLEMENT

TABLE OF CONTENTS

SUBJECT SECTION PAGE GRID NO.

INTRODUCTION 1 9
Instructions for Continued Airworthiness 1 9
Effectivity 1 9
Usage 1 9

AIRWORTHINESS LIMITATIONS 4-00-00 1 11

Limitations 1 11
Inspections 1 11
Life Limited Parts Marking and Disposition 1 11

7 CONTENTS PAGE 1
Jul 30/07
 PIPER AIRCRAFT, INC.
PA-34-220T, SENECA IV / V
MAINTENANCE MANUAL CIS SUPPLEMENT

THIS PAGE INTENTIONALLY BLANK

PAGE 2
Jul 30/07 CONTENTS 8
 PIPER AIRCRAFT, INC.
PA-34-220T, SENECA IV / V
MAINTENANCE MANUAL CIS SUPPLEMENT

INTRODUCTION

1. Instructions for Continued Airworthiness

The PIPER PA-34-220T Seneca IV / V Maintenance Manual (P/N 761-888) constitutes the Instructions for
Continued Airworthiness (ICA) as required by Federal Aviation Regulations (FAR) Part 23, Appendix G.
2. Effectivity
This supplement is effective for PA-34-220T Seneca IV airplanes, serial numbers 3447001 thru 3447029,
and Seneca V airplanes, serial numbers 3449001 and up (i.e. - same as ICA, above) when those
airplanes are registered in the Commonwealth of Independent States (CIS).
3. Usage
For airplanes satisfying the effectivity criteria, above, the Airworthiness Limitations section (4-00-00) on
page 11 of this supplement supercedes the Airworthiness Limitations section (4-00-00) in the current revision
of the ICA.

9 INTRODUCTION PAGE 1
Jul 30/07
 PIPER AIRCRAFT, INC.
PA-34-220T, SENECA IV / V
MAINTENANCE MANUAL CIS SUPPLEMENT

THIS PAGE INTENTIONALLY BLANK

PAGE 2
Jul 30/07 INTRODUCTION 10
 PIPER AIRCRAFT, INC.
PA-34-220T, SENECA IV / V
MAINTENANCE MANUAL CIS SUPPLEMENT

AIRWORTHINESS LIMITATIONS

NOTE: The Airworthiness Limitations section is FAA approved and specifies maintenance required
under §§ 43.16 and 91.403 of the Federal Aviation Regulations unless an alternative program
has been FAA approved.
1. Limitations (PIR-TCDS A7SO, Rev. 17.)

NOTE: Refer to the LIMITATIONS section in the Pilot’s Operating Handbook for a detailed delineation of
the flight limitations of the airplane.
The following limitations related to the fatigue life of the airplane and its components have been
established for the PA-34-220T Seneca IV / V airplane:
A. The bolt and stack-up that connect the upper drag link to the nose gear trunnion are required to be
replaced every 500 hours time-in-service. The part numbers are as follows:
(1) P/N 400-274 (AN7-35) bolt or P/N 693-215 (NAS6207-50D) bolt;
(2) P/N 407-591 (AN960-716L) washer, as applicable;
(3) P/N 407-568 (AN 960-716) washer, as applicable;
(4) P/N 404-396 (AN 320-7) nut; and
(5) P/N 424-085 cotter pin.
B. Wing Life Limit = 12,240 hours time-in-service.
2. Inspections
Refer to 5-20-00 for Piper’s recommended Inspection Program.
3. Life Limited Parts Marking and Disposition
14 CFR Part 43.10, Disposition of Life-Limited Aircraft Parts requires that proper procedures are
followed when removing life limited parts with time and/or cycles remaining on them as well as the
disposition of life limited parts with no time and/or cycles left. Life limited parts defined by Type
Certificate (TC) are listed in paragraph 1, above. Other parts which are replaced or rebuilt at specified
intervals are listed in Chapter 5.
A. Parts that are removed prior to accumulating their life limit, are to be marked with indelible ink or
marker with the part number, serial number and accumulated life status as defined in 14 CFR Part
43.10 in a manner that does not affect part structural integrity, i.e. - no surface deformation such as
vibration/etching allowed.
B. Parts that have accumulated the life limit shall be disposed of in accordance with the applicable
FARs. Piper recommends life limited parts with no time and/or cycles remaining be completely
destroyed.

11 4-00-00 PAGE 1
