SCO OpenServer Handbook

®
seo OpenServer™
Handbook
How to install, configure,

and start using an
seo OpenServer system

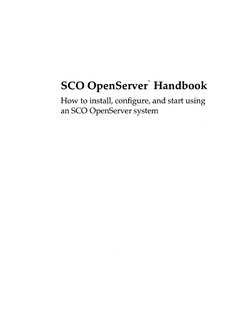

seQ QpenServer™ Handbook
How to install, configure, and start using
an seo OpenServer system

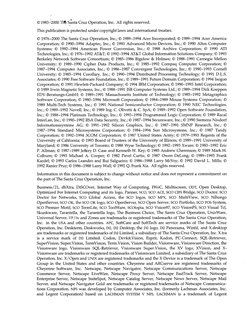

© 1983-':2000 T~ S_~nta Cruz Operation, Inc. All rights reserved.
This publication is protected under copyright laws and international treaties.
© 1976-2000 The Santa Cruz Operation, Inc.; © 1989-1994 Acer Incorporated; © 1989-1994 Acer America
Corporation; © 1990-1994 Adaptec, Inc.; © 1993 Advanced Micro Devices, Inc.; © 1990 Altos Computer
Systems; © 1992-1994 American Power Conversion, Inc.; © 1988 Archive Corporation; © 1990 ATI
Technologies, Inc.; © 1976-1992 AT&T; © 1992-1994 AT&T Global Information Solutions Company; © 1993
Berkeley Network Software Consortium; © 1985-1986 Bigelow & Holmes; © 1988-1991 Carnegie Mellon
University; © 1989-1990 Cipher Data Products, Inc.; © 1985-1992 Compaq Computer Corporation; ©
1987-1994 Computer Associates, Inc.; © 1986-1987 Convergent Technologies, Inc.; © 1990-1993 Cornell
University; © 1985-1994 Corollary, Inc.; © 1990-1994 Distributed Processing Technology; © 1991 D.L.S.
Associates; © 1990 Free Software Foundation, Inc.; © 1989-1991 Future Domain Corporation; © 1994 Isogon
Corporation; © 1991 Hewlett-Packard Company; © 1994 IBM Corporation; © 1990-1993 Intel Corporation;
© 1989 Irwin Magnetic Systems, Inc.; © 1988-1991 JSB Computer Systems Ltd.; © 1989-1994 Dirk Koeppen
EDV-Beratungs-GmbH; © 1989-1991 Massachusetts Institute of Technology; © 1985-1992 Metagraphics
Software Corporation; © 1980-1994 Microsoft Corporation; © 1984-1989 Mouse Systems Corporation; ©
1989 Multi-Tech Systems, Inc.; © 1991 National Semiconductor Corporation; © 1990 NEC Technologies,
Inc.; © 1989-1992 Novell, Inc.;© 1989 Ing. C. Olivetti & C. SpA; © 1989-1992 Open Software Foundation,
Inc.; © 1988-1994 Platinum Technology, Inc.; © 1993-1994 Programmed Logic Corporation; © 1989 Racal
InterLan, Inc.; © 1990-1992 RSAData Security, Inc.; © 1987-1994 Secureware, Inc.; © 1990 Siemens Nixdorf
Informationssysteme AG; © 1991-1992 Silicon Graphics, Inc.; © 1987-1991 SMNP Research, Inc.; ©
1987-1994 Standard Microsystems Corporation; © 1984-1994 Sun Microsystems, Inc.; © 1987 Tandy
Corporation; © 1992-1994 3COM Corporation; © 1987 United States Army; © 1979-1993 Regents of the
University of California; © 1993 Board of Trustees of the University of Illinois; © 1989-1991 University of
Maryland; © 1986 University of Toronto; © 1988 Wyse Technology; © 1992-1993 Xware; © 1983-1992 Eric
P. Allman; © 1987-1989 Jeffery D. Case and Kenneth W. Key; © 1985 Andrew Cherenson; © 1989 Mark H.
Colburn; © 1993 Michael A. Cooper; © 1982 Pavel Curtis; © 1987 Owen DeLong; © 1989-1993 Frank
Kardel; © 1993 Carlos Leandro and Rui Salgueiro; © 1986-1988 Larry McVoy; © 1992 David L. Mills; ©
1992 Ranier Pruy; © 1986-1988 Larry Wall; © 1992 Q. Frank Xia. All rights reserved.
Information in this document is subject to change without notice and does not represent a commitment on
the part of The Santa Cruz Operation, Inc.
Business/21, dbXtra, DiSCOver, Internet Way of Computing, IWoC, Multiscreen, aDT, Open Desktop,
Optimized For Internet Computing and its logo, Panner, sca, sca ACE, sca CIFS Bridge, sca Doctor, sca
Doctor for Networks, sca Global Access, the sea logos, sca MPX, sca MultiView, sca Nihongo
OpenServer, sca aK, the sca OK logo, sca OpenServer, sca Open Server, sca Portfolio, sca pas System,
sca Premier Motif, sca TermLite, sca ToolWare, SCOtopia, sca Vision97, sca VisionFS, sea Visual Tel,
Skunkware, Tarantella, the Tarantella logo, The Business Choice, The Santa Cruz Operation, UnixWare,
Universal Server, VP / ix and Zones are trademarks or registered trademarks of The Santa Cruz Operation,
Inc. in the USA and other countries. APC, SoftCare and SoftTech are service marks of The Santa Cruz
Operation, Inc. Deskterm, Deskworks, lXI, IXI Desktop, the IXI logo, IXI Panorama, Wintif, and X.desktop
are trademarks or registered trademarks of IXI Limited, a subsidiary of The Santa Cruz Operation, Inc. X.tra
is a service mark of IXI Limited. Codon, Devkit.Vision, Esprit, Kodon, PC-Connect, SQL-Retriever,
SuperVision, Super.Vision, TermVision, Term.Vision, Vision Builder, Visionware, Visionware Direction, the
Visionware logo, Visionware SQL-Retriever, Visionware SuperVision, the XV logo, XVision, and X-
Visionware are trademarks or registered trademarks of Visionware Limited, a subsidiary of The Santa Cruz
Operation, Inc. X/ Open and UNIX are registered trademarks and the X Device is a trademark of The Open
Group in the United States and other countries. Cheyenne and ARCserve are registered trademarks of
Cheyenne Software, Inc. Netscape, Netscape Navigator, Netscape Communications Server, Netscape
Commerce Server, Netscape LiveWire, Netscape Proxy Server, Netscape FastTrack Server, Netscape
Enterprise Server, Netscape SuiteSpot, Netscape Catalog Server, Netscape News Server, Netscape Mail
Server, and Netscape Navigator Gold are trademarks or registered trademarks of Netscape Communica-
tions Corporation. NFS was developed by Computer Associates, Inc. (formerly Lachman Associates, Inc.
and Legent Corporation) based on LACHMAN SYSTEM V NFS. LACHMAN is a trademark of Legent

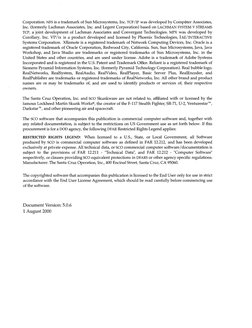

Corporation. NFS is a trademark of Sun Microsystems, Inc. TCP lIP was developed by Co~Pdter Associates,
Inc. (formerly Lachman Associates, Inc. and Legent Corporation) based on LACHMAN SYSTEM V STREAMS
TCP, a joint development of Lachman Associates and Convergent Technologies. MPX was developed by
Corollary, Inc. VP/ix isa product developed and licensed by Phoenix Technologies, Ltd/INTERACTIVE
Systems Corporation. XRemote is a registered trademark of Network Computing Devices, Inc. Oracle is a
registered trademark of Oracle Corporation, Redwood City, California. Sun, Sun Microsystems, Java, Java
Workshop, and Java Studio are trademarks or registered trademarks of Sun Microsystems, Inc. in the
United States and other countries, and are used under license. Adobe is a trademark of Adobe Systems
Incorporated and is registered in the U.S. Patent and Trademark Office. Reliant is a registered trademark of
Siemens Pyramid Information Systems, Inc. (formerly Pyramid Technology Corporation). Real bubble logo,
RealNetworks, RealSystem, RealAudio, RealVideo, RealPlayer, Basic Server Plus, RealEncoder, and
RealPublisher are trademarks or registered trademarks of RealNetworks, Inc. All other brand and product
names are or may be trademarks of, and are used to identify products or services of, their respective
owners.
The Santa Cruz Operation, Inc. and sca Skunkware are not related to, affiliated with or licensed by the
famous Lockheed Martin Skunk Works®, the creator of the F-117 Stealth Fighter, SR-71, U-2, Venturestar™,
Darkstar ™ , and other pioneering air and spacecraft.
The sca software that accompanies this publication is commercial computer software and, together with
any related documentation, is subject to the restrictions on US Government use as set forth below. If this
procurement is for a DOD agency, the following DFAR Restricted Rights Legend applies:
RESTRICTED RIGHTS LEGEND: When licensed to a U.S., State, or Local Government, all Software
produced by sca is commercial computer software as defined in FAR 12.212, and has been developed
exclusively at private expense. All technical data, or sca commercial computer software/documentation is
subject to the provisions of FAR 12.211 - "Technical Data", and FAR 12.212 - "Computer Software"
respectively, or clauses providing sca equivalent protections in DFARS or other agency specific regulations.
Manufacturer: The Santa Cruz Operation, Inc., 400 Encinal Street, Santa Cruz, CA 95060.
The copyrighted software that accompanies this publication is licensed to the End User only for use in strict
accordance with the End User License Agreement, which should be read carefully before commencing use
of the software.
Document Version: 5.0.6

1 August 2000

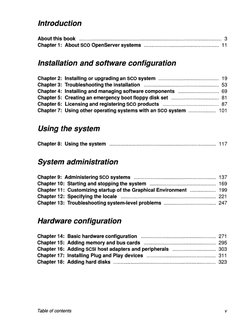

Introduction
About this book ................................................................................................... 3
Chapter 1: About seQ OpenServer systems .................................................... 11
Installation and software configuration

Chapter 2: Installing or upgrading an seQ system .......................................... 19
Chapter 3: Troubleshooting the installation .................................................... 53
Chapter 4: Installing and managing software components ............................ 69
Chapter 5: Creating an emergency boot floppy disk set ................................. 81
Chapter 6: Licensing and registering seQ products ....................................... 87
Chapter 7: Using other operating systems with an seQ system ................... 101
Using the system

Chapter 8: Using the system 117
System administration
Chapter 9: Administering seQ systems ............................................ ............. 137
Chapter 10: Starti ng and stoppi ng the system ........ .... .... .. ... .... ... .. ... ..... .. ..... . 169
Chapter 11: Customizing startup of the Graphical Environment .................. 199
Chapter 12: Specifying the locale .................................................................. 221
Chapter 13: Troubleshooting system-level problems .................................... 247
Hardware configuration
Chapter 14: Basic hardware configuration .................................................... 271
Chapter 15: Adding memory and bus cards .................................................. 295
Chapter 16: Adding sesl host adapters and peripherals .............................. 303
Chapter 17: Installing Plug and Play devices ................................................ 311
Chapter 18: Adding hard disks ....................................................................... 323
Table of contents v
Chapter 19: Adding tape drives ....................................................................... 343
Chapter 20: Configuring video adapters ........................................................ 355
Chapter 21: Adding serial and parallel ports ................................................. 367
Chapter 22: Configuring audio adapters ........................................................ 379
Chapter 23: Adding mice and bitpads ............................................................ 387
Chapter 24: Adding printers ........................................................................... 397
Chapter 25: Adding modems .......................................................................... 405
Chapter 26: Adding serial terminals .............................................................. 431
Network configuration
Chapter 27: Configuring Internet services ..................................................... 453
Chapter 28: Managing virtual domains .......................................................... 473
Chapter 29: Configuring network connections .............................................. 481
Reference data appendixes

Appendix A: Configuration parameters ......................................................... 503
Appendix B: SCSI host adapters ..................................................................... 525
Appendix C: Serial adapters ........................................................................... 527
Appendix 0: Mice and bitpads ....................................................................... 531
Appendix E: Modems ...................................................................................... 533
Appendix F: Network adapters ....................................................................... 537
Appendix G: Kernel initialization check letters ............................................. 539
Appendix H: vi command summary ............................................................... 543
vi

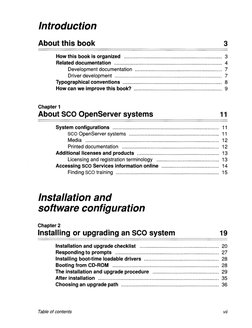

Introduction
About this book 3
How this book is organized .................................................................... 3
Related documentation ........................................................................... 4
Development documentation ............................................................. 7
Driver development ........................................................................... 7
Typographical conventions ..................................................................... 8
How can we improve this book? ............................................................. 9
Chapter 1
About seQ OpenServer systems 11
System configurations .......................................................................... 11
seQ OpenServer systems ............................................................... 11
Media ............................................................................................. 12
Printed documentation .................................................................... 12
Additional licenses and products ......................................................... 13
Licensing and registration terminology ............................................ 13
Accessing seQ Services information online ........................................ 14
Finding seQ training .......... .............. ............................................. ... 15
Installation and
software configuration
Chapter 2
Installing or upgrading an seQ system 19
Installation and upgrade checklist ....................................................... 20
Responding to prompts ........................................................................ 27
Installing boot-time loadable drivers .................................................... 28
Booting from CD-ROM .......................................................................... 28
The installation and upgrade procedure .............................................. 29
After installation .................................................................................... 35
Choosing an upgrade path .................................................................... 36
Table of contents vii

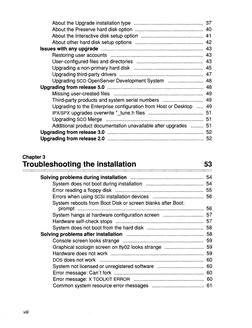

About the Upgrade installation type ................................................. 37
About the Preserve hard disk option ........................................ :....... 40
About the Interactive disk setup option ............................................ 41
About other hard disk setup options ..................................... :.......... 42
Issues with any upgrade ....................................................................... 43
Restoring user accounts ................................................................. 43
User-configured files and directories ............................................... 43
Upgrading a non-primary hard disk ................................................. 45
Upgrading third-party drivers ........................................................... 47
Upgrading seo OpenServer Development System ......................... 48
Upgrading from release 5.0 ................................................................... 48
Missing user-created files ............................................................... 49
Third-party products and system serial numbers ............................. 49
Upgrading to the Enterprise configuration from Host or Desktop ..... 49
IPXlSPX upgrades overwrite *_tune.h files ....................................... 51
Upgrading seo Merge .................................................................... 51
Additional product documentation unavailable after upgrades ......... 51
Chapter 3
Troubleshooting the installation 53
Solving problems during installation ................................................... 54
System does not boot during installation ......................................... 54
Error reading a floppy disk .............................................................. 55
Errors when using sesl installation devices .................................... 56
System reboots from Boot Disk or screen blanks after Boot:
prompt ........................................................................................ 56
System hangs at hardware configuration screen ............................. 57
Hardware self-check stops .............................................................. 57
System does not boot from the hard disk ........................................ 58
Solving problems after installation ...................................................... 58
Console screen looks strange ......................................................... 59
Graphical scologin screen on tty02 looks strange ............................ 59
Hardware does not work ................................................................. 59
DOS does not work ......................................................................... 60
System not licensed or unregistered software ................................. 60
Error message: Can't fork ............................................................... 60
Error message: X TOOLKIT ERROR ................................................. 60
Common system resource error messages ..................................... 61
viii

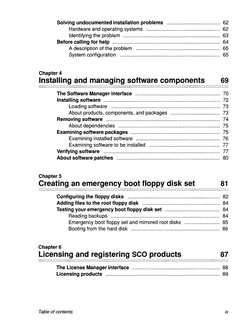

Solving undocumented installation problems ..................................... 62
Hardware and operating systems .................................................... 62
Identifying the problem .................................................................... 63
Before calling for help ........................................................................... 64
A description of the problem ........................................................... 65
System configuration ...................................................................... 65
Chapter 4
Installing and managing software components 69
The Software Manager interface ........................................................... 70
Installing software ................................................................................. 72
Loading software ............................................................................ 73
About products, components, and packages ................................... 73
Removing software ............................................................................... 74
About dependencies ....................................................................... 75
Examining software packages .............................................................. 75
Examining installed software ........................................................... 76
Examining software to be installed .................................................. 77
Verifying software ................................................................................. 77
About software patches ........................................................................ 80
Chapter 5
Creating an emergency boot floppy disk set 81
Configuring the floppy disks ................................................................ 82
Adding files to the root floppy disk ...................................................... 84
Testing your emergency boot floppy disk set ...................................... 84
Reading backups ............................................................................ 84
Emergency boot floppy set and mirrored root disks ......................... 85
Booting from the hard disk .............................................................. 86
Chapter 6
Licensing and registering SeQ products 87
The License Manager interface ............................................................. 88
Licensing products ............................................................................... 89
Table of contents ix
Licensing additional users and CPus ............................................... 90
Removing product licenses ............................................................. 90
Registering products ............................................................................ 90
Displaying login licenses in use ........................................................... 93
Troubleshooting license and registration problems ............................ 93
License Manager will not accept registration key ............................. 93
License Manager will not accept license information ....................... 93
Licensing Policy Manager Daemon (ifor_pmd) has terminated ........ 94
OpenServer license has expired ..................................................... 94
No user licenses were found on this machine .................................. 95
LOGIN: ERROR- Failed to initialize policy manager ........................ 96
Chapter 7
Using other operating systems with an seQ
system 101
Installing 05/2 or Windows NTTM partitions ........................................ 102
Creating and formatting a physical DOS partition .............................. 102
DOS partition restrictions ............................................................... 103
Using low-level format programs ................................................... 104
Converting fdisk numbers ............................................................. 104
Partitioning the hard disk using fdisk (Interactive installation) ........ 105
Displaying current partition table ................................................... 106
Switching operating systems ............................................................. 106
Booting a DOS partition ................................................................. 107
Booting an arbitrary partition ......................................................... 107
Booting DOS from a floppy disk ..................................................... 108
Installing a UNIX partition on a DOS system ....................................... 109
Using an SCO system and DOS with two hard disks .......................... 110
Removing an operating system from the hard disk ........................... 111
Managing DOS files with doscmd(C) ................................................... 111
doscmd(C) default file ................................................................... 112
Mounting DOS filesystems or partitions ............................................. 113
Accessing DOS partitions on a second disk .................................. 114
x
Using the system
Chapter 8
Using the system 117
What do I need to know? 118
Command lines, operating systems, and networks .......................... . 120
Starting the Desktop .......................................................................... . 121
Exiting the Desktop ...................................................................... . 121
Using Desktop features ................................................................ . 122
Using the mouse .......................................................................... . 123
Pressing onscreen buttons ........................................................... . 123
Using windows ............................................................................. . 124
Scrolling ........................................................................................ 125
Using menus ................................................................................ . 125
Using icons .................................................................................. . 126
An overview of the seQ Panner window manager ........................ . 127
Getting help ........................................................................................ . 127
Getting character-based help ....................................................... . 128
Sending and receiving mail ............................................................... . 129
Sending e-mail ............................................................................. . 130
Replying to e-mail ........................................................................ . 131
Saving messages ........................................................................ . 132
Deleting and restoring messages ................................................. . 132
Getting more information about Mail ............................................. . 133
System administration
Chapter 9
Administering seQ systems 137
Understanding the basics ................................................................... 137
What is system administration? ..................................................... 138
What to read if you are new .......................................................... 139
Keeping a system log .................................................................... 139
The superuser account ................................................................. 140
The keyboard ................................................................................ 140
Table of contents xi
Running programs simultaneously with multiscreen displays ......... 141
System security.......... ...... ... .... ...... ........... ...... ....... ...... ........ ......... 142
Administering your system with SCOadmin ...................................... 143
Starting SCOadmin from the command line ............................. ...... 144
About Sysadmsh Legacy .............................................................. 145
Refreshing data in the display ........... ...... ...... ...... ... ...... .... ..... .... .... 146
Using point help ............................................................................ 146
Using the toolbar ........................................................................... 146
Using SCOadmin in character mode ............................................. 146
Administering other systems with SCOadmin ................................ 149
Using the System Defaults Manager .......... ......... ....... ................... 150
Controlling processes with the Process Manager .......................... 151
Troubleshooting SCOadmin ................................ .......................... 156
Educating users .................................................................................. 159
Planning your site ............................................................................... 162
User resource considerations ........................................................ 162
Network considerations ................................................................. 163
Hardware considerations ............................................................... 163
Summary of system administration tasks .......................................... 164
Chapter 10
Starting and stopping the system 169
Starting the system ............................................................................. 169
Loading the operating system ....................................................... 170
Saving/deleting a system memory image ...................................... 170
Cleaning filesystems ..................................................................... 171
Choosing the mode of system operation ....................................... 172
Setting the time and date at startup ............................................... 173
Setting the time and date during normal operation ......................... 174
Changing the system time zone .................................................... 174
Checking the security databases ................................................... 175
Stopping the system ........................................................................... 178
Using the shutdown command line ................................................ 179
Using the haltsys command ................................... ....................... 179
Logging in as the superuser ............................................................... 180
Understanding the hardware information displayed at boot time ..... 181
xii
Changing the startup process ............................................................ 182
Changing the system restart options ............................................. 182
Changing the default bootstring (DEFBOOTSTR) ............................ 183
Booting an old kernel .................................................................... 184
Troubleshooting system startup ......................................................... 184
About missing or corrupted system files ........................................ 185
Restoring critical security database files ........................................ 186
System fails to boot or displays "NO OS' message ....................... 188
boot not found ............................................................................... 188
unix not found ................. ...................................... ........................ 189
Cannot load floating point emulator ............................................... 190
Cannot exec Ibin/login: No such file or directory............................ 191
Cannot open letc/inittab .... ............................................................ 192
letc/initscript: Ibin/sulogin: not found .............................................. 193
letc/initscript: letc/bcheckrc: not found ........................................... 193
no utmp entry. You must log in from lowest level -sh ..................... 194
Fork failed ... Resource temporarily unavailable ............................. 194
System hangs at boot time ............................................................ 195
Console keyboard locks up ........................................................... 195
Cannot log into console ................................................................. 197
Chapter 11
Customizing startup of the Graphical
Environment 199
Starting a Graphical Environment session ........................................ 199
Running scologin .......................................................................... 200
Running the startx script ............................................................... 202
Using grey-scale monochrome monitors with the X server ............ 204
Solving problems exiting the X server ........................................... 205
Using the session manager ........................................................... 205
Using environment variables .............................................................. 208
Customizing scologin ......................................................................... 210
Using the scologin administration script ......................................... 211
Configuring scologin on multiple displays ...................................... 211
About XDMCP X server options ..................................................... 212
Running scologin with XDMCP ....................................................... 213
Running scologin with the Xservers file ......................................... 214
Table of contents xiii

Using X terminals ................................................................................ 217
Managing an X terminal display with scologin ................................ 218
Running a session on an X terminal without scologin .................... 220
Chapter 12
Specifying the locale 221
The International Settings Manager interface .................................... 221
Setting locales ..................................................................................... 222
Localization of system software .................................................... 223
Setting the system locale .............................................................. 223
Setting user locales ....................................................................... 224
About locales ................................................................................ 224
Setting the system keyboard .............................................................. 226
Selecting codesets .............................................................................. 227
Setting the internal system codeset ............................................... 228
Setting the console codeset .......................................................... 228
Translating files between different code sets ................................... 229
Setting device character mapping ...................................................... 230
Device mapping ............................................................................ 230
Creating a character mapping table ............................................... 232
Configuring SCOterm for European languages ............................... 235
Language behavior in SCOadmin ................................................... 236
Using mail in 8-bit (European) locales ........................................... 240
UUCP dialer scripts ....................................................................... 242
Calendars ..................................................................................... 242
Timezones .................................................................................... 243
Clients .......................................................................................... 244
Documentation and scohelp .......................................................... 244
Enabling Euro currency symbol support ........................................... 244
Setting the IS08859-15 code set .................................................... 245
Using the Euro currency symbol .................................................... 246
Printing the Euro currency symbol ................................................. 246
xiv
Chapter 13
Troubleshooting system-level problems 247
Other troubleshooting documentation ............................................... 248
Preparing to recover from problems .................................................. 248
Recording your root disk layout ..................................................... 249
Restoring a corrupted root filesystem ................................................ 250
System crashes ................................................................................... 253
Recovering from a system panic ................................................... 254
Recovering after a power failure .................................................... 256
Automatic reboot ........................................................................... 256
Analyzing system failures ................................................................... 256
Traps, faults, and exceptions ......................................................... 256
Console panic information ............................................................. 257
Getting the EIP number ................................................................. 258
Checking error messages ............................................................. 259
Checking system files with error histories ...................................... 260
Checking system configuration ...................................................... 260
Generating a system dump image with sysdump (ADM) ................ 261
Examining a memory dump with crash(ADM) .................................... 262
Studying a panic ........................................................................... 263
Additional help from seQ Support ................................................. 264
Common system-wide problems ........................................................ 264
cron, at, and batch troubleshooting ................................................... 265
cron daemon is not running .................................. ......................... 265
at command fails: cannot change mode of job ...... ......................... 266
Runaway processes ............................................................................ 267
Chapter 14
Basic hardware configuration 271
Accessing the seQ Compatible Hardware Web Pages ...................... 273
Supported architecture ....................................................................... 274
General compatibility issues .............................................................. 274
Typical device interrupts ..................................................................... 275
Configuring devices with bootstrings ................................................ 276
Table of contents xv
Using bootstrings ................................................................................ 276
Advanced Power Management bootstrings ................................... 277
QIC-02 tape drive bootstrings ........................................................ 279
SCSI peripheral bootstrings ........................................................... 280
SCSI host adapter bootstrings ....................................................... 281
Root hard disk bootstrings ............................................................ 281
Disabling drivers with bootstrings .................................................. 282
Specifying the location of an EIDE (IDE) CD-ROM ........................ 283
Memory bootstrings ...................................................................... 283
cache bootstring ........................................................................... 283
System console bootstring ............................................................ 284
Using boot-time loadable drivers ....................................................... 284
Adding BTLDs at boot time ............................................................ 285
Adding BTLDs after initial installation ............................................. 286
Configuring drivers with the Hardware/Kernel Manager .................... 286
The Hardware/Kernel Manager interface ....................................... 287
About device driver configuration .................................................. 288
Relinking the kernel ............................................................................ 290
Configuring Power Management ........................................................ 291
Configuring APM using pwrsh ........................................................ 292
Chapter 15
Adding memory and bus cards 295
Installing bus cards ............................................................................. 295
DIP switches and jumpers ............................................................. 296
Installing the hardware .................................................................. 296
Avoiding interrupt clashes on PCI/ISA bus machines ...................... 296
Using the manufacturer's setup program ....................................... 297
Adding more memory .......................................................................... 297
Memory card compatibility notes ................................................... 298
Disabled high memory on Corollary architectures .......................... 298
32-bit memory ............................................................................... 298
High-speed cache memory ................................................................. 299
Adding math coprocessors ................................................................. 299
Specific math coprocessor issues ................................................. 300
Adding an external floppy to an IBM PS/2 ........................................... 301
xvi
Chapter 16
Adding SCSI host adapters and peripherals 303
SCSI addresses .................................................................................... 304
Adding a SCSI peripheral device ......................................................... 305
Boot time messages from host adapter drivers ................................. 306
Adding SCSI/EIDE CD-ROM drives ........................................................ 307
Adding floptical drives ........................................................................ 309
Troubleshooting SCSI host adapters .................................................. 309
Installing when SCSI host adapters share interrupts ...................... 310
Mixing scatter-gather and non scatter-gather host adapters .......... 310
SCSI peripherals not recognized .................................................... 310
Chapter 17
Installing Plug and Play devices 311
The ISA PnP Configuration Manager interface ................................... 312
Physically adding an ISA PnP card ...................................................... 313
Selecting a card and device to configure ........................................... 314
Modifying resource allocation for a device ..................................... 314
Enabling BIOS resource allocation ................................................. 315
Disabling a device ......................................................................... 316
Resolving configuration conflicts ....................................................... 316
Relinking the kernel and rebooting the system ................................. 317
Troubleshooting card configuration ................................................... 318
Terminology and concepts .................................................................. 319
Plug and Play Glossary ................................................................. 319
Plug and Play files and utilities ...................................................... 320
Chapter 18
Adding hard disks 323
Supported hard disk configurations ................................................... 323
Adding secondary hard disks ............................................................. 324
Configuring a SCSI hard disk .............................................................. 325
Installing a hard disk ........................................................................... 327
Changing default disk parameters using dkinit ............................... 328
Partitioning a hard disk using fdisk ................................................ 330
Table of contents xvii

Scanning a disk for defects using badtrk ....................................... 331
Dividing a disk partition into divisions using divvy .......................... 333
Overcoming BIOS limitations .............................................................. 335
Defining IDE and ESDI disk geometry in the BIOS .......................... 336
Overriding the root disk geometry stored in the BIOS ..................... 336
Writing a new masterboot block ..................................................... 337
BIOS support for disks larger than 1024 cylinders .......................... 337
Configuring IDE disks and disk controllers ........................................ 338
Replacing the root hard disk ............................................................... 339
Configuring the root hard disk ....................................................... 340
Troubleshooting hard disks ................................................................ 340
Fixing bad tracks and bad blocks on hard disks ............................. 341
Setting hard disk interleave ........................................................... 341
Formatting hard disks .................................................................... 342
Chapter 19
Adding tape drives 343
Installing a tape drive .......................................................................... 344
Installing a QIC-02 cartridge tape drive .......................................... 345
Installing an Irwin mini-cartridge tape drive .................................... 346
Installing a QIC-40/80 floppy tape drive .......................................... 347
Installing a SCSI tape drive ............................................................ 347
Installing a Compaq CPQS tape drive ............................................ 348
Changing the default tape drive .......................................................... 349
Troubleshooting tape drives ............................................................... 349
General problems with tape drives ................................................ 349
Problems with QIC-02 cartridge tape drives ................................... 350
Problems with SCSI tape drives ..................................................... 352
Problems with Irwin and QIC-40/80 tape drives .............................. 353
Chapter 20
Configuring video adapters 355
The Video Configuration Manager interface ....................................... 356
Problems exiting the Video Configuration Manager ....................... 357
xviii
Understanding video configuration .................................................... 357
Understanding resolutions ............................................................. 358
Generic driver configuration .......................................................... 358
Understanding multi-monitor configuration .................................... 359
Adding a new video adapter ............................................................... 361
Modifying monitors, resolutions, and function keys ......................... 362
Changing the configured video monitor ......................................... 363
Changing a configured resolution .................................................. 363
Adding a resolution ....................................................................... 363
Assigning function keys ................................................................. 364
Removing a video configuration ......................................................... 365
Configuring unsupported adapters ..................................................... 366
Chapter 21
Adding serial and parallel ports 367
Adding and configuring sea-supported serial cards ......................... 368
The Serial Manager interface ........................................................ 369
Configuring a serial card ............................................................... 369
Configuring a serial port ................................................................ 370
Serial ports on multi-function cards ............................................... 372
Combining single port and multiport serial cards ............................ 372
Serial cards on ISA and EISA machines ......................................... 373
Serial cards on Micro Channel Architecture machines ................... 375
Adding and configuring parallel ports ................................................ 376
Troubleshooting serial cards .............................................................. 377
Chapter 22
Configuring audio adapters 379
The Audio Configuration Manager interface ...................................... 380
About the audio subsystem ................................................................ 380
Adding and modifying audio configurations ...................................... 382
Removing adapters ............................................................................. 383
Common audio subsystem tasks ....................................................... 383
Playing sound files ........................................................................ 384
Recording sound samples ............................................................. 384
Playing audio CDs from your CD-ROM drive ................................. 384
Configuring Netscape Communicator to play sound files ............... 385
Table of contents xix

Troubleshooting audio configuration ................................................. 385
Compatibility with earlier sca audio drivers ................................... 386
Errors after initial sound reproduction ............................................ 386
Chapter 23
Adding mice and bitpads 387
Bus mice .............................................................................................. 387
Serial mice ........................................................................................... 388
Keyboard mice .................................................................................... 388
Configuring a mouse ........................................................................... 389
Changing mouse ports .................................................................. 390
Testing a mouse ........................................................................... 390
Removing a mouse ....................................................................... 391
Changing the keyboard mouse resolution setting ............................. 391
Using a mouse ..................................................................................... 392
Using a mouse with multiscreens .................................................. 392
Using a mouse on serial terminals ................................................. 393
Sharing a mouse with several terminals ........................................ 393
Using a mouse with keyboard-based programs ............................. 393
Using the pseudo-mouse driver ..................................................... 393
Installing a bitpad ................................................................................ 394
Troubleshooting mice and bitpads ..................................................... 395
Solving slow or no response from keyboard mice .......................... 395
Chapter 24
Adding printers 397
Installing parallel and serial printers .................................................. 398
Troubleshooting printers ..................................................................... 399
Setting up RTS/CTS protocol (hardware flow control) printers ......... 401
xx
Chapter 25
Adding modems 405
Supported modems ............................................................................. 405
Installing a modem .............................................................................. 406
Choosing which serial port to use .................................................. 406
Connecting a modem to your computer ......................................... 407
The Modem Manager interface ..................................................... 408
Configuring modems ..................................................................... 409
Detecting a modem automatically ................................................. 409
Adding a modem manually ............................................................ 410
Modifying the configuration of a modem ........................................ 411
Removing a modem .... ....... ...... ...... .... ..... .... ................... ............... 411
Guidelines for non-supported modems .............................................. 412
Configuring UUCP for modems ........................................................... 414
Using dialers ....................................................................................... 414
Dialers file entries ......................................................................... 415
atdialer and dialer programs .......................................................... 416
Understanding modem commands and setup strings ... ................. 416
Creating a new atdial dialer ........................................................... 417
Creating a new dial dialer ............................................... ;.............. 419
Setting hardware flow control ............................................................. 420
Testing your modem connection ........................................................ 421
Testing whether you can dial out ................................................... 423
Testing whether you can dial in ..................................................... 424
Troubleshooting modems ................................................................... 424
Problems dialing out ...................................................................... 424
Problems dialing in ........................................................................ 427
Chapter 26
Adding serial terminals 431
Installing serial terminals ................................................................... 432
Testing a terminal connection ............................................................ 433
Changing default terminal line characteristics .................................. 436
Changing entries in /etc/gettydefs ................................................. 436
Checking terminal settings ............................................................ 437
Changing serial line operation ....................................................... 437
Setting the terminal type at login ....................................................... 439
Setting the terminal type automatically .......................................... 440
Table of contents xxi

Removing terminals ............................................................................ 441
Setting up serial consoles .................................................................. 441
Setting up scancode-compatible terminals ........................................ 442
Installing scancode-compatible terminals ...................................... 443
Using function keys in scancode mode .......................................... 444
Running applications on scancode terminals ................................. 445
Troubleshooting terminals .................................................................. 446
Restoring non-functional terminals ................................................ 446
Fixing hung terminals .................................................................... 447
Fixing scrambled terminal display .................................................. 448
Unlocking locked terminals ............................................................ 448
Restoring non-echoing terminals ................................................... 448
Correcting hung scancode-compatible terminals ........................... 449
Wyse 60 terminal in scancode mode ............................................. 449
Network configuration
Chapter 27
Configuring Internet services 453
Starting the Internet Manager ............................................................. 454
Configuring network connections ...................................................... 455
Accessing the network .................................................................. 455
Configuring network cards ............................................................ 455
Using a modem to connect to the Internet ..................................... 456
Configuring Internet services ............................................................. 463
Web .............................................................................................. 464
Mail ............................................................................................... 470
FTP ............................................................................................... 471
Net ............................................................................................... 471
Security ........................................................................................ 472
Chapter 28
Managing virtual domains 473
Enabling virtual domains .................................................................... 474
Adding and deleting virtual domains ................................................. 474
Configuring services ........................................................................... 475
xxii
Configuring SYSTEM-WIDE ............................................................ 475
Configuring interfaces ................................................................... 476
Viewing properties of virtual domains ............................................... 477
Virtual domain name and DNS ....................................................... 478
Administrative users ...................................................................... 479
Configuring e-mail ......................................................................... 479
Locking and unlocking an interface ............................................... 480
Remote administration of virtual domains ......................................... 480
Chapter 29
Configuring network connections 481
The Network Configuration Manager interface .................................. 482
About network configuration .............................................................. 483
Network adapter drivers ................................................................ 483
Protocol stacks .. .. .. ....... .... .......... ............. .. .... .. ..... .. .. .. ..... .. ...... .. ... 484
Configuration parameters ................................................................... 485
Hardware configuration ................................................................. 485
Determining parameters in use ..................................................... 487
Driver configuration ..................................................................... ,. 487
Protocol stack and WAN connection configuration .......................... 488
Configuring network hardware ........................................................... 489
Configuring adapters in PCI, EISA, and MCA machines .................. 490
Configuring ISA and PCMCIA adapters ........................................... 490
Searching for adapters .................................................................. 491
Configuring protocols ......................................................................... 492
Removing a network configuration ..................................................... 494
Troubleshooting network configuration ............................................. 494
Checking physical network connections ........................................ 495
Checking for conflicts between hardware and drivers ............ ........ 495
Verifying network media connections ............................................. 496
Special considerations concerning hardware conflicts ................... 496
Interpreting ndstat{ADM) output ..................................................... 498
Backward compatibility with LLI drivers ............................................ 499
MDI functionality not available with LLI drivers ............................... 499
Using multiple protocol stacks with LLI drivers ............................... 499
Using an LLI driver with two-protocol stacks .................................. 500
Using an LLI driver with three-protocol stacks ................................ 500
Table of contents xxiii

Appendix A
Configuration parameters 503
General configuration parameters ...................................................... 503
DMA channel ................................................................................. 503
Interrupt vectors ............................................................................ 504
1/0 base address ........................................................................... 505
Network driver configuration parameters ........................................... 505
1OBaseT mode enforced ............................................................... 506
Cable (media) type ........................................................................ 506
Data rate (Token-Ring) .................................................................. 507
Frame size .................................................................................... 507
Full-duplex mode enabled ............................................................. 507
Hardware (MAC) address .............................................................. 507
Interrupt service routine assignment .............................................. 508
Media speed ................................................................................. 508
PCI bus, device, and function numbers ......................................... 508
Primary/Alternate adapter ............................................................. 509
ROM base address ........................................................................ 509
Shared RAM address .................................................................... 509
Slot number .................................................................................. 510
Source routing .............................................................................. 510
Source route optimization ............................................................. 511
tx/rx (transmit/receive) buffers ....................................................... 511
Serial connection configuration parameters ...................................... 512
TCP/IP configuration parameters ......................................................... 512
IP address ..................................................................................... 513
Netmask setting ............................................................................ 514
Broadcast address parameters ..................................................... 515
System name ................................................................................ 515
Domain name ............................................................................... 516
TCP/IP connections ....................................................................... 516
Gateway status ............................................................................. 517
Administrator for this system ......................................................... 517
Location of this system ................................................................. 517
Token-Ring Frame format ............................................................. 517
xxiv
IPX/SPX configuration parameters ...................................................... 518
NVT logins ..................................................................................... 518
Internal network number ............................................................... 518
Network number ........................................................................... 519
Framing type ................................................................................. 519
NVT login banner file ..................................................................... 522
SAP reply delay ............................................................................. 522
Source routing (Token-Ring framing only) ..................................... 522
NetBloS configuration parameters ..................................................... 523
LAN Manager Client configuration parameters ................................... 524
Appendix B
SCSI host adapters 525
Appendix C
Serial adapters 527
AMI lamb serial adapter ................................................................. 527
Arnet serial adapter (MCA) ............................................................ 527
AST serial adapter ......................................................................... 527
eTe Versanet serial adapter .......................................................... 527
Digiboard serial adapter ................................................................ 528
Olivetti RS232C multiport adapter .................................................. 528
Ouadram serial adapter ................................................................ 529
Stargate serial adapters on the Apricot Oi (MeA) .......................... 529
Tandon serial adapter ................................................................... 529
Appendix D
Mice and bitpads 531
Logitech bus mouse ...................................................................... 531
Microsoft bus mouse ...................................................................... 531
Olivetti bus mouse ........................................................................ 531
Logitech serial mice ...................................................................... 531
Table of contents xxv

Appendix E
Modems 533
Smartmodem 1200 or compatible ................................................. 533
Smartmodem 2400, V-series 9600 or compatible .......................... 534
Telebit Trailblazer .......................................................................... 535
Appendix F
Network adapters 537
Appendix G
Kernel initialization check letters 539
Appendix H
vi command summary 543
Index .............................................................................................................. 549
xxvi
Introduction
About this book
This book provides the information you need to get your sea OpenServer ™
system up and running. It includes installation and configuration instruc-
tions, as well as introductions to the Desktop, online documentation, system
administration, and troubleshooting.
You will find the information you need more quickly if you are familiar with:
• "How this book is organized" (this page)
• "Related documentation" (page 4)
• "Typographical conventions" (page 8)
Although we try to present information in the most useful way, you are the
ultimate judge of how well we succeed. Please let us know how we can
improve this book (page 9).
How this book is organized

After introducing the sea OpenServer product line, this book describes how
to:
• install an sea OpenServer system (page 19)
• install software (page 69)
• use the system, including:
- the Desktop (page 122)
- help and online documentation (page 127)
- e-mail (page 129)
3
About this book
• administer the system (page 137), including:

- starting and stopping the system (page 169)
- customizing startup of the Desktop (page 199)
- adapting the system to your language or country (page 221)
- troubleshooting (page 247)
• add memory, disks, terminals, and other hardware (page 271)
• configure network hardware and protocols (page 481)
Appendixes provide additional configuration information.
Related documentation
sea OpenServer systems include comprehensive documentation. Depending
on which sea OpenServer system you have, the following books are available
in online and / or printed form. Access online books on your system by
double-clicking on the Desktop Help icon. Access online books at the sea
web site at hUp: / /www.sco.com/documentation. Additional printed ver-
sions of the books are also available.
The Desktop and most sea OpenServer programs and utilities are linked to
extensive context-sensitive help (page 127), which in turn is linked to relevant
sections in the online versions of the following books.
NOTE When you upgrade or supplement your sea OpenServer software,

you might also install online documentation that is more current than the
printed books that came with the original system. For the most up-to-date
information, check the online documentation.
Late News
Contains information that was obtained too late for inclusion in the docu-
mentation shipped with sea OpenServer Release 5. You can view this
document at the sea web site by following the sea OpenServer Release 5
link from hUp: / /www.sco.com/documentation.
Release Notes
Contain important late-breaking information about installation, hard-
ware requirements, and known limitations.
sea Open Server Features and Limitations
summarizes the enhancements and new features of the current release,
describes additional limitations and workarounds, and lists supported
hardware.
4 seQ QpenServer Handbook

Graphical Environment Guide

Describes how to customize and administer the Graphical Environment,
including the X Window System ™ server, the sca® Panner ™ window
manager, the Desktop, and other X clients.
Graphical Environment help
Provides online context-sensitive help for Calendar, Edit, the Desktop,
Help, Mail, Paint, the sca Panner window manager, and the UNIX®
command-line window.
Graphical Environment Reference
Contains the manual pages for the X server (section X), the Desktop, and
X clients from sca and MIT (section XC).
Guide to Gateways for LAN Servers
Describes how to set up sca® Gateway for NetWare® and LAN Manager
Client software on an SCO OpenServer system to access printers, file-
systems, and other services provided by servers running Novell ®
NetWare® and by servers running LAN Manager over DOS, OS/2®, or
UNIX systems. This book contains the manual pages for LAN Manager
Client commands (section LMC).
Internet services documentation
Includes these books:
• sea PPP from Morning Star User's Guide
• Netscape FastTrack Administrator's Guide
• Netscape FastTrack Programmer's Guide
• Netscape JavaScript Guide
Mail and Messaging Guide
Describes how to configure and administer your mail system. Topics
include sendmail, MMDF, SCQ Shell Mail, mailx, and the Post Office
Protocol (POP) server.
Networking Guide
Provides information on configuring and administering TCP /IP, NFS®,
and IPX/SPX ™ software to provide networked and distributed
functionality, including system and network management, applications
support, and file, name, and time services.
Networking Reference
Contains the command, file, protocol, and utility manual pages for the
IPX/SPX (section PADM), NFS (sections NADM, NC, and NF), and TCP /IP
(sections ADMN, ADMP, SFF, and TC) networking software.
5
About this book
Operating System Administrator's Reference

Contains the manual pages for system administration commands and
utilities (section ADM), system file formats (section F), hardware-specific
information (section HW), miscellaneous commands (section M), and seQ
Visual Tcl ™ commands (section TeL).
Operating System Tutorial
Provides a basic introduction to the seQ OpenServer operating system.
This book can also be used as a refresher course or a quick-reference
guide. Each chapter is a self-contained lesson designed to give hands-on
experience using the seQ OpenServer operating system.
Operating System User's Guide
Provides an introduction to seQ OpenServer command-line utilities, the
seQ Shell utilities, working with files and directories, editing files with
the vi editor, transferring files to disks and tape, using DQS disks and files
in the seQ OpenServer environment, managing processes, shell program-
ming, regular expressions, awk, and sed.
Operating System User's Reference
Contains the manual pages for user-accessible operating system com-
mands and utilities (section e).
Performance Guide
Describes performance tuning for uniprocessor, multiprocessor, and net-
worked systems, including those with Tep lIP, NFS, and X clients. This
book discusses how the various subsystems function, possible per-
formance constraints due to hardware limitations, and optimizing system
configuration for various uses. Concepts and strategies are illustrated
with case studies.
System Administration Guide
Describes configuration and maintenance of the base operating system,
including account, filesystem, printer, backup, security, uuep, and
virtual disk management.
Many other useful publications about seQ systems by independent authors

are available from technical bookstores.

Development documentation
The sea OpenServer Development System includes extensive documentation
of application development issues and tools. Additional resources for devel-
opers are available at the sea Developer's Home Page
(http://www.sco.com/developer).
Driver development
The Consolidated Hardware and Driver Development Kit contains documen-
tation, sample drivers, and test suites for developing drivers on sea Open-
Server and UnixWare 7. You can download all packages from the sea HDK
Homepage (http://www.sco.com/hdk) or can order the CD through the stan-
dard channels. The documentation can also be viewed online at
http://uw7doc.sco.com using Netscape or another frames-aware browser;
Select "Hardware and Driver Development" from the left frame.
The documentation for the Consolidated Hardware and Driver Development

Kit is built using the UnixWare 7 tools. The manual pages can be installed
and accessed on sea OpenServer systems using the hdkman command,
which is provided with the HDK software. The graphical ScoHelp documen-
tation cannot be installed on sea OpenServer systems but can be read from
the web site and is provided as a flatfile that can be downloaded from the web
or read directly from the eD using the file: / syntax of any frames-aware
browser.
7
About this book
Typographical conventions
This publication presents commands, filenames, keystrokes, and other special
elements as shown here:
Example: Used for:

Ip or Ip(C) commands, device drivers, programs, and utilities (names,
icons, or windows); the letter in parentheses indicates the
reference manual section in which the command, driver, pro-
gram, or utility is documented
/new/client.list files, directories, and desktops (names, icons, or windows)
root system, network, or user names
filename placeholders (replace with appropriate name or value)
<Esc) keyboard keys
Exit program? system output (prompts, messages)
yes or yes user input
"Description" field names or column headings (on screen or in database)
Cancel button names
Edit menu names
Copy menu items
File ¢ Find ¢ Text sequences of menus and menu items
open or open(S) library routines, system calls, kernel functions, C keywords;
the letter in parentheses indicates the reference manual section
in which the file is documented
$HOME environment or shell variables
SIGHUP named constants or signals
"adm3a" data values
employees database names
orders database tables
buf C program structures
b b.errno structure members

How can we improve this book?
How can we improve this book?

What did you find particularly helpful in this book? Are there mistakes in this
book? Could it be organized more usefully? Did we leave out information you
need or include unnecessary material? If so, please tell us.
To help us implement your suggestions, include relevant details, such as book

title, section name, page number, and system component. We would appreci-
ate information on how to contact you in case we need additional explana-
tion.
NOTE For answers to technical questions, please contact your software ven-
dor or your support representative. Technical Publications is not qualified
to give technical support.
To contact us, use the card at the back of this sea Open Server Handbook or
write to us at:
Technical Publications
Attn: CFT
The Santa Cruz Operation, Inc.
PO Box 1900
Santa Cruz, California 95061-9969
USA
or e-mail us at:
techpubs@sco.com or . .. uunet!sco!techpubs
Thank you.
9
About this book

Chapter 1
About sea OpenServer systems
The sea OpenServer product line is a family of software products, licenses,
and additional products which are designed to work together.
System configurations
sea offers several softwareproducts (this page), media packages (page 12),
and additional documentation in printed format (page 12) which you can
combine in the way that most effectively addresses your needs.
seQ OpenServer systems

The sea OpenServer family includes three operating systems, a general-
purpose Internet server, and a single, combined development system. For
more information on the latter, see the documentation provided with the sea
OpenServer Development System.
Host System
This product is designed for low-cost, turnkey solutions and
mission-critical applications that require a central application host
and do not require networking. In addition to many features that
deliver improved performance and reliability, it contains full
graphical support, including SCOadmin, an aSF / Motif® system
administration tool that also runs on character terminals. The
Host System also contains the sea Advanced File and Print
Server, which provides NetBEUI networking for native Microsoft
Windows file and print connections.
11
About seQ OpenServer systems
Enterprise System
This product includes all the features of the Host System and com-
plete networking tools, including installation over a network,
TCP/IP (with SCo Advanced File and Print Server running over
TCP /lp), NFS, IPX/SPX, SCO Gateway for NetWare, LAN Manager
Client, Netscape Communicator TM, and the Netscape FastTrack
server. As such, it is the most powerful and versatile server in the
product line.
Desktop System
This product is designed as a single-user workstation and contains
full graphical support as well as full networking connectivity. The
Desktop System also includes Netscape Communicator.
SCO Internet FastStart
This product is an easily configured, general-purpose Internet
server. Including Netscape Communicator, Netscape FastTrack
server, the Internet Manager, enhanced PPP from Morning Star
Technologies, and SendMail, this Internet server is robust and
powerful.
Media
All SCO OpenServer products are provided on a single CD-ROM. The Boot
Disk is a 3.5-inch floppy disk. If your system supports it, you can now boot
directly from the installation CD-ROM (page 28).
Printed documentation
The Release Notes and sea Open Server Handbook are provided in printed format
with every SCO OpenServer system package. The sea Open Server Handbook is
also available online, along with many other books. Most of the online books
are available in printed format from your vendor, in two sets. Set 1 includes
all the user's and administrator's guides. Set 2 includes all the reference man-
ual pages (several volumes).
See "Related documentation" (page 4) for detailed information about the SCo
OpenServer documentation set.
12 seo OpenServer Handbook

Additional licenses and products
Additional licenses and products

Many additional licenses and products are available for purchase with sea
OpenServer systems. See the Release Notes for more information.
NOTE Before you can use any sea product (including additional user and
epu licenses), you must license as well as install it (page 72). You will be
prompted to license all additional products during the custom(ADM) instal-
lation procedure. Certain commercial versions of sea software also require
registration. You can register a product online at the sea web site
(http://www.sco.com/register). or with the sea Registration Center.
See also:
• "Licensing and registration terminology" (this page)
• ehapter 6, "Licensing and registering sea products" (page 87)
Licensing and registration terminology
The sea Software License is a contract that grants you rights to use sea-
supplied software. Typically, you obtain the license from your sea software
provider. It may accompany the software media, or you may acquire it online
on the World Wide Web. The license agreement accompanies all sea prod-
ucts, either as a printed booklet or on the product media (typically in a direc-
tory named /license).
You can obtain the license for some sea products interactively at sea's web-
site. Some sea products display the license agreement when you install the
product, at which time you are prompted to read and accept the terms.
The following items identify the license:

License Number
A unique number identifying each sea product.
License Code
A license code which activates the product.
License Data
Additional license information needed to activate some products.
If this field is not provided with your license, it is not required.
13
About sea OpenServer systems
Most of sea's commercial products require registration after installation.

Registration is your confirmation to sea that you have installed and licensed
an sea product. You can perform registration interactively at
http://www.sco.com/register.
Some products (such as the Free* sea products) do not need to be registered.
See the sea Software Registration booklet provided with your sea OpenServer
system. To register an sea product, you must have:
sea System ID
A unique ID used to identify your sea OpenServer installation. It
is generated at initial system installation, and at any subsequent
low-level disk reformat. The sea System ID is displayed when
you run the License Manager (page 88).
Registration Key
A key generated by the Registration Center when you register
your sea product. You will receive one Registration Key for each
sea product (identified by its License Number) that you register.
Until you register your sea product, warning messages will be
displayed reminding you to register. Because the Registration Key
is tied to the sea System ID, you must re-register your sea prod-
ucts if you run a low-level disk reformat.
See Chapter 6, "Licensing and registering sea products" (page 87) for more
information.
Accessing seQ Services information online

If you are connected to the Internet and have a World Wide Web browser
(such as Netscape Communicator), the following URL (Uniform Resource
Locator) will lead you to the sea World Wide Web home page:
http://www.sco.com/
To access detailed information about sea support services, click on "Sup-
port".
* "Free" means that there is no charge to license the software for personal and non-commercial use. The
media kit has a nominal fee, and any number of users can share it. Each installation requires a unique
license.

Accessing seQ Services information online
Finding seQ training

sea Authorized Education Centers around the world offer training in the use
and administration of sea products. To learn more about available training:
• From anywhere in the world, access the sea Training home page
(http://www.sco.com/Training).
• In the United States or Canada, call1-800-Sea-UNIX (1-800-726-8649).
15
About seQ OpenServer systems

Installation and
softw-are configuration
Chapter 2
Installing or upgrading an sea system
This chapter explains how to install or upgrade an sea OpenServer system on
your computer. Specifically, it covers:
• assembling the information you need for installation (page 20).
• installing the software (page 29).
• choOSing an upgrade path (page 36).
If you encounter problems during the installation, see Chapter 3, "Troub-

leshooting the installation" (page 53).
Before you begin:

• Read the first chapter of the Release Notes, which describes the hardware
and disk space you need. Also read any other sections in the Release Notes
that specifically discuss your software and hardware.
• Gather the information for the installation checklist (page 20).
• Your sea software includes drivers for the hardware listed in sea Open-
Server Features and Limitations. If you use drivers and peripherals from a
dealer other than sea, contact your dealer to verify that those drivers work
with the latest sea OpenServer software. If the drivers are incompatible
with the operating system, your peripherals will not work. For more infor-
mation about new and updated driver support, see "Accessing the sea
Compatible Hardware Web Pages" (page 273).
19
Installing or upgrading an seQ system
• If you have just assembled your computer for the first time or are unsure
about the hardware requirements, review the manuals provided with your
computer and hard disk. In addition, run the system self-test described in
the operator's guide for your computer to detect any hardware problems.
• Read your license agreement.
See also:
• "Installing or upgrading the system from a remote host" in the Networking Guide
Installation and upgrade checklist

You will need this information to respond to prompts during the installa-
tion. If you do not record this information before starting, you might have to
stop the installation and start again from the beginning.
After installation, keep this checklist with your system log (page 139).
1. Boot-time Loadable Drivers (BTLDs) o No

required? (page 284)
o Yes, enter package names:
Also consult your BTLD software supplier's
documentation.
2. Installation media o ATAPI/EIDE CD-ROM

If you use your primary drive, auto detection (ATAPI-2-compliant)
will probably fill in the correct entry. See
IDE Controller
SCO's Compatible Hardware Web Pages for
Primary or secondary:
device names. See this book for SCSI
configuration (page 303). Master or slave:
o SCSI CD-ROM
SCSI Adaptor Type:
SCSI Host Adaptor:
SCSI 10:
SCSI LUN: 0
(always 0 for SCO-provided
drivers)
SCSI BUS:
(Continued on next page)

(Continued)
3. Keyboard language
(For example, UK English.)
4. License number
Copy answers 4, 5, and 6 from the Certificate
of License and Authenticity (COLA.) If you
are performing an Upgrade installation, you
must have the license keys for both the origi-
nal system as well as the upgrade.
5. License code
6. License data
(This field appears only during certain ins-
tallations.)
7. Installation type (page 37) D Fresh

An Upgrade preserves your existing filesys- D Upgrade (if system is suitable)
terns, but may not provide all the new func-
tionality that a Fresh installation offers. If upgrading, stop here and begin
(Some systems cannot be upgraded.) the upgrade procedure (page 29).
8. System name (page 515)

Must be unique, begin with a letter, and con-
tain only lowercase letters and numbers (a
maximum of 8 characters).
9. Domain name (page 516)
10. Security profile (page 142) D High (above C2)

Use High for systems with confidential D Improved (C2)
information and many users, Improved for D Traditional
systems with users who share information, D Low
Traditional to maintain compatibility with
existing UNIX systems, or Low for systems
not widely or publically accessed.
21
(Continued)
11. Time zone Continent or geographic area:
Time zone name:
Daylight savings observed?

DYes 0 No
12. Language
If you will be running a language product
other than US English (for example, French
or German), specify it here.
13. Initial system profile o Standard system

Standard Enterprise installs all software o Lightweight character terminal
except Microsoft LAN Manager Client, sca o Database services (add to
Gateway, and PC-Interface® Server. Light- either Standard or Lightweight)
weight character terminal also leaves out
the XII server and clients, graphical
administration tools, and the IPX/SPX run-
time. Database services adds the suds
driver for large database products.
14. Hard disk setup, first disk o Preserve (if available)

Preserve (page 40) maintains current parti- o Use whole disk for UNIX
tions and divisions (some systems cannot be o Customized layout
preserved). Use whole disk for UNIX (page o Interactive fdisk/ divvy
42) configures default partitions and divi-
sions. Customize (page 42) lets you create
and resize partitions and divisions. Interac-
tive (page 41) invokes fdisk(ADM) and
divvy (ADM) for more precision.

(Continued)
Customized or Interactive layout (page 101)

(Also see the Release Notes for a description
of file system types.)
UNIX partition size (MB)
DOS partition size (MB)
Other partition size (MB)
boot filesystem size (MB)
swap space size (MB)
(recommend 1.5 to 2 times RAM)
root file system size (MB)
(new file system types no longer require small root
filesystems)
Other file systems size (MB)
15. Bad track/block, first disk (page 341) o None

Thorough/destructive ensures the highest o Thorough/destructive
disk integrity, but takes longer. Less o Thorough / non-destructive
thorough choices increase the risk of instal- o Quick/ destructive
lation failure due to bad spots on the disk. o Quick/non-destructive
16. Hard disk setup, second disk (page 45) o Preserve (if available)
(If applicable) o Use whole disk for UNIX
o Customized layout
o Defer
Customized layout
UNIX partition size (MB)
DOS partition size (MB)
Other partition size (MB)
boot filesystem size (MB)
swap space size (MB)
Other filesystems size (MB)
17. Bad track/block, second disk o None

(If applicable) o Thorough/destructive
o Thorough / non-destructive
o Quick/ destructive
o Quick/non-destructive
23
(Continued)
18. Software components o Operating system

To override the initial system profiles, you o Graphical environment
can install whole and partial components in o Connectivity
any combination. (See the Release Notes for o Online documentation
disk space requirements.) After initial ins-
tallation, you can add or remove software
(page 69).
19. Network card (page 505) Vendor and model:

You do not need this information if you
autodetect the network card or defer net-
Interrupt vector (IRQ):
working configuration. (If the address you
want to use for your network card does not
appear on the list of valid addresses, defer Base I/O address (if applicable):
network configuration until after installa-
tion.) See your hardware documentation for
ROM address (if applicable):
more information.
DMA (if applicable):
Base RAM address (if applicable):
RAM size (if applicable):
Local Ring Broadcast (Token-Ring

only):
Slot number (if applicable):
Cable type (if applicable):
20. IP address (page 513).

Four decimal numbers separated by periods
(for example, 132.145.80.9). If you do not
already have an IP address, defer network
configuration.

(Continued)
21. Network mask (page 514)

If you are not configuring a subnetwork,
accept the default value.
22. Broadcast address (page 515)
23. Domain name service (DNS) client Gateway address:

configuration
Enter the IP address (page 513) of the gate-
way machine on your network to set the
default route. For more information, see Primary nameserver address:
Chapter 5, "Configuring Internet Protocol
(IP) routing" in the Networking Guide.
Enter the IP addresses (page 513) of the pri- Secondary nameserver address:
mary and secondary name servers. Entering
a name server creates a default
resolv.conf(SFF) file. For more information,
see Chapter 6, "Configuring the Domain
Name Service" in the Networking Guide.
These fields are optionaL If no values are

entered, /ete/tcp does not add a default route
(although routed is started) and resolv.conf is
not created.
24. IPX/SPX network number (page 518)

Links DOS Workstation clients and SCO
system software over the NetWare network.
25. IPX/SPX internal network number (page

518)
26. IPX/SPX framing type (page 519)
27. Video card (page 357)

Also consult seo's Compatible Hardware
Web Pages.
25
(Continued)
28. Video mode (page 357)
29. Video monitor (page 357)
30. Graphical login DOn

If you plan to use the graphical environ- o Off
ment, leave the graphical login on. See
"Starting a Graphical Environment session"
(page 199).
31. Mouse (page 387)

Type (vendor):
Also consult your hardware documentation.
For a bus mouse, specify the interrupt. For a o Bus mouse

serial mouse, specify the eOMl port. If your o IRQ2 (INTR2)
serial mouse is connected to eOM2, specify o IRQ3 (INTR3)
eOMl and then reconfigure your mouse after o IRQ5 (INTR5)
installation (page 389). o Serial mouse: eOMl
(eOM2 not supported)
o Keyboard mouse
o low resolution
o high resolution
32. E-mail system 0 MMDF

Choose sendmail if you will use advanced 0 sendmail
features of seo Internet Services, such as vir-
tual domains, or if your systems currently
use sendmail. Otherwise, choose MMDF. For
more information on sendmail and the Inter-
net Manager, see Chapter 27, "Configuring
Internet services" (page 453). For a detailed
comparison of sendmail and MMDF, see the
Mail and Messaging Guide.

Responding to prompts
Responding to prompts
Use these keys when responding to prompts for information during the first
section of the installation (before software loading begins):
To: Press:
Get help (Fl)
Abort the installation (F2)
Display other choices (Space)
Restore defaults (FS)
Return to the previous screen (Esc)
Exit help screen (Esc)
Move down one line 0)
Move up one line (0
Scroll up one screen (PgUp)
Scroll down one screen (PgDn)
Select or deselect multiple items in a list (Space)
Accept an item (Enter)
Accept the current configuration (Enter)
If you make an error while entering information:

• Use the (Bksp) key or (Ctrl)H to erase a character.
• Press (Esc) to restart the entire line.
To stop the installation, press (F2) in any window, or select q at a prompt to
quit. Once you quit the installation, any information you have already
entered is lost. You must start the installation again from the beginning.
To restart the installation, verify that the Boot Disk is in the drive and press
(Enter). At the Boot: prompt, press (Enter) again. If you are using the BTLD
utility and you need to restart the installation, insert the Boot Disk and enter
restart link=pkgl at the Boot: prompt (where pkgl is the name of the package
from which to extract the required BTLD drivers).
To stop the installation process after the software loading begins, verify that
the Boot Disk is in the drive, then press the computer "reset" button or turn
the power off and on. At the Boot: prompt, press (Enter) to start the installa-
tion again from the beginning.
If you stop the installation after the software starts loading, the previous sys-
tem cannot reliably be restored. If the previous system is not restored, the
Upgrade installation type and the Preserve disk layout option may not be
available in the restarted installation, even though they were available in the
first (aborted) installation.
27
Installing boot-time loadable drivers
If you are installing boot-time loadable drivers (BTLDs):
• At the beginning of the installation, follow the instructions in Adding

/I
BTLDs at boot time" (page 285) to link the drivers at the first Boot: prompt.
• At the end of the installation, after the software is loaded and the kernel is
rebuilt, you see a table of the packages installed on the disk. Enter the
name of the BTLD package to install, or press (Enter) to install the default
package.
Booting from CD-ROM
The SCO OpenServer installation CD-ROM is now bootable. This allows for a
faster installation and allows you to skip the steps which require you to insert
and load the installation boot floppy.
You can use this feature if your system BIOS supports CD-ROM as a boot
option. You cannot use this feature if your system BIOS recognizes only a
proprietary bootable CD-ROM format.
To use this feature:

1. Complete steps 1-3 of the standard installation procedure (page 29).
2. Enter your system's BIOS configuration program. This program might be

accessed from a configuration floppy or by pressing keys immediately
after you power-cycle the system.
3. Specify CD-ROM as the primary boot device (before C: or A:).
4. Save this change to the system BIOS and exit the configuration program.
5. Shut down your system.
6. Insert the SCO OpenServer CD-ROM and remove any other media from
other boot devices on your system.

The installation and upgrade procedure
7. Resume the standard installation procedure at step 5 (page 30).

For step 6, press (Enter) without inserting any additional media, unless you
have a Boot Time Loadable Driver to install.
For step 7, you do not need to insert the CD-ROM as it is already present.
NOTE Because not all installation utilities are aware that the CD-ROM drive
is emulating the floppy drive, you might see an error message or prompt
that mistakenly refers to the floppy drive.
If you are using the boatable CD-ROM feature, assume that messages you
receive that refer to installation media pertain to the CD-ROM drive.
Follow these steps, remembering to press (Enter) after responding to each

prompt:
1. Complete the "Installation and upgrade checklist" (page 20).
This is very important. If you do not gather this information first, you
might have to stop the installation and start again from the beginning.
2. If your hard disk already contains more than one partition, make sure that
the UNIX partition is active. The installation copies the sco OpenServer
system to the active partition.
3. Before beginning any installation or upgrade, make sure you have up-to-
date backups of all the data currently on your system (see the System
Administrator's Guide). Some of the options available during installation
overwrite all the data on the hard disk, including user data and DOS parti-
tions.
4. With the power off, or at the Press any key to reboot prompt, insert the
Boot Disk into the drive.
29
If you have more than one floppy disk drive, make sure the 3.5-inch drive
is the primary drive (sometimes called the boot drive). Check your com-
puter hardware manual if you are unsure which is the primary drive.
NOTE You might be able to use the new bootable CD-ROM feature of
SCO OpenServer. See "Booting from CD-ROM" (page 28) for more infor-
mation.
5. Turn on your computer (or press any key to continue from haltsys), and
wait for the Boot: prompt.
NOTE If you need to restart the installation completely at any time,

insert the Boot Disk, and press (Enter) at the Boot: prompt. The installa-
tion starts again from the beginning.
If you are using the BTLD utility and you need to restart the installation,
insert the Boot Disk and enter restart link=pkgl at the Boot: prompt
(where pkgl is the name of the package from which to extract the
required BTLD drivers).
6. At the Boot: prompt:

• If you are not installing boot-time loadable drivers, press (Enter) to boot
from the floppy disk drive.
• If you are installing BTLDs, follow the instructions in "Adding BTLDs at
boot time" (page 285) before continuing.
The system checks to see what hardware is present and if there are any
hardware problems. Each stage of checking generates a letter ranging
from D through M. See Appendix G, "Kernel initialization check letters"
(page 539) for an explanation of these letters.
A RESTRICTED RIGHTS LEGEND appears after the kernel initialization letters.
7. When prompted, supply the information about your CD-ROM drive, insert
the CD-ROM, and press (Enter). Do not remove the Boot Disk from the
drive.
NOTE If you select the incorrect address for the CD-ROM, and another
device is actually present at that address, you cannot successfully
change to the correct address. Press (F2) to quit the installation, then
start again from the beginning.
30 seD DpenServer Handbook

8. Follow the instructions on each screen, and complete the information

fields using the answers that you recorded in the "Installation and
upgrade checklist" (page 20). Two lines at the bottom of the screen give
brief instructions for completing each field. For more detailed help, press
(FI). Press (Space) to see a list of options from which you can select, or to
bring up a secondary set of prompts.
NOTE If the "Installation Type" field reads Fresh and you cannot
highlight any other choice, your system cannot be upgraded. Complete
the "Installation and upgrade checklist" (page 20) to make sure you have
all the necessary information, then continue with a fresh installation.
See "Choosing an upgrade path" (page 36).
9. When prompted, assign the root (superuser or administration) password.

Do not forget the root password. To restore a forgotten root password, you
must contact your support provider for assistance.
10. If you selected the Interactive fdisk/divvy disk setup option, the installation
prompts you to initialize your hard disk. Follow the instructions in "Parti-
tioning a hard disk using fdisk" (page 330) and "Dividing a disk partition
into divisions using divvy" (page 333) to complete this step.
CAUTION Do not allocate all of the available space to the optional /u file-
I system. This will leave insufficient space for the root filesystem. If the
root file system has insufficient space, the installation will fail.
If you encounter an error at this point, reboot the system and start the in-
stallation again from the beginning. Do not attempt to move backwards
through the installation screens.
11. The badtrk(ADM) utility runs next, if you selected it. If you encounter an
error during badtrk, reboot the system and start the installation again
from the beginning.
12. The software load begins after any disk setup or badtracking. Software
load is the longest stage of the installation, but it can proceed unattended.
As the installation loads each software component onto the hard disk, you
see messages such as:
Installing: SCO UNIX System V Operating system (Ver 5.0.5E)
Installing Phase: Copying files from the media
Installation Status: Copying file
31
These messages are logged in the custom log file,

/var/opt/K/SCO/SoftMgr/*/custom/custom.log, for future reference.
After the software is loaded, the kernel (lstand/unix) is rebuilt. This takes
several minutes. The /stand directory also contains two other bootable ker-
nels, to use in case unix will not boot. unix.safe is the same as unix, but
with all third-party drivers removed. unix. install is the kernel used during
installation. It contains most drivers. See "Booting an old kernel" (page
184) and kernel{ADM) for more information.
13. If you linked BTLDs in at boot time, you see a table of the packages
installed on the disk. Enter the name of the BTLD package to install, or
press (Enter) to install the default package.
14. The system shuts down, then you see Press any key to reboot. Remove
the floppy disk or bootable CD-ROM from the drive, then press any key.
15. At the Boot: prompt, press (Enter).
16. To do any of the following, enter the root password when you see:
INIT: SINGLE USER MODE
• Set up a serial mouse.

If you have a serial mouse that is not installed on eOMl, configure it
now. See Chapter 21," Adding serial and parallel ports" (page 367) and
Chapter 23," Adding mice and bitpads" (page 387).
• Install additional software or remove software.
To install or remove software, see Chapter 4, "Installing and managing
software components" (page 69).
NOTE When installing language products with the Software Manag-

er, make sure you select the language product that matches your ini-
tial product configuration. For example, if you installed the seo
OpenServer Enterprise System and want to add the German product,
select "Enterprise German Language Support".
• Configure the network.

If you installed the "Connectivity" components and deferred network
configuration during initial installation, you can configure the network
now. See Chapter 29, "Configuring network connections" (page 481).

• Install Internet Services components.

If you selected a full installation on your Enterprise or Desktop system,
Netscape FastTrack server and Netscape Communicator were automat-
ically installed. If you did not select a full installation, follow the
instructions in Chapter 4, "Installing and managing software com-
ponents" (page 69) to install Netscape components. See the Release
Notes for notes about configuring and using Netscape FastTrack and
Netscape Communicator.
If you chose sendmail during installation, you can use the Internet
Manager to configure your mail system and can make use of advanced
features such as creating virtual domains. If you chose MMDF, you can-
not use the Internet Manager to configure mail. You can switch mail
systems by removing the sca MMDF (MMDF) package and adding the
sca sendmail (SendMail) component. See Chapter 4, "Installing and
managing software components" (page 69). Also see "Mail" (page 470)
for information on configuring sendmail.
PPP from Morning Star allows you to use the Internet Manager to con-
figure your dial-up connections. By default, PPP from Morning Star is
not installed when you install your sca OpenServer system. To install
and use PPP from Morning Star, remove the sca PPP (tcp:PPP) package
and add the sca PPP from Morning Star (mstppp) package, then config-
ure connections with the Internet Manager. See Chapter 4, "Installing
and managing software components" (page 69), "Accessing the net-
work" (page 455), and Chapter 27, "Configuring Internet services"
(page 453).
17. Bring the system up in multiuser mode from the INIT: SINGLE USER MODE
prompt by pressing (Ctrl)D. (Or, from single-user mode, press (Ctrl)D at
the # prompt. Then, when you see INIT: SINGLE USER MODE, press (Ctrl)D
again.)
18. If the displayed time is correct, press (Enter). If the time is incorrect, enter
the current time.
As the system starts up, you see copyright credits, followed by software
component start-up messages. When you see the graphical scologin
screen on tty02, or the login: prompt on tty01, the system is ready.
19. To start the Desktop, log in as root at the graphical scologin screen on
tty02 (press (Ctrl)(Alt)(F2) if it is not displayed).
To log in on a character screen, switch from the graphical login screen on
tty02 by pressing (Ctrl)(Alt)(Fn) (where n is the function key associated
with another tty, such as (Fl). Then, log in as root.
33
For more information about scologin, see "Starting a Graphical Environ-

ment session" (page 199) and "Using multiscreens" in the System Adminis-
tration Guide.
20. At this time you can:
• Add user accounts. The installation automatically creates the root
account; this account should be used for system administration tasks
only. To maintain system security, you must create separate accounts
for each user on your system. (An Upgrade installation retains all user
accounts and data.) See Chapter 1,"Administering user accounts" in
the System Administration Guide.
• Add local printers (printers that are directly attached to your system).
See Chapter 24," Adding printers" (page 397).
• Add hard disks to your system. See Chapter 18,"Adding hard disks"
(page 323) or "Upgrading a non-primary hard disk" (page 45).
• Configure ISA Plug and Play hardware present on your system. See
Chapter 17, "Installing Plug and Play devices" (page 311).
• Configure the mail system. See the Mail and Messaging Guide.
• Create additional partitions on your hard disk (if you left space for
them). See "Partitioning a hard disk using fdisk" (page 330).
• Create additional file systems on your hard disk (if you left space for
them). See "Dividing a disk partition into divisions using divvy" (page
333).
21. Make a complete backup of your system. See "Running unscheduled
file system backups" in the System Administration Guide.
If your system should become corrupted, you can use this backup, along
with the emergency boot floppy disk set that you create in the next step, to
restore it without having to reinstall the software completely. See Chapter
3, HBacking up file systems" in the System Administration Guide for a com-
plete discussion of backups.
I CAUTION Make regular backups of your file systems so that, if corrup-

tion occurs, you have a recent backup of your system to restore.

After installation
22. Create an emergency boot floppy disk set for your system.
These disks allow you to recover your root file system quickly if it becomes
so corrupted that you cannot start the system from your hard disk. See
Chapter 5, "Creating an emergency boot floppy disk set" (page 81) for
instructions. Then, test the emergency floppy disk set, and verify that you
can read the backup you made in the previous step according to the direc-
tions in "Examining the contents of a backup" in the System Administration
Guide.
23. Register your software. See Chapter 6, "Licensing and registering sea
products" (page 87). (You already licensed your system during the instal-
lation.) The system software displays frequent reminders until you regis-
ter the software you installed.
NOTE Your software generates a new sea System ID each time you do
a low-level reformat of the root hard disk. If you do a low-level refor-
mat, you must contact an sea Registration Center to obtain a new Regis-
tration Key and repeat the registration process (page 90).
After installation
The sea OpenServer system is now installed and registered. Review Chapter
2 of the Release Notes for tasks you need to complete immediately following
installation. For further information on administering the system, see the
remaining chapters in the sea Open Server Handbook (especially Chapter 3,
"Troubleshooting the installation" (page 53), Chapter 9," Administering sea
systems" (page 137), and Chapter 13, "Troubleshooting system-level prob-
lems" (page 247)). Also see the System Administration Guide.
To help system administration, troubleshooting, and future upgrades go more

smoothly, keep a copy of the completed installation checklist (page 20) with
the system log (page 139).
To configure Internet services, including the Netscape FastTrack Server, send-

mail, and ppp, refer to Chapter 27, "Configuring Internet services" (page 453)
35
Choosing an upgrade path
Read this and the following sections on upgrading your system thoroughly
before beginning an upgrade installation. They describe:
• the different types of installation you can choose if you are already running
an seQ operating system
• steps you must take before or after installing the new system so that certain
components from your previous system continue to work as you expect
Also read the chapters in the Release Notes that discuss the installation.
CAUTION Before beginning any installation or upgrade, make sure you

have up-to-date backups of all the data currently on your system (see the.
System Administrator's Guide). Some of the options available during installa-
tion overwrite all the data on the hard disk, including user data and DQS
partitions.
We recommend that you use cpio(C) format for the backups (the Backup
Manager uses cpio), and that you back up one file system per tape.
If you currently run an earlier version of an seQ UNIX operating system, one
or more of the following methods are available for you to upgrade to an SCQ
OpenServer system. Read the referenced sections and the Release Notes to
decide which method works best for your system.
• Choose an Upgrade installation (page 37).
• Choose a Fresh installation, then choose the Preserve option (page 40) for
setting up your hard disk.
• Choose a Fresh installation, then run Interactive fdisk/divvy (page 41) to
recreate your current hard disk setup.
• Choose a Fresh installation, choose the Use whole disk for UNIX or Custom-
ize option (page 42) for setting up your hard disk, then restore the data
from backups.

NOTE If your system is currently running sea Internet FastStart release 1.0
or 1.1, you must select the Fresh installation type. You may select either the
Interactive fdisk/divvy (page 41) or Preserve (page 40) option for setting up
your hard disk. You cannot select the Upgrade installation type for sea
Internet FastStart release 1.0 or 1.1.
Before reinstalling your system, read the Release Notes for instructions on
how to migrate your current Internet FastStart data. This information will
help you save sendmail, ppp, and server configuration information so that
you do not need to completely reconfigure these services.
See also:
• "Issues with any upgrade" (page 43)
• "Upgrading from release 5.0" (page 48)
About the Upgrade installation type
The Upgrade option is available if your previous installation is sea Open-

Server Release 5.0.0, 5.0.2, 5.0.4, or 5.0.5 and your hard disk has sufficient
space available for sea OpenServer Release 5.0.6. (See the Release Notes for
disk space requirements, and for other information about the Upgrade option.)
This option leaves all non-root file systems and partitions as they are. On the
root filesystem, it removes the old system and installs new versions of all the
previously installed packages. The Upgrade option appears near the begin-
ning of the installation prompts, under Installation type.
If an upgrade fails, the installation program attempts to restore the previous

system. The program displays a message about the expected state of the sys-
tem, depending on the phase in which the upgrade failed, and may direct you
to check whether you need to restore the system from backups.
37
Here are the paths available for Upgrade installations:
If you are upgrading from: You can upgrade to:
seQ OpenServer 5.0.0 Host seQ OpenServer 5.0.6 Host

seQ OpenServer 5.0.0 Desktop sea OpenServer 5.0.6 Desktop
sea OpenServer 5.0.0 Enterprise sea OpenServer 5.0.6 Enterprise
sea OpenServer 5.0.2 Host seQ OpenServer 5.0.6 Host
seQ OpenServer 5.0.2 Desktop seQ OpenServer 5.0.6 Desktop
seQ OpenServer 5.0.2 Enterprise seQ OpenServer 5.0.6 Enterprise
sea OpenServer 5.0.4 Host sea OpenServer 5.0.6 Host
sea OpenServer 5.0.4 Desktop sea OpenServer 5.0.6 Desktop
seQ OpenServer 5.0.4 Enterprise sea OpenServer 5.0.6 Enterprise
seQ OpenServer 5.0.5 Host sea OpenServer 5.0.6 Host
sea OpenServer 5.0.5 Desktop sea OpenServer 5.0.6 Desktop
sea OpenServer 5.0.5 Enterprise sea OpenServer 5.0.6 Enterprise
See also "Upgrading to the Enterprise configuration from Host or Desktop"

(page 49).
NOTE The Upgrade installation type is not necessarily tied to purchasing

the seQ OpenServer system as an upgrade. It simply describes one path
that the installation software can follow, and depends entirely on the config-
uration of the system before the upgrade. For example, if you currently run
seQ OpenServer Release 5.0.0, you can select the Upgrade installation type
even if you purchased a standard installation. On the other hand, if you
purchased an upgrade from seQ Open Desktop Release 3.0, you must select
the Fresh installation type, then choose the option under Hard disk setup
that is most appropriate for your upgrade - probably Preserve (page 40).
NOTE If you are performing an upgrade installation, you must provide
I licenses for both the original system and the new system you are upgrading
to. Please have this information ready before proceeding with the upgrade.
Because the default configuration for seQ OpenServer Release 5.0.6 is larger
than the default configuration for seQ OpenServer Release 5.0.0, 5.0.2, 5.0.4,
5.0.5, the root filesystem on your primary hard disk might not be large enough
to hold the upgraded system. Check the Release Notes for space requirements.
If you want to choose the Upgrade option, but your root file system will not
hold the new release, you have three options:
• Increase the size of your root file system by reconfiguring your hard disk.
• Install a larger primary disk.

• Install components of the new system on non-root filesystems. If your total

disk space is sufficient and you have available partitions, the installation
prompts you to relocate components to other file systems (including file-
systems on non-primary disks).
CAUTION The filesystems offered during the installation for relocated com-
ponents may contain data that you do not want to disturb, such as user
accounts or DOS files installed by sea Merge. If you choose to relocate com-
ponents to such filesystems, that data is lost.
Do not rely on being able to put additional data (such as user accounts) on the
filesystems you choose for relocation. The relocation program uses nearly all
the space in the chosen filesystems, in an attempt to create free space in the
root filesystem.
Only file systems in letc/default/filesys are offered for relocated components. If

you want to relocate components to filesystems that are not displayed at this
stage of the installation, abort the installation, reboot your previous system,
and run mkdev fs to place the file systems in /etc/default/filesys.
See the Release Notes for more information on relocated filesystems.
Data retained with the Upgrade installation type

User data retained on the root filesystem includes:
• home directories
• user-created files and directories
• user IDs
• group IDs
• passwords
• file permissions
• mailboxes
39
System data retained on the root file system includes:

• system configuration files
• job scheduling files
• filesystems
• file system nodes
• mount points
• terminal control database
• auditing parameters
• file control database
• system defaults
• mail aliases
• configuration files for incoming and outgoing PPP lines
• UUCP dialer files
Non-root file systems and non-root disks are not changed, unless you select
them to receive relocated components.
About the Preserve hard disk option
The Preserve option is available if your system has an active UNIX partition
with a clean root file system and a valid letcldefaultlfilesys (see filesys(F)). This
option retains the file system layouts from the previous installation, except for
the root filesystem. It removes everything from the root filesystem and
installs the new system, leaving all other data intact. To access the Preserve
option, press (Space) at Hard disk setup in the Preparing your disk and choos-
ing software window, then press (Space) again at Partitions & filesystems.

If the list of hard disk setup options does not include Preserve, the installation
could not find an active UNIX partition with a valid root file system and
/etc!default/filesys. To preserve your existing partitions and filesystems, see
"About the Interactive disk setup option" (this page). When using the Interac-
tive fdisk/divvy option to retain your previous hard disk layout, you must
assemble the hard disk layout information from your previous system before
beginning the new installation.
The Preserve option is also available for the second hard disk. See "Upgrad-
ing a non-primary hard disk" (page 45).
About the Interactive disk setup option
CAUTION To retain your previous partitions and divisions using the Interac-
Itive fdisk/divvy option, you must assemble the hard disk layout information
from your previous system before beginning the new installation.
The disk setup option for Interactive fdisk/divvy is available for any installa-
tion that starts as a Fresh (rather than Upgrade) installation type. Interactive
fdisk/divvy defers disk setup until the end of the installation prompts. The in-
stallation then runs the utilities fdisk(ADM) and divvy(ADM) interactively. To
retain your previous partitions and divisions on the new system, assemble the
hard disk layout information from your previous system (including any pre-
existing DOS partitions) before beginning the new installation, as follows:
1. Run fdisk and select option 1. Record the numbers of the partitions that
hold your filesystems, then exit fdisk.
2. Run divvy(ADM) for each partition.
CAUTION Do not select c within divvy. Doing so destroys the contents

of the selected filesystem. Only select c if you have a complete backup
of the filesystem, and you want to remake the file system into a different
format. You must then restore all the data to that filesystem after instal-
lation.
41
3. Copy the information from your screen into the following table:
Table 2-1 Primary Hard Disk Filesystems
I Name Type New FS # First Block Last Block I
4. Exit divvy.
5. Enter this information during the installation's fdisk and divvy sessions to
recreate your previous hard disk layout for the new installation.
To access the Interactive fdisk/divvy option, press (Space) at Hard disk setup in
the Preparing your disk and choosing software window, then press (Space)
again at Partitions & filesystems.
The Interactive fdisk/divvy option is not available for the second hard disk.
See "Upgrading a non-primary hard disk" (page 45).
About other hard disk setup options
Other hard disk setup options available from Partitions & filesystems (under
Hard disk setup) are Use whole disk for UNIX and Customize. The Use whole
disk for UNIX option clears any existing partitions and divisions from your
hard disk and creates a default UNIX partition and division, which you cannot
modify. The Customize option clears any existing partitions and divisions
and creates the same default layout, then allows you to modify it with new
partitions and divisions. (The Interactive fdisk/divvy option gives you more
precise control over the size and location of partitions and divisions, but the
Customize option is simpler.) Neither of these options preserves previous
data or disk setups. If you select the Use whole disk for UNIX or Customize
option, you must restore any previous data from backups after the installation
is complete.
The Use whole disk for UNIX and Customize options are also available for the
second hard disk. See "Upgrading a non-primary hard disk" (page 45) ..

Issues with any upgrade
This section covers issues that could potentially apply to any upgrade, no
matter what seQ system you are upgrading from or what seQ OpenServer
system configuration you are installing.
Restoring user accounts
If the upgrade path you choose (page 36) does not retain the user account
profiles on your system, use ap(ADM) to preserve the account profiles.
Before beginning the installation, run:

ap -dg > filename
This copies the account profiles, including group membership information, of
every user listed in the password file into the file filename. Back up this out-
put file.
After completing the installation, copy the file filename to the new system,
and run:
ap -ro -ffilename
This restores the account profiles for every user, overwriting any existing
account profiles of the same name (including root).
User-configured files and directories
This is a list of files and directories that are often configured, and may have
changes that you need to restore after installing a new seQ system. (The
Upgrade installation type attempts to preserve configurable files.) This list is
not exhaustive, nor will every file on this list have changes that you want to
save. The list is simply a starting-point for deciding which files have impor-
tant user-specific or system-specific information.
CAUTION Before beginning any installation or upgrade, make sure you

have up-to-date backups of all the data currently on your system (see the
I System Administrator's GUide).
43
NOTE Please be aware that some of the listed files might be links. In order
to properly back up all required data, you must traverse each of these links
to the target file. Set the option on your backup utility to traverse symbolic
links. For example, use the -L option with cpio(C) , which will traverse and
back up all symbolic links.
Files likely to be configured:
/ etc / checklist /etc/inittab

/ etc / default / * / etc / mscreencap
/ etc / conf / init.d / * /etc/passwd
/etc/cshrc /etc/profile
/etc/ddate /etc/rc
/etc/dialups / etc / systemid
/ etc / d_passwd / etc / term cap
/etc/motd /etc/ ttys
/ etc / gettydefs / etc / tty type
/etc/group /etc/wtmp
users' home directories under /usr
/usr /adm/hwconfig
/usr/adm/messages
/usr /adm/pacct
/ usr / lib / mail / aliases
/ usr / lib / mail / aliases.hash
/ usr / lib / mail / faliases
/ usr / lib / mail / maliases
/ usr / lib / mail / mailrc
/ usr / lib / mkuser / *
/usr /lib /uucp /*
/ usr / lib / XII / app-defaults / *
/usr /lib /XII /Mosaic/*
/usr /lib /XII /scologin/Xservers
/ usr / lib / XII / system.mwmrc
/usr /lib /XII /sys.startrc
/usr /man/cat.LOCAL (local man pages)
/usr /man/ man. LOCAL (local man pages)
/usr / mmdf / mmdftailor
/usr /mmdf/ table/*.dom (mmdf configuration)
/usr /mmdf / table / *.chn (mmdf configuration)

(Continued)
lusr Immdf/table/alias* (mmdf configuration)

lusr Ispool/ cronl crontabs (cron jobs)
lusr Ispool I lp I admins I lp I interfaces I * (printer scripts)
lusr Ispool/lp/pstatus
lusr Ispooi/ip I qstatus
Iusr Ispool I mail I *
Ivar lopt/httpd Ihtdocs I *
I.profile
Upgrading a non-primary hard disk
CAUTION mkdev hd now runs badtrk for SCSI as well as non-SCSI disks.
During mkdev hd, badtrk displays the size of the current badtrk table as the
default. Accept this default size, as changing the size of the badtrk table de-
stroys the contents of the partitions.
You can protect any filesystems on a non-primary hard disk by selecting the
Upgrade installation type or the Preserve option for setting up the secondary
hard disk. If neither of these options is available, or if you do not select either
one, select the Defer disk setup option during the installation, or remove the
additional hard disks before beginning the installation.
If you select Preserve for the second hard disk, you must run divvy for that
disk after the installation is complete. Within divvy, select n and name the
preserved partitions, then exit. Then, run mkdev fs, as described in step 4.
CAUTION Do not select c within divvy. Doing so destroys the contents of

the selected filesystem. Only select c if you have a complete backup of the
filesystem, and you want to remake the file system into a different format.
You must then restore all the data to that filesystem from backups.
45
Follow the numbered procedure in this section for any non-primary disk that
you plan to remove before the installation, or for which you plan to select the
Defer disk setup option.
1. Before the installation, run fdisk(ADM) for each affected hard disk. For
example, for the second hard disk, enter:
fdisk -f /dev/rhdlO
Enter 1 at the main fdisk menu. Record the numbers of the fdisk parti-
tions that hold your UNIX filesystems, then exit fdisk.
2. Also before the installation, run divvy(ADM) for each affected partition
and record the information. For example, for the active partition on the
second hard disk, enter:
/etc/divvy /dev/hdla
Copy the information from your screen into the following table:
Table 2·2 Secondary Hard Disk Filesystems
Name Type NewFS # First Block Last Block
Exit divvy by selecting quit, then exit.

3. After you install the sea OpenServer system, follow the instructions for
using mkdev hd in Chapter 18, Adding hard disks" (page 323). (mkdev
Ii
hd runs fdisk and divvy.) During mkdev hd, make sure that:
• you accept the default size for the badtrk table.
• the partition numbers in the fdisk partition table match those you
recorded before the installation.
• the information you recorded in the IiSecondary Hard Disk Filesystems"
table is in the new divvy table.
• you select n and name each filesystem. (The divvy utility now creates
device nodes for the divisions if they do not already exist, so you must
change the divvy-generated names to match the original names.)

CAUTION Do not select c within divvy. Doing so destroys the contents

of the selected filesystem. Only select c if you have a complete backup
of the filesystem, and you want to remake the file system into a different
format. You must then restore all the data to that filesystem.
4. For each affected filesystem, enter:

mkdev fs
Select option 1 to add a new filesystem. When prompted, enter the full
pathname of the device from /dev. For example, to add a file system called
u, enter /dev/u.
When prompted, enter the name of the directory on which the filesystem
is mounted. For example, a file system called u is usually mounted on the
directory /u.
Specify how you want the file system mounted when the system enters
multiuser mode:
• mount automatically at system startup (select 1)
• mount only at the request of the system administrator (select 2)
• prompt for mount choice at system startup (select 3)
When asked whether or not users will be allowed to mount the file system,
it is usual to respond n for security reasons. (In any case, users running
backups must have both sysadmin and backup authorizations. See
Assigning subsystem authorizations" in the System Administration Guide.)
If
Exit mkdev fs.

5. If you want to mount the file system now, enter the following command (ju
is used in this example):
mount /dev/u /u
Upgrading third-party drivers
We recommend that you remove any third-party drivers from your system
before upgrading to sea OpenServer Release 5.0.6, then restore the drivers
after you have rebooted successfully following the upgrade. If a third-party
driver from your previous sea system is not compatible with sea Open-
Server Release 5.0.6, the kernel (/stand/unix) may not link at the end of installa-
tion.
47
If the kernel does not link at the end of installation, try to boot from the kernel
called /stand/unix.safe (which does not contain the third-party drivers), into
single-user mode.
If the driver for the root hard disk controller is one of the third-party drivers
missing, the unix.safe kernel will not boot. If this happens, boot the system
using a boot-time loadable driver (BTLD) for this sea OpenServer system.
Then, remove the old driver from the link kit, and install the BTLD using
installpkg(ADM).
Upgrading seQ OpenServer Development System

When you upgrade to sea OpenServer Release 5.0.6, we recommend that you
upgrade to the corresponding sea OpenServer Development System release
(5.1.1) as well. Earlier versions of the sea Development System are not sup-
ported, and may behave unpredictably.
The Development System is not automatically upgraded when you upgrade

the sea OpenServer system. After you complete the operating system
upgrade, use the Software Manager (page 69) to install the new version of the
sea OpenServer Development System. Supply the license information from
the Development System's own Certificate of License and Authenticity, which
is included in the sea OpenServer box.
If you do choose to run an earlier version of the sea Development System,

you must reactivate it after upgrading to sea OpenServer Release 5.0.6. The
instructions for reactivating the Development System are displayed when you
invoke the /bin/cc, /bin/rcc, or /usr/bin/CC command.
Upgrading from release 5.0
This section covers issues that may arise when upgrading from sea Open-
Server Release 5.0.0, 5.0.2, 5.0.4, or 5.0.5 to sea OpenServer Release 5.0.6.
See also:
• "Choosing an upgrade path" (page 36)
• "Issues with any upgrade" (page 43)

• the Release Notes for information on migrating previous sea Internet FastStart data
configurations

Missing user-created files
An Upgrade installation may move aside certain user-created files or direc-

tories when it creates directory-level symbolic links.
When a directory directory_name is moved, it is renamed directory_name#.

(If a directory called directory_name# already exists, sufficient number signs
are appended to the directory's original name to create a unique name, such
as directory_name# #.) For example, if /tcb/files/audit contained user-created
files before an upgrade that you cannot find there after the upgrade, check
whether a directory exists called /tcb/files/audit#. If so, you can return your
files to the upgraded /tcb/files/audit directory.
ICAUTION Move only the user-created files from a displaced directory to an

upgraded directory. Do not overwrite other files in the upgraded directory.
Third-party products and system serial numbers

Some third-party applications that are run after a system has been upgraded
may find that the serial number of the installation is not the same as the one
under which the application was originally installed.
The installation tries to rebrand the new kernel with the old serial number
during an upgrade. If this does not work, rebrand the kernel with the serial
number of a previous release using the command:
brand -n old_seriaCnumber old_activation_key /etc/conf/pack.d/kernel/os.a
Then, relink the kernel and reboot the system.
Upgrading to the Enterprise configuration from Host or Desktop
If you purchased an upgrade for one of the following scenarios, the upgrade
requires a two-step procedure:
• sea OpenServer 5.0.0, 5.0.2, or 5.0.4 Host System to sea OpenServer 5.0.5
Enterprise System
• sea OpenServer 5.0.0, 5.0.2, or 5.0.4 Desktop System to sea OpenServer
5.0.5 Enterprise System
The first step upgrades the system to sea OpenServer Release 5.0.6 in the
same configuration, and the second step upgrades the system to sea Open-
Server Enterprise System.
49
The first step happens automatically when you choose the Upgrade installa-
tion option. Use the license information from the previous (5.0.0, 5.0.2, 5.0.4,
or 5.0.5) Certificate of License and Authenticity (COLA) for this step.
To complete the second step, follow the instructions in Chapter 4, "Installing
and managing software components" (page 69) to invoke the Software Man-
ager and install the sca OpenServer Enterprise System. When prompted,
supply the license information from the 5.0.6 COLA.
After you install the SCO OpenServer Enterprise System, exit the Software
Manager and reboot the system.
Upgrading anonymous ftp from Desktop to Enterprise

When you upgrade an seo OpenServer Release 5.0.6 Desktop System to an
Enterprise System, anonymous ftp will no longer work if it was configured
before. This is because the Enterprise System functionality that enables "vir-
tual domains" prevents the ftp server from recognizing existing anonymous
ftp user information.
To re-enable anonymous ftp in this environment:

1. Back up the /etc/passwd file in a safe location.
2. Edit the /etc/passwd file, changing the home directory entry of the ftp user
to /usr/internet/ip/O.O.O.O/scoJtp:
ftp:x:20:50:anonymous ftp account:lusr/internet/ip/O.O.O.O/sco_ftp:/bin/sh
The ftp account entry must be on one line.
3. Create a virtual domains stub directory:
mkdir -p /usr/internet/ip/O.O.O.O
4. Create a symbolic link from the stub directory to the original ftp home
directory:
In -s /u/ftp /usr/internet/ip/O.O.O.O/sco_ftp
NOTE Virtual domains are only available with a Fresh installation of the
Enterprise system; see Chapter 28, "Managing virtual domains" (page 473)
for more information.

Upgrading the language product

If you upgrade the system within the sea OpenServer family (for example,
from Host to Enterprise), you must also install the appropriate language sup-
port product in the usual way, after the upgrade.
Ideally, do not install language products until after an upgrade.
IPX!SPX upgrades overwrite *_tune.h files
An Upgrade installation to an sca OpenServer Desktop System or Enterprise

System does not automatically upgrade the files ipx_tune.h, nvt_tune.h, and
spx_tune.h. Instead, during the installation, the files get saved to
lusrlliblipxrtlsaved_config. If you have made changes to these files that you
want to preserve, compare them with the newly-installed versions after the
upgrade, and make any necessary changes to the new files.
Upgrading seQ Merge

sca Merge is not automatically upgraded when you install sea OpenServer
Release 5.0.6. If you have been running sca Merge under sea OpenServer
Release 5.0.0, 5.0.2, 5.0.4, or 5.0.5 and you select the Upgrade installation type
for Release 5.0.6, sca Merge will not be disturbed. If you select a Fresh instal-
lation for Release 5.0.6, use the Software Manager (page 69) to install the
latest release of sea Merge from the sca Optional Services CD-RaM. Supply
the license information provided in a file on the same CD-ROM.
Additional product documentation unavailable after upgrades
If you perform an Upgrade installation on a system that has additional prod-

ucts installed (such as sca Merge, sea Advanced File and Print Server, or
sea OpenServer Development System), the documentation for these products
is unavailable unless the additional products are upgraded as well. (This does
not apply to manual pages.) To retain the documentation for the older ver-
sions, you must remove the documentation package for each product and re-
install it on the upgraded system from the original media.
51
There are no specific issues to consider when upgrading from sea Open
Desktop Release 2.0 to sea OpenServer Release 5.0.6. Make sure you read
"Issues with any upgrade" (page 43) and the Release Notes before beginning
the installation. The material in "Upgrading from release 5.0" (page 48) may
also apply to systems running Release 3.0.
NOTE To upgrade from Release 3.0, you must select the Fresh installation
type, then preserve or restore your data using one of the methods intro-
duced in "Choosing an upgrade path" (page 36).
There are no specific issues to consider when upgrading from sea Open
Desktop Release 2.0 to sea OpenServer Release 5.0.6. Make sure you read
"Issues with any upgrade" (page 43) and the Release Notes before beginning
the installation. The material in "Upgrading from release 5.0" (page 48) may
also apply to systems running release 2.0.
NOTE To upgrade from Release 2.0, you must select the Fresh installation
type, then preserve or restore your data using one of the methods intro-
duced in "Choosing an upgrade path" (page 36).

Chapter 3
Troubleshooting the installation
This chapter describes troubleshooting procedures for some of the more com-
mon problems that might occur during (page 54) or immediately following
(page 58) installation of your sea OpenServer system and additional sea
products.
Sometimes errors occur during the installation procedure that cause problems
as you install the software or when you boot immediately after installation.
The problem is usually not with the software or the procedure itself. Occa-
sionally, there is a hardware problem, but typically such problems are minor,
such as an improperly connected cable.
If your problem is not described here, use "Solving undocumented installation

problems" (page 62) to help you identify your problem. For example, if your
system hangs mysteriously, use the information in that section to eliminate
some of the more common causes of this problem.
If you cannot solve your problem and you must contact your support pro-
vider for help, be sure to record your system information as described in
"Before calling for help" (page 64).
During the installation procedure, do not assume that you know what is
about to happen, even if you have installed the system before. There have
been changes to the installation process, so you should read the installation
documentation closely.
See also:
• Chapter 13, "Troubleshooting system-level problems" (page 247)
53
Solving problems during installation

This section covers solutions for some common problems that might occur
while installing the software.
• "System does not boot during installation" (this page)
• "Error reading a floppy disk" (page 55)
• "Errors when using SCSI installation devices" (page 56)
• "System reboots from Boot Disk or screen blanks after Boot: prompt" (page
56)
• "System hangs at hardware configuration screen" (page 57)
• "Hardware self-check stops" (page 57)
• "System does not boot from the hard disk" (page 58)
System does not boot during installation

If the system does not display prompts for starting the installation the first
time you boot from the Boot Disk:
1. Verify that the Boot Disk is in the drive. If another floppy disk is in the
drive, the system does not display the Boot: prompt. Replace the floppy
disk with the Boot Disk and reboot the machine.
2. If the Boot Disk is in the drive and the machine still does not boot, make
sure that the floppy disk is inserted correctly and that the floppy disk
drive door is closed. Then, reboot the machine.
3. If the Boot Disk still does not boot, verify that your floppy disk drive
works by booting a DOS disk.
4. If the floppy disk drive works, your problem may be a damaged Boot
Disk. Verify the media by booting on another similar machine if possible.
If the Boot Disk is damaged and you do not have a backup copy, request a
new Boot Disk from your software provider.

If the system still does not boot, you most likely have a problem with your
hardware:
1. Check that your system has enough RAM (Random Access Memory)-see
your computer's documentation. Your computer must have the minimum
recognized memory listed in your Release Notes to install the operating sys-
tem.
At the Boot: prompt, entering the command mem=/p displays all the RAM
the system will use. On most systems, you can override this default using
the mem= command. See the boot(HW) manual page.
2. If your system has enough RAM, check that the boards (bus cards) are
seated properly.
3. If the system still does not boot, you may have a badly configured floppy
disk drive. Make sure that the values in the CMOS match the drives actu-
ally attached to the system and that the positions of multiple drives on the
drive cable match the BIOS configuration. If the CMOS setup has a Swap
dr i ve s setting, make sure this is turned off.
4. Check that all cards are supported (see the sea Hardware Compatibility
Handbook or SCO's Compatible Hardware Web Pages) and correctly config-
ured (as described in Chapter 14, "Basic hardware configuration" (page
271)).
5. Disable cache (to enable diagnostics) and shadow RAM.
6. If, after performing all the above tests, the system still does not boot, you
may have a hardware failure. Check the documentation that came with
your computer for hardware tests.
Error reading a floppy disk

If an error occurs while reading a floppy disk:
• Verify that the correct disk is in the floppy disk drive.
• Make sure that the floppy disk is inserted correctly.
• Verify that the door to the floppy disk drive is completely closed after you
insert the floppy disk.
55
• Verify that the CMOS is configured correctly. Check to make sure that the
values in the CMOS match the drives actually attached to the system and
that the positions of multiple drives on the drive cable match the BIOS con-
figuration. If the CMOS setup has a Swap drives setting, make sure this is
turned off.
• If the error message persists, call your software provider to arrange for a
new floppy disk.
Errors when using SCSI installation devices

If you make a mistake selecting the configuration of the SCSI installation de-
vice when the system includes more than one SCSI device, and another SCSI
device is actually at the configuration you selected, you may need to restart
the installation. This is because the kernel configures the SCSI device and
"locks" it into place. Once the device is locked into place, it cannot be
removed. The only solution is to restart the installation, making sure you
select the correct configuration the first time.
You can restart the installation completely at any time by inserting the Boot
Disk, then pressing (Enter) at the Boot: prompt. If you are using the BTLD util-
ity and need to restart, insert the Boot Disk and enter restart link=pkgl at the
Boot: prompt (where pkgl is the name of the package from which to extract
the required BTLD drivers). For more information, see" Adding BTLDs at boot
time" (page 285).
System reboots from Boot Disk or screen blanks after Boot: prompt
If you cannot install because the system keeps rebooting from the Boot Disk
or the screen blanks after pressing (Enter) at the Boot: prompt, one of two
known situations may be causing this problem:
• an improperly configured EGA or VGA adapter
• an incompatible EGA or VGA adapter
If you have an EGA or a VGA adapter, check the following:
• Verify that the adapter is supported by your SCo OpenServer system.
Check the sea Hardware Compatibility Handbook or SCo's Compatible Hard-
ware Web Pages.
• Make sure that the switches on the adapter are set correctly. Many cards
have emulation modes; make sure that you are using the card in its native
mode. You can also experiment with the VGA, EGA, CGA, MONOCHROME
switches.
If the card has an AUTOSWITCH feature, the system may hang during the
startup hardware check. See "Hardware self-check stops" (page 57).

System hangs at hardware configuration screen

When you start the installation from the Boot Disk, the system displays infor-
mation about your hardware configuration, followed by a series of diagnostic
messages. These messages display quickly and overwrite each other, so they
are not generally visible, although the process normally pauses for a while at
certain points if lengthy checks or initialization are involved. If the process
stops and does not continue, this usually indicates a problem with the initiali-
zation of the corresponding device driver. The startup messages are
described in Appendix G, "Kernel initialization check letters" (page 539).
If your system hangs at this point, the problem might be an improperly

installed adapter as described in "Hardware self-check stops" (this page), or it
might be an I I 0 address conflict.
• Check the hardware configuration screen; each line in the "address"
column must be unique.
• If there are no 110 address conflicts, run hardware diagnostics as explained
in your computer manual and correct any identified problems.
Start the installation procedure again from the beginning. You can restart the
installation completely at any time by inserting the Boot Disk, then pressing
(Enter) at the Boot: prompt. If you are using the BTLD utility and need to res-
tart, insert the Boot Disk and enter restart link=pkgl at the Boot: prompt
(where pkgl is the name of the package from which to extract the required
BTLD drivers). For more information, see" Adding BTLDs at boot time" (page
285).
If the system hangs at the hardware configuration screen again, contact your
software supplier for more information and be prepared to report the last
message displayed.
Hardware self-check stops

One possible cause for stopping for more than several seconds during the
hardware self-check is an improperly installed EGA or VGA adapter. If you
have an EGA or VGA adapter, shut the computer off and check your card
documentation. Errors at this point may also mean an incompatible network
card. Check the sea Hardware Compatibility Handbook or SCO's Compatible
Hardware Web Pages to verify that the card is supported by your SCo Open-
Server system.
If your graphics card has the AUTOSWITCH feature, it must be disabled to

install the product. Check the documentation included with your graphics
card for information on how to disable AUTOSWITCH. This is typically con-
trolled by setting a small switch on the card to the off position.
57
You can then restart the installation from the beginning by inserting the Boot
Disk, then pressing (Enter) at the Boot: prompt. If you are using the BTLD util-
ity and need to restart, insert the Boot Disk and enter restart link=pkgl at the
Boot: prompt (where pkgl is the name of the package from which to extract
the required BTLD drivers). For more information, see" Adding BTLDs at boot
time" (page 285).
If the problem persists, contact your support provider for help.
Another symptom of this problem appears if you are using an AUTOSWITCH

EGA or VGA card that normally displays in high-resolution EGA or VGA
mode, and the Boot: prompt appears in low-resolution CGA mode. (Standard
CGA text is low-resolution: dark lines are visible through the characters. EGA
and VGA text is high resolution: no dark lines are visible.) In this case, reset
the video adapter until the high-resolution display appears.
System does not boot from the hard disk
If the system does not boot from the hard disk as described near the end of the
installation procedure, you may see an error message, possibly like this one:
PANIC: iinit
This generally happens if the boot block was written on a bad track. What-
ever the reason for this problem, you must reinstall your seo OpenServer sys-
tem software.
Scan for bad blocks during the installation by pressing (Space) at Hard disk
setup on the Preparing your disk and choosing software window, pressing
(Space) again at Disk 0 bad block type or Disk 0 bad track type (which option is
displayed depends on the disk type), then selecting an option.
If, after reinstalling, the operating system still does not boot, run the hardware
diagnostics that came with your computer and hard disk (if any).
Solving problems after installation
This section describes some common problems that you could encounter
when you boot the system immediately after installing the software.
• "Console screen looks strange" (page 59)
• "Graphical scologin screen on tty02looks strange" (page 59)
• "Hardware does not work" (page 59)
• "DOS does not work" (page 60)

• "System not licensed or unregistered software" (page 60)

• "Error message: Can"t fork" (page 60)
• "Error message: X TOOLKIT ERROR" (page 60)
• "Common system resource error messages" (page 61)
Console screen looks strange

When booting, if the console screen blanks, the cursor is gone, or the display
is garbled, you may have an incompatible video card. If the card does not
work, check the card hardware documentation. See if there are ways to con-
figure the switch settings so the card is in an IBM-compatible emulation mode,
and that it is addressing the kind of monitor attached. In particular, disable
AUTOSWITCH modes. If changing the switch settings fails, then your video
card is incompatible and must be replaced with a compatible card.
Graphical scologin screen on tty02 looks strange

If the graphical scologin(XC) screen that appears on tty02 on the console looks
strange (for example, the Login window does not fit in the display), you may
have incorrectly configured your video hardware during the installation.
To solve this problem, reconfigure your video selections:

1. Check the sea Hardware Compatibility Handbook or seo's Compatible
Hardware Web Pages to verify that your video hardware (adapter and
monitor) is compatible with the seo OpenServer system.
2. Check the hardware documentation to verify that you configured the
switch settings correctly.
3. Follow the instructions for using the Video Configuration Manager to
reconfigure your video hardware in Chapter 20, "Configuring video
adapters" (page 355).
Hardware does not work

If some hardware (for example, a tape drive) does not work with the software
installed, but it works under another operating system, the hardware may not
be supported by the product or might not be configured correctly.
Refer to the sea Hardware Compatibility Handbook or SCO's Compatible Hard-

ware Web Pages for information on the hardware that you can use with this
product.
59
Troubleshooting the instal/ation
DOS does not work
If neither the SCO OpenServer system nor DOS works after installing the sys-
tem, you need to reinstall both systems. Make certain that you followed the
guidelines in Chapter 7, "Using other operating systems with an SCO system"
(page 101) and "PhYSical and virtual DOS drives" in the sea Merge User's
Guide.
System not licensed or unregistered software

If you get the error System not licensed when logging in, or see messages
about unregistered SCO software:
1. Switch to tty01 by pressing (Ctrl)(Alt)(Fl).
2. Log in as root.
3. Use the command scoadmin license manager (or scoadmin license) to
run the License Manager as described in "The License Manager interface"
(page 88). Confirm that you have a valid license for each installed product
by looking for the word Yes in the Licensed column.
4. To stop the periodic messages about unregistered software, register your
products as described in "Registering products" (page 90). Confirm that a
product is registered by looking for the word Yes in the Registered column.
5. Check that your system date accurately reflects today's date by running
the date(C) command with no arguments. If the date displayed is not
today's date, reset the date with the date command, and reboot the sys-
tem.
Error message: Can't fork
If your system swap space is insufficient, you may see error messages such as:
Can't fork
In general, the default amount of swap space assigned at installation time is
sufficient, but if your machine is heavily loaded with graphical or other pro-
cesses, you should increase the amount of swap space using swap -a. See the
swap(ADM) manual page.
Error message: X TOOLKIT ERROR

If some of your system's resource allocations are insufficient, you may see this
error message:
x TOOLKIT ERROR:
One of the more commonly under-allocated resources is inode buffers;
increasing the number of inode buffers may correct the condition that caused
this error message.
60 seQ OpenServer Handbook

I NOTE If you are running X, this message may not appear on your console.
Refer to "Common system resource error messages" (this page) for more in-
formation about system kernel parameters.
Common system resource error messages

When system limits are exceeded, the operating system advises you by dis-
playing messages on the console. Some of the messages are advisory only.
Others precede a system panic: the system displays some additional diagnos-
tic messages and then "hangs," requiring you to reboot.
If you are running X, these messages may not appear on your console. If your
system hangs, switch to the console multi screen by pressing <Ctrl)<Alt)<Fl), if
possible, and read the diagnostic messages. If you cannot switch mul-
tiscreens, reboot the system and read the messages in the /usr/adm/messages
and /usr/adm/syslog files.
If you use multiple servers (X terminals or console multiscreens) with an SCQ

OpenServer system, you may need to reset some system parameters. See
"Kernel parameters that you can change using configure" in the Performance
Guide.
Kernel error messages that appear while running this product are similar to
this:
CONFIG: routine - Out of streams (NSTREAM = n exceeded)
routine is the kernel routine that requested a stream or queue, but did not
allocate one and n is a decimal number indicating the current value of the
parameter setting. For information on modifying NSTREAM and other kernel
parameters, and on relinking the kernel, see Appendix B, "Configuring kernel
parameters" in the Performance Guide and the configure(ADM) manual page.
For detailed information on modifying kernel tuning parameters, see Appen-

dix B, "Configuring kernel parameters" in the Performance Guide. To invoke
the Hardware/Kernel Manager enter this command as root:
scoadmin hardware
Select Tune Parameters.
61
Solving undocumented installation problems

Even if your problem is not described here, this section can help you to iso-
late, identify, and solve the problem.
First, you must determine whether you have a software or hardware problem.
In general, hardware problems are intermittent, while software problems are
consistent.
Hardware and operating systems

The fact that a given piece of hardware works under DOS is no guarantee that
it works with the sea OpenServer system.
A critical difference between sea OpenServer systems and some DOS applica-
tions is the way they access hardware. For example, older DOS systems and
some DOS applications read or write information to a device controller (disk,
tape, or serial/parallel) by making a device-independent call to the BIOS
(Basic Input Output System). The BIOS translates the device-independent call
into a device-dependent set of instructions to transfer data to or from a partic-
ular device.
Except for very short periods of time during installation and during the boot
process, sea OpenServer systems never use the BIOS; device drivers handle
many of the functions for which DOS can use the BIOS.
Some pe manufacturers depend on something called BIOS compatibility. DOS

functions can be, in a sense, device-independent, because some of the device-
dependent functions of DOS have been separated into the BIOS. This means
that manufacturers can make their non-standard devices work under DOS by
modifying the ROM BIOS that acts as the interface between the hardware and
DOS.
By writing code that reads and writes directly to the device, DOS can also use
devices without going through the BIOS. This is similar to writing a device
driver for an seo OpenServer system. The ability to write directly to a device
is one reason some hardware works with DOS, but not with sea OpenServer
systems. The hardware vendor can make DOS work with hardware that uses
a non-standard BIOS by writing a DOS device driver that translates between
DOS and the non-standard BIOS. This makes it BIOS-compatible for DOS, even
though the BIOS is non-standard. DOS polls the system bus and the custom
device driver to access the device. Because an sea OpenServer system does
not make use of the BIOS, it expects a piece of hardware to be at a specific
interrupt vector, DMA channel, and base address, and does not recognize the
hardware if it is incorrectly configured.

Solving undocumented installation problems
Identifying the problem.

If the system hangs mysteriously, either at boot time, during installation, or
shortly thereafter, use these steps to isolate and identify the problem:
1. Confirm that your hardware is listed as supported in the sea Hardware
Compatibility Handbook or sea's Compatible Hardware Web Pages. If it is
not, sea recommends that you use supported hardware.
2. If possible, check a suspected component on another machine with the
same configuration (under an sea OpenServer system, not MS-DOS).
3. If any third-party drivers are installed, such as those supplied with mul-
tiport cards, remove both the driver and the hardware that it controls,
relink the kernel, and see if the problem persists.
4. Make certain that your devices are recognized at boot time. Watch the
boot display, use cat( e) or vi( e) to look at the /usr/adm/messages and
/usr/adm/syslog files, or use the hwconfig(e) utility.
5. Check for hardware conflicts between components, including DMA, inter-
rupt vectors, and memory addresses. Check for documented incompati-
bilities or limitations in the sea Hardware Compatibility Handbook or sea's
Compatible Hardware Web Pages.
6. If your machine has features such as shadow RAM or memory caching,
disable them.
7. If you have a DOS partition installed, verify that it follows the guidelines
in "Physical and virtual DOS drives" in the sea Merge User's Guide.
8. If your hard disk has more than 1024 cylinders, you must follow the re-
strictions described in "BIOS support for disks larger than 1024 cylinders"
(page 337).
9. If your video card is incorrectly installed, the system can also fail. Check
the following:
• Read "System reboots from Boot Disk or screen blanks after Boot:
prompt" (page 56).
• Known conflicts exist between video cards and network cards. Some-
times, attempts to send or receive data from the network card are
blocked. To solve this problem, avoid using IRQ 2 (interrupt vector 2)
for your network card. Some graphics cards use the additional inter-
rupt, causing the conflict to occur. Check the sea Hardware Compatibil-
ity Handbook or sea's Compatible Hardware Web Pages for warnings
that apply to specific cards and card combinations. Most video cards
that use IRQ 2 have a jumper to disable this behavior.
63
• Known conflicts exist between the default RAM buffer base address for
the wdn driver for the Western Digital WD8003 and WD8013 network-
ing cards, and certain motherboards and VGA video adapters. The wdn
driver uses the RAM buffer base address, DOOOO, as a ROM address. This
conflicts with motherboards that store CMOS information at this
address and with VGA adapters that use DOOOO as a ROM address.
To solve this problem, reconfigure your Western Digital WD8003 or
WD8013 networking hardware to use eeooo or CODOn as the RAM buffer
base address. Then, reconfigure the wdn driver using the instructions
in "Driver configuration" (page 487).
• Known conflicts exist between some brands of 16-bit VGA boards and
floppy or tape data transfer. If you experience data corruption during
floppy or tape data transfers, try configuring the card to 8-bit mode or
put it in an 8-bit slot. Consult your hardware documentation for more
information.
10. If you did a low-level format of your hard disk, you may have a format
program that does not work. Format programs that are known to work
are DOS Debug and Speedstor.
11. If you installed DOS on your hard disk, you may have a partition table that
seo OpenServer system software does not recognize. You must use DOS
version 6.0 or earlier. The DOS partition must not have been created with
Disk Manager.
Before calling for help

If your problem is not discussed in Chapter 3, "Troubleshooting the installa-
tion" (page 53), and you cannot isolate the problem using "Solving undocu-
mented installation problems" (page 62), call your support provider for help.
Before calling, however, make a copy of the following trouble report forms
and your installation checklist from "Installation and upgrade checklist"
(page 20). Then, write down the critical information about your system,
including a description of your problem and system configuration, so that the
support personnel can analyze your problem quickly.

A description of the problem

Write down a complete description of your problem, including the precise
series of commands or steps that you took that led to the problem. Include
the exact text of any error messages displayed.
Problem description
(Include steps that led to the problem and error messages, if applicable.)
System configuration
Knowing the hardware and software configuration of your system is vital to a
, correct diagnosis of your problem. If this information is readily available
when you speak to your support provider, the diagnostic process is much
easier and less time-consuming. Make sure that you list all the hardware com-
ponents, including brand names and model numbers, when you fill out the
hardware configuration trouble report worksheet. On the software configura-
tion worksheet, check the seQ OpenServer product that is installed, the
installed components (if a subset of the seQ OpenServer system is installed),
any additional seQ products, and list all applications and non-SeQ device
drivers that you installed.
65
Component Brand name Model
Computer
Monitor
Processor type
Processor speed
Coprocessor
Memory size
Bus interface (PCI, IS A, MCA, EISA)
Floppy drive(s)
Video card
Video mode
Hard disk(s)
Disk Controller or Host adapter
Tape drive / Controller
Network adapter
Mouse
Serial card
Printer
Modem
Other device(s)
Software configuration: System Release Number

D sca OpenServer Enterprise System
D sca OpenServer Desktop System
D sea OpenServer Host System
D sca OpenServer Development System
Software configuration: Components Release Number

D Operating System
D Graphical Environment
D Connectivity
D Online Documentation

Software configuration: Additional sea Products Release Number

D sea Merge
o sea Advanced File and Print Server
D sea® Virtual Disk Manager
o sea® SMp® License
D sea User Licenses
DID, D 25, 0 100, D 500, D unlimited users
Software configuration: Additional Applications

Product name Release number
67

Chapter 4
Installing and managing software
components
From the Software Manager, you can:
• install software products and patches (page 72)
• remove software products and patches (page 74)
• examine a product's components, packages, files, patches, dependencies,
PRD value, version number, and installation state (page 75)
• verify that each product's files are present and arranged correctly (page 77)
To perform these and related tasks from the command line, see the
custom(ADM) manual page.
To perform these tasks across the network, see Chapter 21, "Installing and
managing software over the network" in the Networking Guide.
69
Installing and managing software components
The Software Manager interface
NOTE If you start the Software Manager and the License Manager one
right after the other, the Software Manager menus may not respond. To
work around this problem, re-invoke the Software Manager.
You can start the Software Manager in any of these ways:

• Double-click on the Software Manager icon in the System Administration
window on the Desktop.
• Start the SCOadmin launcher by entering scoadmin on the command line,
then select Software Manager.
• Enter scoadmin software manager on the command line. (You can abbre-
viate this to scoadmin so.)
To run the Software Manager, you must have root or sysadmin authorization.
For more information on using SCOadmin managers, see "Administering

your system with SCOadmin" (page 143).
Figure 4-1, "The Software Manager" (page 71) shows the main window for the
Software Manager and defines the symbols that mark the available software.
(Most of the symbols are based on a picture of a CD-ROM.) The figure is miss-
ing one symbol: a broken disk, indicating that the software became corrupted
during or after installation.

The Software Manager interface
partially installed
fully loaded
subpackages being viewed
m German Support (ver CQMETOe)

se System UNIX German Support (ver
penServer se System Graphics German Support (ver
Enterprise System Connectivity German Support (ver
erver Enterprise System Network Drivers German Support
German Support (ver 2.1.0Ab)
Shared Installation Control Scripts
Component Client Control
IPX/SPX Base Runtime System
IPX/SPX Graphical Tools and Related Utilities
IPX/SPX Runtime System Manual Pages
SCQ TCPIIP German Support (ver 2.1.0Eb)
SCQ NFS German Support (ver 2.1.0Eb)
N Manager Client German Support (ver 2.1.0Eb)
J\..,o'~al",'wav
for NetWare German Support (ver 1.1.0Ab)
e for Unix (German Messages) (ver 5.0.8)
e System German Documentation (ver
SD!il.[lIE~ment (ver sls382.500.1.3 .a)
ent (id sls382.500.1 .3.a)
software patch
fully installed
Figure 4-1 The Software Manager
71
Installing software
In the Software Manager:
NOTE The procedure for installing a patch (page 80) is now the same as the
procedure for installing any other software. Also, there is no longer an
option to "apply" a patch (activate it on its target software) without loading
it.
1. From the Software menu, select Install New.

2. Select the current host, then:
• To install from a CD, tape, or floppy disk, identify the media device and
insert your installation media.
• To install from media images on the local host, select Media Images as
the media device and identify the image directory. Media images must
follow the naming convention: VOL.OOO.OOO, VOL.001.OOO, etc.
• To complete the installation of software that is loaded on the local host
(page 73), select Loaded Software as the media device.
To install from another host, see the instructions in "Installing from
remote source machines" in the Networking Guide.
NOTE The CD-ROM from which you install the SCO OpenServer system
also contains many other sco products. You must purchase, install,
license, and register these additional products separately. See" Addi-
tionallicenses and products" (page 13).
3. Select the software items that you want from the list of available software,
and click on Install.
The list of available software does not include individual files. To restore
a damaged or missing file, see customextract(ADM).
4. To license the product during installation, enter the license number and
code from the Certificate of License and Authenticity when prompted. If
you defer licensing at this time, see "Licensing products" (page 89) for
instructions on licensing the product.
To install software on a machine across the network, from the Host menu,
select Open Host. Then, type in the host name, or click on Select to choose
from a list of hosts. (Sort the list by host name or IP address by toggling the
Sort by buttons, or type one or more characters into the "Filter" field to search
for a host name.) Then, install the software as you would locally.

Installing software
See also:
• "Examining software packages" (page 75)
• Chapter 21, "Installing and managing software over the network" in the Network-
ing Guide
Loading software
To load software products or patches, follow the same procedure as for instal-
ling software (page 72), except:
In the Install Selection window, select the software items that you want
from the list of available software, and click on More Options. Then,
specify Load Only as the installation option, and click on Install.
Other machines can use loaded software as installation source for installing
across the network, but the software is not configured to run locally. A
loaded patch is not configured to affect its target component; that is, it is not
applied.
To configure loaded software to run locally (or to apply a patch), run the in-
stallation procedure, selecting Loaded Software as the media device.
About products, components, and packages

Each sea product is arranged in the following units:
product The unit of software that you buy. For example, sca Open-
Server Enterprise System and sca Doctor ™ are products.
Each product has its own version number. A product is
composed of one or more "components", "packages", or
"parcels".
A "patch-product" (page 80) is one or more patches distrib-
uted as a product.
component The smallest unit of software that can stand alone. A com-
ponent can constitute an entire product, or it can be one of
many components in a product, but it cannot be split into
smaller units for distribution. Each component has its own
version number. A component is organized into a hierarchi-
cal tree of "packages".
A patch (page 80) is applied to a component (rather than to a
product or package).
package The most basic unit of software that can be installed or
removed. Each package consists either of files or of other
packages. A package does not have its own version number;
it inherits the version number of its parent component.
73
In addition to these units, a product might be subdivided into "parcels". In a

parcel, related software is grouped for convenience. For example, a parcel
might contain the documentation packages from several components, making
it easier to install or remove all the documentation in a product. A parcel can
contain one or more components, packages, or parcels from the product.
See also:
• " About the new product structure" in the Networking Guide
Removing software
In the Software Manager, select the unneeded products, components, pack-
ages, and patches from the list of installed software. Then, from the Software
menu, select Remove Software.
To leave the software loaded (page 73), click on More Options in the Confirm
Selected Software window. Then, specify Leave Loaded, and click on Remove.
(Removing a patch and leaving it loaded corresponds to the Rollback Patch
operation in earlier versions of the Software Manager.)
When you start to remove a piece of software, the Software Manager checks
to see whether it has any dependent components or packages and notifies you
of any dependencies. If dependencies are found, you can either continue the
removal procedure or cancel.
To remove software from a machine across the network, from the Host menu,
for a host name.) Then, remove the software as you would locally.
See also:
• "About products, components, and packages" (page 73)
• "About dependencies" (page 75)
• "About software patches" (page 80)
ing Guide

Examining software packages
About dependencies
If software B must be installed for software A to run, software A is "depen-·
dent" on software B, and software B is a "dependency" of software A. Depen-
dencies and their dependent software may be products, components, or pack-
ages.
When you start to remove a piece of software, the Software Manager notifies
you of dependent components or packages if they exist. You can then choose
whether to continue or to cancel the removal procedure.
See also:
• "Examining software packages" (this page)
Examining software packages

In the Software Manager, you can examine two different sets of software:
• The first window of the Software Manager lists the software currently
installed (page 76).
• The Install Selection window of the Software Manager, which appears
after you specify a source (media, image directory, loaded software, or
remote machine) for the software you are installing, lists the software avail-
able on that installation source (page 77).
You can list software by product (the default), component, or package.
I NOTE Patches (page 80) are now listed in the same displays as other soft-
ware.
To examine software on a machine across the network, from the Host menu,
for a host name.) Then, examine the software as you would locally.
See also:
ing Guide
75
Examining installed software

You can change the way software is listed in the Software Manager window
in these ways:
• To view a product's (or patch-product's) components, double-click on the
product name. To view a component's packages, double-click on the com-
ponent name.
(Selecting Expand from the View menu gives the same result as double-
clicking.)
• To view all of the packages in a product or component at once, select the
product or component name, then from the View menu, select Expand Fully.
• To view just the software that is installed on your system (including
patches), without the software that is only loaded, select View Installed
from the View menu.
• To view just the software available from your system for networked instal-
lation, select View Available For Network Install from the View menu.
• To view just the software that is loaded but not installed, select View
Loaded-Only from the View menu.
• To view just the patches on your system, select View Patches from the View
menu.
• To view all the software installed or loaded on your system (including
patchest select View All from the View menu.
You can see additional information about specific software in these ways:
• To see all the files contained in a listed product, component, or package,
select the list item, then from the Software menu, select Examine, then Files.
Click on Details to display a file's owner, group, and size.
• To see additional information about a listed product, component, or pack-
age, select the list item, then from the Software menu, select Examine, then
Attributes. The available information includes the dependencies, full name,
size, version number, and installation state of the software.
• To see the patches applied to a listed software item, or to see the com-
ponent affected by a listed patch, select the list item, then from the Software
menu, select Examine, then Patch Status.
To see additional information on a list item in the Patch Status window,
double-click on that item, or select the item and click on Details.

Verifying software
See also:
• "Loading software" (page 73)
• " About dependencies" (page 75)
Examining software to be installed

In the Install Selection window of the Software Manager:
• To view a product's (or patch-product's) components, double-click on the
product name. To view a component's packages, double-click on the com-
ponent name.
(Selecting the Expand button, under More Options, gives the same result as
double-clicking. )
• To see all the files contained in a listed product, component, or package,
select the list item, click on More Options, then click on Files. Click on
Details to display a file's owner, group, and size.
• To see additional information about a listed product, component, or pack-
age, select the list item, click on More Options, then click on Attributes. The
available information includes the dependencies, full name, size, version
number, and installation state of the software.
See also:
• "Loading software" (page 73)
• "About dependencies" (page 75)
Verifying software
The Verify options in the Software Manager let you check the software files on
your machine against the product and component databases (which define
how each product and component should be arranged). Depending on which
Verify option you choose, you can check for (and automatically fix) broken or
missing symbolic links, and incorrect file permissions, owner, group, major
and minor numbers, and number of hard links. The verification can also
check for missing files and for incorrect file type, checksum, and size. To
resolve these discrepancies (with the exception of certain missing files), you
must fix them manually after exiting the Software Manager. (See
customextract(ADM) for information on restoring files.)
77
NOTE The Software Manager Verify function only checks software under
the /opt/K and /var/opt/K directories. If ownership or permissions of system
directories (such as those under Jete or /bin) become corrupted on a running
system, you can use fixperm{ADM) to correct them. (For fixperm to work,
the directories must be listed in the perms list in Jete/perms; for example,
/ete/perms/rts or /ete/perms/ext.)
1. To verify (and optionally fix) certain products, components, and pack-

ages, select them from the list of installed software, then from the Software
menu, select Verify Software.
To verify (and optionally fix) all the products on the machine, select Ver-
ify System from the Software menu.
2. Indicate whether you want to check for:
"Normal system state (Quick)"
Verifies that the status of the system is consistent
with normal operation. It does not report on size or
checksum changes for configuration (non-shared)
files, because these often change as part of normal
operation. It also does not verify checksums for
shared files, and it does not remove a "corrupt" set-
ting from a verified package.
"Normal system state (Thorough)"
Verifies the checksums for shared files in the
selected packages, in addition to the checks made
during the "Quick" option. When the "Thorough"
option has verified and fixed a package marked
" corrupt", it replaces the package's "corrupt" icon
on the main Software Manager window.
"Modified configuration files"
Reports checksum changes for configuration (non-
shared) files, showing which configuration files
have changed since installation. Also verifies per-
missions, owner, group, major and minor numbers,
number of hard links, symbolic link target, export
location, file type, and size for each configuration
file in the selected packages.

Verifying software
"Broken/missing symbolic links"

Reports symbolic links that should link a file from
/opt or /var/opt to an external directory, but are bro-
ken or missing.
A weekly cron job runs this option on the entire
system and mails the report to root.
"Strict database compliance"
Compares files in the selected packages to the
product and components databases, and reports all
discrepancies, including expected discrepancies,
such as changed configuration files and missing
optional files. This option can take a long time.
3. When the verification report is finished, indicate whether you want to
send it to a printer or save it to a file, or both. If you do not want to fix the
discrepancies, select Done at this point, then retrieve the printed or saved
report.
CAUTION If you try to print the report, but have no printer set up to
receive it, you see a completion message even though the report was not
I printed. .
4. To fix the discrepancies, select Fix Discrepancies. The verification report

lists which types of discrepancies can be fixed automatically and which
must be fixed manually.
I NOTE To update the product database, see the custom(ADM) manual page.
To verify software on a machine across the network, from the Host menu,
for a host name.) Then, verify the software as you would locally.
See also:
ing Guide
• hierarchy(M) manual page
79
About software patches

A Ifpatch" updates features or fixes bugs in existing software. A "patch-prod-
uct" is one or more software patches distributed as a product.
A patch affects its target software at the component level, not at the product
level or package level. Each patch in a patch-product can affect a different
component.
From the Software Manager, you can:
Install a patch Load (copy) the patch onto the system and activate
(apply) the patch on the target software. You can also
load the patch without applying it. (It is no longer pos-
sible to apply the patch without loading it.) See "Ins-
talling software" (page 72).
Remove a patch Remove the patch from the system and remove its
effect on the target software. You can also remove the
patch's effect on the target software, but leave a copy of
the patch loaded on the system. (This operation was
formerly called Rollback.) See "Removing software"
(page 74).
Examine patches and the components they affect
See "Examining software packages" (page 75).

Chapter 5
Creating an emergency boot
floppy disk set
The emergency boot floppy disk set allows you to recover your system in the
event of a catastrophic system failure (when the computer does not respond
to your attempts to start it). Use these floppy disks to restore a corrupted root
filesystem without reinstalling the system.
If you have more than one system, you must make one emergency boot
floppy disk set for each machine. Label each set with the machine name and
store the floppy disks in a safe and secure place near the computer.
IWARNING If you use the wrong floppy disk set on a machine, it could cause
further corruption.
These tasks are associated with creating an emergency boot floppy disk set:
• HConfiguring the floppy disks" (page 82)
• HAdding files to the root floppy disk" (page 84)
• HTesting your emergency boot floppy disk set" (page 84)
• HReading backups" (page 84)
• HBooting from the hard disk" (page 86)
81
Creating an emergency boot floppy disk set
Configuring the floppy disks

You can create your emergency boot floppy disk set on a pair of 5.25-inch
1.2MB (96tpi, 15 sectors per track), 3.5-inch 1.44MB (135tpi, 18 sectors per
track), or a single 3.5-inch 2.88MB (135tpi, 36 sectors per track) floppy diskette.
NOTE If you have less than 16MB of RAM installed, you may need shut
down the system (page 179) and bring it up in single-user mode (page 172)
before creating your emergency boot floppy disk set. This is because the
root floppy disk creates a RAM disk that requires 2MB of contiguous memory
(a single block of memory instead of multiple segments that add up to 2MB).
When there is insufficient contiguous memory to create the RAM disk, you
see the message: / dev / r amf s: c annat open.
1. Log in as root.
2. Use the Floppy Manager located in the Filesystems directory of the SCOad-
min hierarchy, or enter this command:
mkdevfd
3. At the main menu, enter 2 to create the emergency boot floppy disk set.
4. When prompted, indicate the type of disk drive you are using; unless you
have a 2.88MB drive, enter 2.
5. If you have more than one floppy disk drive,· you are prompted for the
drive that you are using to create the floppy disk. Enter either 0 (for the
primary drive) or 1 (for the secondary drive).
6. When prompted for the type of file system, select 1 to create the root
floppy disk. If you are creating a single boot I root floppy disk, select 3.
7. When prompted, insert a blank floppy disk and press (Enter).
8. When prompted to format the floppy disk:
• If the floppy disk is already formatted, enter n. The file system is then
created immediately.
• If the floppy disk is not formatted, enter y. You see the track and head
numbers count up as the floppy disk is formatted. (If the
letc!defaultlformat file contains the string VERIFY=Y, the format is also
verified.)
82 sca OpenServer Handbook

Configuring the floppy disks
9. A file system is created on the floppy disk and system files are copied over
to a RAM disk for compression, including copying /dev/cmos to
fete/cmos. root. You can use this file to restore the CMOS settings later as
described in cmos(ADM).
10. When you see the message:
Do you want a shell escape to place extra files on the root filesystem? (yin)
If you want to place additional files on the disk, enter y and follow the
instructions in "Adding files to the root floppy disk" (page 84). Otherwise
enter n. If you are creating a single boot/root floppy disk, skip to step 13.
NOTE Disk space on the emergency boot floppy disks is limited and
I only critical utilities are loaded. Where possible, additional utilities such
as tar( C) are copied when space permits.
11. The file system is checked using fsck(ADM) and displays messages similar
to the file system check displayed at boot time. You are notified when the
the floppy disk is ready. Remove the floppy disk from the drive, and label
it "root" and include the machine name. Put a write-protect tab on it so
that you do not accidentally erase the information on the floppy disk.
12. Press (Enter) to continue and you are returned to the filesystem type menu.
Enter 2 to create the boot floppy disk.
13. You have two options for the boot floppy disk: a system-specific disk that
contains the same kernel that is currently on your system, or a smaller
"generic" kernel that has fewer drivers linked in. If your current kernel is
too large to fit on the disk, you will be warned and you will have to select
the generic disk.
14. Insert the floppy disk and respond to the prompts as you did for inserting
and formatting the root floppy disk.
15. The boot floppy disk is created and you see messages as files are copied to
the disk. Then, the filesystem is checked using fsck(ADM). When com-
plete, be sure and label it as you did with the root disk.
16. Follow the procedure in the "Testing your emergency boot floppy disk set"
(page 84) section to verify that you can boot your system and access back-
ups using your boot and root floppy disks.
Store your emergency boot floppy disk set (or single boot / root floppy disk) in
a safe and secure place. Make sure they are easily accessible; you will need
them if your system becomes corrupted and is no longer boatable.
83
Adding files to the root floppy disk

If you respond y to the prompt for a shell escape during root floppy disk crea-
tion, you see:
You can copy files into Imnt to customize your root filesystem floppy.
After you finish, type "exit 0" to continue.
You have n free blocks (512 bytes each) available on the floppy.
The command prompt is <bootroot>.
If you have enough free space available, you can copy additional files to the
root floppy disk. For example, to copy the file /usr/pest to the disk, you would
enter:
ep /usr/pest /mnt/usr
When your additions are complete, enter exit 0 at the bootroot> prompt.
Testing your emergency boot floppy disk set

After you create your emergency boot floppy disk set, verify that you can boot
from it and read from backups:
1. Log in as root.
2. Shut down the system by entering Jete/shutdown.
3. At the prompt to reboot, insert your boot floppy disk in the floppy disk
drive and press (Enter).
4. At the Boot: prompt, press (Enter) to boot from the floppy disk.
5. When prompted, insert the root floppy disk and press (Enter).
6. When you see the system prompt, verify that you can access your floppy
disk or tape drive; follow the steps in "Reading backups" (this page).
Reading backups
At the end of the installation procedure, you made a complete backup of your
system. If you have not already backed up your system, do it now using the
instructions in "Running unscheduled filesystem backups" in the System
Administration Guide.
Verify that you can read from this backup after booting from the emergency
boot floppy disk set.
84 SCQ QpenServer Handbook

Testing your emergency boot floppy disk set
NOTE Unless you have a second floppy disk drive, you can only read from
I tape backups when you boot from the floppy disk drive with your boot and
root floppy disks.
1. Make sure that the root floppy disk is in the drive.

2. List the contents of the backup:
cpio -itvcB -I /dev/rdO
NOTE You must be able to access your backup tape volumes when you
I boot from the emergency boot floppy disk set. If you cannot, follow the
steps in the next section, "Booting from the hard disk".
3. Once you are satisfied that you can read backups after booting from your
emergency boot floppy disk set, reboot the system from the hard disk by
entering /etc/haltsys at the prompt.
4. When you see the message to reboot, remove the floppy disk from the
drive and press (Enter).
5. At the Boot: prompt, press (Enter) to boot from the hard drive.
For information on using your emergency boot floppy disk set to access and
restore a corrupted root filesystem, see "Restoring a corrupted root file system"
(page 250).
Emergency boot floppy set and mirrored root disks

If you have a mirrored root configuration, there are several important con-
siderations when creating and using an emergency boot floppy set:
• If you create a mirrored root file system, create a new emergency boot
floppy set immediately. If possible, create a system-specific Boot disk
rather than a generic one.
• If you must create a generic Boot disk (when the system-specific kernel
does not fit on a floppy disk), then only the original piece of the mirror will
open when the system is booted. You cannot use this Boot disk on another
system with a mirrored root.
• When using the emergency boot floppy set to boot the system, use this
bootstring instead of just pressing (Enter) at the Boot prompt:
fd(60)unix.Z root=vdisk(l) swap=none dump=none
WARNING If root is not directed to vdisk ( 1 ), then the two halves of the
I mirror will become out-of-date, which could corrupt the filesystem when
the machine is next booted from the hard disk.
85
Booting from the hard disk

If you experience problems booting your system with the emergency boot
floppy disk set or you cannot access your backup volumes when you boot
with these floppy disks, reboot the system from the hard drive:
1. Press the computer "reset" button, or turn the power off, then on.
2. At the Boot: prompt, press (Enter) to reboot from the hard drive.
3. If you have trouble with your floppy disks, try "Configuring the floppy
disks" (page 82) again.

Chapter 6
Licensing and registering sea products
You must both license and (for some products) then register each sea prod-
uct. You license the base operating system when you install it. Most addi-
tional sea products prompt you for the license information during their in-
stallation procedures.
INOTE If you defer licensing during installation, your software product is

not licensed and will not work.
To license and register a product with the License Manager (page 88), log in
as root and follow these steps:
1. Install the product (page 72).
2. License the product (page 89).
3. Obtain your Registration Key (page 91).
4. Register the product (page 90).
See also:
• "Licensing and registration terminology" (page 13)
• "Licensing additional users and CPUs" (page 90)
• "Removing product licenses" (page 90)
• "Troubleshooting license and registration problems" (page 93)
87
Licensing and registering seQ products
The License Manager interface

Use the License Manager to:
• license products (page 89).
• remove licenses (page 90).
• register products (page 90).
After the software product is installed, log in as root and start the License
Manager in one of these ways:
• Double-click on the License Manager icon in the System Administration
window on the Desktop.
then select License Manager.
• Enter scoadmin license manager on the command line (or abbreviate to
scoadmin 1).
I NOTE The scoadmin command only recognizes the spelling "license",

not "licence".
When you start the License Manager, this window displays the software
products currently installed on the system:
scoOOOOOO Yes Yes

No No
sco888888 Yes N/A

Licensing products
The sea System 10, used to register the product (page 90), is shown at the
bottom of the window.
For more information on using SCOadmin managers, see HAdministering
Licensing products
In the License Manager:
1. Select the product you wish to license from the list of installed products.
INOTE Do not select HOpenServer Software"; it is not a valid product to

license.
2. Select License Product from the License menu.

3. If a Certificate of License and Authenticity (COLA) accompanied your soft-
ware, verify that it is an original (not a photocopy), with the sea Security
Hologram on the left side. From your eOLA or online-acquired license,
enter:
• License Number
• License Code
• License Data (if included on the Certificate)
4. Click on License.
(You can ignore the message wrong number of licenseData, if it appears.
It may appear if non-licensed products are also installed on your system.)
INOTE Remember to register all products (page 90); your system software
displays frequent reminders until they have been registered.
To determine which products have been licensed or registered, use the View
menu in the License Manager.
89
Licensing additional users and CPUs
I NOTE You cannot license additional users and epus for the Free* sea prod-
ucts.
In the License Manager:

1. Select License Additional Users or License Additional CPU from the
License menu.
2. Verify that the Certificate of License and Authenticity provided with your
software is an original (not a photocopy), with the sea Security Hologram
on the left side. From it, enter:
• License Number
• License Code
• License Data
3. Click on License.
I NOTE Remember to register all products (page 90); your system software
displays frequent reminders until they have been registered.
Removing product licenses

To make a license available to another system, or if you need to remove a
license for any other reason, select the licensed product from the License
Manager list (page 88), then select Remove License from the License menu.
If you remove a product license, that functionality will no longer work on that
system.
Registering products
Most of sea's commercial products require registration after installation.
Registration is your confirmation to sea that you have installed and licensed
an sea product. You can perform registration interactively at
http://www.sco.com/register.
license.

Registering products
Some products (such as the Free* sea products) do not need to be registered.
Once you have installed and licensed your sea products, register them as
soon as possible to deactivate the frequent reminder messages your system
software generates. To do so:
1. Complete the sea Product Registration Form in the seQ Software Registra-
tion booklet provided with your software. You can register up to six sea
products with each form. We encourage you to register all your products
at one time.
Remember to:
a. Copy the unique sea System ID assigned to your system from the bot-
tom of the License Manager window (page 88) onto the sea Product
Registration Form.
b. Transfer the License Number label from the Certificate of License and
Authenticity (also known as a "COLA") to the sea Product Registra-
tion Form for each product that you are registering. If you do not have
the label, write the License Number printed on the Certificate in one of
the six numbered boxes on the sea Product Registration Form.
c. Complete the information about your organization and your software
supplier.
2. Obtain your Registration Key in one of the following ways:
• Fax the completed sea Product Registration Form to an sea Registra-
tion Center. You may send the fax at any time of the day. The sea
Registration Center will send you a Registration Key by fax within 24
hours. If sea cannot fax the Registration Key, it will be sent by post.
• Register by telephone. Telephone registrations will be confirmed by fax
or post.
• Mail the sea Product Registration Form to an sea Registration Center.
The sea Registration Center will send you a Registration Key by post.
• Access the Web Registration system from sea's Home Page at
http://www3.sco.com/Products. The Web Registration form is
currently offered only in English.
license.
91
Use the following numbers to contact an sea Registration Center.

From the Americas, Caribbean, and Pacific Rim:
Fax: (317) 364-0649
Telephone: (317) 364-0804 (between 8:00am and 8:00pm EST)
From Europe, the Middle East, and Africa:
Fax: +44 (0) 1506460605
Telephone: +44 (0) 1506 401555 (between 8:30am and 5:30pm GMT)
See the Directory of Registration Centers in the sea Software Registration
booklet provided with your software for a detailed list of fax and phone
numbers. Toll-free numbers are available from most countries.
NOTE Not all sea products require a Registration Key. However, we

still recommend that you register them to receive important information
about your sea products. (There is no procedure for registering Free*
sea products. Your registration information was collected when you
obtained your license at the sea website.)
3. In the License Manager:

a. Select the product you wish to register from the list of installed prod-
ucts.
b. Select Register Product from the Register menu.
c. Enter the Registration Key at the prompt, then click on Register.
Once all the sea products on a system have been registered, registration rem-
inder messages will no longer appear.
NOTE Your software generates a new sea System ID each time you do a
low-level format of the disk. If you do a low-level reformat, you must con-
tact an sea Registration Center to obtain a new Registration Key and repeat
the registration process (page 90).
See also:
• "Troubleshooting license and registration problems" (page 93)
license.

Troubleshooting license and registration problems
Displaying login licenses in use

You can display the number of login licenses in use with the brand(ADM) util-
ity by entering:
brand-u
The total number of licenses is also displayed by the brand -t option.
I NOTE The brand command only reports usage for login licenses, not for
other product licenses.

The following represent the most common difficulties with licensing and
registration:
• "License Manager will not accept registration key" (this page)
• "License Manager will not accept license information" (this page)
• "OpenServer license has expired" (page 94)
• "No user licenses were found on this machine" (page 95)
• "LOGIN: ERROR- Failed to initialize policy manager" (page 96)
License Manager will not accept registration key

If the Registration Key is invalid or was entered incorrectly, an error message
appears. Verify that you entered the Registration Key correctly and that you
did not type the sea System ID by mistake. If you still receive the error mes-
sage, contact an sea Registration Center to verify that your Registration Key
is accurate.
If you lose your Registration Key before you enter it, contact an sea Registra-
tion Center. Tell the registration operator that you have lost your Registration
Key. After verifying your registration information, the operator will reissue
your original Registration Key.
License Manager will not accept license information

Make sure that you read the license correctly. Occasionally, characters on the
license are difficult to read.
93
Licensing and registering sea products
Licensing Policy Manager Daemon (iforJ)md) has terminated

If you see this message:
The Licensing Policy Manager Daemon (ifor_pmd) has terminated
and been restarted. This is a normal occurrence only when a
license is removed with the License Manager utility. If this
is not the case, your system may have a problem which could
lead to undesirable behavior. Contact your SCQ service provider
if you suspect that there is a problem.
No user licenses were found on this machine. please boot

single-user and correct this situation. Licensed software
will not operate until user licenses are installed.
The License Policy Manager Daemon (ifor_pmd) was unable to start.

This is usually due to a read-only root filesystem, lack of
user licenses or a damaged program image file (/etc/ifor_pmd).
If this is not the case, please contact your SCQ service provider.
The policy manager daemon is a background process that monitors licensing
on the system. If you are using an Evaluation License on your system that has
has expired, then your system will display this message. Contact the supplier
of the software to obtain a valid license for your software. If you do not have
an Evaluation License, see "LOGIN: ERROR- Failed to initialize policy
manager" (page 96).
OpenSelVer license has expired

If the License Manager indicates your operating system license is expired,
check the system clock and the CMOS clock (the battery-powered hardware
clock inside your computer) to ensure they are synchronized with the correct
time and year. If the CMOS clock is set to the wrong year, it could cause the
license to expire. Check the system time with the date{ C) command, and the
CMOS time with setclock{ADM). If they are out of sync, you can log in as root
and synchronize them with this command:
date MMDDhhmmW
where MMDDhhmmYY is the correct time in month-day-hour-mihute-year
format. For example, here is the correct entry for 9:31 AM on August 31,1997:
0831093197
Once you have changed the clock time to reflect the current time, reboot your
system, start the License Manager and check to see if the license has changed
from "Expired" to "Yes." Your operating system license should be fully opera-
tional within the options specified by the license.

Checking for OpenServer product license expiration

Use this procedure to check the expiration date:
1. Determine the OS license using the brand(ADM) command:
brand -L
The command generates two lines of data per product, the second line
indented relative to the first. The product is identified in the second line.
The output is similar to this example for the sca OpenServer:
{{132} {S.O} {bif6S4321} {bdhxyzlOz;gO;k2SS/bif6S4321;s9S0S02jUS} {799372800} {3955219199}

{SeO:odtes} {S.O.4b} {seo OpenServer Enterprise System} {bdhyffOOzjgOjkjuS}}
The start and end dates for the license are the last two numbers respec-
tively on the first line of data for each product. The number you are
interested in is the end date, shown in bold in the example.
2. Use the fmtc1ock(TCL) command to convert the expiration time to the
more usual date format, as in this example where the user input is in bold:
# tel
tcl>fmteloek 3955219199
Mon Jan 18 19:14:07 PST 2038
tcl>
No user licenses were found on this machine

If you see this message at boot time:
No user licenses were found on this machine. Please boot
single user and correct this situation. Licensed software
will not operate until user licenses are installed.
The License Policy Manager Daemon (ifor_pmd) was unable to start.

This is usually due to a read-only root filesystem, lack of
user licenses or a damaged program image file (/etc/ifor_pmd).
If this is not the case, please contact your sea service provider.
This error message is usually caused by a system clock that is grossly out of
date (page 94). It may also may result from a lack of user licenses or a cor-
rupted policy manager daemon (!etc/ifor-pmd). See "LOGIN: ERROR- Failed
to initialize policy manager" (page 96) for more information.
95
LOGIN: ERROR· Failed to initialize policy manager

If you see this message after logging in:
LOGIN: ERROR- Failed to initialize policy manager. (IFOR_PM_FATAL)
Login session denied.
Either the policy manager daemon, /etc/ifor-JJmd, has stopped and not res-
tarted, or some crucial file required by the policy manager to satisfy the login
request is missing or corrupted.
NOTE You may be logged out and be unable to log in to troubleshoot the
problem. Additional error messages may also appear. If so, simply turn the
system off and reboot. If the error messages persist when the system is
brought up, follow the procedures described here.
Here are possible specific sources of corruption or malfunction:

• The /etc/ifor_pmd binary is corrupted or missing (this page)
• Key files or directories are missing (page 97)
• The root filesystem is mounted read-only (page 98)
• No user licenses exist, or there are no more licenses (page 98)
• The system has run out of STREAMS resources (page 99)
The letc/ifor-pmd binary is corrupted or missing

The policy manager (!etc/ifor-JJmd) must be present and running for your sys-
tem to function. In the Software Manager, choose Software ¢ Verify Software
and select Broken/missing symbolic links. This will check and possibly repair
the link from /etc/ifor-JJmd to the /opt/K/SCO hierarchy. You can also perform
this operation on the policy manager package alone by making the following
successive selections first:
seo OpenServer Enterprise System
SCO OpenServer Enterprise System UNIX
seo OpenServer Enterprise System Core as
Base Operating System
Policy Manager

If the ifor-pmd binary is actually missing from the /opt/K/SCO directory tree,
you can use the customextract(ADM) command to install a single file from the
installation media. In the case of cdrom media and the cdrom device /dev/cdO,
the command would be:
customextract -m /dev/cdO /opt/K/SCO/Unix/* /pmd/ifor_pmd
After the restore is complete, you should use the Software Manager to verify
the link in jete.
Key files or directories are missing

The directory /pmd and / or its contents, the named streams pipes [PCCT-pipe,
PMDCT-pipe, LST-pipe, and the file ifor-pmd.pid, are corrupted or missing.
If /pmd exists, but any of its file contents do not, they may be restored by stop-
ping and restarting /ete/ifor-pmd. In order to do this, perform these steps:
1. Enter the command:
ps -ef I grep ifor_pmd I grep -v grep
which should return two lines similar to this:
root 41 1 0 Aug-29 00:00:00 /ete/ifor_pmd
root 42 41 0 Aug-29 00:00:04 /ete/ifor_pmd
Any of the numbers shown may vary on your system, with the exception
that one of the entries should have "I" in the third field (parent process
ID). This is the "parent" copy of ifor-pmd, and the other entry is the
"child", whose parent process ID should match the second field (process
ID) of the parent entry.
2. Kill the child ifor-pmd. In the example, the command would be:
kill 42
3. In a few moments, run the ps command again. You should observe that a
new child ifor-pmd is running.
4. Check the contents of /pmd. You should see four files:
IPCCT_pipe
PMDCT_pipe
LST_pipe
ifor_pmd.pid
97
The root filesystem is mounted read-only

This has been identified as a common reason for policy manager-related
failures. Of course, in this case, the policy manager errors would accompany
many write failures to /dev/root, with corresponding error messages.
It is usually sufficient to check this by examining the file /ete/default/filesys for

non default root filesystem settings, such as mountflags=-r, or mntopts="-o ro"
If such settings are found, remove them.
No user licenses exist, or there are no more licenses

First, determine how many users are already logged in to the system with the
brand(ADM) command; see "Displaying login licenses in use" (page 93). A
user is defined as a distinct physical keyboard or a login over the network. If
the system has run out of licenses to check out, the only way to avoid the
error message is to add user licenses by purchasing an additional-user license
product.
If the login user count has not been exceeded, it is possible that the license
database itself has been corrupted. Follow the steps below to re-apply the user
licenses on the system. This procedure assumes that user licenses are supplied
only through the sea OpenServer Enterprise System Certificate of License
and Authenticity. If you have already licensed additional users with a
separate user-license product, apply the procedure to that product first.
1. Tell all users to log off the system.
2. When all users are logged off, invoke the License Manager, select seD
OpenServer Enterprise System, and choose License ¢ Remove License to
remove the sea OpenServer Enterprise System license.
3. Re-license and register the sea OpenServer Enterprise System, choosing
the appropriate options in the License Manager.
4. Run the grep command discussed in "Key files or directories are missing"
(page 97) to check whether the policy manager daemon is running. If two
instances of the /ete/ifor-pmd process are not running, issue this command
to restart the policy manager:
/etc/ifor_pmd
Repeat the grep command to verify that two instances of ifor-pmd are run-
ning.
5. Tell users to log back in to the system.

The system has run out of STREAMS resources

Issue the command:
netstat -m
Note the first line of the output (streams):
streams allocation:
config alloc free total max fail
streams 292 110 182 337172 126 o
If the streams line shows a fail greater than zero, then run the
Hardware/Kernel Manager (page 286) or the configure(ADM) command and
increase the NSTREAM kernel parameter. See "Tuning STREAMS usage" in the
Performance Guide for more information.
99
Ucensing and registering seQ products

Chapter 7
Using other operating systems with an
sea system
If you plan to share your root disk with other operating systems, you should
read this chapter before installing the seo system.
Configuring your system to accommodate multiple operating systems can

include:
• Installing OS/2 or Windows NTTM partitions (page 102)
• Creating and formatting a physical DOS partition (page 102)
• Partitioning the hard disk using fdisk (Interactive installation) (page 105)
• Switching operating systems (page 106)
• Installing a UNIX partition on a DOS system (page 109)
• Using an seo system and DOS with two hard disks (page 110)
• Removing an operating system from the hard disk (page 111)
• Managing DOS files with doscmd(C) (page 111)
• Mounting DOS file systems or partitions (page 113)
seo Merge installed to run DOS programs from

INOTE You must have
UNIX partition.
the
101
Using other operating systems with an seQ system
Installing OS/2 or Windows NTTM partitions

Use Windows NT or as / 2 tools or DOS fdisk to install Windows NT or as / 2
partitions. These partitions should be installed prior to installing the sea dis-
tribution or you will need to back up and reinstall the sea system. Windows
NT and OS/2 rewrite the disk partition table differently than do UNIX, DOS, or
Windows 95 systems. This means that partition labels change. Device nodes
that refer to specific partitions point to different partitions after Windows NT
or as / 2 has rewritten the partition table. This occurs when Windows NT or
OS/2 is installed, but not subsequently.
In addition:
• sea systems do not include tools to exchange files from as / 2 or Windows
NT partitions.
• You must use fdisk(ADM) to switch to or from OS/2 or Windows NT.
• fdisk(ADM) displays as / 2 and Windows NT partitions as as / 2.
Creating and formatting a physical DOS partition
NOTE If a second disk is installed you get a primary partition on the second
disk and, optionally, an extended partition. You cannot boot DOS from the
second extended partition.
If you want a physical DOS partition on an sea system, you can create it
before, during, or after you install your sea system, as long as you follow the
restrictions listed below.
NOTE If you create a physical DOS partition before installing the product,
you must select the Preserve installation option to preserve the existing DOS
partition during hard disk initialization.
Use the utilities and documentation packaged with your computer hardware
and your DOS installation documentation. "Partitioning the hard disk using
fdisk (Interactive installation)" (page 105) explains how the UNIX partition
and DOS partitions share the hard disk.

Creating and formatting a physical DOS partition
DOS partition restrictions
The following restrictions apply when creating a DOS partition:

• The DOS partition should have a minimum size of 3 MB; some DOS copy-
protection schemes do not install on a partition smaller than this size.
• If you plan to install DOS version 6.0 or greater (including Windows 95), the
DOS partition can be any size greater than 7 MB.
• If you plan to install a version of DOS earlier than 5.0, the DOS partition size
must not exceed 32 MB.
• The DOS partition should be the first partition on the first disk. This applies
to all versions prior to and including DOS 3.3 must adhere (except DOS
4.01.)
• You must specify the correct drive and label when formatting the DOS par-
tition. Use the following syntax:
format drive /s /v
This command formats the disk in the specified drive to accept DOS files.
The /s option copies the operating system files listed in the DOS file
formats. tbI from the disk to the specified drive.
I NOTE The DOS format command is not the same as a low-level format.
• When using the Interactive installation option, verify that the size of your
UNIX partition is a multiple of the number of heads on the hard disk. (If
you remapped the drive during a low-level format of the disk, use the
mapped number of heads.) Otherwise fdisk(ADM} warns that the UNIX
partition is not on a cylinder boundary.
In addition, do not begin the UNIX partition on the track immediately fol-
lowing the last track of the DOS partition. A safe rule is to set the first track
of the UNIX partition to the ending block of DOS plus the number of heads
on the hard disk (if you remapped the drive during a low-level format of
the disk, use the mapped number of heads). As DOS does not expect
another operating system after its last track, it sometimes uses that space to
store programs temporarily. If you install the UNIX partition directly after
the DOS partition, you may lose the boot block.
• Do not use a disk partitioning product from another supplier, such as Disk
Manager, to partition the hard disk before installing DOS and the seo sys-
tem. Use DOS fdisk to partition DOS, and UNIX fdisk to partition the seo
system.
I NOTE If you do not follow these restrictions, you may have problems. If so,
you will have to begin again with a low-level format of your hard disk.
103
Using other operating systems with an sea system
Using low-level format programs

If necessary, use a program such as DOS-Debug or Speedstor to perform a
low-level format of the disk. Many computers also have a format utility
included in the BIOS setup; check the hardware manual for your computer.
I WARNING A low-level format destroys all information currently stored on a

hard disk.
Many ESDI and SCSI disk controllers have on-board BIOS routines. You can
use these routines to perform a low-level format of your disk:
1. Boot DOS.
2. At the DOS prompt, enter:
debug
3. Depending on your disk controller, enter one of the following commands

at the Ii_" prompt:
• for Adaptec SCSI controllers:
g=dcOO:6
• for ESDI controllers:

g=c800:S
See your computer and/or controller documentation for more details.
Converting fdisk numbers

DOS 3.3 fdisk uses cylinders (both DOS 5.0 and 6.0 use MB) and UNIX
fdisk(ADM) uses tracks. If you know the number of tracks per cylinder, you
can use consistent numbers when using the two different versions of fdisk .
To determine the number of tracks per cylinder, you must know the number
of platters in your hard disk. Usually there are two tracks per hard disk
platter. For example, a hard disk with two physical platters has four tracks
per cylinder.
To determine disk size, you should multiply the number of heads by the num-
ber of cylinders, times the number of sectors per track, times 512 (the number
of bytes per sector).
104 seQ QpenSeNer Handbook

Partitioning the hard disk using fdisk (Interactive installation)
Partitioning the hard disk using fdisk

(Interactive installation)
During installation, you have the option of controlling the layout of partitions
manually. This option is called Interactive disk setup.
NOTE Each version of fdisk is documented in the respective operating
Isystem's manual. Unless otherwise noted, sea documentation refers to the

UNIX system version of fdisk(ADM).
fdisk is interactive, and uses a menu to display your options:

1. Display Partition Table
2. Use Entire Disk For UNIX
3. Use Rest of Disk for UNIX
4. Create UNIX Partition
5. Activate Partition
6. Delete Partition
7. Create Partition
Enter your choice or 'q' to quit:

You can do the following using fdisk:
• Reserve separate areas (partitions) on your hard disk for different operating
systems. The hard disk is divided into tracks. The number of tracks
depends upon the size of the hard disk. A partition consists of a group of
tracks. Each hard disk can accommodate four partitions.
• Specify one disk partition as "active". This means that when you turn on
(boot) your computer, the operating system installed in the active partition
will start running. The UNIX partition must be active when you intend to
use the sea system.
• Specify the number of tracks assigned to each partition. The number of
available tracks will vary according to the size of your hard disk. Consult
the Release Notes for the recommended UNIX partition size. The size of the
UNIX partition also depends on the number of software packages you want
to install. You can install the sea system in this space, and have the rest of
the space for user files and other software packages. Refer to the
custom(ADM) manual page for information on how to install and remove
software.
• Specify precisely where the partition begins and ends. fdisk will not allow
you to construct overlapping partitions. You do not need to install the sea
system in the first partition.
You should start your Das partition at the beginning of the disk, starting at
cylinder 0 or cylinder 1.
105
If you install a UNIX partition on the same disk after the DOS (or extended
DOS) partition, start the UNIX partition at the beginning of the next cylinder
on the disk. To find the beginning of the next cylinder, note the ending
track number of your DOS partition and start the UNIX partition on the next
track number that is a multiple of the number of heads on your hard disk.
For example, if you have five heads on your hard disk and your DOS parti-
tion ends at track 103, start your UNIX partition at track 105.
When you are running the seo system, the device name of the active UNIX
partition is /dev/hdOa. For more information about hard disk device names, see
the hd(HW) manual page.
Displaying current partition table

Use Display Partition Table to report the current state of the partitions. For
each partition, you can see whether the partition is active, the first track, the
last track, the number of tracks used, and the associated operating system. If
you use Display Partition Table and press (Enter) to see the partition table, the
result will be similar to Example 7-1 (this page).
Example 7·1 Sample fdisk table

Current Hard Disk Drive: Idev/rhdOO
+-------------+----------+-----------+---------+---------+---------+
I Partition I Status I Type Start I End I Size I
+-------------+----------+-----------+---------+---------+---------+
1 Inactive DOS 5 398 393
2 Inactive DOS (ext) 400 1219 819
3 Active UNIX 1220 2220 1000
+-------------+----------+-----------+---------+---------+---------+
Total disk size: 2229 tracks (17 reserved for masterboot and diagnostics)
Switching operating systems

There are three ways to switch to another operating system partition:
• Enter dos at the boot prompt (to boot the first DOS partition) or boot an
arbitrary partition using the bootos(HW) command at the boot prompt.
• Use a floppy disk that contains the files necessary to boot the DOS operat-
ing system.
• Use fdisk to change the current active partition.

Switching operating systems
When you use the boot prompt or a floppy disk to boot another operating sys-
tem, the UNIX partition remains active even though you have switched oper-
ating systems. When you use fdisk, the UNIX partition is inactive until you
switch back to it.
Booting a DOS partition

To boot a DOS partition, enter dos at the boot prompt:
Boot
: dos
INOTE The system boots from the first DOS partition found. The dos boot
string applies to any DOS partition, including those containing Windows 95.
Booting an arbitrary partition

You can boot different operating systems or partitions using the bootos(HW)
command. You can either specify a partition by number (obtained by entering
bootos ?) or by type:
ccpm concurrent CP 1M file system
dos matches any DOS filesystem
dos_12 DOS 12-bit FAT (file access table)
dos_16 DOS 16-bit FAT
dos_32 DOS 32-bit FAT
dos_ext DOS extended partition
nt, os2, os2_hpfs
Windows NT, OS 12, or as 12 HPFS file system; bootos cannot distin-
guish between these
unix UNIX system filesystem
xenix XENIX filesystem
For example, the following command loads an OS I 2 partition:

Boot
: bootos os2
See bootos(HW) for more information.
107
Booting DOS from a floppy disk

To use a floppy disk to boot DOS:
1. Make sure all users are logged off the system.
2. Use the Shutdown Manager (page 178) or the shutdown(ADM) command
to shut down the SCo system. These ensure all users know the system is
being shut down, terminate all processes, then halt the system.
3. Once the system has shut down, insert the boatable DOS disk into the pri-
mary (boot) drive.
4. Boot DOS.
5. To get back to the UNIX partition, remove any disks from the floppy
drive(s) and press (Ctrl)(Alt)(Del) or the reset key, or turn the computer off,
then on. Because the UNIX partition is still active, your UNIX system
boots.
Remember that if you have an active UNIX partition and boot DOS from a
floppy disk you can transfer to C: to work with the DOS files.
The other way to change operating systems is to run fdisk and change the
active partition from the UNIX partition to DOS. Then, after you shut down
the system (see the previous steps) DOS boots from the hard disk. From here
you can switch operating systems from the DOS partitions. You do not need a
boatable DOS floppy disk as long as DOS is loaded on the DOS partition of the
hard disk.
To switch back to the UNIX partition, run fdisk under DOS and make the UNIX
partition active. To reboot the UNIX partition, press (Ctrl)(Alt)(Del) or the reset
key, or turn the computer off, then on.
Because the UNIX partition must be active for it to operate, you cannot use a
boatable floppy disk to boot the operating system. Using fdisk is appropriate
for an occasional change of the active operating system.
Table· 7-1 DOS hard disk devices

XENIX device UNIX device
convention convention
/dev/hdOd / dev / dsk / Osd (linked with Os C)
/dev/rhdOd / dev / rdsk/ Osd (linked with OsC)
/dev/hd1d /dev/dsk/lsd
/dev/rhd1d /dev /rdsk/1sd

Installing a UNIX partition on a DOS system
The hard disk device names in Table 7-1 (page 108) are similar to /dev/hdOa
(the active disk partition) in that the disk driver determines which partition is
the DOS partition and uses that as hdOd and hdld. (You can use the XENIX or
UNIX system device name conventions; they are equivalent.) This means that
software that is running from the UNIX partition and using the DOS partition
does not need to know which partition is DOS (the disk driver determines
that).
Installing a UNIX partition on a DOS system

If you wish to set up an seo system on a hard disk which previously con-
tained only DOS, follow these steps:
1. Copy (back up) all the DOS files and directories on the hard disk onto
floppies, or whatever backup media you wish to use.
2. Run fdisk, under DOS. If there is enough free space for a UNIX partition
on your hard disk (check the Release Notes), skip to step 4. Otherwise,
delete the DOS partition, then recreate it, leaving enough room on the disk
for your seo system and any other software that you intend to install.
3. Return the DOS files from the backup media to the newly created DOS par-
tition on the hard disk. Keep the backups in case there is an error of some
kind, so you will not lose any data.
4. Turn off your computer.
5. Follow the installation procedure outlined in Chapter 2, "Installing or
upgrading an seo system" (page 19) to install the seQ system. Be sure
and select the Preserve option to retain the DOS partition.
You will see a message warning that the contents of the hard disk will be
destroyed. There is no cause for concern, because you have already
backed up the DOS files and transferred them to the new DOS partition.
The new partition being created will contain the seo system, and the in-
stallation process will only write information on the UNIX partition.
6. During the installation procedure, fdisk is invoked to partition the hard
disk. Use fdisk to assign a sufficiently large UNIX partition.
109
7. Designate UNIX as the active operating system using the Activate Partition
option of fdisk.
8. Finish installing the seo system distribution.
NOTE UNIX fdisk displays DOS partitions as HDOS" while DOS fdisk dis-
plays UNIX partitions as HOther". You can only create DOS partitions using
DOS fdisk, and UNIX partitions using UNIX fdisk.
Be aware that DOS fdisk reports sizes in terms of cylinders, while UNIX
fdisk reports sizes in terms of tracks. Check your hard disk manual for the
number and size of cylinders on your hard disk.
Using an sea system and DOS with two hard disks

Your computer always boots the operating system in the active partition on
the first hard disk. seo systems must boot from the first hard disk. There are
several ways to configure your system if you have two hard disks and want to
boot DOS. Two ways are discussed here.
One configuration consists of designating the entire first disk as a UNIX parti-
tion. You then use a DOS boot floppy disk to start DOS and specify:
A> D:
to switch to the DOS area on the second hard disk, where D: is the designa-
tion for the second hard disk. This strategy works for some versions of DOS.
Early versions recognize only the first hard disk on the system.
I NOTE If you devote a hard disk for use with DOS, the disk must already be
configured under DOS.
Another method is to maintain a small DOS partition on the first hard disk.
The DOS partition is designated the active partition. In this configuration, the
computer always boots DOS. This requires changing the active partition to
boot the seo system from the hard disk.
If you use the entire second disk for DOS, you need only create the additional
special device files in /dev so that you can access the DOS partition. See
HAccessing DOS partitions on a second disk" (page 114) for more information.
I NOTE Be sure to make a backup copy of your boot floppies if you use them
to boot your secondary operating system.

Managing DOS files with doscmd(C)
Removing an operating system from the hard disk

You may find that you no longer need one of the operating systems installed
on your hard disk. If you want to delete an operating system, use the
appropriate version of fdisk. To delete a UNIX partition, you must use the
UNIX system version of fdisk. To delete a DOS partition, use fdisk under DOS.
To delete an Extended DOS partition, you must delete all logical drives on that
partition using fdisk. Deleting the partition removes the contents of that par-
tition and leaves unallocated space.
You can then reallocate that space by either adding another UNIX or DOS par-
tition, or enlarging an existing partition. Enlarging a partition requires rein-
stalling the operating system and (for a UNIX partition) remaking the file-
system on the partition using divvy(ADM).
Managing DOS files with doscmd(C)

seo systems include special tools to manipulate DOS files that are described
in Chapter 6, flWorking with DOS" in the Operating System User's Guide and
the doscmd(e) manual page. Note that you must have a bootable, although
not active, DOS partition on the hard disk or a DOS floppy disk to use these
seo system commands. For example, you can only transfer a file from a UNIX
partition on the hard disk to a DOS floppy disk if either the DOS floppy disk is
bootable or there is also a DOS partition on the hard disk.
NOTE Mounting DOS file systems and accessing the files directly with UNIX
commands is faster and more efficient than using the doscmd( c) utilities.
See flMounting DOS file systems or partitions" (page 113) for more informa-
tion.
You may also be able to use the UNIX system dd(C) and diskcp(e) commands
to copy and compare DOS floppies. The UNIX system dtype(C) command tells
you what type of floppies you have (various DOS and UNIX system types).
Also, the file letc!defaultlmsdos describes which DOS file systems (for example,
A:, B:, C:, ... ) correspond to which UNIX system devices.
INOTE You cannot execute (run) DOS programs or applications from an seo
system unless seo Merge is installed.
111
seo systems do not record bad tracks in the DOS area of the hard disk. If a bad
track develops in the DOS area, an operation such as doscp that attempts to
access the affected area may fail (resulting in the Error on fixed disk mes-
sage).
NOTE When trying to use the DOS utilities to access files on your DOS parti-
tion, you may see the error message bad media byte. This message indi-
cates that the DOS partition on the hard disk is not bootable. You can make
your DOS partition bootable by first backing up the files on the DOS parti-
tion, booting DOS from the floppy, and formatting the DOS partition using
the command:
format c:. Is
You should now reinstall your DOS files.
doscmd(C) default file

For convenience, the user-configurable default file letc!defaultlmsdos can define
DOS drive names that you can use in place of UNIX system special device file
pathnames. For example, you can include the following entries in that file:
A=/dev/fd096ds15
B=/dev/fd048ds9
C=/dev/dsk/OsC
D=/dev/dsk/OsD
Once you have defined the variables, you can use the drive letter A: in place of
the special device file Idev/fdO (96ds15 by default) when referencing DOS files
or directories. For example:
/dev/fdO:/john/memos
can be replaced with:
A:/john/memos
The drive letter B: refers to a low density (48ds9) primary floppy drive. Drive
letter C: refers to the primary DOS partition on the primary hard drive. D:
refers to a logical drive in the extended DOS partition.
NOTE If you get the message cannot open /dev/dsk/OsC (or similar mes-
sage), check the user permissions on the special device file involved. As root,
change the permissions with the chmod command. For example:
chmod 666 Idev/dsk/osC
gives full read and write permissions to all users for the special device file
IdevldsklOsC, which is the DOS partition on the primary hard disk.

Mounting DOS filesystems or partitions
Mounting DOS filesystems or partitions

You can mount DOS file systems, including those on floppy disks, and access
their files while still operating from the UNIX partition.
NOTE You must add support for DOS file systems to the kernel before you
can mount DOS filesystems. See Adding support for different file system
fI
types" in the System Administration Guide for more information.
You can mount DOS file systems from the Filesystem Manager after adding
them to the mount configuration as described in "Adding and removing
mount configuration" in the System Administration Guide. You must use the
device names shown in Table 7-2, "DOS device names" (page 114) or create
the nodes described in "Accessing DOS partitions on a second disk" (page
114) For information on the behavior of DOS file systems, see" About mount-
ing DOS filesystems" in the System Administration Guide.
You can also mount these partitions manually using the mount(ADM) com-
mand. The form for a DOS file system mount command is:
mount -r -f DOS /dev/dsk/xsy /mountpoint
where:
x is the hard disk number
y is the drive letter (for example, C:, D:)
mountpoint is the name of the directory in the root filesystem where the
DOS filesystem is to be mounted.
The -r flag mounts the filesystem read-only, an optional precaution that will
prevent damage to the DOS filesystem (which is not as robust as other file-
systems.
DOS automatically calls the primary DOS drive, on the first disk, C:. If you
have a primary DOS partition on the second disk this becomes D:, automati-
cally, and logical drives on extended partitions are named in order (for exam-
ple diskO Primary C: EXT E: F: G: H:, disk1 Primary D: EXT I: I:). Table 7-2
(page 114) lists these device names under DOS and seo systems.
113
Table 7·2 DOS device names

DOS C: D: E: F: G: H: I: J:
UNIX OsC 1sC OsD OsE OsF OsG 1sD 1sE
I NOTE When using mount, you must give the specific hard disk and parti-
tion numbers (wildcards are not allowed).
Accessing DOS partitions on a second disk

To access DOS partitions on a second disk you may have to create the correct
special device files in the /dev directory. Special devices are created with the
mknod{ c) command. To create the DOS devices for the second disk, log in as
root and run the following commands:
cd /dev/dsk
mknod lsC b 1 112
mknod lsD b 1 113
mknod lsE b 1 114
mknod lsF b 1 115
mknod lsG b 1 116
mknod IsH b 1 117
mknod lsI b 1 118
mknod lsJ b 1 119
mknod lsd b 1 112
To change the permissions and ownerships of the files, make sure you are still
logged in as root and run the following script (you must be using the Bourne
shell, the default shell for root):
cd /
for letter in C D E F G H I J d
do
chmod 640 ls$letter
chgrp sysinfo ls$letter
chown dos ls$letter
done
You will then be able to access the multiple DOS partitions on the second hard
disk.
If you are not mounting the DOS file system and plan to use doscmd{C) com-
mands to access the files, you should add appropriate entries to the
/etc!default/msdos file (page 112). For example, if the third multiple DOS parti-
tion on the second hard disk were called H: you could include the line:
H=/dev/dsk/lsE
in the /etc!default/msdos file. From then on any access to H: would refer to
/dev/dsk/lsE, the third multiple DOS partition on the second hard disk.

U sing the system
Chapter 8
Using the system
There are several ways to interact with your sea OpenServer system, includ-
ing:
• clicking on or dragging icons, selecting actions from menus, and making
choices or answering questions in dialog boxes. Instructions for working
on the Desktop are in this chapter and in the online help linked to the Desk-
top and programs running on it.
• typing commands, either outside the graphical environment or in a UNIX
window on the Desktop. Instructions for working on the command line are
in the Operating System User's Guide.
• selecting commands and managing files with the sea Shell interface.
Instructions for working with the sea Shell are provided in the Operating
System User's Guide.
• working inside an application (such as an order-processing system)
without directly interacting with either the graphical environment or the
underlying operating system. Instructions for working in such an environ-
ment are provided by the supplier of the application software.
• automating routine processes with command-line scripts. This enables you
to run a complex series of commands by typing a simple one, by clicking
on an icon, or by setting a timer to run the script automatically. Instruc-
tions for writing scripts are in the Operating System User's Guide.
117
Using the system
What do I need to know?
For UNIX systems, a system administrator (page 138) takes care of the system:
maintaining it, backing up files, installing software, and handling any prob-
lems that might come up. System administrators also sometimes assist users.
This chapter focuses on using the system; for more information on system
administration, see Chapter 9," Administering seo systems" (page 137).
On the most basic level, you can bring information into your system (through
the keyboard, disks, tapes, modems, or network connections), store the infor-
mation in files, organize and manipulate those files, and send information out
from your system (through the screen, printers, disks, tapes, modems, or net-
work connections). By combining these operations, especially by using pro-
grams that combine them, you can accomplish complex tasks ranging from
accounting to word processing to database research to developing other pro-
grams.
To use the system most effectively, you should understand how to:
• Login.
One of the security features of UNIX systems is the requirement that users
identify themselves at the beginning of a session with their login names
and passwords. For Desktop instructions, see "Starting the Desktop" (page
121). For command-line instructions, see the Operating System User's Guide.
• Run programs and enter commands.
For Desktop instructions, see "Using Desktop features" (page 122). On the
command line, type the command (with any options or arguments) and
press (Enter). For additional instructions on running programs on the com-
mand line, see the Operating System User's Guide. For DOS command-line
and Windows instructions, see the seQ Merge User's Guide.

What do I need to know?
• Work with files and directories.

Files are containers used for storing information; directories (also known as
"folders") are containers used for organizing files. For information on how
to use files and directories (including creating, controlling access to, and
saving them) on the Desktop, see the online help books, Using the Desktop
and Using Edit; for UNIX command-line instructions, see the Operating Sys-
tem User's Guide or Operating System Tutorial; for DOS command-line and
Windows instructions, see the seQ Merge User's Guide.
• Read and send e-mail.
For Desktop instructions, see "Sending and receiving mail" (page 129) and
the online help book, Using Mail; for command-line and seo shell instruc-
tions, see the Mail and Messaging Guide.
• Communicate with other systems.
If your system is connected to others through a network, you can remotely
log in to other systems, run programs and view files there, and share soft-
ware and devices (such as printers and hard disks) between systems. For
instructions, see Chapter 2, "Using the network" in the Networking Guide.
• Customize your work environment.
You can configure many features of the Desktop environment, including
colors, fonts, icons, cursors, menus, messages, and mouse buttons. For
instructions, see the Graphical Environment Guide. From the command line,
you can specify your terminal type, default editor and printer, machine
name, directory search path, and other environmental variables. For
command-line instructions, see the Operating System User's Guide.
• Find more information.
seo OpenServer documentation includes context-sensitive help, reference
manual pages, and both printed and online books. Instructions for getting
online help are provided in "Getting help" (page 127) and in the online
book, Using Help.
119
Using the system
Command lines, operating systems, and networks

A "command line" is a line on the screen on which you type commands
(instructions) to your computer. It is usually identified by a symbol such as
"%" or" $ ", called a "prompt":
$ type command here
An" operating system" is a group of programs that provide basic functionality

on a computer. These programs operate your computer hardware in response
to commands such as copy, sort, and print. An operating system can be seen
as a set of functional building blocks upon which other programs depend. It
also manages computer resources and resolves resource conflicts, as when
two programs want to use a disk drive at the same time.
The Desktop graphical environment is constructed on top of the UNIX operat-

ing system. The UNIX system is used on a variety of hardware, ranging from
personal computers to supercomputers. It is characterized by its assortment
of basic tools (or "utilities") and by its ability to support multiple users run-
ning multiple programs at the same time.
Another commonly used operating system is DOS, which was designed to

support a single user running one program at a time on a single personal com-
puter. Microsoft Windows is a graphical environment built on top of DOS.
seo systems can run most DOS and Windows programs by translating the
DOS commands into equivalent UNIX commands. You can use either UNIX or
DOS commands from the UNIX command lines, and you can read files from
either DOS or UNIX disks.
A "network" is a group of interconnected computers. Each computer on the

network acts independently, but can transfer information to and from other
computers on the network.
A local-area network (LAN) connects computers at one site directly by a

high-speed cable, usually an Ethernet cable. A wide-area network (WAN),
which can be worldwide, connects computers at different sites by transmitting
data over telephone lines.

Starting the Desktop

To start the Desktop, type your login name in the field, press the (Enter) key,
type your password, then press (Enter) again. To keep your password
confidential, it is not shown on the screen as you type it.
NOTE Users should log in with a non-root account to do their daily tasks. It
is recommended that only system administrators log in as root on the Desk-
top.
If you do not have an account (login) name and password, see your system
administrator or the System Administration Guide. If you have problems, make
sure that the "login" field is highlighted (selected) before entering your name.
To select the field, use the mouse to move the pointer into that field, then
briefly press and release (click) the left mouse button (mouse button 1).
If your screen is blank, try pressing any key. If your screen is still blank, make
sure your terminal is turned on.
If your screen is not blank, the absence of the login box means that the Desk-
top has been set up to start differently at your site. The most common alterna-
tive setup requires you to:
1. Enter your login name at a command-line prompt.
2. Enter your password.
3. At the prompt, enter: startx.
See your system administrator for instructions if the Desktop still fails to start.
Exiting the Desktop

When you are ready to exit from the Desktop, open the File menu at the upper
left corner of the Desktop by moving the mouse pointer onto the word File
and clicking mouse button 1. Then move the mouse pointer to the word Exit
and click mouse button 1.
When you are asked, click mouse button 1 on the OK button to confirm that
you want to log out.
121
Using the system
Using Desktop features

As you work on the Desktop, you can communicate with your computer by
pointing to graphic images (objects) on the screen. The objects that you'll be
using the most frequently are icons, windows, menus, and the mouse pointer:
menus
pointer
{text curso
Figure 8-1 Desktop Overview
Icons are small pictures that represent programs, documents, data, or

the containers (directories) in which those items are kept.
Windows are work areas that open up on the Desktop. You look at and
work with information in these windows.
Menus are lists of tasks you can perform.
Pointer shows you where you are on the screen. It changes shape to let
you know what you can do there. An hourglass, for example,
indicates that you need to wait while the computer performs
your instructions.

Using the mouse

Use the mouse to point to objects on the screen. When you move the mouse,
the pointer moves. When the pointer touches an object, you are pointing to it.
Use the buttons on the mouse to tell your computer what you want to do with
the object. There are three ways to use the mouse buttons:
Click a button by briefly pressing and releasing it
Double-click a button by clicking twice in rapid succession
Drag (move) an object by pointing to it, then holding down a button
while moving the mouse. Releasing the button "drops" the
object in the new location.
When you see instructions to click on an object, point to the object, then click
the mouse button.
~~
2
1:
e
.;•,~. :.•
mouse
«'
::':
Right-handed
3
3
:::
.~..•
!
~
'~
Left-handed
mouse
1
Figure 8-2 Mouse buttons

Always use mouse button 1 unless instructed otherwise. Mouse button 1 is
usually the left button. Left-handed people may prefer that the right button
function as button 1 and can change the configuration accordingly. For infor-
mation on how to do so, see the Graphical Environment Guide.
Pressing onscreen buttons

When using the various Desktop programs, you will see a variety of dialog
boxes that contain onscreen "buttons". To press an onscreen button, click on
it.
These buttons always initiate the same actions:
OK accepts any changes you made, closes the window, and ini-
tiates the appropriate action. In a message window, press OK
to indicate you understand the message.
Cancel undoes your changes and closes the window.
Help displays information about the active program.
123
Using the system
Using windows
Windows play an important role in your work on the Desktop. For example,
you can have several windows open at the same time, such as one for reading
your mail and one for writing contracts. You can then move easily back and
forth between these two workspaces, and you can transfer a document or tool
from one window (workspace) to another, just as you would on your desk.
Select a window to work in by clicking on it. That window's frame changes

color to identify it as the active window. Although you can have many win-
dows open at the same time, you can only enter text, draw, or use controls in
one window (the active window) at a time. Programs may be running in
other windows, but your computer needs to know to which window it should
direct your input.
maximize button
Figure 8·3 Window Components

Every window has a Window menu you can use to move, resize, or close the
window. Open this menu by clicking on the Window menu button in the upper
left corner of the window's frame.
To close a window, select Exit from the File menu or double-click on the Win-
dow menu button or select Close from the Window menu.
Scrolling
When there is more information to display than can fit in a window, use the
scroll bars to see more:
• To scroll smoothly through the window's contents, drag the scroll bar
slider.
• To move in short jumps toward the top or bottom (or right or left edge) of
the window's contents, click on the arrow at either end of the scroll bar.
• To jump by one full window, click on the scroll bar between the slider and
one of the arrows.
The position of the slider in the scroll bar indicates how much of the window's
contents lies to either side of the portion displayed in the window.
Using menus
Each window has a menu bar that lists the names of the menus available in
that window. To open a menu, click on its name. To select an item from the
open menu, click on that item. To close the menu without selecting an item,
move the pointer off the menu and click (or release) the mouse button.
If the menu item you select requires that you make additional choices, a sub-
menu appears. Use the same methods for selecting from submenus.
125
Using the system
Using icons
Figure 8·4 Icon Types
Files and directories on the Desktop are represented as pictures; known as

icons. These graphics are designed to give you information about the object
that the icon represents.
Some icons represent unique functions and are illustrated accordingly. The
Trash icon, for example, represents the Trash desktop, which contains your
discarded files and directories.
To activate an icon, double-click on it. For example, if you double-click on the

Help icon, you can select from the online help books available in the Docu-
mentation Library. For more information on using icons, windows, menus,
programs, and other Desktop features, click on Using the Desktop in this
library.

Getting help
An overview of the seQ Panner window manager

The sea® Panner ™ window manager allows you to use your screen to view
different aspects of a much larger workspace than can be displayed at one
time. You can organize that workspace to suit your needs. In addition,
because you have more space available, your screen becomes less cluttered.
For example, you can control the sea Panner window manager by using a
feature known as the Hpanner", which contains a map of your entire
workspace, divided by a grid into a number of rectangular regions. These
regions serve as work areas. Also provided is a Hviewfinder", which allows
you to navigate around the workspace and change your view area.
For more information, see the online help book, Using sea Fanner.
Getting help
You can access online help in a variety of ways:
• From the Desktop, either double-click on the Help icon or select On Help
from the Desktop Help menu.
• To get help on a specific Desktop icon, either click on that icon and select
On Object from the Help menu or drop the icon on the Help icon.
• From the Desktop, open a UNIX window and type scohelp at the command
line.
• When available in a window or dialog box, use the Help menu or click on
the Help button.
• Point to the object on which you want help and press (F1) (not supported
on the Desktop itself). Some Desktop icons do not have context-sensitive
help. For more information about using Desktop icons, see Using the Desk-
top in the Documentation Library.
• In a character environment, use the (Tab) and arrow keys to select the Help
item, then press (Enter).
See also:
• "Getting character-based help" (page 128)
• "Finding information" in Using Help
127
Using the system
Getting character-based help
Context-sensitive help is available if you are using the character version of

any SCOadmin configuration manager tool:
• Press (Fl) to get help on the current screen.
• Press (F2) to find out how to move around in the SCOadmin character and
help environment.
• Use the (Tab) and arrow keys to select Help from your Help menu, then
press (Enter).
If the information you need is not on the current screen when the Help win-
dow opens, use the (PgDn) or (PgUp) key to scroll through the document.
To view topics related to the current one, use the (Tab) and arrow keys to
select Related Topics at the bottom of your screen. Press (Enter). Each item in
the Related Topics window is a hyperlink to another topic.
To open a related topic, use the (Tab) key to move the cursor to the View
Topics window. Use your arrow keys to move the cursor over the desired
topic, then press (Enter).
To close the help window, use your (Tab) key to move your cursor to Close
Window, then press (Enter). Your cursor returns to the current SCOadmin or
configuration manager tool.
Troubleshooting character-based help

You should note the following in the character environment:
• If you do not install the X clients package, most of the help on scohelp is
not available. If you need information about how to use character-based
scohelp, press (F2) in any character-based SCOadmin manager.
• (Esc) does not close character-based scohelp screens. You must use Cancel
to cancel.
• Warning messages can overwrite or garble your help screen. If your
character-based screen is garbled or has random characters, press (Ctrl)R.
• Some special symbols characters do not display correctly in character
environments. For example, if a file contains the symbol for the Greek
letter II, will be spelled out as "Pi".

Sending and receiving mail

Use the Desktop Mail accessory to send electronic mail (e-mail) messages to
other users. In addition, you can use this program to reply to, save, and
remove messages.
To start the Mail program, double-click on the Mail icon on the Desktop.
The Mailbox window displays a list of mail messages that are in your mail-
box (called the "message" list). The easiest way to select a message to read is
to click on it in the message list.
Figure 8·5 Mailbox Window
Each line in the message list describes a message: who sent it, what it is about
(the subject), when it was sent, and how big it is. Some messages have addi-
tional graphical information under the "Kind" heading. For example, you
might see that you have not yet read a message, or that you have already
replied to or saved it.
The bottom half of the Mailbox window contains the contents of the currently
selected (highlighted) message. If a message is longer than the window, use
the scroll bar to view the rest of the text.
129
Using the system
The icons below the Mailbox menu bar are called toolbar icons. When you
point to one of these icons, a brief description of that icon's function is dis-
played at the bottom of the window.
Sending e-mail
1. Select Create from the Mailbox window Message menu. You see this win-
dow:
Figure 8-6 Message Window
2. Type the desired text in the "Subject" field, then press <Enter). For example:
Remember to feed the cats!
3. Type your account name in the "Td' field, then press <Enter). When you
send and receive mail, your account name is sometimes called your mail
address.

4. Press (Enter) to leave the "CC" ("carbon copy") field blank.

5. Type your message in the bottom half of the Message window. For exam-
ple:
This message is to remind myself to

feed the cats before I go to the
meeting tonight.
To add, delete, or change text in the Message window, see the online
Using Edit book.
6. Select Deliver from the Message window Message menu.
This sends the message and closes the Message window.
Replying to e-mail
1. Click on a new message in the top half of the Mailbox window.

2. Select Reply To from the Mailbox window Message menu.
This opens the Reply dialog box, where you specify your preferences for
the reply. You may want to change the defaults. For example, if you don't
want to reply to everyone on the original list, click in the Reply only to the
originator checkbox.
3. Click on the Edit button.
4. Type your message in the bottom half of the Message window. For exam-
ple:
In case you didn't read the previous reminder mail:
To move, delete, and change text in the Message window, see the online
Using Edit book.
5. Select Deliver from the Message window Message menu.
131
Using the system
Saving messages
If you want to keep mail messages, you can save them in files or in mailfolders
(special files that contain mail messages). To keep your mailbox tidy, you
should remove messages regularly from your personal mailbox.
1. Click on the first message in the top half of the Mailbox window. The
selected message is highlighted.
2. Select Save To Folder from the Mailbox window Message menu.
This opens the Mail window containing a list of mailfolders. (When you
first start working with Mail, your mailfolders directory might only contain
the Outgoing mailfolder.)
3. Click on the blank area in the "Selection" field, type ReminderMail, and
press (Enter). This specifies ReminderMail as the mailfolder where you
want to save the message.
You are prompted to create the folder.
4. Click on Yes. The message is saved to a mailfolder called ReminderMail in
the mailfolders subdirectory of your home directory and you return to the
Message window.
Deleting and restoring messages

Once you have read a message and finished any actions on it (such as replying
to or saving it), it is a good idea to delete the message from your personal
mailbox to save space and to avoid clutter.
1. Point to the first message and drag the pointer to the last message. This
selects the messages to delete.
2. Select Delete from the Mailbox window Edit menu. The selected messages
disappear from the top half of the window and the message listing at the
bottom of the window shows the number of deleted messages.
3. Select Deleted from the Mailbox window View menu. The window
changes to show only the messages you deleted.
4. Click on the first message in the list.

5. Select Undelete from the Mailbox window Edit menu. The first message
disappears from the list of deleted messages.
6. Select All from the Mailbox window View menu. This returns you to
viewing the remaining contents of your mailbox (all the messages you
haven't deleted and the message you just restored).
INOTE Deleted messages are no longer available to be restored (undeleted)

after you have exited Mail.
Getting more information about Mail

Double-click on the Desktop Help icon, then select Using Mail. Or press (FI)
when using Mail.
133
Using the system
. 134 seQ QpenServer Handbook

System. adm.inistration
Chapter 9
Administering sea systems
"System administration" refers to the tasks that must be performed to main-
tain a system. This chapter how to administer your sea system, including:
• Understanding the basics (this page)
• Administering your system with SCOadmin (page 143)
• Educating users (page 159)
• Planning your site (page 162)
• Summary of system administration tasks (page 164)
Understanding the basics

If you are new to system administration, you should understand:
• What is system administration? (page 138)
• What to read if you are new (page 139)
• Keeping a system log (page 139)
• The superuser account (page 140)
• The keyboard (page 140)
• Running programs simultaneously with multiscreen displays (page 141)
137
Administering seQ systems
What is system administration?

Every seQ system should have at least one person in charge of system main-
tenance and operation. Such a person is called a "system administrator". It is
the responsibility of system administrators to ensure the smooth operation of
the system and to perform a wide variety of tasks that require special
privileges.
Among other things, a system administrator is responsible for:

• Bringing the system up and down for maintenance.
• Making certain that adequate backups (regular copies of files on the sys-
tem) are made and stored for future use.
• Handling problems related to use of limited computer resources (disk
space, number of processes, and so on).
• Alleviating system communication (network) stoppages due to failed con-
nections.
• Applying operating system updates and maintenance fixes.
• Providing general support to users.
NOTE This is only a representative set of tasks; refer to "Summary of sys-

tem administration tasks" (page 164) for a complete list that includes cross-
references to the appropriate documentation.
Depending on the size of the system and the number of users on it, system
administration can be anything from a once-a-day task to a full-time job.
Even if the system is small, the system administrator should consistently per-
form each required maintenance task, because sloppy maintenance can
adversely affect system performance.
You can choose to have a single system administrator or divide the tasks
among several persons, each charged with a different area of operation. You
can even assign roles that are strictly limited to one aspect of the system. See
" Assigning subsystem authorizations" in the System Administration Guide for
more information.

What to read if you are new

If you are completely unfamiliar with sca systems (or UNIX systems), you
should refer to these manuals:
• Operating System Tutorial - covers the basics of the UNIX command line
interface. Although many administration tools have sophisticated inter-
faces, you will often need to use the command line as well.
• Operating System User's Guide - includes more advanced uses of the oper-
ating system. Pay particular attention to Chapter 3, "Working with files
and directories" and Chapter 5, "Controlling processes". You will also
benefit from an understanding of the material in Appendix A, "An over-
view of the system".
• Networking User's Guide - explains the networking components, including
TCP lIP, NFS, and so on.
• This sea Open Server Handbook - contains key information you need in the
day-to-day operation of your system: Chapter 10, "Starting and stopping
the system" (page 169) and Chapter 13, "Troubleshooting system-level
problems" (page 247).
See "Educating users" (page 159) for additional references.
Keeping a system log

We recommend you keep a hardcopy log of the initial system configuration,
all system modifications, and system events. Each event, message, backup, or
modification should be logged along with the date, time, name of the person
logging, and the circumstances surrounding the event. For example, if a new
application is added to the system software, an entry should be placed in the
log. This entry should include the time, date, and name of the person install-
ing the application, and any notes about the software or installation that may
be helpful. An accurate log helps in diagnosing system problems and chart-
ing the growth and use of a system.
I NOTE Keep a copy of your installation checklist in the log book. See "Ins-
tallation and upgrade checklist" (page 20).
All tasks are presented from a system administrator's point of view, but many
can also be accomplished by ordinary users. Because some of the tasks
dramatically change the system's operation, we recommend that, whenever
possible, the system administrator perform these tasks. However, no matter
who performs an operation, it should be entered in the system log. Following
these rules can prevent unwanted or unnecessary changes to the system.
139
The superuser account

The superuser login (also known as root) is a special account for performing
system maintenance tasks. It gives the system administrator unusual
privileges that ordinary users do not have, such as accessing all files in the
system, and executing privileged commands. Many tasks presented in the
administrative guides require that the system administrator be logged in as
the superuser. To do this, the system administrator must know the superuser
password created during the installation of your system.
Log in as the superuser only to perform system maintenance tasks. Even if

the system administrator is the only user of the system, that person should
create a user account for day-to-day work, reserving the superuser account for
system maintenance tasks only.
WARNING Few users should know the superuser password. Misuse of the
I superuser powers by naive users can result in a loss of data, programs, and
even the operating system itself.
The keyboard
Many keys and key combinations perform special actions on sea systems.
These actions have names that may not correspond to the key top labels on
your keyboard. Table 9-1 (this page) shows which keys on a typical keyboard
correspond to special actions on sea systems. A list for your particular login
device is in the keyboard(HW) manual page. Many of these keys can be
modified by the user - see the stty(e) manual page.
Table 9-1 special keys
Name Action
(Enter) terminates a command line and initiates an action. This key is
also called the (Return) key; the key top may indicate a down-left
arrow.
(Esc) exits the current mode; for example, exits insert mode when in
the editor vi. This is also known as the ESCAPE key.
(Del) stops the current program, returning to the shell prompt. This
key is also known as the INTERRUPT key.
(Bksp) deletes the character to the left of the cursor. The key top may
show a left arrow (do not confuse it with the keypad arrow
keys).

Table 9·1 special keys

(Continued)
Name Action
(Ctrl)D signals the end of input from the keyboard; exits the current
shell, or logs you out if the current shell is the login shell.
(Ctrl)H deletes the character to the left of the cursor. This is also called
the ERASE key.
(Ctrl)Q restarts printing (or displaying) after it is stopped with (Ctrl)S.
(Ctrl)S stops printing (or displaying) at the standard output device, such
as a terminal. This keystroke does not stop the program.
(Ctrl)U deletes all characters on the current line. This is also called the
KILL key.
(Ctrl) \ quits current command, creates a core file - see the core(FP)
manual page. This is also called the QUIT key. Recommended
for debugging only, but can be used as a last resort when the
(Del) key does not stop the current command.
Running programs simultaneously with multiscreen displays

With the multiscreens, you can run several programs on your console at the
same time. Pressing a simple key combination switches you from one screen
to another, and each screen acts independently from the others.
To open a second screen, press and hold the (Ctrl) and (Alt) keys, then press
(F2) or another function key on your keyboard. Function keys are generally
located across the top or down the far left side of your keyboard.
After you press the key combination, the screen clears and a login prompt
appears. Log in again and you can begin work on the second "screen." Press
(Ctrl)(Alt)(Fl) to switch instantly back to the first screen. Switching between
screens in this way can speed up procedures that require working in two
different programs. You can run both programs simultaneously, and work on
either one at any time.
For example, you can start a session on your first screen, then press
(Ctrl)(Alt)(F2) to create a second screen. Log in again and begin another ses-
sion. Use (Ctrl)(Alt)(Fl) and (Ctrl)(Alt)(F2) to switch back and forth between
screens.
I NOTE Opening more than one graphical session or desktop on the console
will consu~e additional system resources.
141
i I
Figure 9-1 multiscreen example
You can open more than two screens at once. However, when you log out you
must remember to log out on all screens; unattended screens where you
remain logged in allow unauthorized access to the system.
If you have several screens open at once, you can rotate through them by
pressing {Ctrl){PrtSc). This is helpful if you cannot remember which process is
running on a particular screen.
For more information, refer to multiscreen(M).
System security
An important consideration is protecting the system and its data from unau-
thorized access. Your sca system includes security mechanisms designed to
meet the C2 class of "trust" as defined by the Trusted Computer System Evalua-
tion Criteria (also known as the Orange Book). As the system administrator,
you can configure the protection mechanisms to the requirements of your site.
Chapter 1," Administering user accounts" in the System Administration Guide
explains how to add users to the system and how to configure the default
security scheme. For additional information on protecting your system, con-
sult Chapter 5, "Maintaining system security" in the System Administration
Guide.

Administering your system with SCOadmin

SCOadmin is a series of management applications (or "managers") that help
you configure and maintain your system. The managers can be run in graphi-
calor character mode.
You can access SCOadmin managers in three ways:

• Desktop mode. Use the icons in the System Administration window located on
the root desktop.
• Graphical mode. Use the scoadmin(ADM) command to invoke the SCOad-
min launcher (page 145) or run an individual manager in a scoterm(XC)
window.
• Character mode. Use the scoadmin command to run the SCOadmin launcher
or an individual manager on a character display. See "Starting SCOadmin
from the command line" (page 144) and "Using SCOadmin in character
mode" (page 146).
NOTE Unless your system is configured with the Low security profile, ordi-
nary users are not authorized to run SCOadmin managers. See" Assigning
subsystem authorizations" in the System Administration Guide for more infor-
mation.
Most SCOadmin managers are grouped under folders (directories) that corre-
spond to an administrative area.
Some SCOadmin managers permit you to administer different systems across

the network as described in Administering other systems with SCOadmin"
/I
(page 149).
See also:
• "About Sysadmsh Legacy" (page 145)
• "Troubleshooting SCOadmin" (page 156)
143
Starting SCOadmin from the command line

Enter the command:
scoadmin
This brings up the SCOadmin launcher shown in Figure 9-2 (page 145). Note
that most applications are nested in subdirectories (folders in the graphical
version), such as Security Profile under System/Security. In graphical mode,
SCOadmin managers are marked with a tool icon, while subdirectories are
marked with folders. In character mode only subdirectories are marked, with
a greater-than symbol (».
To run in character mode from a scoterm window, set the CHARM environ-
ment variable to TRUE. To run in the graphical environment again, unset
CHARM or set it to FALSE.
To ascend the directory tree, click on the parent directory button in the lower
left hand corner of the SCOadmin window, or select Parent from the View
menu.
You can also start individual SCOadmin managers from the command line
using the syntax:
scoadmin application_name
where application_name is the name of the SCOadmin manager, such as
account manager. (You do not need to quote the name or use capitalization.)
This command works both graphically and in character mode.
In addition, the scoadmin command will accept Hminimum matches" consist-

ing of the first few characters of the manager name. For example, you could
enter scoadmin a to start the Account Manager, or scoadmin au for the Audit
Manager. Keep in mind that the names of some managers may have the first
few characters in common.
To display a list of available SCOadmin managers, enter:

scoadmin -t

NOTE SCOadmin managers are scripts written in sea Visual Tcl. Modify-
ing these scripts is not recommended, but if you do alter them, be sure and
make a backup copy first. See the scoadmin{ADM) and scoadmin{F) manual
pages and the sea Visual Tel Programmer's Guide and Reference (page 000) for
more information.
See also:
• II Administering other systems with Seaadmin" (page 149)
Backup Manager
Hardware/Kernel Manager
License Manager
Soft\J.Jare Manager
Video Configuration Manager
Filesystems
Mail
Networks
III Pri nte rs
rII Sysadmsh Legacy
III System
Figure 9-2 SCOadmin Launcher
About Sysadmsh Legacy
Programs located in the Sysadmsh Legacy directory of the SCOadmin hierarchy

are non-sea applications originally written for the sysadmsh system adminis-
tration interface used in previous releases of sea systems. When an update is
performed on an sea system 3.0 or earlier, non-sea sysadmsh applications
are automatically moved to this location.
145
Refreshing data in the display

Many SCOadmin managers display information in their main windows that is
updated at regular intervals.
To force an update, select Refresh Now from the View menu.
To set the rate at which the display is automatically updated, select Set Auto
Refresh from the View menu.
Using point help

SCOadmin managers have a text area at the bottom of the screen where status
messages and helpful descriptions called point help are displayed.
You can get point help on a text field or other screen element simply by mov-
ing the cursor to it. In character mode, highlight the screen element.
To disable the point help feature, deselect the Point Help button from the
Options menu.
Using the toolbar

Many SCOadmin managers include a toolbar with icons you can select just
like desktop icons. The icons represent the most common menu selections.
To hide the icons, deselect the Toolbar button from the Options menu.
I NOTE The toolbar is only available in graphical mode.
Using SCOadmin in character mode

By its nature, the SCOadmin character interface differs from the graphical ver-
sion. Character SCOadmin is similar to the previous sea administrative
interface (sysadmsh).

Navigating the character screen

In character SCOadmin, the screen is divided into "tab groups", which make it
possible to move between the menu bar, the display area, and the control but-
tons (OK, Cancel, Help) at the bottom of the window. Once you have moved
to the desired tab group, you can use the arrow keys to select the desired but-
ton, list, or field.
Use the arrow keys to move between items on a menu bar or items in a menu.
Use the (Enter) key to open a menu or make a selection.
I NOTE If you are having trouble reaching a button or field, try pressing the
(Tab) key.
Account Manager on miro
[ miro: Add New User

]
Login: Imavrac ___ 1
User ID: I!!!!~I
Comment: I I
Password: 1<*> 5et password now < > 5et password later I
Login 5hell: Ish I [ Change Login 5hell ••• ]

Distributed Via: I I [(Change Distribution ••• )]
Home Directory: I/usr/mavrac I [ Change Home Directory ••• ]
Login Group: Igroug I [ Change Group Membership ••• ]
Use the next ID number as supplied_ or enter a user ID number

[ OK ] [ Cancel ] [ Help ]
Figure 9-3 Sample character SCOadmin screen
Figure 9-3 (this page) is a character-mode screen from the Account Manager.
To navigate this screen from top to bottom, press the (Tab) key. There are two
rows of buttons: the "Password" selection box and the OK, Cancel, and Help
pushbuttons. Use the arrow keys to move between the buttons.
147
Table 9·2 Character SCOadmin keys
Key Action
(Tab), (Ctrl)i moves to next tab group
(Ctrlt, (Shift)(Tab) moves to the previous tab group
(Left, Right Arrow) traverses menu bar, moves between items in a tab group,
opens or closes submenu, scrolls list
(Up, Down Arrow) opens a menu in menu bar, moves between items in a
menu, moves between items in a tab group or a
displayed list
(Ctrl)A replicates (Alt) in graphical environment
(FlO) shifts focus to menu bar
(Enter) accepts input in text field, opens menu
(Esc) cancels action (if applicable), closes menu
(Ctrl)r redraws the screen
(PgUp), (PgDn) pages through displayed list
(Home), (End) shifts between top and bottom of list
(Space) selects the highlighted item
Using character buttons

There are three types of buttons, all of which are operated by highlighting
them, then pressing (Space) or (Enter):
pushbuttons
have text names enclosed in square brackets ([ D. Buttons that
bring up other windows have ellipses (... ) appended to the text.
Some bring up an option menu from which you must make a
selection. Highlight the text label associated with the button
rather than the button itself.
radio buttons
are marked with angle brackets « » and are used to select
exactly one of a group of options. When a radio button is selected,
an asterisk (*) appears within the brackets. Selecting a second but-
ton deselects the previous button.
checkboxes
are similar to radio buttons and consist of square brackets ([ Dand
a text label. When a checkbox is selected, an asterisk (*) appears
within the brackets. Checkboxes are used to select one, more than
one, or none of a group of options. Toggle to deselect.

Administering other systems with SCOadmin

Several SCOadmin applications enable you to manage other seo systems on
your network. Two types of administration are supported: remote and dis-
tributed. See Administering other systems with SeOadmin managers" in the
If
Networking Guide.
Remote administration includes:

• configuring and managing remote printers
• configuring remote file systems
• managing remote accounts
• performing remote backups
• managing remote SNMP agents
Problems with multiple invocations

If you accidentally double-click on a SeOadmin manager icon four or more
times, multiple overlapping copies of the manager will be started. If this
occurs, close the lower windows, leaving the last copy open for use. If the
remaining window fails to accept input, close it using the window menu (as
opposed to the SeOadmin menu) and restart the manager.
Making selections in character mode

In graphical mode, selections that cannot be used are dimmed (stippled). In
character mode, invalid selections are enclosed in parentheses /I ( )".
If you encounter difficulties navigating through the selection fields in charac-

ter mode, press (F2) for quick-reference help.
149
Using the System Defaults Manager

You can use the System Defaults Manager located in the System directory of
the SCOadmin hierarchy to change a variety of defaults associated with sys-
tem utilities. The System Defaults Manager displays a list that describes the
function and the associated utility or application. Use the manual page refer-
ence in the description to obtain information about the defaults stored in the
file.
To edit a default file, select the file from the list. When used in character
mode, the vi(C) editor is used by default. For graphical sessions, another edi-
tor can be selected; see HChanging the default editor" (this page).
I NOTE The defaults are stored in the fete/default directory.
See also:
• default(F) manual page
• Appendix H, "vi command summary" (page 543)
• "Using the vi editor" in the Operating System Tutorial
Changing the default editor

The file editor used by applications such as the System Defaults Manager can
be defined in the EDITOR environment variable. Set the variable on the com-
mand line as in these examples:
Bourne or Korn shell:

EDITOR=/usr/bin/Xll/scoedit; export EDITOR
C shell:
setenv EDITOR /usr/bin/Xll/scoedit

You can also add EDITOR to your shell initialization file. For the C shell, sim-
ply add the above line to your .login or .cshrc file. For the Bourne or Korn
shells, you need to add the bold elements to your .profile file:
SHELL=/bin/sh
HOME=/
PATH=/bin:/etc:/usr/bin:/tcb/bin
EDITOR=/usr/bin/Xll/scoedit
# set terminal type

eval 'tset -m ansi:ansi -m :\?ansi -e -s -Q'
export TERM PATH SHELL HOME EDITOR
Controlling processes with the Process Manager
Processes are programs currently running on the system. You can use the
SCOadmin Process Manager to perform operations on system processes
(locally and on remote systems):
• view processes on the system (this page)
• change the priority of a process (page 154)
• send a signal to a process (page 154)
You can start the Process Manager by running the scoadmin(ADM) launcher
or entering scoadmin process on the command line.
Viewing processes
You have several options for viewing processes with the Process Manager:
• view all processes (this page)
• by one or more attributes (this page)
• by attribute value (page 152)
• sorted by PID, user, tty, or command (page 153)
• customize the attributes displayed (page 153)
• include/exclude attributes in status labels (page 153)
Viewing all processes

In the Process Manager (this page), select All from the View menu. The
default view shows all processes.
Viewing processes by attributes
In the Process Manager (this page), select By User, By Tty, or By Pid from the
View menu.
151
To view processes by a set of extended attributes, select Attributes ... from the
View menu. The extended attributes are shown in Table 9-3, "Process attri-
butes" (this page) You also have the option of clicking on buttons that select a
set of attributes (a Default is automatically selected), including Ownership ...
Select an attribute in the" Available" column and click on the Add button. You
can remove an attribute from your view by selecting it from the "Selected"
column and clicking on the Remove button. You can search for a specific
attribute by entering it in the "Search for:" field.
Table 9-3 Process attributes

Attribute Definition
Ruser real user ID
Tty controlling port number
Group group name
Pid process ID number
Ppid parent process ID number
Nice nice(1) value
Time cumulative execution time for the process
Pcpu percentage of CPU time used
Vsize virtual memory size in kilobytes
Pgid parent group ID number
Etime time elapsed since the process started
Args command name with its arguments
User user name
Command command being run (no arguments)
Viewing/finding processes by attribute values

In the Process Manager (page 151), select Attribute_Filter, from the View
menu, or, to find a specific process, select Find Attribute from the Process
menu.
1. Select the desired attribute from the displayed list.
2. Click on the desired relation (Equal to can be selected with either of the
Less than or Greater than buttons.
3. Enter the desired value.
4. When using the Find Attribute selection, use the Find Next or Find All but-
tons.

Sorting processes
In the Process Manager (page 151), select Sort, from the View menu.
Select the desired sort attribute from the list, then click on a button to select
Increasing or Decreasing order. The None button disables ordering.
Customizing the display

You can easily customize the information displayed by the Process Manager
(page 151). The default display includes the process ID, user name, tty, and
command name. You can add or delete fields as desired.
Select Customize Attributes ... from the Options menu.
You can change the following:

• list of attributes (page 152)
• attribute labels
• field width
• data type (alphabetic, octal, integer, hexidecimal)
You can type in the values for "Label" and "Width" fields; use the pull-down
list for" Attribute" and "Type".
To change the set of available attributes, see "Viewing processes by attributes"

(page 151).
You can reset to the default field widths with the Default button.
Click on Apply to update the display.

Including or excluding attributes in status labels
The Process Manager (page 151) display includes a status labels below the
main list to indicate the selected view (page 151) and sort criterion (this page)
used. You can configure these labels to include or exclude the actual values
for these attributes.
Select Short View/Sort/Filter Labels from the Options menu. For example, the
"long" labels would appear as follows:
View by User (root) Sort(Pid)
The" short" labels exclude the values in parentheses.
153
Searching for a process

In the Process Manager (page 151), select Find from the Process menu. Enter
a pattern and use the Find Next or Find All buttons. The pattern can include
standard wildcards.
Changing the priority of a process

All processes are assigned a priority, known as a nice{C) value. This value
determines how much computing time is allocated to a process, affecting the
length of time the process will take to complete.
In the Process Manager (page 151), select the process you wish to reprioritize
from the list and select Priority from the Process menu.
Click on the Raise or Lower Priority buttons and enter an increment, if desired.
Signalling a process
In the Process Manager (page 151), select the desired process from the list and
select Signal from the Process menu. The most commonly used signal is
KILL, used to terminate a process.
The remaining functions are intended for more sophisticated users. See
signal{S) for more information.

Table 9·4 Signal types

Signal Purpose
HUP hangup
INT interrupt
QUIT quit
ILL illegal instruction (not reset when caught)
TRAP trace trap (not reset when caught)
ABRT lOT instruction
EMT EMT instruction
FPE floating point exception
KILL kill (cannot be caught or ignored)
BUS bus error
SEGV segmentation violation
SYS bad argument to system call
PIPE write on a pipe with no one to read it
ALRM alarm clock
TERM software termination signal
USRI user-defined signal 1
USR2 user-defined signal 2
CHLD death of a child
PWR power fail
WINCH window change
POLL selectable event pending
STOP sendable stop signal not from tty
TSTP stop signal from tty
CaNT continue a stopped process
TTIN background tty read attempt
TTOU background tty write attempt
VTALRM virtual timer alarm
PROF profile alarm
XCPU exceeded cpu limit
XFSZ exceeded file size limit
WAITING all lightweight processes blocked interruptibly notification
LWP signal reserved for thread library implementation
Ala asynchronous I/O signal
155
Troubleshooting SCOadmin
This section addresses problems with running SCOadmin:
• "SCOadmin will not start" (this page)
• "Recovering from SCOadmin failures in character mode" (this page)
• "Remote administration problems" (this page)
• "SCOadmin error trace" (page 157)
• "The SCOadmin event log" (page 158)
SCOadmin will not start

If the SCOadmin launcher or a SCOadmin manager fails to start after a rea-
sonable length of time, there may be a problem with the sea Visual Tel dae-
mon process used to run SCOadmin:
1. Enter this command to determine the process number:
ps -ae I grep vtcld
You see output similar to this:
571 ttypO 00:00:00 xm vtcld
In this case, the daemon is process number 571. (In character mode, the
process is named cm_vtcld.)
2. Kill the daemon process with this command, substituting the actual pro-
cess number for number:
kill -9 number
3. If the process does not appear to be running, you should check the /tmp
directory for temporary files left there by sea Visual Tel daemons. First,
SCOadmin character sessions leave files of the format ch_PID.UID (PID is
the process ID number and UID is the user ID number), for example
ch_8132.0. Graphical sessions can leave similar files of the format
PID.UID. If there are a large number of these files present, you should
remove them and try running SCOadmin again.
Recovering from SCOadmin failures in character mode

If a SCOadmin manager fails in character mode and you cannot get a prompt,
enter the following command to restore your display to normal (the com-
mand will not appear on the screen as you type):
(Ctrl)jstty sane(Ctrl)j
Remote administration problems
If you have problems performing remote administration:
• Ensure that user equivalence is configured properly. The account on the
local system used to perform the remote task must be recognized by the
remote system. In addition, the account must have the authorizations
necessary to run the Seaadmin manager.

• Verify your network connections are configured and functional (including

the lete/hosts file or name service).
• Verify that SeOadmin is running on the remote system. This is necessary
for all tasks except remote printing. You can set up a printer on a remote
system that is not running SeOadmin, but the remote system must support
LPD, and the local system must be recognized by the remote system (in
lete/hosts.lpd or lete/hosts.equiv on UNIX systems). If the remote system is
running SeOadmin, it is possible to get a list of the printers available on the
system.
See also:
• "Enabling remote manager capabilities" in the Networking Guide
• "Troubleshooting network configuration" (page 494)
• "Troubleshooting TCP lIP" in the Networking Guide
SCOadmin error trace

When a non-recoverable error occurs in SCOadmin, seo Visual Tcl creates a
file containing an error trace. The output is put into a file in the Itmp direc-
tory. While the seo Visual Tcl output will probably not be useful to you, if
the problem persists you should save the output when you call your provider
for assistance.
Error filenames use the format:

tclerror.PID.log
where PID is the number of the process that created the file. Here is a sample
output:
Uncaught error in Tel program: hostmib:
no SMUX entry for hostmib: goingDown
Error code = NONE
no SMUX entry for hostmib: goingDown
while executing
"SMUXlnit hostmib /etc/sysadm.d/hostmib.defs"
("uplevel" body line 3)
invoked from within
"uplevel $command"
157
The SCOadmin event log

SCOadmin includes a logging facility to record administrative events, includ-
ing errors, object creation, among others.
SCOadmin events are recorded along with other system events in

/us r/adm/sys log. These events help you keep track of all modifications made to
your system configuration.
I NOTE Do not confuse messages contained in the SCOadmin event log with
the system error messages located in /usr/adm/messages.
See also:
• "Understanding the SCOadmin event log" (this page)
• "Using the SCOadmin Event Logs Manager" (page 159)
Understanding the SCOadmin event log

All SCOadmin managers generate records of administrative events that occur
during the daily operation of your system. By default, SCOadmin errors are
the only events recorded. This allows you to monitor any problems that
might occur. You can also elect to record all administrative changes made to
the system, for example when a user account is added to the system or
modified.
Log entries use this format:

date sysname syslog SCOADM: sessionID object instance event_type message
sysname name of the host system
sessionID tty for the login session when the event took place
object type of object
instance name of object
event_type event type
message the system message associated with the event
Here is an example:
Jul 12 22:27:38 apathy syslog: SCOADM: localhost {sco_printer}
{toaster1} objectCreation SCO_OFACE_MSG_OBJECT_CREATION {object
creation {(null)}}

Educating users
The event types are:

Object creation The creation of an object, such as a new printer.
Object deletion The deletion of an object, such as a printer.
Attribute change The modification of an object, such as the configuration
values for a printer.
Error A failure to complete a requested action, typically
called an error message.
Warning An action was completed successfully, but with a prob-
lem.
Notice An informative message.
You can modify the list of event types by editing the /usr/adm/events file.
Using the SCOadmin Event Logs Manager
You can select events to be logged using the SCOadmin Event Logs Manager
located in the System/Logs directory of the SCOadmin hierarchy. The SCOad-
min Event Logs Manager displays the events currently logged and not
logged.
To log an event, highlight it in the Hlgnored Events" column and click on the
Log event button.
To ignore an event, highlight it in the HLogged Events" column and click on

the Ignore event button.
To save your selections, select Save from the File menu.
See also:
• "The SCOadmin event log" (page 158)
• "Understanding the SCOadmin event log" (page 158)
Educating users
The following list suggests points the system administrator can explain to
users so they can take advantage of the system's resources without overload-
ing the system or causing unnecessary system problems. The more users
understand the system and its limits, the less demands are placed on the sys-
tem administrator.
159
If a user is completely new to sea systems, the system administrator should

recommend a training course or at least a careful review of the basic user
documentation. Augment this training with the points listed here. References
to documentation cover both graphical and character environments.
• How to log in. Emphasize password secrecy and methods of memoriza-
tion. Explain the limits on password length and type, the schedule for
changing passwords, rules about changing passwords, and the number of
unsuccessful tries allowed. Tell users with character terminals how to
specify their terminal type.
Character: Chapter 1, flGetting started" in the Operating System Tutorial
Graphical: flStarting the Desktop" (page 121)
• How to manage files and directories. Make sure users are familiar with
basic operations, including the use of file permissions.
Character: Chapter 3, flDirectories and files" in the Operating System Tutorial
and Chapter 7, flProtecting files and directories" in the Operating System
Tutorial
Graphical: Chapter 11, flUsing files and directories" in Using the Desktop
• How to edit files. Make sure users know basic editing commands.
Character: flUsing the vi editor" in the Operating System Tutorial
Graphical: Chapter 1, flCreating files with Edit" in Using Edit
• How to use the calendar program. Show users how to organize their
schedules with the calendar.
Character: flUsing the Calendar" in the Operating System User's Guide
Graphical: flUsing the Graphical Calendar" in Using the Graphical Calendar
• How to run applications. Relate the names, locations, and commands

necessary to run applications that you have installed at your site.
• How to print files. Explain the print commands for most-used programs.
Tell the user the location of the default print service printer. Demonstrate
how to replenish paper and toner, tape, or ribbon cartridge. Refer the user
to the printer documentation, if necessary.
Character: flPrinting files" in the Operating System User's Guide
Graphical: Chapter 13, flPrinting files" in Using the Desktop

Educating users
• How to use the undelete feature to restore files. Explain the filesystem
versioning feature. Show users how to version files and recover them with
undelete( C).
Character: "Retrieving deleted files" in the Operating System User's Guide
Graphical: Chapter 12, "Deleting and recovering files and directories" in
Using the Desktop
• Good mail etiquette. Explain how to read and send mail, how to read
through mail lists, and how to organize messages into mailboxes or folders.
Explain how to clean out unwanted messages by deleting or saving them to
floppy or tape. Emphasize the importance of maintaining free disk space.
Character: Chapter 2, "Using e-mail" in the Mail and Messaging Guide
Graphical: "Using Mail" in Using Mail
• Good filesystem planning. Explain the limits of directory size. For best
performance, login and working directories should have less than 64*
entries, including the dot (.) and dot-dot (.. ) entries, and data storage direc-
tories should have less than 638* entries. Warn users that directories do not
get smaller, even if files are removed. Discourage users from saving mail
messages in separate files rather than appending them to existing mailbox
files. Refer to "Maintaining file system efficiency" in the System Administra-
tion Guide for more information.
• How to store (archive) files. Show users how to use floppy disk and tape
archiving facilities to store unused files or directories.
Character: Chapter 7, "Working with disks, tapes, and CD-ROMs" in the
Operating System User's Guide
Graphical: "Using floppy disks" in Using the Desktop
• How to reset a scrambled serial terminal. Teach users with serial termi-
nals how to escape from the most-used programs and how to reset a termi-
nal with tset( C) and stty sane. Tell users how to turn the terminal on and off
if necessary. Make sure users try these procedures before asking a system
administrator to disable and reenable the scrambled terminal. See "Fixing
scrambled terminal display" (page 448).
• How to kill "hung" processes. Instruct users how to use ps -flu on a

neighbor's terminal to find the hung process on their own terminal, and
how to kill the process without causing undue system problems. See "Fix-
ing hung terminals" (page 447).
* These figures apply to filenames of 14 characters or less. As filename lengths increase, up to a

maximum of 255 characters, the number of files that fit on a single disk block decreases, reducing the
optimum number of files in a directory.
161
• Use of environment variables. Inform users of critical environment vari-

ables (especially $PATH) and how they can be changed. See NUnderstand-
ing variables" in the Operating System User's Guide.
• System security profile Inform users of the security profile configured on

the system and any restrictions applied to usage. For a list of security
profiles and parameters affected, see "Security profiles" in the System
Administration Guide. Refer users to Chapter 9, "Using a secure system" in
the Operating System User's Guide.
Planning your site

Before installing or expanding your system, review this material with
management and create a physical plan of the system that makes the most
efficient use of available resources and allows users the most direct and com-
plete access to those resources.
If growth is expected, plan for it. Make sure that the resources and the com-
munications lines that connect them are adequate for expected growth.
User resource considerations
• Allow for sufficient disk space in the filesystem where home directories are
located. By default, home directories are located in the root filesystem. If
possible, place home directories outside the root filesystem.
• Organize users into workgroups so they can share files. See "Managing
groups" in the System Administration Guide.
• If you need to create large numbers of user accounts at the outset, use the
useradd(ADM) command and template files. See "Using account tem-
plates" in the System Administration Guide.
• Assign advanced authorizations and privileges only to designated adminis-
trators or trustworthy users. See" Assigning subsystem authorizations" in
• Versioning (which makes it possible to recover deleted files) is disabled by
default. Consider whether you want to enable this feature and administer
it accordingly. See "Versioning file systems (undelete)" in the System
Administration Guide for more information.

Planning your site
Network considerations
• If you plan to perform distributed or remote administration, be sure to set

up equivalency and requisite authorizations for administrative users. This
will allow you to administer systems from one location instead of having to
rlogin to each system. See" Administering other systems with SCOadmin
managers" in the Networking Guide.
• Where possible, set up dedicated servers to manage different resources
(files, printers, applications, mail, and so on). See "The distributed comput-
ing environment" in the Networking Guide.
Hardware considerations
• Set up the computers in a place where they will not be bumped or moved
at any time. If possible, they should be in a room by themselves, with little
or no foot traffic. If workstations are used for data storage, at least place
them on stable furniture and leave no cables exposed to traffic.
• Keep the computer room cool and give each machine excellent ventilation.
Keep all machines away from walls and, if possible, provide a separate air
conditioner for the computer room, with more-than-adequate cooling capa-
bility.
• Install a Halon® fire extinguishing system in the computer room rather
than sprinklers.
• Store backup media in a separate room from the computers. This room
should be fireproof, or and / or have a Halon fire extinguishing system
(rather than a sprinkler system).
• Ensure that there is adequate and uninterrupted power for the computers
(or at least surge protection). Installing an uninterruptible power source
(UPS) will prevent system crashes caused by small electrical failures and
may provide enough power for an orderly shutdown following major
electrical failures. This is especially important if your building frequently
suffers power glitches or if you live in an area that is subject to frequent
major storms. The computers should also be on an isolated, fully grounded
(earthed) circuit.
• If you install a local area network, plan the cabling and location of all
machines and peripherals carefully. Seek the assistance of a networking
expert to make these plans. Good planning and the use of adequate con-
necting media and compatible hardware are essential for long-term
network performance.
163
• If you need leased lines for off-site connections, arrange for these with your
local telephone company.
• If you plan to connect a printer to a parallel port, locate it close to the
machine running it. Keep the machine out of the path of traffic to and from
the printer.
• If you connect terminals, printers, or other peripherals to serial ports, con-
sider using phone-line cabling and switching hardware, especially if your
system is expected to grow in size and complexity. You can readily adapt
phone lines for serial hardware, and telephone connecting and switching
technology is mature and flexible.
Summary of system administration tasks

A system administrator has numerous tasks to perform. They can be divided
into groups according to how often they are carried out. The following list of
tasks ranges from those that must be performed more often than once a day to
those that need be performed less often than once a month. The administrator
may have to do some of the tasks in the following list more or less often,
depending upon the size and complexity of the system.
Table 9-5 Task list

As needed tasks For more information:
o Create/modify user accounts. " Adding and modifying user accounts"
in the System Administration Guide
o Record all system modifications "Keeping a system log" (page 139)
and events in log.
o Be on call to restart the system "Starting the system" (page 169) and
after panics, crashes, power "System crashes" (page 253)
spikes.
o Maintain security of hardware, Chapter 5, "Maintaining system
software, data file access. security" in the System Administration
Guide

Daily tasks For more information:

o Perform scheduled backups (if "Running scheduled backups" in the
configured). System Administration Guide
o Check usage levels. "ps - check process activity" in the
Performance Guide
o Check for runaway processes. "Runaway processes" (page 267)
o Check disk space. "Maintaining free space in filesystems"
in the System Administration Guide
o Check mail functionality, "Checking for MMDF problems" in the
connections. Mail and Messaging Guide
o Check printer status with lpstat -t. Man page for Ipstat(C)
o Check auditing output, if "Generating audit reports" in the System
activated. Administration Guide
o Check UUCP communications "Generating log reports on usage:
links, if active. uulog" in the System Administration
Guide
o Check for unattended login manual page for who(C)
sessions.
Weekly tasks For more information:

o Verify system software (checks "Verifying software" (page 77)
permissions, links, and missing
or corrupted files) - best done
after work hours.
o Check printer spooler status Check Ip(C) account mailbox for
report. messages
o Check log files such as /ete/wtmp "Checking and clearing system log files"
and those in /usr/adm and in the System Administration Guide
/usr/spool and clear, trim, or
truncate.
o Use sar(ADM) to generate a "sar - system activity reporter" in the
report of activity. Performance Guide
o Generate detailed report of user "Displaying file system and directory
disk utilization. usage statistics" in the System
Administration Guide - see description
of quot(ADM)
165
(Continued)
Weekly tasks For more information:

o Remove temporary files "Finding temporary files" in the System
including lost+found files and Administration Guide
*.out files.
Monthly tasks For more information:

o If you are not doing scheduled "Running unscheduled file system
backups, perform an backups" in the System Administration
unscheduled (level 0) backup. Guide
ORe-tune system and re-allocate Chapter 2, "Managing performance" in
resources, if necessary. the Performance Guide
o Perform tape drive tape( C) manual page
maintenance: clean heads and
retension drive using tape reten
command
o Change dial-in passwords, if "Setting passwords for dial-in lines" in
necessary. the System Administration Guide
o Change root password, if "'Setting or changing a user password"
necessary. in the System Administration Guide

Occasional tasks For more information:

D Upgrade system and application Release Notes of the new version
software, as needed.
D Check for configuration errors, "Checking system configuration" (page
including verification of system 260)
software
ORe-distribute space in " Adding disk space and restructuring
filesystems. filesystems" or "Maintaining free space
in filesystems" in the System
Administration Guide
D Find SUrD or SCrD files, check "Locating files" in the System
owner, size. Locate huge (over Administration Guide
64 Mbyte) files and verify their
purpose.
D Find" orphan" files (files "Changing ownership of files with an
belonging to deleted users). obsolete UID / GID" in the System
Administration Guide
167

Chapter 10
Starting and stopping the system
These tasks are related to powering up your system and bringing it down:
• Starting the system (this page)
• Stopping the system (page 178)
• Logging in as the superuser (page 180)
• Understanding the hardware information displayed at boot time (page 181)
• Changing the startup process (page 182)
Additional information on altering the startup process is found in Appendix

A, "Customizing UNIX system startup" in the System Administration Guide.
Starting the system

Starting your sea system requires more than just turning on the power. The
system goes through a series of stages to ready the system for use, some of
which may require intervention:
• Loading the operating system (page 170)
• Saving/deleting a system memory image (page 170) if the system was
improperly stopped
• Cleaning file systems (page 171)
• Choosing the mode of system operation (page 172)
• Setting the time and date at startup (page 173)
• Checking the security databases (page 175)
169
NOTE The default system behavior is to restart and proceed with these
stages without intervention when the computer is switched on (or power is
restored). See "Changing the system restart options" (page 182) for more in-
formation.
See also:
• "The UNIX system life cycle" in the Operating System User's Guide
Loading the operating system

The first step in starting the system is to load the operating system from the
computer's hard disk.
1. Turn on power to the computer and hard disk. The computer loads the
UNIX system bootstrap program and displays this message:
Boot
2. Press the (Enter) key. The system loads the operating system using the
default bootstring as described in "Changing the startup process" (page
182).
When the system is loaded, it displays information about the system

configuration (page 181) and verifies that the root filesystem (that is, all files
and directories) is in order and not corrupted. If a file system is uncorrupted
and in good order, it is called "clean". If the root filesystem is clean, you can
choose the mode of operation. If not, the system requires you to clean your
filesystems first.
Saving/deleting a system memory image

If the system was improperly halted, you may see the message:
There may be a system dump memory image in the swap device.
Do you want to save it? (yin)
This memory image contains technical data about the state of the system
when operation was interrupted. Information about preserving and analyz-
ing this data is discussed in "Recovering from a system panic" (page 254). If
you respond n, you are then asked if you want to delete the image; enter y to
save the image and continue.

Starting the system
Cleaning filesystems
The root filesystem must be "cleaned" (checked and cleared of any incon-
sistencies) using fsck(ADM) if the following message is displayed:
fsstat: root filesystem needs checking
OK to check the root filesystem (/dev/root) (yin)?
This message is displayed only if the system was not shut down properly, as
described in "Stopping the system" (page 178). Your additional filesystems
may also require cleaning.
To clean the file system, enter y (for "yes") and press the <Enter) key. fsck
cleans the filesystem, repairing damaged files or deleting files that cannot be
repaired. It reports on its progress as each step is completed. At some point,
you may be asked if you wish to salvage a file. Always answer by entering y
or n and pressing the <Enter) key. You can also enter y! and yes answers will
be assumed for all succeeding prompts. For an explanation of how fsck
works, refer to "Filesystem check phases (HTFS, EAFS, AFS, S51K)" in the Sys-
tem Administration Guide.
There are two cases where cleaning will be skipped (or shortened consider-
ably):
Intent logging If "intent logging" is enabled on the file system, it is
unlikely that cleaning will be necessary; fsck will not be
invoked in this case. If any cleaning is necessary, a "fast
fsck" will be performed that replays the transaction log for
the filesystem. This process lasts several seconds (instead
of minutes). See "Logging filesystem transactions" in the
System Administration Guide for more information.
DTFS file systems DTFS file systems are extremely stable and normally do not
require cleaning. When cleaning is necessary, no interven-
tion is needed. See "Filesystem check phases (DTFS)" in
the System Administration Guide for more information. In
some cases, a DTFS root filesystem will be rebooted after
checking if many changes had to be made to repair the file-
system.
When cleaning is complete, the system asks you to choose the mode of
operation.
NOTE When restarting automatically, the default system behavior is to fix

filesystems without operator intervention; the system boots and runs fsck
assuming "yes" answers. To change this, use the System Startup Manager
(page 182) or change FSCKFIX=YES to FSCKFIX=NO in fetcldefault/boot.
171
Choosing the mode of system operation

You can choose the mode of operation as soon as you see the message:
Type CONTROL-d to continue with normal startup,

(or give the root password for system maintenance):
The system has two modes: multiuser mode (this page) (for normal opera-
tion) and single-user mode (this page), also known as maintenance mode.
Multiuser mode is for ordinary work on the system and allows users to log in
and begin work. Single-user mode is reserved for work to be done by the sys-
tem administrator, and does not allow multiple users.
To choose multiuser mode, press (Ctrl)D. To choose system maintenance

mode, enter the superuser password (also called the root password) and press
(Enter).
I
NOTE The superuser (root) password is assigned during system installation.
If you do not know the root password, ask the administrator who installed
your system.
Single-user mode
Use system maintenance mode only if you must do system maintenance work
that requires all other users to be off the system, including checking file-
systems, installing updates or new software, and reinstalling system files or
packages. Note that many system services (like printing and networking) will
not function because the various daemons and startup programs in /etc/rc are
not executed. Single-user mode effectively halts the startup process until you
exit using (Ctrl)D, when the process continues with setting the system time.
While in single-user mode, the superuser prompt" #" is displayed.
I NOTE You cart also configure the system to skip the single-user mode
prompt. See "Changing the startup process" (page 182).
Multiuser mode
When you select multiuser mode, the startup process continues, proceeding
with setting the system time. The most important distinction between single-
user and multiuser mode is the execution of startup commands found in the
/etc/rc directories discussed in "Changing scripts in /etc/rc2.d" in the System
Administration Guide. These scripts generate startup messages for the various
system services, such as the printer or network services. Next, the system dis-
plays the login: prompt and users are allowed to log in.

Starting the system
Setting the time and date at startup

Once normal operation starts, the system asks for the correct time and date:
INIT: New run level: 2
Current System Time is Tue Nov 9 23:26:54 1999

Enter new time ([[CC]YYMMDD]hhmm[.ss]):
Unless your clock battery is drained or removed, there should be no need to
change the date. To leave the time and date unchanged, simply press (Enter).
If you need to change the time and date, enter the new time and press (Enter).
The new values must be entered as two or more consecutive sets of digits,
where the digits can be one or more of:
ccyy (optional) represents the year (the current year is the default). It can be
entered as a 4-digit value to explicitly specify the century or
as a 2-digit value, where the range 69-99 refers to years in the
twentieth century (1969 to 1999 inclusive) and values in the
range 00-68 refer to years in the twenty-first century (2000 to
2068 inclusive).
mm (optional) represents the current month. It can be any two-digit value,
from 01 to 12 for January to December, respectively.
dd (optional) represents the current day. It can be any two-digit value,
from 01 to the last day of the month.
hh represents the current hour. It can be any two-digit value,
from 00 to 23. Hours are expressed in the 24-hour format, in
which morning hours range from 00 to 11 and evening hours
from 12 to 23.
mm represents the current minutes. It can be any two-digit value,
from 00 to 59.
55 (optional) represents the current seconds. It can be any two-digit value,
from 00 to 59.
For example, to change the time and date to 3 February 1995 at noon, enter:
9502031200
After accepting the new value, the system then displays the new time and
date:
Sun Feb 03 12:00:00 PST 1995
If you enter an incorrect value, the system prompts you to try again. If you do
not enter an optional value, the current value for that item remains
unchanged. If you type a new value for the year, you must also type values
for the month and day. Similarly, if you type a new value for the month, you
must type a value for the day.
173
The time and date display is followed by service startup messages and the
login: message.
Setting the time and date during normal operation

You can change the system time during normal operation with the System
Time Manager, located in the System directory of the SCOadmin hierarchy.
Enter numbers manually (or use the up and down buttons in the graphical
version) to set the time and date entries. Note that hours are expressed in 24-
hour format, in which morning hours range from 00 to 11 and evening hours
from 12 to 23.
NOTE If you need to set the system clock back, reboot the system and enter
I the new time during startup. Failure to do so may cause unpredictable

behavior, especially in event-driven processes.
To save your changes, select Set from the Time menu.
To change your time zone, see "Changing the system time zone" (this page).
Changing the system time zone

You can change the system time zone using the System Time Manager,
located in the System directory of the SCOadmin hierarchy.
1. Select Change Timezone from the Time menu.
2. Select the "Geographical area". The screen is updated with selections
appropriate for your location.
3. Select the "timezone" for your location. If you cannot find your timezone,
click on the Specify Unlisted Timezone button and provide the name,
whether it is east or west of Greenwich Mean Time, and the hours and
minutes from GMT.
4. If applicable, select Yes or No for "Daylight savings time".
NOTE Any users logged in (including root) during the timezone change
operation will not see the change until they log out and log in again. This is
because the timezone variable (located in /etc/TIMEZONE) is read at login
time. .

Starting the system
Checking the security databases

Each time your system is rebooted (and after fsck is run if your system was
brought down unexpectedly) the system automatically checks critical security
database files. The messages are:
Checking tcb ...
Checking protected password and protected subsystems databases
Checking ttys database ...
This checking is done to avoid problems with access to your system. In the
rare case where a file is missing, you are alerted to this fact and asked to
restore the file from backups (or it may be necessary to repair broken sym-
bolic links).
When the system is halted suddenly by power or hardware failures, some file-
system damage can occur. Damage can cause the removal of security data-
base files, or can leave these files in an interim state if they were being
updated at the time of the system crash. Whenever a reboot occurs, the sys-
tem runs a series of programs to check the status of the database files. When
the system terminates abnormally and is rebooted, this check is performed
after fsck(ADM) is run on the root file system, and before entering multiuser
mode.
The system follows these steps:
1. The script /ete/smmck (system maintenance mode checker) runs the
tcbck(ADM) program to clean up any database files that were left in an
interim state while being updated.
When a security database file is updated, the contents of the old file (file)
is copied or updated to create the new "-t" file (file-t). Next, the old file
(file) is moved to a "_d' file (file-o), and the new file (file-t) is moved to the
original name (file). When this process is interrupted, "_d' and "_t" files
are left and must be reconciled before the system will function properly.
tcbck first resolves any -t" and "-d' files left in the /ete/auth/system,
II
/ete/auth/subsystems, and /tcb/files/auth/* directories and the /ete/passwd and

the fete/group files. If there are multiple versions of a file, the extra files
must be removed. This is done automatically as follows:
a. If file, file-o, and file-t exist and file is not zero length (empty), then
file-t andfile-o are removed.
b. Iffile andfile-t exist thenfile-t is removed.
c. If only file-t exists, then it is moved to file.
d. If only file-o exists, then it is moved to file.
If scenario c. occurs, a message similar to this is displayed:
letc/tcbck: file file missing, saved file-t as file
175
This is done because the" -t" file is the modified version of the original file
and could have been damaged; it is likely that this file does not contain all
the entries of the original. This message is repeated for all files found in
that state in the specified directories. (The" -d' files are not suspect
because they are the original versions of the files renamed prior to updat-
ing.)
2. tcbck checks that key system files are present and that they are not empty.
If a file is missing (or empty), then a message similar to this is displayed:
letc/tcbck: file file is missing or zero length
This process is repeated for each of these files (critical TCB files are marked
with at):
/ete/auth/system/default t
/ete/auth/system/files
/ete/auth/system/devassign
/ete/auth/system/authorize t
/tcb/files/auth/r/root t
Jete/group
/ete/passwd t
When this process is complete, if any files were missing, or empty" -t" files
were substituted for real files, this message is displayed:
letc/smmck: restore missing files from backup or distribution.
If either /ete/passwd or Jete/group is missing, this message is displayed:
letc/tcbck: either slash (I) is missing fran letc/auth/system!files or there
are malfonred entries in letc/passwd or letc/group
. NOTE You can ignore any warnings that /tcb/files/auth/r/root is missing.

Enter exit when the root prompt is displayed and authck will later repair
this file as described in step 6.
Corrupted files are not detected by tcbck, but other error messages may
be displayed that are described in "Troubleshooting system security" in
3. If critical database files are missing or corrupted, then the system enters
maintenance mode automatically without asking for the root password.
These messages are displayed:
Security databases are corrupt.
Starting root shell on console to allow repairs.
Entering System Maintenance Mode
If no critical database files are missing, you are prompted to choose sys-
tem maintenance mode or normal operation. If files are reported missing,
write them down and follow the instructions in "Restoring critical security
database files" (page 186).

Starting the system
4. tcbck removes the files /ete/auth/system/pw_id_map and

/ete/auth/system/gr_id_map because the modification times of these files are
compared with those of /ete/passwd and fete/group, and problems can occur
when the system clock is reset. tcbck then tries to rebuild the map files
using cps(ADM). If this fails, then either the File Control database
(fete/au th/sys tem/files ) is missing, or the File Control database entry for" /" is
missing, or there are syntax errors in /ete/passwd or fete/group.
S. After the system enters multiuser mode (INIT: New run level: 2 is dis-
played) and you are prompted to set the system clock, fete/authckrc is rein-
voked. If any missing files are found, warnings similar to the ones shown
previously are displayed, followed by the message shown below:
letc/tcbck: file file is missing or zero length
letc/authckrc: Log in on the OVERRIDE tty and restore
the missing files from a backup or the distribution disks.
This means that files are still missing. These files will have to be replaced
when the system comes up in multiuser mode and you are allowed to log
in. Write down the names of the missing files and follow the instructions
in "Restoring critical security database files" (page 186).
If /ete/passwd or fete/group are missing, the following messages is displayed
at startup (the first if /ete/passwd is missing, the second if fete/group is miss-
ing):
su: Unknown id: bin
su: Cannot setgid to auth, no auth entry
6. The message is displayed:
Checking protected password and protected subsystems databases ...
The authck(ADM) program is run to make certain that all users listed in
/ete/passwd have Protected Password database entries. If any are missing,
they are created as needed if you respond y to this prompt:
There are errors for this user
Fix them (yin)?
The Protected Subsystem database files are then checked to ensure that they
correctly reflect the subsystem authorization entries in the Protected Pass-
word database. Each name listed in each subsystem file is verified against
the Protected Password entry with the same name to ensure that authoriza-
tions are consistent between the files. In addition, each Protected Password
entry is scanned to verify that all the privileges listed are reflected in the
Protected Subsystem database. If any inconsistencies are found, you are
asked if you want them fixed automatically:
There are discrepancies between the databases.
Fix them (Y or N)?
177
You may see that many discrepancies are reported and repaired by this
process - this is normal.
NOTE If the system is set to restart automatically when an operator is
not present (" AUTOBOOT=YES" appears in fete/default/boot), then
authck(ADM) is called noninteractively. Warnings are displayed about
inconsistencies found but authck is not given the opportunity to fix
them. The transition to the multiuser operation then proceeds as nor-
mal.
See "Database consistency checking: authck(ADM) and
addxusers(ADM)" in the System Administration Guide for information on
running authck manually.
7. You see this message:
Checking ttys database
ttyupd(ADM) is run to ensure that all ttys in /ete/inittab have entries in the
Terminal Control database (/ete/auth/system/ttys).
8. The system should be up and ready for logins. If any files were reported
missing, you must now log in on the override terminal to restore them, fol-
lowing the same procedure outlined earlier. By default, the override ter-
minal is defined as ttyOl, also known as the first multiscreen. If you
removed the default entry in fete/default/login, you will have to shut the
system off, reboot and enter single-user mode, and restore the files that
way. When you log in on the override tty, this message is displayed:
The security databases are corrupt.
However, root login at terminal ttyOl is allowed.
Stopping the system

Stopping your seo system requires more than just turning off the computer.
You must prepare the system by using the System Shutdown Manager
(located in the System directory of the SCOadmin hierarchy) or with the
shutdown(ADM) command. This not only halts system services properly, but
warns users and gives them an opportunity to finish their work.
To shut down the system, select Begin Shutdown from the Shutdown menu.
The default behavior is to send the default broadcast message to all users and
shut the system down in 60 seconds.
To change the grace period, enter your changes in the "Delay" field. If you set
the "Delay" to 0, the "Message" field cannot be filled in and no message will be
sent because the shutdown will be immediate.

Stopping the system
To change the broadcast message, enter the text in the "Message" field, or
select Read from file from the Message menu to use a prepared file.
To automatically restart the system, select Reboot after shutdown.
To request confirmation before shutting down, select Confirm prior to shut-

down.
To save your selections, select Save from the Shutdown menu.
Using the shutdown command line

To stop the system with the shutdown(ADM) command:
1. Log in as the superuser (page 180). The system opens the superuser
account and displays the message of the day and the superuser prompt.
2. Enter this command:
shutdown -gn
where n is the number of minutes before the shutdown is to take place. To
go from normal operation to system maintenance mode, use this variation:
shutdown -gn su
The system displays a warning message at each terminal, asking logged-in
users to finish their work and to log out. (The warning message can be
customized; see the shutdown(ADM) manual page for details.) As soon
as all users are logged out or the specified time has elapsed, the system
closes all accounts and displays this message:
** Safe to Power Off **
-or-
** Press Any Key to Reboot **
3. If you specified single-user mode on the command line, the system
proceeds directly to the single-user prompt without rebooting as
described in "Choosing the mode of system operation" (page 172).
4. If you did not specify single-user mode, turn off the computer or press any
key to reboot the system.
Using the haltsys command

The haltsys(ADM) command halts the system immediately, without warning
users. If there are any users logged into the system when the haltsys com-
mand is given, they are logged out and their work in progress is lost.
179
To stop the system with the haltsys command, log in as the superuser and
enter:
/etc/haltsys
The system displays the message:
-or-
Turn off the computer, or press any key to reboot the system.
Logging in as the superuser

Many system maintenance tasks require you to log in as the superuser. For
example, you must be logged in as the superuser to stop the system. Do not
confuse the superuser login with running in single-user mode. (page 172) The
only similarity is that both require the use of the root password.
To log in as the superuser, you must know the superuser password. If you do
not know the root password, ask the administrator who installed your system.
You also need to see the login: message on the screen. If you are using a
character-based display and do not see this message, press (Ctrl)D until it
appears.
WARNING Take special care when you are logged in as the superuser. In
particular, you should be careful when deleting or modifying files or direc-
tories. This is important because the superuser has unlimited access to all
files, and it is possible to remove or modify a file that is vital to the system.
Avoid using wildcard designators in filenames and keep track of your
current working directory.
To log in as the superuser:

1. When you see the login display, enter the superuser login name:
login: root
2. Enter the superuser password when prompted. The system does not dis-
play the password as you enter it, so enter each keystroke carefully.
The system opens the superuser account. If you are using a graphical display,
you see the Desktop of the root account. If you have logged in to a character-
based display, you see the superuser prompt" #". You can exit at any time by
pressing (Ctrl)D.

Understanding the hardware information displayed at boot time
Understanding the hardware information

displayed at boot time
At boot time, a table of hardware information is displayed after the copyright
information. This table represents your hardware configuration as recognized
by the operating system.
Example 10-1 Sample boot display

device address vector dma comment
cpu - unit=1 family=5 type=Pentium

cpuid - unit=1 vend=GenuineIntel mod=2 step=B5
fpu 13 - unit=1 type=80387-compatible
floppy Ox03F2-0x03F7 06 2 unit=O type=96ds15
serial Ox02F8-0x02FF 03 - unit=1 type=Standard nports=1
parallel Ox0378-0x037A 07 - unit=O
console - - unit=ega type=O 12 screens=68k
disk Ox01FO-Ox01F7 36 - type=WO unit=O cyls=791 hds=16 secs=48
adapter Ox8000-0x8CDC 11 - type=eiad ha=O id=7 fts=std
Key:
cpu/ cpuid The CPU type(s), stepping, and vendor information.
device name of the hardware
address address in hexadecimal
vector interrupt vector
dma direct memory access channel
comment other details about the hardware
fpu floating-point unit present (Intel 80387 math coprocessor, 80486
CPU and Pentium chips)
floppy high density S.2S-inch floppy disk drive (type=96dslS)
serial this is COMI with one port (nports=l, no multiport card is
installed)
parallel this is parallel port IpO (unit=O)
181
console the console has an EGA video adapter (unit=ega) compatible with
type 0 (IBM EGA), with 12 multiscreens that take up 68KB of kernel
space
disk Western Digital st506 controller number 0 (WO), hard drive 0 (unit
0), as well as the number of cylinders, heads, and sectors
adapter Adaptec AHA-174x host adapter. See "Boot time messages from
host adapter drivers" (page 306) for more information.
Due to the wide variety of hardware devices available, you may see addi-
tional device entries not discussed here.
The hwconfig utility can display or access this information at any time, using
the configuration information stored in the file jusr/adm/hwconjig. Refer to the
hwconfig( C) manual page for more information.
In addition, the eisa(ADM) utility can be used to list the cards installed in EISA
machines, and the slot( C) utility used for MCA machines.
Changing the startup process

Each time the computer is started, the system runs the boot program. Unless
you give different instructions at the prompt, boot loads the default kernel
program using the configuration values specified in the file jete/default/boot on
the default root filesystem. You can change the current boot process with
your response to the prompt, or you can use the System Startup Manager
(this page) to change the default configuration values for future boot opera-
tions. You can also edit the fete/default/boot file to change these options manu-
ally.
See also:
• boot(F) manual page
• "Changing the default bootstring (DEFBOOTSTR)" (page 183)
Changing the system restart options

To alter the system startup behavior, use the System Startup Manager located
in the System directory of the SCOadmin hierarchy.
The restart options determine whether (and how) the system will restart after
a power failure or system panic.

Changing the startup process
You have these options:

Restart automatically when power is restored
If selected, restart without operator intervention and allow users to log
in. If not, wait indefinitely for operator to respond to Boot: prompt.
Automatically check and clean filesystems
If selected, automatically clean and mount filesystems. (any incon-
sistencies are resolved automatically). If not selected, wait for operator
to continue manually.
Immediately go to multi-user mode during restart
If selected, skip the prompt for single-user mode. (If booting automati-
cally, the prompt is always skipped.)
Restart automatically after a system panic
If selected, restart without operator intervention (a panic always causes
the system to halt). Similar to "Restart automatically when power is
restored."
Seconds before auto restart
Specifies how long the system waits at the Boot: prompt before restart-
ing automatically.
Default Boot String
Specifies the boot string to be automatically loaded when you press
(Enter) at the Boot: prompt.
To restore system defaults, select Reset Defaults from the Parameters menu.
To alter other startup parameters in /etc!default/boot, select Advanced from the

Parameters menu. These are described in boot(F) manual page.
To save your changes, select Save from the Startup menu.
Changing the default bootstring (DEFBOOTSTR)

To change which program is loaded by default when you just press (Enter) at
the boot prompt, modify the default bootstring set with the System Startup
Manager (page 182) or change the DEFBOOTSTR option in /etc!default/boot.
For example, this setting in /etc!default/boot causes the boot program to load
the kernel from a hard disk by default:
DEFBOOTSTR=hd(40)unix
183
See "Using bootstrings" (page 276) or bootstring(HW) for additional key-

words or "bootstrings" that you can add to the boot command line to load
special drivers at boot time. For example, here is the bootstring for a Wangtek
cartridge tape:
DEFBOOTSTR=hd(40)unix ct=wangtek(Ox338,5,1)
Booting an old kernel

If you have recently relinked the kernel and it fails to boot properly or causes
other problems, you can enter unix. old or unix. safe at the boot prompt and
load a previous kernel. If you find no suitable kernel, see "unix not found"
(page 189).
Troubleshooting system startup

This section discusses reasons why a system that has booted successfully in
the past may not boot now. These situations usually occur as a result of a
power failure or system panic that corrupts the root filesystem, although con-
figuration changes, hardware failure, and human error can also cause these
situations.
If you are performing an installation and your system fails to boot see Chapter
3, "Troubleshooting the installation" (page 53).
If you cannot boot your system:

• Is the system plugged in?
• Are any cables loose, disconnected, or misconnected?
• Are the cable chains terminated properly?
• Does the floppy drive contain a floppy disk that is not a boot floppy disk?
• Has your hard disk developed a bad track? A bad track on the disk can
corrupt system files that are required for booting the system. See "Fixing
bad tracks and bad blocks on hard disks" (page 341) for information on
how to recover from this situation.
Many of the problems discussed here relate to missing system files. "About
missing or corrupted system files" (page 185) explains what you need to
restore files.

These problems are discussed:

• Restoring critical security database files (page 186)
• System fails to boot or displays "NO OS" message (page 188)
• boot not found (page 188)
• unix not found (page 189)
• Cannot load floating point emulator (page 190)
• Cannot exec /bin/login: No such file or directory (page 191)
• Cannot open /etc/inittab (page 192)
• /etc/ initscript: /bin/sulogin: not found (page 193)
• /etc/initscript: /etc/bcheckrc: not found (page 193)
• no utmp entry. You must log in from lowest level-sh (page 194)
• Fork failed ... Resource temporarily unavailable (page 194)
• System hangs at boot time (page 195)
• Console keyboard locks up (page 195)
• Cannot log into console (page 197)
About missing or corrupted system files

On rare occasions, one or more of the critical system files may be accidentally
modified or removed, preventing the system from booting or operating
correctly. In cases where your system does not boot, you must boot from
floppy disks in order to access the system so that you can restore the critical
files from backups.
To boot and access a system that does not boot from the hard disk, you must
have an emergency boot floppy disk set (page 81). This set consists of the
boot floppy disk and the root file system floppy disk. The boot floppy disk
contains three files necessary for booting and loading the UNIX system kernel:
/boot, jete/default/boot, and /unix. The root filesystem floppy disk contains a
subset of the UNIX system utilities that you can use to restore your system.
NOTE We recommend that you have a separate emergency boot floppy

disk set for each system or further corruption can result. Systems that have
identical hardware and software configurations can share an emergency boot
floppy disk set.
185
If a catastrophic failure occurs and you do not also have a backup of the root
file system, you must reinstall your sca system. To do this, follow the instruc-
tions for reinitializing the root disk in "Replacing the root hard disk" (page
339).
See also:
• "Checking the security databases" (page 175)
• "Restoring a corrupted root filesystem" (page 250)
Restoring critical security database files

If the system startup process reports that security database files are missing,
follow these steps:
1. First attempt to verify the "UNIX Run Time System" component of your
sca system using the Software Manager (page 77) or the custom(ADM)
command line:
custom -v quick SCO:Unix:RTS -x
The custom verify command will repair any broken symbolic links that
may have rendered the files unreachable. custom leaves a copy of the ver-
ify output in custom. VerifyReport.
NOTE If the files jete/passwd or jete/group are missing from the system,
the custom command will fail. (For jete/group, the command will take a
very long time to complete.) If it does, use one of these commands to
restore the symbolic link manually:
In -s /var/opt/K/SCO/Unix/* /etc/passwd jetc/passwd
In -s /var/opt/K/SCO/Unix/* /etc/group /etc/group
If the process is successful, enter <Ctrl)D to continue the startup process. If

files are actually missing from the system and not just a consequence of a
broken link, the error messages will persist and the files must be restored
from backups (step 2) or from the original distribution files (step 3).
2. Attempt to restore the files from your backups. For example, if the system
reported that the file /ete/auth/system/files was missing and you had a
backup of the root file system, run the Backup Manager to restore it as
described in "Restoring files from a scheduled file system backup" in the
System Administration Guide. You can also restore the file from the com-
mand line by inserting the first volume of your last full backup of the root
file system into the tape drive and entering:
cd /
cpio -idv -I /dev/rctO etc/auth/system/files

3. If backups are unavailable or you find your backups are unreadable, it is

possible to restore the original distribution files. These files are located in
the software storage object for the "UNIX Run Time System" component of
your sca system. Enter this command:
cd /opt/K/SCO/Unix/* /.softmgmt/var
N ow use the appropriate copy commands to restore your lost files:
cp etc/auth/system/default /etc/auth/system/default
cp auth/system/files /etc/auth/system/files
cp auth/system/devassign /etc/auth/system/devassign
cp auth/system/authorize /etc/auth/system/authorize
cp etc/group /etc/group
cp etc/passwd /etc/passwd
If you are missing fete/default/accounts, enter these commands:
cd /opt/K/SCO/Unix_adm/* /.softmgmt/var/etc/sysadm.d/account
cp accounts /etc/default/accounts
NOTE The original distribution files will not contain any changes you
have made to your system - you will have to add them again. For
example, groups added to fete/group or users in /ete/passwd. For
/ete/passwd, you can use the Protected Password database entries to get the
information:
cd /tcb/files/auth
grep u_id * /*
This lists all the accounts on the system and their UIDs (u_id). Ignore the
system accounts like root and bin. The remaining accounts can be added
by editing /ete/passwd manually, or by running the Account Manager and
adding the users (making sure to enter the correct UID and use the exist-
ing home directories instead of creating new ones).
4. Repeat step 1 to make sure all the symbolic links are intact. If the system
is still in single-user mode, enter (Ctrl)D and continue with system startup
as described in "Checking the security databases", step 4 (page 177). If
you are already in multiuser mode, run this command to repair any
remaining inconsistencies:
authck -a -y
187
System fails to boot or displays "NO OS" message
If the system fails to boot or you see the NO OS message, the blocks containing
the partition boot blocks (/etc/hdOboot and letc/hdlboot) or masterboot block
(/etc/masterboot) may have been corrupted. To restore them:
1. Insert the boot floppy from your emergency boot floppy set and boot from
it. When the Boot: prompt appears, enter:
hd(40)unix
2. Enter single user mode and enter these commands at the root prompt:
instbb hd I dev IhdOa
dparam -w
instbb(ADM) writes the partition boot blocks to the hard disk.
dparam(ADM) writes the masterboot code to the masterboot block on the
hard disk.
For some disks it may also be necessary to stamp the disk geometry as
described in dparam(ADM).
boot not found
If your system displays this message when you turn on the power to your
computer, the Iboot file is missing:
boot not found
Cannot open
Stage 1 boot failure: error loading hd(40)/boot
This refers to the boot(HW) program, which loads and executes the kernel
each time you turn on the computer.
If Iboot is missing, use this procedure to boot the system from the emergency
boot floppy disk set so that you can then restore the file:
1. Insert the boot floppy disk in the drive and reboot the machine. This exe-
cutes the initial boot from the boot floppy disk.
2. At the Boot: prompt, enter:
fd(60)unix.Z root=hd(42)
This command boots the system from the floppy disk, loads the the kernel
from the floppy disk, and mounts the root filesystem.
3. Bring up the system in single-user mode by entering the root password at
the prompt.
4. Unmount the Istand file system (where boot and the kernel are located):
umount Istand
The reason for this is that Istand is normally mounted read-only and you
must unmount it and mount it again before you can replace boot.

5. Re-mount Istand:
mount Istand
6. Now mount the boot floppy disk:
mount -r Idev/fdO Imnt
7. While the floppy disk is in the drive, restore the Iboot file by entering this
command at the system prompt:
cp Imnt/boot Istand
This places a new copy of the Iboot file on the hard disk.
8. Before you remove the floppy disk from the drive, unmount the boot
floppy disk (Jdev/jdO) by entering:
umount Imnt
9. Remove the floppy disk from the drive and bring down the system using
haltsys(ADM).
10. Reboot the system from the hard disk by pressing (Enter) at the Boot:
prompt.
unix not found
If the system displays the unix not found message after the system starts to
boot, the unix file is missing. The unix file contains the bootable image of the
UNIX system kernel. If unix is missing, you can boot from another kernel file,
(such as unix.old or unix.safe) by entering the alternate kernel name at the
Boot: prompt.
If there are no other kernel files on the system, boot the system from the emer-
gency boot floppy disk set so that you can restore the unix file:
1. Insert the boot floppy disk in the drive and reboot the machine.
2. At the Boot: prompt, enter:
fd(60)unix.Z root=hd(42) swap=hd(41)
This loads the kernel from the boot floppy disk and mounts the root file-
system on the hard disk.
I NOTE If you have changed the location of the swap device, you should
substitute it for hd(41).
the prompt.
4. Unmount the Istand file system (where boot and the kernel are located):
umount Istand
The reason for this is that Istand is normally mounted read-only and you
must unmount it and mount it again before you can replace the kernel.
189
5. Re-mount /stand:
mount /stand
6. Mount the boot floppy disk:
mount -r /dev/fdO /mnt
7. While the floppy disk is in the drive, restore unix:
cp /mnt/unix.Z Istand
This copies the compressed unix kernel file from the boot floppy disk to
the hard disk. You do not need to uncompress the kernel.
8. Before you remove the floppy disk from the drive, unmount the floppy
disk (Jdev/fdO):
umount Imnt
9. Remove the floppy disk from the drive and bring down the system with
the haltsys(ADM) command.
10. Reboot the system by pressing (Enter) at the Boot: prompt.
11. The kernel you loaded from the boot disk does not include any changes
you've made since creating your emergency boot floppy disk set. You
should immediately relink your kernel as described in "Relinking the ker-
nel" (page 290). Whenever you make changes to your system configura-
tion that add drivers and relink your kernel, you should create a new
emergency boot floppy disk set.
Cannot load floating point emulator
If your computer does not have a 387 math coprocessor chip and the
Jete/emulator file is missing or corrupted, the boot fails with these messages:
WARNING: Cannot load floating point emulator (error 2): jete/emulator
No floating point is available
(If the 387 chip is present, the kernel recognizes it in the hardware recognition
boot message.)
If the boot fails with this message, boot the system and restore Jete/emulator:
1. Insert the boot floppy disk in the drive and reboot the machine.
2. At the Boot: prompt, press (Enter) and when instructed, insert the root
floppy disk. This boots the system and mounts the root filesystem from
the floppies.
3. Clean the root filesystem:
fsck -ofull /dev/hdOroot

4. Working from the floppy disk, use this command to mount the hard disk
root file system to /mnt:
jete/mount /dev/hdOroot /mnt
If mount fails, refer to "Checking and repairing file systems" in the System
Administration Guide for information on checking the hard disk with
fsek(ADM).
5. Copy jete/emulator from the root filesystem on the floppy disk to the
mounted hard disk:
ep fete/emulator /mnt/ete/emulator
6. Unmount the hard disk:
/ete/umount /mnt
7. Make sure that the floppy disk is still in the drive, then reboot the system
with the haltsys(ADM) command.
8. When you see the Press any key prompt, remove the floppy disk from
the drive. Press (Enter) at the Boot: prompt to boot from the hard disk.
Cannot exec /binllogin: No such file or directory
If the system boots correctly but hangs at the login prompt after you enter
multiuser mode, try other multiscreens or serial terminals. If you cannot get a
response from any tty, the /hin/login file may be missing. The /hin/login file is
the login(M) program. This command is run at the beginning of each terminal
session to allow users access to the system. To restore /bin/login:
1. Power-cycle the machine and press (Enter) at the Boot: prompt.
2. When prompted, enter the root password to go into single-user mode.
3. Use the Backup Manager as described in "Restoring files from a scheduled
file system backup" in the System Administration Guide to restore the
/bin/login file from your root file system backup. You can also restore the
file from the command line by inserting the first volume of your last full
backup of the root filesystem into the tape drive and entering:
cd /
epio -idv -I /dev/rctO bin/login
The default tape device is linked to /dev/rctO. If you are using a different
device (such as /dev/rctmini), substitute it for /dev/rctO.
191
Cannot open /etc/inittab

If the system fails to enter multiuser mode when you press (Ctrl)D, or this
message is displayed at boot time, the /etc/inittab file is missing:
INIT: Cannot open letc/inittab errno: 2
The /etc/inittab file contains instructions for init. When inittab is missing, init
cannot execute the system startup instructions and the system cannot enter
multiuser mode. When you press (Ctrl)D, the system remains in single-user
mode and displays the error message above.
To restore inittab, you must recreate the kernel environment:
1. Enter the root password to go into system maintenance mode.
2. Enter these commands:
cd /ete/eonf/cf.d
touch /ete/.new_unix
.. /bin/idmkenv
3. When you see these messages:
The kernel environment includes device node files and letc/inittab.
The new kernel may require changes to letc/inittab or device nodes.
Do you want the kernel environment rebuilt? (yin)
Enter y" and press (Enter). This message is displayed:
/I
The kernel has been successfully linked and installed.

To activate it, reboot your system.
Setting up kernel environment
cat /ete/inittab
If you see a message that the system cannot open the file, enter this com-
mand:
In -s /var/opt/K/SCO/Unix/* /ete/inittab /etc/inittab
This restores the symbolic link to the inittab file in the UNIX system soft-
ware storage object.
exit
6. You see the message:
ENTER RUN LEVEL (0-6,s or S):
Enter 2 and the system will continue into multiuser mode.
The new /etc/inittab file is in place. You do not need to reboot your system.

/etc/initscript: /binlsulogin: not found

If the system displays this error message and goes directly into multiuser
mode (run level 2) at boot time, the /bin/sulogin file is missing from the hard
disk. The sulogin(ADM) utility must be present on the system to access
single-user mode. If this file is missing, log in as root and use the Backup
Manager in the System Administration Guide to restore the /bin/sulogin file from
your root file system backup. You can also restore the file from the command
line by inserting the first volume of your last full backup of the root file system
into the tape drive and entering:
cd /
cpio -idv -I /dev/rdO bin/sulogin
The default tape device is linked to /dev/rctO. If you are using a different de-
vice (such as /dev/rctmini), substitute it for /dev/rctO.
/etc/initscript: /etc/bcheckrc: not found

If the system displays the / etc/ ini tscript: / etc/bcheckrc: not found error
message when you boot up, the /etc/bcheckrc file is missing. The init utility
executes bcheckrc according to instructions in the /etc/inittab file whenever the
system is booted. This utility checks the root file system and repairs it, if
necessary. The /etc/bcheckrc file should be on the hard disk when you boot the
system.
If /etc/bcheckrc is missing, use this procedure to recover it:
the prompt.
2. Clean the root filesystem manually with fsck before doing anything on the
system:
/etc/fsck /dev/root
3. When filesystem has been checked and, (if necessary) repaired, use the
Backup Manager in the System Administration Guide to restore the
/etc/bcheckrc file from your root filesystem backup. You can also restore the
file from the command line by inserting the first volume of your last full
backup of the root file system into the tape drive and entering:
cd /
cpio -idv -I /dev/rdO etc/bcheckrc
The default tape device is linked to /dev/rctO. If you are using a different
device (such as /dev/rctmini), substitute it for /dev/rctO.
4. Enter haltsys at the prompt and reboot the system.
For more information on bcheckrc, see the bcheckrc(ADM) manual page.
193
no utmp entry. You must log in from lowest level -sh

One or more of the system login record files /etc/utmp, /etc/wtmp, and /etc/utmpx
have been corrupted. They can be emptied without affecting the system. Per-
form these steps:
1. Log in as root and enter single user mode.
2. Delete the contents of these files by executing the these commands:
> /etc/utmp
> /etc/wtmp
> /etc/utmpx
3. Shut down the system and reboot the system.
Fork failed... Resource temporarily unavailable

If you see this message displayed on the console:
Fork failed: Command[scoterm]System Error was: Resource temporarily unavailable
This message is usually caused by running out of virtual memory and can be
easily remedied by adding more swap space. This must be done while in
multiuser mode. When executed as root, these commands add approximately
30MB of virtual memory:
touch /swap
swap -a / swap 0 60000
The /swap file will only grow according to the actual swap requirements and
may not actually consume 30MB of disk space. To avoid reissuing this com-
mand every time the system is rebooted, simply add the above commands to
the /etc/rc.d/8/userdef file.
Virtual memory is tracked via the kernel variable availsmem, which tracks
the available virtual memory in 4K pages. This variable is handled conserva-
tively, and normally reserves more swap space than will actually be needed.
Programs that use shared libraries will decrement availsmem. Programs that
use the mmap(S) facility and map privately also require a large reserve of vir-
tual memory.
To monitor availsmem, use the crash(ADM) utility:
# crash
dumpfile = /dev/mem, namelist = /unix, outfile = stdout
> od -d availsmem
f0175120: 0000011682
> q
In this example, the value "0000011682" translates to 11,682 4K pages, or
approximately 45.63 MB.

System hangs at boot time

If the boot process hangs after the Kernel: if a bufs message, the /etc/init file
is missing from the system. The /etc/init file contains the init(M) program.
Once started, the init process spawns all other processes on the system, so if it
is missing, no new processes are started.
To restore /etc/init:
1. Insert the boot floppy disk from the emergency boot floppy disk set in the
floppy drive and reboot the machine.
2. Press (Enter) at the Boot: prompt and, when instructed, insert the root
floppy disk.
3. Mount the hard disk root filesystem:
jete/mount /dev/hdOroot /mnt
If mount fails, check the hard disk with the fsek(ADM) command as dis-
cussed in "Checking and repairing file systems" in the System Administra-
tion Guide.
4. Copy the /etc/init file from the root filesystem on the floppy disk to the
mounted hard disk:
ep /etc/init /mnt/etc/init
5. Unmount the hard disk:
/etc/umount /mnt
6. With the floppy disk in the drive, reboot the system with the
haltsys(ADM) command.
7. Remove the floppy disk from the drive when you see the Press any key
to reboot prompt. Press (Enter) at the Boot: prompt to boot from the hard
disk.
Console keyboard locks up

When the system does not respond to input from the console keyboard, the
situation is known as "keyboard lockup." Console keyboard lockup only
affects keyboards that are attached to the computer's console, not standard
terminals that are attached to serial lines.
You may be experiencing keyboard lockup if all these statements are true:
• The system console keyboard cannot be used to enter data or perform any
tasks.
• You cannot switch multiscreens, and the (CapsLock) key does not turn the
CapsLock light on or off.
195
• Other terminals on the system continue to work.

• Printers or other devices continue to work, and the system is still running.
Before trying to fix a locked keyboard, make sure that:
• you did not accidentally press <Ctrl)S (which stops the screen from scrol-
ling). To check this, press <Ctrl)Q and then see if you can enter characters
from the keyboard.
• if your computer has a Keyboard Lock key, it is not in the locked position.
• the keyboard is plugged into the correct socket.
• the system itself is still running.
Check a terminal to see if it is still working and that you can perform system
tasks, such as logging in and checking the date. If you do not have a terminal,
watch the hard disk access light (if your computer has one).
I NOTE If you are in single-user mode, you cannot use other terminals and
the hard disk access light may not flash.
If it flashes periodically (at least once every 30 seconds), the system is still
running and is using the hard disk.
I WARNING Unplugging the keyboard and reconnecting it while the system is

powered up can damage some computers.
If the console keyboard is still locked after checking these suggestions, try
unplugging the console keyboard and plugging it in again.
If this fixes the problem, your situation is definitely keyboard lockup. If this
last step does not fix the problem, you may still have keyboard lockup.
Preventing console keyboard lockup
You can prevent keyboard lockup by applying a special"patch" that changes
the operating system kernel.
I NOTE This patch disables the keyboard lights, so you should use it only if
you have tried the other approaches.
To prevent console keyboard lockup:
1. Get the system console working, if it is not. If necessary, reboot the sys-
tem and bring it up in single-user mode by entering the root password at
the Boot: prompt.
If you did not reboot, log in as root on the system console and shut the sys-
tem down to single-user mode with the shutdown(ADM) command:
fete/shutdown su

2. Once the system is in single-user mode, enter these commands:

umount /stand
mount /stand
This unmounts the /stand file system (which is normally mounted read-
only) and remounts it so that you can make modifications.
3. Back up the kernel with these commands:
ed /stand
ep unix unix.OO
4. Patch the kernel with these commands:
/eteCfst -w /unix
ledspresent/w 0
$q
5. Shut down the system using jete/shutdown.
6. When you see the Normal System Shutdown message, press any key to
reboot the system. You have now fixed the keyboard lockup problem.
Confirm that the keyboard is functioning normally. If you have no prob-
lems, you should now apply this fix permanently:
ed /ete/eonf/paek.d/en
eopy -om Driver.o Driver.o.save
leteCfst -w Driver.o
ledspresent/w 0
$q
Wrong console keyboard type

If your console keyboard is an XT or other non-AT keyboard and the operating
system is configured for use with an AT keyboard, the system does not recog-
nize input from the keyboard. For information on testing and switching key-
board modes, see ilSetting the console keyboard type" in the System Adminis-
tration Guide.
Cannot log into console
If you try to log into the console in multiuser mode, and the system displays
this error message:
Cannot obtain database information on this terminal
Refer to "Cannot obtain database information on this terminal" in the System
197

Chapter 11
Customizing startup of the Graphical
Environment
This chapter discusses how to customize the startup characteristics of the sea
OpenServer Graphical Environment. Specifically, this chapter covers how to:
• use the display manager (scologin) (page 200)
• use the startx script (page 202)
• use the session manager (scosession) (page 205)
• use environment variables (page 208)
• customize scologin to manage multiple servers (page 210)
• use the Graphical Environment on X terminals (page 217)
Starting a Graphical Environment session

By default, the Graphical Environment runs the scologin display manager on
the second of your console multiscreens (Idev/tty02). This display manager
starts the X server and keeps it running on your system, even when a user is
not engaged in a Graphical Environment session.
However, you can choose to turn the scologin client off and start the X server
manually, or you can run an additional server session on another multiscreen
manually. To run the X server manually, run the startx script.
199
Customizing startup of the Graphical Environment
Regardless of the method you use to actually run the X server, a default
Graphical Environment session is controlled by the session management
client, scosession. scosession defines the clients that are run when you start
the server and controls their appearance and behavior.
See also:
• "Running scologin" (this page)
• "Running the startx script" (page 202)
• "Using the session manager" (page 205).
The above sections assume that you are using clients in their default configu-
ration.
Running scologin
The scologin display manager provides graphical login windows to local and
remote X servers, as well as services that are similar to those provided by log-
in or getty. In particular, scologin:
• keeps the X server running
• prompts for user login and password
• authenticates users
• requests new passwords when appropriate
• establishes secure Graphical Environment sessions
I NOTE See "Customizing scologin" (page 210) for information on modifying

scologin to manage multiple displays, including X terminals.
The scologin client is started as a daemon from the P86scologin script in

/etc/rc2.d. By default,. scologin controls the display on the second multiscreen,
/dev/tty02.
The scologin window appears on the screens of all active X servers for which
scologin is configured to manage. The scologin window contains two fields
into which you enter your login name and password. The box also contains
three buttons: Login, Restart, and Help. To start your session, enter your login
and password, then press (Enter) or click on Login. To restart the X server and
redisplay the scologin window, click on Restart.
If the login is successful, the following environment variables are set:

$DISPLAY, $HOME, and $PATH. If you run the Desktop client, the $LANG
environment variable is also set. These variables are discussed in "Using
environment variables" (page 208).

Once a user is successfully authenticated, several scripts are executed. These

scripts are located in /usr/lib/Xll/scologin and are listed in Table 11-1, scologin
II
session scripts".
Table 11·1 scologin session scripts

Configuration file Description
Xstartup a startup script that defines actions scologin takes before
beginning the user's session
Xsession, defines the nature of the user's X server session by running
Xsession-csh, the /usr/bin/startx script, which starts scosession
Xsession-ksh,
Xsession-sh
Xreset defines the actions that scologin takes when the user ends a
session
See also:
• "Configuring scologin's startup behavior" (this page)
• "Defining X server sessions" (this page)
• "Logging out of scologin" (page 202)
Configuring scologin's startup behavior

After scologin authenticates a user, it executes the startup script,
/usr/lib/Xll/scologin/Xstartup.
I NOTE This script is run as root and as such, should be written with security
issues in mind.
This script does not execute any commands by default - it is empty except
for a few comment statements. You can place shell commands in the file to
perform custom startup tasks, such as mounting users' home directories from
file servers, displaying the message of the day, setting custom shell environ-
ment variables, and so forth.
Once this script has been executed, scologin begins the user's session.
Defining X server sessions

After executing the startup script, scologin searches for a script that defines
the X server session. First, it looks for a file called .xsession in the user's home
directory.
201
If no user-specific file is found, scologin looks for /usr/lib/Xl1/scolog-

in/Xsession-SHELL, where SHELL is the user's current shell. For example, a ses-
sion that is running csh would use the Xsession-csh file.
The Xsession files are started as login shells, which set any environment vari-
ables that are specified in the user's .profile or .login file. Then the Xsession files
run the startx -t script. Basically, scologin passes the responsibility for session
management to the startx script, which then passes control to the scosession
client. For more information on these next stages of session startup, see "Run-
ning the startx script" (this page).
Logging out of scologin

When you end your Graphical Environment session and log out of the system,
scologin runs a "reset" script, called /usr/lib/Xll/scologin/Xreset. This script
executes as root and removes the session manager property from the Root
window.
You can also use this script to undo the effects of commands that were exe-
cuted in the Xstartup script. For example, the Xreset script could unmount
directories from a file server that were mounted when the session was started.
When a Graphical Environment session is terminated, scologin resets the X

server and redisplays the scologin window.
Running the startx script

If you want to start a Graphical Environment session from the command line,
you must run the startx script:
startx &
If you started a session by logging in through the scologin window, scologin's

Xsession-SHELL file also runs the startx script, with the -t option. See "Defining
X server sessions" (page 201) for more information on the Xsession-SHELL file.
If the startx script is run without any options, it:

• modifies the $PATH environment variable to include /usr/bin/Xll, if neces-
sary
• checks to see if the $DISPLAY environment variable is set or not. If not, it
sets the variable to:
hostname:display_number
where hostname is the name of the current host and :display_number is the
next available display. If no other servers are running, the :display_number
is set to zero.

• runs xinit, which starts the X server

• reads the $HOME/.startxrc file, if it exists, and executes any clients specified
in the file. If a .startxrc file is not located in the user's home directory, the
/usr/lib/Xll/sys.startxrc file is read.
If the startx script is executed with the -t option, as it is from the scologin
Xsession-SHELL file, the script does all of the tasks above, including modifying
the $PATH environment variable. However, the -t option does not set the
$DISPLAY environment variable or run xinit to start the X server. In the case
of the scologin display manager, it is unnecessary to start the server because
it is already running. The -t option is also useful if you want to run a Graphi-
cal Environment session on an X terminal, which uses its own internal server.
For more information on using the Graphical Environment with X terminals,
see "Using X terminals" (page 217).
NOTE If you run the startx script with the -t option, you must set the
$DISPLAY environment variable before you run startx. Otherwise, you see
the error message:
DISPLAY environment variable not set
For information on the $DISPLAY environment variable, see "Using environ-

ment variables" (page 208).
The /usr/lib/Xll/sys.startxrc file specifies the clients and commands that are
run by default in X server sessions for all users on the system. Because the
default configuration uses the session manager to control Graphical Environ-
ment sessions, scosession is the only client that is run by the sys.startxrc file.
This file contains the following line:
exec scosession 2> Idev/null
If you want your system to use scosession to manage Graphical Environment

sessions, you should not modify this file.
The startx script also looks for a local .startxrc file, located in a user's home
directory. If a user wants to use the session manager, there is no need to put a
.startxrc file in $HOME. The sys.startxrc file is used to run scosession.
If, however, a user does not want to run scosession, a .startxrc file is needed in
$HOME to start the desired clients, particularly the window manager. The
.startxrc file is not placed in a user's home directory by default. To create this
file, copy /usr/lib/Xll/sys.startxrc to .startxrc in your home directory.
203
NOTE You are strongly urged to use scosession to control the clients you
want to run automatically in a Graphical Environment session, instead of
adding clients to either $HOME/.startxrc or /usr/lib/Xll/sys.startxrc. If you do
not use the session manager, you may accidentally overlook starting an
important element of the Graphical Environment, resulting in the loss of
some functionality.
See also:
• startx(X) manual page
• "Using the session manager" (page 205)
Using grey-scale monochrome monitors with the X server

Running startx with some grey-scale monitors (sometimes incorrectly called
monochrome) causes the system to crash. If this happens, ensure that the
console ports are properly configured. To configure your ports automatically
at boot-up:
1. As root, use an ASCII editor (such as vi) to open /etc/rc.d/8/userdef
2. Add the following lines:
vidi v80x25 < /dev/ttyOl
vidi v80x25 < /dev/tty02
vidi v80x25 < /devltty07
vidi v80x25 < /dev/ttylO
vidi v80x25 < /devlttyll
echo "Screen devices set to color mode
3. Save the file.

4. Use shutdown(ADM) or init(M) to reboot your machine.
5. Restart the X server.

Solving problems exiting the X server

If you use startx to start the X server, you may notice problems when exiting
your Desktop or X server. Sometimes, the screen remains in graphics mode or
the keyboard does not function correctly after exiting.
To prevent this problem, start the X server using this command line:
startx; /etc/clean_screen
If you log in using scologin, you should not encounter any problems.
Using the session manager

The session manager client, scosession, is responsible for the startup and
shutdown of your X server session. Regardless of whether you start your X
server through scologin or by running startx on the command line, the
scosession client is invoked by the /usr/lib/Xll/sys.startxrc file by default.
scosession uses several files to determine its behavior. These files are located
in /usr/lib/Xll/sco/ScoSession, and are listed in Table 11-2, "scosession
configuration files".
Table 11·2 scosession configuration files

startup defines scosession's tasks when a Graphical Environment
session is started
static defines the clients that are run for the default session
shutdown defines scosession's tasks when a Graphical Environment
session is ended
xrdbcomp compares the system resources loaded by xrdb with any
resources added to the resource database for the current
session and saves the settings so they can be used in future
sessions. For information on xrdb, see Chapter 5, "Under-
standing resources" in the Graphical Environment Guide.
205
scosession also stores information on individual users' sessions in files in the

$HOME/.odtpref directory. These files are listed in Table 11-3, "User scosession
files".
Table 11-3 User scosession files

$HOME / .odtpref / ScoSession this directory contains files related
to the management of a user's ses-
sion
$HOME / .odtpref / ScoSession / dynamic contains the clients that are saved
from a previous session. These
clients are started if the user
resumes the previous session.
$HOME / .odtpref / ScoSession / static contains the clients that constitute
a user's default session. This file
only exists if the user selected to
save a session configuration from
the Session control. in the Graphi-
cal Environment Guide Otherwise,
the default session is derived from
the static file, located in
/usr/lib/Xll/sco/ScoSession.
$HOME/.odtpref/ScoSession/xrdb.save contains the resource settings from
the resource database that existed
a t the end of a user's session.
Resources are stored in this file by
the xrdbcomp utility. These
resources are loaded into the
resource database the next time the
session is resumed.
The $HOME/.odtpref directory may contain other directories and files, depend-
ing on the clients you use and configure.
See also:
• "Starting scosession" (page 207)
• "Stopping scosession" (page 207)
• "Using scosession options" (page 208)
• scosession(XC) manual page
• xrdb(XC) manual page

Starting scosession
When scosession is started, the /usr/lib/Xll/sco/ScoSession/startup script is
read. This file sets up your Graphical Environment session. In particular, it:
• loads resources located in files in /usr/lib/Xll/sco/startup into the resource
database, using the xrdb command. The script also loads resources stored
in the file $HOME/.odtpref/ScoSession/xrdb.save. (For information on
resources and the resource database, see Chapter 5, NUnderstanding
resources" in the Graphical Environment Guide.) These resources reside in
the server and determine the basic appearance and behavior of many of the
clients you run.
• restores any state information from your previous session, including
mouse acceleration, threshold, mouse double-click interval, and left- or
right-handed button mapping preferences. This information is determined
by files located in $HOME/.odtprej
• reads the file $HOME/.odtpref/ScoSession/dynamic if you resume a previous
session or $HOME/.odtprej/ScoSession/static if you select the default session,
and starts all of the specified clients. If neither of these files are located,
scosession runs the clients indicated in /usr/lib/Xll/sco/ScoSession/static.
These files indicate not only the clients to run, but any special command
line options used to start the applications, their geometry (size and location
on the screen), the host machine from which the client can be accessed, and
whether or not the client should be run in an iconified or normal state.
• starts the window manager client that is specified by the
ScoSession*windowManager resource. By default, the SCO Panner win-
dow manager, an enhanced version of the OSF /Motif window manager, is
run. See Chapter 5, NUnderstanding resources" in the Graphical Environ-
ment Guide, for more information on resource specifications.
Stopping scosession
When you end your Graphical Environment session and either stop the X
server or log out of scologin, scosession runs the
/usr/lib/Xll/sco/ScoSession/shutdown file, which in turn calls
/usr/lib/Xll/sco/ScoSession/xrdbcomp. These perform the following:
• Remove the resource database from the RESOURCE_MANAGER property of
the Root window. Any resources that you merged into the resource data-
base during the session are stored in the file xrdb.save, located in
$HOME/.odtprej/ScoSession. These resources are also loaded into the
resource database the next time you run a Graphical Environment session.
(For more information on resources and the resource database, see Chapter
5, NUnderstanding resources" in the Graphical Environment Guide.)
207
• Note the state of clients left running when you ended your session and
save this information in $HOME/.odtprej/ScoSession/dynamic. These clients
are run in the same state for your next session, if you choose to resume the
previous session.
• Save all state information in the appropriate files in $HOME/.odtpref
• Shut down all running clients, including the window manager, in a con-
trolled manner.
Using scosession options

You can use the following options with scosession:
-stop shuts down the clients comprising the session and saves the
state of the session. If you run scosession -stop from a scoterm
window, you are logged out.
-configure configures how scosession starts and stops your session. This
option brings up a dialog box that allows you to specify if you
want subsequent sessions to start in the same state you left your
previous session, or if you want to start in the default state. This
dialog box also allows users to save the current session's state as
a customized default state and to choose the option of an
interactive logout prompt.
-help provides a list of the available scosession options
See also:
• scosession(XC) manual page
Using environment variables

When you start a Graphical Environment session, the $DISPLAY, $HOME, and
$PATH. environment variables are set. When you run the Desktop client, the
$LANG environment variable is also set.
NOTE If the $LANG variable is not set to the appropriate locale, you must
do so using the International Settings Manager (page 221). For more infor-
I mation, see Chapter 12, ilSpecifying the locale" (page 221).
The $PATH and $HOME environment variables are actually set when you first
log in, whether through a multi screen running getty or through scologin.
However, the X server modifies the $PATH variable to include the /usr/bin/Xll
directory.
208 SCQ OpenServer Handbook

Using environment variables
The $DISPLAY and $LANG environment variables are described below:

• The $DISPLAY environment variable is used to tell a client to which server
it should send its output.
The X display consists of one or more screens, a keyboard, and a mouse. A
system may have several displays, and each display may, in turn, have
more than one screen. Each display has exactly one server process control-
ling all its input and output. Therefore, the terms "display" and server"
II
are used synonymously.

When a client is run, it must open a connection to a display. You must be
able to tell the client the name of the display that you want it to use for out-
put. You can also indicate a specific screen for the display. Because the
display can be anywhere on the network, you have to provide the network
name of the system to which the display is connected to fully identify the
display.
Use the following format when setting the $DISPLAYvariable:
[hostname] :display_number[ .screen_number]
where:
hostname specifies the name of the machine to which the display is
connected, and must be either a machine name or the
machine's network address. If the hostname is not
specified, the client assumes it should communicate with
the display on the same machine.
:display_number specifies the number of the display, or X server, that you
want the client to use. Each display on a system is
assigned a :display_number. If the display is managed
by scologin, the :display_number is specified explicitly in
the /usr/lib/Xll/sco[ogin/Xservers file. If the X server is
started by startx, the server is assigned the first available
:display_number, starting with ":0".
Usually, if only one X server is running, its :dis-
play_number is ":0". If more than one server is running
on your system, you must determine which display
number corresponds to the X server you want to specify.
screen_number specifies the screen on which the server is running.
The default display name is stored in the $DISPLAY environment variable
when the X server is started by either scologin or the startx script. How-
ever, if you want a client to use a different display, you must reset the
$DISPLAY variable so it specifies the other server.
209
For example, to run your clients on a remote server on a machine named

scooter, you would enter:
DISPLAY=scooter:O.O; export DISPLAY (for sh, ksh)

or
setenv DISPLAY scooter:O.O (for csh)
NOTE Most clients understand the -display command line option. This
option temporarily overrides the contents of the $DISPLAY variable. For
more information on using this command line option, see Chapter 5,
"Understanding resources" in the Graphical Environment Guide.
• The $LANG environment variable specifies the language that is used on

your system. By default, the $LANG variable is set to "english_us.ascii".
Customizing scologin
The default configuration of scologin runs the X server, and the scologin
client, on the second multiscreen (jdev/tty02) of the console. You can change
this configuration so that scologin does not run at all, or you can specify that
scologin manage multiple displays, on your system or on remote systems,
including X terminals.
There are several files that are used to configure scologin's behavior. These
files are all located in /usr/lib/Xll/scologin and are listed in Table 11-4, "scolo-
gin configuration files".
Table 11·4 scologin configuration files

Xconfig a special configuration file that specifies resources that
determine the scripts used by scologin. The resources in
this file configure the following files.
Xerrors scologin error messages that would otherwise go to stan-
dard error (stderr) are directed to this file
Xhelp contains the help text that you see if you click on the Help
button on the scologin window
Xresources contains resources that configure scologin's appearance.
These resources are loaded into the resource database by
xrdb.
Xservers contains entries for all of the non-XDMCP X servers that
scologin is to manage

See also:
• "Using the scologin administration script" (this page)
• "Configuring scologin on multiple displays" (this page)
• "Using X terminals" (page 217)
Using the scologin administration script

The Graphical Environment provides a script, /etc/scoiogin, that allows system
administrators to control the scologin process. The script must be run as root.
There are six options that you can use with this script:
start starts the scologin process, which in turn reads the files Xconfig,
Xservers, and Xresources, all located in /usr/lib/Xll/scoiogin
stop stops the scologin process. Run scologin stop to halt all current
sessions managed by scologin. For example, use the stop option if
you want to reclaim scologin-managed ttys and restore getty pro-
cesses.
NOTE This option shuts down all scologin processes on your sys-
tem, which results in the closure of any sessions running at the
time you run the script. You should notify users before you run
this script.
query shows the current state of the scologin process

disable stops the current scologin process and prevents scologin from
starting when the system re-boots; re-enables getty processes on
scologin-managed ttys
enable ensures that scologin starts when the system re-boots and starts the
scologin process if it is not already running
init if scologin is enabled, disables getty processes on screens that are
configured for scologin. scologin init should only be run by init at
boot time.
Configuring scologin on multiple displays

The scologin display manager can do more than run the simple session that
its default configuration provides. In fact, scologin can control multiple
servers, both on the local machine and on remote machines, or X terminals.
211
There are two ways to specify the X servers that you want managed by
scologin:
• If the server supports the X Consortium standard X Display Manager Con-
trol Protocol, also known as XDMCP, you can usually specify the name or
network address of a remote machine running scologin at the server.
XDMCP is a dynamic mechanism whereby connections are made when
requested by a display, such as a workstation or an X terminal, that can
communicate through the protocol. The sca X server (Xsco) supports
XDMCP.
• If you want to configure scologin to run on a set of console ttys (for exam-
ple, on ttyOl through tty12), or if you want scologin to manage an X server
that does not support XDMCP, you can add an entry for each of the displays
in the /usr/lib/Xll/scologin/Xservers file. Each line in this file specifies a dis-
play that should constantly be managed by scologin.
See also:
• "About XDMCP X server options" (this page) for a list of the X server options for
usingXDMCP
• "Running scologin with XDMCP" (page 213) for information on running scologin
on remote systems using XDMCP
• "Running scologin with the Xservers file" (page 214) for information on manually
configuring scologin sessions
• "Using X terminals" (page 217) for information on managing an X terminal's dis-
play with scologin
About XDMCP X selVer options

Any X server that supports the XDMCP protocol can request a scologin ses-
sion. To do this, the server must be started with the appropriate options to
request the session.
The sca X server (Xsco) uses the following options to determine how it uses
XDMCP:
-broadcast enables XDMCP and broadcasts BroadcastQuery
packets to the network. The first responding display
manager is chosen for the session.
-class display_class sets the value of the additional XDMCP display
qualifier, which is used in resource lookup for dis-
play-specific options. By default, the value is HMIT-
Unspecified" .

-cookie xdm-auth-bits sets the value of a private key shared between the X
server and the manager, which is used when testing
XDM-AUTHENTICATION-l
-displayID display-id allows the display manager to identify each display
so that it can locate the shared key
-indirect host_name enables XDMCP and sends IndirectQuery packets to
the specified host
-once exits the X server after the first session is over. N or-
mally, the X server keeps starting sessions, one after
the other.
-port port_num specifies an alternate port number for XDMCP pack-
ets. It must be specified before any -query,
-broadcast or -indirect options.
-query host-name enables XDMCP and sends Query packets to the
specified host
See also:
• Xsco(X) manual page for a complete list of X server options
Running scologin with XDMCP

To configure the sco X server to request a scologin session using the XDMCP
protocol, do one of the following. You must be logged onto the system as root.
• Specify the desired Xsco options from the command line - see "About
XDMCP X server options" (page 212) from the command line. For example:
/usr/bin/Xll/Xsco -broadcast -once
This broadcasts to all machines on the network for a scologin session. The
session is provided by the first machine on the network to answer.
You can also request a session from a specific machine with this command:
/usr/bin/Xll/Xsco -query hostname -once
This requests a session from the host hostname.

• Alternately, you can create a shell script that runs the Xsco server, as in one
of the examples above.
213
Running scologin with the Xservers file

You can use the /usr/lib/Xll/scologin/Xservers file to configure scologin
management of displays on your local system or on X servers that do not sup-
port XDMCP. You can also use this approach if you do not want to reconfigure
the SCQ X server, as described in "Running scologin with XDMCP" (page 213).
To configure scologin to manage multiple displays using the Xservers file, use
the following procedure. You must be logged onto the system as root. For in-
formation on each of the steps in this list, see the sections immediately follow-
ing the procedure.
1. Use the scologin administration script to stop scologin, if it is currently
running on your system.
/etc/scologin stop
2. On the host machine where you want to run scologin, add the servers you
want to manage to the /usr/lib/Xll/scologin/Xservers file. Use the following
format when making entries in this file:
display_name [display_class] display_type [startup_command]
When you are finished, save and exit the file.

3. To manage a remote display, you must provide access to the server .. On
the system where the display is to be managed, edit the /etc/Xn.hosts file,
where n represents the display number you want to use on the remote ma-
chine, and add the name of the machine on which scologin will be run-
ning.
4. When managing a remote display, you must start the X server on that dis-
play before scologin can gain control. On the actual screen you want
managed by scologin, run the X server:
/usr/bin/Xll/X :display_number
On a local system, this step is unnecessary because scologin automatically
starts the X server.
5. Returning to the scologin host machine, use the scologin administration
script to restart scologin, so it reads its configuration files, including
Xservers:
/etc/scologin start
The scologin display manager should now be running on all of the displays
you configured.

Step 1: Stopping existing scologin processes

Before you set up scologin to manage multiple displays, you must first stop
any scologin processes that are currently running. You can do this using the
scologin administration script:
/etc/scologin stop
NOTE This script shuts down all scologin processes on your system, which
Iresults in the closure of any Graphical Environment sessions running at the

time you run the script. You should notify users before you run this script.
Step 2: Editing the Xservers file

For every X server you want scologin to manage, you must add an entry to
the /usr/lib/Xll/scologin/Xservers file. This file should include entries for addi-
tional displays on the local machine and entries for displays on remote ma-
chines.
Entries in the Xservers file use the following format:

display_name [display_class] display_type [startup_command]
The various segments of the format are described below:

display_name name of either a local X server or a remote X display
using the following syntax:
[hostname] :disp lay_number[ .screen_number]
hostname specifies the name of the machine to which
the display is connected. If you omit hostname, the dis-
play on the current machine is assumed. :display_num-
ber specifies the number of the display you want to use.
screen_number specifies the number of the screen on the
display that you want to use.
defines a display class with which display_name is asso-
ciated. Although display_class is optional, it is useful if
you have a large collection of similar displays and want
to set scologin configuration resources for groups of
them. To include several X displays in the same class,
use the same display_class in each Xservers entry.
display_type indicates either a local or remote X server:
• if display_type is "local," scologin manages a local
display on which an X server should be run
• if display_type is "foreign," scologin manages a
remote display on which the X server is already running
215
startup_command applies only to local displays, and by default is

/usr/bin/Xll/X. Use startup_command to specify com-
mand line options to the X server, such as the local tty
you want scologin to manage.
For example, to manage a local display on /dev/tty03 that is not yet running
and a display on another sea system named scooter, include the following
lines in the /usr/lib/XII/sco[ogin/Xservers file:
:0 local /usr/bin/Xll/X :0 -crt /dev/tty03
2 scooter:l foreign
In this example, : 0 on line 1 and scooter: 1 on line 2 are the display_name.

Also, local on line 1 and foreign on line 2 are display_type. lusr Ibin/xll Ix
: 0 -crt Idev/tty03 is the startup_command. The -crt option associates the X
server with a particular console multiscreen, in this case /dev/tty03.
The scooter: 1 foreign entry indicates that you want scologin to manage the
second X server running on the remote machine, scooter.
Step 3: Enabling access to the remote display

If you only want to manage the local display, you can skip this step.
If you want scologin to manage a remote display that is running the X server,
you must enable the server to provide access to your host machine. On the
system where the display is to be managed, edit the /etc/Xn.hosts file, where n
represents the display number you want to use. Add the name of the host
machine where scologin will be running.
For example, to gain access to the scooter:l display, include the name of the
scologin host machine in the /ete/XI.hosts file on scooter.
Step 4: Running the X server on the remote display

If you only want to manage the local display, you can skip this step.
To enable scologin to manage a remote display, you must first start the X
server on the desired screen of the display where you want the scologin win-
dow to appear:
/usr/bin/Xll/X :display_number
For example, for scologin to manage a second X server on the fourth mul-
tiscreen on the machine scooter, you would log in on scooter's /dev/tty04 and
run:
/usr/bin/Xll/X :1

Using X terminals
Step 5: Starting scologin

Now you are ready to start scologin on all of the displays you configured in
the Xservers file. On the host system, use the scologin script to start the client:
/etc/scologin start
This process reads the scologin configuration files, including

/usr/lib/Xll/sco[ogin/Xservers. A scologin process is started for all of the dis-
plays specified in the Xservers file.
Using X terminals
You can use X terminals to run Graphical Environment sessions. In fact, you
can configure your X terminal so the scologin display manager automatically
manages the X terminal's display. When you log in through the scologin win-
dow, you start a Graphical Environment session, running on the host machine
and displaying on the X terminal.
Many X terminals can use the X Display Manager Control Protocol (XDMCP)
to facilitate the connection to remote hosts through scologin. From a user's
standpoint, the main advantage of XDMCP is that it allows you to turn an X
terminal off and instantly re-establish the connection to the scologin host ma-
chine when you turn the X terminal back on. When you turn on an X termi-
nal, scologin automatically displays a login window. The exchange of infor-
mation between the X terminal and the remote host is invisible to the user. In
fact, XDMCP and scologin are intended to make X terminals as easy to use as
traditional character terminals. With XDMCP, an X terminal basically requests
a connection to a remote host, is recognized by the host, and is sent a login
prompt by scologin.
If you are using X terminals at your site, the way you set up scologin depends
on whether or not the terminals can communicate through XDMCP. If a termi-
nal cannot communicate using XDMCP, you must include an entry for it in the
/usr/lib/Xll/sco[ogin/Xservers file and the terminal must be left powered on at
all times to maintain the connection to the host machine.
If an X terminal can communicate through the protocol, the machine that will
host the scologin process requires no configuration. However, the X terminal
must be configured to communicate with the host through the X terminal's
setup procedures, which vary from one model to another. Some X terminals
let you specify the address of a host machine from which you want to run the
display manager. Some X terminals can broadcast a request for a host over
the network and then display a list of all available hosts from which the user
can choose. Other X terminals can broadcast a request and merely accept the
first available host.
217
See also:
• "Managing an X terminal display with scologin" (this page)
• "Running a session on an X terminal without scologin" (page 220)
Managing an X terminal display with scologin

The following procedures explain how to run the scologin display manager
so it manages the server on an X terminal.
Once configured, you can log in directly to the machine running scologin
using the scologin window. The scosession manager is started, the Desktop
appears, and you can begin your session. If an .Xdefaults-hostname file exists
in your home directory on the host machine, clients you run use the resources
defined in this file.
These procedures assume that the X terminal has already been correctly con-
nected to the network and that the X terminal's name and IP address are
known to the machine that will host the scologin process. For information on
how to do this, refer to "Configuring TCP lIP" in the Networking Guide and to
the documentation supplied with your X terminal.
See also:
• "X terminals that do not support XDMCP" (this page)
• "X terminals that support XDMCP" (page 219)
X terminals that do not support XDMCP

If the X terminal does not support XDMCP, use this procedure to set up a
scologin session:
1. Log into the host machine as root. If scologin is currently running on the
host machine, use the scologinadministration script to stop it:
/etc/scologin stop
2. On the host machine, edit the /usr/lib/Xll/scologin/Xservers file so that it

contains an entry for the X terminal.
For example, to configure a terminal named vortex so it runs scologin from
a host machine named scooter, add the following line to the Xservers file on
scooter:
vortex:O foreign

Using X terminals
3. Start scologin on the host machine by running /etc/scologin start.

4. On the X terminal, restart the X server. When the server is running again,
the scologin window appears on the X terminal screen.
See also:
• "Running scologin with the Xservers file" (page 214)
• "Using the scologin administration script" (page 211)
X terminals that support XDMCP

If the X terminal does support XDMCP, use the following procedure. Note
that you do not need to configure the Xservers file in this situation.
1. Configure the X terminal to use XDMCP. While there are three ways you
can do this, the most common method is mentioned first:
• Set the display manager access parameter to "Direct" and specify the IP
address of the machine on which scologin will be running. This
method transmits a Query packet directly to the specified host machine.
• Set the terminal's display manager access parameter to "Broadcast."
This method broadcasts a query packet, to which one or more hosts
may respond. Depending on how your X terminal functions, the dis-
play can request management from the host that responds first or it can
provide a list of available hosts and allow you to pick one.
• Set the display manager access parameter to "Indirect." This method
transmits a query packet to an intermediate host, which relays it to
another host.
2. Verify that scologin is running on the host machine with the /etc/scologin
query command. Enter /etc/scologin start to start the display manager if it
is not already running.
3. Restart the server session on the X terminal. The scologin window dis-
plays on the X terminal's screen.
See also:
• The documentation supplied with your X terminal for more information on setting
display manager access
219
Running a session on an X terminal without scologin

You can run a Graphical Environment session on your X terminal without
going through the process of configuring scologin to manage your X
terminal's server. To do so:
1. Start a telnet session on the X terminal. Connect to the host machine on
which you want to run your Graphical Environment session.
2. Once you are logged into the host machine, set the $DISPLAY environment
variable to the X terminal's display. For example, if your X terminal is
named vortex, you would specify:
DISPLAY=vortex:O; export DISPLAY
3. Run the startx script, using the -t option, to start the session:
startx -t &
4. The scosession client is started, the Desktop appears, and you can begin
your session.
If an .Xdefaults-hostname file exists in your home directory on the host ma-

chine, clients you run automatically use the resources defined in this file.

Chapter 12
Specifying the locale
The International Settings Manager (this page) controls the locale settings for
your system and for each user. This affects the format in which information
such as dates and currency values are displayed, the language in which some
system messages are displayed, the system (graphical console) keyboard con-
figuration, and the characters recognized by the system (the "codeset").
Each user can set the locale for their own environment. If you are the system
administrator, you can configure the locale for everybody on the system
see "Setting the system locale" (page 223).
See also:
• "Setting locales" (page 222)
• "Selecting codesets" (page 227)
• "Setting device character mapping" (page 230)
• "Creating a character mapping table" (page 232)
• "Enabling Euro currency symbol support" (page 244)
• the vidi(C) manual page
The International Settings Manager interface

Use the International Settings Manager to:
• set user locales (page 224).
• set the system locale (page 223).
• configure the system keyboard (page 226).
• specify codesets (page 227).
• set the character mapping for a given device (page 230).
221
Start the International Settings Manager in one of these ways:

• Double-click on the International Settings Manager icon in the System
folder in the System Administration window on the Desktop.
then select the System folder, and then select the International Settings
Manager.
• Enter scoadmin international settings manager on the command line (or
abbreviate to scoadmin i).

Setting locales
A locale is a name used to refer to a group of settings that influence the
behavior of the library routines used by programs to control the presentation
of dates, currency, time, printable characters, and other data that vary
between countries. By specifying a different locale, you can change the way
programs present country-specific information. See the locale(C) manual
page for more information.
NOTE After you change a locale (by using the International Settings Man-
ager or by setting the LANG environment variable), you must stop and res-
tart the xmvtcld daemon. scoadmin clients will not recognize the new
locale setting until you restart the server.
Locales are software-specific. Character mapping for hardware devices (such

as terminals and printers) is handled by a separate set of programs. See "Dev-
ice mapping" (page 230).
See also:
• "Localization of system software" (page 223)
• "Setting the system locale" (page 223)
• "Setting user locales" (page 224)
• " About locales" (page 224)
• "Selecting code sets" (page 227)
• "Setting device character mapping" (page 230)

Setting locales
Localization of system software

SCO OpenServer is internationalized for 8-bit languages in the majority of the
software components. It also provides French and German message catalogs
and resource files for these components, as well French and German docu-
mentation for the runtime system.
The following components have not been translated: the kernel; the link-kit;
Installation Query Manager (IQM); supplied drivers (such as Xdrivers and
Network Drivers); layered products, such as the Development System and
SCO Merge ™ , the supplied NCSA Mosaic ™ (although scohelp is
internationalized/localized); mkdev scripts; boot; csh, sh (we recommend
that you use the POSIX shell (jbin/posix/sh) or ksh for localized messages).
Some utilities provided for backwards-compatibility (with XENIX® commands

and SCO value added) are not localized.
No mkdev or kernel relink scripts are currently translated. When you turn
your system on, all system startup information up to the point where you
press (Ctrl)D to proceed with normal startup, (or give the root password for
system maintenance) will always appear in English.
Setting the system locale

The system default locale is originally configured during installation. To
change the system default locale, log in as root and select a language from the
"Language" list in the main window of the International Settings Manager.
This setting determines the default locale for all programs and users on the
system.
The languages available depend on the codeset in use. If you want a language
that is not available using the current codeset, use the International Settings
Manager to select a code set that is compatible with your language. For exam-
ple, you must be using the IS08859-1 codeset in order to set the language to
German or French. You can set the language to American English in the
IS08859-1 codeset or the us ASCII codeset.
In addition to establishing a system-wide locale, you can override the system

defaults for each user and process.
223
NOTE Vtcl ™ programs appear in English when run on a text screen even
though the system is configured for a different language.
To work around this problem, explicitly set the LANG environment variable
to the language desired. The Vtcl program will then display in the language
desired.
This problem does not occur when the Desktop is run because the Desktop
automatically sets the LANG environment variable.
In addition, the version of the C shell supplied cannot handle accented 8-bit
characters. Entering accented characters within a C shell will cause the con-
sole window to close.
Setting user locales

In the International Settings Manager:
1. Select Users from the Settings menu.
2. Select a user from the HUser" list.
3. Select a locale from the HSelect new language" list, then click on OK.
Any subsequent logins by that user will take place using the new locale.
NOTE Unless you are logged in as root, you can change only your own
I locale. See HSetting the system locale".
About locales
The settings you can configure within a locale are:
collating sequence
The order in which a local character set is sorted. This is used by
the sort( c) command and by programs that use regular expres-
sions. See "Regular expressions and locales" (page 225).
currency format
The character used to denote a unit of currency and the format
used for printing monetary values.
character classification table
The table used to determine whether a given character is an upper-
or lowercase letter, a number, space, or some other class of sym-
bol.
time / date format
The format in which the time and date are presented.

Setting locales
number format
The format in which numbers are printed (whether groups of
digits are separated by a delimiter, and the type of delimiter to use
for decimals).
response strings
The standard strings to print in place of the English words "yes"
and lind'.
Because the locale in use governs the interpretation of data rather than its
representation, the same data might appear differently when presented under
a different locale. In particular, electronic mail might be affected when it is
sent from one locale to another; see "How mail translates between locales"
(page 226).
See also:
• the locale(M) manual page
• the locale( c) manual page
• the localedef( c) manual page
Regular expressions and locales

Regular expressions are interpreted differently for different locales. Locale
definitions of the collating order of a character set may differ, so that regular
expressions containing collating elements or ranges evaluate differently. If
letters are defined as being equivalent in collating order, this might change the
order of evaluation. Character classes also vary between locales. For exam-
ple, the extended regular expression,
[A-z]
is intended to recognize all upper- or lowercase characters in English. How-
ever, this fails to recognize accented characters in the 1508859-1 character set
(with values from OxCO to OxFF in hexadecimal).
To recognize all upper- or lowercase characters, use:
[[:alpha:l1
This expression recognizes all characters in the set that match the set alpha
defined within the current locale. In the POSIX locale, this includes the
defined sets upper and lower. In other locales, it should include all the letters
of the alphabet.
Because the interpretation of regular expressions is dependent on the locale,
take care when using regular expressions in shell scripts that might be used in
more than one locale. Also, when constructing a new locale definition ensure
that the character classes you define correspond to the desired regular expres-
sions.
See the regexp(M) manual page for rules on constructing regular expressions.
225
How mail translates between locales

If you are using a locale definition that recognizes characters that are not in
the standard us ASCII character set, you might have difficulty sending mail to
a user on a system that is using a different locale (or one that does not recog-
nize locales). Characters outside the core of alphanumeric characters com-
mon to IS08859-1 might be ignored or mistranslated under other locales.
More problematically, if your user name or machine name contains an 8-bit

character, a user on a 7-bit system cannot send any messages to you because
they cannot input the 8-bit character in the address. Therefore, it is important
not to create user names containing 8-bit characters.
Setting the system keyboard

To change the system keyboard (i.e., graphical console keyboard) configura-
tion, log in as root and select a keyboard from the "Keyboard" list in the main
window of the International Settings Manager (page 221). This specifies the
keyboard configuration file used by the system keyboard for conversion of
each keystroke from scancodes to the code set currently in use on the console.
I NOTE Once you have changed the system keyboard setting, restart the X
server. (A simple way to do this is to log out and log back in.)
For example, a French keyboard and an American English keyboard may both
have the same physical layout, and the keys in any given position may return
the same codes, but the keycodes have different symbols ("glyphs", or print-
able characters) attached to them. The French keyboard returns different char-
acters than the American English keyboard.
The keyboard files listed in the main window of the International Settings
Manager specify the country-specific layouts of AT®- and PS/2®-style key-
boards. All the keyboard files are stored in /usr/lib/keyboard. These files map
the system keyboard to the given national standard. The keyboard file for a
particular national standard might need to be modified for a specific key-
board. If you need to modify the keyboard map, or create a new one, copy the
appropriate file in /usr/lib/keyboard to a new file in the same directory and
modify the new file. Name the file according to this convention:
keyboard_type.codeset.country
See also:
• the mapkey(M) manual page

Selecting codesets
Selecting codesets
seo provides console fonts for 1S08859-1 through 10, 1S08859-15, IBM
codepages 437, 850, 852, 860 and 865, and X fonts for 1S08859-1 and IBM 437,
850 and 858. To support, for example, 1S08859-2 under X and scoterm, you
must supply your own fonts.
I NOTE The 1S08859-2 to 1S08859-10 codesets are only supported on the

character console.
The International Settings Manager allows you to specify both the codeset
used internally by the system (in other words, the way in which data is
represented when it is written to disk and manipulated by various programs)
and the codeset used on the system console.
The single-byte codesets supported by seo OpenServer systems can represent

a maximum of 256 characters. For this reason, you might benefit by setting
the internal system and console codesets differently for different uses. For
example, the IBM codesets (codepage 437 and codepage 850) contain better
line-drawing characters and are useful as console codesets. The ASCII and
1S08859-1 codesets, however, contain all the characters necessary to represent
the American English and Western European languages, respectively. Select-
ing a console codeset which is different from the internal system codeset will
set up mappings to ensure that data continues to be interpreted correctly.
When the system is run in single-user mode, the terminal type defaults to ansi.
This can cause characters to appear incorrectly (for example, letters may be
displayed instead of line drawing characters when scoadmin is run).
To solve this problem, if your console codeset is set to IBM850, issue this com-
mand immediately on entering single-user mode:
TERM=ansi-850 export TERM
If your console codeset is set to IBM860 or 1BM865, enter:
TERM=ansi_intl export TERM
227
Setting the internal system codeset

To set the internal system codeset, log in as root, invoke the International Set-
tings Manager, and:
1. Select Codeset from the Settings menu.
2. Select the name of the codeset you want to use and click on OK.
3. Reboot the system (page 178) after exiting the International Settings
Manager.
Codesets assign a value to each character in a character set. Changing the

internal system codeset changes how each character in every file is inter-
preted.
NOTE Changing the internal system codeset will dynamically change the
list of the console codesets. The internal codeset is used as a primary
selection upon which the secondary codeset depends. Therefore, the default
console codeset might change if you change the internal system codeset
selection.
Changing the internal system codeset also changes the list of available
locales. It might also change the way that data previously in use on the sys-
tem is interpreted. After selecting the internal system codeset you should
review the device mappings and user locales under the Settings menu to
ensure that the mappings set up for each device are still appropriate and
that the language each user has selected is still supported by the system.
Setting the console codeset

To set the console codeset, log in as root, invoke the International Settings
Manager, and:
1. Select Codeset from the Settings menu.
2. Select Console from the Codeset submenu.
3. Select the name of the codeset you want to use and click on OK.
4. Select Save from the File menu.
5. Exit the International Settings Manager.
6. Reboot the system.
The system console is not actually a single device, but rather a combination of
both the console keyboard and the console monitor. Selecting the console
codeset will install a console font (see vidi( C», establish the list of available
system keyboard mapping files, and establish any additional mapping
required if the console codeset is not the same as the internal system codeset.

Selecting codesets
Translating files between different codesets

Use iconv(C) to translate files between different codesets. For example:
iconv -f localS -t 1508859-1 < infile > outfile
This converts infile from the local8 codeset to outfile in 1508859-1 encoding.
The character encoding in either the -f (from) codeset or the -t (to) codeset is
in single-byte values (such as 1508859-1 or ASCII).
You might need to translate files between different codesets if:

• the files were written under 7-bit software that does not conform to the
1508859-1 character set.
• the files were generated by software using IBM437 characters which you
need to use with a program using 1508859-1 characters.
• the files contain one character set and you need to use them with a device
(such as a printer) that uses a different character set.
Although iconv is the recommended translation filter, the older trchan(M)

utility is still available. trchan is a filter that acts in the same way as
mapchan(M) and uses the same mapping files. For example, to translate a file
from 1508859-1 to US ASCII, where US ASCII is the character set currently in
use, enter:
trchan -i /usr/lib/mapchan/1508859-1 < inputfile > outputfile
This command uses the input section of /usr/lib/mapchan/IS08859-1 to
translate inputfile, and writes the result to outputfile.
229
Setting device character mapping

To set the character mapping for each device, log in as root, invoke the Inter-
national Settings Manager, and:
1. Select Devices from the Settings menu.
2. Select a device to configure from the "Device" list.
3. Select a device type from the "Map file" list and click on OK.
This specifies the mapchan(F) file to be used by the peripheral device (such as a
printer or terminal). The specified device now displays or prints all characters
sent to it in accordance with the selected mapchan(F) entry. See the mapchan(F)
manual page for a description of the functionality provided in the individual
map chan files.
I NOTE Any serial line which is used by the UUCP system should not have an
associated channel mapping.
See also:
• "Device mapping" (this page)
• "Creating a character mapping table" (page 232)
• the mapchan(M) manual page
Device mapping
Device mapping provides a method for ensuring that character input and out-
put devices (such as printers and terminals) connect to the system through a
standard codeset. When you select a device type from the "Select a device
type" list in the International Settings Manager, you are defining the map-
ping between the codeset supported by the external device and the internal
system codeset.

The following diagram shows a typical example of the flow of information:
I~ _b] k~~~~~~
5:'''''1' 'IIII~" scancodes
%'ii to ~~ \:~
ibm
Internal character set (such as IS08859-1)
mapchan
Printer II :::~ I
!1!l1:)'~
Wyse 60 terminal with VT220 terminal

French ASCII keyboard
To set up device mapping, see "Creating a character mapping table" (page

232). To configure the system keyboard, see "Setting the system keyboard"
(page 226).
231
Creating a character mapping table

It might be necessary to modify the provided mapchan(F) files to support new
hardware or software which requires character sets other than IS08859-l.
mapchan(M) works on characters coming from or going to a device, translat-
ing them to and from the internal system codeset.
The mapchan files are stored in subdirectories in /usr/lib/mapchan. The sub-

directories are named for the supported seo OpenServer internal system
codesets. (The files in /usr/lib/mapchan/IS08859-1 are duplicated in
/usr/lib/mapchan itself for backward compatibility.) The default mapchan file
for each device on the system is listed in /etc/dejault/mapchan. To create a new
character mapping table, copy an existing mapchan file and modify it, then
reinstall it in the appropriate subdirectory in /usr/lib/mapchan.
mapchan files contain several divisions, each of which controls some aspect of
the mapping between the internal character set used by the system and the
character set used by the terminal or device. You might want to change one or
more of these divisions.
For details, see:

"Mapping input characters" (this page)
• "Getting input from map chan" (page 233)
• "Mapping output escape sequences" (page 233)
• "Mapping dead key sequences" (page 234)
• "Mapping compose sequences" (page 234)
• "Mapping function keys" (page 235)
Mapping input characters

Use mapchan(M) to filter characters from peripheral devices to and from an
internal codeset that is used by software running on the system. See "Device
mapping" (page 230) for more information.
To switch off mapchan filtering, enter:

mapchan-n
To switch it on, enter:
map chan -£ mapfile
Here, mapfile is the path and filename of the mapping file you want to use.
Alternatively, create a shell script for each program to switch mapchan off,
run the program, and then reset mapchan on exiting from the program.

If you have a number of users who have different mapchan configurations,

you must create individual scripts for each of them. A typical script for a pro-
gram called seven, which saves and then restores the current mapping, is:
tmpfile=/tmp/map$$
trap "rm $tmpfile" 0 1 2 3 15
mapchan > $tmpfile
mapchan -n
seven
mapchan -f $tmpfile
Getting input from mapchan

The input section of a mapchan(F) file determines how input codesets are
translated into the internal system codeset. The left column contains the
input character code generated by the keyboard. When this character is input,
the corresponding character in the right column is returned by mapchan(M)
(it is sent as input to the running program on the terminal, or used for storing
data in the filesystem).
If you have the IS08859-1 set as the internal character set, you need to map the
8-bit characters (characters with values greater than 127 decimal).
If you are using the IBM437 code set internally you need to map only the" §" .
symbol. This symbol is normally mapped into the Oxb2 instead, because it has
the same code as (Ctrl)u, which the system treats as a command to clear the
line. Configure map chan to translate this symbol back to the 8-bit PC code.
Mapping output escape sequences

The output section of the mapchan(F) file controls the way in which characters
are mapped from the internal character set to the character set configured for
the device in use. For example, the default console display configuration
understands 8-bit IBM437 characters. The paragraph, section, and cent sym-
bols use codes which have a special meaning to the UNIX console driver. To
make them print, you must translate them to graphic escape sequences.
The output section is:

output
20 Oxlb ' [' , 2' , 0' 'g' # paragraph sign
21 Oxlb ' [' , 2' , l' 'g' # section sign
155 Oxlb ' [' , l' , 5' , 5' , g' # cent sign
233
If you are simply mapping from an IS08859-1 character set to the IBM437 set,
typical characters are:
output
OxcO 'A' # use A since no A grave available
Oxc4 Ox8e # A umlaut
The mapchan files have been written so that the closest printable character is
used if a character is not available.
Mapping dead key sequences

The dead key section of the mapchan(F) file maps the characters for each dead
key on a serial terminal. (A dead key is a key that generates no output when
pressed, but that displays a character when a subsequent key is pressed: for
example, pressing the followed by an "a" prints a "a'.) Dead keys are simi-
II'"
lar to compose sequences but are used for entering accented characters. Com-
pose sequences are more commonly used for entering non-standard charac-
ters.
Typical mappings for a dead key for caret characters using IS08859-1 are:
dead OxbO # declare the caret character
, a' Oxe2 # character for a with caret
, e' Oxea # character for e with caret
For details on the dead key section and a table of available dead key
sequences, see the mapchan(F) manual page.
Mapping compose sequences

Compose sequences allow you to press a number of keys to compose a partic-
ular character. The sequence starts when the compose key is typed and is
completed by two further keys that specify the character input. For example,
the supplied map files allow you to generate the registered trademark symbol
II® " by pressing:
(compose key) r 0
Compose sequences are not the same as dead keys; a dead key produces no
output when you press it, but applies an accent to the next character you
enter. See "Mapping dead key sequences" (this page).
Compose sequences (and dead keys) are configured on terminals or the con-
sole using mapchan(M).
The supplied mapping files all use (CtrlL (" control underscore") as the charac-
ter to introduce a compose sequence. The PC console might also use the
(Alt)(SysReq) key to introduce a compose sequence. On keyboards with 12
function keys, the alternative compose key is the" *" symbol on the numeric
keypad.

The compose key section in the mapchan configuration file (like the dead key
section) declares the compose key, followed by a list of the characters to be
mapped. In all cases, two characters follow the compose key. For example,
mapping compose keys within the 7-bit range of characters common to the
ASCII, 1S08859-1, and IBM437 character sets:
compose Oxlf # compose key is A_
Oxlf # output the compose key value

++ '#' # two + characters generate a #
For more information on compose key mapping and a table of available com-
pose key sequences, see the mapchan(F) manual page.
Mapping function keys

Function keys usually generate a control sequence of an escape character fol-
lowed by one other character. If one of these characters is changed by map-
key, problems might result. For example, if a function key outputs "AA I",
programs that recognize that function key will not work correctly if the "I" is
changed.
The control section of the mapchan file enables a specific number of charac-
ters to be ignored by mapchan when encountered as part of a terminal escape
sequence or function keystroke. The following control section shows some
typical sequences:
CONTROL
input
AA 1 # Function keys: AA followed by one character
\E # Function keys: Escape followed by one character
output
\Ea 4 # cursor control: Escape a and 4 other characters
\EG 1 # set attributes: Escape G and one character
For full details of the control section of the map chan file, see mapchan(F).
Configuring SCOterm for European languages

scolerm is codeset-aware and automatically configures the user's font, map-
chan, and keyboard mapping at startup. There is very little to configure.
System changes such as keyboard and codeset changes made via the
International Settings Manager will affect the way scoterm behaves.
Here is a list of common scoterm problems that can be fixed via the
International Settings Manager:
Character-based applications with character line graphics do not look right
scoterm is running with the wrong font. Using the International Settings
Manager, reconfigure the console code set to either IBM850 or IBM437.
235
Cannot get European characters with my character applications

If running an application that uses line graphics, use the International Set-
tings Manager to set the console codeset to IBM850 (if the currently config-
ured console codeset is IBM437).
If running an application that uses no line-drawing characters, use the
International Settings Manager to set the console code set to IS08859-1 or
IBM850 (if currently configured console codeset is IBM437).
Using a keyboard made for another locale. Keys are not sending the right characters
Select the new keyboard type with the International Settings Manager, or
scoterm's keyboard menu (Options ¢ Keyboard ).
Graphical environment session not saved correctly
If a graphical environment session is run with a German locale set, the
state of the session may not be saved correctly when the user logs out.
Any scoterm windows started by clicking on the desktop UNIX icon will
not be restarted in subsequent sessions. This problem does not affect the
standard X windows terminal emulator xterm. Nor does it affect UNIX
windows started from the Window Manager menu, the desktop menu, or
the command line.
To fix this problem, edit the file:
/usr/lib/Xll/IXI/XDesktop/tools/System.ts/Shell.obj/de_DE/text,
and change the following lines:
tl='Unix'
ml='Ablegen nicht moglich '
m2=' hier '
to:
t1='Shell '
t2='UNIX'
ml='Ablegen nicht moglich '
m2=' hier '
Language behavior in SCOadmin

Note the following considerations when using SCOadmin in other locales:
• scoadmin -t displays titles from an index file. To use command-line invo-
cation of SCOadmin managers and make use of short name matching for
managers, use scoadmin -t to see a listing of all registered manager titles,
then enter scoadmin title on the command line.
scoadmin -t will only display manager titles in English regardless of the
language selected. Table 12-1, "French and German name equivalents for
SCOadmin managers" (page 238) shows the equivalent manager names in
English, French, and German.

• The Backup Manager and custom display device names in English.

• scoadmin stores information about user locales in the shell environment
files of those users. Users who use scosh as their login shell do not have
any shell environment files in their home directory, so user locales cannot
be set using the International Settings Manager in the usual way.
To solve this problem, follow these steps:
1. Create accounts for all scosh users specifying a shell other than scosh.
2. Run scoadmin International Settings Manager and select the required
locale for each user.
3. For each scosh user, add the following line to the end of their .profile file
(Bourne or Korn shell) or the .login file (c shell):
lusr/bin/scosh
• The following managers are English-only and will be localized in a future

release:
- Floppy Filesystem Manager
- UUCP Manager
- HP Network Print Services Manager
- Cron Manager
- Terminal Manager
- Sendmail Configuration Manager
237
Table 12·1 French and German name equivalents for SCOadmin managers
English French German
Account Manager Gestionnaire de comptes Benutzer-Manager
utilisateurs
Address Allocation
Manager
Audit Manager Gestionnaire d' audits Audit-Manager
Backup Manager Gestionnaire de Backup-Manager
sauve gar des
Cron Manager Gestionnaire Cron Cron-Manager
DHCP Server
Manager
Filesystem Manager Gestionnaire de systemes Dateisystem-Manager
de fichiers
Floppy Filesystem Gestionnaire de systemes Dateisystem-Manager
Manager de fichiers sur disquette fUr Disketten
Hardware / Kernel Gestionnaire du materiel Hardware-/
Manager et dunoyau Kernel-Manager
HP Network Print Gestionnaire de service HP Netzwerk-
Services Manager d'impression Druckauftrags-Manager
de reseau HP
HP Network Printer Gestionnaire HP Netzwerk-
Manager d'impression de reseau Drucker-Manager
HP
International Settings Gestionnaire Internationale
Manager de configuration Einstellungen
internationale
Configuration
IPX Moniteur de IPX Konfigurations-
Monitor Configuration IPX monitor
License Manager Gestionnaire de licences Lizenzmanager
MMDF Alias Admin Administration d' alias MMDF Alias-Verwalter

MMDF
MMDF Channel Admin Administration de MMDF Kanal-Verwalter
canaux MMDF
MMDF Configuration Configuration de MMDF MMDF Konfiguration
MMDF Domain Admin Administration de MMDF Domain-
Verwalter
domaines MMDF
MMDF Host Admin Administration d'hotes MMDF Host-Verwalter
MMDF


MMDF Table Admin Administration de MMDF Tafel-Verwalter
tables MMDF
MOTD Manager Gestionnaire MOTD MOTD-Manager
NetWareNVT Gestionnaire de login NetWare NVT-
Login Manager NVTNetWare Login-Manager
NetWare NVT Monitor Moniteur NVT NetWare NetWare NVT-
Monitor
NetWare RIP Monitor Moniteur RIP NetWare NetWare RIP-
Monitor
NetWare SAP Monitor Moniteur SAP NetWare NetWare SAP-
Monitor
Network Configuration Gestionnaire de Netzwerk-
Manager configuration konfiguration
de reseau
Node Check Gestionnaire de controle Knotentest
de noeuds
NetWare Login Manager Gestionnaire de NetWare Login-

login NetWare Manager
NetWare Logout Manager Gestionnaire de NetWare Logout-
deconnexion Manager
NetWare
NetWare Access Manager Gestionnaire d' acces NetWare
NetWare Zugriffsmanager
NetWare Password Gestionnaire de mots de NetWare
Manager passe NetWare PaiSwortmanager
NetWare Local Users Moniteur d'utilisateurs NetWare Lokale-
Monitor locaux NetWare Benutzer-Monitor
PPP Manager
ISA PnP Configuration
Manager
Print Job Manager Gestionnaire de taches Druckauftrags-
d'impression Manager
Printer Manager Gestionnaire Drucker-Manager
d'imprimantes
Reports Manager Gestionnaire de rapports Protokoll-Manager
SCOadmin Event Logs Gestionnaire de logs Ereignisprotokoll-
Manager d' evenements SCOadmin Manager
Security Profile Manager Gestionnaire de niveau Sicherheitsprofil-
de securite Manager
239

SNMP Agent Manager Gestionnaire d' agent SNMP Agent-
SNMP Manager
Software Manager Gestionnaire de logiciels Software-Manager
Sysadmsh Legacy Sysadmsh Sysadmsh
System Defaults Manager Gestionnaire des valeurs Systemstandard-
systemes P!1r defaut Manager
System Logs Manager Gestionnaire de logs Systemprotokoll-
systemes Manager
System Shutdown Gestionnaire d' arret System-Shutdown-
Manager du systeme Manager
System Startup Manager Gestionnaire de lance- Systemstart-Manager
ment
du systeme
System Time Manager Gestionnaire d'heure Systemzeit-Manager
systeme
Terminal Manager Gestionnaire de terminal Terminal-Manager
User Equivalence Gestionnaire Benutzeraquivalenz-
Manager d' equivalence Manager
utilisateur
UUCP Manager Gestionnaire UUCP UUCP Manager
Video Configuration Gestionnaire de Videokonfigurations-
Manager configuration Manager
video
Using mail in 8-bit (European) locales
An 8-bit locale is any locale that contains characters not present in US-ASCII.
The MMDF mail system and scomail need to be configured properly for this to
work. If they are not configured correctly, the 8-bit characters will not display
properly at the receiving end.

The two kinds of data corruption that can be seen are as follows:
• The high-bit was stripped by an intermediate mail gateway
By default, MMDF strips the high-bit on outgoing mail and sendmail does
not, so if you are in a locale that uses any characters that are not present in
US English, you must enable 8-bit data in MMDF as follows:
1. In the file /usr/mmdf/mmdftailor, set the confstr parameter to
charset=8bit for the SMTP, badhost, and baduser channels (if present).
2. If the charset=7bit parameter is present or there is no charset parameter
(the default is 7bits), add a confstr parameter similar to the following to
your mmdftailor file:
confstr="charset=8bit, other confstr parameters"
Alternatively, the mmdf configuration utility generates an mmdftailor
file with the 7bit parameter present. In a file of that format, you must
change the H7" to an H8".
• 7-bit MIME encoded characters not displayed correctly in non-MIME
mailers
By default, scomail generates 7-bit MIME encoded characters which display
in a form similar to H=C7" on non-MIME mailers, such as mailx. To correct
this, set the X resource pass8bits to TRUE. This parameter can be found in
the file /usr/lib/Xll/%L/app-defaults/ScoMail.
Additionally, external mail generated by MIME mailers using the 7-bit
encoding will also cause this problem. The problem must be corrected at
the source or (preferably) you can use a MIME capable mailer (such as
scomail) to read the mail. However, it is recommended in 8-bit locales that
you always generate 8-bit data for new mail because that format is compa-
tible with most mailers.
Also, scomail will convert H=C7" style mail to 8-bit encoding on replies or
forwards when the message is included as text, but it will not convert them
to 8-bits when the message is included as an attachment.
Conversely, if scomail is configured to send mail in the 7-bit encoding
style, it will only convert 8-bit messages when the message is included as
text in the reply or forward operation.
• In general, non-MIME mailers send 8-bit data but do not include any MIME
headers to mark the message as 8-bit data. MIME mailers should cope with
this without any problems.
241
UUCP dialer scripts

The uucp( C) dialer scripts provided assume that the getty / login is running in
English. If a line is intended for uucp, then the user should either specify that
that terminal should run in English, or should define a new dialer script in the
incoming client.
Calendars
• You can only administer the calendar database if the administration utili-
ties are running in the same locale in which database was created. If you
change your LANG variable, change the system locale using the Interna-
tional Settings Manager, or edit /etc!default/lang, you cannot administer the
calendar. Also, the calendar server will not start if the system locale has
been changed. If this is the case, you may see "Fatal Error' messages from
the calendar server when bringing up the machine in multiuser mode.
To work around this problem, you can start the calendar server with the
LANG variable temporarily defined as it was when the database was creat-
ed.
Typically, the calendar database is created at initial system load. To deter-
mine what LANG was set to during initial system load, examine the file
/usr/adm/ISL/iqmJile. Search for the variable IQM_LANGUAGE. This will
probably be the language that was used when the calendar database was
created.
If you find that you need to restart the calendar server with the initial
LANG setting, follow these steps as root:
1. Change directories (cd) to /usr/lib/sc%adb/caldata.
2. Remove all the data files in this directory; they will be rebuilt by cal-
build:
rm ./*
3. Enter cd /etc/rc2.d.
4. Edit the file P95calserver.
5. Go to line 20 (following the comments) and find the line:
OBKEY=6373i export OBKEY

6. Before this line, add:

IQMFILE=/usr/adm/ISL/iqm_file
export IQMFILE
LANG='grep IQM_LANGUAGE $IQMFILE I awk'{ FS="\""}{ print $2}"
export LANG
This will enable the calendar server to start using the locale that was set
at installation time, regardless of the system locale setting.
• In French and German locales, scocal does not display in 24-hour time for-
mat as it should. You can select 24-hour time format by selecting
Preferences ¢ Time & Weekends and clicking on the 24-hour toggle button
under Time Format. This change must only be made once.
Timezones
The start and end dates for daylight savings time (summer time) for all
timezones are correct at the time of publishing. However, European
timezones are being reviewed by the European Union and some of these start
and end dates might change. The correct algorithm for these dates can be set
in timezone.stz, which is located in /usr/lib/nls/msg/lang/sa, where lang is one of
the following directories: english, frenchJrance.8859, or german~ermany.8859.
To set the timezone rules for daylight savings time correctly, edit each of the
language specific timezone files (above) and change the following lines: in the
gmt" section from:
If
SUMMER TOO =GMTOBST,M3.5.0/1,M9.5.0/1

to:
SUMMER TOO =GMTOBST,M3.5.0/1,MIO.5.0/1
In the europe_west:" section from:
If
SUMMER_TOO =WETOWETDST,M3.5.0/1,M9.5.0/1
to:
SUMMER TOO =WETOWETDST,M3.5.0/1,MIO.5.0/1
In the "europe_middle:" section from:
SUMMER TOO =MET-IMETDST,M3.5.0/2,M9.5.0/2
to:
SUMMER TOO =MET-IMETDST,M3.5.0/1,MIO.5.0/1
Then, run the scoadmin System Time Manager, and select Change Timezone
from the Time menu. Select your correct timezone, click on OK and exit the
manager.
243
Clients
The following X clients have not been localized: fsinfo(X), rgb(X), startx(X),
xauth(X), xhost(X), xinit(X), xmodmap(X), xsconfig(X), xset(X), and xswkey(X).
Usage messages from clients have not been localized.
Documentation and scohelp
• No translated manual pages are shipped with this product, but translated
manual pages can be installed into /usr/lib/scohelp/lang/man/section. How-
ever, these manual pages will not be properly accessed by man. They will
be viewable from scohelp using Open Reference Page if an index is pro-
vided for them.
• There are some limitations with hyperlinks from French and German
homepages. When layered products that are not translated (such as Merge)
are installed, their links on the English library page are activated, but the
links to the French and German library pages are not activated. You can
only access this documentation using context sensitive help and internal
hyperlinks or the manual pages using the Open Reference Page command
of scohelp.
Enabling Euro currency symbol support

sea OpenServer is capable of displaying the Euro currency symbol on the
console and in graphical displays, and printing the symbol to all PostScript
printers. Euro currency symbol support is implemented using the 1508859-15
codeset.
To enable Euro support, you must first set the 1508859-15 codeset (page 245)
and reboot your system. You can then display (page 246) and print (page 246)
the Euro currency symbol.

Enabling Euro currency symbol support
Setting the 1508859-15 codeset

To access the fonts containing the Euro symbol, you must set the internal and
console code sets to IS08859-15 using the International Settings Manager
(page 221). As root:
1. Determine your current console codeset setting. It is the second setting
listed in the file letc/default!codeset.
2. Start the International Settings Manager by selecting System
Administration ¢ System ¢ International Settings Manager on the desktop,
or by entering the following at the command-line prompt:
scoadmin international
3. From the scroll lists on the International Settings Manager main window,
select a language and a keyboard.
4. From the Settings menu, select Codeset. ..lnternal, then select "1S08859-15".
Click on OK.
5. From the Settings menu, select Codeset. .. Console.
If your current console codeset starts with "1S08859", accept the default of
"1S08859-15". If you have a PS/2®-style keyboard (that is, your current
console codeset is "1BM850"), select "1BM858".
Click on OK.
6. Exit the International Settings Manager and reboot the machine. The
new system settings take effect after you reboot.
See also:
• "Selecting codesets" (page 227).
245
Using the Euro currency symbol

To display the Euro symbol on the console:
• For most keyboards, enter (Right-Alt)E (that is, hold down the right-hand
(Alt) key and simultaneously press E).
• For British keyboards, enter (Right-Alt)3.
• For United States keyboards, enter (Right-Alt)4.
In the graphical environment, scoterm uses the Euro symbol fonts by default
when invoked from an 1508859-15 locale. Some X applications may require
additional arguments to get an 1508859-15 font. For example, to invoke xterm
using the 10x20 fixed-width 1508859-15 X font, enter the following:
xterm -fn lOx20-15
The default font "fixed" is unchanged from the default 1508859-1 fixed-width
font.
5ee also:
• locale(C) manual page.
Printing the Euro currency symbol

To print text files that contain the Euro symbol:
• If you use a DECColormateP5, DECIasarl150, DEClasar2250, or DECla-
sar3250 printer, simply enter the lp( c) command:
lp filename
• For PostScript printing, enter:

lp -0 postscript filename
• For network PostScript printing, enter:

lp -0 network.ps filename
• For any PostScript printer, you can enter:

cat filename I text2post I lp
5ee also:
• the Ip(C) manual page
• the text2post(ADM) manual page
• Chapter 4, "Managing printers and print jobs" in the System Administration Guide

Chapter 13
Troubleshooting system-level problems
Troubleshooting is the general term for studying and resolving system prob-
lems. This chapter provides general information about analyzing and recov-
ering from general system problems:
• "Other troubleshooting documentation" (page 248)
• "Preparing to recover from problems" (page 248)
• "Restoring a corrupted root filesystem" (page 250)
• "System crashes" (page 253)
- "Recovering from a system panic" (page 254)
- "Recovering after a power failure" (page 256)
- "Automatic reboot" (page 256)
• "Analyzing system failures" (page 256)
• "Examining a memory dump with crash(ADM)" (page 262)
• "Common system-wide problems" (page 264)
• "cron, at, and batch troubleshooting" (page 265)
• "Runaway processes" (page 267)
247
Other troubleshooting documentation

In addition to system-level troubleshooting, there are various conditions that
can arise within individual system components. This information is included
in the documentation that discusses the specific components. Command-spe-
cific error messages and problems are discussed on the manual page for the
command; information about resolving problems with a procedure or subsys-
tem is provided in the guides that describe the procedure or subsystem. You
can use the global searching features to look up the error message or condi-
tion and find where in the documentation it is discussed.
Major troubleshooting sections of interest include:

• Chapter 3, "Troubleshooting the installation" (page 53) contains informa-
tion about solving problems that may arise when installing sca software.
• "Troubleshooting system startup" (page 184)
• The System Administration Guide discusses troubleshooting issues related to
the security facilities, filesystems, printers, UUCP, and virtual disks.
• Networking Guide contains information about troubleshooting various net-
working packages.
• Graphical Environment Guide includes information that is useful when
troubleshooting the sca graphical environment.
• Performance Guide discusses how to analyze and improve system perfor-
mance.
Preparing to recover from problems

"Summary of system administration tasks" (page 164) describes a number of
practices that can help you avoid system problems and minimize the impact
of system failures that happen. A few of these points are summarized here:
• Make an emergency boot floppy disk set as discussed in Chapter 5, "Creat-
ing an emergency boot floppy disk set" (page 81). If the root filesystem or a
critical booting file are corrupted by a system crash, the emergency boot
floppy disk set can be used to recover the system. Otherwise, you may
need to reinstall the software before you will be able to boot the system.
• Record your root disk information as described in "Recording your root
disk layout" (page 249). This information is vital for restoring your system
after a root disk failure.

Preparing to recover from problems
• Monitor system performance, error logs, and the system log book regularly.
This can enable you to correct problems before they cause a hard failure.
See "Checking system files with error histories" (page 260) for a list of use-
ful error log files.
• Install an uninterruptible power supply (UPS) on the system to protect the
system from damage during power surges and failures.
• Back up the system regularly. Consider running full system backups every
week or two. Because incremental backups are usually faster than full
backups, it is tempting to run full backups only rarely. However, if you
need to restore files, you may need to restore the most recent full backup
plus all incrementals run since then, which could be a long and tedious
process.
• Understand the purpose of the "override" terminal in dealing with the
security subsystem. The override terminal is used to correct errors that
prevent access to other terminals. By default, the console multiscreen
(fdev/ttyOl) is the override terminal. For more information, see Chapter 10,
"Starting and stopping the system" (page 169).
Recording your root disk layout

You should record the details of your root disk layout in case of a hard disk
failure. If you have this information, you can rebuild your system without
reinstalling.
Record the divisions of your UNIX partition in your system log with
divvy(ADM), using this command:
divvy -P -N
The output will look like this:
0 0 14999 boot EAFS
1 15000 39574 swap NON FS
2 39575 346775 root HTFS
3 346776 1022965 u HTFS
6 1022966 1022975 recover NON FS
7 0 1023983 hdOa WHOLE DISK
If you have multiple partitions on the root disk, record them with
fdisk(ADM), including the start and end locations. Use this command:
fdisk -p
The output looks like this:
1 1 63999 UNIX Active
249
Restoring a corrupted root filesystem

If your root filesystem is so corrupted that fsck(ADM) cannot run when you
boot the system, or the system displays error messages that make no sense,
you must restore the root filesystem from backups. To do this, you need an
emergency boot floppy disk set, which you should have created as described
in Chapter 5, "Creating an emergency boot floppy disk set" (page 81). If you
do not have these diskettes, you must do a partial reinstallation as described
in "Replacing the root hard disk" (page 339).
NOTE The emergency boot floppy disk set must have a kernel with the
correct tape drivers installed. If you have changed the type of tape drive
since creating your emergency boot floppy disk set, you will need to config-
ure the tape drive at the Boot: prompt as described in "QIC-02 tape drive
bootstrings" (page 279) and "SCSI peripheral bootstrings" (page 280).
To restore your root filesystem:

1. Shut the system off.
2. Insert your boot floppy (or a single boot/root floppy disk) in the floppy
disk drive and power up the system.
3. At the Boot: prompt, press (Enter).
4. When prompted, insert the root floppy disk and press (Enter).
5. The system creates a RAM disk and loads a rudimentary root file system
into memory. After you see the startup messages that list the devices con-
figured into the kernel, the root prompt (#) is displayed. Enter this com-
mand:
fsck /dev/hdOroot
If fsck appears to be successful, shut down the system with haltsys(ADM)
and try booting from the hard disk again by pressing (Enter) at the Boot:
prompt. If the check fails, continue with the next step.
6. Enter this command to reconfigure your root disk from scratch:
mkdev hd
NOTE You may see a few error messages like these:

/usr/lib/mkdev/hd: uniq: not found
mv: cannot access /tmp/DKINIT21: No such file or directory (error 2)
These are a consequence of operating from the limited RAM disk file-
system and can be ignored.

Restoring a corrupted root filesystem
This runs all the programs necessary to initialize your disk as described in
"Installing a hard disk" (page 327), including:
• setting disk parameters with dkinit(ADM) if necessary; this is skipped
for SCSI disks
• partitioning the disk with fdisk(ADM). If you had multiple partitions,
you should use the information you recorded as described in "Record-
ing your root disk layout" (page 249). If only the root filesystem is cor-
rupted, it is not necessary to repartition the drive and you can simply
quit out of fdisk.
• mapping bad blocks or sectors with badtrk(ADM). You can choose
quick or thorough and destructive or non-destructive scans. If you des-
tructively scan the disk, you will overwrite the boot sectors of the drive
- see "System fails to boot or displays "NO OS" message" (page 188)
• recreating the file systems and swap space with divvy(ADM). Use the
information you recorded in "Recording your root disk layout" (page
249). If you want to change the sizes, ensure they are at least as large as
before.
If the hard disk or file system information is still valid, you do not need to
recreate it. For example, if your hard disk still has a valid badtrk table,
you do not need to run a badtrk scan. Intact file systems will be preserved
if possible.
7. Soon after you see the Making filesystems message, the root prompt is
returned. Enter:
fsck /dev/hdOroot
This cleans the root file system on the hard drive.
8. Enter:
mount /dev/hdOroot /mnt
This mounts the root filesystem on the hard disk.
9. Insert the first volume of the root filesystem backup and restore the file-
system with the following commands:
cd/mnt
cpio -ivmkBud -I/dev/xxx
where xxx is either rctO (for a 1/ 4-inch cartridge tape) or rctmini (for a
mini-cartridge tape).
251
NOTE If you see an error message like this when you attempt the
restore:
NOTICE: HTFS: No space on dev ram (31/7)
cpio: cannot write I_BACKUP_CONTENTS_: ...
•.. No Space left on device (error 28)
This means the files were written to the tape device using absolute
instead of relative pathnames. You are attempting to write to the root
filesystem loaded onto the ramdisk instead of the root file system on the
hard drive. You must add the -A option to the cpio command line:
cpio -ivmkBudA -I/dev/xxx
This suppresses absolute pathnames on the files passed to cpio.
10. After the restore is complete, make sure there is a stand directory at the top
of the root filesystem. If there is not, create it with the following com-
mand:
mkdir stand
NOTE If your system is un upgrade from a release prior to seQ Open-
I Server Release 5, you do not have a boot filesystem (lstand) and you
should not create it. You should also skip steps 12-14.
11. Unmount and clean the newly restored file system with the following
commands:
cd/
umount /dev/hdOroot
fsck /dev/hdOroot
You may see this message, which can be ignored:
umount: warning: Idevlfilesystetn was not in mount table
12. Check the boot file system (lstand):

fsck /dev/boot
13. Mount the file system and change directories:
mount /dev/boot /mnt
cd/mnt
14. Insert your backup tape of the boot file system and restore it using the
same command you used for the root file system. When the restore is com-
plete, unmount the filesystem and check it:
cd/
umount/mnt
fsck /dev/boot

System crashes
15. Restart your system from the root disk. Power-cycle the computer and
boot normally.
16. Restore any secondary file systems using the Backup Manager. When this
process is complete, your system should be returned to its original state.
System crashes
A flsystem crash" is the system going down without unmounting file systems
and doing other cleanup operations. This is also called an abnormal shut-
1/
down." Three types of system crashes occur:

panic The system flpanics" when it encounters a hardware problem
or kernel inconsistency that is so severe that the system can-
not continue functioning.
powerfail If the power to the system fails even briefly, the system
crashes.
operator crash If the system flhangs" due to operator error, you usually need
to reset the system and reboot it to solve the situation.
Recovering from an operator-induced crash is similar to
recovering from a system panic.
Note that a system that has NFS-mounted files from a system
that is down may behave as if it is hung; in that case, reboot-
ing the other system or, if possible, unmounting the file-
systems from your system will usually solve the problem.
When the system is shut down normally, the shutdown(ADM) program stops
all daemons, kills the active processes, unmounts any mounted file systems,
runs the sync(ADM) command, and tells init(M) to bring the system down to
the appropriate state (either single-user or flsafe to power off'), or to reboot.
If the system goes down before this shutdown procedure completes, file-
systems may be corrupted, resulting in lost data. Some data may be lost
because the buffer cache was not flushed to disk. The operating system
flushes the buffers to disk fairly regularly, so the amount of data lost due to an
abnormal system shutdown should be minimal. However, file system corrup-
tion is a common problem. If the root file system is corrupted, the system may
not function properly.
When the system crashes for any reason, record the relevant data in the sys-
tem log book and then reboot the system.
253
Recovering from a system panic

To recover from a system panic:
1. Copy the full PANIC message and the EIP number (address of the instruc-
tion being executed) from the console screen to your system log book. See
"Getting the EIP number" (page 258) for instructions on determining the
ElP number.
2. Reset or power-cycle the machine and press (Enter) at the Boot: prompt to
reboot the system.
3. When the system prompts you, respond yes to save a copy of memory at
the time of the PANIC.
NOTE We recommend that you save this dump to tape so you have a
record of the panic in case you need to compare it to the dump from
another PANIC that happens later, and so that you have the dump to
send to sca Support as discussed in "Additional help from sca Sup-
port" (page 264).
The following illustrates how to save the dump to tape. This example
uses /dev/rctO, but using /dev/rctmini works well if you have such a device
on your system.
There may be a system dump memory image in the swap device.
Do you want to save it? (yin) y
Use Floppy Drive 0 (/dev/rfdO) by default

Press ENTER to use default device.
Enter valid Floppy Drive number to use if different.
Enter "t" to use tape.
> t
Enter choice of tape drive

1 - Idev/rctO
2 - Idev/rctmini
n - no, QUIT
> 1
Insert tape cartridge and press return, or enter q to quit. >

<insert tape
Wait.
dd if=/dev/swap of=/dev/rctO bs=120b count=751 skip=O
Done. Use letc/ldsysdump to copy dump from tape or diskettes

Press return to continue >

System crashes
We strongly recommend that you use tapes rather than floppy disks to
save system dump images. The typical sea system has many megabytes
of memory, so it takes several floppy disks to save a single image. Prob-
lems can arise if you do not have enough floppy disks, or if you insert
them in the wrong order. You can run crash(ADM) on the dump from the
dumpdev device, or reboot the system and copy this data to disk for study.
See "Examining a memory dump with crash(ADM)" (page 262).
When it panics, the system writes the kernel image to the dumpdev device,
which is usually the same as the swap device. The data will be overwritten
as soon as any paging occurs on the system. See "Defining the default
dump device" in the System Administration Guide for more information.
4. If you want to study the dump image with the crash(ADM) command, use
the Idsysdump(ADM) command to copy the image to disk. In the sample
session that follows, 06May94 is the name of the file to which the dump
will be copied, but you can use any name that is meaningful:
# cd /tmp
# Idsysdump 06May94
Use Floppy Drive 0 (/dev/rfdO) by default.

Press ENTER to use the default.
Enter valid Floppy Drive number to use if different than default.
Enter "t" to use tape drive.
> t
Enter choice of tape drive:

- /dev/rctO
2 - /dev/rctmini
n - no, QUIT
> 1
Insert tape cartridge and press return, or enter q to quit. >
Wait.
dd if=/dev/rctO bs=120b count=751
System dump copied into image. Use crash(ADM) to analyze the dump.
5. At the prompt to check the root filesystem, answer "y." This will check
and, in most cases, fix any corruption on the root file system. In rare cases,
the operating system becomes corrupted and must be restored or rein-
stalled. See "Cleaning file systems" (page 171) for more information.
255
6. Run fsck(ADM) on those filesystems that were mounted when the system
panicked. This happens automatically for all file systems that are marked
dirty when the system is brought up to multiuser state, but by running
fsck manually, you can control the response to problems that are found.
See the fsck(ADM) manual page for more information.
7. Verify the integrity of the security system. See "System file integrity
checking: integrity(ADM)" in the System Administration Guide.
Recovering after a power failure

When the power fails, turn the machine off - unless an uninterruptible power
supply (UPS) is configured. This minimizes potential damage to your system
if the power fluctuates.
Once the power comes back on, your file systems may require cleaning as
described in "Cleaning filesystems" (page 171).
Automatic reboot
sea OpenServer systems can be configured to reboot automatically after a
panic or power outage as described in "Changing the system restart options"
(page 182).
NOTE If you set the system to automatically reboot after a panic, you will
lose the memory dump that enables you to analyze the cause of the prob-
lem.
Analyzing system failures

In addition to restoring the system, it is important to analyze why the system
failed so you can correct problems before they cause another system failure.
sea systems provide a number of tools to help in this analysis.
Traps, faults, and exceptions
Traps, faults, and exceptions are special conditions detected by the epu while
it is executing an instruction on behalf of a user process (running in either
user mode or system mode), a system process running in system mode (for
example, a system daemon such as sched, vhand, or bdflush), or an interrupt
routine. These special conditions cause the CPU to switch into system mode
and execute a trap handler inside the kernel.

If the trap happens in user mode (in other words, if the trap is caused by a
user process), the kernel usually sends a signal to the process. For example, if
a process executes an instruction that causes a divide-by-zero error, the CPU
raises a divide-by-zero exception, and the trap handler ultimately sends a
SIGFPE (floating point error) signal to the process. (See the signal(S) manual
page for a complete list of supported signals.) Some user exceptions are legal
and do not cause a signal. For example, a process may de-reference a valid
pointer that identifies a piece of data in the process's data segment that is
currently paged out of main memory. The CPU raises a page fault, and the
trap handler then loads the page of data from the swap area into memory and
restarts the instruction that caused the fault. In this case, the trap handler
does not send a signal to the process.
However, if a process dereferences an invalid pointer (the pointer may be cor-

rupt or uninitialized), the trap handler will determine that there is no corre-
sponding page to load from either the file system or the swap area, and will
send a SIGSEGV (segmentation violation) signal to the process.
Except for a few special circumstances, the kernel is not allowed to cause
traps, faults, and exceptions "by itself," (in other words, when it is executing
system calls, system processes, and interrupt routines). If the kernel does
cause a fault, the situation is considered to be so serious that the system can-
not continue to run. The trap handler calls a special panic( ) routine inside the
kernel, which stops the system.
When the system panics because of an addressing violation, the current con-
tents of the CPU registers are displayed on the console, the contents of the ma-
chine memory is written to dumpdev (usually the swap device) and the system
makes an internal call to the kernel haltsys( ) function.
Console panic information

The information written to the console usually contains the current contents
of the CPU registers, along with a kernel error message and a trap number that
provide valuable information for analyzing the panic. The same display is
available through the panic function of the crash(ADM) command run on a
postmortem dump. Note that some crashes may not generate a register
dump.
The console display when the system panics looks something like the follow-
ing. The line numbers are included for reference only; they do not appear on
the actual display.
257
PANIC:
2 erO OxFFFFFFEB er2 OxOOFFFFFF er3 OxOOO02000 tlb OxOO500E80
3 ss OxOOOOO038 uesp OxD0119554 efl OxOOOl0282 ipl OxOOOOOOOO
4 cs OxOOOOO158 eip OxDOO70488 err OxOOOOOOOO trap OxOOOOOOOE
5 eax OxOOFFFFFF eex OxOOOOOOOO edx OxOOOO0305 ebx OxDOOCD780
6 esp OxEOOOOD40 ebp OxEOOOOD64 esi OxD0119554 edi OxOOOOO038
7 ds OxOOOOO160 es OxOOOOO160 fs OxOOOOOOOO gs OxOOOOOOOO
8 PANIC: Kernel mode trap. Type OxOOOOOOOE

9 Trying to dump NNNN Pages.
10 & •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
11 & •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
12 NNNN Pages dumped
13 ** Safe to Power Off **

14 - or -
15 ** Press Any Key To Reboot **
The value of NNNN depends on the amount of memory configured in your

system. Each dot displayed on the screen corresponds to a 64KB block of
memory (or 16 4K pages). Therefore, systems with more memory configured
will have more dots than systems with less memory.
Getting the EIP number

The EIP (instruction pointer) value can be calculated from the contents of the
CPU registers that are displayed on the console when the system panics. The
EIP value is the address of the instruction the kernel was executing at the time
of the panic.
To calculate the EIP value, join the register values for the Code Segment (cs
register) and the Instruction Pointer (eip register) as a pair of numbers,
separated by a colon, and without the leading zeros. In the sample above,
these two values are at the beginning of line 4. The value of cs is OxOOOOOl58
and the value of eip is OxD007488. Therefore, the EIP value is 158: D0070488.
The EIP values of several panics can be compared to indicate whether the pan-
ics are being caused by a software or hardware condition. Three or more
identical EIP values usually indicate a software problem; successive panics
with different EIP values indicate a hardware problem such as a bad memory
board. This is not a hard and fast rule; defective RAM can cause multiple pan-
ics with the same EIP value, for example.

Checking error messages

In most cases, the PANIC error message is displayed on the console (line 8 in
the example). Look in the /usr/adm/messages file for other messages that pre-
ceded the panic and may contain valuable information about what went
wrong.
Kernel error messages report driver errors and errors in other parts of the ker-
nel such as the process scheduling subsystem and the file subsystem. Moni-
toring these message regularly is an important step in preventing serious sys-
tem problems; studying these messages after a system problem develops is an
important part of troubleshooting the system. Reading the PANIC error mes-
sage can give valuable information about the cause of the system failure.
Kernel error messages usually have the format:

class: [ ddname:] [ routine] message
class is usually one of the following: CONFIG, NOTICE, WARNING, FATAL,
or PANIC. A number of these messages are documented on the messages(M)
manual page.
Messages that have INIT for class are generated by the init(M) process and
are documented on the init(M) manual page. These messages usually occur
during system initialization. A few of the init messages indicate error condi-
tions, but many more are just informational messages.
ddname names the driver or subsystem having problems. The actual peri-
pheral is usually identified by a pair of numbers of the form major/minor.
This identifies the device number of the peripheral where the error occurred.
The routine element indicates the subsystem that detected the condition; these
portions of the error message are included mostly to help support staff in
tracking difficult system problems.
PANIC messages are not usually logged in the /usr/adm/messages file, but other
messages that occurred before the panic are usually logged and can provide
valuable information about the cause of the panic. The PANIC message is
usually displayed on the system console or can be viewed with the panic
function of the crash(ADM) command.
In the example console dump on "Console panic information" (page 257), the
PANIC message does not follow the standard format. This usually means that
the error is from the main kernel code and not a driver. In this case, the mes-
sage includes a definition of the type of trap that caused the panic. The mean-
ing of these trap numbers is defined in the /usr/include/sys/trap.h file and docu-
mented on the messages(M) manual page. In this case, it is a paging viola-
tion, which usually occurs when an errant pointer is dereferenced in a driver
or other kernel code.
259
Checking system files with error histories

The system maintains a number of files that contain historical information
that may give you a clue as to what is causing the problem. The most useful
are:
/usr/adm/messages log of all console messages logged by the kernel, includ-
ing error messages and system startup information.
/etc/conf/cfd/config.h list of kernel parameters with current values. This same
information can be viewed with the configure(ADM)
command. This information is useful when the system
is giving CONFIG error messages.
/dev/string/cfg list of installed drivers. This same information can be
viewed with the hwconfig( c) command.
Checking system configuration

System configuration errors can cause a wide range of problems: the system
may not link right, processes may fail, or the system may just behave in pecu-
liar ways. If you experience system problems after tuning the kernel or add-
ing new software packages or hardware devices, check the system configura-
tion. All such activities should be noted in a system log book (page 139). You
can also study the startup statistics that are logged in the /usr/adm/messages
file; if the size of the kernel changes between boots, it indicates that the config-
uration was modified. The operating system includes a number of commands
to help you check facets of the system configuration. Some of the more useful
of these are:
jetc/conf/d.d/configure -x I more
value of kernel parameters. You can also view the
/etc/conf/cfd/config.h file directly for this information.
You can use the sar(ADM) command to get perfor-
mance statistics about how tunable resources are being
utilized. The strstat function of the crash(ADM) com-
mand or the netstat -m command displays statistics
about the configured STREAMS resources, including in-
formation about structures that have overflowed since
the system was last booted. See the configure (ADM)
manual page and the Performance Guide for more infor-
mation.
/etc/sysdef current value of some tunable parameters that affect
kernel data structures.

/usr/bin/swconfig -p history and verification of software packages installed

and lor removed from the system.
/usr/bin/hwconfig -h installed drivers. Some memory maps and drivers that
are installed in the /etc/rc.d script are excluded. This in-
formation can also be viewed in the Idevlstring/cfg file.
/etc/custom whether packages are totally or partially installed.
/etc/custom -v quick SCO:Unix:RTS-x
verifies the presence, permissions and ownership of
runtime system files. The -x flag specifies that fixes be
made (where possible). Most importantly, this com-
mand repairs any broken symbolic links that may have
rendered files unreachable. The above command only
checks the operating system run time package. To
check the entire system, use this command:
/etc/custom -V quick -x
custom leaves a copy of the verify output in
custom. VerifyReport. There are other verify options
available that perform different levels of checking. See
the custom(ADM) manual page or HVerifying software"
(page 77) for instructions on invoking the Software
Manager.
/usr/bin/displaypkg information about software installed with the
installpkg(ADM) utilities. Such packages do not show
up in the custom(ADM) or swconfig(ADM) reports.
/tcb/bin/fixmog -v correct system file permissions to match the Authentica-
tion database. Use the -i option to run in interactive
mode so you are prompted before any inconsistencies
are corrected.
/tcb/bin/cps pathname
Similar to fixmog, but only checks the files specified
rather than all system files.
Generating a system dump image with sysdump (ADM)

The sysdump(ADM) command generates a system dump image of a live sys-
tem without disrupting normal operation of the system. The system dump
image is saved to a file for later analysis with the crash(ADM) utility. To gen-
erate a system dump of a live system into the file livedump type:
/etc/sysdump -i /dev/mem -n /unix -0 live dump
To use the crash utility to analyze the file:
/etc/crash -n live dump -d live dump
The sysdump(ADM) command can also generate a smaller system dump file
on larger memory systems by ignoring portions of data that are not needed
261
for analysis. The resulting deflated" dump should be small enough to

II
transfer electronically, which is convenient in situations calling for direct

support-level analysis of panic dumps. This "deflated" file cannot be read
with the crash(ADM) command. You must restore the reduced dump image
to a file that can be read by the crash(ADM) command. For example, to create
a live system dump image, excluding user memory pages (-u), free memory
pages (-f), multiphysical tape buffers (-m), and process page tables (-t) to the
file minidump:
/etc/sysdump -i /dev/mem -n /unix -fumto minidump
This file should be small enough to transfer between machines. To inflate the
system dump file so it can be read by the crash(ADM) utility, use
sysdump(ADM) to inflate the file minidump to maxidump:
/etc/sysdump -i mini dump -0 maxidump
You can use the crash(ADM) utility to analyze the file maxidump:
/etc/crash -n maxidump -d maxi dump
For more information, please see the manual page for sysdump(ADM)
Examining a memory dump with crash{ADM)

The crash(ADM) command provides a great deal of information that is useful
when implementing drivers or doing other kernel development, and requires
a good understanding of UNIX system internals to take full advantage of the
information provided. The notes in this section enable you to get some basic
information about a system panic from the crash output.
To run crash on the memory dump on the /dev/swap device (after the system
has been rebooted to single-user state but before it goes to multiuser state),
issue a command similar to the following. This command assumes that the
system had been booted on the /unix.test kernel image when it panicked, and
saves all output to the /tmp/crash.out file:
/etc/crash -d /dev/swap -n /unix.test -w /tmp/crash.out
For example, to run crash on the copy of the memory dump that was written
to the /tmp/06May94 file with the Idsysdump(ADM) command using the /unix
kernel image file, you would use the command:
/etc/crash -d /tmp/06May94 -w /tmp/crash.out
For more information on ldsysdump, see "Recovering from a system· panic"
(page 254).
WARNING The argument to the -n option must be the name of the execut-
I able kernel file on which the system was last booted. If the -n option is not
specified, crash assumes the /unix file. .

Examining a memory dump with crash {A OM}
Studying a panic
The following list outlines the process for determining which kernel com-
ponent caused a system panic. For detailed information about interpreting
crash(ADM) output, see Appendix D, "Using the crash(ADM) diagnostic tool"
in the System Administration Guide.
1. PANICBOOT=NO must be set in the fete/default/boot file for this to work.
2. When the system panics, write down the type of panic (see the trap(M)
manual page), the EIP number, and the size of the dump in pages from the
console display.
3. When the machine reboots, save the kernel dump that is on the dump de-
vice as shown in "Recovering from a system panic" (page 254).
4. Put the machine in single-user mode.
5. Run crash(ADM) on the image.
6. Use the panic command in crash to find the routine in which the panic
happened. Be sure to verify that the trap type and EIP match those copied
from the console screen after the panic.
7. Note the name (symbol name) of the routine that was executing when the
system panicked. This is the function listed first under the Kernel Stack
before Trap line.
8. Quit the crash command.
9. Use strings(C) or nm(CP) to determine the driver in which that routine is
located. You can run a script such as the following, which uses strings.
for FILE in 'find /etc/conf/pack.d -name '*.[oa]' -print'

do
strings $FILE I grep $1 && echo $FILE
done
If this script were installed as findpanic, you would run it with one argu-
ment that gives the name of the kernel routine:
findpanic symbol_name
This script will output something like:
routine name
/etc/conf/pack.d/foo/Driver.o
This indicates that the foo driver may have been responsible for the sys-
tem panic.
263
Additional help from seQ Support

If you are unable to determine the cause of a system panic, you may want to
contact SCQ Support for assistance. In addition to the installation checklist
and the other configuration information you will be asked to supply in
"Before calling for help" (page 64), it is useful to have a memory dump avail-
able. To provide this:
1. Save the memory dump to tape and restore it to disk with the
Idsysdump(ADM) command, as discussed in "Recovering from a system
panic" (page 254).
2. Extract the key troubleshooting reports from the dump with a command
sequence similar to the following:
# crash -d /tmp/06May94 -w /tmp/crash.out
> panic
> trace
> user
> quit
Remember that the" >" prompt is generated by the crash command, so do
not type them in. This will create the /tmp/crash.out file that contains the
output from the panic, trace, and user functions from the crash command.
3. Print out the /tmp/crash.out file and fax it to your support provider or email
the file itself.
Common system-wide problems

The following list summarizes some of the more common system-wide prob-
lems that can happen:
• Systems running graphical terminals or many different networking proto-
cols often need to have the value of STREAMS tunables adjusted. Exceeding
STREAMS resources generates error messages on the console and in the
/usr/adm/message file, and may cause graphical screens to be corrupted or
networking operations to fail. This can cause a number of odd conditions
such as random vertical lines on the graphical display. If you have inter-
mittent odd problems on the system, use the netstat(TC) -m command or
the strstat function in crash(ADM) to see if there have been overflows for
any STREAMS resources.

cron, at, and batch troubleshooting
• If files from system A are NFS-mounted on system B and system A is

stopped, System B may be virtually non-functional. This is especially true
if several processes on system B are trying to access the NFS-mounted files;
most system resources will be dedicated to attempts to access the missing
files and log their failures. Unmounting the NFS file systems or rebooting
system A will resolve the problem. In most cases, it is not necessary to
reboot system B.
• Unless you are testing new drivers on your system, a large number of
obscure kernel messages on the console and in the /usr/adm/messages file
that seem unrelated to any executing process may indicate a hardware
failure on a key system component such as a memory board or the disk on
which the root filesystem is located.
• If you are using memory-mapped peripherals that work well with DOS but
behave erratically with your SCO system, try reinstalling the device and
driver very generically. In other words, put the VGA card in an 8-bit slot;
turn off RAM caching, disk caching, and shadow RAM; use 1 wait state, and
ATCLK(* Mhz) on the card bus. Any cards that need to be software config-
ured (such as the wd8003e or 3c503) should be checked in DOS. Move any
shared IRQs to non-shared positions and do not use IRQ2 if you can avoid
it. Check that port addresses overlap, and remember that intelligent mem-
ory mapped serial cards cannot have their memory maps cached.
When the device is installed generically, it should work. You can then put
back the special features, one at a time, until you determine which one is
causing the problem.
eron, at, and batch troubleshooting

cron(C) is the clock daemon that schedules jobs to run automatically at a set
time. The at and batch commands can be used by users to run non-interactive
jobs once. See the at( c) manual page for more information.
eron daemon is not running

The cron daemon executes commands submitted with the at(C), batch(C), and
crontab( C) commands at specified dates and times. (The cron daemon is
started automatically by a script in the /etc/rc2.d directory when the system is
started in multiuser mode.) If cron is not running and you try to submit a job
with one of these programs, the system displays the following message:
cron may not be running - call your system administrator
265
Another indicator that cron is not running is if previously scheduled jobs are
not being executed. Use the following command to see if the cron daemon is
running:
ps -ef I grep cron
If there is no cron process, then the daemon is not running. To start cron, log
in as root and enter the following command:
sd cron
If this does not start the cron process, simply reboot the system. During
startup, the system displays a message like the following:
! *** cron started *** pid = 140 Wed Aug 31 14:02:47 PDT 1994
The jobs scheduled with at, batch, and crontab should now execute properly.
If at and batch continue to report error messages, refer to at command fails:
1/
cannot change mode of job" (this page) for more information.
NOTE If this is a persistent problem, you can start cron logging by entering
CRONLOG=YES in the /ete/default/cron file. After cron is started, the
/usr/spool/cron/log file will hold a record of all cron transactions. This infor-
mation may help you determine why cron is halting.
at command fails: cannot change mode of job

If you do not have the kernel privilege, chmodsugid, the system displays the
following message when a user tries to invoke ate C) or batch(C):
can't change mode of job
To grant chmodsugid privilege so that the user can use at, use the Account
Manager as described in Changing system privileges" in the System Adminis-
1/
tration Guide.
To allow the changes to take effect, the user must log out and then log in
again.
This is different from the situation in which the user is not authorized to use at.
If a user who is not authorized tries to use at, the system displays:
at: you are not authorized to use at. Sorry.
To allow a user to use at, see "Changing the job scheduling permissions for a
user" in the System Administration Guide for more information.

Runaway processes
Runaway processes
A "runaway process" is a process that enters an infinite loop and spawns new
processes. This can cause an overflow in the proc table that causes other pro-
cesses to fail with the No more processes: error message.
A runaway process can cause an error that locks up the keyboard, preventing
anything that the user types from reaching the system. Because of this, a
runaway process cannot be stopped from the invoking terminal.
To continue, you must identify and stop the runaway process:

1. Log in as root on a terminal (or console screen) that is not locked.
2. Enter the ps -ef command and press (Enter). The system displays full in-
formation on all the current processes and their process identification
numbers (PIDs). Find the PID of the runaway program. You may see a
program that is consuming more CPU time than is reasonable, or may find
a large number of processes with a common parent who are running the
same program.
3. Enter the kill PID command. The program should stop in a few seconds.
If the process does not stop, enter the kill-9 PID command.
The last command may leave temporary files that are usually removed when
a program terminates normally, or a non-echoing terminal. Refer to Restor-If
ing non-echoing terminals" (page 448) to restore the terminal to normal opera-
tion.
If the runaway process does not stop when you enter kill with the -9 option,
the process is considered "unkillable". If the unkillable process is a user's
shell, you must stop the process before that user can continue working. To
stop an unkillable process, you must reboot the system. Use the following
procedure:
1. Log in as root and send a message using wall(ADM) to the other system
users notifying them of the impending shutdown.
2. When all the users have logged out, shut down the system by entering
init 6. The root prompt (#) is returned, but the shutdown process begins
soon afterward.
3. Reboot the system by pressing (Enter) at the Boot: prompt.
The unkillable process no longer appears when you run ps.
267

Hardw-are configuration
Chapter 14
Basic hardware configuration
This chapter presents general hardware configuration information, including:
• new and updated driver support (page 273)
• supported architectures (page 274)
• general compatibility issues (page 274)
• device interrupts (page 275)
• configuring devices with bootstrings (page 276)
• using boot-time loadable drivers (page 284)
• configuring drivers with the Hardware/Kernel Manager (page 286)
• relinking the kernel (page 290)
• configuring power management (page 291)
You may also need to configure other hardware components, as illustrated in

Figure 14-1, liThe major hardware components of a typical system" (page 272).
271
Basic hardware con figuration
screen
~ouse
I
Ab%$%$b~keyboard I
CD-ROM drive
tape drive
3.5" floppy drive

power supply
parallel 1/0
serial 1/0
math coprocessor
CPU
memory
Figure 14·1 The major hardware components of a typical system

Accessing the seQ Compatible Hardware Web Pages
Information on installing and configuring these components is provided in

later chapters. See:
• CD-ROM drive (page 307)
• graphics adapter (page 355)
• hard disk drive (page 323)
• ISA Plug and Play (PnP) device (page 311)
• math coprocessor (page 299)
• memory (page 297)
• mouse (page 387)
• network adapter (page 481)
• parallel I/O (page 376)
• power supply (page 291)
• SCSI host adapter (page 303)
• serial I/O (page 368)
• tape drive (page 343)
Accessing the seQ Compatible Hardware Web Pages

The most current information about sca hardware support is available on the
sca Compatible Hardware Web Pages (CHWP). Their URL (Uniform
Resource Locator) is:
http://www.sco.com/chwp
The CHWP include:

• listings of devices supported on sca platforms
• notices of new and updated drivers for supported devices
• technical information concerning driver installation, configuration, and
troubleshooting
New and updated drivers for current and previous sca OpenServer releases
can be downloaded from the sea Software Library:
ftp://ftp.sco.com/pub/drivers/
Because today's computer hardware market changes rapidly, we recommend

that you consult these web pages regularly. In particular, we recommend that
you verify support for your devices before installing or upgrading drivers or
operating system products.
273
Supported architecture
Except where otherwise noted, the hardware information in this book applies
to the PC bus architectures supported by sca: Industry Standard Architecture
(ISA), Extended Industry Standard Architecture (EISA), Micro Channel Archi-
tecture (MeA), and Peripheral Component Interconnect (pcl). sca Open-
Server systems support a limited number of Personal Computer Memory
Card Interface Association (PCMCIA) cards but do not currently support the
complete PCMCIA subsystem.
In addition to the specific devices mentioned here, there are many others
which require additional vendor supplied software. These are available from,
and supported by, independent hardware vendors. Call your reseller or sales
representative and ask for the latest sea Hardware Compatibility Handbook or
the sea Directory. These are also available online from the sca World Wide
Web homepage and can be accessed with a suitable browser. The URL (Uni-
form Resource Locator) is:
http://www.sco.com/chwp
General compatibility issues

If your computer is listed as a supported machine in the sca list of compati-
ble hardware it should run sca OpenServer systems. However, if you are
adding additional hardware such as host, video, or network adapters you
may require new or updated device drivers. New and updated drivers are
supplied with each sca OpenServer release; see sea Open Server Features and
Limitations for details about devices supported in this release. See also
Accessing the sca Compatible Hardware Web Pages" (page 273) for more in-
/I
formation about device support on sea platforms.
NOTE Supported machines are not always supplied with video adapters
from the same manufacturer. Check the video adapter for compatibility.
The hardware described in this book has been tested with sea OpenServer
systems. However, because the manufacturers of compatible machines or
add-on peripherals may change configuration, functionality, or firmware at
any time, no guarantee is implied.
To determine whether hardware components are compatible with your

machine, you must know the processor (for example, 386, 486 or Pentium ™ )
and the bus architecture (ISA, EISA, MCA and PCI) that it uses. You should also
be aware of the type of disk controller in your system.

Typical device interrupts
Some computers arrive with the hard disk only partially formatted. If you
have such a machine, use the correct low-level or hard format procedure as
described in the manual for your hard disk controller before installing an seQ
OpenServer system. This does not apply to most SCSI or IDE hard disk drives.
We recommended that you install the operating system without any addi-
tional or unnecessary hardware installed on the system and with any switch
settings at their factory defaults. Hardware configuration conflicts can make
installation of an seQ OpenServer system difficult or impossible.
If you have added any boards, make sure that all switches or software-
controlled settings are set as recommended in the manufacturer's hardware
manual for that board. Some computers require specific switches or soft-
ware-controlled settings to run seQ OpenServer systems. If your computer
does not run the seQ OpenServer system with the settings as shipped, contact
your computer hardware representative for the proper settings.
Typical device interrupts

One of the most common causes of problems both during and after installa-
tion is a device interrupt conflict. Make sure device interrupts do not conflict
and do not use the reserved interrupts indicated in Table 14-1 or your system
will probably fail to boot.
Table 14·1 Typical device interrupts
Interrupt Octal Device

0* 0 Clock
1* 1 Console
2 2 Networks, tapes and others
3 3 Serial CQM2
4 4 Serial CQMl
5 5 Alternate parallel port (Ip2)
6* 6 Floppy disk
7 7 Main parallel port (IpO or lp 1)
9* 11 Chain from IRQ2
10 12
11* 13 SCSI host adapter 0
12 14 SCSI host adapter 1
13* 15 FPU
14* 16 ST506/ESDI/IDE controller 0
15 17 ST506/EDSI/IDE controller 1
* Do not attempt to use these interrupts for any other purpose.
275
Configuring devices with bootstrings

You should read "Using bootstrings" (this page) if any of these conditions are
true:
• You are planning to install a combination of devices in your computer and
do not want to install the operating system on the default device.
• You want to install an seQ OpenServer system from a tape distribution and
you wish to configure your tape drive at a location other than the default.
• You want to disable any erroneous device presence tests or driver actions.
• Following installation, you need to boot from a device that was not config-
ured at the time your kernel was created. For example, the tape configura-
tion on your emergency boot floppy set no longer matches your system's
current tape drive configuration.
Using bootstrings
A bootstring is a special command or text string that is entered at the Boot:
prompt displayed at system startup. Normally this process is transparent to
the operator because when you press (Enter) at the Boot: prompt, the system
uses a pre-defined bootstring such as hd(40)unix specified by DEFBOOTSTR
in Jetc!default/boot. .
There are special bootstrings that permit you to define device configurations
that override system defaults (without relinking the kernel). For example, you
might be using a tape drive at a non-standard address or the system might not
be recognizing your host adapter correctly. In a similar way, new device
drivers that are not supplied with seQ OpenServer systems can be installed
from a floppy disk using the link bootstring.
To define or redefine a device at boot time:

1. Decide which bootstring you need to use, the most common are listed
here:
• apm (page 277)
• ct (page 279)
• Sdsk, Stp, Srom (page 280)
• adapter (page 281)
• hd (page 281)
• disable (page 282)

Using bootstrings
• mem (page 283)

• cache (page 283)
• systty (page 284)
Make certain the bootstring parameters you use match your hardware
configuration. Additional bootstrings are documented in the boot(HW)
manual page.
2. Turn the machine on and wait for the Boot: prompt. If you are performing
an installation, note that this is the only time the Boot: prompt appears;
you are not given the opportunity to reboot during the installation unless
you are installing from tape.
Now enter the necessary bootstrings separated by spaces. For example:
defbootstr Stp=wdha(l,l,O)
defbootstr is not shown in the following examples, but remember that it
should be included on the boot line. The system then boots according to the
information you provided. If you entered the bootstring incorrectly, an error
message is displayed.
For additional information on the boot process and bootstrings, see the
boot(HWt boot(Ft bootstring(HWt link(HWt and mem(HW) manual pages.
Advanced Power Management bootstrings

If you need to configure, controt or query the operating system's power
management facilities after it has booted, you should use the Power Manage-
ment control shelt pwrsh(ADM). See "Configuring Power Management"
(page 291).
Access to your system's BIOS-APM at boot time by boot(HW) is controlled by

the apm.cmd= bootstring. When boot runs, it executes any apm.cmd= lines
found in Jete/default/boot (see the boot(F) manual page); these define the default
APM handling. Any stand-alone apm.cmd= commands issued at the boot
prompt override these settings. Alternatively, apm.cmd= may be specified as
an argument to most stand-alone commands.
The following bootstring arguments can be used to configure APM if it is

accessible:
apm.boot=test
Only boot if test is true.
apm.check=no
Do not check for APM support. Any BIOS-APM will be ignored.
apm.check=verbose
Same as apm.check=yes, but prints error messages.
277
apm.check=yes
Check for APM support (default).
apm.exists=disable
Try to disable any BIOS-APM found. The APM is not used again.
apm.exists=ignore
Do not get power status. The BIOS-APM will not be used again.
apm.exists=status
Try to get power status (default). The various internal parameters that
store the status of the batteries and mains power can be tested using the
apm.warn and apm.boot bootstrings. These allow booting to be aborted
and a warning issued if there is insufficient power available.
A status error does not stop APM being used; in that case, the
apm.warn= and apm.boot= conditions are not tested.
apm.exists=verbose
Print messages on failure; otherwise, apm.exists=status is silent on
errors.
apm. warn=test
Issue a warning if the test is true. The syntax of the boolean test is
defined on the hasapm(ADM) manual page.
The apm.warn=test and apm.boot=test strings are used typically to prevent

booting when the batteries are exhausted.
The default apm.boot test is:
ac.online I charge.high I charge.low I (!charge.unknown & % >= 15)
which permits the boot process to proceed if AC mains power is being used or
the batteries have sufficient charge (greater than or equal to 15%).
The default apm.warn test is:
!ac.online & (charge.low I charge.critical I (!charge.unknown & % <= 25))
which issues a warning if AC mains power is not being used and the BIOS-
APM reports that the charge in the batteries is low (less than or equal to 25%).
These tests should work on systems where the APM firmware can deduce the
approximate status of the battery without knowing the percentage charge
remaining.
On some machines, the APM firmware does not know the condition of the bat-
tery. It may then report no charge remaining (% = a is true) rather than admit-
ting that the charge is unknown (charge.unknown is true). Consequently,
either of the above test conditions may always be true when such machines
are using batteries rather than AC power.

Using bootstrings
To try to overcome this problem, the apm. warn test could be changed to:
!ac.online & !battery.unknown & (charge.critical I % <= 25)
However, this may not work on all such machines.
Different manufacturers interpret different percentages of remaining charge or

approximate battery status as being "high", "low", or "critical". These interpre-
tations may have been designed to be used with proprietary software, and so
may be misleading. They may not produce satisfactory results if they are used
as indicators of the battery's charge state. Checking the percentage of remain-
ing charge should be more satisfactory, but is not possible on all machines.
The kernel can only use APM if it supports a 32-bit Protected Mode interface.
If such an interface is available, one of the following bootstrings can be used:
apm.conned=disable
Try to disable BIOS-APM interface. Proceed with boot.
apm.conned=must
Try to connect, and stop booting if this fails.
apm.conned=no
Do not use the BIOS-APM interface. Proceed with boot.
apm.conned=yes
Try to use the BIOS-APM interface, and continue to boot even if this fails
(default).
In the absence of such an interface, the following bootstrings are obeyed:

apm.no32pm=disable
Try to disable APM.
apm.no32pm=ignore
Print warning message and proceed to boot. APM will not be used
(default).
apm.no32pm=ok
Same as ignore, but no warning is printed.
QIC-02 tape drive bootstrings
Use the d driver bootstring to override the default tape configuration

included on the sea OpenServer tape cartridge distribution. It is intended for
use during installation and does not replace the functions of the Hard-
ware/Kernel Manager or mkdev tape described in "Installing a tape drive"
(page 344). If you later run the Hardware/Kernel Manager or mkdev tape to
add a cartridge tape drive, you are prompted as to whether you wish to
modify the current tape bootstring, retain it, or remove it entirely.
279
NOTE The ct bootstring only applies to QIC-02 cartridge tape drives; it does
not work for SCSI, QIC-40, or Irwin drives. SCSI bootstrings are described in
"SCSI peripheral bootstrings" (page 280).
The ct bootstring has the general format:

ct=contro ller(base, irq,dma)
where:
controller is the brand name of the tape drive controller
base is the base address of the controller
irq is the controller's interrupt request number (IRQ)
dma is the controller's DMA channel number
Numbers prefixed with Ox are assumed to be hexadecimal, other numbers are

assumed to be decimal. You must also specify the kernel boot device. A com-
plete boot line could look like this:
Boot: hd(40)unix ct=wangtek(Ox338,S,l)
When you invoke the tape bootstring manually, you must specify hd(40)unix
or fd(64)unix, not just unix. The tape bootstring is not checked until the driver
is initialized. If the configuration information supplied in the bootstring
appears to be invalid (for example, the controller named in the bootstring is
not supported), then a warning message is printed, and the tape driver
ignores the bootstring and uses the default configuration.
SCSI peripheral bootstrings
SCSI device bootstrings allow you to install the SCO OpenServer system from
a device connected to the system at a SCSI address other than the default. For
example, you should use the Sip bootstring during installation if your tape
drive is configured at a SCSI ID that is not currently allowed as a boot device
by the installation kernel.
The syntax for SCSI bootstrings is:

periph=adapter(hanum, [bus, lid,lun)
where:
periph is the SCSI peripheral driver name:
Sdsk hard disk
Sflp floptical
Srom CD-ROM
Sip tape
adapter is the host adapter driver prefix
hanum is the host adapter number: 0-7
bus is the number of the bus on a dual or multichannel host adapter: 0
for the primary, 1 for the secondary, and so on. This field is
optional. The default value is 0 which is suitable for single bus
adapters,

Using bootstrings
id is the peripheral's SCSI id: 0-7 on SCSI 1 bus, 0-15 on 16-bit-wide

SCSI 2 bus
lun is the peripheral's SCSI logical unit number (LUN): 0-7
Valid host adapter driver prefixes are defined in the file letc!defaultlscsihas.
For example, to define a SCSI tape device connected to the first Future Domain
adapter at id 4, lun 0, use the following bootstring:
Stp=fdha(O,4,O)
SCSI host adapter bootstrings

The adapter bootstring overrides the kernel's default configuration for a given
host adapter. It has the following syntax:
adapter=driver(base, int, dma)
where:
driver is the host adapter driver prefix
base is the adapter I/O base address
int is the adapter interrupt vector
dma is the adapter DMA channel
A list of host adapter driver prefixes appears in letc!defaultlscsihas.
If the kernel fails to recognize, or incorrectly identifies, your SCSI adapter at

boot time, you can use the adapter bootstring to define it. For example, if you
have an Adaptec 1522 board installed and the system fails to recognize it as
configured, you would use a bootstring similar:
adapter=spad(Ox340,11,O)
I NOTE Many EISA, MCA and PCI drivers get configuration data exclusively
from CMOS RAM, ignoring bootstrings.
Root hard disk bootstrings

The hd bootstring overrides the default search sequence used by the hd driver
to determine the root disk. The syntax of the bootstring is:
hd=driver
where driver is the disk driver prefix.
281
Valid driver prefixes are:

esdi ESDI disk controller on MCA machines
idaO Compaq IDA controller
st506 ST506 disk controller on MCA machines
Sdsk generic SCSI disk driver for all machine architectures
wdO generic Western Digital WDI010 disk driver for controllers such as
ESDI and IDE that present a ST506 interface on ISA and EISA
machines
This bootstring is required by those controllers (such as some Compaq IDA

and some SCSI host adapters) that appear to be WDI010-style controllers. By
default, hd recognizes the wd driver before the Sdsk or ida drivers. This
prevents these disks from being configured as the root disk.
To boot from a Compaq IDA drive, you would use the bootstring hd=idaO.
You should add this bootstring to the definition of DEFBOOTSTR in the file
fete/default/boot so that the system uses the correct root disk configuration
when it boots.
Disabling drivers with bootstrings

Sometimes the system may detect a device that is not actually present. You
can use the disable bootstring to disable the driver. The syntax of the boot-
string is:
disable=driver[,driver ... ]
For example, if you wanted to disable the dpt driver and boot from another
device on the system, you would use the bootstring disable=dpt.
If you are having trouble installing sca OpenServer due to errors with specif-
ic drivers, you can disable these drivers with the disable bootstring. Provided
that these drivers are not required to install the system, use the following:
To disable machine architecture checking, type:

boot: defbootstr mcheck.disable
To prevent the retrieval of information about hardware on the PCI bus, type:
boot: defbootstr pci.bios32
To prevent scanning the SCSI bus for additional hard drives, type:
boot: defbootstr scsinoscan
To prevent scanning the ATAPI interface on the IDE bus for additional hard
drives, type:
boot: defbootstr wd.noscan

Using bootstrings
Specifying the location of an EIDE (IDE) CD-ROM
The srom bootstring allows you to specify the location of a CD-ROM on the
EDIE (IDE) bus:
srom=wd«IDE Controller>, <Master/Slave>, <LUN>, <BUS»
The valid options for any of the above arguments are "1" or "0". For example,
to specify a CD-ROM that is on the secondary IDE controller that is set to mas-
ter, type:
srom=wd(1,O,O,O)
If the CD-ROM is the only device on the IDE interface, it must be set to master.
NOTE Please note that you cannot specify IDE hard drives in the same
manner. If IDE hard drives are present, the installation uses the
Primary / Master IDE hard drive as the root drive.
Memory bootstrings
The mem bootstring enables you to discover how much memory boot thinks
your system has, and to reconfigure this if necessary. To find out how much
memory boot thinks your system has, enter mem=/p.
NOTE boot ignores memory definitions below 1MB. The operating system
Icannot address high memory from 640KB to 1MB, and its upper address limit
is 4GB.
To define your system as having 12MB of memory starting at 1MB in addition

to its 640KB base memory, enter mem=1m+ 12m or, alternatively, mem=1m-
13m You can use this to limit the memory size of your machine artificially-
for example, to test the performance of an application on a machine with a
smaller amount of memory. You can only allocate memory as pages aligned
on 4KB boundaries.
Memory above 16MB is not addressable by DMA for those peripheral control-
lers that only support 24-bit addressing. To mark memory above 16MB on a
24MB machine as non-DMAable, enter mem=1m-16m,16m+8m/n.
For more information about the mem bootstring, see the mem(HW) manual
page.
cache bootstring
Both 486 and Pentium processors have an internal on-chip cache and an
optional external cache. boot can control the cache behaviour with the cache
bootstring. The following options are available:
283
Id Disable flushing the cache. Booting will take less time if flushing is dis-
abled. However, this may cause some machines to incorrectly size mem-
ory or fail to boot.
Ie Enable flushing the cache (default).
In Switch off the cache before loading the kernel. This may be necessary for
some machines which have problems with cache coherence (this occurs
when DMA does not notify the internal cache that memory has been
written to directly).
Iy Switch on the cache after the kernel is loaded (default). Machine perfor-
mance is enhanced if caching is enabled.
System console bootstring

You can select the system console at boot time using the kernel.systty boot-
string:
kernel.systty=cn selects the main console (the default)
kernel.systty=sio selects eaMl (/devlttyla) operating at 9600bps with no
parity.
See the bootstring(HW) manual page for further details. You can also set
these bootstrings as arguments to a defined bootstring in letcldefault/boot such
as DEFBOOTSTR (see the boot(F) manual page.)
Using boot-time loadable drivers

Boot-time loadable drivers (BTLDs) provide access to hardware devices that
are not supported by the current kernel. The boot(HW) program invokes the
separate link(HW) program to link-edit the new driver into the kernel after it
has been loaded, but before it runs. You would typically use a BTLD package
to add a driver needed for installation, although you can use a BTLD at any
subsequent time to add a driver to your system. Using a BTLD, you can install
onto new hardware, or use new hardware as soon as a driver is available.
New and updated BTLDs for current and previous sea OpenServer releases
can be downloaded from the sea Software Library:
ftp://ftp.sco.com/pub/drivers/
There are two ways to install BTLD disks on your system:

• at the Boot: prompt (page 285)
• after initial installation using installpkg (page 286).

Using boot-time /oadab/e drivers
Adding BTLDs at boot time

To add a driver at boot time (for example during installation) use the
link(HW) program. This can only be accessed from the Boot: prompt; it can-
not be executed once the kernel has loaded.
Invoke link by typing link at the Boot: prompt and pressing <Enter), or by
using the link= bootstring argument.
If you invoke link directly, it prompts for the names of the packages to load:
What packages do you need linked into the system,
or q to quit?: pkgl pkg2
The link command ignores any link= bootstring arguments.
Alternatively, you can use a link= bootstring argument which has the syntax:
link="pkgl pkg2 ..."
where pkgl, pkg2 and so on are the names of BTLD packages to be linked into
the loaded system kernel.
If the package names do not include the name of the device from which to
read the BTLDs, you can define the device using the bltd (or btlddev) boot-
string. The default device is usually the same as the one from which the boot
program was loaded.
After the kernel loads but before it runs, link prompts you to insert the
appropriate floppy disk for each BTLD package you specified.
You may now be prompted to enter any tuneable parameters and hardware-
dependent parameters such as the interrupt vector (IRQ), DMA channel, and
base I/O address. If any conflicts occur (for example, if the interrupt vector
that the boot-loaded driver wants to use is already occupied by another
driver), boot explains the problem, lists the possible resolutions, and prompts
you to choose.
If any errors occur while the BTLDs are being extracted, you must reboot the
system. Insert the NOO (installation boot) floppy, and enter restart at the Boot:
prompt to restart the installation or upgrade from the beginning.
INOTE Retain the BTLD disk(s) for use later in the installation. You will need
them to configure the drivers into the Link Kit.
285
Adding BTLDs after initial installation
To add BTLD drivers after installation:

1. Login as root, put the system into system maintenance mode, and run
installpkg(ADM) from the command line.
2. If prompted, select the floppy drive from which to install.
3. Insert the BTLD disk when prompted and press (Enter).
4. Enter the names of the packages to be added. When prompted, insert the
appropriate floppy disk into the drive.
S. You may now be prompted to enter any tuneable parameters and hard-
ware-dependent parameters such as the IRQ, DMA channel, and base I/O
address. If any conflicts occur (for example, if the IRQ that the boot-
loaded driver wants to use is already occupied by another driver), boot
explains the problem and lists the possible resolutions.
6. On returning to the command prompt, relink the kernel as described in
"Relinking the kernel" (page 290) and reboot the system.
Configuring drivers with the Hardware/Kernel Manager

To add support for a device (such as a hard disk or mouse) to your system,
configure the driver for that device and then link the driver into the kernel.
In the Hardware/Kernel Manager (page 287), select a driver to configure from

the list, then click on the Configure Driver button. Follow the prompts. For
more information, see" About device driver configuration" (page 288).
Once you configure the driver, click on the Relink Kernel button; click on
Relink to confirm. See "Relinking the kernel" (page 290) for more information.
To activate the new kernel once it is relinked, reboot your system using the
System Shutdown Manager or the shutdown(ADM) command.

You can also use the Hardware/Kernel Manager to tune the kernel parame-
ters. To do this, click on the Tune Parameters button. See "Configuration
tools" in the Performance Guide.
See also:
• "The Hardware/Kernel Manager interface" (this page)
• "The UNIX system kernel" in the Operating System User's Guide
• mkdev(ADM) manual page for command-line interface
The Hardware/Kernel Manager interface

Use the Hardware/Kernel Manager to configure drivers, tune system parame-
ters, and relink the kernel. You can start the Hardware/Kernel Manager in
any of these ways:
• Double-click on the Hardware/Kernel Manager icon in the System Administra-
tion window on the Desktop.
then selecting Hardware/Kernel Manager.
• Enter scoadmin hardware/kernel manager on the command line.

287
Corollary ECC Daemon

DOS Filesystem
HTFS Filesystem
Hard Disk
High Performance Pipe System
High SierrallS08660/Rockridge Filesystem
Layers Configuration (windowing terminal)
Mouse/Graphic Input Device
Figure 14-2 The main Hardware/Kernel Manager screen
About device driver configuration

Use the Hardware/Kernel Manager (page 286) to configure device drivers
into the kernel. For a detailed description of driver configuration by device
type, see:
Asynchronous I/O
Asynchronous 1/0" in the Performance Guide
H
Bitpad/Graphic Input Device

Hlnstalling a bitpad" (page 394)
CD-ROM and WORM
H Adding SCSI/EIDE CD-ROM drives" (page 307)

Corollary ECC Daemon

the eccd(ADM) manual page
DOS Filesystem
"Adding support for different filesystem types" in the System Administra-
tion Guide
HTFS Filesystem
" Adding support for different file system types" in the System Administra-
tion Guide
Hard Disk
"Installing a hard disk" (page 327)
High Performance Pipe System (HPPS)
the pipe(ADM) manual page
High Sierra/IS09660/Rockridge Filesystem
"Adding support for different file system types" in the System Administra-
tion Guide
Layers
the layers(C) manual page
Mouse/Graphic Input Device
"Configuring a mouse" (page 389)
Parallel Port
"Adding and configuring parallel ports" (page 376)
Power Management (PM)
"Configuring Power Management" (page 291)
Pseudo-ttys
"Adding or removing pseudo-ttys" in the Networking Guide
SCSI Floptical
"Adding floptical drives" (page 309)
SCSI Tape Drive
"Installing a SCSI tape drive" (page 347)
Serial Port
"Adding and configuring Sea-supported serial cards" (page 368)
Shell Layers
the shl( C) manual page
Streams
"STREAMS resources" in the Performance Guide
289
Tape drive
"Installing a tape drive" (page 344)
XENIX Filesystem
" Adding support for different file system types" in the System Administra-
tion Guide
See also:
• "Configuring drivers with the Hardware/Kernel Manager" (page 286)
• mkdev{ADM) manual page for command-line interface
• Chapter 20, "Configuring video adapters" {page 355)
• Chapter 29, "Configuring network connections" (page 481)
Relinking the kernel

During the boot process, the operating system uses drivers that have been
built into the kernel (unless these are bypassed using specific bootstrings). To
specify drivers for new or additional hardware that has been added to your
system, you must add these drivers into the kernel using the Hard-
ware/Kernel Manager or the mkdev utility. The kernel must then be relinked
so that these new drivers are available next time the system is booted.
It is also possible to relink the kernel by hand. You might do this when, for
example when you have added several different drivers to the system and
chosen not to relink as part of the mkdev process, or you have installed BTLDs
using installpkg(ADM). In order to relink the kernel you must be logged in as
root, and the Link Kit must be installed on your system.
To relink the kernel by hand:

1. Enter:
cd /etc/coni/d.d
./link_unix
The linking process will now begin. The speed with which the kernel
relinks depends on a number of factors; the process can take several
minutes on slower machines.
Once the kernel has been rebuilt you will see the following message:
The UNIX kernel has been rebuilt.
Do you want this kernel to boot by default?

Enter "y" if you want this to be the boot kernel.

Configuring Power Management
The system now backs up the old kernel by moving the current /unix file to
/unix.old, then asks whether you also want the kernel environment rebuilt.
This will make any necessary changes to the /etc/inittab and device node
files. Enter "y" to rebuild the kernel environment.
The system will respond with a message that the kernel has been success-
fully linked and installed and that you must now reboot the system for
any changes to take effect.
2. Use the shutdown command to shut the system down then reboot it.

Some machines (typically laptops and Energy Star or "green" systems) pro-
vide facilities for controlling power consumption. sea OpenServer systems
can use APM if it supports a 32-bit Protected Mode interface, and it resides in
the computer's BIOS (that is, APM is not loaded as a separate driver).
On laptops, the power management facilities usually provide a report on the

battery charge level, permitting you to shut down the machine before the bat-
teries are completely discharged. Some systems may be able to turn off hard
disks or monitors after a period of inactivity, or by explicit command.
NOTE APM is not configured in the kernel by default. You must run the
mkdev pm command or use the Hardware/Kernel Manager to install the
APM driver and support utilities.
If your system has the required APM hardware, and this was recognized and
enabled by boot(HW) at boot time, see" Advanced Power Management boot-
strings" (page 277). The Power Management daemon, pwrd(ADM), runs to
handle system events notified by the BIOS-APM firmware, such as low power.
Possible events are defined in the file /etc/pwr/sys/events, the format is defined
on the pwrevents(F) manual page. An action is defined for each event that
allows the system to respond appropriately. Possible actions are defined in
the file /etc/pwr/sys/actions, the format for which is defined on the pwraction(F)
manual page. You can find the scripts invoked by the action file in the direc-
tory /etc/pwr/lib. An example is battery which shuts the system down if the
power is low. Edit the actions file and scripts to tailor the response of your
system to the various power events. However, events are pre-defined in the
BIOS; you cannot configure the thresholds at which they occur yourself.
291
Configuring APM using pwrsh

As an alternative to configuring the pwrd daemon, you can use the
pwrsh(ADM) command to configure, control, or query the power manage-
ment facilities of your system after it has booted. Typically, you would run
pwrsh regularly as a crontab( C) entry for root to check the charge status of the
batteries and take appropriate action if necessary. To prevent interaction with
pwrd, change the command (cmd) associated with the appropriate event's
action to Hexit 0". See Checking battery status regularly" (page 293) for an
If
example of how to do this.
WARN. ING BIOS-APM firmware from different manufacturers varies consid-
I erably in operation and efficacy. What may be a safe or useful sequence of

commands on one machine may be ineffectual or worse on another.
pwrsh can read commands from the command line (using the -c option) from
a specified file, from the standard input, or interactively. If you run pwrsh
interactively, use the? or help command for information about other com-
mands. Enter quit or (Ctrl)D to leave pwrsh. You can use the status command
to obtain the boot-time, previous, or current power status of the machine's AC
supply and batteries:
/etc/pwr/bin/pwrsh -c "status -b -AB # print boot-time power status"
/etc/pwr/bin/pwrsh -c "status -n -AB # print previous power status"
/etc/pwr/bin/pwrsh -c "status -AB # print current power status"
You can also specify a power test condition to the status command in the style
of hasapm(ADM) - see also the description for the apm.boot and apm.warn
in Advanced Power Management bootstrings" (page 277). pwrsh exits with
H
a value determined by the last command executed. When a test is used with
the status command, this is the result of the test:
[ /etc/pwr/bin/pwrsh -c "status -s \
!ac.online & Ocharge.low I !charge. critical I \
(!charge.unknown& % <= 25»"] \
&& echo "No AC power and battery charge is low!"
You can use the state command to turn the system or peripheral devices on
(Ready) or Off, make them Idle but automatically ready for use, or Freeze
them to conserve data.
I NOTE Some BIOS-A PM firmware can only Freeze the entire system or turn
Off individual peripherals.

For example, the following command idles the entire system if battery power
is low and the AC supply is not being used:
[ /etc/pwr/bin/pwrsh -c "status -s \
!ac.online & (charge.low I charge. critical )" ] \
&& /etc/pwr/bin/pwrsh -c "state -i all"
The following command freezes the video screen and keyboard and idles the
hard and floppy disks:
/etc/pwr/bin/pwrsh -c "state -f display \
state -i storage"
Checking battery status regularly

The following crontab entry for root calls the executable file
/usr/local/bin/check_batts every 15 minutes:
15 * * * * /usr/local/bin/check_batts 2>&1 I mail root
The check_batts script checks the charge status of the batteries. If the batteries
are low, it warns all users and shuts down the system:
[ /etc/pwr/bin/pwrsh -c "status -s !ac.online &

( charge.low I charge. critical )" 1
/etc/shutdown -y -iO -gOO:05 -f "No AC power and battery charge is low!
System will shut down in 5 minutes - log off now!"
You should also disable pwrd's handling of low battery charge. To do this,
edit the entry for the "apm/batteries-are-Iow" (classname/ event) entry in
/etc/pwr/sys/actions. Change the entry to read:
system/lowbattery-1:apm/batteries-are-low::exit 0
then shut down and reboot the system.
WARNING If you turn off the power to the entire system or to the hard
Idisk(s), you risk losing valuable data and damaging the integrity of file-
systems.
293

Chapter 15
Adding memory and bus cards
Bus cards can hold extra memory for your system, host adapters, multiport
serial adapters for extra terminals, and controller boards for peripheral de-
vices such as hard disks, tape drives, graphics adapters and mouse control-
lers.
This chapter explains how to:

• add bus cards to your system (this page)
• add memory to your system (page 297)
• add a math coprocessor (page 299)
• and install an IBM PS/2 external floppy drive (page 301)
Serial and parallel adapters are discussed in Chapter 21, "Adding serial and
parallel ports" (page 367). Installation of other types of devices with bus cards
is explained in detail in other chapters of this book.
Installing bus cards

To install a bus card, first shut down the system and power down the com-
puter.
WARNING Make sure the computer is unplugged from the power supply or
you could injure yourself.
Before you begin working on the computer, ground yourself by touching an

earthed metal object close at hand (not the computer), or wear a proper
grounding strap. Static electricity can destroy sensitive electronic com-
ponents such as integrated circuits.
295
DIP switches and jumpers
Before you plug your card into the bus, reset any switches or jumper settings
that must be changed. The documentation that comes with it should list the
default settings and how to change them.
NOTE sca OpenServer systems are designed to work with most hardware
I using default settings. You will rarely have to change the settings on a card.
Micro Channel Architecture (MCA), Extended Industry Standard Architecture

(EISA), and Peripheral Component Interconnect (PCI) bus cards do not have
DIP switches and jumpers. You should use the setup program provided by the
manufacturer as described in "Using the manufacturer's setup program"
(page 297) to adjust settings.
Installing the hardware

Open your computer to gain access to the expansion slots. Your hardware
documentation should explain this in detail. Depending on your system's
architecture there may be slots of different lengths and even of different types
(for example, you may see machines with both ISA and PCI slots). At the rear
of the computer, at the end of each slot, there will normally be a blanking
plate which must be removed before a new card is fitted. Select a slot which
fits the card you wish to add and remove its blanking plate. The edge connec-
tor plugs into the slot, and the plate on the rear of the card, often with connec-
tors mounted on it, replaces the blanking plate at the rear of the computer.
Gently, but firmly, seat the card into position and press it home. Screw down
the rear plate to hold the card securely.
When you have finished inserting cards, replace the computer's case, turn the
power on and boot the operating system.
You may need to use the manufacturer's setup program to change the
system's configuration before you can use the new hardware. The eisa(ADM)
utility can be used to list cards currently installed on an EISA bus system. The
slot( C) utility does the same thing for MCA machines.
Avoiding interrupt clashes on PCI/ISA bus machines

On machines with both PCI and ISA buses, the PCI auto-configuration code
cannot read the configuration of cards in the ISA bus slots. You must use the
computer manufacturer's setup program to tell the auto-configuration code
which interrupts are in use by ISA bus cards. If you do not mark these inter-
rupts as "used", it is possible that there will be an interrupt clash between an
ISA bus card and a PCI bus card.

Adding more memory
Using the manufacturer's setup program

Many systems, particularly those using either a Micro Channel Architecture
(MeA), Extended Industry Standard Architecture (EISA) or Peripheral Com-
ponent Interconnect (PCI) bus, include a setup program which is provided on
a bootable floppy disk, in the BIOS, or as a hidden file on the hard disk. This
program configures the permanent memory on your computer to describe the
system hardware setup. Whenever you add a hard disk, serial card, or other
device, you may need to run your setup program to tell your computer about
the new hardware. Some computers automatically recognize the presence of
new hardware. The documentation provided with your computer's hardware
should tell you if you need to run a setup utility.
Adding more memory

You can often improve system performance and run larger programs by
increasing the amount of memory available.
I WARNING Memory chips are very susceptible to static electricity damage.
To increase a system's memory:

1. Bring your system down using the shutdown(ADM) command and turn
off the computer when prompted to do so.
2. Install extended memory according to the manufacturer's instructions.
Make sure you have set all switches as noted in the instructions.
With memory cards it is important to check the switch settings (or soft-
ware setup) on both the card and motherboard. Refer to the hardware
manuals for your computer and for the memory card to find the correct
switch settings or software setup.
NOTE Memory cards must be configured for extended, not expanded
Imode. SCO OpenServer systems use only extended," not "expanded,"

memory.
H
3. Boot the operating system. The boot screen details how the additional
memory has affected your system.
Many system resources depend on the amount of memory installed. For

example, the "kernel if 0 bufs" value displayed at boot time is determined by
the NBUF kernel parameter. When this parameter is set to zero, the number of
kernel buffers is determined at boot time based on the amount of memory
installed. For more information on system resources related to RAM, refer to
the Performance Guide.
297
If the memory hardware reports an error, the following message is displayed:

PANIC: memory parity error
You then see the software reboot message:
- or -
If the system repeatedly panics from parity errors, consider replacing the
memory chips.
NOTE Some machines have a hardware limitation on the maximum

amount of memory that can be installed. Refer to your computer hardware
manual to determine the maximum amount of memory you can install. seo
OpenServer systems can support up to 4GB of main memory.
Memory card compatibility notes

Most memory cards will work with seo OpenServer systems. If you experi-
ence "panic: parity" errors, it is often because of low quality or mixed types
and speeds of memory chips or cards. This problem is especially prevalent
with the 32-bit static RAM chips used in older 386 machines.
Disabled high memory on Corollary architectures

On Corollary EISA-based systems with ROM-Resident Diagnostics (RRD) prior
to version 5.5, a problem can occur when you use the EISA configuration util-
ity to enable the 15th megabyte address range as memory. The default
behavior is for this memory range to be disabled. When this memory range is
enabled the kernel attempts to map this memory twice resulting in the panic
message:
PANIC: smp_meminit - Adding overlapping memory segment Ox4fOOOOO - OxSOOOOOO
If you have previously enabled this memory range through the EISA configu-
ration utility, you can avoid the problem by disabling it before installing an
seo OpenServer system. This memory range is reclaimed after the machine is
booted, so it still uses all the memory in the system. The problem can be per-
manently rectified by upgrading the RRD to the 5.5 version.
32-bit memory
It is strongly recommended that you use 32-bit memory approved by your ma-
chine manufacturer. Using 16-bit memory instead will degrade overall
machine performance.

Adding math coprocessors
NOTE Certain manufacturers reserve the upper 384KB of the first megabyte
for DOS. On some machines, this" shadow" RAM cannot be accessed by SCo
OpenServer systems. You may need to install additional memory to run SCO
OpenServer systems. If possible, "BIOS shadowing" and "video shadowing"
should be disabled.
If you see one of the following messages:

FATAL: parity error on the Motherboard
FATAL: parity error on add-on card
PANIC: Parity error address unknown
PANIC: Parity error at address Oxxxxxx
some part of your hardware is sending a "non-maskable interrupt" (a signal
sent by the hardware that halts the operating system). The precise message
will depend on your particular system. You should run your system's hard-
ware diagnostics tests, if available. In addition, physically reseat your mem-
ory cards, SIMMs, or individual memory chips, checking for bent pins. If these
measures fail to correct the problem (or you do not feel comfortable in check-
ing your hardware yourself), seek professional hardware support.
High-speed cache memory

If installation failures are experienced on a system with high-speed cache
memory, turning off the cache memory often enables the installation to
proceed normally. Once the SCo OpenServer system has been installed, the
cache memory can be re-enabled.
Adding math coprocessors

If your computer includes an 80387 math coprocessor, it is automatically
detected and supported by SCO OpenServer systems. These coprocessors
improve the efficiency of floating point calculations. Pentium, 80486DX2, and
80486DX CPUs include an on-chip floating point unit that is recognized and
used as a floating point coprocessor. 80386DX, 80386SX, and 80486SX CPUs do
not include a on-chip floating point unit.
If you are going to upgrade your system to include a math coprocessors, it is

important to choose one which matches your machine's CPU speed. Follow
the manufacturer's recommendations.
At boot time, the SCo OpenServer system announces the presence of a math
coprocessor with the message:
%£pu - 13 - TYPE=80387
299
Note that switches on the main system board must be set properly to enable
80387 interrupts, and/or your system must be reconfigured with the manu-
facturer's setup disk. Ensure that the system diagnostics recognize the copro-
cessor's presence, and check your hardware manual for the proper switch
settings.
On some motherboards, the operating system incorrectly recognizes the pres-

ence of an 80387 coprocessor even if the chip is not installed. This problem is
prevalent on machines that use the Intel 302 motherboard. If your computer
incorrectly recognizes the presence of an 80387 chip, make sure that blocks
E48 and E49 are not connected with a jumper.
Some 80387 exceptions are masked. Refer to the fp(HW) manual page for
more details.
Specific math coprocessor issues

There are many possible combinations of math coprocessors and systems,
some of which are known to cause problems under specific circumstances.
Intel 387 coprocessor

Because of design defects in the Intel 80386 chip (Bl stepping, part numbers
540344 and 540362), the Intel 80387 math coprocessor may not operate
correctly in some computers, causing the CPU to hang during DMA, paging, or
coprocessor access. You can work around this problem by changing the tun-
able kernel parameter D0387CR3 from 0 to 1 using the configure(ADM) utility.
For more information, see "Miscellaneous device drivers and hardware
parameters" in the Performance Guide.
You can replace the 386 chip with a newer release of the 386 chip (a D-step
part), or bypass the 387 chip by adding the ignorefpu keyword to the boot
command:
Boot :
unix ignore£pu
This means that the operating system will not use the 387 chip, but you need
not remove it physically; the coprocessor can still be used by other operating
systems. To bypass the 387 chip automatically every time you boot your sys-
tem, add the ignorefpu keyword to the defbootstr option in the
/etc!default/boot file. See the boot(HW) manual page for more information.
Intel Pentium processors

sca OpenServer systems are not known to be affected by the reported prob-
lems with Pentium math functions. However, users who intend to run math-
intensive applications on sca OpenServer systems are advised to check with
their system supplier.

Adding an external floppy to an IBM PS/2
Intel RapidCAD Coprocessor

The Intel RapidCAD Engineering Coprocessor for Intel 386DX PCs is
supported.
Weitek coprocessors
Weitek numeric coprocessors are also supported. This support extends only to
runtime; there is no current development support for creating binaries that
take advantage of numeric coprocessors.
In order for the Weitek chip to be recognized by the system, one file needs to
be edited in the following way:
1. In the file /etc/conf/sdevice.d/weitek, there should be a line similar to the fol-
lowing:
weitek N 1 0 0 '"
Change the liN" (for no) to a "Y" (for yes).
2. Relink the kernel, then reboot the machine. The Weitek chip will now be
recognized.
Adding an external floppy to an IBM PS/2

The IBM PS / 2 systems based on the MCA bus can support an external 5.25-
inch floppy drive which is recognized by the sca OpenServer system. IBM has
produced three different adapters for the externaI5.25-inch drive:
External Diskette Drive Adapter
This is the earliest version of the adapter and is not supported.
Model 80 Adapter, part number 72x6753
This was shipped for use with the PS / 2 Model 80 only and is supported.
5.25-inch Diskette Adapter / A
This is the latest version of the card and is supported.
To configure the drive once the adapter has been installed:

1. Log in as root.
2. Edit the file /etc/conf/sdevice.d/fl5 to change the liN" in the second column to
a"Y".
3. Relink the kernel, then reboot the system.
301

Chapter 16
Adding SCSI host adnpters and
peripherals
A SCSI host adapter provides the interface between the PC system bus and the
SCSI bus. It controls access to SCSI peripherals connected to the SCSI bus,
transfers data between the peripherals and main memory, and relays com-
mands, status information, and messages. For more information about SCSI,
see "SCSI addresses" (page 304).
You may need to run a setup program or configuration utility to configure a

new adapter. On ISA and some MCA bus machines, you may need to change
the interrupt vector and II a addresses set on the host adapter to avoid
conflicts with existing adapters. You should also disable the BIOS on second-
ary controllers that you install. See "Using the manufacturer's setup program"
(page 297) and refer to your hardware documentation for detailed instruc-
tions.
A host adapter is configured into the system when you first install one of the
peripheral devices connected to the SCSI bus that it controls. See "Adding a
SCSI peripheral device" (page 305).
The number of different SCSI host adapters that can be configured for use with
your system should be specified in the hardware documentation. See sea
Open Server Features and Limitations for information about supported mass
storage drivers.
Information on diagnosing and fixing problems is presented in "Troubleshoot-

ing SCSI host adapters" (page 309).
303
Adding SCSI host adapters and peripherals
SCSI addresses
Each controller on the SCSI bus (including the host adapter) has an address
referred to as its "controller" ID or "target" ID. Up to eight controllers may be
present on a SCSI 1 bus with IDs from 0 to 7; up to 16 controllers may be
present on a 16-bit-wide SCSI 2 bus with IDs from 0 to 15. The host adapter
itself is usually assigned ID 7.
Controllers may be placed in any order on the bus, but they must have a
unique controller ID. The controller ID is usually set on the SCSI peripheral de-
vice using jumpers, DIP switch, or thumb-wheel. Refer to the adapter docu-
mentation for specific instructions.
A peripheral device connected to a controller is identified by its "logical unit

number" (LUN). Bridge controllers can support up to eight devices with
unique LUNs 0 to 7. However, most SCSI devices have a single embedded con-
troller with a LUN of O. The SCQ SCSI device drivers have only been tested on
SCSI devices with embedded controllers.
LUN 0 LUN 0 LUN 7
SCSI host
embedded bridge
adapter
controller controller
107
CPU
SCSI bus
system bus
Figure 16-1 SCSI bus addressing
SCSI host adapter drivers are configured into the kernel when you configure
the first SCSI peripheral connected to a adapter. See" Adding a SCSI peripheral
device" (page 305). Host adapters of the same type as one already installed
use the same driver; their only requirement is memory space for configuration
information that is internal to the driver. If you wish to use the ability of cer-
tain host adapters to emulate other adapters, you must specify the correct de-
vice driver for the host adapter being emulated when configuring peripherals.

Adding a SCSI peripheral device
The sca modular SCSI interface provides a generic set of SCSI peripheral
drivers that may be used with any of the supported hosts' adapter drivers.
Each different type of host adapter that is installed requires its own driver to
be configured into the kernel.
Adding a SCSI peripheral device

Use the Hardware/Kernel Manager or a mkdev(ADM) command (such as
mkdev tape) to inform the system that you have added a peripheral device to
the SCSI bus. This updates the system configuration files that are used in
building a new kernel to support the new device:
• /etc!conf/cfd/mscsi defines the host adapter type, peripheral type, host
adapter number, peripheral controller ID, LUN, and bus number for each
device on every SCSI bus.
• /etc!conf/sdevice.d/xnamex contains information about the hardware settings
of each host adapter of type xnamex.
Supply the following information about the device to update the mscsi file:
• Host adapter type (the internal name of the device driver for the host
adapter). Supported types are listed in /etc!default/scsihas. For example, eiad
is the driver for the Adaptec AHA-174x. If you have installed a host adapter
driver using a BTLD, the host adapter type is the same as the name of the
driver that you linked into the kernel.
• Host adapter number. Use 0 for the first adapter of a given type, 1 for the
second, and so on.
• Peripheral'S SCSI bus number. Use 0 for the primary bus, 1 for the second-
ary bus. This information is required for host adapters that control more
than one SCSI bus, such as those that use the Adaptec 7770 chipset. The
bus number for host adapters with only a single bus is O.
• Target ID of the device's controller. ID 7 is usually reserved for the host
adapter.
• Logical unit number (LUN). Set this to 0 for devices with embedded con-
trollers.
305
If the disk is the first peripheral device that you are adding to the SCSI bus,
you must also supply some of the following information about the hardware
configuration of the host adapter (this information is used to update the file
letc!conf/sdevice.dlxnamex ):
• Interrupt vector (IRQ) (needed for ISA bus machines only).
• Start I/O hexadecimal address (needed for ISA and some MCA bus ma-
chines).
• End I/O hexadecimal address (needed for ISA and some MCA bus
machines).
You are presented with the default values for the first host adapter of this type
or the values for the previous host adapter of this type that was configured on
the system. If you have changed the values physically set on the host adapter,
you must enter these instead of the displayed values.
You are not prompted for configuration values for most EISA and PCI bus host
adapters. These are assigned by the EISA or PCI configuration utility into
CMOS RAM and read by the device driver at boot time.
See also:
• /I Adding SCSI / EIDE CD-ROM drives" (page 307)
• /I Adding floptical drives" (page 309)
• /I Adding secondary hard disks" (page 324)
• "Installing a tape drive" (page 344)
Boot time messages from host adapter drivers
When the host adapter drivers register the host adapters that they find at boot
time, they print a line with the following format for each adapter found:
%adapter start-end IRQ DMA type=ha ha=number id=ID [ [fts=] string]
where:
start is the start I/O address in hexadecimal
end is the end I/O address in hexadecimal
IRQ is the interrupt vector; this appears as if the host adapter is
II - "
polled
DMA is the DMA channel; this appears as if Bus Master DMA is used.
II - "
The default DMA channel is defined in the file letc!conflcfdlmdevice.

Host adapters that use Bus Master DMA define the channel with
value "-I".
ha is the host adapter driver internal name (xnamex)
number is the number of the host adapter as defined in the file
letc!conf/cfdlmscsi (see the mscsi(F) manual page for more details).

Adding SCSI/EIDE CD-ROM drives
ID is the address of the host adapter on the SCSI bus (usually 7)

string is the description of the host adapter. If the driver uses the feature
string (fts=) form, the single-letter feature codes are:
b buffers commands
d supports 32-bit DMA addresses
n does not require Corollary maps
s supports scatter-gather read/writes
t supports tagged commands
For example, consider the following example boot-time driver initialization

message:
%adapter Ox8000-0x8CDC 11 type=eiad ha=O id=7 fts=std
This is the first Adaptec AHA-174x host adapter on a system that uses the eiad
driver (type=eiad ha=O). Its start and end I/O addresses are Ox8000 and
Ox8CDC, it uses interrupt II, and it performs Bus Master DMA (Ox8000-0x8CDC
11 -). It also supports scatter-gather, tagged commands, and 32-bit DMA
addresses (fts=std).
Adding SCSI/EIDE CD-ROM drives

When installing a SCSI CD-ROM drive, you must use a SCSI host adapter sup-
ported by sco OpenServer systems. You should also check with your hard-
ware supplier that the drive will work with the host adapter.
NOTE ATAPI-2-compliant drives connected to an EIDE controller are also

supported using the same driver used for SCSI devices. At boot time, IDE
controllers and CD-ROM drives are listed as in this example:
%adapter Ox01FO-Ox01F7 14 - type=IDE ctlr=primary dvr=wd
%cd-rom - - - type=IDE ctrl=pri cfg=slv dvr=Srom->wd
You can mount an ISO 9660, High Sierra, or Rock Ridge format CD-ROM as a
read-only filesystem. This allows access to files which are described by the
primary volume descriptor on the CD-ROM. Access to files described by sec-
ondary volume descriptors is not supported.
A maximum of 255 SCSI CD-ROM drives per system are supported; seven per
SCSI 1 bus, or fifteen on a 16-bit-wide SCSI 2 bus. The device files used for
access to the CD-ROM drive are documented on the cdrom(HW) manual page.
CD-ROM file systems containing extended attribute records are supported. You
can access record format information and the file access permissions in an
extended attribute record using options to mount(ADM).
307
For EIDE I ATAPI drives, you will need to specify whether it is attached to a
primary or secondary controller and whether it is configured as master or
slave.
For SCSI drives, you will need to specify the SCSI host adapter type, the host
adapter number, target ID, and logical unit number (LUN) as described in
"SCSI addresses" (page 304). If this is the first SCSI peripheral that you are
adding to the SCSI bus controlled by a host adapter, you may need to supply
additional hardware information about the adapter as described in "Adding a
SCSI peripheral device" (page 305).
To add a CD-ROM drive:

1. Log in as root and put the system into maintenance mode.
2. Select CD-ROM from the devices listed by the Hardware/Kernel Manager,
or enter the command mkdev cdrom.
3. Select to install the appropriate CD-ROM type from the main menu.
4. If the CD-ROM driver is not already configured into the kernel, choose to
configure it for use.
5. For EIDE I ATAPI drives, enter the controller number and identify the drive
as master or slave.
6. For SCSI drives, enter the type and number of the host adapter. If the
adapter driver is not already configured into the kernel, enter the
requested hardware configuration information. Confirm the values dis-
played. When prompted, enter the details of the SCSI address of the drive
and confirm the information.
7. Do not enable support for the CD-RaMI tape installation device driver.
(You would only require this driver to read an install CD-ROM supplied
with an earlier version of the operating system.)
8. If this is the first CD-ROM drive on your system, specify that you want to
add support for the High Sierra filesystem. DOS CD-ROMs generally use
the High Sierra format, so you will also be able to access data from these
with this setting.
9. Relink the kernel, then reboot the system. You can defer relinking if you
have other devices to configure.
NOTE To bring the CD-ROM drive online, you must insert a disk. If you
I attempt to bring up the drive without inserting a disk, the message cannot
open is displayed.
308 sea OpenServer Handbook

Troubleshooting SCSI host adapters
Adding floptical drives

When installing a floptical drive, you must use a SCSI host adapter supported
by sca OpenServer systems. You should also check with your hardware sup-
plier that the drive will work with the host adapter.
A maximum of seven floptical drives on a single SCSI bus per system are sup-
ported. The device files used for access to the floptical drive are documented
on the fIoptical(HW) manual page. You will need to specify the SCSI host
adapter type, the host adapter number, target ID, and logical unit number
(LUN) as described in "SCSI addresses" (page 304). If this is the first SCSI peri-
pheral that you are adding to the SCSI bus controlled by a host adapter, you
may need to supply additional hardware information about the adapter as
described in "Adding a SCSI peripheral device" (page 305).
To add a floptical drive:
2. Select SCSI Floptical drive from the devices listed by the Hardware/Kernel
Manager, or enter the command mkdev flopti.
3. Select Install a floptical drive from the menu.
4. If the floptical driver is not already linked into the kernel, configure it for
use.
5. Enter the type and number of the host adapter. If the host adapter driver is
not already linked into the kernel, enter the requested hardware configura-
tion information. Confirm the values displayed.
6. Enter the details of the SCSI address of the drive and confirm the informa-
tion.
7. Relink the kernel, then reboot the system. You can defer relinking if you
have other devices to configure.
Troubleshooting SCSI host adapters

If you have problems when installing SCSI host adapters or when adding peri-
pherals to the SCSI bus, see:
• "Installing when SCSI host adapters share interrupts" (page 310)
• "Mixing scatter-gather and non scatter-gather host adapters" (page 310)
• "SCSI peripherals not recognized" (page 310)
• "Troubleshooting hard disks" (page 340)
• "Problems with SCSI tape drives" (page 352)
309
Installing when SCSI host adapters share interrupts

Installation may fail on an EISA system with two SCSI host adapters that share
the same interrupt. If possible, move the second host adapter to a different
interrupt for the duration of the installation process. If no spare interrupts are
available, remove the second host adapter from its slot until installation is
complete.
Mixing scatter-gather and non scatter-gather host adapters

You can mix scatter-gather and non-seatter-gather host adapters on the sys-
tem. Alternatively, you can disable scatter-gather in the driver by logging in
as root and changing the line:
int Sdsk_no_sg=O;
in the file /etc/conf/pack.d/Sdsk/space.c to read:
int Sdsk_no_sg=l;
The change will not take effect until you relink the kernel and reboot the sys-
tem.
SCSI peripherals not recognized
The likely causes for a SCSI peripheral not being recognized are:
• The SCSI bus is terminated at some point between the host adapter and the
controller for the peripheral that is apparently missing. The bus must be
correctly terminated at both ends only; no terminating resistors must be
present at any other place on the bus. Controllers usually use plug-in ter-
minating resistors or DIP switch settings to allow termination. Check the
intermediate controllers on the bus for premature termination. Incorrect
termination can also lead to data corruption.
• The target ID set on the controller board is the same as that of another con-
troller on the same bus.
• The target ID set on the controller board differs from that defined in the file
/etc!conf/cfd/mscsi.

Chapter 17
Installing Plug and Play devices
To configure ISA cards, including sound cards, SCSI host adapters, multiport
serial boards, and others that conform to the Plug and Play ISA Specification
Version 1.0A, use the SCOadmin ISA PnP Configuration Manager (page 312):
• immediately after you install the system, if you have any devices to config-
ure
• immediately after you install an ISA PnP card
• any time you want to modify device configuration on a previously installed
card
When you configure a card with the ISA PnP Configuration Manager, you set
the card's resources to match values compatible with existing UNIX® ISA
drivers.
Configuration consists of:

1. physically adding the card (page 313)
2. selecting a card and device to configure (page 314)
3. resolving configuration conflicts (page 316)
4. relinking the kernel and rebooting the system (page 317)
You can also use the ISA PnP Configuration Manager to disable a device on a
specified card (page 316).
See "Terminology and concepts" (page 319) for a glossary of terms and infor-
mation on which files the manager uses and updates.
311
The ISA PnP Configuration Manager interface

After you install the appropriate ISA PnP card(s), log in as root and start the
ISA PnP Configuration Manager in one of these ways:
• Double-click on the ISA PnP Configuration Manager icon in the System
Administration window on the Desktop.
• Start the SCOadmin launcher by entering seoadmin on the command line,
then select ISA PnP Configuration Manager.
• Enter seoadmin isa plug and play on the command line (or abbreviate to
seoadmin isa).
• Enter /ete/pnp on the command line.
• Enter mkdev isapnp on the command line.
When you start the ISA PnP Configuration Manager, this window displays
the cards currently detected on your system:

Physically adding an ISA PnP card
Detected cards are shown in the top point-and-pick list.
Devices available for use with that card are shown in the bottom point-and-
pick list.
The names of these cards and devices are generated from the cards them-
selves.
For more information on using SCOadmin managers, see" Administering your

system with SCOadmin" (page 143).
NOTE If you attempt to start the ISA PnP Configuration Manager and no
cards are found on your system, an error message appears. See No ISA PnP
cards detected (page 318) for more information.
Physically adding an ISA PnP card

You can physically add a card either before you install the system or at any
time after the installation.
The card should be enabled for Plug and Play mode. Check the card's docu-
mentation to determine whether or not you need to set jumpers on the card to
enable this capability.
If you installed the card before you installed the system, start the ISA PnP
Configuration Manager and skip to "Selecting a card and device to configure"
(page 314).
To add a card to an already installed system:

1. Log in to the system as root.
2. Halt the system with the System Shutdown Manager (page 178) or the
shutdown(ADM) command.
3. Turn the power off and disconnect the power cord to your system.
4. Physically add the card to an empty ISA slot on your motherboard. Be sure
that the card is enabled for Plug and Play mode.
5. Turn the power on and restart the system (page 169).
313
Selecting a card and device to configure

The main window of the ISA PnP Configuration Manager displays cards and
the devices they support. If only one card is available for configuration, it is
already highlighted when you start the manager.
Each time you highlight a different card, the list of devices below changes to
contain the devices associated with the selected card. For example, a sound
card might support audio, an IDE CD-ROM, and a joystick.
Each device displays an icon which reflects its current state:

• A circle with a slash through it indicates that the device has not been con-
figured or has been disabled.
• A circular arrow indicates that the device has been chosen for BIOS
resource allocation and is waiting to have those values applied.
• A check mark indicates that the device has been configured with appropri-
ate values and is waiting for those values to be applied.
If no icon is displayed, the device is configured correctly into the kernel.
For each selected device, you can:

• modify resource allocation (this page)
• enable BIOS resource allocation (page 315)
• disable the device (page 316)
Modifying resource allocation for a device

You can choose from pre-set resource allocations defined by the card's manu-
facturer, or manually modify those settings, by using the Edit feature of the
ISA PnP Configuration Manager.
When you click on Edit, a list of resource descriptions and resource settings
appear for the selected device.
Resource descriptions might include:

Current the current state of the device when you entered the manager
Good a set of resource settings designed to work well with this device
Acceptable another set of resource settings designed to work well with this
device
Sub-Optimal resource settings which will work, but are not as optimal as the
other choices
314 SeQ QpenServer Handbook

Selecting a card and device to con figure
The list you see might contain other choices defined by the manufacturer, and
there can be multiple versions of each type.
To select or change settings:

1. Click on a set of resource settings.
• To accept these settings, click on OK.
• To modify these settings, choose a value from the active pull-down
menus. In some cases, only one choice is available.
When you are finished modifying settings, click on OK.
2. If you click on OK and the changes you made do not conflict with other de-
vices on your system, you return to the main window, where the device
now appears with a check mark icon.
If the changes you made do conflict with other devices on your system,
the Possible Conflicts window appears (page 316).
3. After you return to the main window, you must apply these changes and
relink the kernel (page 317).
Enabling BIOS resource allocation

You can enable your device to be configured with resources allocated by the
system BIOS. This ensures that only valid, available resources are allocated.
In the ISA PnP Configuration Manager:

1. Highlight a card.
2. Highlight the device to enable.
3. Click on BIOS.
The device appears with a circular arrow icon.
4. Configure other devices as desired.
5. When finished configuring all devices, click on Apply to relink the kernel
and reboot the system (page 317).
315
NOTE Not all system BlOSs are Plug and Play aware. If yours is not, you
will need to manually configure the device using the Edit button (page 314).
If the BIOS is Plug and Play aware, it allocates resources to Plug and Play de-
vices each time the system boots. When you enter the ISA PnP Configura-
tion Manager after the system reboots, the device might or might not
appear to be configured. This is because the seo OpenServer PnP driver is
not managing the device directly; instead, the system BIOS handles all con-
figuration. What the BIOS reports to the manager is BIOS-dependent.
If you want to permanently assign resources to your Plug and Play device,
you must specifically set them using the Edit button (page 314).
Disabling a device
To disable a device you previously configured with the ISA PnP

Configuration Manager:
1. Highlight the card.
2. Highlight the device to disable.
3. Click on Disable.
4. Configure and disable other devices as desired.
5. When finished disabling and configuring desired devices, click on Apply to
relink the kernel and reboot the system (page 317).
Resolving configuration conflicts

If you allocate resources in the Edit window which are in conflict with those
used by another device on your system, the Possible Conflicts window
appears when you click on OK.
This window provides a list of hardware configured on your system, along

with an indication of the conflicting parameters. For example, if you allocate
IRQ 5 to a sound card when it is used by your tape drive, the Possible Conflicts
window appears with the conflicting value indicated.
From this window, you can:

• Click on Re-edit to modify the resource allocation.
This returns you to the Edit window, where you can try another set of
resource allocations or change the conflicting resource to another accept-
able value.

Relinking the kernel and rebooting the system
• Click on OK to accept the conflict and continue.

Do this when you are reconfiguring an existing card and driver, or when
you know that the conflict is acceptable; for example, some devices can
successfully share interrupt vectors.
After you return to the main window, apply any changes and relink the kernel
(this page).
NOTE The Possible Conflicts window is generated using system informa-

tion stored in /dev/string/cfg. To view this information at any time, enter
/etc/hwconfig on the command line. This data shows which resources are in
use before you run the ISA PnP Configuration Manager, and can alert you
in advance to possible conflicts.
Relinking the kernel and rebooting the system

After allocating resources and resolving conflicts, enabling BIOS resource allo-
cation, or disabling a device, you must relink the kernel and reboot the system
to put these changes into effect.
In the ISA PnP Configuration Manager:

1. Click on Apply.
Messages appear as system files are updated.
2. Click on OK to create a new kernel which reflects the changes you made.
If you click on Cancel instead, you can create the kernel manually at a later
time. See "Relinking the kernel" (page 290) for more information.
I NOTE The changes you made will not be in effect until you relink the
kernel and reboot the system.
3. To halt the system, use the System Shutdown Manager (page 178) or the
4. Boot the system into multiuser mode.
317
Troubleshooting card configuration

The following list of possible error messages describes common causes and
workarounds.
No ISA PnP cards detected
Cause: The manager did not detect an ISA PnP card in your system,
either because no cards are physically present or a physically present
card is not jumpered into ISA PnP mode.
Solution: Shut down your system, then ensure that the cards present
are seated correctly and jumpered (if necessary) to support ISA PnP
mode.
Problem running /etc/isapnpslot
Cause: This command is run automatically by the manager to extract
ISA Plug and Play information about the system. Its failure could be
caused by a corrupt binary, incorrect permissions, or a disabled or
missing PnP driver.
Solution: Verify that the PnP driver is configured in the kernel. You
should see %PnP in the hardware list when you boot the system. You
can also run hwconfig( C) to view the same information.
If the driver is present, check the permissions on the device /dev/pnp.
You should see a listing similar to this:
crw------- 1 root root 117, 0 Jan 21 15:03 /dev/pnp
If the device is present and has the correct permissions, verify that
the command /etc/isapnpslot -T provides output.
Verification of HW settings failed
Cause: The settings you specified could not be verified against the
settings that have been detected on the card. Faulty hardware is the
most likely cause.
Solution: Try one or all of the following:
• Re-configure the device to use a different set of resources.
• Shut down the system, turn the power off, then turn it back on and
reboot.
• Replace the card.
File is not present, File is zero length, Directory is not present, or
Source file is corrupted
Cause: These four error messages indicate that the file
/etc/conf/pack.d/PnP/space.c is mIssIng or corrupt or that the
/etc/conj/pack.d/PnP directory is missing.
318 SeQ QpenServer Handbook

Terminology and concepts
Solution: Copy either /etc/conf/pack.d/PnP/space.bak or

/etc/conf/pack.d/PnP/space.orig to /etc/conf/pack.d/PnP/space.c
Ensure that the file has the following permissions and ownership:
-rw-r--r-- 1 root sys 4713 Jan 29 17:17 space.c
View only mode

Cause: Only the root user is authorized to change resources within
the ISA PnP Configuration Manager.
Solution: Exit the manager, log in to the system as root, and restart
the manager.
Kernel relink failed
Cause: The required kernel relink failed, which results in your
changes not going into effect.
Solution: Boot your system from the old, functional kernel (for
example, /boot.old), then run the manager again to try to create a
bootable kernel. See "Booting an old kernel" (page 184) for more in-
formation.

Read this section if you are unfamiliar with Plug and Play terminology and
concepts or you want to understand how the manager uses and updates sys-
tem files and utilities.
Plug and Play Glossary
Card A physical card, also called an adapter, board, or node, that controls
one or more Plug and Play" devices".
Device A functional hardware subset resident on a Plug and Play card. Mul-
tiple devices, such as CD-ROM and joystick controllers, may reside
on a single card.
Resources
One of the following hardware parameters that can or must be set
for each configured device:
DMA
direct memory access channel
IRQ interrupt vector
I/O address
input/output address through which this device communicates
319
Mem address
memory address for this device
Each resource can be set to either a value, to NONE (meaning that no
value is required), or to OFF (meaning that the device is currently
disabled).
For detailed descriptions of these parameters, see Appendix A,
"Configuration parameters" (page 503).
Resource configuration names
A set of resource values which the card manufacturer has defined.
Each set of values is defined as one of the following:
Current
existing device configuration
Good
preferred configuration (highest priority)
Acceptable
lower priority configuration that is still valid
Sub-optimal
configuration that will function but should only be used if other
good or acceptable configurations are not available or cause
conflicts
A given device can have multiple instances of Good, Acceptable, and
Sub-optimal settings.
Plug and Play files and utilities
/dev/Pnp Kernel device driver used to recognize and query ISA Plug and Play
hardware, and to allocate resources to that hardware. Any settings
specified in /etc/conj/pack.d/PnP/space.c are used as directives.
/etc/isapnpslot
Utility which uses /dev/PnP to extract current and possible resource
information. When new resources are specified by the ISA PnP Con-
figuration Manager, isapnpslot verifies that the resource allocation
is valid.

/etc/pnp The ISA PnP Configuration Manager. This utility uses information
provided by isapnpslot to display card and device resource selec-
tions. When the user sets resources, disables devices, or otherwise
modifies the Plug and Play hardware, /etc/pnp rewrites
/etc/conf/pack.d/PnP/space.c to reflect the changes.
/dev/string/cfg
A special file (not directly viewable) that contains existing driver set-
tings. The data contained in this file is normally displayed during
system boot or by using the hwconfig( c) command.
/etc/hw A utility used by isapnpslot to obtain system hardware information
about EISA, ISA, MCA and PCI buses.
/usr/lib/hw
A database used by isapnpslot to obtain system hardware informa-
tion about EISA, ISA, MCA and PCI buses.
321

Chapter 18
Adding hard disks
If the capacity of the root disk is insufficient or you want to reduce an I/O
bottleneck on a disk, you may need to install additional hard disks on your
system. See "Supported hard disk configurations" (this page).
If you have multiple hard disks in your system, you can manage your data
storage more effectively by configuring them as virtual disks. See" About vir-
tual disks" in the System Administration Guide for details.

• add an IDE, EIDE, Compaq IDA, ESDI, or SCSI hard disk to your system
(page 324)
• overcome the BIOS restrictions on the number of cylinders that it can read
on the root disk (page 335)
• replace the root hard disk (page 339)
• and diagnose and fix hard disk problems (page 340)
Supported hard disk configurations

Many hard disks can be used with SCO OpenServer systems. Most IDE, EIDE,
ESDI, Compaq IDA, and SCSI disk controllers are supported.
NOTE The SCO OpenServer system supports large (more than 528MB) EIDE
disks that use logical block addressing (LBA) but it does not support the full
EIDE command set.
On ISA, EISA, MCA, and PCI bus machines, the wd device driver is used with
disks which present a WDIOlO or ST506 interface. This includes IDE and EIDE
drives. The Sdsk device driver is used with all SCSI disks.
323
Adding hard disks
On MCA bus machines, the esdi device driver is used with ESDI disks. The
st506 device driver is used with ESDI disks which are configured to present an
ST506 interface.
Refer to the seQ Hardware Compatibility Handbook for a list of supported disk
drives.
NOTE The MAX_DISK dynamic kernel parameter limits the number of

disks that are supported by the kernel. You may need to use the Hard-
ware/Kernel Manager or the configure(ADM) command to change its value
if you previously set MAX_DISK to limit the maximum number of disks. A
value of 0 allows the kernel to support more disks dynamically.
Adding secondary hard disks

Here are some possible configurations for systems containing multiple hard
disks:
• Root disk on the primary SCSI host adapter: only other SCSI host adapters
can be added. Each host adapter, including the primary, is capable of sup-
porting up to seven disk drives with embedded controllers on a SCSI 1 bus,
and up to 15 on 16-bit-wide SCSI 2 bus.
• Root disk on an IDE, EIDE, or ESDI controller: ISA, EISA, and MCA bus ma-
chines can support up to two IDE or EIDE controllers. Each controller can
support two disk drives. SCSI host adapters can also be added and config-
ured as shown in Figure 18-1 (page 325).
• Root disk on a Compaq IDA-III controller: a maximum of five more IDA-
III controllers can be added. Each controller can support 14 disk drives.
To install an IDE, EIDE, ESDI, or IDA disk, follow the procedure in "Installing a
hard disk" (page 327). For SCSI disks, first set up the SCSI configuration files
and link the correct device drivers into the kernel using the Hardware/Kernel
Manager or mkdev hd as described in "Configuring a SCSI hard disk" (page
325). Then proceed to "Installing a hard disk" (page 327), where you invoke
the same command a second time to partition the disk and make the file-
systems.

Configuring a SCSI hard disk
LUN 0 LUN 0
disk 0 disk 1
SCSI host
embedded embedded
adapter
controller controller
ID7
SCSI bus
system bus
Figure 18-1 Example of a mixed ST50S-interface disk controller and SCSI configuration
NOTE Configure the hardware according to the documentation provided

with your machine. EISA bus machines have a configuration utility to do
this; ISA machines require you to change jumper settings on the hardware.
SCSI hard disks must have the correct target ID set on their controller card.
The SCSI bus must also be correctly terminated at both ends.
Ensure that the additional drive is formatted and passes the manufacturer's
diagnostic tests before installing the system. If it does not pass the diagnostic
tests, you should not use it with your system.
Configuring a SCSI hard disk
1. Obtain the following information about the SCSI hard disk:

• host adapter type
• host adapter number
• number of the bus on the host adapter
• target ID of the disk controller
• logical unit number (LUN) of the disk
See HSCSI addresses" (page 304) and Adding a SCSI peripheral device"
H
(page 305) for an explanation of what this information means and how to
obtain it.
325
Adding hard disks
If the disk is the first peripheral device that you are adding to the SCSI bus,
you must also supply the following hardware configuration information
about the host adapter:
• interrupt vector
• start I/O hexadecimal address
• end I/O hexadecimal address
3. Select Hard Disk from the devices listed by the Hardware/Kernel Manager,
or enter the command mkdev hd. (Enter mkdev hd -u or mkdev hd -h if
you require detailed usage and help information for mkdev.)
4. If your root disk is attached to an ST506-interface controller (IDE, EIDE, or
some ESDI configured to use this interface) or an ESDI controller, specify
that you want to add a hard disk to the SCSI bus.
If your root disk is attached to a SCSI controller, specify that you want to
add another SCSI disk.
5. Enter the SCSI host adapter type, and the number of the host adapter.
6. If you are adding the first device to a host adapter, confirm that you wish
to change its setup parameters, enter the hardware details about the host
adapter card and confirm that you want to save these values.
You can exit at this point if you have entered the wrong details.
7. To install a controller on a host adapter that controls two SCSI buses,
specify to which bus (0 or 1) the controller is connected.
8. Enter the SCSI bus number, target ID of the controller and the LUN of the
disk on the controller.
The information you have supplied is displayed:
Host
Adapter Adapter
Type Device Number ID LUN Bus
ad Sdsk o o
This example shows a SCSI hard disk with controller ID 1 being added to
the first Adaptec AHA-154x host adapter on a system. The bus number is
shown as 0 as this is a single bus host adapter.
If the information is correct, confirm that it should be used to update the
SCSI configuration. Otherwise, start the configuration again, or exit.
9. You are given the option of relinking the kernel. If you have more devices
to add, you can defer doing this until later.
10. When you have relinked the kernel, use the System Shutdown Manager
or the shutdown command to shut down the system, then reboot.

Installing a hard disk
After rebooting the system, you must run mkdev hd or the Hardware/Kernel
Manager a second time to partition the disk as described in "Installing a hard
disk" (this page).
This section describes how to install an additional IDE, EIDE, ESDI, IDA, or
SCSI hard disk. If the disk is SCSI, you must already have updated the system
configuration files as described in "Configuring a SCSI hard disk" (page 325).
For all disk controller types, it is assumed that you have already physically
installed the hard disk and booted the system.
NOTE If you are installing a disk that already contains filesystems, you can
retain the data they contain by preserving the disk's existing partition and
division information. However, as a precaution, you should back up the
data before removing the disk from the old system.

2. Select Hard Disk from the devices listed by the Hardware/Kernel Manager,
or enter the command mkdev hd. (Enter mkdev hd -u or mkdev hd -h if
you require detailed usage and help information for mkdev.)
3. Select the type of hard disk that you want to add to the system.
4. IDA disks: Enter the logical number of the disk and the number of the con-
troller to which it is connected.
SCSI disks: Enter the host adapter type and number, the bus number, the
disk controller 10, and the LUN of the disk.
STS06-interface (IDE, EIDE, and some ESDI), or ESDI disks: Enter the num-
ber of the disk on the controller. If you are installing IDE or EIDE disks on
ISA or EISA bus machines, you must also enter the number of the control-
ler to which the disk is attached.
5. Choose to continue the installation, or exit. If you choose to continue the
installation, the driver outputs a message to show it has been initialized.
The mkdev hd script now runs the programs dkinit(ADM), fdisk(ADM),
badtrk(ADM), and divvy(ADM) in sequence to configure the hard disk for
use.
• If your disk has an IDE, EIDE, ESDI, or IDA controller, mkdev hd runs
dkinit(ADM) to allow you to change the physical parameters defined
for the disk such as its geometry, and whether it supports error correc-
tion. See" Changing default disk parameters using dkinit" (page 328)
327
Adding hard disks
dkinit is not run for SCSI disks. If you move a SCSI disk between ma-
chines or change the host adapter, you may need to run dparam(ADM)
on the disk to change the geometry defined in the masterboot block.
See "Writing a new masterboot block" (page 337) for more information.
• If your disk has an IDE, EIDE, or ESDI controller, mkdev hd runs
fdisk(ADM) to allow you to create disk partitions. See "Partitioning a
hard disk using fdisk" (page 330) for more information.
• If your disk has an IDE, EIDE, or ESDI controller, mkdev hd runs
badtrk(ADM) to allow you to scan the disk and map bad tracks to the
bad track table reserved within a UNIX system partition. For SCSI disks,
mkdev hd uses badtrk to reserve a table for bad SCSI logical blocks but
it does not allow you to scan the disk. See "Scanning a disk for defects
using badtrk" (page 331) for more information.
If the virtual disk driver is linked into the kernel, and you want to con-
figure your multiple hard disks as virtual disks, choose to exit at this
point and run the Virtual Disk Manager. See Chapter 8," Administer-
ing virtual disks" in the System Administration Guide for details.
• The mkdev hd script runs divvy(ADM) to allow you to divide a UNIX
system partition into separate file systems and swap areas. See "Divid-
ing a disk partition into divisions using divvy" (page 333) for more in-
formation.
The installation and configuration of your hard disk is now complete. You can
return the system to multiuser mode. See Chapter 2, "Administering filesys-
tems" in the System Administration Guide for details of how to mount the new
filesystems for use.
Changing default disk parameters using dkinit

dkinit allows you to display, modify, or select default disk parameters if you
are installing an unusual or nonstandard disk.
If you have a standard hard disk (one that is supported by your computer
hardware or special motherboard ROM), select the default disk configuration
and quit. The installation continues by running fdisk(ADM) to allow you to
partition the disk. See "Partitioning a hard disk using fdisk" (page 330).
NOTE If you are not sure whether your disk is nonstandard, check the
default parameters using the dkinit display option. Calculate the size of
your disk in bytes using the formula:
size = cylinders x heads x sectors per track x 512

Some drives are sold by formatted size, others by unformatted size. The for-
matted size of a drive is approximately 85% of its unformatted size. The
parameters displayed by dkinit may not match the drive manufacturer's
documentation. Some controllers have optional translation, mapping, or 63-
sector modes. If one of these modes was chosen during low-level formatting,
your sea OpenServer system must be initialized with the translated parame-
ters and not those of the physical drive. In all cases, the known size of the
drive should approximately match the size calculated above from the disk
parameters.
If your disk is nonstandard, you must enter information to replace the disk
configuration information in ROM. If you are unsure of what parameters to
enter for your nonstandard disk, contact your disk manufacturer for this in-
formation.
You will need to supply the following information:
Disk parameter Description

cylinders number of cylinders on the entire disk
heads number of disk read /write heads
write reduce starting cylinder for reducing the current to the disk
head when writing to inner cylinders
write precomp starting cylinder for adjusting the spacing of certain bit
sequences when writing to inner cylinders
ecc number of bits of error correction on I/O transfers
control controller type number
landing zone cylinder where heads are parked
sectors / track number of sectors per track
NOTE Most modern IDE and EIDE disk drives have integrated disk control-
Ilers which handle write-current reduction and write-precompensation auto-

matically. If this is the case, enter 0 for these values.
Quit dkinit to save the disk parameters you have changed.
329
Adding hard disks
Figure 18-2 shows the internal architecture of a hard disk and its associated
terminology.
Boom Head Sector Spindle Track Platter
----:---cw--- Cylinder
Figure 18-2 Hard disk geometry and terminology
Partitioning a hard disk using fdisk

Use fdisk(ADM) to create partitions on the hard disk. You can use the whole
disk for the seo OpenServer system, or you can preserve existing partitions
that are used by other operating systems, such as DOS. The maximum parti-
tion size is 2 terabytes (2TB). The maximum useful size may be further limited
by the maximum file system (division) size.

With fdisk you can:

• display the current partition table, showing partitions that exist on the disk
(if any). There can be a maximum of four partitions. For each partition, the
table lists:
- the partition number
- whether the partition is active
- the type (UNIX system or other)
- the start track of the partition
- the end track of the partition
- the size of the partition in tracks.
• use the entire disk for a UNIX system. This will destroy any existing parti-
tions. Select this if you want the sea OpenServer system to occupy the
whole disk.
• use the rest of disk for a UNIX system. This preserves any existing parti-
tions. You must make this partition active.
• create a UNIX system partition on the disk with a size you specify. Do not
allocate the tracks that the system has reserved for the masterboot and
diagnostic programs.
• make a partition active.
• delete a partition.
• create a partition for a specified operating system
If you want to create just a single UNIX system partition on the entire disk,
select that option, check it using the display option, then quit.
Scanning a disk for defects using badtrk

Use badtrk(ADM) to scan IDE, EIDE, and ESDI disks for defective tracks. It
maps any flawed tracks to good ones elsewhere on the disk. It also creates a
table of all the bad tracks on your hard disk.
I NOTE Do not run badtrk on IDA disks. IDA controllers handle bad tracks
automatically.
When you first install a SCSI disk, badtrk creates a table of bad blocks in the
partition but it does not scan the disk. To scan a SCSI disk for bad SCSI logical
blocks, you must run badtrk on it after you have installed the disk. On SCSI
disks, badtrk tries to use spare disk blocks that are maintained by the disk
controller as replacements for bad blocks. If bad blocks cannot be mapped out
in this way, the disk driver maps out bad blocks using the spare blocks and
the bad block table in the disk partition. You can force it to use this table by
331
Adding hard disks
specifying the -0 option to badtrk. You can also enable Automatic

Read/Write Remapping (ARR/ AWR) for the entire SCSI disk if the disk con-
troller supports this feature. Any defects that arise will be remapped without
notifying you.
badtrkcan:
• display the current bad track/block table. This is an example of a bad track
table with a single entry:
Defective Tracks
+-----------------------------------------------+
Cylinder Head Sector Number(s)
+-----------------------------------------------+
11. 190 3 12971-12987
+-----------------------------------------------+
• scan the disk for flaws. The scan can be "quick" or "thorough", destructive
or non-destructive. Typical scan rates are 18MB per minute for quick, and
6MB per minute for thorough. Do not choose a destructive scan if you want
to preserve existing data on the disk.
Whenever badtrk finds a defective track, it displays its location on the disk,
for example:
WARNING: wd: on fixed disk ctlr=O dev=0/47 block=3l434 cmd=00000020
status=00005180, sector = 62899, cylinder/head = 483/4
You can interrupt the scan at any time and return to the main badtrk menu.
• add entries to the current bad track/block table.
On some IDE and EIDE drives which remap the disk geometry, the cylinder,
head, sector reported for a bad sector or block may not correspond to the
actual physical values of these quantities. In such a case, you should deter-
mine an absolute block address for the sector(s) or block(s) to be remapped
using the formula:
logical address = «cylinder+ 1) x (head+ 1) x (sectors per track» + sector
Note that this assumes that the first cylinder, head, and sector are all num-
bered from o.
• delete individual entries from the current bad track/block table.
• delete all entries from the bad track/block table.
• enable Automatic Read / Write Remapping on SCSI disks that support this
feature. Any bad blocks that develop on the disk will be reallocated auto-
matically to the defect list managed by the disk controller.
When installing a new disk, you should perform a thorough destructive scan
on the complete UNIX system partition. It may take several hours to scan a
1GB disk.

WARNING If you run badtrk(ADM) yourself, take care not to run a destruc-
tive scan on the wrong disk by mistake. For example, to specify the first par-
tition of the third hard disk, you would enter:
/etc/badtrk -f /dev/rhd21 -s td
See hd(HW) for a description of hard disk naming conventions.
When using mkdev hd to install a hard disk, if badtrk finds a flaw in the first
few tracks of the UNIX system partition, it returns you to fdisk (page 330).
You can then repartition the disk to exclude the defective tracks from any par-
tition. When you leave fdisk, badtrk runs again to allow you to scan the disk
for further flaws. This process continues until badtrk finds no flaws in the first
few tracks. You may have to experiment to determine how many tracks to
exclude.
When you quit badtrk while first installing a disk, it prompts you for the
number of tracks to reserve as replacements for flawed ones. Allocate at least
as many tracks as badtrk recommends. This number is based on the current
number of bad tracks plus an allowance for tracks that may go bad. If you
ever exceed the number of allocated bad tracks, you must reinstall the hard
disk.
WARNING If you run badtrk on a disk which already contains file systems,
the data in these will be lost if you change the size of the bad block table. In
such a case, remake the file systems and restore the data from a backup
archive.
Dividing a disk partition into divisions using divvy
Use divvy(ADM) to divide a UNIX system partition into a maximum of seven

divisions (0 to 6). You can use these divisions as filesystems or swap areas.
Division 6 (recover) is reserved for use by fsck(ADM) on the root disk only.
Division 7 is reserved and refers to the entire partition.
divvy displays a table of the current divisions within a UNIX partition. To

change this table, use the following one-letter commands to:
n name a division. This creates a corresponding block device file for
accessing the division, for example, /dev/x for a division named x. Do
not name a division usr.
c create a division. Used to bring a division into use.
t select the file system type of a division. Divisions can be one of the sup-
ported filesystem types such as HTFS or DTFS, and NON FS for a swap or
recover area.
333
Adding hard disks
p prevent a filesystem from being created on a division.

s define the start logical block for a division. divvy displays the total num-
ber of file system logical (lKB) blocks available. Note that a filesystem
logical block is not the same as a physical disk block or a SCSI logical
block (which are typically 512 bytes in size). Do not allow any of divi-
sions 0 to 6 to overlap; a division cannot start on or before the end block
of the previous division.
e define the end logical block for a division.
r restore the division table to the state it was in when you entered divvy.
Changes are not final until you quit divvy and select install (i) from the clos-
ing menu. To leave divvy without saving your changes, select exit (e) from
the closing menu.
Creating and resizing divisions
If you are partitioning your primary hard disk at install time, you can reallo-
cate the space used by the default root division to create multiple filesystems.
Do not change the other divisions (including swap, recover, and boot) unless
you are an experienced administrator. For the primary hard disk, you would
first shrink the root division using the e command to define the new ending
block. You can then create and name a new division that starts after the end-
ing block of the resized root division and ends at the old ending block for the
root division.
I NOTE The maximum filesystem size that you can create using divvy is 1
terabyte for DTFS and HTFS, and 2GB for other filesystems.
Example: secondary hard disk

The following example of the information displayed by divvy shows a 1GB
SCSI disk configured as the second disk in a system, with one 635MB HTFS and
one 354MB DTFS file system:
+----------+-------------+--------+---+-------------+------------+
I Name I Type I New FS I # I First Block I Last Block I
+----------+-------------+--------+---+-------------+------------+
u HTFS no 0 0 649999
x DTFS no 1 650000 1012734
NOT USED no 2
NOT USED no 3
NOT USED no 4
NOT USED no 5
NOT USED no 6
hd1a WHOLE DISK no 7 0 1013743
+----------+-------------+--------+---+-------------+------------+
1012735 1K blocks for divisions, 4008 1K blocks reserved for the system

Overcoming BIOS limitations

Some disk controllers and SCSI host adapters extend the capabilities of the
system BIOS with their own BIOS. This allows the system to boot from an
ESDI disk or a SCSI disk on the SCSI bus controlled by a SCSI host adapter.
A limitation of the system BIOS is that it will not boot an operating system
that lies on or past the 1024th cylinder on the root hard disk. See "BIOS sup-
port for disks larger than 1024 cylinders" (page 337) for more details.
The disk device drivers of some operating systems (but not the SCO Open-
Server system) use the BIOS to access the hard disk in regular use. This means
that they cannot access disk blocks that lie past the 1024th cylinder. Disk con-
trollers which support logical block addressing or LBA (IDE drives with more
than 1024 cylinders, most EIDE drives, and all SCSI drives) can remap or
translate the geometry of the disk so that it appears to the system to have less
than 1024 cylinders.
On some machines, the disk geometry is stored in CMOS RAM (parameter
RAM) on the motherboard. See "Defining IDE and ESDI disk geometry in the
BIOS" (page 336) for information on what you should do if the disk geometry
information becomes lost from CMOS RAM. If a BIOS extension is used, the
disk geometry may be stored on the disk controller or SCSI host adapter.
When booting from the hard disk, the BIOS reads the masterboot block to find
out which active partition it should boot the system from. If the partition con-
tains the SCO OpenServer system, the hdbootO, hdbootl, and boot bootstrap
programs execute in sequence. If necessary, these programs can translate
between different geometries defined for the root disk in the BIOS and the
masterboot block. The boot program also passes on the geometry information
obtained from the BIOS for use by disk device drivers.
335
Adding hard disks
If you move a root disk between machines or change its host adapter (if SCSI),
the geometry defined in the BIOS may no longer match the geometry that the
operating system previously used to access the disk. This may happen if you
move a SCSI disk to a new host adapter that assumes a different disk
geometry, or if you move an IDE drive to a different computer. In such cases,
you may be able to boot the machine but be subsequently unable to use the
disk because the information about the disk geometry stored in the master-
boot block does not match that defined in the BIOS. You can write the BIOS
disk geometry information to the masterboot block on the root hard disk as
described in "Writing a new masterboot block" (page 337).
If you do not want to change the geometry information stored in the master-
boot block because you need to define the disk as having less than 1024
cylinders, you can override the root disk geometry information stored in the
BIOS when you boot the system as described in "Overriding the root disk
geometry stored in the BIOS" (this page).
Defining IDE and ESDI disk geometry in the BIOS

The geometry of IDE or ESDI disks is stored by the BIOS in CMOS or parameter
RAM. If this information is either not present in the first place, or is lost due to
the failure of the on-board battery, you must enter the disk drive type or disk
geometry information using the setup program supplied with the computer.
Check your computer hardware reference manual for the appropriate ROM
table entries or drive type for your computer.
Overriding the root disk geometry stored in the BIOS

At boot time you can override the geometry information that the BIOS stores
about the root disk using the biosgeom bootstring:
defbootstr biosgeom=<cylinders,heads,sectors>
This bootstring passes your definition of the disk's geometry (number of
cylinders, heads, and sectors) to the hard disk device driver (rather than using
the values stored in the BIOS). It does not change the disk geometry defined
in the BIOS (either unextended or extended).
You may need to use the biosgeom bootstring to override the geometry
defined for large SCSI disks when used with host adapters which assume a
standard disk geometry. If you do not redefine the geometry passed to the
device driver, the values defined for the number of heads and sectors in the
BIOS of the host adapter may imply that the disk has more than 1024
cylinders. See "BIOS support for disks larger than 1024 cylinders" (page 337)

To find out the current numbers defined for the disk's cylinders, heads, and
sectors, enter the biosgeom command at the boot prompt.
Once the disk geometry has been redefined in this way, you can boot the sea
OpenServer system or any other operating system on the root disk using the
bootos(HW) command from the boot prompt.
To add this geometry definition to the default bootstring, edit the definition of
DEFBOOTSTR in fete/default/boot. For example:
DEFBOOTSTR=hd(40)biosgeom unix=(255,255,63)
Alternatively, if the BIOS defines the disk as having less than 1024 cylinders,
or the boot filesystem and all other operating system partitions lie within the
first 1024 cylinders, you can redefine the disk geometry stored in the master-
boot block on the disk as described in "Writing a new masterboot block" (this
page).
Writing a new masterboot block
To change the disk geometry defined on the masterboot block of the root disk:
1. Put the system in single-user maintenance mode.
2. Enter the following command to write a new masterboot block to the root
disk:
/bin/dparam -w /dev/rhdOO
3. Overwrite the root disk geometry information in the masterboot block

with the values expected by the device driver:
/bin/dparam /dev/rhdOO '/bin/dparam /dev/rhdOO'
4. Reboot the system using the command:

fete/reboot
BIOS support for disks larger than 1024 cylinders
Disks with more than 1024 cylinders are supported with the following restric-
tions:
• The disk controller must support disks with more than 1024 cylinders.
• If the disk is configured as the primary hard disk, the boot file system
(/stand) for sea OpenServer software and the bootable disk partition for
any other operating system must lie within the first 1024 cylinders. This is
because the BIOS in ROM cannot access information that lies beyond the
1024th cylinder. If the boot file system falls outside the first 1024 cylinders,
an error message will be displayed by boot(HW) as follows:
Error: request outside range of BIOS (1023 cylinders)
337
Adding hard disks
You can use the rest of the disk for swap space, the root file system and addi-
tional filesystems.
The BIOS on some IDE, most EIDE, and all SCSI disk controllers allows remap-
ping or translation of large disks so that they appear to have less than 1024
cylinders. For example, the extended BIOS for the Adaptec 1542, 1742, and
274x controllers allows 2GB SCSI disks to be mapped as 255 heads, 63 sectors
and 255 cylinders.
If you are upgrading your system rather than performing a new installation,
the roof filesystem must fit within 1024 cylinders because there is no separate
boot filesystem in this case.
Configuring IDE disks and disk controllers

The Integrated Drive Electronics (IDE) interface design consists of an adapter
(frequently embedded in the motherboard) connected to a maximum of four
IDE hard drives.
The drives are connected to the adapter by a single 40-conductor cable that
carries both control and data information.
You must set the jumpers on the drives according to the number of drives
installed. If two or more drives are connected, one must be jumpered for mas-
ter mode, the others for slave mode. A single drive connected to an IDE
adapter must be jumpered for single drive mode.
You must also select the ST506 interface on the drive if this can be set using
jumpers. Refer to your drive documentation for details.
The embedded controller on most IDE drives can perform automatic sector
translation. This allows the drives to be configured with several different
head/cylinder /sectors per track settings. You may want to use some settings
other than the factory defaults if your drive has more than 1024 cylinders or if
the new settings more closely match some drive type in the BIOS. This is an
important issue if you are also installing another operating system such as
DOS. See "BIOS support for disks larger than 1024 cylinders" (page 337) for
more information.
WARNING Automatic sector translation means that many IDE hard drives
should not be low-level formatted. A formatting utility will not understand
the underlying hardware of the drive and may render it useless. Check with
the manufacturer of a IDE hard drive before attempting to reformat it.

Rep/acing the root hard disk
Replacing the root hard disk

You may need to replace the root hard disk if an existing disk is no longer
large enough for your needs, or if it suffers a head crash or some other irrepar-
able failure.
WARNING You should perform regular full and incremental system backups
of the filesystems on the root disk to be able to restore these in case of a root
disk crash.
1. Install the new disk. If the drive is not a SCSI drive and is not identical to
the original, be sure you change the BIOS settings with the setup program
provided with your computer hardware to record the new disk parame-
ters. See the documentation provided with your system hardware.
2. Start a fresh installation. From the Preparing your disk and choosing soft-
ware screen, select Hard Disk Setup. From the Disk 0 Partitions and file-
systems screen, select Customize. Recreate each of your old filesystems.
Make the sizes of your file systems at least as large as the originals, other-
wise your backups will not fit when you restore them.
3. When you are returned to the Preparing ... screen, select Optional soft-
ware. You can omit installation of all optional software by typing n for
Operating system services, Graphical environment, and so on.
4. When installation is complete, put the system into single-user mode and
restore your root file system backup. For example, to restore a epio( C)
backup, enter:
epio -imuevdB -I/dev/rdO
If your tape drive is not yet configured, run mkdev tape to reconfigure
your tape drive so that you can restore your backups. As an alternative,
you can reboot and specify the appropriate bootstring for the tape device.
For example, to configure a Wangtek drive:
Boot
: bd(40)unix ct=wangtek(Ox338,5,1)
5. If you have a SCSI system and you changed the host adapter in addition to
changing the root disk, follow these additional steps:
a. Remove your old host adapter driver from your kernel configuration
by editing the file:
/ete/eonf/sdevice.d/adapter
where adapter is the name of the SCSI driver for your old host adapter
(see /etc!default/scsihas for a list of host adapter drivers).
339
Adding hard disks
b. Change the Y to N in the second column, as in this example:

ad N 1 5 0 0 330 332 0 0
c. In the same directory, edit the file that corresponds to your new host
adapter. Change N to Yin the second column.
d. Edit the file /etc!conf/cfd/mscsi, replacing each instance of the old host
adapter driver name (first column) with the new name, as in this exam-
ple that uses the Adaptec driver, ad:
*ha attach number IO lun bus
*
ad Stp o 2 o o
ad Sdsk o o o o
6. Relink your kernel to restore your system configuration using the follow-
ing commands:
cd /etc/conf/cf.d
./link_unix
7. Stop the system:

/etc/haltsys
8. After rebooting your system, restore the backups for your other file-
systems on the root disk (if any). Any non-root disks should be accessible
after the restore of the root filesystem.
Configuring the root hard disk

When you install the operating system, the root disk is configured as the first
disk on the first IDE, EIDE, or ESDI controller, or controller ID 0 on the SCSI bus
controlled by the primary host adapter. IBM SCSI host adapters on the MCA
bus are exceptions; these expect to find the root hard disk controller at ID 6.
Troubleshooting hard disks

If you have problems when installing or configuring additional hard disks on
your system, see:
• "Fixing bad tracks and bad blocks on hard disks" (page 341)
• "Setting hard disk interleave" (page 341)
• "Formatting hard disks" (page 342)

Troubleshooting hard disks
Fixing bad tracks and bad blocks on hard disks

A bad track is an area of the hard disk that is not reliable for data storage. The
hard disks supported by sea OpenServer systems allow you to map the bad
track into the bad track table that lists any areas of the hard disk that should
not be used. The bad tracks listed on the table are aliased to good tracks so
that the operating system avoids the areas of the disk that cannot be read or
written.
If your hard disk develops a bad track after the system is installed and run-
ning, an error message like the following is displayed on the console:
wd: ERROR on fixed disk ctlr=O dev=O/47 block=31434 cmd=00000020
status=00005180, sector = 62899, cylinder/head = 483/4
For a SCSI disk, the message is like this:
NOTICE: Sdsk: Unrecoverable error reading SCSI disk 2 dev 1/64
(ha=O id=l lun=O) block=219102
Medium error: Unrecovered read error
If such an error occurs, use badtrk(ADM) to create a new bad track table so
that the system can avoid the new bad track(s). The badtrk utility is a menu-
driven utility for viewing, adding, or deleting entries in the bad track table.
badtrk automatically enters any flaws it detects in the table, provided there is
room. SCSI disks have a similar mechanism that maps bad SCSI logical blocks
instead of bad tracks. By default, badtrk will try to add bad blocks to the
drive's own internal defect list (G-list) if the drive supports this. You can use
the -0 option to badtrk to force badtrk to add the bad block to the table
managed by the operating system. If your SCSI disk controller supports
Automatic Read/Write Remapping (ARR/ AWR), you can use badtrk to enable
this feature. This allows recoverable errors to be automatically remapped
whenever they occur.
To use badtrk, reboot the system and enter single-user mode. (Do not use
shutdown su to do this.) Run badtrk, scan the disk, and the entire UNIX sys-
tem partition. Choose either a quick or thorough scan; a thorough scan is
recommended if new bad tracks have appeared. Select nondestructive mode
to preserve the data on your hard disk. When the scan completes, quit, and
return the system to multiuser mode.
Setting hard disk interleave

Most modern disk controllers implement track caching and support the pre-
ferred interleave of 1:1. An interleave of 6:1 or 3:1 may be more suitable for
older single-buffered disk controllers that store data using the MFM encoding
method. An inappropriate disk and controller combination formatted with a
1:1 interleave can degrade disk I/O performance by a factor of four or more.
341
Adding hard disks
Note that some SCSI and IDE disk controllers have their own
cylinder /head/sector translation logic, and will probably ignore any reformat
command sent to them.
WARNING Some manufacturers warn against low-level reformatting of their
I disks. Consult the disk controller documentation first if you intend to refor-
mat your disk.
Formatting hard disks

Some IDE and ESDI hard disks are only partially formatted when received
from the factory. This may cause badtrk(ADM) to indicate that every sector
past a certain cylinder /head location is bad at installation. You should contact
the manufacturer to determine whether the disk is completely formatted.
WARNING Automatic sector translation means that many IDE hard drives
should not be low-level formatted. A formatting utility will not understand
the underlying hardware of the drive and may render it useless. Check with
the manufacturer of a IDE hard drive before attempting to reformat it.
Some SCSI host adapter controllers (for example, the Adaptec AHA-154x) have
a set of BIOS routines that allows you to format or redefine the geometry of a
SCSI hard disk. Refer to your hardware documentation for more information.

Chapter 19
Adding tape drives
It is possible to have one QIC-02 cartridge tape drive plus one Irwin mini-
cartridge, one QIC-40, or one QIC-80 drive configured on a system. You can
also add up to seven SCSI tape drives with embedded controllers on a SCSI 1
bus, or 15 SCSI tape drives on a 16-bit-wide SCSI 2 bus.
When installing a SCSI tape drive, you must use a SCSI host adapter that is
supported by sca. Refer to the sea Hardware Compatibility Handbook for a list
of supported host adapters and drives. You should also verify with your
hardware supplier that the drive will work with the host adapter. See sea
Open Server Features and Limitations for information about supported mass
storage drivers.
Using the tape device

The tape( C) utility allows you to perform various tape control functions (such
as rewind, erase, format, retension, and so on) if they are supported by the de-
vice. Access to tape drives is via character (raw) special device files only; there
is no block device access. A no-rewind device exists for writing multiple tape
archives to a single QIC-02 or SCSI tape.
You can also use tape compression, partitioning, and variable block size with
SCSI tape drives that support these features.
343
Adding tape drives
Generic and specific tape support

The tape(HW) manual page describes generic support for tape drives. The
manual pages listed below contain specific information about each type of
tape drive:
Compaq CPQS cpqs(HW)
Irwin irwin(HW)
QIC-02 cartridge(HW)
QIC-40/80 floppytape(HW)
SCSI scsitape(HW)
For more information on using tape drives, see the System Administration
Guide.
See also "Troubleshooting tape drives" (page 349).
Installing a tape drive

Read your tape drive hardware manual for physical installation instructions
and general information.
AT bus tape drive controllers use jumpers or switches to set the interrupt vec-
tor, DMA channel, and so on.
EISA and MCA bus settings are configured using a software utility provided
with the machine although you may also need to set jumpers or switches on
some MCA cards.
To add a tape drive:
2. Select Tape Drive from the devices listed by the Hardware/Kernel Manag-
er or enter the command mkdev tape.
3. Select to configure either a SCSI or a non-SCSI tape drive.
4. Select Install a tape drive or Install a SCSI tape drive from the main menu.
5. To install a SCSI tape drive see Installing a SCSI tape drive" (page 347) for
If
more instructions.
To install a non-SCSI tape drive, see one of these sections:
• Installing a QIC-02 cartridge tape drive" (page 345)
If
• Installing an Irwin mini-cartridge tape drive" (page 346) -

If including
the Accutrack 250 and 120 pc/me
• If Installing a QIC-40/80 floppy tape drive" (page 347)
• If Installing a Compaq CPQS tape drive" (page 348)

Installing a QIC-02 cartridge tape drive

If you have not changed the settings on the controller card, select the default
tape parameters for your card and quit from the menu.
If you need to change any parameters, change them one at a time from the
modification menu.
Table 19·1 Default and suggested alternate settings for ISA and EISA controllers
Type Manufacturer DMA Interrupt Base liD
channel vector (IRQ) address
1 Archive 3 3 Ox220
1 4 Ox200
1 3 Ox200
3 Wangtek 1 5 Ox338
1 5 Ox300
4 Emerald 3 9 Ox300
5 Mountain 1 3 Ox28C
6 Tecmar 1 5 Ox330
7 Everex or Tandberg 1 5 Ox2CO
Enter 0 (zero) values to accept the default hardware settings for the tape con-
troller card.
The following notes apply to ISA and EISA tape controller cards:
• Typically, DACK and DRQ are set to the same channel value.
• Set the interrupt vector (IRQ) to a value between 2 and 7 that is not in use
by another card. You can use vectorsinuse{ADM) to find a suitable value.
See Table 14-1, HTypical device interrupts" (page 275) for details of typical
interrupts use by the system. The most commonly available interrupt is 5,
as most systems do not have a second parallel port.
• Set the base I/O address to a value that is not in use by any other card.
Most common tape controller 1/ a addresses are not used by other devices.
345
Adding tape drives
For MC tape controller cards, the controller type, manufacturer, and default
hardware settings are shown in the following table:
Type Manufacturer DMA Interrupt Base I/O

channel vector (IRQ) address
1 Mountain 1 5 Ox200
2 IBM 6157 2 6 Ox3120
3 Everex, Archive or Tandberg1 3 Ox300
4 Tecmar or Wangtek 3 5 Ox300
Enter 0 (zero) values to allow the hardware settings to be configured automat-

ically for the tape controller card.
Quit from the configuration menu to create the device files.
The installation script prompts you to change the default bootstring if you
want to alter the configuration settings used for the tape device at boot time.
See the boot(HW) manual page for more details.
You can now relink the kernel and reboot to use the tape drive. You may
defer relinking if you have other devices to configure.
Installing an Irwin mini-cartridge tape drive

Mini-tape drives use the floppy disk drive controller or are connected to the
Irwin 4100 controller. Make certain your drive and controller jumpers are set
correctly; refer to your hardware documentation for more information.
Irwin drives differ significantly from standard QIC tape drives in that they are
not configurable and do not require you to enter any hardware parameters
while installing them.
1. Specify that you want the drive to be unit 1. The appropriate device files
are now created.
2. The installation script prompts you to change the default bootstring if you
want to alter the configuration settings used for the tape device at boot
time. See the boot(HW) manual page.
3. You can now relink the kernel and reboot to use the tape drive. You can
4. You must create the Irwin configuration file letc!defaultlmcconfig if you
want to specify debugging, hardware-specific options, and other features.
See the mcconfig(P) manual page.

Installing a QIC-40/80 floppy tape drive
These units are specialized mini-cartridge units that follow the QIC-40 / 80
specification. They do not use the same format as Irwin mini-cartridge drives.
Refer to your tape drive documentation for instructions on how to specify the
drive by resetting jumpers.
1. Specify whether you are installing a QIC-40 or QIC-80 drive, and whether
you wish to enable extended tape length mode. Do not enable extended
length mode if your drive does not support it. See the floppytape(HW)
manual page for information on extended length mode.
2. Enter the hardware configuration option for your drive. Archive and
Mountain drives can use Soft Select mode. Wangtek drives may be config-
ured to use Phantom select mode. Refer to your tape drive's documenta-
tion for the necessary jumper settings to use these modes. Quit from the
configuration menu to create the device files.
3. The installation program prompts you to change the default bootstring if
you want to alter the configuration settings used for the tape device at
boot time. See the boot(HW) manual page for details.
4. You can now relink the kernel and reboot to use the tape drive. You may
Installing a SCSI tape drive
SCSI tape drives are added to the system as SCSI devices. You must specify the
SCSI host adapter type, the host adapter number,target ID, logical unit num-
ber (LUN), and bus number as described in "SCSI addresses" (page 304).
If this is the first SCSI peripheral that you are adding to the SCSI bus controlled
by a host adapter, you may need to supply additional hardware information
about the adapter as described in "Adding a SCSI peripheral device" (page
305).
1. Select SCSI tape device installation. If the SCSI tape driver is not already
configured into the kernet the installation does this automatically.
2. Enter the type and number of the host adapter. If the host adapter driver is
not already configured into the kernel, enter the requested hardware con-
figuration information. Confirm the values displayed to update the Link
Kit.
3. Enter the details of the SCSI address of the drive and confirm the informa-
tion.
347
Adding tape drives
4. Specify the following information to configure the tape drive optimally for
the system. To select a generic SCSI configuration, press (Enter) when
asked for these values:
vendor-specific ID string
The string returned by the SCSI device INQUIRY command.
SCSI version
Enter 1 for SCSI 1, or 2 for SCSI 2.
response data format
Enter 0 for SCSI 1, 1 for the common command set (CCS) REQUEST
SENSE command, or 2 for SCSI 2.
Obtain this information from the documentation that was supplied with
the tape drive or by contacting the manufacturer.
5. Choose one of the following entries that describes the type of tape drive
you are installing:
• Generic SCSI 1 I SCSI 2 (including 9-track)
• Exabyte 8mm (8200 or 8500)
• IBM rebadged Exabyte 8mm (8200)
• DAT (compressing and non-compressing)
• QIC cartridge
This will enable the SCSI tape device driver to make best use of the drive's
capabilities. If you are unsure, choose the default generic SCSI IISCSI 2
option.
6. The installation prompts you to change the default bootstring if you want
to alter the configuration settings used for the tape device at boot time. See
the boot(HW) manual page for details.
7. You can now relink the kernel and reboot to use the tape drive. You may
Installing a Compaq CPQS tape drive

To install a Compaq CPQS tape drive:
1. Enter the target ID of the tape drive and the base 110 address, DMA chan-
nel, and interrupt vector values set on the controller card. Select the
default parameters if you have not altered the settings on the card.
2. Quit from the configuration menu to create the device files.

Troubleshooting tape drives
3. The installation script prompts you to change the default bootstring if you
want to alter the configuration settings used for the tape device at boot
time. See the boot(HW) manual page for details.
4. You can now relink the kernel and reboot to use the tape drive. You can
Changing the default tape drive

If you install more than one tape drive, mkdev prompts you to specify the
drive that you want linked to the default tape device files. For example, if you
have both a SCSI cartridge tape drive and a DAT tape drive installed, only one
of them can be linked to the default device /dev/rctO. You can change the drive
linked to the default device using a menu option of the mkdev tape com-
mand.

If you have problems when using tape drives see:
• general problems (this page)
• QIC-02 drives (page 350)
• SCSI drives (page 352)
• Irwin and QIC-40/80 drives (page 353)
Note that these problems generally occur immediately after installing your
tape drive.
General problems with tape drives

You may encounter the following general problems with tape drives:
• Tapes written on higher capacity drives (for example, 150MB) cannot be
read on lower capacity drives (for example, a 60MB drive).
• All QIC-02 and SCSI cartridge tape drives supported by SCQ will read the
QIC-24 (60MB) format tape install product.
• High density 150MB drives require DC6150 or DC600XTD tapes for writing.
349
Adding tape drives
Problems with QIC-02 cartridge tape drives

You may encounter the following problems with QIC-02 cartridge tape drives:
• "QIC-02 cartridge tape drive not recognized at bootup" (this page)
• "Use of interrupts with the Archive drive" (this page)
• "Settings required by the Olivetti drive" (page 351)
• "Bad octal digit" (page 351)
• "Tape commands hang" (page 351)
• "Cannot open Idev IrctO error message" (page 351)
QIC-02 cartridge tape drive not recognized at bootup

The system recognizes a cartridge tape drive if it displays a message similar to
this at boot time:
%tape Ox338-0x33C 05 1 type=wangtek
If it cannot find the tape drive, the system displays a message such as this:
NOTICE: ct: Tape controller (type=wangtek) not found
For a cartridge tape drive:
1. Verify that the tape controller card is physically configured to the base
address that you gave when you installed the tape drive. If necessary,
reinstall the drive and change the parameters.
2. Verify that the tape controller is seated properly on the motherboard. If
necessary, you may need to insert the controller in a different slot.
3. Some tape drives (particularly external drives) require that the drive be
attached to the tape controller and powered on at boot time.
4. Verify that the cartridge tape drive is supported by SCQ. See the SCQ list
of compatible hardware for a list of the compatible tape drives.
5. If your system still does not recognize the tape controller card at boot
time, see your hardware documentation.
Use of interrupts with the Archive drive

Archive drives using the SC402 controller on ISA bus machines do not use the
default type A interrupt 4. Reset the jumpers on the controller card or use the
mkdev tape command to change the interrupt.

Settings required by the Olivetti drive

The Olivetti tape controller on ISA bus machines uses the following settings:
DMA Interrupt Base I/O address (hex)

1 9 Ox288
Bad octal digit

After installing a cartridge tape drive, the system may display the following
message during the kernel relink process:
/etc/conf/pack.d/ct/space.c line 46 bad octal digit
To fix this problem, verify that the base address for the tape controller is
entered with a leading "Ox" rather than a trailing "H". Install the tape again to
modify the cartridge tape parameters.
Tape commands hang

If the tape drive hangs when you test it with the command tape reset:
1. Verify that the cartridge tape controller card is physically configured for
the DMA value that you gave when you ran mkdev tape. To fix this, either
physically reconfigure the tape controller DMA setting to agree with the
address that you gave with mkdev tape, or run mkdev'lape again and
specify the DMA value on the tape controller.
2. Do the same for the interrupt vector.
3. Verify that the cable between the tape controller and the tape drive is
properly attached.
4. If the tape reset command still hangs, see your hardware documentation.
Cannot open Idev/rctO error message

If a tar(C) command (or other commands which access the tape drive) fail to
write the contents of a directory to a tape, and the system displays the follow-
ing message:
Cannot open /dev/rctO
To correct the problem:
1. Use hwconfig to verify that the interrupt vector for a cartridge tape drive
does not conflict with any other device on your system. Refer to "QIC-02
cartridge tape drive not recognized at bootup" (page 350) for information
on the available interrupt vectors. To change the interrupt vector, run
mkdev tape and indicate a new interrupt vector value.
2. Verify that the actual physical interrupt (IRQ) setting on a cartridge tape
controller card agrees with the interrupt vector that you specified with
mkdevtape.
351
Adding tape drives
3. Make sure that the proper device for the tape drive is located in the /dev
directory. Enter:
l/dev/rctO
The output should look like this:
crw-rw-rw 1 root root 10, 0 Feb 14 12:00 rctO
(The major device number (10) may differ.) If the listing of /dev does not
contain a line similar to this, run mkdev tape again to create the device.
4. Verify that all cables are connected correctly.
5. If the tar command still does not work, the tape may be broken. See your
hardware documentation.
Problems with SCSI tape drives

You may encounter the following problems with SCSI tape drives:
• "SCSI tape drive not recognized" (this page)
• "Using the dd(C) command with Exabyte 8mm tapes" (page 353)
• "Waiting for DAT and Exabyte 8mm tape drives to initialize" (page 353)
SCSI tape drive not recognized

For SCSI tape drives, a message similar to the following is displayed at system
startup even if the tape drive is not present on the SCSI bus:
%tape type=S ha=O id=2 lun=O
A message similar to the following is displayed when you try to access the
tape when there is a problem:
NOTICE: ha: No controller response on SCSI adapter (ha=n id=n lun=n)
NOTICE: Stp: Stp_call_oemtab - Inquiry failed on SCSI type n dev fJninor/n
(ha=n id=n lun=n)
/dev/rctO: cannot open
To correct the problem:
1. If the tape drive is external to the computer, check that it is powered on
and that the SCSI bus is correctly terminated.
If the tape drive is internal to the computer, check that it initializes a tape
when you insert one in the drive.

2. Verify that the ID number for the controller of the device is correct and
does not clash with the ID of any other device on the SCSI bus. The ID
number is determined by the jumper settings on the controller. The valid
range is 0-7 for SCSI 1 and 0-15 for a 16-bit-wide SCSI 2 bus. SCSI tape
drives are often configured for ID 2.
3. Make sure that the host adapter number is correct. The first SCSI host
adapter of a given type is 0; the second is l.
4. Check that the LUN (Logical Unit Number) is correct. In most cases, the
controller is embedded in the same physical unit as the device and sup-
ports one device with LUN O. If the controller is not embedded, it supports
up to eight devices. If this is the case, the LUN is determined by the
jumper settings on each device. The valid range is 0-7.
5. Verify that the host adapter itself is recognized at boot time.
6. Verify that the tape drive is supported. Refer to the sca list of compatible
hardware for a list of supported tape drives.
Using the dd(C) command with Exabyte Smm tapes

Do not use dd to put individual data files onto Exabyte 8mm tapes; extracting
the files may cause extraneous characters to be appended to the original data.
You can, however, use dd with Exabyte 8mm tapes to store and extract tar(C)
or cpio( C) archives.
Waiting for OAT and Exabyte Smm tape drives to initialize

You should wait for a DAT or Exabyte 8mm drive to finish its initialization
sequence before attempting to access the device. This may take 30 seconds or
more.
Problems with Irwin and QIC-40/80 tape drives

You may encounter the following problems with Irwin and QIC-40/80 tape
drives:
• "Irwin or QIC-40/80 tape drive not recognized at bootup" (this page)
• "Difficulty backing up Irwin and QIC-40/80 drives" (page 354)
• "Tape formatting fails" (page 354)
Irwin or QIC-40/80 tape drive not recognized at bootup

The system recognizes a Irwin or floppy tape drive if it displays a message
similar to one of the following at boot time:
%ctrnini - type=ir
%ctrnini - type=QIC-40
%ctrnini - type=QIC-BO
353
Adding tape drives
If it cannot find the tape drive, the system displays a message such as:
ir: ERROR: Tape controller (type=irwin) not found
Verify that the settings you supplied when you installed the drive match the
actual jumper settings on the back of the floppy tape drive. Refer to the hard-
ware documentation.
Difficulty backing up IlWin and QIC-40/80 drives

For most efficient use, we recommend that you perform tape backups in main-
tenance mode.
I NOTE When backing up files in maintenance mode, you must explicitly

mount non-root filesystems.
1. If you see a cannot allocate buffer or not enough space error message
while using the tape drive, you have run out of memory.
2. If you are using an Irwin mini-cartridge tape drive, reboot your system
into maintenance (single-user) mode, run /etc/mcdaemon, and restart the
backup. The Irwin drive requires mcdaemon to be run before the drive
may be used.
If you are using a QIC-40 or QIC-80 drive, see the floppytape(HW) manual
page for information on ft.alloc.switch, ft.minbufs, and ft.maxbufs.
These values give an indication of how to allocate more memory at system
initialization time for QIC-40 and QIC-80 tape drivers.
Tape formatting fails

The tape format command is only supported for use with Irwin, QIC-40 and
QIC-80 tape drives. You must bulk-erase tapes before using the tape format
command to re-format them. This means that if a tape has been format-
written previously, you must erase it with a bulk eraser before you can
format-write it again. (See tape(C) for more information.) If the tape format
command fails, the drive light flashes rapidly. You must reset the drive by
removing the tape cartridge. The driver does not detect this condition and no
error message is generated. All tape operations fail until the tape is removed
and reinserted.

Chapter 20
Configuring video adapters
Configuring video adapters and monitors is the process of connecting new
hardware to your system and modifying the system software to recognize
that hardware. Two separate activities are required:
1. Physically install the adapter and monitor, following the instructions in
the hardware documentation.
2. Run the Video Configuration Manager (page 356) to configure the sea
video subsystem software. The video configuration window displays the
configured adapters, monitors, and resolutions, together with the function
((F») keys that are associated with each configured video adapter.
New and modified video adapter drivers are made available periodically; see
"Accessing the sea Compatible Hardware Web Pages" (page 273). For the
new graphics features and drivers included with this sea OpenServer release,
see sea Open Server Features and Limitations.
This chapter describes how to use the Video Configuration Manager to con-
figure video adapters and monitors. It includes:
• "The Video Configuration Manager interface" (page 356)
• "Understanding video configuration" (page 357)
• "Adding a new video adapter" (page 361)
• "Modifying monitors, resolutions, and function keys" (page 362)
• "Removing a video configuration" (page 365)
• "Configuring unsupported adapters" (page 366)
355
The Video Configuration Manager interface

Use the Video Configuration Manager to add adapters to the system (page
361), add or modify monitors and resolutions already on the system (page
362), and remove adapters from the system (page 365).
You can start the Video Configuration Manager in any of these ways:
• Open the Desktop's System Administration window (double-click on the
System Administration icon) and double-click on the Video Configuration
Manager.
then selecting the Video Configuration Manager.
• Enter scoadmin video configuration on the command line.
NOTE While any user can view the system's video configuration, only root
can modify video configuration.
If this task is performed in multiuser mode, users currently logged in and
running the X server will not see any changes until their next session.
When the Video Configuration Manager starts, you see:
console: Orchid Fahrenheit 1280 PluslV A 1024x768 256 colors

F1: Orchid Fahrenheit 1280 PluslV A 1024x768 256 colors
F2: Orchid Fahrenheit 1280 PluslVA 1024x768 256 colors
F6: Orchid Fahrenheit 1280 PluslV A 1024x768 256 colors


Understanding video con figuration
Problems exiting the Video Configuration Manager

If the manager fails unexpectedly and you cannot get a prompt, see "Recover-
ing from SCOadmin failures in character mode" (page 156) for instructions.
Understanding video configuration

The Video Configuration Manager derives the configuration choices it pro-
vides from three sources:
• grafinfo (graphics adapter information) files
• moninfo (monitor information) files
• device (function key) files
When you run the Video Configuration Manager (page 356), it stores your
configuration settings in the lusrlliblgrafinfolgrafdev and lusrlliblgrafinfolgrajrnon
files. On startup, the X server uses the information in these files and the
appropriate grafinfo and moninfo files to interact correctly with your system's
video hardware.
The grafinfo and moninfo files are ASCII text files that are located in subdirec-
tories of the lusrlliblgrafinfo directory. These files describe the attributes of the
graphics adapters and monitors that are supported by the Graphical Environ-
ment. The grafinfo files use the name of the particular adapter they describe
and an .xgi extension (for example, wonder.xgi); the moninfo files use the name
of the particular monitor they describe and a .mon extension (for example,
8514.mon).
NOTE The grafinfo files for adapters that have .tmpl template files are recre-
ated when you select them during graphics configuration. That is, the corre-
sponding .xgi file is rebuild whenever configuration changes are entered
with the Video Configuration Manager.
The Video Configuration Manager reads the function key (or devices) files at
system startup to associate ttys with function keys (page 365). These text files
are located in the lusrlliblvidconf/devices directory and contain the device driver
names for all the programmed function keys on the console «Fl) through
(F12», as well as the device driver name for the console. The console driver is
used when the system is running in single-user mode.
See also:
• "Understanding resolutions" (page 358)
• "Generic driver configuration" (page 358)
• "Understanding multi-monitor configuration" (page 359)
357
Understanding resolutions
Some resolutions only work if you have enough video adapter memory.
Make sure you have at least the minimum DRAM or VRAM to support the
desired number of colors at the specified resolution:
Table 20-1 Memory requirements for color support at specified resolutions

Resolutions Colors
16 256 32K164K 16M 16M
(4 bits) (8 bits) (15/16 bits) (24 bits) (32 bits)
1600x1200 N/A 2MB 4MB 6MB 8MB
1280x1024 1MB 2MB 4MB 4MB 6MB
1024x768 .5MB 1MB 2MB 4MB 4MB
800x600 .5MB .5MB 1MB 2MB 2MB
640x480 .5MB .5MB 1MB 1MB 2MB
NOTE Some drivers may require memory above these minimum levels for
off-screen memory.
Refer to your video adapter documentation for additional information on

memory requirements.
If you select resolutions of 1024x768 or higher, you may need to determine if
your monitor works in interlaced or non-interlaced mode at these resolutions.
Consult your monitor's documentation for information regarding supported
resolutions.
WARNING Although your video adapter supports the resolutions listed,

your monitor may not. Do not select a resolution that is higher than the
maximum resolution supported by your monitor. Selecting a resolution
that is too high can cause double or jumbled images to display on the moni-
tor; it can also severely damage your non-multi-synch monitor. If this
occurs, try selecting a lower resolution or a lower scan rate frequency.
Generic driver configuration

seo OpenServer provides the svga graphics driver, which is used by the VESA
graphics driver to support video adapters which conform to the Video Elec-
tronics Standards Association (VESA) Video BIOS Extension (VBE) 3.0. You can
use the svga driver when you don't know what graphics adapter is installed
or to configure an unsupported adapter (page 366).

Understanding video con figuration
This driver supports VESA VBE 3.0/2.0 graphics adapters:

• at 256 or 64K colors at resolutions of 640x480 to 1600x1200
• using a generic frame buffer to display graphics
The mw driver is used by the VESA graphics driver to support VESA VBE ver-
sion 1.2 adapters:
• at 256 colors at resolutions of 640x480 to 1024x768
• using a windowed frame buffer to display graphics
Because of its generic nature, the VESA driver works on virtually any modern
graphics adapter. No chipset-specific accelerations are provided; using high
resolutions or 64K colors may cause a degradation in performance depending
on machine and graphics adapter speeds. If a specific driver is provided for
your adapter, you should use it to take advantage of accelerated features.
During initial system installation (ISL), the default graphics configuration is
set to VESA at the mode 800x600 with 256 colors. If a specific driver is pro-
vided for your adapter, run the Video Configuration Manager (scoadmin
video) to reconfigure it. Using an accelerated driver will provide increased
graphics performance.
The actual resolutions and number of colors available using the VESA driver
depends on the video adapter. The recommended mode is 1024x768 with 256
colors. Make sure your monitor supports this resolution prior to configuring
it.
The refresh rate is not set by the VESA driver but is instead set by the adapter
itself.
Understanding mUlti-monitor configuration
sea systems provide limited support for "multi-monitor" configuration, also
known as "multi-headed" configuration. Multi-monitor support means you
can display one graphical environment on two (or more) monitors, thus
increasing your graphical work space.
To determine if your adapter will support multi-monitor configuration:
• Ensure that your graphics adapters support multi-monitor configuration
and have no hardware conflicts. They must not use the same 1/ a ports
(page 505) or base addresses (page 509). Your graphics adapter documen-
tation may indicate if your adapter supports multi-monitor (or "multi-
headed") configuration. Install each adapter individually to verify that the
graphical environment functions properly.
• Consult your adapter documentation to ensure that VGA can be disabled.
359
NOTE sca OpenServer systems support up to 32 monitors on one system,

but for the purposes of this procedure we will assume the user is installing
only two. You must complete the configuration process for each installed
adapter, monitor, and resolution.
To set up a multi-monitor configuration:

1. Once you have verified that both adapters work, and you have ensured
that there are no hardware conflicts, install the adapters in the system and
proceed with multi-monitor configuration.
2. Install the monitors.
3. Configure the first adapter, using the normal procedure (page 361).
4. While configuring the second adapter, select Multi-monitor configuration -
specify function keys from the Function Key Setup window.
5. From the Specify Function Keys window, select the function key(s) that
you want to control the multi-monitor environment.
6. Finish the normal configuration procedure for the second adapter.
7. After you finish configuring the last installed adapter, you must configure
the sca Panner window manager (pmwm) to use the added screens. To
do so, add this line to your .Xdefaults-hostname file, where -hostname
refers to your system name:
Pmwm*multiScreen: True
NOTE If you configure a second video adapter in multi-monitor mode on

some function keys and as the primary adapter on other function keys, con-
figure the primary function keys first. If you configure the multi-monitor
function keys first and then configure the remaining function keys for the
primary video adapter, the multi-monitor configuration will be changed to
be the primary adapter.
See also:
• "Function keys and video configuration" (page 365)
• mwm(Xe) manual page
• "Setting sea Panner resources" in Using sea Panner
• Appendix A, "aSF /Motif window manager resources" in the Graphical Environment
Guide
• Chapter 5, "Understanding resources" in the Graphical Environment Guide

Adding a new video adapter
Adding a new video adapter

To add a new video adapter:
1. Start the Video Configuration Manager (page 356).
2. Click on Add Adapter.
3. If you do not have a PCI adapter installed in your system, go to Step 4.
The Video Configuration Manager automatically detects PCI adapters
and presents any detected adapters on the graphics adapter list instead of
the complete list of supported adapters.
To configure a PCI adapter, select it from the list and continue.
To configure an adapter not on the PCI autodetected list, click on the Con-
figure adapter not listed above button and continue with the configuration
process.
4. When the graphics adapter list displays, select the graphics adapter that
you want to configure, then click on OK.
The displayed list includes all of the supported adapters and adapter chip
sets. Use the scroll bar to move up and down in the list; in character
mode, type the first letter of the adapter's manufacturer.
5. Add a monitor to the new adapter configuration by selecting "Monitor
Not Configured", then clicking on Monitor.
6. When the monitor list displays, select the new monitor, then click on OK.
The monitor list includes all the monitors supported for use on your SCQ
system. Use the scroll bar to move up and down in the list; in character
mode, type the first letter of the monitor's manufacturer.
For more information, see" Changing the configured video monitor" (page
363).
7. Specify a resolution by selecting "Resolution Not Configured", then click-
ing on Resolution.
8. Select the new resolution in the Resolution Selection window, then click
on OK.
For more information, see "Changing a configured resolution" (page 363).
WARNING Ensure that the resolution you select is appropriate for your
monitor; see "Understanding resolutions" (page 358) for more informa-
tion.
361
9. Assign one or more console function ((F) ) keys to the

adapter /monitor /resolution combination. This creates a link between the
particular graphics adapter, monitor, and resolution, and the assigned
function key, as described in "Function keys and video configuration"
(page 365)
• To assign all function keys to the selected monitor and resolution, select
Assign all function keys, then click on OK. This is the option most users
choose.
• To assign specific function keys (page 364) to the current adapter, moni-
tor, and resolution, select Specify function keys, then click on OK.
• To use multiple monitors simultaneously (page 359), select "Multi-
monitor configuration - specify function keys"
Some adapters require additional configuration information. For example, the
Number Nine GXi adapter requires an I/O address (page 505). If you are
prompted for additional configuration information specific to your graphics
adapter, see your adapter's documentation.
See also:
Modifying monitors, resolutions, and function keys

Use the Modify window to:
• change a configured monitor (page 363)
• change a configured resolution (page 363)
• add a new resolution (page 363)
• configure console function keys (page 364)
Display the Modify window by selecting Modify in the main Video
Configuration Manager (page 356) window.
See also:
• "Understanding resolutions" (page 358)

Modifying monitors, resolutions, and function keys
Changing the configured video monitor

To change the monitor:
1. Select the monitor to change, then click on Modify in the main Video
2. Select either "Monitor Not Configured" or the monitor you want to change
and click on Change Monitor.
3. Select your new monitor from the Monitor Configuration window and
click on OK.
The monitor list includes all the monitors supported for use on your sea
system. Use the scroll bar to move up and down in the list; in character
mode, type the first letter of the monitor's manufacturer.
INOTE If you do not find your monitor in the list, choose the "Other ..."
selection that most closely resembles your own.
Changing a configured resolution

To change a resolution:
1. Select the resolution to change, then click on Modify in the main Video
2. Click on Change Resolution, then select the new resolution.
3. Select the new resolution in the Resolution Selection window, then click
on OK.
tion.
4. Assign function keys as described in "Assigning function keys" (page 364).
Adding a resolution
To add a new resolution:
1. Select a resolution, then click on Modify in the main Video Configuration
Manager (page 356) window.
2. Click on Add Resolution.
3. Specify the new resolution in the Resolution Selection window, then click
on OK.
363
tion.
4. Assign function keys as described in "Assigning function keys" (this

page).
Assigning function keys

After you choose a monitor and resolution, you must assign one or more con-
sole function keys ((F) to them. This creates a link between the particular
graphics adapter, monitor, and resolution, and the assigned function key, as
described in "Function keys and video configuration" (page 365)
• To assign all function keys to the selected monitor and resolution, select
Assign all function keys and click on OK. This is the option most users
choose.
• To assign specific function keys (this page) to the current adapter, monitor,
and resolution, select Specify function keys and click on OK.
• If you are configuring a second adapter and monitor and want to display
applications on both monitors at the same time (using the same function
key), select "Multi-monitor configuration - specify function keys" and click
on OK.
See also:
• "Running programs simultaneously with multi screen displays" (page 141)
Assigning specific function keys

If you elected to specify function keys in the Function Key Setup window,
when the Specify Function Keys window appears, select the function key or
keys you want to associate with the current adapter, monitor, and resolution,
then click on OK.
If you are unsure about the current adapter and resolution, look in the
"Current selection" field at the top of the window.
See also:

Removing a video con figuration
Function keys and video configuration

In multiuser mode, each function key on the sca system console corresponds
to a different graphical environment. To achieve this "multiscreen" capacity,
each function key is associated with a different device driver. For example,
(Fl) is associated with ttyOl, (F2) is associated with tty02 and so on up to (F12).
Each function key controls a different UNIX login session, so you can configure
each session as if it were a different graphical system. In single-user mode,
because access is restricted to a single user, all of the function keys are con-
trolled by the console device driver and only one login session using (Fl) is
available.
Essentially, video configuration consists of creating links between a graphics

adapter, a monitor and resolution (for example, Fahrenheit 1280 Plus, View-
Sonic 15 at 1024x768), and a console function key. In most cases, you will use
the same configuration for every function key. However, there are situations
when you might want to have different graphical environments attached to
different function keys. For example, you might want to use fewer colors at a
higher resolution, or more colors at a lower resolution. Or, you might have
more than one graphics adapter and monitor attached to your system.
See also:
• " Assigning function keys" (page 364)
Removing a video configuration

To remove a complete video adapter configuration:
1. In the main Video Configuration Manager (page 356) window, select the
adapter, monitor, or resolution of the video system to remove and click on
Remove.
2. When the Remove window appears, click on OK to confirm the removal of
the entire configured video system.
CAUTION Unless you have more than one configured resolution, removing
the associated monitor or the only configured resolution removes the entire
selected graphics configuration.
365
Configuring unsupported adapters

If your graphics adapter is not on the list of supported adapters and is not
compatible with the VESA (page 358) driver:
• Check your adapter's documentation to see if it is compatible or uses the
same chip set as a supported adapter. If your adapter is compatible, select
the supported adapter.
• If your adapter is not compatible with one of the supported adapters or
chip sets, try selecting the IBM VGA adapter using 640x480 with 16 colors.
This will usually get your graphics system up and running, but it does not
provide access to higher resolutions or any enhanced capabilities of your
graphics adapter.
NOTE You may also be able to adjust an existing grafinfo file to fit your
graphics adapter. However, if you copy a compatible grafinfo file and try to
adapt it, you may have to supply details about your adapter not commonly
found in adapter user documentation (for example, the coordinates of off-
screen memory). Further information about developing graphics drivers and
grafinfo files can be found in Developing NFB graphics adapter drivers, which
is included with the Hardware Development Kit (HDK).
See also:
• "Adding a new video adapter" (page 361)

Chapter 21
Adding serial and parallel ports
Support for a single-port "dumb" (or "non-intelligent") serial card on COMl
and COM2 is configured into the kernel by default. A single-port serial I/O
card on COMl will work as expected with an SCO system provided that it con-
forms to the standard IBM specification. See Adding and configuring SCo-
/I
supported serial cards" (page 368) and" Adding and configuring parallel
ports" (page 376).
In the standard IBM interrupt scheme, serial ports on COMl use IRQ 4, and
serial ports on COM2 use IRQ 3. Serial ports on COM3 can share IRQ 4 with
COMl, and serial ports on COM4 can share IRQ 3 with COM2. Alternatively,
serial ports on COM3 and COM4 can use polling.
The serial driver in SCO OpenServer allows serial ports on COMl to use IRQ 4,
and serial ports on COM2 to use IRQ 3. It does not allow serial ports on COM3
or COM4 to share interrupt vectors with COMl or COM2, and it does not sup-
port polling.
For ISA and EISA bus machines, the serial driver in seo OpenServer supports
several serial cards on COM3 and COM4 that can use IRQs other than 4 and 3.
You may be able to adjust jumpers on the serial card to change the IRQ and
base I/O address. See the documentation provided with the card for more in-
formation. For MCA machines, the serial driver only supports cards on ports
COMl and COM2. For PCI machines, the serial driver supports cards on ports
COMl through COM4 and assigns configuration values automatically. See
"Serial cards on ISA and EISA machines" (page 373) and "Serial cards on Micro
Channel Architecture machines" (page 375) for details.
The ways in which you can combine dumb single port and multipart serial
cards is limited by the minor numbering scheme of the devices. See "Combin-
ing single port and multipart serial cards" (page 372) for details.
367
NOTE Before adding a single-port serial card or a multiport expansion card,

determine whether the card is a "smart" (or "intelligent") serial card or a
Sea-supported dumb serial card. If it is a smart card (such as the Arnet
Smartport), the manufacturer will have supplied installation software and a
driver. This should be all you need to add the card to an sea OpenServer
system. Follow the instructions provided with your card, referring to your
computer hardware manual if necessary.
Some vendor-supplied drivers may not print a recognition message at sys-

tem startup.
Different models of multiport dumb serial II a adapter have unique hardware

settings; sea OpenServer systems provide hardware-specific driver code for
each card that is supported. Only cards with status poll registers can work
with the high-performance driver scheme chosen, and new cards require
additional driver support.
If your system does does not report the configuration of a serial card correctly
at system startup, the card may not be configured correctly. Check the card's
hardware documentation for the proper settings.
NOTE An error message such as "cannot create" or "cannot open" is dis-

played if you attempt to access a serial port that is not physically installed
and defined.
Known problems with specific Sea-supported serial cards are listed in

Appendix C, "Serial adapters" (page 527).
Adding and configuring sea-supported serial cards

To install an Sea-supported serial card:
1. Shut down the system using the System Shutdown Manager or the
2. Install the serial card(s) and configure your hardware according to the
manufacturer's instructions. If your system includes a configuration disk
or BIas setup program, use it as instructed. If your system is configured
with switch settings on the main system board (motherboard), define the
new ports by setting the proper switches (refer to your hardware manuals
for the settings).
3. Reboot the system, and log in as root. The next step is to define the config-
uration of the serial card hardware using the Serial Manager (page 369).

The Serial Manager interface
The Serial Manager allows you to configure Sea-supported serial cards (this
page) and individual serial ports (page 370). You can start the Serial Manager
in any of these ways:
• Enter mkdev serial or scoadmin serial manager on the command line.
• Double-click on the System Administration icon on the Desktop, then on
Hardware/Kernel Manager, and select Serial Port from the devices listed.
• Start the SeOadmin launcher by entering scoadmin on the command line,
then select Hardware/Kernel Manager, and select Serial Port from the de-
vices listed.
• Select Configure from the Ports menu in the Modem Manager (page 408).

The Serial Manager shows:

• the "units" (serial controllers) in use, which correspond to COM ports:
unit number COM port

0 COMI
1 eOM2
2 eOM3
3 COM4
• the dumb serial cards that are currently configured for each serial controller
• the ports that are controlled by the card that is currently highlighted
Information displayed by the Serial Manager corresponds to the output of

hwconfig( e) for serial devices.
Configuring a serial card
To configure an Sea-supported dumb serial card on your system, in the Serial

Manager:
1. To add a serial card, click on Add and choose a board from the list that has
a free unit number (this page). If necessary, change the interrupt vector
(IRQ) and base I/O address settings to match those configured on the card.
Possible interrupt and address conflicts are shown by a " *" next to the
listed value. Some serial cards are listed several times because they have
several possible base I/O addresses. Click on OK when you have finished
defining the serial card.
369
NOTE Serial boards can only be configured on COM ports that map to
supported unit numbers (page 369). Depending on the capabilities of
the boards installed on your system, you might need to disable a board
on an existing controller or add a new one. For example, if the board
you wish to add is listed as supporting only unit 0 or 1 and there are
already boards configured on those units (that is, on COMl and COM2),
you must disable the board on unit 1 before configuring a new one.
However, if the new board supports unit 2, you can configure that board
atCOM3.
If you select a PCI board, IRQ and base I/O values are dimmed (cannot
be selected) because they are assigned automatically.
To modify the configuration of a serial card, select the card from those
listed, and click on Modify. Change the configuration of the board, and
click on OK when you have finished.
To delete a configured serial card, select the card from those listed, and
click on Delete.
2. If you want to change the speed or interrupt trigger level, or to enable or
disable a login for any of the ports on a serial card, follow the instructions
in "Configuring a serial port" (this page).
3. Click on Close.
NOTE If the Serial Manager relinks the kernel because you changed the
configuration of the serial ports, you must shut down and reboot the
system for the changes to take effect.
Configuring a serial port

To change the settings for a serial port, in the Serial Manager:
1. Select the card from the "Configured serial boards" list, select the port
from the "Ports controlled by" list, and then click on Modify.
I NOTE You cannot select a serial port which has a mouse or other point-
ing device attached.
2. You can change the information for any of the following fields:
Speed (bps)
Select the default speed for the serial port. The selected speed should
not be greater than the capabilities of the UART (universal asynchro-
nous receiver/transmitter) chip that controls the port. Table 21-1
shows how the maximum speed is limited by the capabilities of the
UART hardware.

Adding and con figuring sea-supported serial cards
Table 21-1 Serial port speeds, line-mode labels, and UART limitations
Speed Line-mode Limitations

(bps) label ofUARTS
1200 2
2400 3
9600 mor6 Highest speed for 8250
19200 n Highest speed for 16450 when used with
fast modems
38400 a
57600 p
115200 r Highest speed for 16450 and 16550
230400 s
460800 t
921600 u
The table shows the highest speeds that can be used with ports con-
trolled by 8250, 16450, and 16550 UARTs on normally loaded systems.
The 16450 and later chips in the series can achieve higher speeds than
the 8250 chips. The specification for the 16450 chip allows it to run at
speeds of up to 115,200bps when used with terminals and printers. It
is unreliable at speeds over 19,200bps when used with high-speed
modems because it does not have a receive buffer. The 16550 has a 16-
byte receive buffer which allows it to be used with modems at speeds
up to 115,200bps.
NOTE The speed limitations shown may be too high for heavily
loaded systems which cannot react quickly enough to move data
from the UART's receive buffer.
To determine the type of UARTs your computer uses, use the Microsoft
MSD program (available under DOS) to discover this.
Line-mode label
Click on Change to change the line mode for the serial port. Select a
line-mode label from the list displayed and click on OK to confirm.
INOTE You cannot change the line mode if it is the only one that is
defined for the currently selected line speed.
The "line mode" determines the default characteristics of the serial port
such as parity, and number of bits per character. Each line-mode label
corresponds to a separate entry in letc/gettydefs. Table 21-1 shows com-
monly used line-mode labels for each speed. See "Installing serial ter-
minals" (page 432) and the gettydefs(P) manual page for more informa-
. tion.
371
Login!Answer
Select On to enable a login on the port. Select Off to prevent anyone
logging in.
Receive buffer
Adjust the slider bar to one of the values I, 4, 8, or 14. Select a lower
value if characters are being lost in incoming data. Select a higher
value to improve system performance by reducing the number of inter-
rupts that the serial port generates. See "Changing the interrupt
trigger level" in the Performance Guide for more information.
3. Click on OK to confirm.
4. Click on Close.
NOTE If the Serial Manager relinks the kernel because you changed the
I configuration of the serial ports, you must shut down and reboot the
system for the changes to take effect.
Serial ports on multi-function cards

The serial ports on many multi-function cards can be used if they can be con-
figured with the standard specifications for COMI and COM2.
Combining single port and multiport serial cards

Although the kernel imposes an upper limit of 24 on the number of dumb
serial devices that it can support, you can configure a maximum of 16 serial
ports on ISA and EISA bus machines, and a maximum of 17 serial ports on
MCA machines using SCO-supported serial cards. The device numbering
scheme for dumb single and multipart ISA serial cards also limits the number
of ways that you can combine the supported dumb serial cards. Table 21-2
shows the possible ways of combining SCO-supported single and multipart
serial cards assuming that their base I/O addresses do not clash.
Table 21·2 Possible combinations of ISA and EISA serial cards
COM1 COM2 COM3 COM4

1,2,4,5 or 8 ports
1,2,4,5 or 8 ports I, 2, 4, 5 or 8 ports
I, 2 or 4 ports 1,2 or 4 ports 1 or 4 ports
1,2,4,5 or 8 ports I, 2 or 4 ports 1 or 4 ports
I, 2 or 4 ports 1,2 or 4 ports 1 or 4 ports 1 or 4 ports

Serial cards on ISA and EISA machines

Serial cards on COMI should be configured to use IRQ (interrupt vector) 4.
Serial cards on COM2 should be configured to use IRQ 3. Check your serial
card hardware manual or contact the manufacturer for the correct switch set-
tings.
Table 21-3 and subsequent tables list the IRQ vectors and I/O addresses asso-
ciated with various serial cards. Additional information for cards marked
with an asterisk (* ) is given in Appendix C, "Serial adapters" (page 527).
Table 21-3 ISA and EISA serial cards installed as COM1
Physical Board Number IRQ Base liD Alternative

port type of ports vector address addresses
COMI AMI lamb * 4 4 Ox540-0x55F
8 4 Ox540-0x57F
Arnet 2 4 Ox100-0x10F Ox280-0x28F
4 4 Ox100-0x11F Ox280-0x29F
8 4 Ox100-0x13F Ox280-0x2BF
AST* 4 4 Ox2AO-Ox2BF
CTC* 4 4 Ox160-0x17F
8 4 Ox160-0x19F
Digiboard* 4 4 Ox110-0x12F
8 4 Ox110-0x14F
Equinox 4 4 Ox240-0x25F
8 4 Ox240-0x27F
Hostess 4 4 Ox140-0x15F Ox500-0x51F
Ox680-0x69F
8 4 Ox140-0x17F Ox500-0x53F
Ox680-0x6BF
IBM 1 4 Ox3F8-0x3FF
Kimtron 4 4 Ox120-0x13F
Olivetti * 4 4 Ox2AO-Ox2BF
Quadram* 1 4 Ox280-0x28F
5 4 Ox280-0x2CF
Stallion 8 4 Oxl18-0x157
Stargate 4 4 Ox290-0x2AF
8 4 Ox290-0x2CF
Tandon* 4 4 Ox2AO-Ox2BF
373
Table 21·4 ISA and EISA serial cards installed as COM2

Physical Board Number IRQ Base I/O Alternative
COM2 AMI lamb * 4 3 Ox2CO-Ox2DF -
8 3 Ox2CO-Ox2FF
Arnet 2 3 Ox180-0x18F Ox300-0x30F
4 3 Ox180-0x19F Ox300-0x31F
8 3 Ox180-0xlBF Ox300-0x33F
AST* 4 3 OxlAO-OxlBF
Chase DB 4 3 OxlOO-OxllF Ox180-0x19F
Ox280-0x29F
Ox300-0x31F
8 3 OxlOO-Ox13F Ox180-0xlBF
Ox280-0x2BF
Ox300-0x33F
CTC* 4 3 Ox218-0x237
8 3 Ox218-0x257
Digiboard* 4 3 Ox210-0x22F
8 3 Ox210-0x24F
Equinox 4 3 Ox14O-Ox15F
8 3 Ox14O-Ox17F
Hostess 4 3 Ox200-0x21F Ox580-0x59F
Ox700-0x71F
8 3 Ox200-0x23F Ox580-0x5BF
Ox700-0x73F
IBM 1 3 Ox2F8-0x2FF
Kimtron 4 3 Ox2EO-Ox2FF
Olivetti * 4 3 OxlAO-OxlBF
Quadram* 1 3 Ox288-0x297
5 3 Ox288-0x2D7
Stallion 8 3 Ox218-0x257
Stargate 4 3 Ox190-0xlAF
8 3 Ox190-0xl CF
Tandon* 4 3 Ox280-0x29F

Adding and con figuring sea-supported serial cards
Physical Board Number IRQ Base lID Alternative

eOM3 HP 1 10 Ox3E8-0x3EF
IBM 1 12 Ox2FO-Ox2F7
Mitsubishi 4 11 Ox400-0x41F

eOM4 HP 1 11 Ox2E8-0x2EF
Mitsubishi 4 12 Ox408-0x427
Serial cards on Micro Channel Architecture machines

Table 21-7 lists the addresses associated with each serial card. Additional in-
formation for cards marked with an asterisk (*) is given in Appendix C,
"Serial adapters" (page 527).
Table 21-7 MCA serial card addresses and notes

eOMl IBM 1 4 Ox3F8
eOM2 Arneh 2 3 Ox140
4 3 Ox140
8 3 Ox140
16 3 Ox140
AST 4 3 Ox2F8
Digiboard 4 3 Ox3000 OxDB80
8 3 Ox3000 OxDB80
16 3 Ox3000
Hostess Me 4 3 Ox500 Ox540
Ox580
8 3 Ox500 Ox540
Ox580
IBM 1 3 Ox2F8
8 3 Ox2F8
Stargate* 4 3 Ox400
8 3 Ox400
375
Adding and configuring parallel ports

No parallel drivers are configured into the kernel by default so you must con-
figure all parallel ports using the Hardware/Kernel Manager or the mkdev
parallel command. The first parallel port configured becomes Idev/lpO, the
second /dev/lpl and so on. Table 21-8 lists the addresses and interrupts associ-
ated with the three possible parallel ports.
Table 21·8 Parallel port addresses and interrupts

Machine Physical Device IRQ Base I/O
type port name vector address
ISA LPTI Idev/lpO 7 Ox378
LPT2 Idev Ilp1 5 Ox3bc
EISA LPTI Idev IlpO 7 Ox378
LPT3 Idev Ilp2 5 Ox278
MeA LPTI Idev IlpO 7 Ox378
LPT3 Idev Ilp2 7 Ox278
NOTE Some EISA and MeA machines can assign any interrupt vector to the
parallel ports. MeA machines and some others may swap the default
addresses for LPTI and LPT2.
To configure an additional parallel port on your system:

1. Shut down the system using the System Shutdown Manager or the
2. Install the card that holds the parallel port (if it is not already present), and
configure your hardware according to the manufacturer's instructions. If
your system includes a configuration disk or BIOS setup program, use it as
instructed. If your system is configured with switch settings on the main
system board (motherboard), define the new ports by setting the proper
switches (refer to your hardware manuals for the settings).
3. Boot the system, and enter system maintenance mode by entering the root
password.
4. Enter the command mkdev parallel or start the Hardware/Kernel Manag-
er and select Parallel Port from the devices listed.
The system determines what parallel ports (if any) are configured and dis-
plays the results (this may take several seconds). You can choose between
installing a new parallel port or removing an existing one.

Troubleshooting serial cards
5. If you are installing a new parallel port, select the type of card you are in-
stalling. Select the base I/O address it uses from the menu or specify a
non-standard address.
6. Unless you are installing on an MCA machine, enter the interrupt vector.
7. Relink the kernel as described in "Relinking the kernel" (page 290).
8. If you have no further changes to make, use the System Shutdown Man-
ager or the shutdown(ADM) command to shut down the system and
reboot.
Troubleshooting serial cards

Older computers or add-on serial I/O cards use the slower 8250 or 16450
UARTs to control their serial ports. Some revisions of the 8250A chip do not
handle interrupts properly and should not be used with sea OpenServer sys-
tems.
Problems with slow UARTs can show up when using UUCP or cu(e) over a
modem connection at high line speeds. Examples are:
• incoming characters are lost intermittently
• UUCP generates unkillable uucico processes
• eu stops executing and will not exit
• an intermittent" double echd' is seen
These problems rarely show up when a serial port is used with a terminal.
They are more often associated with high-speed serial input over a modem
link. Avoid connecting high-speed modems to ports that are controlled by
slow serial control hardware such as 8250 or 16450 UARTs.
NOTE We strongly recommend that you use 16550 (or better) UARTs on
serial ports that are connected to high-speed modems. The 16550 has a 16-
byte receive buffer that allows it to operate reliably at much higher speeds
than the 8250 and 16450 (see Table 21-1).
See "Serial device resources" in the Performance Guide for information about
how to monitor and tune the performance of dumb serial ports.
377

Chapter 22
Configuring audio adapters
You can configure an audio adapter on your sea OpenServer system to run
audio-enabled applications. Two separate activities are required:
1. Physically install the adapter, speaker system, and any input devices, fol-
lowing the instructions in the hardware documentation.
2. Run the Audio Configuration Manager (page 380) to configure the sea
audio subsystem software. The audio configuration window displays the
configured adapters.
NOTE You can only configure a single audio adapter in sea OpenServer
systems.
Most audio device configuration should be completed using the Audio Con-
figuration Manager. However, you must use the ISA PnP Configuration
Manager if you want to configure:
• any Plug and Play audio adapters
• non-audio devices on the audio adapter board (such as IDE or seSI ports)
See Chapter 17, "Installing Plug and Play devices" (page 311) for more in-
formation.
This topic describes how to use the Audio Configuration Manager to config-
ure audio adapters. It includes:
• "The Audio Configuration Manager interface" (page 380)
• "About the audio subsystem" (page 380)
• "Adding and modifying audio configurations" (page 382)
379
• "Removing adapters" (page 383)

• "Common audio subsystem tasks" (page 383)
• "Troubleshooting audio configuration" (page 385)
The Audio Configuration Manager interface

Use the Audio Configuration Manager to add (page 382) and remove (page
383) adapters from the system, and to examine and test audio configurations.
I NOTE Do not modify or remove an audio configuration while audio-

enabled applications are running.
You can start the Audio Configuration Manager in either of these ways:
• Open the Desktop's System Administration window (double-click on the
System Administration icon) and double-click on the Audio Configuration
Manager.
• Start the SeOadmin launcher by entering scoadmin on the command line,
then select the Audio Configuration Manager.
• Enter scoadmin audio on the command line.
INOTE While any user can view the system's audio configuration, only root
can modify audio configuration.
For more information on using SeOadmin managers, see" Administering your

About the audio subsystem

The audio subsystem consists of:
Audio device drivers
Modern audio adapters (and sound controllers integrated on the moth-
erboard) often comprise a set of independent devices. seo OpenServer
audio drivers support these devices:
• the basic device for digital/analog conversion. This allows digital
sound files to be converted to analog signals for playback, and analog
signals from a recording device to be stored digitally.
• synthesizers, used for playing music
I NOTE Only FM synthesizers are currently supported.

About the audio subsystem
• MIDI (Musical Instrument Digital Interface) interfaces, used to con-

nect external electronic musical instruments to a computer
Each of these devices requires its own I/O address and other configura-
tion parameters.
Play and record utilities
Computer audio subsystems must include software to control input and
output sound characteristics such as volume levels, stereo separation,
and sound sources. Sound-enabled applications often include such
capabilities, which can communicate directly with the audio driver.
sea OpenServer includes these command-line utilities for playing and
recording sounds:
mixer(C)
sets volume levels, and selects input and output devices
vplay(C)
plays sound files
vrec(C)
records sound files
An audio driver must be installed before these utilities can be used.
sea OpenServer audio adapters drivers are based on Open Sound System
(OSS), a sound driver architecture for UNIX systems developed by 4Front
Technologies. Because the sea audio subsystem conforms to the ass API
(Application Programming Interface), you can run aSS-compliant audio-
enabled applications on sea systems. For more information and examples of
audio-enabled applications, see their web site:
http://www.4front-tech.com/
NOTE sea Skunkware® includes audio-enabled applications, as well as

many other useful utilities. For more information, see the sea Skunkware
website:
http://www.sco.com/skunkware/
However, the 4Front sound drivers included in Skunkware are not sup-
ported on sea OpenServer systems; see "Compatibility with earlier sea
audio drivers" (page 386).
381
Adding and modifying audio configurations

To add a new audio adapter:
1. Physically install the audio adapter in your system.
2. If you are not configuring a Plug and Play device, go to step 3.
Use the ISA PnP Configuration Manager to configure your Plug and Play
device; for more information, see Chapter 17, "Installing Plug and Play
devices" (page 311).
NOTE To save time configuring Plug and Play audio devices, write
down the configuration parameters presented by the PnP Configuration
Manager and do not relink and reboot after Plug and Play configuration.
When you start the Audio Configuration Manager, enter the configura-
tion parameters manually for your device, then continue with step 6.
The alternative is to relink and reboot after Plug and Play configuration;
your device will then be auto-detected as described in step 5. You must
then relink and reboot again after audio configuration.
3. Start the Audio Configuration Manager (page 380). We recommend start-

ing it in single-user mode, as you will need to relink the kernel and reboot
your system to enable your audio device.
4. Click on Add Adapter in the Soundcard menu.
5. When the adapter list displays, select the audio adapter that you want to
configure, then click on OK. You have the option to configure any adapter
auto-detected in your system or any of the supported adapters; currently
only ISA Plug-and-Play adapters can be auto-detected. For your Plug-
and-Play device to be auto-detected, you must first configure it using the
ISA PnP Configuration Manager (page 312).
6. Supply the device-specific configuration parameters (page 380) required
by your adapter.
7. When you have finished configuring the adapter, exit the Audio Configu-
ration Manager, relink the kernel, and reboot your system.
8. Restart the Audio Configuration Manager and click on Test in the Sound-
card menu to confirm that the adapter was configured correctly. You
should hear an uninterrupted sound sample. Click on Stop when you
have completed the test.
9. Click on OK to confirm your selection and exit the Audio Configuration
Manager.

Common audio subsystem tasks
To modify an audio configuration:

1. Start the Audio Configuration Manager (page 380).
2. Click on Modify Adapter in the Soundcard menu.
3. Select your adapter from the display, then reset any required configuration
parameters.
4. Exit the Audio Configuration Manager, relink the kernel, and reboot your
system.
5. Restart the Audio Configuration Manager and Test your modified config-
uration.
6. Confirm your selection and exit the Audio Configuration Manager.
Removing adapters
To remove an audio adapter configuration:
1. In the main Audio Configuration Manager (page 380) window, select the
adapter to remove and click on Remove in the Soundcard menu.
2. When the Remove window appears, click on OK to confirm the removal of
the entire configured audio system.
You can now remove the audio device from your system.
Common audio subsystem tasks

You can use the audio subsystem to:
• playa sound file (page 384)
• record a sound sample (page 384)
• play an audio CD from your CD-ROM drive (page 384)
• configure Netscape Communicator to play sound files (page 385)
Each of these require to use the sea play and record utilities (page 381) (or
others of your choice). If you use vplay(e) or vrec(e), you must always have
a command line prompt available to control recording and playback. You
may also find it helpful to have a command line prompt available to set and
test initial levels with mixer(e), or you can use another mixing program, such
as xmmixer from sea Skunkware.
383
Playing sound files
1. Set volume levels with mixer(C).

2. Enter:
vplay soundJile
Recording sound samples
1. Ensure that an input device (such as a microphone or CD-player) is con-

nected to your audio adapter.
2. Use mixer(e) to set the input device and recording levels.
3. Enter:
vrec soundJile
4. Start the sound input (for example, start talking or play the CD.
5. Stop the sound input and recording utility when complete.
See mixer(C) or your mixer program's documentation if you want to record

more than one channel at a time.
I NOTE A "recording overrun" may result if the sound source generates data
faster than the computer can process it. See vrec(e) for more information.
Playing audio CDs from your CD-ROM drive

If your CD-ROM drive has external start and stop controls:
1. Use mixer(e) to set the sound source and volume level.
2. Press the Play button on your CD-ROM drive.
If your CD-ROM drive does not have external controls, you must have addi-
tional software to control your drive for audio reproduction. sea Skunkware
includes Xmcd, an excellent audio CD control utility; other applications are
available commercially and through freeware.

Troubleshooting audio con figuration
Configuring Netscape Communicator to play sound files

By default, Communicator will prompt you to download a sound file when
you click on it. However, you can configure Communicator to play sound
samples directly from the browser:
1. Make sure that mixer(e) is set to the desired levels; you might want to
have it available on a command line to control playback volume.
2. In the Edit menu, select Preferences ¢ Navigator <> Applications
3. Select the type of audio file you would like to play, then click on Edit.
4. Click on Application, then enter:
/usr/bin/vplay %s
5. Confirm your selections to exit the Edit menu. You can repeat Steps 3 and
4 for each audio file type.
Troubleshooting audio configuration

If you have problems with your audio configuration:
1. Verify basic hardware functionality (page 274) and the integrity of your
sound playback equipment.
2. Check for error messages in /usr/lib/audio/drivers/soundon.log.
3. If available, run any diagnostic utilities that were shipped with your audio
adapter.
You must also be aware of these issues:

• "Compatibility with earlier sea audio drivers" (page 386)
• "Errors after initial sound reproduction" (page 386)
385
Compatibility with earlier seQ audio drivers
These audio drivers are not compatible with the sea OpenServer audio sub-
system:
• 4Front drivers supplied with sea Skunkware
• 4Front ass drivers for UnixWare
Installing them on sea OpenServer systems may cause unpredictable

behavior not limited to the audio subsystem.
However, playback and mixing utilities for older drivers do work with the
sea OpenServer audio subsystem.
Errors after initial sound reproduction
If you hear sound briefly after configuring your adapter but you immediately
receive an error and sound ceases, you probably have your interrupt vectors
(page 504) set incorrectly; for example, if they were set using utilities other
than the Audio Configuration Manager (page 380). Run the Audio Configu-
ration Manager to set them correctly.

Chapter 23
Adding mice and bitpads
• install bus mice (this page)
• install serial mice (page 388)
• install keyboard mice (page 388)
• configure mice (page 389)
• install bitpads (page 394)
• troubleshoot mice and bitpads (page 395)
Consult your hardware manufacturer's documentation for specific instruc-

tions on hardware configuration. Note the brand and type of your mouse or
bitpad and whether it is attached to a serial port, keyboard port, or adapter
plugged into the system bus.
Bus mice
Bus mice come with controller cards that are plugged into a slot in the
computer's bus. They have jumpers or switches that may need to be set to
allow the computer to communicate with the mouse correctly.
The manuals that come with your bus mouse should contain information
about the jumpers and what the correct jumper settings should be.
It is important to set the jumpers before you run mkdev mouse because reset-
ting jumpers usually requires removal and reinstallation of the mouse driver.
If you are unfamiliar with bus cards, see "Installing bus cards" (page 295).
387
Check your system to see which interrupts are being used by other devices, so
you will know the interrupts you cannot use. See Table 14-1, "Typical device
interrupts" (page 275) for a list of standard interrupts. You should select the
interrupt you want to use for your mouse and set the jumpers to that inter-
rupt. You can use the hwconfig(C) command to display your current system
configuration. The interrupts in use will be under the "vec" column; be sure to
avoid using an interrupt belonging to another device. The vectorsinuse(ADM)
utility can also be used to obtain this information.
For information on specific bus mice configurations see Appendix D, "Mice

and bitpads" (page 531).
Serial mice
Serial mice (including wheel mice) are connected to either the COMl or COM2
port, or to a port in a multipart board. They usually require either 9-pin or
25-pin RS-232 connections.
I NOTE The Microsoft serial/PS2 mouse can be configured as either a serial

mouse or a keyboard mouse if a converter adapter is installed.
If you have a COMl or COM2 port, plug the mouse into one of those ports. If
you have a non-intelligent multipart card, plug the mouse into the appropri-
ate port on the card.
It is important that you know the name of the port on which the mouse is to
be installed. COMl uses ttyIa, and COM2 uses ttyZa. Multiports that are con-
nected to COM ports have similar names but use different letters for each port.
For example, a four-port multipart board in COMl would typically have de-
vice names ttyIa, ttyIh, ttyIc, and ttyid to correspond with its four ports.
Multipart cards provided with special drivers, often called "smart cards",
have their own device names; check your multipart manual to find them.
Keyboard mice
Keyboard mice, also known as PS/2 mice (including wheel mice), connect to a
dedicated port at the back of your computer. They usually use 6-pin or 9-pin
mini-DIN connectors. Check your manual to find the port to which the mouse
should be connected.
When installing a mouse using mkdev mouse, choose the keyboard mouse
option only if you have a machine and mouse capable of using this port. On
some AT-type machines that do not have a keyboard mouse port, installing a
keyboard mouse driver causes the keyboard to lock up after booting. If this
happens, boot the previous kernel (unix. old) and remove the keyboard mouse
driver from the system using the remove option of mkdev mouse.

Configuring a mouse
Configuring a mouse
To install a mouse on your system:
1. Install the mouse in the computer according to the manufacturer's instruc-
tions.
2. Log in as root, put the system into maintenance mode.
3. Select Mouse/Graphic Input Device from the devices listed by the Hard-
ware/Kernel Manager, or enter the command mkdev mouse.
4. Select Install a mouse from the menu.
5. Select the type of mouse you will use from the options listed. When
prompted:
• For a serial mouse, select the port on which the mouse is installed.
• For a bus mouse, select the type of mouse to be installed and its param-
eters. If you wish to change the default parameters, Take special care
when changing the interrupt vector for the mouse. Select an unused
interrupt vector. See "Typical device interrupts" (page 275).
• For a keyboard mouse, select the resolution you require. See "Changing
the keyboard mouse resolution setting" (page 391) and "Solving slow or
no response from keyboard mice" (page 395) for more about high reso-
lution mice.)
• For wheel mice, select an entry that contains the string "wheel".
6. Specify the terminals and multiscreens that are allowed to accept input
from the mouse. Do not specify any tty ports where mice are actually con-
nected. You may choose to allow any or all other terminals and console
multiscreens to use the mouse. The default associates the mouse with all
of the console multiscreens.
If you install more than one mouse, make sure the terminal specifications
for each mouse do not overlap. Only one mouse can be allowed for input
on a given tty.
See "Using a mouse" (page 392) for more information on sharing the
mouse between several terminals or multiscreens.
7. Relink the kernel to install the mouse driver.
8. If you have no more changes to make to your mouse configuration, quit
the mkdev utility and use the System Shutdown Manager or the
shutdown(ADM) command to shut down the system and reboot.
You can invoke the Hardware/Kernel Manager or mkdev mouse at any time
to allow or prevent input on different terminals, remove mice, or check your
current configuration.
389
NOTE Many system utilities (for example, usemouse( C)) and applications
(for example, sca Shell) which use a mouse require pseudo-ttys to be
installed on the system. If you wish to run such an application, see "Testing
a mouse" (page 390). If necessary, use the mkdev ptty command to create
more than the 32 pseudo-ttys that are generated by default when an sca
OpenServer system is installed.
Changing mouse ports

If you change your mouse's port after installing an sca OpenServer system,
use mkdev mouse to change the port.
Testing a mouse
NOTE Pseudo-ttys must be installed on the system in order to use

usemouse. See" Adding pseudo-ttys" in the System Administration Guide for
more information.
1. Log in as root in multiuser mode on the terminal you wish to test.

2. Enter the following at the system prompt:
usemouse echo
3. As you move the mouse and click the buttons, characters should be
echoed to the screen. For example, output might include:
1 mouse left
r mouse right
u mouse up
d mouse down
Id Iu left mouse button (button 1) pressed and released
wf wheel forward
wb wheel back
See the usemouse(C) manual page for a complete listing of usemouse
echo output.
I NOTE If you are using a two button mouse, pressing both buttons at
once emulates the middle button.
4. To stop the usemouse utility, press the interrupt key, usually <Del) or
<Ctrl)-C.

Changing the keyboard mouse resolution setting
I NOTE Because usemouse starts a new shell when executed, it is impor-

tant to exit this shell before starting a graphical application.
If usemouse does not produce the behavior described here, or you see the fol-
lowing error messages, your mouse is not installed correctly.
Open event driver failed:: No such file or directory Open
event driver failed:: Not enough space ... giving up
To fix the problem:
• First, verify that your mouse is supported by sea OpenServer systems.
• Confirm that you have run mkdev mouse and that your mouse selection
corresponds to the connected mouse hardware.
• Make certain the cable is attached securely and, if you are using a bus
mouse, that the adapter card is properly installed.
• If you are using a bus mouse, verify that the bus mouse card is recognized
during the boot process and that there is no conflict with the interrupt vec-
tor or base address. Check the hardware configuration information using
the hwconfig( C) command.
• If you are using a serial mouse, verify that the serial card to which your
mouse is attached is recognized during the boot process (by running
hwconfig). If the mouse is on a multiport board that uses its own drivers,
make certain the board works. Try the mouse on a COM port to eliminate
the possibility of a third-party driver being the problem.
Removing a mouse
To remove a mouse or mouse drivers on your system, use the Hard-
ware/Kernel Manager or select the appropriate option from the main mkdev
mouse menu. After you have removed the mouse or mouse drivers, the ker-
nel must be relinked for the change to take effect.
Changing the keyboard mouse resolution setting
The file /etc/conf/pack.d/kbmouse/space.c contains two parameters that affect the

performance of the high-resolution keyboard mouse, kbm_resolution and
kbm_poll. You can use a text editor to edit the space.c file and change the
kbm_resolution parameter to adjust the resolution setting. The kbm_poll
parameter, however, is automatically set by the mkdev mouse utility. Nor-
mally, kbm_poll should not be changed. Refer to "Solving slow or no
response from keyboard mice" (page 395) for more information about
kbm_poll.
391
The kbm_resolution parameter determines how many reports, or counts, are

made from the mouse to the mouse driver each time that you move the
mouse one millimeter. Increasing the number of counts per millimeter
increases the sensitivity of mouse performance.
The allowable values for kbm_resolution are:
Table 23-1 High-resolution keyboard mouse
Parameter Counts/millimeter
kbm_resolution=O 1
kbm_resolution=l 3 (default)
kbm_resolution=2 6
kbm_resolution=3 12
The parameters for a low-resolution keyboard mouse do not correspond to

the same counts/millimeter parameters as for a high-resolution keyboard
mouse. The allowable values for a regular keyboard mouse are:
Table 23-2 Low-resolution keyboard mouse
Parameter Counts/millimeter
kbm_resolution=O 1
kbm_resolution=l 2
kbm_resolution=2 4
kbm_resolution=3 8 (default)
The low-resolution default value of 3 specifies 12 counts/millimeter for a

high-resolution keyboard mouse, which causes the mouse to behave too sen-
sitively. Therefore, you must use the mkdev mouse utility when you add or
remove a high-resolution mouse. You must relink the kernel and reboot the
system if you want the new parameter values to take effect.
Using a mouse
If a program accepts mouse input and the terminal is allowed to use a mouse,
the mouse should work when you invoke the program. If the terminal or
multiscreen is not allowed to use a mouse, or the program is not configured to
accept mouse input, using the mouse has no effect.
Using a mouse with multiscreens

If a mouse is associated with the multiscreens on your main system console,
the mouse input is associated with the currently active multiscreen. For exam-
ple, if your system has four multiscreens enabled on the main system console
and each of those screens is allowed to use a mouse, the input from the mouse
goes to the program running on the active multiscreen.
392 sea apenServer Handbook

Using a mouse
Multiscreens on serial terminals and serial consoles can also be configured to

use a mouse.
Remember that programs that do not accept mouse input are unaffected by
moving the mouse, even on a mouse-allowed multiscreen.
Using a mouse on serial terminals

When you install a mouse, you are prompted to list the ttys that are allowed
to use mouse input. You can allow terminals on serial lines to use the mouse
just as you allow multiscreens. You must not specify any ttys where mice are
physically connected.
Sharing a mouse with several terminals

When a mouse is shared among several terminals, the mouse is associated
with the first user to invoke a mouse-enabled program for the duration of that
program. For another user to use the mouse, the first user must quit the pro-
gram to close the input queue from the mouse.
NOTE Note that other users on ttys allowed to use a mouse can use pro-
grams that accept mouse input while the mouse is busy. The programs are
unable to receive input from the mouse but should otherwise function nor-
mally.
Using a mouse with keyboard-based programs

The usemouse( C) utility maps mouse movements and operations to key
strokes used by keyboard-based programs. Refer to the usemouse(C) manual
page for more information.
WARNING Do not use the usemouse utility while in single-user (mainte-

I nance) mode.
Using the pseudo-mouse driver

A pseudo-mouse is configured automatically during installation when you
run mkdev mouse. This allows you to use applications that expect mouse
input within a scoterm window.
To demonstrate the use of the pseudo-mouse, run usemouse in a scoterm

window, then press <Ctrl)<Alt)<Bksp). Notice your pointer disappears, but the
cursor in the window now moves with the mouse. Press the same keys again
to get the pointer back.
393
Installing a bitpad
I NOTE Bitpads are not supported by the X server. They cannot be used in
place of mice.
To install a bitpad:
1. Install the bitpad according to the manufacturer's instructions.
2. Log in as root, put the system into maintenance mode
3. Select Mouse/Graphic Input Device from the devices listed by the Hard-
ware/Kernel Manager, or enter the command mkdev bitpad.
4. Select Install a bitpad from the menu.
5. Specify the type of bitpad you wish to install.
6. Select the specific model that you wish to install.
7. Select the port to which you wish to attach the bitpad.
8. Specify the terminals and multiscreens that are allowed to accept input
from the bitpad. Do not attempt to allow bitpad input on any tty to which
any bitpads are physically connected or you receive an error message. You
may choose to allow any or all other terminals and console multiscreens to
use the bitpad. Press (Enter) to associate all of the console multiscreens.
Note that only one bitpad can provide input on a terminal or multiscreen.
See "Using a mouse" (page 392) for more information on sharing these de-
vices between several terminals or multiscreens.
9. Relink the kernel to install the bitpad driver.
10. If you have no more changes to make to your bitpad configuration at this
time, you can quit the mkdev utility and use the System Shutdown Man-
ager or use the shutdown(ADM) command to shut down the system and
reboot.
You can invoke the Hardware/Kernel Manager or mkdev bitpad at any time
to allow or prevent input on different terminals, remove a bitpad, or check
your current configuration.

Troubleshooting mice and bitpads
Troubleshooting mice and bitpads

If you are having problems with a mouse, first test it. See "Testing a mouse"
(page 390). The following sections explain how to solve known problems that
might occur when using a mouse or bitpad.
Solving slow or no response from keyboard mice

If your keyboard mouse responds too slowly or not at all, use a text editor to
edit the file /etc/conf/pack.d/kbmouse/space.c. Reduce the kbm_poll value to
improve keyboard mouse response. For example, if the value OxbO produces
very slow mouse response, try OxaO, Ox90, Ox80, and so on in turn until the
mouse performance is satisfactory. A recommended starting value is Ox400.
Refer to "Changing the keyboard mouse resolution setting" (page 391) for
more information.
I NOTE Some kbm_poll values lower than OxbO may cause your system to
freeze. If this occurs, increase the kbm_poll value.
After modifying parameters in space.c, you must relink the kernel and use the
shutdown{ADM) command to reboot the system. When the system boots, the
new keyboard mouse parameters take effect.
395

Chapter 24
Adding printers
To set up a printer on your system, see "Installing parallel and serial printers"
(page 398).
Once you have installed the printer, configure it for the print service as
described in "Adding local printers" in the System Administration Guide. If
required, you can customize the printer spooling software as described in
"Customizing printer configuration" in the System Administration Guide.
Information about the network printing capabilities of sca OpenServer sys-

tems is presented in "Distributed printing" in the Networking Guide. If you are
installing a Hewlett-Packard network printer, refer to the network installation
instructions that accompany the printer. To configure the networking and
printer spooling software, see "Configuring Hewlett-Packard network
printers and print services" in the System Administration Guide.
For information on remote printing, see "Connecting to remote UNIX system

printers" in the System Administration Guide and Chapter 16, "Printing
remotely over TCP /IP" in the Networking Guide. For information on dialup
printers see "Configuring an UUCP dialup printer" in the System Administra-
tion Guide.
See also HTroubleshooting printers" (page 399).
397
Adding printers
Installing parallel and serial printers

To install a printer:
1. Find a safe location for your printer. Make sure that it is properly assem-
bled and plugged into a power outlet.
2. Log in as root (you do not need to put the system into maintenance mode).
3. If you are connecting a serial printer, connect the RS-232 cable from a
serial port on your computer to the port on your printer. Serial printers
must be capable of supporting XON /XOFF or hardware flow control; they
must also be configured to use the correct handshaking protocol. Consult
your printer hardware manual for more information.
Next, enter the following command substituting the correct port number
for nn (for example, la for /dev/ttyla):
disable /dev/ttynn
This disables logins on the port you have connected to your printer and
allows the port to be used for serial communication.
If you are connecting a parallel printer, you must first run the Hard-
ware/Kernel Manager or use the mkdev parallel command to create a
parallel port. The printer must use a standard Centronics interface cable.
The main parallel port is typically a built-in port or on a parallel! serial
adapter (as opposed to being on a monochrome video card). The parallel
port should have been configured to use interrupt vector 7 and be recog-
nized as /dev/lpO after running mkdev parallel. See parallel(HW) and
Adding and configuring parallel ports" (page 376) for more information.
/I
4. Verify that you have connected the printer correctly by sending data
directly to the device.
For serial printers, enter the following command:
date> /dev/ttynn
where nn identifies the serial port you are using (for example, la for
/dev/ttyla).
You may need to specify the printer's stty(C) settings (speed, parity, data
length and so on) if these differ from the serial line's default settings, For
example, to test a 4800 baud printer on /dev/ttyla which is set to 9600 baud:
(stty 4800 ; date> /dev/ttyla) < /dev/ttyla
For parallel printers, enter the following command:
date> /dev/lpn
where n is the number of the parallel port you are using (for example
/dev/lpO).

Troubleshooting printers
Certain laser printers, such as the HP LaserJet, need to be sent a form feed at
the end of a print job; this tells them to eject the page. For example, for a serial
printer:
(date; echo "\014") > /dev/ttynn
or for a parallel printer:
(date; echo "\014") > /dev/lpn
Laser printers that are in PostScript mode can be tested by sending them a
PostScript file. For example, to send the file foo.ps to the serial port nn enter the
following command:
cat foo.ps > /dev/ttynn
To send the file to the parallel port n enter the following command:
cat foo.ps > /dev/lpn
If you do not see the expected output printed, the most likely cause is some
type of hardware malfunction. The following troubleshooting procedures
may help you to isolate the problem.
For serial printers:

• If the printer uses the XON / XOFF flow control protocol, make certain you
specify the non-modem control device for the serial port (such as
/dev/ttyla).
• If the printer uses hardware flow control, specify the modem control device
(such as /dev/ttylA). You will also need a cable capable of supporting hard-
ware flow control- see "Setting up RTS/CTS protocol (hardware flow con-
trol) printers" (page 401). (For more information on the naming convention
for serial ports, see the serial(HW) manual page.)
• A printer that uses XON /XOFF flow control, and that is configured as Data
Circuit terminating Equipment (DCE) should require a serial cable with
only pins 2, 3, and 7 connected straight through (assuming 25-pin connec-
tors are used).
See serial(HW) for a description of the pin connections if the printer is con-
figured as Data Terminal Equipment (DTE). This manual page also
describes the equivalent 9-pin connections.
• Recheck your printer configuration by verifying the switch positions in the
printer manual.
399
Adding printers
• Make certain that the system recognizes your serial port. You can verify
this by running the hwconfig( C) command, or by checking the file
/usr/adm/messages. If your port is one of the non-intelligent boards sup-
ported by the built-in serial driver, you will see a message similar to this:
%serial Ox03F8-0x03FF 04 - unit=O type=Standard nports=l
If unit=O is displayed, the serial port is considered to be COMl. If the unit is
1, the port is considered to be COM2. nports= denotes how many ports the
driver recognized on the adapter. If you connect your serial printer to the
first port on COMl, the associated device name will be ttyla. The second
device on COMl is ttylb, and so on. Devices on COM2 are named tty2a,
tty2b, etc.
Intelligent serial adapters may display different bootup messages specific
to their drivers; they may also use a different scheme for device names. The
message displayed in this case may look similar to this:
%ONBOARD Ox0230-0x023F 34 0 unit=O mem=OxOOODOOOO nport=16
Be sure to read the documentation for the adapter and its drivers before
attempting to install serial devices such as printers.
• Recheck the switch settings on your serial port. If you are using a multipart
adapter, try other lines on that card and be sure it does not conflict with the
standard COM ports. Try attaching the printer to a standard serial port,
COMl or COM2, to see if the printer and cabling are functioning correctly.
For parallel printers:

• Make certain your cable is securely connected.
• Check that no wires in the cable are broken. One way of testing this is to
use the cable on another system that is known to be working correctly.
• Recheck your printer configuration by verifying its switch settings in your
printer hardware manual.
• Recheck the switch settings on your parallel card. It must also be recog-
nized at bootup. You can verify this by running the hwconfig(C) command,
or by checking the file /usr/adm/messages for a message similar to this:
parallel Ox378-0x37A 07 unit=O
uni t=O refers to /dev/lpO, uni t=l refers to /dev/lpl, and so on.
To confirm that your card is recognized, enter the following command:

hwconfig name=parallel

If the card is recognized, an entry will be printed that has similar information
to the entry above. The interrupt vector is listed in column 3 (or with "vec="
for the hwconfig display); make certain that it does not conflict with other
hardware.
You can now set up and customize the printer spooling software as described
in "Adding local printers" and "Configuring Hewlett-Packard network
printers and print services" in the System Administration Guide.
Setting up RTS/CTS protocol (hardware flow control) printers
The Ready To Send (RTS) and Clear To Send (CTS) lines for the RS-232 serial
interface were originally intended as handshaking signals between a DTE de-
vice (computer, printer, and so forth) and a DCE device (almost always a
modem). This section describes unidirectional handshaking between two DTE
devices: a computer and a printer. The computer asserts its RTS (Ready To
Send) line when it is ready to send data to the printer. The printer asserts its
RTS when it was ready to receive data.
If the printer's input buffer is nearly full, it lowers its RTS line (connected to
the computer's CTS (Clear To Send) line). If the computer sees CTS go low, it
stops sending data until it goes high again when the printer has caught up.
Some printers use the DTR (Data Terminal Ready) line for handshaking rather
than RTS or CTS. For these devices, the cable must be wired to connect the
printer's DTR pin to the computer's CTS pin - see Figure 24-2 (page 402).
To set up for RTS/CTS handshaking:

1. Use the modem-control port (such as /dev/ttylA). When you configure the
printer to use the print service, make sure you specify the modem control
port rather than one of the standard serial devices.
2. For a device that uses the RTS and/or CTS lines for handshaking, wire the
cable as shown in Figure 24-1 (page 402).
For a device that uses the DTR line for handshaking, wire the cable as
shown in Figure 24-2 (page 402).
For equivalent 9-pin connections, see the serial(HW) manual page.
401
Adding printers
Device (assumed to be DTE,

Computer such as plotter, printer, etc).
Tx 2 ~I 3 Rx
Rx3 ~.~---------- I 2 Tx
RTS4 ~I 5CTS
CTS 5 .....1 - - - - - - - -
I 4 RTS
Gnd 7
I 7 Gnd
~
CD 8
r-_ _ _ ------,
DTR20 ~
All other pins unused
Figure 24-1 RTS/CTS handshaking for 25-pin connector
Device (assumed to be DTE,

Computer such as plotter, printer, etc).
Tx2 --------11.. 3 Rx
Rx3 ... 2Tx
CTS5 ... 20DTR
Gnd 7 7Gnd
L...--_
C_D_8 ------l ~
DTR20 -
All other pins unused

Figure 24-2 OTR handshaking for 25-pin connector

3. To enable unidirectional hardware flow control using RTS / CTS handshak-

ing, make sure the stty( c) settings on the port include -ixon -ixoff -clocal
ortsfl rtsflow ctsflow.
To enable unidirectional hardware flow control using DTR handshaking,
make sure the stty( c) settings on the port include -ixon -ixoff -clocal
-ortsfl -rtsflow ctsflow. This form of unidirectional flow control stops
transmission when CTS sees the printer drop DTR.
To enable the stty settings when the system goes to multiuser mode, place
the appropriate command in the file /etc/rc2 or /etc/rc2.d/P88U5RDEFINE:
stty stty_settings < /dev/ttynn
403
Adding printers

Chapter 25
Adding modems
Modems enable you to communicate over phone lines with remote systems.
NOTE The UUCP package must have been installed on your system to sup-
port modem connections whether these are used with cu, UUCP, SLIP or PPP.
Use the Software Manager or custom(ADM) to install this package if neces-
sary.
To set up a modem on your system, follow these steps:

1. Install the modem (page 406).
2. Configure UUCP (page 414).
3. Test the modem (page 421).
See also "Troubleshooting modems" (page 424).
Supported modems
Any external 100% Hayes-compatible modem should work provided that it is
connected to a serial port that is capable of supporting modem control proto-
cols. All SCa-supported serial devices can provide modem control. Some
third-party multipart smart serial cards cannot be used as they do not support
modem control.
sca has successfully tested several Hayes-compatible internal and PCMCIA

modems. Some older models of internal modem have compatibility problems
which prevent them from working properly. For example, they may flood the
system bus with spurious interrupts, or they may not support the quiet, no-
echo, or auto-answer modes.
405
Adding modems
Support for modems is provided by atdialer configuration files. Additionally,

your SCO OpenServer system provides several dialer programs; see "Using
dialers" (page 414). If you have a modem that is not Hayes-compatible or is
not officially supported, you can create a custom dialer as described in "atdi-
aler and dialer programs" (page 416).
For information on specific modems, see Appendix E, "Modems" (page 533).

Also see "Guidelines for non-supported modems" (page 412).
Installing a modem
To install a modem, follow the steps:

1. Choose a serial port for your modem (this page).
2. Connect the modem to your system (page 407).
3. Run the Modem Manager (page 408).
Choosing which serial port to use

Before adding a modem, ensure there is a port available on your system -
either directly on the COMl or COM2 serial ports, or on a third-party multipart
card. If you are installing a supported modem, use the Modem Manager to
configure an SeO-supported serial card. Otherwise, you can use the Hard-
ware/Kernel Manager or the mkdev serial command to add support for addi-
tional serial ports, or a vendor-supplied configuration utility for third-party
intelligent serial port devices and drivers. See Chapter 21, Adding serial and
/I
parallel ports" (page 367) for more information.
For systems with two dumb (non-intelligent) single-port serial cards,

/dev/ttyla and /dev/tty2a are the non-modem control devices associated with
COMl and COM2 respectively. /dev/ttylA and /dev/tty2A are the corresponding
modem control devices for these ports. The operating system gives these
ports different device names because it uses different device-driver routines
for each.
I NOTE Always use the modem control device with a modem.
For systems with dumb multipart serial cards, /dev/ttyla through /dev/ttylh
and /dev/tty2a through /dev/tty2p are non-modem control devices, and
/dev/ttylA through /dev/ttylH and /dev/tty2A through /dev/tty2P are modem
control devices.
Vendors of multipart smart serial cards implement their own drivers and de-
vice naming schemes; consult the documentation supplied with your smart
serial card for details.

Installing a modem
Make sure the serial port you have chosen for your modem is recognized at
bootup (check /usr/adm/messages or use hwconfig(C)) and, if the modem is
internal, make sure that the interrupt vector (IRQ) and base I / a address of the
COM port do not conflict with any other device.
If you attempt to use both modem and non-modem control ports at the same
time you will see the warning:
cannot open: device busy
See also" Adding and configuring SCO-supported serial cards" (page 368).
Connecting a modem to your computer

You can obtain suitable modem cables from most computer stores and sup-
pliers. You cannot connect modems using the three-wire cables that are often
used to connect terminals to the computer. To connect a modem to a 25-pin
serial port, pins 2, 3, 7, 8, and 20 must be wired straight through (meaning the
pins are connected: pin 2 to pin 2, pin 3 to pin 3, and so on). In addition, pins 4
and 5 must be connected straight through if RTS / CTS flow control is used. If
you are unsure what to use, a cable that connects all pins straight through
should work correctly. See the serial(HW) manual page for details on 9-pin
connections.
A COM port on a computer is usually DTE (Data Terminal Equipment) type,
and a modem port is usually DCE (Data Communications Equipment) type, so
that a straight-through cable is suitable for connecting the two. However,
COM ports on some serial expansion boards are DCE type. If this is the case,
you need a null-modem cable to connect a modem. Check your hardware
documentation if you are unsure.
NOTE When you are hooking up your modem (or any other serial device),
ensure that serial wires connected to your computer are not left hanging.
An unterminated line connected to your computer can considerably reduce
system performance. Always unplug a modem cable at the computer end,
not at the modem end.
Physical connections between a device and the system may depend on the
hardware configuration. For specific information about connecting a modem,
refer to the hardware manuals provided with the modem and with your com-
puter.
Your modem may have DIP switches to configure various settings when it is
first powered on. One of the settings may allow you to choose whether the
modem uses the default factory settings in read-only memory (ROM) or set-
tings you have written to non-volatile memory (NVRAM). If so, select DIP
switch and NVRAM settings that are close to the normal operating state of the
modem. If necessary, you can normally override these settings by sending
commands to the modem.
407
Adding modems
The factory default settings are normally suitable for installing the modem.
Do not adjust these settings until you have tested that the modem operates
successfully with your system.
Though unlikely, you may have to physically configure the modem to allow
dial-in connections as follows:
• Set the modem to auto-answer. A few modems do not have this setting
and can only make outgoing calls.
• Set the modem so that it does not answer when DTR (Data Terminal Ready)
is low, and so that it drops the current connection when DTR goes from
high to low.
• Set CD (Carrier Detect) to go high when a carrier is present, low when a
carrier is not present.
• Turn off echoing of characters sent to the modem.
• Select quiet mode so that the modem sends no response codes.
The Modem Manager interface

The Modem Manager allows you to configure modems for your system. You
can start the Modem Manager in any of these ways:
• Double-click on the System Administration icon on the Desktop, then on
Networks, and finally on Modem Manager.
then select Networks, and finally Modem Manager.
• Enter scoadmin modem manager on the command line.

By default, you configure the local host. To configure a different host, select
Open Host from the Host menu, and choose another host.

Installing a modem
The Modem Manager shows the details of any modems that are currently
configured on your system, and allows you to modify this configuration:
Configuring modems
You can choose how to add the configuration information for modems:
• Let the Modem Manager search for modems automatically (this page).
• Enter the configuration information for the modem manually (page 410).
Detecting a modem automatically

To detect a modem automatically, in the Modem Manager:
1. Verify that the modem is connected and switched on.
2. Select Add from the Modem menu, and then select Automatic detection.
3. Select the serial port to which the modem is attached, or select Any to have
the system examine all serial ports.
You can enter a third-party serial device name for your serial port once
that device has been configured into your system; see your serial device
documentation for installation and configuration information.
409
Adding modems
NOTE A driver for the serial port must have been configured into the
kernel. If a suitable driver is not available, and the serial port is on an
Sea-supported serial card, click on Add port to define the serial card and
its ports. Follow the instructions in Configuring a serial card" (page
II
369). If the serial port is on a non-Sea supported or an intelligent serial

card, it must be configured to use a third-party driver. Refer to the
instructions for installing the driver provided with the serial card.
After you relink the kernel with the correct serial driver, exit the Modem
Manager, and then shut down and reboot your system.
You must re-invoke the Modem Manager after your system has
rebooted to be able to detect a modem automatically.
You do not need to reboot the system to add a modem manually to a
newly defined port, but you will not be able to use the modem or the
port until you reboot the system.
4. Click on OK to start the system searching for the modem. As the serial
port is probed, the indicator lights on the modem should flicker on and off
for several seconds. While the Modem Manager probes the serial port(s),
it updates the list of the modems that it has detected.
5. When it finishes probing the ports, select the modems to add, and click on
Add.
If the system does not detect a modem, check that the modem is connected
correctly and is switched on. Some older models of modem are not capa-
ble of being detected. If automatic detection still fails, enter the configura-
tion manually as described in Adding a modem manually" (this page).
1/
Adding a modem manually
To add the configuration information for a modem, in the Modem Manager:

1. Select Add from the Modem menu, and then select Manual configuration to
bring up the Modem Configuration window.
2. Enter the following information:
Modem vendor
Select the manufacturer of your modem. If this is not listed, select Stan-
dard Modem Types.
Modem model
Enter the modem model. If you selected Standard Modem Types for the
Modem vendor, select Standard Modem.
Line speed (bps)
Enter the serial line speed at which you want to the computer and
modem to communicate. The default speed is 38,400bps. You can set
the speed as high as 115,200bps if the serial port uses a 16550 UART or

Installing a modem
higher specification UART. Do not set the speed higher than 9600bps if
the serial port uses a 8250 UART. Select Any to use the default speed
for the serial line (this is usually 9600bps). See Table 21-1 for more in-
formation.
Modem port
Select the modem control serial device (such as tty2A) corresponding
to the port to which the modem is connected. If the port is not listed,
click on Add port to configure the serial port for your system, and fol-
low the instructions in "Configuring a serial card" (page 369).
You can enter a third-party serial device name for your serial port once
that device has been configured into your system; see your serial de-
vice documentation for installation and configuration information.
To change the speed or interrupt trigger level, or to enable or disable a
login on a port, follow the instructions in "Configuring a serial port"
(page 370).
Answer mode
Select On to have the modem answer incoming calls. This allows your
system to provide remote access PPP or incoming SLIP connections. It
enables a getty process on the serial line attached to the modem to
allow incoming connections to log into your system.
Select Off if you want to prevent your system accepting incoming calls.
3. Click on OK to accept the configuration.
Modifying the configuration of a modem

To modify the configuration information for a modem, in the Modem Manag-
er:
1. Select the modem to modify.
2. Select Modify from the Modem menu to bring up the Modem Configuration
window.
Removing a modem
To remove the configuration information for a modem, in the Modem Manag-
er:
1. Select the modem to remove.
2. Select Delete from the Modem menu.
411
Adding modems
Guidelines for non-supported modems

When configuring non-supported modems:
• You may need to disable or reduce the level of data compression and error
correction when using a modem for UUCP. If throughput seems too low, or
you have failed transfers, disable these features.
• Disable XON /XOFF flow control when using the modem for UUCP. The
stop character (XOFF or DC3) can occur in the UUCP protocol data stream,
and cause the transfer to fail. XON / XOFF passthrough mode may be
usable.
• Use "Setting hardware flow control" (page 420) with your modem.
If you want to enable XON /XOFF when using the modem for cu(C), you must
define an alternative dialer to that used with UUCP. This can be done by
modifying and renaming the Dialers file entry, or by modifying and renaming
the dialer program, such that you have one dialer definition for UUCP and
another for cu. See the sysfiles(F) manual page for instructions.
To install your modem for dial-in or dial-out:

1. Make sure the serial port you have chosen for your modem is recognized
at bootup (check /usr/adm/messages or use hwconfig(C)) and, if the modem
is internal, make sure that the COM port does not conflict with any other
device.
2. Use the disable(C) command to disable the modem and non-modem con-
trol ports, for example:
disable ttyla
disable ttylA
3. If you are going to use the line for dial-out, ensure that the serial port is
owned by uucp, for example:
chown uucp /dev/ttylA
chgrp uucp /dev/ttylA
4. If you intend to use the modem for dial-in, check the /etc/inittab file and
confirm it has an entry for your port similar to this:
SelA:2:off:/etc/getty -t60 ttylA m
/etc/inittab determines whether the port has a login prompt and defines the
serial line characteristics. There should already be an entry for the line you
are using; all you need to do is check the last field. This field is a number
or letter (label) from the /etc/gettydefs file. See Table 21-1 for a list of the
more commonly used labels.

Guidelines for non-supported modems
Do not alter any fields other than the gettydefs label. For example, if you
want to connect to the modem at 19,200bps on the first standard serial
port, the line should be similar to this:
Se1A:2:off:/etc/getty -t60 tty1A n
If you make any changes, use the following command to check the entries:
grep -i tty /etc/inittab
where tty is the serial port being used. This should generate only two
lines: one for the modem control port (such as ttylA) and one for the non-
modem control port (such as ttyla).
For more information on the /etc/inittab file and the various control codes,
see the getty(M) and inittab(F) manual pages.
5. Duplicate any changes you make to /etc/inittab in the /etc/conf/init.d/sio file.
WARNING Each time the kernel is relinked (when a driver is added or a

tunable parameter is changed), /etc/inittab is reconstructed from the
entries found in /etc/conf/init.d/sio.
Add the correct entries to the /usr/lib/uucp/Devices file. This file should have
two entries for each serial port being used for a modem. One of the entries
is used when you start a call using the modem (the Automatic Calling
Unit (ACU) line), and the other line is used to connect directly with the
modem to issue commands manually (the direct line). For a
Hayes-compatible modem connected at 19,200bps on COMl, the entries in
/usr/lib/uucp/Devices should be:
ACU tty1A - 19200 /usr/lib/uucp/dialHA24 \T
Direct tty1a - 19200 direct
The /usr/lib/uucp/dialHA24 entry is the dialer program for the modem. Two
types of dialer programs are included to support a wide variety of
modems; see "Using dialers" (page 414) for more information.
Now follow the procedures in "Configuring UUCP for modems" (page 414)
and "Testing your modem connection" (page 421) to complete the installation
of your modem.
413
Adding modems
Configuring UUCP for modems

Correct entries in the UUCP configuration files are vital when using ell and
UUCP. This also applies when sca SLIP and sca PPP are configured to use
incoming and outgoing connections that use uUCP (it does not apply to dedi-
cated serial line connections). The PPP Manager edits the uUCP files to insert
the correct entries but you need to edit these files by hand to be able to use ell,
the UUCP utilities, and SLIP.
To configure the uUCP files:

• Edit /usr/lib/uucp/Systems to ensure that the correct line speed is specified
for your modem. See" Adding entries for remote sites to the Systems file" in
the System Administration Guide for more information.
• Edit /usr/lib/uucp/Devices to enter the correct speed range and inbuilt dialer,
Dialer file entry, or the name of a dialer program used by the modem. See
"Specifying dial-up parameters with the Devices file" in the System
• Obtain and install a suitable dialer program for your modem.
If a dialer program does not exist, or /usr/lib/uucp/Dialers does not contain a
suitable entry, you must create one or the other. See "Using dialers" (this
page) for more information.
See Chapter 7, "Connecting to other computers with UUCp" in the System

Using dialers
For dialing, both ell and UUCP use a dialer defined by an entry in
/usr/lib/uucp/Devices. The dialer can be:
• an entry in the /usr/lib/uucp/Dialers file, see "Dialers file entries" (page 415)
• a symbolic link to atdialer together with a suitable configuration file in
/usr/lib/uucp/dejault, see "atdialer and dialer programs" (page 416)
• a stand-alone program such as /usr/lib/uucp/dialHA12, see "atdialer and
dialer programs" (page 416)

Using dialers
Dialers file entries

Table 25-1 lists dialer types that are available as Dialers entries.
Table 25·1 Dialers file entries

Modem or data switch Dialers entry
AT&T DATAPHONE II 2212C att2212c
AT&T DATAPHONE II 2224 att2224
AT&T Programmable 300/1200 Model 4000 att4000
Develcon network dataswitch develcon
Direct line; dialer not used direct
Hayes Smartmodem 1200 or compatible hayes1200
Hayes Smartmodem 2400 or compatible hayes2400
Micom network dataswitch micom
Network Listener Service nls
Penril penril
Racal Vadic 3451 vadic
Rixon Intelligent rixon
Vadic 9600VP vadic9600
Vente I 212+ vente I
If you are experimenting with an unsupported modem, the Iihayes2400" entry

in the Dialers file is a good starting point; it can be used even with high-speed
modems. The following example Devices entry is for a modem that uses a
Dialers file entry but operates at 19,200bps:
ACU tty1A - 19200 hayes2400
I NOTE If you intend to use an outgoing PPP link over a modem that uses the
"hayes2400" entry in the Dialers file, change the word Speed to CONNECT.
The following Dialers file entry, standard, should also be suitable for many
V.32bis and higher speed moderns:
standard =w-,"" AT&F1 OK\r ATBOM1X4 OK\r ATDT\T\r\c CONNECT
Although it is possible to create or modify an entry in the Dialers file yourself,
the syntax can be difficult to follow. Consult the Dialers{F) manual page for
more information.
415
Adding modems
atdialer and dialer programs

There are two types of dialer binaries, named dial* and atdial*, in /usr/lib/uucp.
The dial binaries (for example, dialHA24) are separate executable programs
that must be recompiled from source files if you wish to customize them. The
atdial dialers (for example, atdialHAY) are implemented as symbolic links to a
single executable (/usr/lib/uucp/atdialer) together with an editable configuration
file in /usr/lib/uucp/default.
Table 25-2 lists symbolic links to atdialer and dialer programs provided with
SCQ OpenServer systems. Both atdialer and the dialer programs are supplied
in binary and source form.
Table 25·2 atdialer and dialer binaries

Modem atdialer or dialer
Hayes Smartmodem 1200 or compatible dialHA12
Hayes Smartmodem 2400 or compatible dialHA24
Hayes Ultra 96 modern 2000US atdialHAY
Hayes V-series Smartmodem 9600 dialHA96V
MICC 9610 atdialMICC
Multitech MT932EA atdialMT
Multitech MultiModem 224 EH or V.32 dialMUL
Racal Vadic 3451 dialVA3450
Telebit T2500 atdialT25
Telebit Trailblazer dialTBIT
Trailblazer TB1500 dialT1500
US Robotics Courier V.32bis atdialUSR
US Robotics World Port 9600 atdialW96
The sections that follow explain how to create both types of dialers.
Understanding modem commands and setup strings

To create a new dialer, you need to understand how modern commands are
used. You can enable or disable desired features by sending commands in a
setup string to the modem. For example, the following setup string is used in
the dialHA24 dialer:
ATQOEOT&D2&ClSO=OX4S2=043

Using dialers
You can change these strings to suit a different communications protocol or

modem-specific commands by consulting the documentation for your
modem. Though the setup commands may seem confusing because they are
concatenated, there are two basic types of Hayes commands:
• basic modem commands (for example, QO and &D2)
• modem S-registers (for example, SO=O)
Hayes-compatible command strings always begin with the AT (attention)

command.
Creating a new atdial dialer

You can create a new atdial dialer without having the sea OpenServer Devel-
opment System installed. An atdial dialer is actually a link to the binary
/usr/lib/uucp/atdialer that calls a configuration file in the lusr/lib/uucp/default
directory. The configuration file contains all the commands specific to that
modem. For example, atdialHAY is linked to atdialer and the configuration file
is in /usr/lib/uucp/default/atdialHAY. To create a new atdial dialer, atdialMINE
for example, follow these steps:
1. Log in as root.
2. Copy one of the atdial* files in /usr/lib/uucp/default to use as a template for
the new configuration file atdialMINE in the same directory. For example,
to use atdialW96 as the template, enter:
cp /usr/lib/uucp/default/atdiaIW96 /usr/lib/uucp/default/atdiaIMINE
3. Edit /usr/lib/uucp/dejault/atdialMINE to add and alter the parameters that

are appropriate for your modem. See the atdialer(C) manual page for
more information.
4. Create a symbolic link /usr/lib/uucp/atdialMINE to /usr/lib/uucp/atdialer
using the command:
In -s /usr/lib/uucp/atdialer /usr/lib/uucp/atdiaIMINE
When you invoke atdialMINE, atdialer reads the

/usr/lib /uucp /defaul t/atdialMINE file.
Alternatively you can use the make.dialer script to create an atdial dialer. See
make.dialer( e) for more information.
417
Adding modems
Setting up the modem for FAX/DATA detection

Set the MDM_MODE parameter in /usr/lib/uucp/default/atdial * to "AUTO" to
configure a modem to detect incoming FAX messages automatically. Use the
-£ option with the getty(M) program defined for the modem port to invoke an
appropriate program defined in /etc/gettyacts (see gettyacts(F)) if an incoming
connection is a FAX message or another communications protocol such as
PPP.
Editing connect speed strings

Most modern modems can perform speed conversion which allows them to
negotiate a different connection speed with the remote modem than the serial
line speed that they use with the local computer.
If you use hardware flow control with the modem, and the modem is capable
of performing speed conversion, do not use the RTC_speed strings. Instead,
use the RTC_CONNECT string and set it to the value "CONNECT". This will
give you the fastest available connection speed. The computer to modem
speed will be set by the value in the /usr/lib/uucp/Devices file.
The RTC_speed strings in the /usr/lib/uucp/default/atdial* configuration files

allow the dialer to recognize connect messages from the modem and map
them to appropriate speed(s). For example:
RTC_9600=CONNECT 9600
The dialer then recognizes "CONNECT 9600" as a 9600bps connection. The
connect messages for each speed must be unique. If the message is set to
"CONNECT", the first speed mapped to the connect message is used. For
unused speeds, simply set the RTC_speed string to "not used", for example:
RTC 300=not used
It is possible to specify all valid connect messages. For example:
RTC 2400=CONNECT 2400
RTC 9600=CONNECT 9600
For a modem that performs speed conversion, this more accurate setup is only
necessary if you need to guard against long UUCP transfers at 2400bps. This is
because the speed recognized by the dialer is matched against the speed range
in the Systems file or the speed range on the eu command line. If it is out of
range, an EXECDIAL LOCAL FAILURE will result. In the following command the
speed range specified is 9600 - 9600:
eu -ltty1A -89600 5551212

Using dialers
Connections at 2400bps using the above command will fail if separate

RTC_speed lines are set up. Either of the following commands allow a
2400bps connection in this case:
ell -ltty1A -s2400 5551212
ell -ltty1A -s2400-9600 5551212
Creating a new dial dialer

You can customize a dial program by editing the source file (for example,
diaIHA24.c) and changing modem commands embedded in the C code and
then recompiling the source.
The source and a makefile for recompiling dial binaries are included in the
directory /usr/lib/uucp. If you have any other kind of modem, you can modify
any of the source files and create your own dialer program.
NOTE You must have installed the sea OpenServer Development System
Ibefore you can compile a dial program.
To make a new dial program:

1. Change directory to /usr/lib/uucp.
2. Copy the dialer program you wish to modify and make the desired
changes. For example, the dialHA24.c setup commands are located in this
code segment:
#define MDSETUP "ATQOEOT&D2&ClSO=OX4S2=043\r"
There are several "defines" in the program, each containing a different
string, such as MDHANGUP, the command string to send that tells the
modem to hang up (ATQOH). Change each define as appropriate.
NOTE The \r is not a modem command, but a string that indicates a

carriage return. All modem commands in a dialer program require a car-
riage return.
3. Edit the file makefile in the directory /usr/lib/uucp and find the line that
reads:
EXES= dialHA12 dialHA24 dialHA96V dialMUL dialTBIT dialT1500 dialVA3450
Add the name of the dialer program that you wish to use. When this is
done, exit the file, saving the changes you made.
419
Adding modems
4. Next, enter the following command at your shell prompt:

make
When the make command is finished, you have a new dialer program.
This can be used in the fifth field of an entry in the Devices file.
Setting hardware flow control

There are two types of flow control: hardware (RTS/CTS) and software
(XON /XOFF). In XON /XOFF flow control, either end can send a stop (XOFF) or
start (XON) character to the other end to control the rate of incoming data. In
RTS / CTS flow control, the computer and the modem use the RTS and CTS lines
respectively to control the flow of data (for example, when the modem's buffer
is full). For modems, RTS / CTS flow control is the preferred method as it is
more efficient and reliable.
Modems can usually be configured to use hardware flow control. For exam-
ple, the atdialHAY dialer supports RTS/CTS flow control using the &K3 com-
mand.
Setting hardware flow control on outgoing calls

Hardware flow control for outgoing calls is supported by the atdialer,
dia1HA96V, diaiMUL, and dialTBIT dialers. All of these dialers recognize strings
of the form STTY=settings in their /usr/lib/uucp/default files. For example, you
can enable bidirectional hardware flow control for the dialTBIT dialer by creat-
ing a file /usr/lib/uucp/default/diaITBIT that contains the following line:
STTY= -ORTSFLOW RTSFLOW CTSFLOW
Setting hardware flow control on incoming calls

Hardware flow control for incoming calls is configured by adding the
-ORTSFLOW RTSFLOW CTSFLOW flags to the appropriate letc/gettydefs entry
referenced by the /etc/inittab entry for the modem tty port.
The CTSFLOW flag is often used by itself to prevent the modem buffer from
overflowing when speed conversion is used for incoming calls. For example,
assume a MultiModem V.32 is set for a fixed speed of 9600bps to the com-
puter. When a 2400bps connection calls in, the computer sends data to the
modem at 9600bps, which the modem can only send out at 2400bps. The
CTSFLOW flag in /etc/gettydefs tells the serial driver to stop sending data when
the modem drops CTS. This allows the modem to signal when it is busy and
prevent data overruns.

Testing your modem connection

Follow these steps to test whether you can send commands to your modem:
1. Log in as root.
2. Add a "Direct" line entry for your modem to the /usr/lib/uucp/Devices file if
one does not already exist. You can specify either the modem or the non-
modem control device for the port to which the modem is attached. For
example, the following Devices entry is for a modem connected to a single
port on COMl:
Direct ttylA - 9600 direct
3. Establish a direct connection to the modem so that you can send com-
mands to it. This connection uses the "Direct" line in the Devices file. For
example, if the modem is connected to a single port on COMl, enter the
following command:
eu -lttylA dir
You should see a message such as OK (Hayes-compatible modems) or 0 to
indicate that the modem is ready to accept commands.
If you see the message eu: dir permission denied, you do not have write
permission on the /usr/lib/uucp/Devices file. Set the correct ownership and
permissions using the commands:
ehown uuep:uuep /usr/lib/uucp/Deviees
ehmod 644 /usr/lib/uucp/Devices
If you do not see a message indicating that the modem is ready to accept
commands:
• Check that you entered the eu command correctly.
• Ensure the "Direct" entry in the Devices file is correct.
• Use the hweonfig command to check that the serial port is configured.
• Use the I command to check that the device files associated with the
port (such as /dev/ttyla and /dev/ttylA) have owner and group both set
to uucp. If not, change these using the commands:
ehown uuep:uucp /dev/ttyla
ehown uucp:uuep /dev/ttylA
NOTE The instructions that follow assume a Hayes-compatible com-

mand set and response codes. Other modems may use other conven-
tions. Consult your modem documentation for further details. The
instructions are illustrated by Figure 25-1, "Testing a modem connection"
(page 422).
421
Adding modems
Enter:
AT
Check
cable/switch
settings
Enable
echo:
ATE1
Try other
ports, inc
tty 1A, tty2A
Figure 25-1 Testing a modem connection
4. If you see a message from the modem indicating that it is ready to accept
commands, enter AT. A Hayes-compatible modem should return OK. If
you have set the modem to return numeric result codes rather than text,
you see o. If you do see OK, your modem is ready to dialout.
5. Check that the "Send Data" light on the modem flashes when you press a
key. This indicates the modem is receiving signals from the computer. If
this light is not flashing, check your cable and modem switch settings. If
the "Send Data" light flashes, but you still do not get an OK response from
the modem, enable the modem's echo capability and responses to com-
mands by entering ATEIQO

If your terminal still does not display OK or 0, connect the modem to

another port (COMl or COM2). If the modem works with the new port,
check that the device is using the correct interrupt vector. (Serial port
COMl uses interrupt 4; COM2 uses interrupt 3.)
If the terminal does not echo the OK message when it is connected to the
new port, check your cable again. You can also connect a terminal to the
port (with a proper terminal cable) and verify that the port works. If the
modem returns garbage, then try connecting at different speeds; some
modems can be set to communicate at the DTE connect speed, while others
communicate at a fixed speed. If the modem still does not respond prop-
erly, the modem may be defective.
Testing whether you can dial out

Having established that you can send commands to the modem, follow these
steps to test whether you can dial out to a another site:
1. Enable the modem's speaker so you can hear it dial out and connect:
ATM2
(Use ATMO to turn it off.)
2. Enter the following modem command:
ATDTphone_number
(This assumes that the connection can use tone dialing. Use the ATDP
command for pulse dialing.)
3. Having confirmed that the modem can dial out, exit ell by entering:
-.
4. Dial into the other system using the appropriate modem control port, for
example:
ell -x9 -lttylA phone_number
The -x9 option generates useful debugging information.
I NOTE Use dashes in the telephone number to indicate a pause while

dialing. Do not use the comma (,) from the Hayes command set.
5. If the connection is successful and logging in is allowed on the remote ma-

chine, you should see a login prompt.
If you have any problems, see HProblems dialing out" (page 424).
423
Adding modems
Testing whether you can dial in

If you want to allow dial-in connections, follow these steps to test your sys-
tem:
1. Check that the modem is set to auto-answer. There may be an "Auto
Answer" light on the modem's front panel to show this.
2. Enable the modem control port, for example:
enable /dev/ttylA
3. Dial this modem from another modem.
If you have any problems, see "Problems dialing in" (page 427).
See "Configuring your system for high-speed modems" in the Performance

Guide if you find that you are losing incoming data on a high-speed modem.
Troubleshooting modems
If you have problems, first verify that the phone jack is plugged in and that
you have a dial tone on the phone line. Note that, while other serial ports are
often used, the examples in this section assume that the modem is attached to
COMl.
The problems fall into these categories:

• "Problems dialing out" (this page)
• "Problems dialing in" (page 427)
If you find that you are losing incoming data on a high-speed modem, follow
the tuning advice given in "Configuring your system for high-speed modems"
in the Performance Guide.
Problems dialing out

The most useful tool for diagnosing dial-out problems is the -x9 option to
eu(C). This option causes eu to display diagnostic output when attempting to
dial out. To get a debugging output, enter the command:
eu -x9 phone_number
where phone_number is the phone number of the system you wish to dial.

You may experience one of the following problems on dialing out:

• "Modem dials, but does not connect" (this page)
• "NO DEVICES AVAILABLE message" (this page)
• "Modem answers, but terminal displays garbage" (page 426)
• "DEVICE LOCKED message" (page 426)
• "Modem does not hang up" (page 426)
• "Double echd' (page 427)
Modem dials, but does not connect

If your modem dials correctly, but the call never connects:
1. Verify that the phone number is correct and operational and that the
phone line to which the modem is attached is not faulty. To do this,
unplug the modem from the telephone line and plug in a regular tele-
phone. Manually dial the number to make sure that the modem on the
other end of the line is answering the call.
2. Listen carefully to your modem while it dials the call. Some business
phone systems require a pause between certain numbers. Use a dash in
the ell command to indicate a pause of two seconds. For example, if you
enter: 9----4581234, the modem pauses for 8 seconds after dialing the first
number.
The dialer translates the dash passed to the ell command into the
appropriate code for your modem. For example, the dialer translates the
dash into a comma before sending to a Hayes-compatible modem.
NO DEVICES AVAILABLE message

When you try to dial out on the modem, the following message is displayed:
Connect failed: NO DEVICES AVAILABLE
To solve the problem:
1. Verify that the modem port has an entry in the /usr/lib/uucp/Devices file.
Here are example entries for a Hayes-compatible modem running at
9600bps on /dev/ttylA:
ACU ttylA - 9600 /usr/lib/uucp/dialHA96V
Direct ttylA - 9600 direct
These lines must not being with pound signs (#) or whitespace.
2. Verify that the modem port in Devices has the correct line speed associated
with it. If you specify the line speed with the -8 option to ell, verify that
there is an entry in Devices that corresponds to that line speed.
425
Adding modems
Modem answers, but terminal displays garbage

If the modem answers, but the terminal displays garbage characters:
1. Verify that the site that you are calling is set to the same data bit and par-
ity values that you are using. By default, eu uses 8 data bits, and no parity.
To change the values to 7 data bits and even parity, enter eu -e. For 7 data
bits and odd parity, use eu -0, and use eu -oe for 7 data bits and no parity.
2. Verify that the remote computer is set to the same line speed that you are
using.
If you are dialing into another UNIX system, you can force the remote site
to switch to the next line speed by sending a break signal. To send the
break signal during the login sequence, enter:
-%b
3. Check for noise on your phone line. Noise problems become more acute
when operating at higher speeds. Normally, when there is a problem with
line noise, garbage characters appear on the screen in short bursts or con-
tinuously, as if a system on the other end of the line is trying to send valid
data.
DEVICE LOCKED message

UUCP and eu create a lock file named LCK..line in the /usr/spool/uucp directory.
This file is used to prevent anyone else using the modem connected to the
serial device line if it is already in use. If the lock file is not removed after a
connection has been closed, the modem may not be setting Carrier Detect
(CD) correctly.
root must remove the lock file before anyone can use the modem again.
Modem does not hang up

If your modem does not hang up at the end of a call:
1. Verify that you are using a serial port with modem control that is config-
ured in the /usr/lib/uucp/Devices file and that the" ACU" entry for the
modem port comes before the "Direct" entry for the direct line. If you are
using a non-modem control port, change the port to the corresponding
modem control port. For example, the modem control port associated with
ttyla is ttylA.
I NOTE Non-modem control ports should only be used with terminals,

and when configuring the modem.

2. If the CD (Carrier Detect) light on the modem does not go off when the call
is disconnected, check the modem switches to verify that the modem is set
to detect the incoming carrier. If your modem is Hayes-compatible, use
the AT &Cl command. This forces the carrier detect line to follow the pres-
ence of a carrier on the phone line.
3. Check the modem switches to verify that the modem is set to detect DTR
(Data Terminal Ready). The modem should hang up when DTR goes from
high to low. If the modem is Hayes-compatible, use the AT&D2 com-
mand.
4. Some modems have a switch that can be set to ignore DTR; make sure that
this switch is off.
Double echo
If you get a double echo when you dial out on your modem, check the setting
for local echo. If local echo is enabled, disable it.
Problems dialing in
You may experience one of the following problems on dialing out:
• "Modem does not answer the phone" (this page)
• "NO DEVICES AVAILABLE message" (page 425)
• "Garbage or loose cable" (page 428)
• "Modem answers, but no login prompt is displayed" (page 429)
• "'Screen displays a series of login prompts" (page 429)
• "System displays meaningless characters" (page 430)
Modem does not answer the phone

If the modem does not answer the phone:
1. Verify that the modem control port is enabled. To enable the modem port,
enter the following commands:
disable /dev/ttyla
enable /dev/ttylA
2. Verify that the modem is configured to auto-answer. Check your modem
switches. If the modem has a "Direct" entry in /usr/lib/uucp/Devices (for the
/dev/ttylA device, for example) enter:
ell -lttylA dir
Then, use the ATSO=l command to tell the modem to answer the phone on
the first ring. (Remember to enter AT&W to save modem settings.)
427
Adding modems
3. Verify that the DTR (Data Terminal Ready) line is connected from the com-
puter to the modem. Make sure that pin 20 is connected. Pins 2, 3, 7, 8,
and 20 are required for modem communication.
4. Make certain the ACU entry for this modem in the Devices file precedes any
"Direct" entries for the port or the non-modem control counterpart.
Modem answers, but hangs up

If the modem answers, but hangs up immediately upon connection:
1. If the modem is set to auto-answer and to detect DTR, check to see that the
DTR line is asserted.
2. Verify that the modem control port is enabled:
disable /dev/ttyla
enable /dev/ttylA
3. Verify that the cable is correct. If you are using a straight-through cable
with at least pins 2, 3, 7, 8 and 20 connected, verify that pin 20 (DTR) is
properly connected.
4. Check to see if the modems have data compression or error correction
modes set. After a connection is established, modems that support special
error correction or compression protocols attempt to negotiate which of
these protocols to use. If the other modem is programmed not to use any
of these modes (or does not support them), it may misinterpret this nego-
tiation as actual user input. In general, modes such as MNP4 or v.42bis
should only be enabled when connecting with a modem with the same
modes enabled. Check the documentation for your modem.
Garbage or loose cable

If the console displays a message like
Garbage or loose cable on /dev/ttylA, port shut down
when a call comes into the modem:
1. Verify that your modem is not set to echo back data or send command
responses. If the modem is not set up this way, it may be sending a RING
signal to indicate that the phone you are calling is ringing. Because the CD
signal is not active, the serial driver interprets this as random data on the
serial line. The appropriate Hayes-compatible modem command is
ATEOQ1.
2. If you have an internal modem and the above options do not eliminate the
error message, your modem may be incompatible. Contact the manufac-
turer to see if a fix is available. If no fix is available, you may need to
replace your modem with a standard Hayes-compatible external modem.

Modem answers, but no login prompt is displayed

If the modem answers, but does not display a login prompt:
1. Verify that the CD line is being asserted by the modem after the modem
has answered the phone. Check the switches on your modem or, if your
modem is Hayes-compatible, use the AT &Cl command. (Remember to
enter AT&W to save modem settings.)
2. Make sure that the port is enabled. Enable the port by entering the follow-
ing command sequence:
disable /dev/ttylA
enable /dev/ttylA
3. Verify that the entry for the incoming line in the /etc/inittab file is correct.
The entry defines the characteristics of the getty process that monitors the
modem control port. The final argument to the getty command is a single
letter or digit that references an entry in the /etc/gettydejs file. This defines a
range of speeds, parity, number of stop bits, and so on, that can be used on
the line.
Refer to Table 21-1 for information about the limitations on the speed of a
serial port that are imposed by the UART (universal asynchronous
receiver / transmitter) chip that controls it.
For details of the capabilities of ports on intelligent serial boards that use
third-party device drivers, refer to the manufacturer's documentation.
For example, the following entry in inittab spawns a getty process to allow
incoming connections at 9600bps on the modem control port /dev/ttylA:
Se2A:2:off:/etc/getty -t60 ttylA m
For more information on the /etc/inittab file and the various control codes,
see the init(M), inittab(F), getty(M), and gettydefs(F) manual pages.
NOTE Each time the kernel is relinked (when a driver is added or a tun-
able parameter is changed), /etc/inittab is reconstructed from the entries
found in /etc/conf/init.d/sio.
Duplicate any changes you make to /etc/inittab in /etc/conj/init.d/sio.
Screen displays a series of login prompts

If the screen scrolls uncontrollably when you log in, usually displaying a
series of login prompts, verify that only the modem device is enabled. If the
non-modem device is enabled, disable it, for example:
disable /dev/ttyla
429
Adding modems
System displays meaningless characters

If the system displays the login prompt, but no password prompt, or mean-
ingless characters are displayed after the login prompt, verify that the line set-
tings are correct:
1. Determine the serial line settings on the system that you are calling. The
standard settings that eu uses are 8 data bits, one stop bit, and no parity.
• if the remote system uses even parity, use the -e option with cu. For
UUCP, precede the login script defined for the system in
/usr/lib/uucp/Systems with the PEVEN keyword
• if the remote system uses odd parity, use the -0 option with cu. For
UUCP, precede the login script defined for the system in
/usr/lib/uucp/Systems with the PODD keyword
• if the remote system uses 7-bit no parity, use the -oe option with eu
2. If you are dialing into a UNIX system, check the /etc!inittab file on the
remote system to verify that the "pointer" into the /etc!gettydefs file is
correct. The serial line characteristics may not match between the stty set-
tings defined in the third field of the selected gettydefs entry. Change the
setup for the port to 8 data bits, one stop bit, and no parity.
The entry should similar to the following:
n # B19200 HUPCL # B19200 CS8 SANE HUPCL TAB3 IXANY #\r\nlogin: # n

Chapter 26
Adding serial terminals
Adding terminals lets more users access the system and adds to overall sys-
tem capabilities.

• install a serial terminal (page 432)
• test a terminal connection (page 433)
• change the default terminal characteristics (page 436)
• set the terminal type at login (page 439)
• remove a terminal (page 441)
• set up a serial console (page 441)
• set up scancode terminals (page 442)
• troubleshoot problems with terminals (page 446)
Before you add a serial terminal to your system, follow the instructions in
your terminal's manual for connecting the terminal to a serial line. (If you add
a serial card, the possible names of the additional device files are listed in
serial(HW) or in the documentation for cards that include driver software.)
Many types of terminals are supported; see the terminals(M) manual page for
a comprehensive list. Support for terminals is provided through the
terminfo(M) database, which contains the definitions and classifications of
keystrokes and control sequences which vary from terminal to terminal. For a
description of the terminfo database, see the terminfo(M) and terminfo(F) man-
ual pages.
431
Installing serial terminals

To install a terminal with the standard COM serial lines or with serial expan-
sion cards:
1. Unless you are adding a terminal directly to the COMI port, run the Hard-
ware/Kernel Manager and select Serial Port from the Drivers menu or run
mkdev serial. See Adding and configuring SCO-supported serial cards"
Ii
(page 368) for information on how to configure the serial ports for termi-
nal connections.
2. Make sure you are logged in as root in multiuser mode.
3. Plug in your terminal and turn it on. Set its input and output speeds to
9600bps (or higher, see step 5 below), 8 data bits, 1 stop bit, no parity, full
duplex, and XON /XOFF handshaking (software flow control). If your ter-
minal does not work in this mode, look for advice on configuring your ter-
minal in the stty( C) manual page.
Most terminals will be connected directly to the computer using a cable,
although it is possible for terminals to connect to the system via a modem
link. DTE-type terminals connected directly to a DTE-type serial port, or
DCE-type terminals connected directly to a DCE-type serial port require a
cable in which the Transmit Data (TD) pin on the serial port is connected to
the Receive Data (RD) pin on the terminal, the RD pin on the serial port is
connected to TD pin on the terminal, and the Signal Ground (SG) wire is
connected straight through.
DCE-type terminals connected to a DTE-type serial port, or DTE-type ter-
minals connected to a DCE-type serial port require a cable in which these
three wires are connected straight-through.
It may also be necessary to link the Data Set Ready (DSR), Data Terminal
Ready (DTR), and Carrier Detect (CD) pins in the connector at the
computer-end of the cable if the serial port hardware requires this. The
operating system requires only that pins 2, 3, and 7 are connected if soft-
ware flow control is used.
For more information, see the serial(HW) manual page.
4. Enable the terminal using the enable(C) command. For example:
enable tty2a
The enable command starts a getty process that displays the log in:
prompt on your terminal.
5. Check that the entry for this serial port in the /etc/inittab file looks like the
following example for /dev/tty2a:
Se2a:234:respawn:/etc/getty tty2a m

Testing a terminal connection
The /etc/inittab entry should appear as above. If the entry does not look
like this example, edit the file to correct it. See inittab(F) for information on
the /etc/inittab format.
The last field in the /etc/inittab entry is a line-mode label from an entry in
the /etc/gettydefs file. In the example above, "m" corresponds to the
9600bps entry in /etc/gettydefs. The maximum speeds that the serial driver
supports depends on the characteristics of the underlying serial port hard-
ware as shown in Table 21-1 (page 371). Entries in /etc/gettydefs for speeds
from 230,400bps to 921,600bps may be used if supported by third-party
serial drivers and hardware. For more information, see "Changing default
terminal line characteristics" (page 436).
WARNING To make permanent any changes to /etc/inittab, the same

changes must also be applied to /etc/conf/init.d/sio. This is because each
time the kernel is relinked (as when a driver is added or a tunable
parameter is changed), /etc/inittab is reconstructed from the entries in
/etc/conf/init.d/sio.
6. If the port is enabled, press the (Enter) key a few times to see if a login:
prompt appears. If so, you are ready to log in. If the prompt does not
appear, see "Testing a terminal connection" (this page).

Use the following procedure (illustrated in Figure 26-1 (page 435)) to test the
setup of a terminal connection:
1. Log in as root on the console or a working terminal other than the one you
are testing.
2. Disable the port you want to test using the command: disable ttyname
where ttyname is the non-modem control device name of the port (for
example, /dev/ttyla, not /dev/ttylA).
3. Try to redirect output to the terminal by entering: date> /dev/ttyname
If you still do not see the date printed on the terminal:
• Make certain that the terminal is plugged in.
• Check that the cable is configured correctly for pins 2, 3, and 7 if the
serial port has a 25-pin connector. The other pins are only used if you
are using modem or hardware flow control on the line. See step 3 in
"Installing serial terminals" (page 432) for more information.
If your system or expansion card has a 9-pin connector, see the
serial(HW) manual page for information on 9-pin connections.
433
• Check your terminal setup configuration. Try changing the speed.

• Check the switches on your serial port. If you are using a multiport
card, try other lines on that card.
• Attach the terminal to a standard serial port (COMI or COM2) to see if
the terminal and cable are working correctly. If you are already using a
COM port, try switching to another one.
If you have successfully installed another terminal, switch hardware
between the working and the nonworking terminal one piece at a time.
This may help you isolate a hardware problem.
4. When the date is displayed on your terminal, enable the port by entering
the command: enable ttyname.
If you do not see the login: prompt, enter the following command to ver-
ify that getty is running on the port and that the software is configured
properly:
ps -t ttyname
Your screen should display a message similar to the one in the following
example, with either "login" or "getty" listed in the command (CMD)
column:
PID TTY TIME CMD
2557 la 0:06 getty
5. If you have typed the enable and disable commands many times, it is
possible that a new getty cannot be spawned on that port. If so, shut the
system down, reboot, log in as root in multiuser mode, and try again. For
more information, see "Setting the terminal type at login" (page 439).

Enter: yes
date> /dev/Hynn
yes
Check
terminal's cable,
configuration
and port
connection
yes Enable
tty
port
no
no
Try
another
port
Check for getty:
ps -t nn
Replace
defective
serial card
Replace
Does yes defective
getty terminal/
Swap cable exist? cable
and terminal
with working
terminal
no
Replace Reboot
faulty and
terminal re-enable
cable tty
Figure 26-1 Testing a terminal connection
435
Changing default terminal line characteristics

Your system can automatically adapt to several different terminal speeds and
settings. The same program that displays the login message, getty(M) reads
these terminal line values from a table, trying each setting until one is success-
fut and the user can log in to the system. This table provides several default
settings for different kinds of terminal lines.
getty automatically executes as part of the login process. The table of termi-
nal settings is found in a file called letc/gettydefs. You can edit letc/gettydefs to
add different sets of terminal characteristics or to change the existing ones.
See the gettydefs(P) manual page for a description of the format of this file.
Changing entries in letc/gettydefs

The letc/gettydefs file has sets of entries for the dial-up lines and terminal lines.
These different sets correspond to line-mode settings in letc/inittab. The init
program passes the line mode as an argument to getty.
You can edit letc/gettydefs to add new terminal settings or to change existing
ones. For example, the settings for terminal lines might look like the follow-
ing:
4 # B2400 HUPCL # B2400 CS8 SANE HUPCL TAB3 ECHOE IXANY #\r\n@!login: # 5
This example can be edited so that the first speed that getty attempts is
1200bps:
4 # B1200 HUPCL # B1200 CS8 SANE HUPCL TAB3 ECHOE IXANY #\r\n@llogin:# 5
5 # B4800 HUPCL # B4800 CS8 SANE HUPCL TAB3 ECHOE IXANY #\r\n@llogin:# 6
6 # B9600 HUPCL # B9600 CS8 SANE HUPCL TAB3 ECHOE IXANY #\r\n@!login:# 4
You can also add additional terminal line settings to gettydefs. Flags and per-
missible values for terminal settings are listed on the termio(M) manual page.
When you add a new entry, be sure that the groups of entries in gettydefs form
a closed set, so the next-label field of the last entry directs getty back to the
first entry in the group.
The following example adds an entry for a speed of 300bps to the previous
gettydefs example:

Changing default term ina/line characteristics
I NOTE A blank line must separate each entry in /etc/gettydefs.
Checking terminal settings

Each time you change the terminal line settings or add new entries to gettydefs,
you should check to make sure that the new values make sense to getty. To do
this, you use the command getty with the check option, -c, and the filename.
For example, to check gettydefs, enter:

getty -c /etc/gettydefs
The file is scanned and the results are displayed. If any of the values and set-
tings in gettydefs are not permitted, getty -c reports them. For more informa-
tion on getty and gettydefs, see the getty{M) and gettydefs{P) manual pages.
Changing serial line operation

Whenever you enable a terminal with the enable command, the system auto-
matically sets the operating characteristics of the serial line to a set of default
values. Sometimes these values do not match the values used by the terminal
and, therefore, must be changed to allow communication between the system
and the terminal. You can display the operating characteristics of a serial line
with the stty (set tty) command. If you need to change the characteristics of a
port that is enabled, you should use the entires in the gettydefs file rather than
the stty commands given below.
NOTE Any settings on a port using the stty command only last as long as
the port in question is still open. As an example, if you want to change the
speed of tty2a, and tty2a is not enabled, the stty command first opens the
port, then changes the port settings, and finally closes the port. When it
closes the port for the last time, the settings revert to the original. In the stty
commands later in this section, the use of the while loop is to avoid this
behavior of stty. If you run stty redirecting input without < /dev/ttyname, it
works on your current serial line, which you have open. In this case,
because the serial line stays open after the stty command, the settings also
stay in place.
437
You can display the current operating characteristics of a serial line by enter-
ing this command at the terminal connected to that line:
stty -a
If it is impossible to log in at that terminal, you can use another terminal to
display the characteristics. Log in as root at another terminal, and enter:
stty < ttyname
where ttyname is the name of the device special file corresponding to the
serial line (see "UNIX directories and special device files" in the System
Administration Guide).
For example, this command displays the current characteristics of the serial
line named /dev/ttyla:
stty < /dev/ttyla
The command displays the speed, the parity scheme, and other information
about the serial line. This information is explained in the stty( c) manual
pages.
One common serial line characteristic to change is the speed. This is usually
done from a terminal connected to another serial line because changing the
rate disrupts communication between the terminal and the system. Before
you can change the rate, you need to know the current speed of the terminal
(review the terminal hardware manual to see how to determine the current
speed). Once you have the speed, log in as root at the other terminal, and
enter:
(stty speed; while : ; do sleep 3600; done) < ttyname &
where speed is the current speed of the terminal, and ttyname is the name of
the device special file corresponding to the serial line you wish to change. The
speed must be one of 50, 75, 110, 134, 150,200, 300, 600, 1200,2400, 4800, 9600,
19200,38400,57600, 115200,230400,460800, or 921600. For example:
(stty 9600; while : ; do sleep 3600; done) < /dev/ttyla &
This command changes the speed of the serial line /dev/ttyla to 9600. Note
that the symbol "<" is used for both displaying and setting the serial line
from another terminal.
Another common change is the way the system processes input and output
through the serial line. Such changes are usually made from the terminal con-
nected to the serial line. For example:
stty tabs

Setting the terminal type at login
This command causes the system to expand tabs with spaces (used with ter-
minals that do not expand tabs on their own). Another example is:
sUy echoe
This command causes the system to remove a deleted character from the ter-
minal screen when you back over it with the (Bksp) key.
Note that the sUy command may also be used to adapt a serial line to an
unusual terminal, to another type of serial device that requires parity genera-
tion and detection, or to special input and output processing.
For a full description of this command, see the sUy(C) manual page.
Setting the terminal type at login
UNIX systems require that the terminal type be clearly defined before any
work is done at the terminal. The preferable method for setting your terminal
type is to assign the type to the TERM variable, a special environment variable
that associates the terminal you are using with a list of characteristics given in
the /etc/termcap file. The characteristics tell the system how to interpret your
terminal's keys and how to display data on your terminal screen.
If you are using the Bourne or Korn shell (sh( c) or ksh( C», the TERM assign-
ment has the form:
TERM=termtype; export TERM
If you are using the C shell (csh(C), the TERM assignment has the form:
setenv TERM term type
The termtype must be one of the names associated with one of the terminals
defined in the /etc/termcap file. The assignment must be entered at the terminal
whose type you are setting.
For example, to set the terminal type to ansi" from the Bourne shell, go to the
/I
terminal you wish to set, enter at the $ shell prompt:

TERM=ansi; export TERM
From the C shell, enter at the % shell prompt:
setenv TERM ansi
If you are not sure which name you may use for term type, you can view the
names either by displaying the /etc/termcap file, or by reading the terminals(M)
manual page which lists all terminals supported in the /etc/termcap file. To dis-
play the file itself, enter:
more /etc/termcap
439
You can let the system define the terminal type automatically whenever you
log in by including the TERM assignment in your .profile file.
For an alternate method of setting your terminal type, see the manual page for
tset(C).
If you let the system set the terminal type, be careful when logging in on ter-
minals that are not the same as your normal terminal. The system has no way
of checking whether or not the terminal assignment is correct for the given
terminal and assumes that it is the same as your normal terminal. If it is not,
you must set the terminal type manually.
Setting the terminal type automatically

If you want to have the terminal type set automatically at login time:
1. Log in on the terminal in question and determine which ttyname you are
using by entering the tty( c) command:
tty
2. Log in as root and edit the file /etc!ttytype with a text editor. Change the ter-
minal type field for the line associated with the terminal in question to the
terminal type you desire to use. Follow the model for the console. If you
want your terminal type to be set to Iiwy50" for /dev/ttyla, edit /etc!ttytype
as follows:
wy50 ttyla
3. Edit the user's startup file to modify the appropriate tset(C) command line
to set the terminal type automatically. In each C-shell user's .login file, add
the following line:
tset -s -Q > /tmp/tset$$; source /tmp/tset$$; /bin/rm /tmp/tset$$
Be sure to remove the default setenv command line involving TERM and
TERMCAP from the .login file.
In each Bourne shell or Korn shell user's .profile, add the following line:
eval 'tset -s'
Be sure to remove the existing tset command line from the .profile file.
4. Have all users log out, then log in again to test the new terminal type
change. After they log in, have them verify the new term type by entering
the env( c) command:
env

Setting up serial consoles
Removing terminals
Before you can remove a terminal, you must disable it with the disable(C)
command:
1. Turn off the power to the terminal.
2. Log in as root at another terminal.
3. Use the disable command to disable the terminal:
disable ttyname
where ttyname is the name of the serial line to which the terminal is
attached. For example:
disable ttyla
disables the terminal connected to serial line /dev/ttyla.
4. Disconnect the terminal from the system.
The serial line previously connected to the terminal is now free to accept
another device.
Setting up serial consoles

You can configure a serial device, rather than a display adapter, as your sys-
tem console. The boot(HW) program sets the default console at boot time
according to this procedure:
1. The boot program looks for the entry SYSTTY=x (where x is a number that
specifies the system console device) in the /stand/etc!default/boot file.
2. If the SYSTTY entry is not found or the /stand/etc!default/boot file is not
readable, boot checks your system for a display adapter and designates it
as your system console.
3. If no display adapter is found, boot looks for ttyla, sets the serial port to
9600bps, 8 data bits, 1 stop bit, and no parity, and uses it as the system
console.
441
To change the console device to a serial terminal:

1. Enter system maintenance mode.
2. Enter the following commands (all 12 tty devices need to be specified on
the second line):
enable ttyla
disable ttyOl tty02 tty03 tty04 ... ttyl0 ttyll tty12
This enables the serial device and disables the console multiscreen devices
associated with a display adapter.
3. Edit the /etc!default/login file to change the value of the parameter OVER-
RIDE from "ttyOl" to the tty line of the serial console (normally its value is
"ttyla"). After editing, the line in /etc!default/login (if the tty line is ttyla),
should read:
OVERRIDE=ttyla
4. Edit the file /etc!default/boot (not /stand/etc!default/boot) and add the follow-
ing line to the end of the file:
SYSTTY=l
5. Reboot.
To temporarily change the system console device from the command line,
enter systty=x at the boot prompt (where x is "cn" for a display adapter or
"sid' for a COMI serial port). This does not create or change a SYSTTY entry
in the /etc!default/boot file.
Setting up scancode-compatible terminals

Most terminals send information to the operating system only in the form of
key top values, which are the characters that appear on the faces of the keys.
However, a few terminals can also send PC scancodes, which are unique
values associated with the depression and the release of each key. Several
applications and environments now use PC scancodes and more are under
development.
A scancode application running on a terminal that is in PC-scancode mode

can access more distinct keystrokes than character mode would provide. For
example, if you set your terminal to character mode and press the key labeled
"A:', your terminal sends a single value (the ASCII value of" a ") to your appli-
cation. However, if you set your terminal to scancode mode and press the key
labeled" A:', your terminal sends one value when you depress the key and a
second value when you release the key. A scancode application translates
these scancode values according to a predetermined map.

Installing scancode-compatible terminals

Your scancode-compatible terminal can be set to either character mode or
scancode mode. If you choose to leave your terminal in character mode, then
each time you start an application that uses scancodes (for example, Microsoft
Word), the application switches the terminal to PC-scancode mode. When you
quit the application, it returns the terminal to character mode. The screen
flashes each time the terminal mode changes, and the switch adds a few
seconds delay to starting and quitting your scancode application. For these
and other reasons, we recommend that you run a terminal in scancode mode
at all times, instead of letting the scancode application switch terminal modes.
NOTE You might encounter problems using PC-scancode mode with a

smart serial card. For example, scancode mode might interfere with
XON I XOFF flow control. If this happens, consult your card's documentation
for the manufacturer's recommendations on resetting the flow control start
and stop characters. If your card does not support changing the start and
stop characters, or if you experience a problem unrelated to flow control,
consult your card's documentation to determine whether you can reset the
card so that it no longer takes on line-discipline processing for your scan-
code lines.
The following two subsections describe how to configure your system when
you run a terminal in scancode mode at all times. If you choose to leave your
terminals in character mode, you do not need to configure your system spe-
cially to use a scancode-compatible terminal.
Setting up scancode mode for one session

If you are unsure whether you want to run a terminal in scancode mode when
you are not using a scancode application, you can experiment by using scan-
code mode for a single session. Use the scan on command to set your terminal
and your line discipline to scancode mode. The scanon(M) manual page
describes the scanon and scanoff commands.
Setting up scancode mode for all sessions

If you want a terminal to reside in scancode mode, you need to modify certain
files. To determine which files you need to modify, enter the following com-
mand as root, where ttyline is the device to which your scancode terminal is
connected:
disable /dev/ttyline
You see messages naming two initialization files associated with that tty.
Write down the filenames. One file is /etc!inittab and the other is either
/etc!conf/cfd/init.base or a file from the /etc/conj/init.d directory. Edit the files
that the screen displays, and, on the line that corresponds to the correct tty,
change the last field from "m" to "se_m".
443
For example, if you want to run ttyOOl in scancode mode, change the line:
OOl:2:off:etc/getty ttyOOl m
to read:
OOl:2:off:etc/getty ttyOOl sc m
For more information on modifying these initialization files, see Chapter 26,
" Adding serial terminals" (page 431).
NOTE For each Wyse 60 or Wyse 150 terminal that you want to run in scan-
code mode, change the user's environment by specifying the flwy60-pc"
TERM environment variable in the user's .login or .profile file or in /etc!ttytype.
(The Wyse 150 behaves the same in scancode mode as the Wyse 60.) For
instructions on defining the TERM variable, see the section on setting termi-
nal type earlier in this chapter.
Only Wyse terminals have the fI_pC" names; others (for example, H-P700) are
the same in scancode and ASCII mode.
After you edit the two initialization files, set the terminal itself to scancode
mode (some manufacturers refer to flpe-personality"). Consult your terminal
documentation for instructions on setting this mode.
Finally, enter the following command to re-enable the terminal line:

enable /dev/ttyline
Using function keys in scancode mode

When you set up your terminal and system to run in scancode mode, your
function keys get set to their default values. If you want to program your
function keys while you work in scancode mode, you must use the setkey( C)
or mapstr(M) utility, rather than your terminal's setup procedure. The setkey
command lets you program one key at a time, while mapstr -f reads a file con-
taining the assignment for all the function keys. These utilities formerly
affected only the console.
I NOTE scanon does not run mapstr, so if you use scanon you also have to
run mapstr to use the function keys, numeric pad and arrow keys.
The syntax for the setkey command is setkey keynum string. The setkey
command assigns the specified ANSI string to be the output of the function
key keynum. For example, for function key 1 «FI» to output the string fldate",
use the command: setkey 1 "date". For a key assignment to last beyond the
current login session, place the setkey command in your .login file.

The syntax for the mapstr command is:

mapstr [-d] [datafile] [-f] [termtype]
Without the -d option, mapstr -f reads the function key values from the file in
/usr/lib/keyboard/strings.d that corresponds to the terminal type.
To customize your function key assignments, create a new file for mapstr to
read, using a file from /usr/lib/keyboard/strings.d as a template. Then specify
your new file in the mapstr command as follows:
mapstr -d newfile -f
For these key assignments to last beyond the current login session, place the
mapstr command in your .login file.
For more information, see the scancode(HW) and keyboard(HW) manual

pages.
Running applications on scancode terminals

sca OpenServer systems support terminals, such as the Wyse 60 and the H-
P700 /44, which have a "PC-compatible" (scancode) mode.
mscreen
The mscreen(M) (terminal multi screen) utility can be used on scancode-
compatible serial terminals, but you should note that when it is used on a
Wyse 60 terminal, the screen must be refreshed after a screen switch. This is
because the Wyse 60 does not support hardware page switching when in PC-
compatible mode.
You should also note that when running under mscreen, although the termi-
nal itself may be in scancode mode, the login sessions are running on pseudo-
ttys, which receive ASCII data from the mscreen utility. The effect of this is
that applications that normally run in scancode mode, such as Microsoft
Word, will actually start up in ASCII mode.
Telnet and rlogin

telnet or rlogin sessions to a remote host also transfer ASCII data via a
pseudo-tty, even if the physical terminal or the console in use is in scancode
mode.
usemouse(C)
The usemouse( C) utility can normally be used on a serial terminal in scancode
mode, using the same default map file or application-specific map files (in
/usr/lib/mouse) as the console. However, when running on a Wyse 60 terminal
in PC-TERM mode, use the same map files as when running on a Wyse 60 in
native mode.
445
Troubleshooting terminals
If you are having a problem with a serial terminal, see:
• "Restoring non-functional terminals" (this page)
• "Fixing hung terminals" (page 447)
• "Fixing scrambled terminal display" (page 448)
• "Unlocking locked terminals" (page 448)
• "Restoring non-echoing terminals" (page 448)
• "Correcting hung scancode-compatible terminals" (page 449)
• "Wyse 60 terminal in scancode mode" (page 449)
Restoring non-functional terminals

A completely non-functional terminal displays no login prompt and does not
respond to keyboard input. This situation is usually caused by hardware
failure or configuration problems. To check a non-functioning terminal:
1. Check the brightness control on the terminal.
2. Check the power and communication connections at the terminal and
computer.
3. If applicable, enter set-up mode on the terminal and verify the terminal
configuration settings. The settings should include 9600bps, 8 data bits, 1
stop bit, and no parity.
4. Enable the port to which the terminal is connected. For example, to enable
tty2a, use the following command:
enable tty2a
5. Verify that there is a getty process associated with the terminal port. For
example, enter:
ps -t tty2a
6. Test the hardware communications by disabling the port and redirecting

output to the non-functional terminal: for example, to test tty2a, use the
following commands:
disable /dev/tty2a
echo hello> /dev/tty2a
If this fails to restore the non-functional terminal, check the terminal's docu-
mentation for troubleshooting suggestions.

Fixing hung terminals

A terminal is considered "hung" if the previous work session is still visible on
the display, but it does not respond to keyboard input. To fix a hung terminal:
1. Wait a minimum of 60 seconds before trying to resurrect the terminal. (If
the system is busy, the terminal may not respond immediately to key-
strokes because the system response time has increased.)
2. Press (Ctrl)q to re-enable transmission in case the (Ctrl)s (transmit off)
signal was inadvertently pressed.
3. Check to see that all power cords, keyboard cords, and communications
cables are connected.
4. Reset the terminal hardware by recycling power to the terminal and then
reinitialize it by running tset( C) with no arguments.
5. Verify the terminal set-up mode configuration settings (if available) as
described in step 3 of the previous section.
6. Test the hardware communications by redirecting output from an operat-
ing terminal to the locked one as described in the step 6 of previous
section.
7. Check the processes that are running on the locked terminal port with the
following command:
ps -t ttyline
Stop the process that the user was running when the terminal hung using
kill(C). (See "Killing a process" in the Operating System User's Guide.) If
the program does not die, you must reboot the system to stop the process.
8. Determine whether the current line characteristic parameters are correct.
For example, use the following command to display these values for tty2a:
stty -a < /dev/tty2a
You can also compare the stty settings with those of a working terminal.
9. Reset the serial line characteristics with the following command:
(Ctrl)j stty sane (Ctrl)j
If you cannot enter the command on the terminal, you can redirect the stty
command from another terminal as follows:
stty sane < /dev/tty2a
If the ps -t command shows only a getty program, the terminal should display
a login prompt. If it does not, check the terminal hardware again.
447
Fixing scrambled terminal display
A scrambled terminal responds to keyboard input but the display is incorrect.

To fix a scrambled terminal:
1. Check the terminal type (TERM) for the user with the env command. If the
terminal type is incorrect, reset it. For example, to set the terminal type for
a Wyse 60, enter:
TERM=wy60
After resetting the terminal type, reinitialize the terminal by entering tset
with no arguments.
2. Reset serial line characteristics with the following command:
(Ctrl)j sUy sane (Ctrl)j
Unlocking locked terminals
If a terminal has been locked by the system administrator to prevent logins on

that terminal, or if the system locked the terminal because a user exceeded the
number of unsuccessfullogins attempts, the following message is displayed
on that terminal:
Terminal is disabled -- see Account Administrator
For more information, see "Locking or unlocking a user account" in the System
Administration Guide.
Restoring non-echoing terminals
A non-echoing terminal is a terminal that responds to keyboard input but

does not display the characters entered at the keyboard. (This is different from
a locked or non-functional terminal that does not respond to input at all.)
Sometimes, when a program stops prematurely as a result of an error, or

when the user presses the (Break) key, the terminal stops echoing. To restore
the terminal to normal operation, enter the following:
(Ctrl)j sUy sane (Ctrl)j
Enter this command accurately because the terminal does not display what
you enter at the keyboard.
The terminal should now display keyboard input. If it does not, follow the
steps outlined in "Restoring non-functional terminals" (page 446).

Correcting hung scancode-compatible terminals

If your PC-scancode application crashes, your terminal might hang with the
terminal and the line discipline in incompatible modes. To correct this incom-
patibility, log into another terminal and use either the scanon(M) or
scanoff(M) command as described below.
If you want to restore both your terminal and line discipline to PC-scancode
mode, enter the following scanon command, where ttyline is the tty of the
hung terminal:
scanon /dev/ttyline
If you want to restore both your terminal and line discipline to character
mode, use the scanoff command:
scanoff /dev/ttyline
You do not need to be root to use scanon and scanoff to affect your own tty.
For more information on scanon and scanoff, see the scanon(M) manual page.
Wyse 60 terminal in scancode mode

When a Wyse 60 terminal in PC-TERM (scancode) mode is connected via a
serial line that is also in scancode mode, if you press any of the keys that gen-
erate (Esc) sequences (for example, (Ins), (Home), (Left Arrow») the terminal and
the system will repeatedly send the sequence backwards and forwards. This
fills the input buffer, making the terminal unusable until you log off the sys-
tem, or until you set the serial line using the command sUy -echo.
449

Net-work configuration
Chapter 27
Configuring Internet services
The seQ Internet Manager is used to configure the internet components on
an sca OpenServer Enterprise System or Desktop System. Use the seQ Inter-
net Manager to manage World Wide Web access, e-mail forwarding, remote
file transfer access, routing to and from the Internet, point-to-point connec-
tions with other systems, and network security (including data packet filter-
ing, and local or remote administrative access).
To properly configure your system, read the instructions on:

• starting the Internet manager (page 454)
• configuring network connections (page 455)
• configuring Internet services (page 463)
NOTE When you install sca OpenServer, you are given a choice of MMDF
or SendMail as your Mail Transport Agent (MTA). To use the Internet Man-
ager to configure electronic mail, you must choose SendMail. SendMail
gives you full access to multihoming and other advanced mail features not
available from MMDF.
If you installed MMDF, but now want to use SendMail, use the Software
Manager (page 69) to remove the MMDF package, then add the sendmail
package.
See also:
• Chapter 9," Administering sea systems" (page 137)
• Chapter 28, "Managing virtual domains" (page 473)
453
Starting the Internet Manager
I NOTE You must be running an X session to configure Internet services.
To start the Internet Manager on the local system:

1. As root, do one of the following:
• From the Desktop, double-click on the Internet Configuration icon.
• From a UNIX window (SeOterm or xterm), enter:
scoadmin internet
• From the SCOadmin launcher, select Internet Configuration.

2. In the "User ID" field, enter admin. In the "Password" field, enter the Inter-
net Manager password.
This is set to the first eight characters of the root password by default. To
change the Internet admin password, click on the Security button on the
Internet Services page, then choose Set Internet Manager Password (or log
in as root and enter /etc/internetpw).
NOTE If you defer setting the root password during the initial installa-
I tion procedure, the admin user's password is set to (Enter).
To start the Internet Manager from a remote system:

1. With a Web browser that supports tables (such as Netscape Navigator),
open this URL:
http:// system-name:615 /mana/mana/menu.mana
For system-name, substitute the fully-qualified name of the system that
you want to configure.
NOTE Only systems which have been specifically permitted remote

access can use the Internet Manager remotely.
To permit remote access by a system, select SYSTEM-WIDE on the Inter-
net Services page of the seo Internet Manager, click on the Security but-
ton, then click on the Control Access From Remote Sites button. (Or add
the remote system's IP address to the /usr/internet/admin/access/site file on
the local system.)
2. In the "User ID" field, enter admin. In the "Password" field, enter the Inter-
net Manager password.

Configuring network connections

Configuring network connections involves:
• "Accessing the network" (this page)
• "Configuring network cards" (this page)
• "Using a modem to connect to the Internet" (page 456)
Accessing the network

When you start the Internet Manager for the first time, it prompts for which
interface connects your system to the Internet. The Internet Manager lists all
network cards that you have configured and offers you the option of creating
a PPP connection. If you are planning to use a network card to connect to the
Internet or your LAN, select that card from the list. If you are using a modem
to connect your system to the Internet, choose to add a PPP connection (page
457).
In addition to selecting an interface, you are given the option of whether the
system should test your connection. It will do this by attempting to contact a
known system on the Internet. If you do not want the system to perform this
test (if, for example, you are configuring your system for use on a LAN that
has no Internet connection), deselect the Test Internet connection checkbox.
Once you click OK, the system tests your connection (unless you have chosen
not to do so) and configures several system services, such as the Domain
Name System (DNS). If the test was successful, your system is on the Inter-
net, and you are ready to configure specific system services, as described in
"Configuring Internet services" (page 463). If the test is unsuccessful, you can
chose to Reconfigure the settings. If the system timed out before the
connection/ dial completed, click on Try Again.
Configuring network cards

The Internet Manager does not support the installation or configuration of
network cards directly. If you install a new network card or need to reconfig-
ure it (for example, to change its IP address), you need to run the Network
Configuration Manager. For more information about installing and configur-
ing network cards, see Chapter 29, "Configuring network connections" (page
481) and netconfig(ADM).
455
Using a modem to connect to the Internet

If you plan to use a modem to connect to the Internet, you must configure an
outbound PPP connection. To do this, you should have a PPP account with an
Internet Service Provider (ISP). Your ISP will provide you with a telephone
number to dial as well as other important information necessary to configure
your link.
NOTE The Internet Manager is designed to configure sca PPP from Morn-
ing Star Technologies, which you must install separately after installing sca
OpenServer. See the discussion of Internet Services components (page 33).
in the installation procedure.
At a minimum, you need the following information to create a PPP connec-

tion:
• modem type
• phone number
• login account name
• password
• the IP address assigned to your system
• the IP address of the remote system
In addition, you must verify that the netmask of 255.255.255.0 is correct.
If your ISP does not provide you with these IP addresses, then the addresses
are assigned to you dynamically each time you dial in, and you do not need to
know them. However, you must enter the IP addresses when you create the
link (the addresses you enter will be replaced with the correct ones when you
dial in). If your ISP does not provide you with initial addresses to use, use
127.0.0.2 for the local site and 127.0.0.3 for the remote site.
You might also need to know the following additional security information:
• PAP / CHAP name
• PAP/CHAP secret
• chat script login sequences
Again, your ISP will give you this information if it is required to create the
connection. In many cases, it is not required.

See also:
• "Creating an outbound PPP connection" (this page)
• "Configuring an inbound PPP Connection" (page 459)
• "Troubleshooting your PPP connection" (page 461)
Creating an outbound PPP connection

Once you have the information described in "Vsing a modem to connect to
the Internet" (page 456), you are ready to create a PPP connection. The infor-
mation required is the same whether you are connecting to an ISP or if you
simply want to dial in to another system.
The Internet Manager page for configuring an outbound PPP connection con-
tains three sections.
Creating a new PPP dial-out connection
If your ISP or network administrator has given you IP addresses for your sys-
tem and / or the remote system, enter them here; otherwise, choose default
addresses and select Dynamic to indicate that IP addresses are to be reassigned
dynamically. You must also enter your login name and password. If you are
using a modem to make the connection, enter the remote phone number.
457
Modem and connection type
If you are using a modem to make the connection, select the modem type
from the list provided. If your modem does not appear in the list, try one of
the generic settings.
You also need to specify whether the line should stay up all the time, or if it
should only come up automatically when packets need to be routed across the
link. Do this by setting how many seconds the connection needs to be idle
before it times out and hangs up. If you are using a part-time connection, the
correct timeout value depends on the cost of your phone connection; for many
situations, a value of 120 is reasonable. Entering a value of zero (the default)
causes the line to stay up continuously. You can also instruct the system to
dial the connection every time the system boots.

Optional information
You might also want to specify certain optional parameters. If your ISP or net-
work administrator gives you PAP / CHAP authentication information, enter it
here. FinallYi you must verify the netmask, which is necessary for the system
to properly route packets. A default value of 255.255.255.0 is appropriate for
a class C network and is commonly used; you should change it only if your
ISP or network administrator instructs you to do so.
Configuring an inbound PPP Connection

The Internet Manager does not support the creation of a dial-in Morning Star
PPP server unless you have an active Ethernet connection. Without Ethernet,
the only choice in the Internet Manager for a first connection is dial-out.
In most cases, a LAN connection is desirable for Morning Star PPP servers. If
you require a LAN connection for your server, enable it using the Network
Configuration Manager before configuring PPP with the Internet Manager.
For more information, see Chapter 28, "Configuring network connections"
(page 000).
If you do not need LAN access for your Morning Star PPP server, you can
work around the Ethernet requirement by creating a non-functional Ethernet
configuration file. To do so, enter:
touch /usr/internet/admin/.initdone
Then, restart the ncsa_httpd daemon:
/etc/rc2.d/S91mana http stop
/etc/rc2.d/S91mana http start
Finally, configure dial-in Morning Star PPP connections with the Internet
Manager. The .initdone file will be overwritten if you add LAN connections
later.
459
Configuring an inbound PPP connection is similar to creating an outbound

connection. You must set the account name and password for each PPP con-
nection, typically one per user. The user account is created for you, using sys-
tem account defaults (except for the shell, which is specifically for PPP users).
You also must specify the IP address used on your system's side of the connec-
tion. You can specify that a fixed IP address be used by the remote system
each time it connects. If you select the Dynamic checkbox, the system uses the
IP address given to it by the remote side of the connection during link negotia-
tion. You must specify a default IP address even if you select the Dynamic
checkbox.
Creating an inbound PPP connection

Enter the number of seconds you want to allow the link to be idle before the
system drops the connection. If you enter zero, the system will not drop the
connection because it is idle; if you want a part-time connection, enter the
timeout period (120 seconds is a reasonable value).
If you require that the remote system authenticate itself using PAP / CHAP,
enter the PAP / CHAP name and secret. Finally, enter the appropriate netmask
to use for this link; a value of 255.255.255.0 is appropriate for class C net-
works and is commonly used. If your network uses a different netmask, enter
it here.
Once you click on OK, the PPP link is ready to use, and a remote system
should be able to connect almost immediately.
Troubleshooting your PPP connection
Even though the configuration of a PPP connection appears to be simple,
problems often arise. These are most often the result of making the wrong
modem selection for the modem you are using, or of the two sides of the con-
nection not agreeing on all the necessary parameters.
Determine that the configurations for both sides of the connection are con-
sistent. For example, they must agree on the account name and password,
and the netmask for the connection must agree. Check your IP addresses to
make sure they are consistent. If this is an incoming connection, be sure that
you do not make the IP address for a system as specified on both sides of the
connection dynamic, as neither system will tell the other which IP address to
use.
It is often useful to watch what the PPP daemon is doing on your system
when it attempts to make the connection:
1. If you are configuring an outgoing connection, edit the
/usr/lib/mstppp/Autostart file. If you are configuring an incoming connec-
tion, edit the /usr/lib/mstppp/Accounts file.
2. Look for the entry corresponding to the connection you are trying to
debug. Incoming entries can be identified by account name. Outgoing
connections can be identified by the IP addresses of the local and remote
systems (dynamic IP addresses are specified by a " -" character).
3. Add debug # to the end of the line, where # is a number between 1 and 11
(higher numbers produce more debug information). debug 5 is a recom-
mended starting point.
461
4. Save and close the file. If you are debugging an outgoing link, you must
kill and restart the PPP daemon:
• To kill the PPP daemon, enter these commands:
ps -ef I grep pppd I grep -v grep
kill processID
where processID is the second column of the output from the grep
command.
• To restart the PPP daemon, enter these commands:
cd /usr/lib/mstppp
./Autostart
5. Enter these commands at the UNIX prompt:
touch /usr/adm/pppd.log
tail -f /usr/adm/pppd.log
6. Attempt to bring up the connection. To bring up a outgoing connection,
use ping(ADMN) to contact the remote system's IP address. To bring up
an incoming connection, have the remote system dial in.
7. Watch the output of the tail command for debug information.
Particular things to watch for are account names and passwords that are
incorrect. Also, if one end of the connection is expecting a string to be sent by
the other (for example, log in:) and the other side sends something else (for
example, username:), this is a problem. If you have such a problem, you can
use the Internet Manager to modify the chat script by clicking on the Net but-
ton on the Internet Services page, then clicking on the PPP Connections but-
ton. If more than one dial-out connection is configured, select the dial-out PPP
connection you are debugging, then click on the Advanced button. The login
chat script can be modified from that page. Alternatively, you can modify the
/usr/lib/mstppp/Systems file, where the chat script is stored. The format of each
of the configuration files is described in the corresponding man page:
ppp.Accoun ts (MST_PPP), ppp.Auth(MST_PPP), ppp.Devices(MST_PPP),
ppp.Dialers(MST_PPP), or ppp.Systems(MST_PPP). If you have a complicated
chat script, the Internet Manager might not be able to configure the connec-
tion after the chat script is modified.


Once you have successfully connected to the Internet, the Internet Manager
displays its main menu, the Internet Services page.
Internet Manager main menu
When you reach the Internet Services page, important Internet services have
already been configured for you:
Caching Domain Name Service
DNS enables your system to act as a name server for your local network,
minimizing delay and network traffic.
World Wide Web
The Netscape FastTrack Server serves a default home page on the Web.
E-mail
Your system can send and receive e-mail, and any users on your system
have POP accounts automatically set up for them.
File transfer
The system allows password-protected FTP access for users on the sys-
tem.
463
These services can be configured by clicking on the appropriate icon:

Web Configure Netscape FastTrack Server, as well as Netscape Proxy
Server if it is installed. See HWeb" (this page).
Mail Specify e-mail forwarding, the domain used in addresses, and the
postmaster and hostmaster. See HMail" (page 470).
FTP Enable and disable file transfer using the FTP protocol. See HFTP"
(page 471).
Net Configure network routing and PPP connections. See "Net" (page
471).
Security Set the Internet Manager password and specify which systems
can use it remotely. If the optional sca Internet Security Package
is installed, control all network traffic flowing in and out of the
system. See HSecurity" (page 472).
The configuration of each of these subsystems has been simplified to make it

easy to configure the system for common uses. When configuring any of
these subsystems, you can click on the More Help button and the Internet
Manager will display more information about how to configure it.
See also:
• "Configuring services" (page 475)
Web
When you click on the Web button, the Internet Manager displays a list of
Web servers you have installed.
Clicking on a server enables you to configure it using the Netscape adminis-

tration utility for that server. This utility prompts you for a user name and
password, which are initially set to be the same as that for the Internet Man-
ager (the user name is always admin and the password is initially set to the
first eight characters of the root password set during the initial system load).
NOTE If you change the password for the Internet Manager, the passwords
for the Netscape administration utilities are not changed. To change the
passwords for the Netscape administration utilities, you must change them
from within those utilities.

The Netscape administration utilities enable you to change many attributes of

your servers' behavior. Some attributes, however, should not be changed, or
the Internet Manager might not work properly. Specifically, these attributes
are:
• port
• document root
• bind to address
• server name
See also:
• "Netscape Web server installation defaults" (this page)
• "Starting and restarting Netscape servers" (page 466)
• "Deferring or reconfiguring network configuration" (page 467)
• "Manually configuring Netscape servers" (page 469)
Netscape Web server installation defaults

The installation of the sca OpenServer Netscape Web servers uses the follow-
ing default values. You can alter these values once you complete the installa-
tion.
Server name The string returned by hostname.
Do not change unless you change the system
name (or are configuring multiple servers).
Server IP address The first (non-loopback) returned by netstat -in, or
127.0.0.1 if TCP lIP is not configured.
Do not change unless you change the system's IP
address.
Server port Netscape FastTrack Server listens on port 80, is
administered on port 620.
Netscape Proxy Server listens on port 8080, is
administered on port 446.
Server home
Netscape FastTrack Server:
/usr/internet/ns _httpd
N etscape Proxy Server:
/usr/internet/ns -proxy
465
Server document root

/usr/internet/ns _httpd/docs
Server processes Number of server processes:
Minimum 2
Maximum 32 (25 for Netscape Proxy Server)
Home page
/usr/internet/ns_httpd/docs/index.html
Index files index.html or home.html recorded in the server's
root (rather than syslog).
administration username Set to admin.
administration password Set to the root user's password at installation of
server product.
• The servers run as user nouser.

• The servers always attempt to resolve IP addresses into host names.
• All accesses to the servers are logged.
• Administration access is limited to the local host.
• The servers use fancy directory indexing.
The Netscape Proxy Server is set to the following additional defaults:
• timeout (maximum time between successive network data packets) set to 2
minutes
• use extended access log format
• by default, HTTP, FTP, and Gopher are proxied (SSL and HTTPS are not)
• no caching
Starting and restarting Netscape servers

Once installed, the Netscape FastTrack and Netscape Proxy Servers start auto-
matically on reboot.
NOTE If you have configured a secure server, starting the server requires a
password, and therefore must be done manually.
If you have configured virtual domains (page 473), see "Configuring inter-
faces" (page 476).

To stop and restart the Netscape servers, use the following commands as root:
Netscape FastTrack Server
/usr/internet/ns_httpd/httpd-80/stop and
/usr/intemet/ns_httpd/httpd-80/start
If a secure server is configured:
/usr/internet/ns_https/https-443/stop and
/usr/internet/ns_https/https-443/start
Netscape Proxy Server
/usr/internet/ns_proxy/proxy-8080/stop and
/usr/internet/ns_proxy/proxy-8080/start
For more information, see the Netscape FastTrack Server documentation (but
note that the server files are installed in /usr/internet/ns-httpd on sca Open-
Server).
Deferring or reconfiguring network configuration
During sca OpenServer installation, Netscape servers are configured with
settings for Server Name, Hosts, and Addresses by default. If you defer
TCP lIP configuration during initial system installation or you reconfigure
TCP /IP, any Netscape servers installed on your system might be improperly
configured.
To configure your Netscape server after deferring or reconfiguring network-
ing configuration, edit the following files:
• In /usr/internet/ns_httpd/admserv/ns-admin.conf, set "ServerName" to
the string returned by hostname{ADMN). Set "Hosts" and
" Addresses" to the hostnames and IP addresses allowed to administer
this server. After you set these configuration variables, you can use
the Netscape administration server to further configure the server.
In /usr/internet/ns_httpd/httpd-80/config/magnus.conf, set "ServerName"
to the string returned by hostname. Then copy this file to
/usr/internet/ns _httpd/admserv/httpd-80/magnus.con! The timestamp on
the former file must be the same or earlier than that on the latter.
• If you have enabled virtual domains, edit
/usr/internet/ns _httpd/httpd-BO.ipaddress/config/magnus.conf, where
ipaddress is the primary IP address for the system. Set "ServerName"
/usr/internet/ns_httpd/admserv/httpd-80.ipaddress/magnus.con! The
timestamp on the former file must be the same or earlier than that on
the latter.
467
If you changed the system's primary IP address, rename these direc-

tories:
mv /usr/internet/ns_httpd/httpd-80.01dIPaddress \
/usr/internet/ns_httpd/httpd-80.NewIPaddress
mv /usr/internet/ns_httpd/admserv/httpd-80. OldIPaddress \
/usr/internet/ns_httpd/admserv/httpd-80.NewIPaddress
• If a secure server is configured, with no virtual domains, in
/usr/internet/ns_https/https-443/config/magnus.conf, set "ServerName" to
the string returned by hostname. Then copy this file to
/usr/internet/ns_httpd/admserv/https-443/magnus.conf The timestamp
on the former file must be the same or earlier than that on the latter.
• If a secure server is configured, with virtual domains enabled, edit
/usr/internet/ns_https/https-443.ipaddress/config/magnus.conf, where
ipaddress is the primary IP address for the system. Set "ServerNarne"
/usr/internet/ns_httpd/admserv/https-443.ipaddress/magnus.conf The
timestamp on the former file must be the same or earlier than that on
the latter.
If you changed the system's primary IP address, rename these direc-
tories:
mv /usr/internet/ns_https/https-443.01dIPaddress \
/usr/internet/ns_https/https-443.NewIPaddress
mv /usr/internet/ns_httpd/admserv/https-443.01dIPaddress \
/usr/internet/ns_httpd/admserv/https-443.NewIPaddress
Netscape Proxy Server:
In /usr/internet/ns ...J'roxy/proxy-8080/config/magnus.conf set "ServerNarne"
/usr/internet/ns...J'roxy/admserv/proxy-8080/magnus.conf The timestamp on
the former file must be the same or earlier than that on the latter.

Manually configuring Netscape servers
I NOTE Configuring new servers directly with the FastTrack Administration

Server might cause them not to be seen by the Internet Manager.
To configure Netscape servers manually without using the Internet Manager:

1. Start the appropriate administration server by entering one of these com-
mands as root:
/usr/internet/ns_httpd/start-admin
/usr/internet/ns_proxy/start-admin
2. Access the administration server by opening one of these URLs, on the
server being configured, with any forms-capable Web browser:
http:// 10calhost:620 /
http://localhost:446 /
3. Log into the administration server as user admin.
At installation, the admin password was set to the first eight characters of
the root password.
4. Select the server to administer.
5. When you are finished, stop the administration server by entering:
/usr/internet/ns_httpd/stop-admin
N etscape Proxy Server
/usr/intemet/ns_proxy/stop-admin
Improving Internet server performance

You can improve the performance of your Netscape FastTrack Internet server
by increasing the values of:
• MAXUP
• NOFILES
• NSTRPAGES
These variables are tuned with the Hardware/Kernel Manager or the config-
ure(ADM) command; see the Performance Guide for more information.
469
NSTRP AGES is particularly important if failures are reported by the netstat

-m command. Increasing NSTRPAGES until the failures no longer occur is
usually appropriate; see "Tuning STREAMS usage" in the "Tuning networking
resources" chapter of the Performance Guide. Remember that increasing
NSTRPAGES also affects memory usage.
If you are running a multi-processor system, it might also be helpful to

increase the value of the str_pool_size variable by editing the
/etc/conf/pack.d/str/space.c file. Make a back-up copy of this file before making
any changes. You must relink the kernel before modifications to space.c files
take effect. Tuning this variable does not appreciably affect performance on
single-processor systems.
NOTE Determining specific values for these parameters depends on your

system hardware, configuration, and usage. We recommend that you exper-
iment with these values according to the suggestions in the Performance
Guide.
Mail
When you install sea OpenServer, you are given a choice of MMDF or Send-
Mail as your Mail Transport Agent (MTA). To use the Internet Manager for
configuring electronic mail, you must choose SendMail. SendMail gives you
full access to multihoming and other advanced mail features not available
fromMMDF.
If you installed MMDF, but now want to use SendMail, use the Software
Manager (page 69) to remove the MMDF package, then add the sendmail
package.
A Post Office Protocol (POP) server is configured at installation time so that

many popular mail programs on PCs and Macintoshes (including Netscape
Navigator and other POP clients) can receive mail using your system as the
server.
The system is configured so that any incoming mail destined for your system
is either delivered locally (if the destination user exists) or is rejected; if the
system receives any mail destined for another system, it forwards it on to that
system. Any mail addressed to postmaster is delivered to the root user as well
as to those users you have designated postmaster.
Outgoing mail is deliv.ered directly to the system to which it is addressed.

Mail sent by local users will have the fully qualified domain name of the sys-
tem shown in the "From:" header (user@system.subdomain.domain.com, for
example).
470 SCO OpenServer Handbook

By clicking on the Mail button on the Internet Services page, you can change
the configuration of e-mail forwarding and host hiding (what gets shown on
the HFrom:" header for outgoing mail). If you have a central system that has a
full user database for your domain, you can choose to forward Hlocal mail" to
that host. In addition, you can specify a system to which all mail outside your
domain is delivered. It is intended that this system has good Internet connec-
tivity and is well able to handle large amounts of SMTP traffic.
FTP
By default, your system is configured to allow users who have an account on

your system to use the File Transfer Protocol (FTP) to transfer files between
your system and other systems. The use of FTP by anonymous users is dis-
abled. (So-called anonymous FTP" is commonly used to upload and down-
H
load files from a system by users that are unknown to that system; no authen-
tication is required. If you have ever downloaded a file from the Internet
using your Web browser, you probably have used anonymous FTP.)
By clicking on the FTP button on the Internet Services page, you can deter-
mine whether FTP access is permitted at all, as well as whether anonymous
users can download or upload files.
Net
By clicking on the Net button on the Internet Services page, you can configure
your system's network connections.
By selecting Network Routing, you can change which network interface the
system uses as your route to the Internet. If you want to make your default
route a PPP connection, you must first configure that connection - see
HUsing a modem to connect to the Internet" (page 456). You can also specify
that your system is a gateway. If you configure your system as a gateway, it
will forward data packets received on one interface to another interface if
appropriate. Otherwise, all received data packets not destined for this system
are discarded.
You can configure both inbound and outbound PPP connections by selecting
PPP Connections. The procedure for adding and configuring PPP connections
is described in HUsing a modem to connect to the Internet" (page 456).
471
Security
Because the Internet Manager can be used to configure important services on

your system, it is important that access to it be restricted to protect your sys-
tem from unauthorized users. This is accomplished in two ways. First, the
Internet Manager requires that the user enter a user name and password to
gain access. Second, the Internet Manager checks that the system from which
the user is accessing it is one that you have specifically authorized.
By clicking on the Security button on the Internet Services page, you can
change the Internet Manager password and specify which systems are
authorized to use the Internet Manager. Initially, the password for the Inter-
net Manager is the same as the root password. You can change the password
by clicking Set Internet Manager Password on the Security page.
NOTE Changing the password for the Internet Manager does not change
the passwords for the Netscape server administration utilities. These must
be changed from within those utilities.
The Internet Manager uses only the first eight characters of your password.
The system is initially configured to allow access only from the system itself
(running the Internet Manager on the console display). To allow another sys-
tem or systems access to the Internet Manager, select Control Access From
Remote Sites on the Security page, then enter the system's IP address.
CAUTION By allowing another system to access the Internet Manager

remotely, system security is decreased and your system is potentially
vulnerable to an "IP spoofing attack". In an IP spoofing attack, a hacker
attempts to gain access to your system by making a remote system appear
to be one of your trusted systems by using its IP address. It is also possible
that someone monitoring data packets on the network could discover your
password. The chance of your system actually being attacked in this manner
is small, and chances of a successful security breach are even smaller (the
attacker must determine both the IP address of one of your trusted systems
as well as the Internet Manager password). You should weigh the benefits
of remote administration against the costs of a potential compromise of sys-
tem security.

Chapter 28
Managing virtual domains
sea Internet FastStart supports "virtual domains", allowing a single network
interface to respond to multiple IP addresses, so that a single system can be
known by multiple names (such as abc. com and defcom). If system services are
configured to bind to specific IP addresses, then a single system can serve the
Web sites for both abc. com and defcom, and anyone accessing either Web site
could not tell that these sites are served from a single system. This process of
using a single system to respond to multiple IP addresses and system names
is called "multihoming". The multiple distinct environments that the system
presents to the outside world are called virtual domains. Your sea Internet
FastStart system can support up to 254 virtual domains, each with distinct
Web, FTP, and e-mail services.
Use the sea Internet Manager to:

• enable virtual domains (page 474)
• add and delete virtual domains (page 474)
• configure internet services (page 475)
• view properites of virtual domains (page 477)
See also:
• "Remote administration of virtual domains" (page 480)
473
Enabling virtual domains

To make your system present multiple distinct environments to the outside
world, you must enable virtual domains. On the Internet Services page, select
Add or Enable Virtual Domains. Once you enable virtual domains, the Internet
services on your system are reconfigured to bind to specific IP addresses.
Because of the difficulties involved in reversing this step, the Internet Manag-
er will prompt you to verify that this is what you want to do. Once you make
your system's Internet services bind to specific IP adresses, you cannot reverse
this step using the Internet Manager.
When you enable virtual domains, you must choose which network interface
to bind the existing Internet services configuration to. You must choose one of
your network cards, a PPP connection, or the localhost interface. localhost
always has an IP address of 127.0.0.1 and can only be accessed from the sys-
tem itself; it is never routed across any network interfaces.
The behavior of the Internet Services page changes after virtual domains are
enabled. In addition to the row of buttons used to configure individual ser-
vices, the Internet Manager presents a list of interfaces to configure, as well as
a SYSTEM-WIDE option.localhost (127.0.0.1), your physical network interface(s)
and PPP connection(s) are identified as "physical" interfaces, while any virtual
domains you create (additional IP addresses you add to your system) are
identified as "virtual" interfaces.
Adding and deleting virtual domains

You can add a virtual domain to your system once you have enabled virtual
domains by clicking on the Add button on the Internet Services page. You will
be prompted for the name and IP address to be used for this virtual domain,
as well as an administrative user name and password. You should use IP
addresses for the virtual domains that are on the same subnet as your primary
physical interface. If you use a separate subnet for your virtual domains, you
will have to make manual routing changes on your network's router to enable
access to the new subnet.
I NOTE It is important to ensure that both the name and IP address for your
virtual domain are unique.

Configuring services
You can delete a virtual domain from your system by selecting the virtual
domain to delete, and then clicking on the Delete button on the Internet Ser-
vices page. When you delete a virtual domain, the Internet Manager reclaims
all resources associated with it; this includes removing any Web or FTP con-
tent, as well as any mail spool files.
NOTE If you only want to disable a virtual domain and not have the Inter-
net Manager reclaim its resources, you should lock it instead: Click on the
View button on the Internet Services page and select LOCKED. For more infor-
mation, see "Locking and unlocking an interface" (page 480).
Configuring services
You must choose one of the interfaces (or SYSTEM-WIDE) before you click on a
service button. Depending on which interface you select, a service mayor
may not be configurable. For example, PPP configuration (under Net) and
Internet Manager access control (under Security) affect the entire system, and
are only accessible when SYSTEM-WIDE is selected. Other services are only
configurable when a specific interface is selected.
See also:
• "Configuring SYSTEM-WIDE" (this page)
• "Configuring interfaces" (page 476)
Configuring SYSTEM-WIDE
The following services are configurable SYSTEM-WIDE when virtual domains

are enabled:
Web The Netscape Proxy Server is only configurable SYSTEM-WIDE (it
cannot be bound to specific IP addresses), as its function is to han-
dle requests to and from other sites. (The Netscape FastTrack
Server is not configurable SYSTEM-WIDE as it is bound to a specific
IP address.)
Mail The system-wide configuration of your mail service is the same as
it is when virtual domains are not enabled - see "Configuring e-
mail" (page 479) for more information.
475
FTP You can only determine whether FTP is enabled or disabled

SYSTEM-WIDE. Enabling or disabling FTP will affect the operation
of all virtual domains (if FTP is disabled SYSTEM-WIDE, FTP to in-
dividual virtual domains is also disabled). Anonymous FTP is con-
figured per interface when virtual domains are enabled - see
"Configuring interfaces" (this page) for more information.
Net Configuration of network routing and PPP connections is the same
as it is when virtual domains are not enabled - see "Configuring
network connections" (page 455) for more information.
Security Configuring access to the Internet Manager is the same as it is
when virtual domains are not enabled - see "Security" (page 472)
Configuring interfaces
The following internet services are configurable for each interface when vir-
tual domains are enabled:
Web Clicking on the Web button allows you to configure the Netscape
FastTrack Server associated with the selected interface. You can
easily use the Netscape server administration utility to configure
web service for each interface. Before enabling virtual domains,
the Netscape Web server document root directory is
/usr/internet/ip/O.O.O.O/publish/htdocs. If you configure a Netscape
Web server for an interface, the Web server document root direc-
tory is /usr/internet/ip/ipaddress/publish/htdocs, where ipaddress is
the IP address of the interface. To start the FastTrack server for a
virtual domain, enter this command as root:
/usr/internet/ip/ipaddress/ns_httpd/start
ipaddress is the IP address of the server to start or 0.0.0.0 for
system-wide server(s).
If you have configured a secure server, enter:
/usr/internet/ns_https/https-443.ipaddress/start
where ipaddress is the primary system IP address.
NOTE Do not change the "Bind Address", "Port", "Document

Root", or "Server Name" in the Netscape administration utility.
Doing so will cause the Internet Manager to improperly config-
ure the server. If you need to change IP addresses associated
with virtual domains, use the Add and Delete buttons on the
Internet Services page. See "Adding and deleting virtual
domains" (page 474) for more information.

Viewing properties of virtual domains
Mail Clicking on the Mail button allows you to manage mail users asso-
ciated with the selected interface. Each virtual domain can either
use the system-wide set of users, or have a unique set of users
associated only with that domain. This means that a single system
can have multiple users with the same name that are distinguished
by the domain with which they are associated (for example,
joe@abc.com and joe@defcom are distinct users). Before virtual
domains are enabled, mail is received wherever system mail is
configured: /usr/spool/mail/name. For each interface, e-mail spool
files for POP mail users are in:
/usr/internet/ip/ipaddress/sco_mail/spool/user_name
Where ipaddress is the interface's IP address and user_name is the
e-mail user's name. Alternatively, if the interfaces use /etc/passwd
instead of private user lists, mail to joe@abc.com and joe@defcom go
to the same system mailbox. joe is a real system user, with a full
account. When using private user lists for each interface, the users
only have POP e-mail access to their mail file. They are not regular
users on the system. They cannot use telnet(TC) to connect to
their accounts to read mail. POP mail is automatically set up for
users in the private user lists.
FTP Clicking on the FTP button allows you to control anonymous FTP
associated with the selected interface. Before enabling virtual
domains, the anonymous FTP directory is
/usr/internet/ip/O.O.O.O/scoJtp. If you configure FTP, the anonymous
FTP directory for an interface is /usr/internet/ip/ipaddress/sco Jtp
(ipaddress is the interface's IP address).
Net Configuration of network connections affects the system as a
whole, so it cannot be performed separately for each interface.
Security Access to the Internet Manager can only be configured SYSTEM-
WIDE.

By clicking on the View button on the Internet Services page, you can view
and modify properties of the selected virtual domain.
See also:
• "Virtual domain name and DNS" (page 478)
• "Administrative users" (page 479)
• "Configuring e-mail" (page 479)
• "Locking and unlocking an interface" (page 480)
477
Virtual domain name and DNS

One of the important properties of a virtual domain is its name (for example,
abc.com or mywebserver.defcom). This is the name by which services associated
with a virtual domain know themselves - it is the "virtual system name".
To allow other systems to access a virtual domain or physical interface by its

name, create entries for it on a DNS server. These entries need to be made on
the DNS server that is acting as the primary or authoritative server for the
domain within which you have defined the virtual domain's name. Your sca
OpenServer system is configured to run a caching DNS server only because
the optimal DNS configuration for many situations is different, and often sys-
tems are dedicated to the purpose of running DNS. If you have a small site,
your ISP will probably offer you DNS service.
Because of the many installation-dependent issues involved in proper DNS

configuration, the Internet Manager does not attempt to create the DNS entry
for you. You should ask your network administrator or ISP to add a DNS entry
corresponding to your system name and IP address. If you are administering
DNS yourself, refer to Chapter 6, "Configuring the Domain Name Service" in
the Networking Guide in your online documentation for more information.
If you are creating a new top-level domain (such as mycompany.com), you

must also register this domain with the Network Information Center (NIC).
The NIC is the worldwide authority responsible for granting the use of top-
level domain names. It is necessary for such a centralized authority to grant
domain names to guarantee the uniqueness of names throughout the Internet.
Information about the NIC and applying for a domain name can be found on
the Web at http://www.nic.org. The process of registering your domain name
can take several weeks due to the number of requests that the NIC receives. If
you register a top-level domain (such as mycompany.com), either you or your
ISP must arrange to provide primary and secondary Domain Name Service for
the new domain prior to NIC registration of the new domain.

Administrative users
Each virtual domain has an administrative user associated with it. When a
virtual domain is created, the administrative user is given ownership of
appropriate files within the virtual domain. This enables the administrative
user to update information contained within the virtual domain, such as Web
and FTP content. You can have a distinct administrative user for each virtual
domain, or one administrative user for several virtual domains. We do not
recommend that the administrative user for your virtual domains be the root
user.
The administrative user is a regular user on the system. If the administrative
account does not exist, it is created by the Internet Manager using the login
name and password supplied. System defaults for shell, authorizations, and
the like are used. The home directories for the administrative users are the
top of the file hierarchy for the virtual domain administered by that user:
(lusr/internet/ip/ipaddress/pub lish).
Use the Account Manager to modify the attributes of administrative users.
For example, you might want to limit system access of an administrative user
by changing that user's shell to rsh, rcsh, or rksh. If a user is administering
several virtual domains, you might want to give them a different home direc-
tory than the first virtual domain they are assigned. Use the Account Manag-
er to remove or retire administrative user accounts.
Configuring e-mail
You can select whether the mail service associated with a virtual domain uses
the system-wide password file to determine users within that domain or uses
a private user list. If you want user names to be the same throughout your vir-
tual domains, choose "Use system (/etc/passwd) users". If you want users
within each virtual domain to be distinct, use a private user list. If you use the
system-wide password file to define your user accounts, you must use the
Account Manager to manage them. See Chapter I, "Administering user
accounts" in the System Administration Guide for more information.
If you choose to use a private user list, you can add and delete users as well as
change their passwords by clicking on the Mail button on the Internet Services
page with the appropriate virtual domain selected.
479
Locking and unlocking an interface

By locking an interface, you can disable access to all services associated with a
particular virtual domain. You can re-enable all services by simply unlocking
it. When you lock a particular virtual domain, the system will stop respond-
ing to the IP address associated with it. This feature might be useful if, for
example, you are an ISP and the customer for which you are maintaining the
virtual domain stops paying its bill, or if you are trying to resolve possible IP
address conflicts with other systems on your network. When a virtual
domain is "LOCKED", that word replaces "virtual" in the "Type" column.
(Since only virtual domains can be locked, either "virtual" or "LOCKED" in
the "Type" column identifies a virtual domain.
I NOTE Locking a physical interface has no effect. Only virtual domains can
be locked and unlocked.
Remote administration of virtual domains

One of the advantages of having unique administrative users for each virtual
domain is that these administrative users can manage their virtual domain
remotely using FTP. When administrative users connect to the system using
FTP and logs in, their home directories are set to be the top of the file hierarchy
associated with their virtual domain. This enables them to upload and down-
load Web content and files to be made accessible using anonymous FTP. If you
are an ISP or network administrator, this means that you can create a virtual
domain for a user and then step aside and let them administer it themselves
using popular FTP programs and Web authoring programs.
The only limitation on the remote administration of a virtual domain is the

addition or deletion of POP e-mail users. Since this can only be done by using
the Account Manager or Internet Manager, the system administrator (not the
virtual domain administrative user) must make these changes. The adminis-
trative user can manage changes to e-mail user passwords by logging into the
system using telnet(TC) and running the pwfile utility on the e-mail user file
(jusr /internet/ip/ipaddress/sco_mail/passwd).

Chapter 29
You can enable networking on your sea® system by creating "network inter-
faces" consisting of configured network adapters or serial drivers with proto-
col stacks and networking applications. The Network Configuration Manager
(page 482) provides a convenient, interactive way to add, modify, view, and
remove network interface configurations.
To configure network interfaces, you must configure:

hardware Set up your adapter to work with your computer's hardware using
utilities supplied with your computer, networking adapters, and
sea OpenServer system.
drivers Configure an sea network driver to work with your adapter.
protocols Configure an sca protocol stack or serial protocol to enable com-
munication with remote systems.
For information about configuring network interfaces from the command line
or in scripts, see the netconfig{ADM) manual page.
New and modified network adapter drivers are made available periodically;
see" Accessing the sca Compatible Hardware Web Pages" (page 273). For the
new network features and drivers included with this sca OpenServer release,
see sea Open Server Features and Limitations.
See also:
• "The Network 'Configuration Manager interface" (page 482)
• "About network configuration" (page 483)
• "Configuring network hardware" (page 489)
481
• "Configuring protocols" (page 492)

• "Removing a network configuration" (page 494)
• "Interpreting ndstat(ADM) output" (page 498)
• "Backward compatibility with LLI drivers" (page 499)
The Network Configuration Manager interface

Use the Network Configuration Manager to configure network hardware
(page 489), configure network protocols (page 492), and remove a network
configuration (page 494).
Start the Network Configuration Manager in any of these ways:

• Double-click on the Network Configuration Manager icon in the Networks
directory of the System Administration window on the Desktop.
selecting Networks, then selecting Network Configuration.
• Enter scoadmin network configuration on the command line (or abbreviate
to scoadmin netwo).
• Enter netconfig on any UNIX command line.
When the Network Configuration Manager starts, you see:

About network con figuration
For more information on using SCOadmin managers, see H Administering

See also:
• "About network configuration" (this page)
• "Configuring network hardware" (page 489)
About network configuration

sca network drivers and protocol stacks are central to sca networking ser-
vices, which are based on an architecture that affords maximum flexibility,
interconnectivity, and standards conformance. Use the Network
Configuration Manager (page 482) to configure network drivers and protocol
stacks.
See also:
• "Network adapter drivers" (this page)
• "Protocol stacks" (page 484)
• "Configuration parameters" (page 485)
Network adapter drivers

Network adapters are hardware devices that connect your system to remote
systems using phone lines, specialized data communication cables, or satellite
links. Network adapters can be either adapter cards in system slots or chip
sets on your system motherboard. They can also be serial communication
ports, although these network adapters are not supported in sca OpenServer
Release 5.0.4.
Network adapter drivers provide the software interface between a network

adapter and the operating system. A network driver manages data flow and .
control between the operating system kernel and the various protocol stacks.
The sca network adapter drivers provide a standard way for many different
protocol stacks and networking products to communicate with your
computer's networking hardware. Because these drivers conform to a stan-
dard set of parameters and interfaces, you can use a single configuration tool,
the Network Configuration Manager (page 482) to configure them.
483
Network drivers from other vendors

Many network adapter vendors provide Sea-compatible network adapter
drivers. Most of these vendors are listed in the sea Compatible Hardware
Web Pages (page 273). To use an adapter not listed there, contact the vendor.
Protocol stacks
Computers on a network communicate in agreed-upon ways called Hproto-
cols". Protocols dictate which signals computers use across cables, how they
tell one another that they have received information, and how they exchange
information.
Protocols are more accurately termed protocol Hstacks" or protocol Hsuites".

These terms reflect the fact that the communications functions are complex
and are usually divided into independent layers or levels. A stack is a collec-
tion of protocol layers which implement network communication. The proto-
col associated with each layer communicates only with the layers immedi-
ately above and below it, and assumes the support of underlying layers.
Lower layers are closer to the hardware; higher layers are closer to the user.
The number of layers and tasks that each layer performs depends on which
stack you are using.
Although there are many different types of networks, they fall into two gen-
eral categories:
• A LAN (Local Area Network) connects computers that are in the same
office or in adjacent buildings. All the computers on a LAN are connected
to a single cable or hub, unless they use a gateway or bridge. A computer
on a LAN can communicate directly with any other computer on that LAN.
• A WAN (Wide Area Network) connects computers over long distances
using serial lines and sometimes satellite connections. Computers on a
WAN can be several hundred feet apart or on the other side of the world
from each other. Sometimes messages must go through additional com-
puters (called "gateways", "routers", or "bridges") to reach their destina-
tion.
Because the sea network adapter drivers provide a standard way for net-
working hardware and software to communicate, you can easily configure
different protocol stacks for use on the same machine. The sea protocol
stacks that you can use with the sea network adapter drivers for LAN com-
munication include:
• sea Tep /IP (provided with some sea OpenServer products)
• sea IPX/SPX® (provided with some sea OpenServer products)

Configuration parameters
• Microsoft® NetBEUI (provided with Microsoft LAN Manager for sca Sys-
tems)
• other SCa-compatible transport stacks
The sca TCP/IP stack can also be used with these WAN communication
drivers:
• PPP (Point-to-Point Protocol)
• SLIP (Serial Line Internet Protocol)
For an overview of sca protocol stack support, see "Networking protocol

stacks" in the Networking Guide.
When configuring network interfaces, you must supply configuration param-
eters that enable networking hardware to interact with other system hardware
and protocol stacks to identify your host system and transmission paths
correctly. To configure network interfaces, you must configure:
hardware Set up your adapter to work with your computer's hardware using
utilities supplied with your computer, networking adapters, and
sca OpenServer system.
drivers Configure an sca network driver to work with your adapter.
protocols Configure an sca protocol stack or serial protocol to enable com-
munication with remote systems.
When configuring network hardware, you must ensure that the networking
parameters are not already in use by other system hardware. For more infor-
mation, see "Determining parameters in use" (page 487).
There are several ways to configure your networking hardware depending on
the bus type of the adapter you are installing:
PCI PCI hardware setup is usually very simple. In most cases, no user
configuration procedures are required, although the specific setup
procedures depend on the vendor's implementation. Make sure to
run the Network Configuration Manager (page 482) after install-
ing PCI adapters into your system.
NOTE Some PCI network drivers have configurable parameters
I that are available through the Reconfigure window under the

Advanced Options window.
485
Configuring network connections '
EISA and Microchannel ™ (MCA)

For EISA and MCA adapters, run your adapter configuration utili-
ties before configuring the driver with the Network Configuration
Manager (page 482); machines of these types can automatically
assign non-conflicting parameters to installed devices. Install EISA
network adapters in the machine before running the Network
Configuration Manager.
ISA, PCMCIA, and Plug-and- Play
Many of these adapters are" software configurable", meaning that
you can set hardware parameters from configuration programs.
The Network Configuration Manager (page 482) can automatical-
ly detect many software configurable adapters and assign
appropriate configuration parameters to the adapter.
NOTE Many ISA (Industry Standard Architecture) adapters are

shipped with DOS setup utilities. However, the Network Con-
figuration Manager provides single-point configuration for soft-
ware-configurable adapters such that many adapters do not
require DOS setup. We recommend that you use the Network
Configuration Manager for basic adapter configuration and
resort to the setup utilities only if an adapter cannot be detected
or configured by the Network Configuration Manager.
Some ISA adapters are "hardware configurable", meaning that you
must set jumpers manually on the adapter before installing the
adapter in your machine. Make sure that you set the hardware to
the same parameters that you assign to the driver with the Net-
work Configuration Manager.
Consult· your adapter's documentation to determine how to set up your
adapter's hardware.
CAUTION Be careful about possible conflicts when installing ISA adapters:

• In non-ISA machines (PCI and EISA), the configuration utilities generally
cannot obtain the configuration information for ISA adapters, and there-
fore cannot check for hardware conflicts.
• If two or more software-configurable ISA adapters are installed in an ISA
machine, they must be set to use different I/O addresses, DMA channels,
and shared RAM regions. Otherwise your system may not be able to
recognize one of the devices.
• If two or more ISA cards are installed, be sure to check for all possible
hardware conflicts.
Most machines can support one to four networking adapters of a given type
(depending on the type of adapter and the capacity of your machine).

Determining parameters in use

To determine many of the settings already in use by drivers installed on your
machine, consult your machine's logbook or use the hwconfig(C) command:
hwconfig-h
Example 29·1 Sample output from hwconfig

device address vec dma comment
=======
serial Ox3f8-0x3ff 4 unit=O type=Standard nports=l
floppy Ox3f2-0x3f7 6 unit=O type=96ds1S
console unit=vga type=O 12 screens=68k
e3B Ox300-0x30f type=3cS03 addr=02:60:8c:9f:ed:44
disk Ox1fO-Oxlf7 14 type=WO unit=O cyls=967 hds=9 secs=34
The fields in the hwconfig output shown above are:

device the name of the device driver
address the starting and finishing memory address of the driver's working
space in hexadecimal; the starting address is often referred to as
the "I/O base address" (page 505)
vector interrupt vector (page 504)
dma DMA (Direct Memory Access) channel (page 503)
comment other information relevant to that device using the format
parameter=value. This example gives the adapter type and MAC
(Media Access Control) address.
I NOTE If you are configuring an ISA adapter, SCO recommends that you
note all network configuration parameters in your machine's logbook.
See also:
• ndstat(ADM) manual page
• "Interpreting ndstat(ADM) output" (page 498)
Driver configuration
Use the Network Configuration Manager (page 482) to configure a driver.
• You will be prompted for any information that the system cannot detect
automatically. You must supply parameters that match those that are
defined for the adapter and do not conflict with the settings that are
already in use by other hardware installed on your system. See Appendix
A, "Configuration parameters" (page 503) for more information.
487
• The Network Configuration Manager checks that network driver parame-

ters do not conflict with those of any other installed driver. If a conflict is
found, the Network Configuration Manager notes it with an asterisk (*).
Some hardware configurations may be prone to conflicts between network-
ing and other components; for more information, see Checking forIf
conflicts between hardware and drivers" (page 495).

• For some software-configurable ISA adapters, the Network Configuration
Manager first configures the driver, then writes driver configuration pa-
rameters to the adapter.
See Supported network adapters by manufacturer" for configuration in-
If
formation specific to your network adapter.
Protocol stack and WAN connection configuration
You can also use the Network Configuration Manager (page 482) for protocol
configuration. Protocol configuration sets values that uniquely identify your
host system in the network and control certain aspects of data transmission.
To configure WAN connections:

PPP Use the Network Configuration Manager to add the SCO TCP/IP PPP
driver, then use the PPP Manager to configure PPP connections; see
Configuring PPP" in the Networking Guide for more information.
If
SLIP Use the Network Configuration Manager to configure the SLIP driver
and connections.
For information on protocol-specific configuration parameters, see:

• If Serial connection configuration parameters" (page 512)
• ilTCP lIP configuration parameters" (page 512)
• ilIPX/SPX configuration parameters" (page 518)
• ilNetBIOS configuration parameters" (page 523)
• ilLAN Manager Client configuration parameters" (page 524)

Configuring network hardware

Configure network hardware using the Network Configuration Manager
(page 482):
• To add adapters:
From the Hardware menu, select Add New LAN Adapter. Further configura-
tion will be determined by the bus type of your machine and the ability of
the Network Configuration Manager to detect your adapter. See:
- "Configuring adapters in PCI, EISA, and MCA machines" (page 490)
- "Configuring ISA and PCMCIA adapters" (page 490)
- "Searching for adapters" (page 491)
I NOTE Configuring a complete network interface includes configuring a

protocol with your adapter; see "Configuring protocols" (page 492).
• To add WAN connections:

From the Hardware menu, select Add New WAN Connection, and select the
type of WAN connection to be added. After confirming that TCP / IP will be
configured over the selected driver:
- use the PPP Manager to configure PPP connections.
- continue using the Network Configuration Manager to configure SLIP
connections.
For complete information on configuring serial connections, including
determining link types and advanced options such as filtering, compres-
sion, and debugging, see" Adding a SLIP link" and" Adding a PPP link end-
point" in the Networking Guide.
For general information on the PPP and SLIP protocols, see:
- Chapter II, "Configuring the Point-to-Point Protocol (pPP)" in the Net-
working Guide
- Chapter 12, "Configuring the Serial Line Internet Protocol (SLIP)" in the
Networking Guide
• To modify adapter configuration:
Select the adapter to modify from the list. From the Hardware menu, select
Modify, then enter new configuration parameters as you did when adding
adapters.
Use the PPP Manager to modify your PPP configuration. See protocol stack
489
• To view adapter configuration:

Select the adapter to view from the list, then from the Hardware menu,
select Examine.
• To remove adapter configuration:

Select the adapter to deconfigure from the list, then from the Hardware
menu select Remove. You will be prompted to confirm your choice and
informed when the operation is complete.
I NOTE If your network interface includes only one adapter, deconfigur-

ing the adapter will also deconfigure any protocols above it.
Configuring adapters in PCI, EISA, and MCA machines
The Network Configuration Manager (page 482) can automatically detect

PCI, EISA, and MCA network adapters that are installed in machines with
those bus architectures. This means that configuration parameters are read
directly from the adapter and the driver is configured automatically. You
need only confirm your selection and continue with protocol stack
NOTE If you are installing an ISA adapter in a PCI, EISA, or MCA machine,
or in a multi-bus machine with PCI, EISA, or MCA network adapters, the ISA
adapter will not appear in the list of adapters found in the system. You
must select Configure an adapter not in the list, then continue configuring the
adapter as you would in an ISA machine. See "Configuring ISA and PCMCIA
adapters" (page 490).
You must run the Network Configuration Manager (page 482) after iIi.stall-
ing PCI, EISA, or MCA adapters to configure them in your system.
Configuring ISA and PCMCIA adapters
The Network Configuration Manager (page 482) presents you with a list of
supported adapters arranged by vendor. Select the adapter from the list that
most closely corresponds to the one in your machine. If the Network Config-
uration Manager can search for your adapter, it asks if you want to search for
it.

Searching for adapters
CAUTION Under certain conditions, such as seaching for an ISA adapter,

your system might hang. This is due to limitations in the ISA architecture. If
this happens, you must reboot the system and configure the adapter
without using the search function.
• If you search for your adapter:
1. Click on Yes. The Network Configuration Manager searchs your sys-

tem for the selected adapter; this is the recommended option. If you
click on No, the Network Configuration Manager does not attempt to
detect an adapter. See If you do not search for your adapter (page 492).
If the adapter is found, the Network Configuration Manager confirms
the key parameter used to identify the adapter in your system; this is
usually the I/O base address (page 505).
2. Click on Continue. The Network Configuration Manager presents you
with a list of configuration parameters that are appropriate to your
adapter, with default values for each. If possible, these default values
are obtained from the adapter.
3. Select a value for each parameter from the pull-down lists, or click on
Continue to confirm the set of default selections. Certain adapters also
allow you to configure advanced options.
The Network Configuration Manager saves required driver informa-
tion, and if possible, writes any new settings back to the adapter. If the
Network Configuration Manager cannot write the settings back to the
adapter, it reminds you to make sure that the settings just entered
match those on the adapter. For example, this is the case for many
adapters with switches or jumpers.
4. When you have completed configuring the network adapter, confirm
your selection and continue with protocol stack configuration (page
492).
491
• If you do not search for your adapter:

You will be presented with reasonable default settings; these are usually
the factory-default hardware settings.
1. Select a value for each parameter from the pull-down lists, or click on
Continue to confirm the default selection. Certain adapters also allow
you to configure advanced options.
The Network Configuration Manager saves required driver informa-
tion and reminds you to make sure that the settings just entered match
those on the adapter.
2. When you have completed configuring the network adapter, confirm
your selection and continue with protocol stack configuration (this
page).
NOTE Be sure that the configuration settings you select match the hard-
I ware settings; consult your system log for your network configuration
parameters.
Configuring protocols
Configure protocols for network adapters using the Network Configuration
Manager (page 482):
• To add a protocol:
Select the adapter that will use the protocol from the displayed list, then
from the Protocol menu, select Add New.
• To modify protocol configuration:
Select the protocol to modify from the displayed list, then from the Protocol
menu, select Modify. Enter new configuration parameters as you did when
adding protocols.
• To view protocol configuration:
Select the protocol to view from the displayed list, then from the Protocol
menu, select Examine.

Configuring protocols
• To remove a protocol configuration:

Select the protocol to remove from the displayed list, then from the Proto-
col menu, select Remove. You will be prompted to confirm your choice and
informed when the operation is complete.
I NOTE If your network interface consists of only one adapter and one
protocol, deconfiguring the protocol will also remove the adapter.
If your modifications to protocols have altered kernel parameters, the Net-

work Configuration Manager will prompt you to relink the kernel when the
manager exits. If you do not answer Yes at this time, you can do so later by
selecting Rebuild Kernel in the Hardware/Kernel Manager. You must reboot
your system before changes to the kernel take effect.
Additional information about protocol configuration is provided in the sca

OpenServer documentation set:
TCP/IP configuration parameters
See Chapter 3," Administering TCP lIP" in the Networking Guide.
NFS®
See Chapter 14, "Configuring the Network File System (NFS)" in the Net-
working Guide.
IPX/SPX configuration parameters
See Chapter 4," AdministeringSCa IPX/SPX" in the Networking Guide.
SCQ Gateway for NetWare®
See Chapter 3," Administering sca Gateway for NetWare" in the Guide to
Gateways for LAN Servers.
NetBIQS configuration parameters
See Chapter 5, "Configuring and using NetBIaS" in the Guide to Gateways
for LAN Servers.
LAN Manager Client configuration parameters
See Chapter 4, "Administering and using LAN Manager Client" in the
Guide to Gateways for LAN Servers.
493
LAN Manager Server services

The Network Configuration Manager (page 482) enables you to configure
Microsoft LAN Manager for sea Systems networking transport protocols
and applications. See your Microsoft LAN Manager for sea Systems docu-
mentation for more information.
Other network protocols
The Network Configuration Manager enables you to configure other
Sea-compatible networking transport protocols and applications; see your
vendor's documentation for more information.
Removing a network configuration

Remove a complete network adapter configuration using the Network
Configuration Manager (page 482):
1. Select the network adapter to be removed, then click on Remove network
device.
2. When the Remove window appears, click OK to remove the displayed net-
work system.
NOTE If you are removing protocols that are associated with other network
I configurations, the network driver you remove is disassociated from that

protocol. Other instances of the protocol in network systems are unaffected.
Troubleshooting network configuration

Troubleshooting network interfaces largely consists of identifying whether the
problem resides in network hardware, network device drivers, or protocol
stacks. Ensure that:
• physical network connections are sound (page 495).
• adapters and drivers are configured correctly (page 495).
• no hardware-specific conflicts are present (page 496).
• the ndstat(ADM) command reports no problems (page 498).

Troubleshooting network con figuration
You should also use tools appropriate to your network transport to determine
whether your local system can reach remote systems. For more information,
see:
• "Troubleshooting TCP /IP" in the Networking Guide
• "Troubleshooting IPX/SPX" in the Networking Guide
• LAN Manager Troubleshooting and Command Reference
Checking physical network connections

Ensure that your physical network is sound by checking network connections
and conducting regular maintenance. This may include:
• checking cables for loose connections, frayed insulation, or kinks
• using a cable scanner to check the wires and connections
It may also be useful to use your DOS diagnostic utilities to verify that your
hardware is functioning correctly.
Checking for conflicts between hardware and drivers

One of the most common network adapter problems arises when adapter
hardware configuration parameters do not match those set during driver con-
figuration with the Network Configuration Manager (page 482). If such a
conflict exists, the network adapter will not work.
To ensure that adapters and drivers are configured together correctly:

1. Verify the hardware settings for parameters such as interrupt vector (page
504), I/O base address (page 505), and RAM base address (page 509).
To do so, you may need to:
• Run your DOS setup program.
• Check jumper settings on your adapter.
• Run your MCA reference disk.
• Run your EISA setup program.
• Run your PCI BIOS configuration program.
2. Verify the sco system settings for the network drivers. In the Network
Configuration Manager (page 482), from the Hardware menu, select View.
3. Correct any conflicts in configuration parameters.
495
Verifying network media connections

A network interface may be using the wrong network connector on the
adapter (many adapters work with more than one cable type). This can hap-
pen even if the adapter has been set to valid, non-conflicting settings and the
driver is correctly configured to match these settings.
A common symptom of this problem occurs when the number of incoming

broadcast frames is the same or less than the number of broadcast frames
received, and the incoming / outgoing unicast frames are zero. This is espe-
cially common with EISA and Microchannel adapters because the value of the
media option can only be set with their setup programs.
To ensure that the correct media connector is being used, verify the adapter's
media option by running the hardware configuration. Sometimes, the LEDs
on the back of the adapter or on a 10BaseT hub are useful. A network monitor
or analyzer can also help verify that the adapter is generating traffic on the
desired network media.
If your adapter can detect the correct media automatically, make sure the
correct cable is connected to the adapter when the machine boots and that
none of the other connectors on the adapter are being used. Ensuring that a
single cable is connected to the right media is essential for automatic media
detection to work correctly.
If an adapter set to automatically detect the correct media still does not
operate correctly, try modifying the settings to the desired media instead of
using automatic detection. For EISA and MCA adapters, this may require run-
ning the machine's setup program before rebooting your sca system.
Special considerations concerning hardware conflicts

Hardware conflicts may arise when certain equipment is used together. See:
• "Mixing 16-bit with 8-bit ISA networking adapters" (page 497)
• "Interrupt 2 inconsistencies on ISA computers" (page 497)
• "Graphics and network adapter conflicts" (page 497)

Troubleshooting network con figuration
Mixing 16-bit with 8-bit ISA networking adapters

Mixing 16-bit adapters with 8-bit adapters poses special problems on ISA ma-
chines. ISA machines reserve the RAM address regions between 640KB and
1MB for devices such as video adapters. This memory area is divided into
these 128K regions:
OxAOOOO - OxBFFFF
OxCOOOO - OxDFFFF
OxEOOOO - OxFFFFF
The first region is usually occupied by the video adapter. In the remaining
two regions, you must not use 16-bit adapters with 8-bit adapters (or with 16-
bit adapters operating in 8-bit mode). You can use a 16-bit adapter with an 8-
bit adapter if they are configured to use different memory regions. For exam-
ple, if you have a 16-bit network adapter configured using the memory region
DOOOO through D4000, you should not configure any 8-bit adapter to use
addresses in the range CODOn through DFFFF.
Interrupt 2 inconsistencies on ISA computers

Interrupt vectors (page 504) on IRQ2 are sometimes lost because of incon-
sistencies in some ISA computers. If you have verified that your system is
correctly installed, but you are losing interrupts on IRQ2, it is probably due to
a hardware defect. To work around this problem:
• Choose another available interrupt vector.
• Reconfigure your software using the Network Configuration Manager
(page 482).
• Reconfigure your hardware by changing jumper settings or using a setup
program, if needed.
Graphics and network adapter conflicts

Many video adapters have "vertical graphics retrace", which is associated
with IRQ2. If your network board is also configured for IRQ2, this causes a
problem when attempting to send or receive data from the network adapter.
To work around this, consult the documentation for your video adapter to
determine if the "vertical graphics retrace" can be disabled. If it cannot, the
network board must be configured for another IRQ that does not conflict with
any other configured devices on the system. This has been known to occur
with the Genoa SVGA and Orchid Pro designer VGA adapters.
497
Some video and network adapters might attempt to use the same shared
memory segment. This has been known to occur with network adapter using
DOOOO and the Paradise and Video 7 1024i video adapters, and it might occur
with others as well. Changing the memory I/O address on one of the devices
or setting the network adapter to use COOOO might help. Refer to your video
adapter documentation for more information.
Interpreting ndstat(ADM) output
Use the ndstat(ADM) command to examine the status of the network inter-
face. Here is an example of ndstat output:
Device MAC address in use Factory MAC Address
Idev/netO 00:00:cO:ec:d5:4c 00:00:cO:ec:d5:4c
Multicast address table
01:00:5e:00:00:01
FRAMES
Unicast Multicast Broadcast Error Octets Queue Length
In: 33254 o 16133 7 4880475 o

Out: 24785 3 16 9 3029828 o
A certain number of errors is normal. It is considered normal if the total num-
ber of errors listed in the Error column is less than 1% of the total number of
FRAMES in and out.
• If "In" and "Out" are both zero:
You cannot reach a remote host and your network interface is probably
using a different interrupt vector than its device driver.
• If "In" is non-zero but "Out" equals errors "Out":
The I/O base address for the network adapter may be incorrect.
• If "In" is zero and "Out" equals errors "Out":
The network cable may have a faulty connection.
In a TCP /lP environment, the netstat(TC) command (particularly the -i, -m,
and -s options) is also useful for identifying physical network problems. For
more information, see "Troubleshooting TCP /IP" in the Networking Guide.
If you are not using TCP /lP, see crash(ADM).

Backward compatibility with LLI drivers
Backward compatibility with LLI drivers

sca network adapter drivers contain a new driver interface called MDI (MAC
Driver Interface). The new driver architecture is compatible with the earlier
LLI (Link Level Interface) driver architecture. Nonetheless, you should review
these sections if you are working in an environment where both architectures
are present:
• flMDI functionality not available with LLI drivers" (this page)
• flUsing multiple protocol stacks with LLI drivers" (this page)
• flUsing an LLI driver with two-protocol stacks" (page 500)
• flUsing an LLI driver with three-protocol stacks" (page 500)
MOl functionality not available with LLI drivers
MDI functionality that is not available to LLI drivers includes:

• graphical driver configuration
• automatic detection and one-step configuration of detected drivers
• extended statistics output with ndstat(ADM)
• SNMP (Simple Network Management Protocol) support
• automatic driver restart
In addition, LLI drivers are not able to take advantage of new operating sys-
tem features, such as STREAMS multithreading and access to PCI device con-
figuration information.
Using multiple protocol stacks with LLI drivers

Although all sca networking stacks can coexist on the same machine, you
may need more than one adapter to make them work together. The question
of whether a single adapter is adequate to service multiple stacks depends
upon the type of framing your stacks use. At present, sca transport stacks use
either 802.3 or Ethernet II framing. NetBEUI and aSI use 802.3 framing and
TCP /IP uses Ethernet II framing. IPX/SPX can be set to use either Ethernet II
or 802.3 framing.
499
Two rules determine whether multiple transport stacks can use the same net-
working adapter. The rules apply to both Ethernet and Token-Ring adapters.
• Only one 802.3 stack can use an LLI at a time. If you intend to use two or
more 802.3 stacks and the network adapter uses an LLI driver, you must
use one networking adapter per 802.3 stack.
• Any number of Ethernet II stacks can share the same networking adapter
with one 802.3 stack.
See also:
• "Framing type" (page 519)
Using an LLI driver with two-protocol stacks

If you intend to use two-protocol stacks on a single adapter, these combina-
tions are possible:
• TCP /IP and NetBEUI
• TCP / IP and OSI
• TCP /IP and IPX/SPX (using either 802.3 or Ethernet II framing)
• OSI and IPX/SPX (using Ethernet II framing)
• NetBEUI and IPX/SPX (using Ethernet II framing)
Any other combination of two-protocol stacks requires multiple network

adapters when the network adapter is using an LLI driver.
Using an LLI driver with three-protocol stacks

If you intend to use three-protocol stacks on a single adapter, these combina-
tions are possible:
• TCP /IP and NetBEUI and IPX/SPX (using Ethernet II framing)
• TCP /IP and OSI and IPX/SPX (using Ethernet II framing)
Any other combinations of three-protocol stacks requires multiple network

adapters when the network adapter is using an LLI driver.

Appendix A
For information on hardware and software configuration parameters required
for basic system and network configuration, see:
• "General configuration parameters" (this page)
• "Network driver configuration parameters" (page 505)
• "Serial connection configuration parameters" (page 512)
• "TCP /IP configuration parameters" (page 512)
• "IPX/SPX configuration parameters" (page 518)
• "NetBIOS configuration parameters" (page 523)
• "LAN Manager Client configuration parameters" (page 524)
General configuration parameters

General configuration parameters include:
• "DMA channel" (this page)
• "Interrupt vectors" (page 504)
• "I/O base address" (page 505)
DMA channel
Some devices require that you specify the Direct Memory Access (DMA) chan-
nel that you want the adapter to use. Direct memory access permits data to be
transferred between memory and a device without the intervention of the
system's central processing unit (CPU). Each DMA chip on the system mother-
board has eight circuits (or "channels") for conveying data. DMA channel 4 is
503
reserved for use by the system. During configuration, you may choose to use
any (or none) of the channels.
Interrupt vectors
Generally, each driver on your system, including those for network adapters
and SLIP lines, must have its own interrupt vector (or "IRQ"). An interrupt
halts processing momentarily so that input/output or other operations can
occur. Processing resumes after the specific operation takes place. Conse-
quently, it is important that each device installed in your system be provided
with an interrupt setting that does not conflict with the settings used by the
hardware and other peripherals (unless the device in question supports shar-
ing of interrupts).
Unless a device supports sharing of interrupts, its interrupt vector must not
be used by any other device on the system. Refer to your networking hard-
ware documentation to determine which vectors the hardware supports. The
hwconfig( C) and vectorsinuse(ADM) commands list the hardware already
installed on your system and what vectors are already in use.
Table A·1 Typical interrupt vectors
Hardware Interrupt Vector (IRQ)
ISA, EISA, or MC machine
clock o
console (keyboard) 1
floppy disk controller 6
Hard disk controller varies
Serial ports
COMI 4
COM2 3
Parallel ports
IptO,lptl 7
Ipt2 5
To install a networking adapter and driver software, you must choose an

interrupt vector (IRQ) setting for the adapter. Consult the adapter's documen-
tation for acceptable IRQ settings.
After you determine your hardware's IRQ settings, choose settings for each
networking adapter that you plan to install, making sure that the settings do
not conflict with each other. The documentation for each networking adapter
should indicate whether you need to configure the adapter physically to use
the chosen IRQ setting. The operating system reserves interrupt vectors 4 and
7 for COMl and lptO, respectively. If you choose any setting that is either a set-
ting reserved for another use or is in use by another device, a conflict occurs.
Some SCOadmin managers may be able to detect conflicts.
504
Network driver con figuration parameters
If yours is an ISA system, your networking hardware might be preconfigured

to use a particular vector. If you want to change this vector setting, you might
also need to change the physical jumper settings on the adapter or run a setup
program provided with the adapter.
NOTE A number of networking adapters are pre configured to use interrupt
I vector 3. Your operating system has reserved IRQ3 for the sio (serial input-
output) device.
I/O base address
Each hardware driver on your system that performs I/O (input/output) must
have a unique memory base address so that the system can locate it. This
memory address is a three- or four-digit hexadecimal number, must match the
settings on the adapter, and must not conflict with any other hardware on
your system. Valid base addresses are displayed when you configure your
adapter.
The II a base address is the initial address for a unique area of memory allo-
cated for input/output data control to a specific hardware adapter. For exam-
ple, Ox300, or 300, is the default I/O base address for the 3Com 3c501 network
adapter. The I/O base address must match the hardware configuration on the
adapter, and other devices must not use this I/O base address.
I WARNING If you enter an I/O base address that is already in use by another
device, you might delete that device.
Network driver configuration parameters

In addition to the general configuration parameters, you can set these configu-
ration parameters for network drivers:
• "10BaseT mode enforced" (page 506)
• "Cable (media) type" (page 506)
• "Data rate (Token-Ring)" (page 507)
• "Frame size" (page 507)
• "Full-duplex mode enabled" (page 507)
• "Hardware (MAC) address" (page 507)
• "Interrupt service routine assignment" (page 508)
• "Media speed" (page 508)
505
• HPCI bus, device, and function numbers" (page 508)

• flPrimary / Alternate adapter" (page 509)
• flROM base address" (page 509)
• flShared RAM address" (page 509)
• flSlot number" (page 510)
• flSource routing" (page 510)
• flSource route optimization" (page 511)
• fltx/rx (transmit/receive) buffers" (page 511)
10BaseT mode enforced

Under normal circumstances, the adapter detects the cable type connected to
it. This option turns off auto-detection and enforces a 10BaseT connection.
Use this option only if the 10BaseT connector is not detected.
I NOTE If you want to use the AUI port, do not plug a cable into the 10BaseT
port.
See also:
• "Cable (media) type" (this page)
Cable (media) type

When you configure certain adapters (for example, the 3Com 503 driver), you
need to specify whether the adapter connects to "thick," "thin", or "twisted-
pair" Ethernet cable. Thick and thin are both coaxial cable. Thick cable is
approximately 1 / 2-inch in diameter, and thin is approximately 1/ 4-inch in
diameter. Twisted pair resembles slightly thicker phone cable.
• Thick cable (also known as "10Base5/1 and "DIX/I) uses a IS-pin AUI
(Attachment Unit Interface) connector to connect your adapter to a tran-
sceiver, which in turn connects to the Ethernet cable.
• Thin cable (also known as "10Base2/1 and "Cheapernet/l) uses an on-board
transceiver and connects to the Ethernet with a BNC connector.
• Twisted-pair cable (also known as "'lOBaseT") connects to a hub transceiver
using an RJ-45 modular plug connector.
506
Data rate (Token-Ring)

Some Token-Ring drivers are able to automatically detect the data transmis-
sion rate on the ring and configure the adapter accordingly. However, if the
adapter is the first active station on the ring, auto-detection will not work and
the data rate must be set manually, usually to 4Mbps or 16Mbps. We recom-
mend that you configure servers for a specific ring speed.
NOTE Although it is desirable to set the ring to the highest rate possible, all
I adapters on the ring should operate at the same rate. Some older Token-
Ring adapters can only be set to 4Mbps.
Frame size
Frame size is the maximum amount of the data that can be sent out on the
network in one packet. The maximum frame size for Ethernet is fixed at
approximately 1500 bytes of data. On networks such as Token-Ring, different
frame sizes can be used. Larger frame sizes generally increase network perfor-
mance, although not all systems support larger frame sizes. If you are using a
network adapter that supports configurable frame sizes, you may want to
experiment with larger sizes in your network.
Full-duplex mode enabled

Full-duplex mode can improve performance for 10BaseT (twisted-pair) con-
nections when using a switched Ethernet hub. It is disabled by default.
I NOTE You must be connected to a switched Ethernet network to use full-

duplex mode.
See also:
• "Cable (media) type" (page 506)
Hardware (MAC) address

The hardware address - often referred to as the MAC (Media Access Control)
address - is assigned by the adapter manufacturer and, under normal cir-
cumstances, is not configurable. By default, the Network Configuration Man-
ager associates the adapter's hard-coded MAC address with the adapter
driver. However, you can supply an alternate MAC address if you want to:
• use a non-SCa protocol stack, such as DEC-Net, that requires configurable
hardware addresses
507
• enable Hhot sparing", whereby non.;.functioning adapters can be replaced by

pre configured spare units without disrupting protocol stacks (this func-
tionality is not currently available)
Configurable hardware addresses do not change the MAC address on the

adapter, but the Network Configuration Manager can map the physical MAC
address to the desired alternate.
A MAC address consists of 6 hexidecimal numbers separated by colons. For

example:
OO:OO:cO:34:fl:52
See also:
• ndstat(ADM) manual page
• HInterpreting ndstat(ADM) output" (page 498)
Interrupt service routine assignment

By default, on multi-processor systems, multi-threaded network drivers are
assigned interrupts dynamically. In other words, when the interrupt is
received, the system assigns it to a CPU that is available to service the inter-
rupt. To bind network driver interrupt processing to a specific CPU, use this
advanced option in the Network Configuration Manager.
Media speed
Some Ethernet adapter drivers detect the media speed automatically,
although you can manually set it to 10Mbps or 100Mbps. Set the speed manu-
ally of hardware incompatibilities cause autodetection to fail.
I NOTE You must be connected to a 100Mbps Ethernet network to use the

100Mbps option.
pel bus, device, and function numbers

PCI machines use unique bus, device, and function numbers to identify each
installed device. Bus numbers range from 0-255. Device numbers range from
0-31. Function numbers range from 0-7. PCI bus, device, and function numbers
can be displayed using your PCI setup program.
508
Primary/Alternate adapter
This parameter applies to these adapters:
• IBM Token-Ring Network PC Adapter
• IBM Token-Ring Network PC Adapter II (long and short)
• IBM Token-Ring Network 16/4 Adapter
• IBM Token-Ring Network 16/4 ISA-16 Adapter
• IBM Auto 16/4 Token-Ring Network ISA Adapter
• IBM Token-Ring Network PC Adapter / A
• IBM Token-Ring Network 16/4 Adapter/A
You can install up to two Token-Ring adapters in your system. If you are
using two adapters, make sure to use the Primary-Alternate switches on the
adapters to set up one as the primary adapter and the other as the alternate
adapter. You must also ensure that the adapters are designated as "Primary"
or" Alternate" during configuration with the Network Configuration Manag-
er. Obtain switch information for these adapters from the documentation
supplied by the adapter manufacturer.
ROM base address
Some adapters (for example, IBM Token-Ring adapters) require that you
specify a ROM base address. Like the RAM base address, the ROM base
address specifies a specific part of ROM memory that is set aside for network-
ing use. If you have more than one adapter requiring that you specify a ROM
address, make sure that you do not assign addresses that conflict with another
ROM region.
Shared RAM address

The Shared RAM address is the address of a unique area of memory allocated
to the host machine and network or graphics adapter for read /write opera-
tions; this area is sometimes called the "RAM buffer". Other devices must not
use any address in the range from the RAM base address to the end of the allo-
cated memory area (that is, the RAM base address + the RAM buffer size).
The Network Configuration Manager notes any conflicting Shared RAM

addresses with an asterisk (*).
509
Slot number
Some adapters (for example, the HP EtherTwist EISA Adapter Card/32) are
meant to be used on machines using a EISA, MCA, or PCMCIA bus. If you
install one of these adapters and the adapter is not detected in the machine,
you may be required to provide its "slot number" during the configuration
process. This number refers to the slot in which the adapter is inserted.
Source routing
IBM Token-Ring networking allows you to establish connections from your
machine to other machines in these ways:
on a local ring
A local ring is the Token-Ring physically attached to your machine.
to other rings using gateways
A TCP /IP gateway is created when you configure TCP lIP over more than
one Token-Ring adapter on the same machine. Those adapters must be
connected to different rings and have different IP subnet addresses.
TCP /IP gateways connected to Token-Ring networks in this manner will
route TCP lIP traffic to the rings without using Token-Ring source rout-
ing. Similar gateways can be set up using the OSI and IPX/SPX proto-
cols.
to other networks using a Token-Ring bridge
A Token-Ring bridge is a dedicated piece of computer hardware con-
nected to several Token-Rings. The bridge routes frames between the
rings. All Token-Rings connected via bridges will appear as a single
ring to each station on the network. Token-Ring source routing allows
your adapter to route network traffic across Token-Ring bridges regard-
less of the protocol stack used by any of the connected networks.
If you intend to connect your machine to a network that includes a bridge,
and if you intend to send information from your machine across the bridge,
you must use automatic Token-Ring source routing.
The Network Configuration Manager offers you two Token-Ring source rout-
ing options:
none Source routing is not enabled; frames are not routed beyond the
local ring.
auto Source routing is enabled; frames include source routing informa-
tion and the DLPI module performs source routing on behalf of the
protocol stack. This is the default setting.
These options are set for individual adapters; they are not global to all Token-
Ring adapters configured in your system.
510
These options take effect for all protocol stacks using the specified adapter. It
is possible for stacks to override default source routing without affecting the
source routing mode used by other stacks. In such cases, the source routing is
said to be in "stack" mode for the specific protocol stack. For example, sca
TCP /IP and IPX/SPX can be configured to use automatic source routing of a
Token-Ring adapter, while a third-party SNA product can provide stack mode
routing when using the same adapter.
Protocol stacks provide stack mode routing if the characteristics of the proto-
col prevent it from working with the general purpose sea source routing
facility, or if a more specialized source routing that is designed to work
optimally for a particular protocol is desired. Although no sca protocol
stacks currently provide stack mode source routing, third-party networking
products might contain such functionality.
Source route optimization

The Network Configuration Manager allows you to find the optimal route
between machines on different Token-Ring rings:
yes Use All Routes Explorers (AREs) to discover the optimal route.
This is the default.
no Do not try to find the optimal route. Do not use AREs.
It is usually desirable to use ARE explorer frames to discover routes because

they find the fastest route between two points and store the information in the
Token-Ring source routing table for future transmissions. However, in large
networks, using AREs can cause additional network traffic and slow down the
network. If minimizing frame traffic is desirable, you may not want to optim-
ize routing.
See also:
• "Source routing" (page 510)
txlrx (transmit/receive) buffers

Transmit and receive buffers are used to regulate the flow of data frames
between adapters and protocol stacks. Although the default settings are usu-
ally acceptable, increasing the number may improve performance if network
traffic is heavy, but it will also use system memory.
511
Serial connection configuration parameters

The sca PPP and SLIP drivers take a variety of configuration parameters, most
of which have different possible values and implications dependent upon the
type of link configuration you are specifying.
Because of the complexity of these configurations, these parameters are

defined by configuration type in the Networking Guide. If you are connecting
to a service provider, or to another system that is already configured, ask the
system administrator of the remote site for the correct values to enter at the
configuration prompts. If you are configuring both sides of the connection,
refer to this documentation:
• For a list of configuration types, see:

- "PPP endpoint configurations" in the Networking Guide
- "SLIP link configurations" in the Networking Guide
• For a list of parameters associated with each configuration type, and
instructions on SLIP and PPP configuration, see:
- "Configuring an endpoint for a dedicated link" in the Networking Guide
- "Configuring an endpoint for remote access" in the Networking Guide
- "Configuring an endpoint for automatic or manual dialup" in the Net-
working Guide
- "Adding a SLIP link" in the Networking Guide
TCP/IP configuration parameters
TCP lIP configuration parameters include these basic options:

• "IP address" (page 513)
• "Netmask setting" (page 514)
• "Broadcast address parameters" (page 515)
• "System name" (page 515)
• "Domain name" (page 516)
• "TCP lIP connections" (page 516)
TCP lIP configuration advanced options include:

• "Gateway status" (page 517)
512
TCPI/P configuration parameters
• "Administrator for this system" (page 517)

• "Location of this system" (page 517)
• "Token-Ring Frame format" (page 517)
IP address
The "IP address" identifies and differentiates a given machine from all others
on the network. It consists of a 32-bit binary number that is usually displayed
as four octets expressed in decimal and separated by periods. You must have
a unique IP address for each machine on the network. In addition, if your ma-
chine serves as a router to another network (it contains two or more network
adapters and belongs to two or more networks), you must assign each
adapter a unique IP address on the appropriate network.
NOTE The IP address differs from a MAC (Media Access Control) address in
that it is configurable. A MAC address is a 6-byte address that is unique to
each physical network adapter. This non-configurable address is assigned
by the adapter manufacturer.
The IP address consists of two parts: a network address that identifies the net-
work and a host address that identifies the particular host, or node.
Table A-2 IP address derivation
binary (32-bit) 1 0 0 0 0 1 0 0 1 0 0 0 1111 0 0 0 0 0 0 1 0 0 0 0 0 0 0 1 0

binary (octets) 10000100 1 0 0 0 1111 0000001 0 00000010
decimal octets 10 0 2 2
IP address (in standard notation) = 10.0.2.2

Several classes of TCP / IP networks are available, each based on the number of
hosts a network needs. Network classes supported by sca are Class A, B, and
C. Use the smallest network class that can accommodate all of your network's
hosts. Most TCP lIP installations use Class C, but some larger installations
might need to use Class B.
513
Table A-3 Internet address classes
Class Available Hosts Valid Address

per Network Ranges
A 16777216 1.0.0.1 through 126.255.255.254
B 65534 128.0.0.1 through 191.255.255.254
C 254 192.0.0.1 through 222.255.255.254
Reserved 224.0.0.0 through 255.255.255.254
If you are connecting your machine to a pre-existing network, the network

address (for Class A, the first octet; for Class B, the first two octets; and for
Class C, the first three octets) is the same as those of other machines on the
network. In this case, you only need to create a unique host address.
If you are creating an entirely new network and you want to connect to the
Internet, you need to contact the Network Information Center (NIC) to have a
network address assigned; see "Domain name" (page 516) for the Network In-
formation Center address. If you do not want to connect to an outside net-
work, you can choose any network address that conforms to the syntax
shown previously. In either case, once you determine the network address,
you can then create the unique host address.
When you determine the IP address, remember:

• Each logical network must have its own network address.
• All hosts in a network must have the same network address.
• All hosts in a network must have unique host addresses.
• Do not use these network addresses: 0 or 127 (Class A), 191.255 (Class B),
223.255.255 (Class C), or any of the addresses shown in the Reserved class
of Table A-3, "Internet address classes" (this page).
Netmask setting
The "netmask" strips the network ID from the IP address, leaving only the
host ID. Each netmask consists of binary ones (decimal 255) to mask the net-
work ID and binary zeroes (decimal 0) to retain the host ID of the IP address.
For example, the default netmask setting for a Class B address is 255.255.0.0.
514
NOTE Always use the default netmask that the installation program
prompts you for unless you are creating a subnet (a logical division of a
physical network). If you create a subnet, also mask the portion of the
address that indicates the subnet. For example, the netmask for a machine
on a Class B subnet is 255.255.255.0. For more information, see "Creating
subnets" in the Networking Guide.
Broadcast address parameters

All datagrams sent by TCP lIP move through all machines in the network path.
However, each host adapter ignores any packet that does not include that par-
ticular computer's IP address in the datagram header. Occasionally, you might
want to send a message to all machines on a particular network. To do so,
select a "broadcast address" for your machine. A broadcast address is one in
which the host portion of the IP address consists either of all 0' s or all 255' s.
The configuration procedure prompts you to choose between these address
schemes:
Table A·4 Broadcast address schemes

Scheme Example Purpose
all zeroes 10.0.0.0 provides compatibility with 4.2BSD

(decimal 0) systems
all ones 10.0.255.255 UNIX Operating System Standard
(decimal 255) (RFC-919)
The addresses shown in the previous table are for a class B network, and are
shown as examples only; your values will be different. If you are on a net-
work that does not contain any machines running 4.2BSD systems or earlier
BSD versions, choose all ones. If such machines exist on your network, choose
all zeroes.
System name
The "system name" ("host name") should be unique on the network. It can
consist of lowercase letters and numbers, must begin with a letter, and should
be no longer than eight characters. mail and other programs use the system
name to identify the correct data destination. Some sample valid machine
names are scosysv, tcpdev, and accountl.
515
Domain name
The MMDF mail router uses the domain name" to route messages, such as
/I
mail, from machine to machine. The domain name allows your network to fit
into a hierarchical network structure. Some common domains at the top of
this hierarchy include:
.com commercial organizations

.edu educational institutions
.gov government institutions
.mil military institutions
.org miscellaneous organizations
Sample domain names are sco.com (the domain name used by sea) and
berkeley.edu (the domain name used by the University of California at
Berkeley).
Base your domain name choice on:

• If other machines on your network already use a domain name, use the
same name for the machine you are installing.
• If you are creating a new domain and want to use BIND to connect to the
outside world, you must register the name with the appropriate network
(Internet, CSNET, or BITNET). To register a domain name, write to:
DDN Network Information Center

Suite 200
14200 Park Meadow Drive
Chantilly, VA 22021
• If you are creating a new domain and might or might not eventually con-
nect to an outside network, use the name name.UUCP, where name is the
name of your company or organization.
• If you will never attach to a network outside your company, choose
company. com, replacing company with your company name.
TCP/IP connections
This TCP /lP configuration parameter sets the maximum number of "TCP lIP
connections" .
516
Gateway status
A machine that has interfaces (adapters or serial lines) to more than one net-
work may operate as a "gateway" between networks by forwarding and
redirecting packets from one network to another.
When you configure a second adapter under TCP /lP, you are prompted to
turn on this gateway behavior or leave your machine in the default, non-
gateway mode. If you do not make your machine into a gateway, it will con-
tinue to receive packets on each network at the specified IP addresses, but will
not forward packets between networks.
See also:
• Chapter 5, "Configuring Internet Protocol (IP) routing" in the Networking Guide
Administrator for this system

This optional item lists the name of the network administrator. The informa-
tion is used by those who need to know who to contact in case of SNMP prob-
lems and is stored in the letc!snmpd.conJfile.
Location of this system

This optional item lists the system location. The information is used by those
who need to know who to contact in case of SNMP network problems and is
stored in the letc!snmpd.conJ file.
Token-Ring Frame format

If your network adapter is a token ring card, then the default frame format is
802.n; otherwise it is Ethernet-II. During card reconfiguration, this setting
defaults to the previously configured value. The choices for any card are
either 802.n framing or Ethernet-II framing.
If you are connecting to any network running LLI Release 3.0 or older, then
only Ethernet-II framing can be used. 802.n framing is only allowed for sca
OpenServer network adapters. For more information on frame formats, see
"Framing type" (page 519).
517
IPXlSPX configuration parameters
IPX/SPX configuration parameters include these basic options:

• HNVT logins" (this page)
• Hlnternal network number" (this page)
• HNetwork number" (page 519)
• HFraming type" (page 519)
IPX/SPX configuration advanced options include:

• HNVT login banner file" (page 522)
• HSAP reply delay" (page 522)
• HSource routing (Token-Ring framing only)" (page 522)
NVT logins
IPX/SPX allows you to set a maximum number of simultaneous NVT connec-

tions. You may want to adjust this parameter if there is an increase or
decrease in the number of clients that try to access this server.
The default value is 16 and is reflected by the parameter nvt_max_Iogins in

the file /etc/ipx.d/NPSConfig.
The maximum value is hard-coded at the driver level and can be changed by
manually editing the NVT_MAX_LOG INS parameter in the file
/etc/conf/pack.d/nvt/nvCtune.h and relinking the kernel. See "Relinking the ker-
nel" (page 290).
The nvt_max_Iogins parameter must be set to a value less than or equal to

NVT_MAX_LOGINS. For more information, see NPSConfig(SFF) and
nvt_tune.h(SFF).
Internal network number

The Hinternal network number" must be unique for every machine on all net-
work segments; it also must not conflict with any network segment's network
number. This number is entered in hexadecimal format. You may want to
change this parameter if conflicts develop as new servers are added to the net-
work or numbering conventions change.
518
Network number
The "network number", entered in hexadecimal format, is a unique number
identifying a single LAN segment; every node on the same LAN segment must
have the same network number. If the sea system is acting as a router, that
is, it is connected to more than one network segment, each connected network
segment must be assigned the correct unique network number. You may
want to change this parameter if there is a conflict between network numbers
or if the numbering conventions change.
Framing type
IPX!SPX allows you to set the type of "framing" performed by the network
adapter driver. You may want to change this parameter if you reconfigure a
network segment to use a different framing type.
The framing types supported by IPX!SPX are described in:
• "802.3 with 802.2 headers" (this page)
• "802.3" (page 520)
• "Ethernet II" (page 520)
• ilEthernet SNAP" (page 520)
• "Token-Ring" (page 521)
• "Token-Ring SNAP" (page 521)
802.3 with 802.2 headers

The Ethernet 802.3 with 802.2 headers framing type conforms to the IEEE 802.3
and IEEE 802.2 standards. This framing type is the default Ethernet framing
type in most Novell® NetWare networks.
The main feature of this framing type is the SAP (Service Advertising Proto-
col) fields, which indicate the protocol type. For Novell networks, these fields
are set to OxeO, which indicates that the upper layer protocol is IPX. Ethernet
802.3 with 802.2 header frames have this format:
Table A-5 802.3 with 802.2 headers
Header Field Size
802.3 destination address 6 octets
802.3 source address 6 octets
802.3 length 2 octets
802.2 destination SAP 1 octet
802.2 source SAP 1 octet
802.2 control 1 octet
data
519
802.3
The Ethernet 802.3 framing type is commonly used in Novell networks, par-
ticularly with native NetWare 2.x and 3.x servers. This framing type was de-
veloped by Novell before the IEEE 802.2 standard was complete and is some-
times referred to as H802.3 raw".
The main feature of the Ethernet 802.3 framing type is the use of the hard-
coded Oxffffvalue in the frame header. Ethernet 802.3 frames have this format:
Table A·6 802.3
Header Field Size
802.3 Oxffff 2 octets
data
Ethernet II
The Ethernet II framing type is sometimes referred to as the "XEROX PARe
version of Ethernet".
The main feature of this framing type is its simple frame structure. Ethernet II
frames have this format:
Table A·7 Ethernet II
Header Field Size
Ethernet II address 6 octets
EthemetII source address 6 octets
Ethernet II type 2 octets
data
Ethernet SNAP
Ethernet SNAP framing allows network protocol stacks to use Ethernet II
frames on IEEE style networks without modification. SNAP framing is most
commonly used for Token-Ring networks.
The main feature of this framing type is the use of three protocol headers:
IEEE 802.3, IEEE 802.2, and SNAP. Ethernet SNAP frames have this format:
520
Table A-8 Ethernet SNAP

Header Field Size
802.2 Oxaa 1 octet
802.2 Oxaa 1 octet
802.2 UI 1 octet
SNAP protocolID 1 octet
SNAP type 1 octet
data
Token-Ring
The Token-Ring framing type conforms to the IEEE 802.5 and IEEE 802.2 stan-
dards.
The main feature of this framing type is the SAP (Service Advertising Proto-
col) fields, which indicate the protocol type. For Novell networks, these fields
are set to OxeO, which indicates that the upper layer protocol is IPX. Token-
Ring frames have this format:
Table A-9 Token-Ring
Header Field Size
802.5 AC 1 octet
802.5 FC 1 octet
802.5 routing information 0-18 octets
802.2 destination SAP 1 octet
802.2 source SAP 1 octet
802.2 control 1 octet
data
Token-Ring SNAP
Token-Ring SNAP allows network protocol stacks to use Ethernet II frames.
The main feature of this framing type is the use of three protocol headers:
IEEE 802.5, IEEE 802.2, and SNAP. Token-Ring SNAP frames have this format:
521
Table A-10 Token-Ring SNAP

Header Field Size
802.5 AC 1 octet
802.5 FC 1 octet
802.5 routing information 0-18 octets
802.2 Oxaa 1 octet
802.2 Oxaa 1 octet
802.2 VI 1 octet
SNAP protocol ID 1 octet
SNAP type 1 octet
data
NVT login banner file
IPX/SPX allows you to specify a file from which the NVT daemon prints user
login banners. If no banner is desired, simply remove or move the file, or set
this field to reference a non-existent file. Do not set this field to null (" ").
SAP reply delay
IPX/SPX allows you to set the delay period that SAPD (Service Advertising
Protocol Daemon) should wait before responding to a Nearest Server Request.
This allows some control over the order in which servers will respond to
Nearest Server Requests. Servers that should be used first for efficiency rea-
sons should be set low. For example, on a network with native NetWare
servers, it might be desirable to set the SAP reply delay high on all sea servers
to ensure that the native servers always reply first when there are duplicate
services offered on both the sea host and the native NetWare server. (If there
are no duplicate services, a low value should be used on all servers to ensure
rapid replies.)
The default value is 1, indicating a minimal delay. The maximum value for
this parameter is 300. For more information, see NPSConjig(SFF).
Source routing (Token-Ring framing only)

If you selected Token-Ring as your framing type, you can enable IPX/SPX to
pass source routing information to your adapter driver. See ilSource routing"
(page 510) concerning source routing options for your adapter. The Network
Configuration Manager enables Token-Ring source routing by default.
522
NetB/OS configuration parameters
NetBIOS configuration parameters

TPI (Transport Provider Interface) NetBIOS for TCP lIP configuration is
required when running LAN Manager over the TCP lIP protocol stack.
Basic NetBIOS configuration parameters include:

NetBIOS host name
The system name (host name) should be unique on the network. It can
consist of lowercase letters and numbers, must begin with a letter, and
should be no longer than eight characters. It must be same as the
TCP lIP system name (page 515). Here are some sample valid system
names: scosysv, srv555b, and accountl. The "values" of the other two
NetBIOS basic parameters are dependent on the "value" of this parame-
ter. The default is the output of uname -no
N etBIOS IP address
The NetBIOS IP address identifies and differentiates your machine from
all others on the network. It consists of a 32-bit binary number that is
usually displayed as four octets expressed in decimal and separated by
periods (for example, 10.0.65.75). Each machine on your network must
have a unique NetBIOS IP address that is the same as the IP address
assigned for TCP lIP (page 513).
NetBIOS broadcast address
All datagrams sent by NetBIOS move through all machines in the net-
work path. However, each host adapter ignores any packet that does
not include that particular computer's IP address in the datagram
header. Occasionally, you might want to send a message to all machines·
on a particular network. To do so, select a "broadcast address" either of
all O's or all 255's. It must be same as the TCP/IP Broadcast address
(page 515).
N etBIOS scope identifier
The NetBIOS scope identifier sets the NetBIOS domain. Only users with
equivalent scope identifiers can communicate with each other. It is
similar to the TCP lIP domain name (page 516) {for example sco.com or
lachman.com}.
Advanced NetBIOS configuration parameters are LAN Manager related "per-

user sessions" parameters. If any of the LAN Manager parameters are
increased, the corresponding TCP lIP NetBIOS related parameter should also
be increased.
Default pending commands per user
The default number of maximum active commands per user.
523
Default sessions per user

The default number of NetBIOS sessions per user.
Maximum names per user
The maximum number of NetBIOS names (local/remote) per user. A
user cannot register more than the maximum number of NetBIOS names
on the machine.
Maximum pending commands per user
The maximum number of commands a user can have pending. This is
used by nbstatus to display the maximum number of active/pending
commands a user can set.
Maximum sessions per user
The maximum number of NetBIOS sessions a user may set. This is used
by nbstatus to display the maximum number of configured sessions a
user can set.
Maximum IP datagram size
The maximum IP datagram size before fragmentation can take place. If
any datagram is larger than the size set, the packet is fragmented.
LAN Manager Client configuration parameters

The LAN Manager Client configuration parameter is:
Number of transport connections
This sets the maximum number of concurrent sessions that the transport
provider will support (default value is 64). The value you enter can be
obtained from the documentation for the transport provider.
524
Appendix B
SCSI host adapters
See sea Open Server Features and Limitations for information about supported
mass storage devices.
525
SCSI host adapters
526
Appendix C
Serial adapters
This appendix contains information on serial adapters that have known prob-
lems when used with the seo OpenServer system. Adapters that are specific
to a particular architecture are so labelled.
AMI lamb serial adapter
Only continuous mode is supported.
Arnet serial adapter (MCA)

You must use the reference disk to modify the Optional I/O Address Block to
be 0180-018F hexadecimal.
AST serial adapter
Only enhanced mode is supported. Do not use the AST driver.
CTC Versanet serial adapter
The correct switch settings for the 8AT and 4AT are:
• As a eOMl (strapped at addr Ox160, using IRQ4) the 8AT has:
- switches 33, 35, 36, 38, 39 & 40 OFF
- switches 34, 37 ON (that is, shunted)
on the DIP switch selection:
- 5, 6 & 8 should be OFF
- all the others should be ON
527
Serial adapters
• As a COM2 (strapped at addr Ox218, using IRQ3) the BAT has:

- switches 33, 35-40 OFF
- switch 34 ON (that is, shunted)
on the DIP switch selection:
- 1, 2 & 7 should be OFF
- all the others should be ON
The 4AT is the same as the BAT in both the above cases, with the following
common exception: switches 39 & 40 must be ON (shunted). These adapters
come in both 8250 and 16450 versions. You must have the 16450 version.
The original CTC Versanet adapters used different addresses. Please ask your
hardware vendor for Versanet adapters strapping at the above addresses
(Ox160 and Ox218).
The CTC "Maomao-4" serial adapter is not supported.
Digiboard serial adapter

Ports for switches DS2 to DS5 (DS9 for 8 port version) must be strapped start-
ing at the adapter's base address as given in the table and incrementing by 8
for each port.
The following example is for COMI at 110:

DS2 110
DS3 118
DS4 120
DS5 128
DS6 130
DS7 138
DS8 140
DS9 148
DS1 150
If COMI is used, then all the ports must be strapped as "EVEN" to interrupt
request line 4 (see Digiboard documentation). If COM2 is used, then all the
ports must be strapped as "ODD" to interrupt request line 3 (same notation).
Only revision C and later adapters are supported.
Olivetti RS232C multiport adapter

The factory settings do not function properly. You must alter the existing
switch positions to reflect those listed below.
If you are using a single Olivetti adapter, you must configure it as COM2.
528
If you are using two Olivetti adapters, one must be configured as COM2 and
the other configured as COM1, with the COM1 port built into the M380 dis-
abled. To disable the COM1 port built into the M380, refer to the section on
"Setting Up the System" in your Olivetti Installation and Operations Guide.
The correct switch settings are:

• As a COM1 (strapped at addr Ox2AO):
IRQ2 IRQ3 IRQ4 IRQ5 IRQ6 IRQ7 XA1 XAO INT SHR
off off on off off off off on on off
• As a COM2 (strapped at addr OxIAO):

IRQ2 IRQ3 IRQ4 IRQ5 IRQ6 IRQ7 XA1 XAO INT SHR
off on off off off off off off on off
Quadram serial adapter

The following Quadram serial expansion adapters can be used in these config-
urations with the SCO OpenServer system:
COM1 COM2
5-port
I-port
5-port
I-port
5-port I-port
Stargate serial adapters on the Apricot Qi (MeA)

On the Apricot Qi, the Stargate serial adapter card clashes with the Ethernet
Controller start address. To resolve the problem, use the reference disk to
modify the Ethernet Controller start address. Choose the menu options in the
following sequence: Configuration ¢ Change ¢ Internal Ethernet Control-
ler ¢ Port Address ¢ Alternate #7
Tandon serial adapter

Tandon is the only adapter whose 110 addresses are potentially identical to
those of other supported adapters, such as the AST and Quadram serial
adapters.
Because adapter addresses must not overlap in the same systems, if you have
both a Tandon and a Quadram, COM1 and the Quadram must be on COM2.
529
Serial adapters
530
Appendix D
Mice and bitpads
This appendix contains information on mice and other graphic input devices.
You should read the appropriate section if you have one of the devices listed.
I NOTE In all cases, except for the Microsoft bus mouse, use interrupt 25 in
the software if you have set the interrupt jumper to interrupt 2.
Logitech bus mouse

Set the jumpers as follows:
• Set JMPI to any interrupt that is not being used.
• Set JMP2 to jumper 1 for 30Hz, as 60Hz is used for DOS.
Microsoft bus mouse

Set the jumpers as follows:
• Set JMP2 and JMP3 to the proper settings listed in your manual.
• Set JMP4 to either interrupt 3, 4, or 5. Do not use the setting for interrupt 2.
Olivetti bus mouse

Set the jumper settings according to your manual.
Logitech serial mice

There are two types of Logitech mouse, those that are Microsoft compatible
and those that are proprietary. If the Logitech mouse you are installing is a
Microsoft-compatible one, use the Logitech Mouseman driver rather than the
Logitech serial mouse driver which supports the proprietary models.
531
Mice and bitpads
532
Appendix E
Modems
This appendix contains information on known issues with different makes of
modem. You should read the appropriate section if you have one of the
modems listed.
Smartmodem 1200 or compatible

If you have a Hayes Smartmodem 1200 or compatible, switches 3 and 8
should be down:
1 2 3 456 7 8
up • • • • • •
down • •
When switch 3 is down, the result codes are sent by the modem to the termi-
nal or computer. When switch 8 is down, the modem can interpret the com-
mand being issued. This allows both MS-DOS and UNIX system communica-
tions systems to work.
Table E-1, "Hayes-compatible switch settings" (page 534) lists the function of
each switch setting.
533
Modems
Table E-1 Hayes-compatible switch settings
Switch Position Function

1 up* Modem responds to DTR from computer
down Modem forces DTR high, so no signal is
required from computer
2 up* Result codes are in English
down Result codes are numeric
3 up There are no result codes
down* Result codes are sent in response to each
modem command
4 up* Commands are echoed
down Commands are not echoed
5 up* Modem answers phone
down Modem does not answer phone
6 up* CD is asserted when carrier is actually present
down CD and DSR are forced high
7 up* Modem is attached to single-line phone
down Modem is attached to multi-line phone
8 up Modem does not recognize dialing commands
down* Modem recognizes dialing commands
The asterisks (*) indicate the switch settings required. If you have a different
modem, consult your reference manual for the proper switch settings to both
send and receive calls.
Smartmodem 2400, V-series 9600 or compatible

The Hayes 2400 and V-series 9600 Smartmodem or compatible modems are
supported and are configured automatically when you use the dialer entries
or dialer programs supplied with the sca OpenServer distribution. If you are
using an unsupported dialer (one brought from elsewhere or written your-
self), and you plan to use it for a dial-in line, be sure that you use the follow-
ing settings:
AT&f fetches factory configuration
ATT is tone dialing
ATIO is low speaker volume
AT&d2 sets dtr "2": goes on hook when dtr drops
AT&cl sets dcd "1": dcd tracks remote carrier
ATsO=l answers phone after one ring (AA light should come on)
ATs2=128 disables modem escape sequence
534
ATeO does not echo (modem no longer echoes what is sent to it)
ATql is quiet mode (modem does not respond with OK" after this
H
command or any that follow)

AT&w saves settings in non-volatile memory. If you do not want to
save the settings, you do not have to enter this command.
Telebit Trailblazer
If you have a Telebit Trailblazer modem or compatible, log in as root and enter
the following command:
/usr/lib/uucp/diaITBIT -z /dev/ttynn 9600
where nn is the tty number of the serial line.
535
Modems
536
Appendix F
Network adapters
See sea Open Server Features and Limitations for information about supported
hardware.
537
Network adapters
538
Appendix G
Kernel initialization check letters
Each time the kernel starts, it checks the hardware that it expects to find in the
system, initializes various kernel tables, mounts the root file system, opens the
swap device, and prints configuration information. At each stage of checking,
the kernel displays a letter (plus a message if the stage is subdivided). The
process normally pauses for a while at certain letters if lengthy checks or ini-
tialization are involved. However, if the process stops and does not continue
at a particular letter, this usually indicates a problem with the initialization of
the corresponding device driver.
The following list describes the meanings of the kernel startup letters:
D Check for 10 bits of I/O decoding by writing to and reading from the
direct memory access (DMA) controller channel 0 page table address
register (I/O port Ox87).
Perform machine-specific initializations. If the initialization stops here,
there is a hardware problem. This may be resolved by running hardware
tests available on reference or setup floppy disks from the hardware
manufacturer.
E Print configuration information for the numeric coprocessor (80287,
80387, 80487SX, Weitek, or built-in), if any. Also perform machine-spe-
cific multiprocessor memory initialization.
If a coprocessor is present but not recognized, confirm that it is properly
connected and that your hardware recognizes it. Refer to your floating
point processor documentation for available tests.
F Initialize pseudo-devices and I/O devices by calling their corresponding
driver initialization functions.
If a failure occurs at this stage, check the relevant devices to see if they
are incorrectly configured or non-functioning. Refer to the documenta-
tion for the relevant hardware for more information.
539
The format of the startup /IF" messages is:
Message Description
driverinit Initialize configured driver
BTLD init Initialize boot-time loadable driver
driverinit2 Link SCSI peripheral driver to SCSI host adapter
G Initialize the Programmable Interrupt Controller (PIC) chips and

multiprocessors, configure root disk driver, and reset keyboard.
H Initialize various system resources:
Message Description
oeminit OEM-specific features
cinit character lists (clists)
inoinit inodes
fsinit filesystems
fstyp init file system of type fstyp
finit file table
strinit STREAMS
ksl init kernel STREAMS linker (ksl_start)
iinit open root device, load superblock into memory and
mount the root filesystem. If the root device is a hard
disk, display configuration message. If the system hangs
here, suspect a damaged, missing, or incorrectly
configured root device. Also reset system clock from
hardware clock.
flckinit file locking
seminit IPC semaphores
msginit IPC messages
xsdinit XENIX shared data
xseminit XENIX semaphores
cfgmsginit print configuration error messages if too many groups or
open files are defined. Print a warning message if too
many memory ranges were specified at boot time.
540
I Print any machine-specific information, invoke the driver start routine
for certain devices, and print total kernel memory and user memory.
The format of the startup "I" messages is:
Message Description
driverstart Start driver
BTLD start Start boot-time loadable driver
J Initialize floating point emulator.

K Open the swap device, add it to the swap file table, and print informa-
tion about it.
M Initialize machine-specific memory ECC support.
Print information on root, pipe, dump devices, clock interrupt rate (HZ),
kernel I/O buffers, and additional CPUs found.
541
542
Appendix H
vi command summary
The following tables contain all the basic vi commands.
Starting vi
Command Description
vi file start at line 1 of file
vi +n file start at line n of file
vi + file start at last line of file
vi +/pattern file start at pattern in file
vi -r file recover file after a system crash
Saving files and quitting vi
Command Description
:efile edit file (save current file with :w first)
:w save (write out) the file being edited
:w file save as file
:w!file save as an existing file
:q quit vi
:wq save the file and quit vi
:x save the file if it has changed and quit vi
:q! quit vi without saving changes
543
vi command summary
Moving the cursor
Keys pressed Effect

h left one character
lor (Space) right one character
k up one line
j or (Enter) down one line
b left one word
w right one word
( start of sentence
) end of sentence
{ start of paragraph
} end of paragraph
IG top of file
nG line n
G end of file
(Ctrl)W first character of insertion
(Ctrl)U up Yz screen
(Ctrl)D down Yz screen
(Ctrl)B up one screen
(Ctrl)F down one screen
Inserting text
Keys pressed Text inserted

a after the cursor
A after last character on the line
before the cursor
I before first character on the line
o open line below current line
o open line above current line
544
Changing and replacing text
Keys pressed Text changed or replaced

ew word
3ew three words
ee current line
Sec five lines
r current character only
R current character and those to its right
s current character
S current line
switch between lowercase and uppercase
Deleting text
Keys pressed Text deleted

x character under cursor
12x 12 characters
X character to left of cursor
dw word
3dw three words
dO to beginning of line
d$ to end of line
dd current line
Sdd five lines
d{ to beginning of paragraph
d} to end of paragraph
:1,. d to beginning of file
:.,$ d to end of file
:1,$ d whole file
Using markers and buffers
Command Description
mf set marker named" f II
'f go to marker" f II
'f go to start of line containing marker f"

1/
"s12yy copy 12 lines into buffer" s"

"ty} copy text from cursor to end of paragraph into buffer" t"
"ly1G copy text from cursor to top of file into buffer" 1"
"kd'f cut text from cursor up to marker" f" into buffer" k"
"kp paste buffer" k" into text
545
vi command summary
Searching for text
Search Finds
land next occurrence of "and", for example, "and", "stand",
"grand"
?and previous occurrence of " and"
(The next line that starts with "The", for example, "The",
"Then", "There"
(The\> next line that starts with the word "The"
/end$ next line that ends with "end"
/[bB]ox next occurrence of "box" or "Box"
n repeat the most recent search, in the same direction
N repeat the most recent search, in the opposite direction
Searching for and replacing text
Command Description
:s/pear/peach/g replace all occurrences of "pear" with "peach" on current
line
:/orange/s//lemon/g change all occurrences of "orange" into "lemon" on next
line containing" orange"
:.,$/\ <file/directory/g replace all words starting with "file" by "directory" on
every line from current line onward, for example,
"filename" becomes" directoryname"
:g/one/s//l/g replace every occurrence of "one" with 1, for example,
"oneself" becomes "lself", "someone" becomes "somel"
546
Matching patterns of text
Expression Matches
any single character
* zero or more of the previous expression
.* zero or more arbitrary characters
\< beginning of a word
\> end of a word
\ quote a special character
\* the character" * "
beginning of a line
$ end of a line
[set] one character from a set of characters
[XYZ] one of the characters" X", " Y ", or " Z"
U:upper;]][[:lower:]]* one uppercase character followed by any number of
lowercase characters
["set] one character not from a set of characters
["XYZ[:digit:]] any character except" X", " Y ", " Z ", or a numeric digit
Options to the :set command
Option Effect
all list settings of all options
ignorecase ignore case in searches
list display (Tab> and end-of-line characters
mesg display messages sent to your terminal
nowrapscan prevent searches from wrapping round the end or begin-
ning of a file
number display line numbers
report=5 warn if five or more lines are changed by command
term=ansi set terminal type to "ansi"
terse shorten error messages
warn display "[No write since last change]" on shell escape if
file has not been saved
547
vi command summary
548
Index
Symbols, numbers adding (continued)

printers, 397
omessage, cu(C), 421 protocols, 492
16450 UART problems, 377
secondary hard disk, 324
802.3,520
secondary SCSI host adapter, 303
802.3 with 802.2 headers, 519
serial ports, 368
80387 math coprocessor, 299
tape drives, 344
8250 UART problems, 377
terminals, 431
10BaseT mode, 506
addresses
25-pin connector, 433
hardware, 507
9-pin connector, 433
MAC, 507
SCSI,304
A serial card, 368
station. See addresses
A: drive, 112 MAC
using with doscmd( C), 112 administering, software, 69
abnormal shutdown, 253 administration
accessing hardware, 62 See also system administration
account name, 121 password, 466
account profiles, restoring, 43 remote, virtual domain, 480
adapters username, 466
conflicts, 63 administrator for this system, TCP /IP, 517
EISA, configuring, 486, 490 Advanced Power Management
ISA boot time configuration, 277
configuring, 486, 490 control shell, 291
installation conflicts, 486 daemon, 291
MCA, configuring, 486, 490 freeze state, 292
network, 483 idle state, 292
configuring, 455 off state, 292
interrupt vectors, 504 ready state, 292
PCI, configuring, 485,490 state command, 292
PCMCIA, configuring, 486, 490 status command, 292
Plug & Play, configuring, 486, 490 All Routes Explorers (ARE), 511
primary / alternate, 509 alt key, 196
setting switches, 56 alternate adapters. See primary / alternate
video, 56 adapters, Token-Ring
adding AMI lamb serial adapter, 527
CD-ROM drives, 307 anonymous, FTP, 471
computers, 162 ANSI terminals, 439
floptical drives, 309 answering
hard disks, 323 disabling, 411
memory, 297-298 enabling, 411
network adapters, 489 APM. See Advanced Power Management,
new IPX/SPX servers, 518 277
parallel ports, 376 applying, patches, 72
549
Archive
Archive tape drive, interrupts, 350 base address

archiving files, 161 hardware problems, 62
ARE, Token-Ring, 511 I/O. See I/O base address
Arnet serial adapter, 527 RAM,509
ASCII character set, 235 ROM,509
AST serial adapter, 527 tape drive conflict, 350
AT console keyboard, 197 batch(C),265-266
at: you are not authorized to use at, error battery status, checking, 293
message, 266 bcheckrc file, 193
ATAPI CD-ROM, 307 bcheckrc(ADM), 193
ate C), troubleshooting, 265-266 /bin/login file, restoring, 191
AUI connectors, 506 /bin/ sulogin file, restoring, 193
authck(ADM), 177, 187 BIOS, 62, 104
authentication, PAP/CHAP, 459 limitations on root hard disk, 335, 336
authentication database, correcting overcoming limitations of, 335
permissions, 261 overriding root disk geometry, 336
auto-answer modem configuration, 408 biosgeom bootstring, using, 336
auto-answering bitpads, installing, 394
disabling, 411 blank screens, 121
enabling, 411 BNC connectors, 506
autodialing, 405 boot
Automatic Call Unit, ACU, 413 cartridge tape drive recognition, 350
automatic detection of modems, 409 device configuration, 276
Automatic Write Remapping, AWRE, 341 floppy disk, 29, 185
AUTOSWITCH feature, 56 emergency, 185
availsmem kernel variable, 194 emergency boot floppy disk set, 188-
190,195
restoring root filesystem, 250
B testing, 84
Irwin tape drive recognition, 353
B: drive, 112
not found, 188
backspace key, 140
problems
backspace (stty echoe), 439
damaged Boot Disk, 54
backups
RAM, 55
creating, 34, 36
screen blanks after Boot: prompt, 56
Irwin and QIC-40/80 tape drives, 354
system does not boot, 54, 58
listing contents, 85
system hangs at boot time, 63
restoring individual files, 186
system reboots from Boot Disk, 56
system, 34
testing floppy disk drive, 54
bad
QIC-40 / 80 tape drive recognition, 353
media byte, 112
bootable CD-ROM, 28
octal digit, 351
bootable floppy disk, setup program, 297
sectors, mapping with badtrk(ADM), 341
boot(F), 182, 183
tracks
booting
boot problems, 184
automatic, 182
mapping with badtrk(ADM), 341
changing default program, 183
badtrk(ADM),331-333
configuring, 182-184
banner file, NVT login, 522
display, 181
DOS from a floppy disk, 108
DOS partition, 107
from CD-ROM, 28

changing
booting (continued) c
hanging during, 195
C: drive, 112
operating system, 170
C2 security, 142
other DOS partition, 107
cabling
partition, 107
planning, 163
restoring files, 178
printers, 399-400
startup letters, 539
terminals, 432
steps, 169-172, 175
type, 506
troubleshooting, 184-195
unterminated wire problem, 407
understanding messages, 181
cache memory
using old kernel, 184
enabling/ disabling, 283
Windows partition, 107
map not allowed for intelligent serial
XENIX partition, 107
cards,265
bootstrap program, 170, 182
caching
bootstring, srom, 283
DNS, 463
bootstrings, 276
Domain Name Service, 463
biosgeom, 336
calendar, using, 160
disable, 282
Can not fork error message, 60
ESDI,282
Cancel button, 123
generic Western Digital, 282
Cannot allocate buffer, 354
hard disk, 281
cannot create, 368
host adapter, 281
Cannot exec /bin/login: No such file or
IDA,282
directory, 191
mem,283
Cannot load floating point emulator (error
SCSI,282
2): /etc/emulator, 190
ST506,282
cannot open, 308,368
tape, 281
cannot open: device busy, 407
boot-time loadable drivers. See BTLDs, 286
Cannot open / dev / rctO, 351
Bourne shell
Cannot open /etc/inittab, message, 192
.profile, 440
can't change mode of job, error message
TERM assignment, 439 266 '
brand(ADM), 95
cards, See adapters
branding, kernel, 49
Carrier Detect, CD, 432
bridges, Token-Ring, 510
light, modem problems, 427
broadcast address, 515
line, modem configuration, 408
NetBIOS, 523
CD-ROM
broken links, 261
adding drives, 307
BTLDs
bootable, 28
installing, 32
High Sierra, 307
using, 284
installing, 307
using after installation, 286
ISO 9660,307
using at initial installation, 284
Rock Ridge, 307
buffers, boot display, 297
specifying IDE, 283
bus, cards, 295-296
Certificate of License and Authenticity
bus mouse, installation, 26
(COLA), 89, 91, 98
bus numbers, PCI, 508
cfg file, 260
buttons changing, installation serial number, 49
character, 148
onscreen, 123
551
character
character COM ports (continued)

bu ttons, 148 modem use, 407, 412
classification table, 224 printers, 400
compose sequences, 234 command line options, scosession, 208
dead key sequences, 234 commands, 140
device mapping, 230 line, 120
function key mapping, 235 prompt, 120
input codeset translation, 233 compatibility, determining hardware, 274
input mapping, 232 components
mapping table, 232 introduced, 73
mode, 147 relocating, 39
SCOadmin, 143, 144, 146, 147 compose sequences, 234
sets, 223, 226, 235 computer, setting up, 162, 163
CHARM environment variable, 144 config.h file, 260
checking configuration, parameters, 503
filesystem,l71 configuration disk (EISA), 297
security, 175 configuration settings, saved in
software, 77 / usr / lib / grafinfo / grafdev, 365
software on remote machines, 79 configure -x command, 260
Checking protected password and configure(ADM),61
protected subsystems databases, message, configuring
175, 177 command,61
Checking tcb, message, 175 devices during installation, 276
Checking ttys database, 1,llessage, 175, 178 drivers, network adapter, 487
chmodsugid, at( C), 266 EISA adapters, 486, 490
circuit boards, 295 e-mail,479
cleaning, filesystem, 171 gateway, 25
clicking, 123 graphics adapters, 355
client, running on X terminal, 220 hard disks, 324, 324-325
clock, 94 hardware, 271
setting at startup, 173 Internet services, 453, 463
setting during operation, 174 IP address, 513
setting time zone, 174 IPX/SPX, 518
clocks, interrupt vectors, 504 ISA adapters, 486, 490
CMOS RAM, battery failure, 336 LAN Manager Client, 524
cmos(ADM), 83 mail,34, 479
cm_vteld process, 156 MCA adapters, 486, 490
codesets modems, 414
console, 228 monitors, 355
internal system, 228, 230 name server (DNS), 25
introduced, 228 NetBIOS, 523
selecting, 228 Netscape servers, 467
translating files between, 229 Netscape servers, manually, 469
COLA. See Certificate of License and network adapter drivers, 485, 487
Authenticity (COLA) network adapters, 455, 489
collating sequence, 224 network card, 24
COMports network connection, 455
cabling, 407 network interfaces, 481
COM3 and COM4, 367 networks, 32, 483, 485
interrupt conflicts, 407 parallel ports, 376
interrupts, 368, 423 PCI adapters, 485,490

Data
configuring (continued) crash(ADM), 194, 262

rCMCIA adapters, 486, 490 troubleshooting STREAMS resources, 264
Plug & Play adapters, 486 creating
Plug and Play devices, 311-321 backups, 34
PPP, 489 character mapping table, 232
print service, 401 emergency boot floppy disk set, 35
printers, 401 file systems, 334
protocols, 492 .startxrc file, 203
SCSI tape drives, 348 cron may not be running, error message,
serial connections, 489,512 265
serial ports, 368 cron(C)
SLIP, 489 daemon, 265
TCP /IP, 467, 512 troub leshooting, 265-266
video adapter driver, 355 CS8, example, 436
virtualdomains,SYSTEM-WIDE, 475 ct bootstring, 280
WAN connections, 489,512 CTC Versanet serial adapters, 527
Connect failed: NO DEVICES AVAILABLE, CTS (Clear To Send), 401
425 cu: dir permission denied, 421
connecting, modem, 534 cu(C)
connectors omessage, 421
AUI,506 dialing out, 423
BNC, 506 OK message, 421, 422
RJ-45,506 testing a modem, 421
console troubleshooting modems, 424
codeset, 228 currency format, 224
messages log, 260 custom(ADM), 69, 186, 261
multiscreens, resetting system parame- customextract(ADM), 97
ters,61 Customize hard disk setup, 42
obscure messages, 265 cylinders
serial consoles, 441 1024, BIOS limitation, 335, 337
contacting SCO Technical Publications, 9 converting, 104
control keys, 140 greater than 1024, 63
c, stop scrolling, 196
q, unlock keyboard, 196
controllers D
floppy disk, interrupt vectors, 504
D: drive, 112
hard disk, 323
daemons
interrupt vectors, 504
Irwin drive (mcdaemon), 354
IDE,338
power management, 291
SCSI tape, 348
PPP, 461
coprocessor
DAT, initialization, 353
check,539
data, bit settings, modem problems, 426,
floating point, 299
430
core file, creating, 141
data bits, 432
Corollary, high memory, 298
Data Communications Equipment
cpio(C),85
modem configuration, 407
cpS(ADM), 177,261
printing configuration, 401
crus, licensing, 90
data compression, modems, 428
Data rate, 507
Data Set Ready, 432
553
Data
Data Terminal Equipment, 401 devices (continued)

computer serial configuration, 407 modem errors, 407
printing configuration, 401 names, hard disk, 106
Data Terminal Ready, 398, 432, 535 none available, 425
auto-answer modem, 408 serial card, 368
modem problems, 427, 428 Devices file, modems, 413
serial printer, 398 devices file, write permissions, 421
data transfer, conflicts with VGA, 64 / dev / ramfs: cannot open, message, 82
databases / dev / rctO: cannot open, message, 352
component, 77 / dev / string / cfg, 260
product, 77 diagnostic messages, hardware self-check,
date, setting, 173, 174 57
date(C),94 dialer programs
dead key sequences, 234 binaries, 416
default Dialers file, 415
configuration, 38 using, 414
files, 150 dial-in, modem, 413, 429
NetBIOS, 523, 524 dialing out, syntax, 423
tape drive dialog boxes, using, 123
changing, 349 Digiboard serial adapters, 528
default route, basic configuration, 25 DIP switches, 296
DEFBOOTSTR, 276 setting on modem, 407
boot option, 183 direct line, 413, 421
defective Direct Memory Access. See DMA, 283
blocks, 331 directories
tracks, 331 managing, 160
delete key, 140 missing, 49
deleting mail messages, 132 size, 161
dependent software, 75 user-created,49
Desktop disable( C), 441
exiting, 121 modem use, 412
problems exiting, 205 disabling
starting, 121 drivers, 282
starting after installation, 33 Plug and Play devices, 316
stopping, 121 port, 398, 433
/ dev / cmos, 83 scologin, 211
development system, upgrading, 48 disk usage, 38, 165
/ dev /hdOa, UNIX device name, 106 disks. See CD-ROM; floppy disks; hard
device drivers, configuring, 286, 288 disks
DEVICE LOCKED, 426 display
device numbers, PCI, 508 console, 141
devices DISPLAY environment variable, 202, 208
configuring, 276 managing multiple, 211, 212, 216
dialout modem problems, 425 managing multiple with Xservers, 214
DOS, 109 XO.hosts through X7.hosts files, 216
DOS, troubleshooting, 265 DISPLAY environment variable, 200, 202,
interrupts. See interrupt vectors 208
mapping, 230 display manager, See scologin display man-
ager
displaypkg command, 261

emergency
division drivers
hard disk, 333 See also device drivers
maximum size of, 334 bitpad,394
divvy(ADM), 333-334 checking configuration, 63
DIX cable, 506 list of installed, 260
dkinit(ADM), 328 mouse, 389
DMA network adapter, 483
channels configuring, 487
determining usage, 487 non-SCO,19
hardware problems, 62 vendor-supplied, 368
network adapters, 503 DTE. See Data Terminal Equipment
tape drive conflict, 350, 351 DTFS,l71
limitations, 283 DTR. See Data Terminal Ready
DNS duplex, 432
and virtual domain name, 478 dynamic file (scosession), 206
caching, 463
documentation
manuals,4,12 E
online, 4, 12
echo problems
your suggestions, 9
modem, 427
domain name, TCP lIP, 516 terminal, fixing, 448
Domain Name Service. See DNS
echoe parameter, 439
DOS
editing
accessing hardware, 62 command line, 140, 141
adding devices for a second disk, 114
vi, 160
and SCO systems, 101
EDITOR environment variable, 150
booting from a floppy disk, 108
editors, changing, 150
debug format command, 64
education, 15
defining device names, 112
EGA adapter, 56
devices, 114
EIDE, root disk, 340
does not work, 60
EIDE CD-ROM, 307
files, managing, 111
80387 math coprocessor, 299
filesystems, mounting, 113
EISA
hard disk devices, 109
adapters, configuring, 486,490
installing UNIX partition, 109 configuration disk, 297
mounting, 113 eisa(ADM), 182
partitions, 60, 63, 64
installing, 310
booting, 107 slot(ADM), 182
creating and formatting, 102
electronic mail, 129
removing, 111
e-mail,463
removing from hard disk, 111
configuring, 479
starting, 106 Netscape, 470
utilities, 111-113
using, 129
with two hard disks, 110
emergency boot floppy disk set, 185
doscmd( C), 111
adding files, 84
DOS-Debug, 104
creating, 35, 81
double-clicking, 123
reading backups, 84
dragging and dropping, 123 restoring root filesystem, 250
drive A:, using with doscmd(C), 112 restoring system files, 188-190, 192-195
testing, 84
555
enab/e(C)
enable(C) error messages (continued)

modem ports, 424 PANIC:
ports, 432 memory parity error, 298
enter key, 140 Parity error address unknown, 299
Enter new time Parity error at address Oxxxxxx, 299
([[CC]YYMMDD]hhmm[.ss]): message, system not licensed, 60
173 Terminal is disabled -- see Account
ENTER RUN LEVEL (0-6,s or S):, 192 Administrator, 448
env(C),440 unregistered software, 60
environment variable, 162 wd: ERROR on fixed disk ...,341
DISPLAY, 200, 202, 208 Error on fixed disk, message, 112
EDITOR,150 Error: request outside range of BIOS (1023
HOME, 200, 208 cylinders), message, 337
LANG, 200, 208 escape key, 140
PATH, 200, 202, 208 escape sequences, mapping, 233
erase key, 141 ESDI
error correction, modems, 428 disks, restoring BIOS information, 336
error messages, 55, 58, 60 root disk, 340
Cannot allocate buffer, 354 /etc/authckrc: Log in on the OVERRIDE
cannot open, 308 tty and restore, 177
Cannot open: device busy, 407 /etc/auth/system/authorize, 176, 187
Cannot open / dev / rctO, 351 /etc/ auth/ system/ default, 176, 187
checking, 259 /etc/auth/system/devassign, 176, 187
Connect failed: NO DEVICES AVAILABLE, /etc/ auth/ system/ files, 176, 187
425 /etc/ auth/ system/ gr_id_map, 177
cu: dir permission denied, 421 /etc/ auth/ system/pw_id_map, 177
DEVICE LOCKED, 426 /etc/bcheckrc, 193
/dev /rctO: cannot open, 352 /etc/ conf/ cf.d/ config.h, 260
Error: request outside range of BIOS (1023 / etc / conf / cf.d / configure -x, 260
cylinders),337 /etc/ conf/init.d/ sio, 413, 429, 433, 443
/etc/conf/packd/ct/space.c line 46 bad /etc/ conf/ packd/ ct/ space.c line 46 bad
octal digit, 351 octal digit, 351
EXECDIAL LOCAL FAILURE, 418 /etc/conf/packd/nvt/nvctune.h,518
FATAL: / etc / custom, 261
parity error on add-on card, 299 / etc / default, 111, 150, 182
parity error on the motherboard, 299 / etc / default / accounts, 187
Garbage or loose cable ... port shut down, /etc/ default/boot, 441
428 / etc/ default/ mcconfig, 346
ir: ERROR: Tape controller .,. not found, / etc / default / msdos, 112
354 /etc/emulator, 190
NO DEVICES AVAILABLE, 425 / etc / gettydefs, 371, 429
Not enough space, 354 line-mode label, 433
NOTICE: /etc/ group, 176, 186, 187
ct: Tape controller ... not found, 350 restoring, 186
Sdsk: Unrecoverable error reading ..., /etc/hdOboot, 188
341 /etc/hd1boot, 188
Stp: Stp_call_oemtab - Inquiry failed /etc/ifor_pmd,96
on SCSI ..., 352 / etc/ init, 195
Open event driver failed, 391 / etc / initscript: /bin / sulogin: not found,
193

filesystems
/ etc / initscript: / etc /bcheckrc: not found, exiting

193 Desktop, 121
/etc/inittab, 413,429,432 shell, 141
cannot open, 192 expanding, system, 162
editing, 413, 429 expansion
recreating, 192 cards,368,376
setting line modes in, 371 slots, 296
setting line speeds in, 429 expired license, 94
setting up scancode mode, 443 export example, 439
terminal lines, 432 extended length mode, 347
/etc/ipx.d/NPSConfig, 518
/ etc / masterboot, 188
/etc/passwd, 176, 186, 187 F
restoring, 186
failures, system, 247
/ etc / rc* scripts, 172
fast fsck, 171
/ etc / rc2.d scripts, starting cron daemon,
FastTrack Server, Netscape, 464
265
FATAL:
/ etc / smmck: restore missing files from
parity error on add-on card, 299
backup or distribution, 176
parity error on the motherboard, 299
/ etc / sysdef, 260
fdisk(ADM), 105
/ etc / tcbck: either slash (/) is missing from
main menu, 105
/etc/ auth/ system/ files ..., 176
partition, 105, 106, 111
/ etc / tcbck: file file is missing or zero
partitioning a hard disk, 330
length, 176, 177
switching operating systems, 108
/etc/termcap, 439
File Transfer Protocol (FTP), 471
/ etc / ttytype, 440
files
/etc/utmp, 194
archiving, 161
/etc/utmpx, 194
checking, 77
/ etc/wtmp, 194
correcting permissions, 261
Ethernet
corruption, 175-177
cable
installing, 72
thick,506
listing, 76, 77
thin, 506
managing, 160
twisted-pair, 506
missing, 49
framing types, 519
printing, 160
media speed, 508
restoring, 72, 178, 185
SNAP, 520
scologin configuration, 201, 202, 210, 215
Ethernet II, framing type, 520
scosession configuration, 205,206,207
Euro currency symbol, 244-247
server configuration, 203
evaluation license, 94
transfer, 463
event log, 158
upgrading, 43
adding events, 159
user-created, 49
event types, 159
file systems
format, 158
See also files
Event Logs Manager, 159
cleaning, 171
Exabyte 8mm, initialization, 353
corruption, 175-177
examining software packages, 75-77
creating, 333-334
EXECDIAL LOCAL FAILURE, 418
creating additional on hard disk, 34
creating divisions, 333
defining mount information, 39
557
fixmog
filesystems (continued) full-duplex mode, 507

fast fsck, 171 function keys
floppy disk types, 82 attaching graphics adapters to, 364
intent logging, 171 mapping, 235
maximum size of, 334 function numbers, PCI, 508
mkdev fs, 39
planning, 161
relocating components, 39 G
restoring root, 250
Garbage or loose cable ... port shut down,
size, 161
428
troubleshooting, 190
gateway, basic configuration, 25
fixmog command, 261
gateways
fixperm(ADM), 78
status, 517
floating point coprocessor, 299
TCP /IP, 517
floating-point emulator, cannot add, 190
Token-Ring, 510
floating-point unit (FPU), 182
getting help, 127
floppy disks
gettydefs, speeds above 9600bps, 433
boot, 29, 185
getty(M)
booting, 188
-c option, 437
DOS from disk, 108
default terminal line characteristics, 436
error while reading, 55
process, 432
filesystem, 82
grafmon file, 365
testing drive, 54
graphical displays, corrupted, 264
Floppy Manager, 82
Graphical Environment, customizing, 199
floptical drives
graphical mode, 144
adding, 309
problems exiting, 205
installing, 309
graphics adapters
fmtclock(TCL),95
See also video
Fork failed ... Resource temporarily
configuring, 355
unavailable, 194
configuring function keys, 364
formatting
grafdev file, 365
DOS partitions, 63, 64, 102
network adapter conflicts, 497
hard disks, 342
selecting, 361
low-level, 64
understanding SCO configuration, 355
tapes, 354
unsupported, 366
framing types
grey-scale monitors, special X server
IPX/SPX, 519
problems, 204
IPX/SPX
gr_id_map, 177
802.3,520
grounding yourself, 295
802.3 with 802.2 headers, 519
Ethernet II, 520
Ethernet SNAP, 520
Token-Ring, 521,522
H
Token-Ring SNAP, 521 haltsys(ADM), 179, 180
Fresh installation, 31, 36, 38 hard disks
fsck(ADM), 83, 171 adding, 34, 323
boot option, 171 adding secondary, 324
checking hard disk problems, 250 bad blocks, 331
restoring root filesystem, 250 bad track table, 341
fsstat: root filesystem needs checking, 171 bad tracks, 331
FTP,463,471 configuring, 324, 325

hung
hard disks (continued) hardware (continued)

controllers, 323 does not work, 59
creating divisions, 333 flow control, 401
cylinders, 104 issues, 163
defects, 331 self-check, 57
device drivers, 323 troubleshooting problems, 62
device names, 106 under DOS, 62
DOS, 110 hardware failures
driver configuration, 281 non-functional terminal, 446
ESDI,336 system does not boot, 55
fdisk(ADM), 105 tape controller card, 350
formatting, 104,342 terminal, hung, 447
greater than 1024 cylinders, 63, 335, 337 Hardware/Kernel Manager, 61, 287
IDE, 336, 338 configuring drivers, 286
installing, 324, 327 relinking kernel, 286
interleave, 341 starting, 287
limitations of BIOS, 335 tuning kernel parameters, 287
low-level format, 64 Hayes (and compatible) modem
non-primary, 45 configuring, 535
nonstandard, 329 Hayes Smartmodem
overriding BIOS information, 336 1200 or compatible, 533
parameters, 329 2400, V-series 9600,534
partially formatted, 275 switch settings, 533-534
partitions, 105-106, 109, 111,330 hdOboot, 188
creating additional, 34 hd1boot, 188
table, 106 help
second,45 browsing, 127
setting maximum number of, 324 button, 123
setup from SCO Support, 264
Customize option, 42 getting character help, 128
Defer option, 45 Internet Manager, 464
Interactive fdisk/ divvy option, 41 moving in character help, 128
Preserve option, 38,40,45 point, 146
Use whole disk for UNIX, 42 PPP connection, 461
size, 328 starting, 127
switch settings, 325 system problems, 247
tracks, 104, 105 topic navigation in character help, 128
troubleshooting, 191,340 using related topics, 128
upgrading, 45 ways of getting, 127
writing masterboot block, 337 hierarchy, 73
hardware high memory, Corollary, 298
address, 507 High Sierra, CD-ROM format, 307
configuration, 62, 63, 65, 271 home,serve~465
devices HOME environment variable, 200, 208
displaying, 181-182 host adapter number, SCSI tape drive, 353
errors after adding, 260 host adapters, 303-310, 325
SCSI configuration, 281
host name, 515
NetBIOS, 523
hung process, 161
hung system, NFS server stopped, 265
559
HUP
HUP signal, 155 installation (continued)

HUPCL,436 init, 32, 33
hwconfig( C}, 182, 391, 400 Interactive option, 41
command, 261, 487 Internet services components, 33
configuration, 63 memory, 297
modems, 405-408, 432, 535
monochrome cards, 376
I mouse, 26, 387-389
multiport cards, 368, 368-372
IBM, external floppy, support, 301
multiuser mode, 33
IBM437 character set, 234, 235
Netscape Web server, 465
icons
network card, 24
dragging and dropping, 123
on EISA systems, 310
types, 126
over the network, 72
using, 126
planning system, 162
iconv(C}, 229
Plug and Play devices, 313
10 number, SCSI tape drive, 353
printers, 397
IDE, CD-ROM, specifying, 283
problems, 54,55,56,57
IDE
responding to prompts, 27
drives and controllers, 323, 338
restarting, 27
restoring BIOS information, 336
root password, 31
root disk, 340
SCO systems, 19,29
IDE CD-ROM, 307
single-user mode, 32
idmkenv(ADM),192
software, 72, 73
ifor_pmd. pid, 97
starting Desktop, 33
initialization letters, 539
stopping, 27
init(M)
superuser password, 31
boot problems, 192, 195
tape drives, 344
INIT: Cannot open /etc/inittab, 192
terminals, 432-433
INIT: SINGLE USER MODE, 32, 172
troubleshooting, 53
INITSH: /etc/bcheckrc not found, 193
types
inittab. See /etc/inittab
Fresh option, 31,36,38
inodes,61
Upgrade option, 37,45
installation
UNIX partition on DOS, 109
adding hard disks, 34, 324, 327, 337
upgrading, 21
adding users, 34
upgrading SCO systems, 19
additional software, 32
Use whole disk for UNIX,42
bitpads, 394
installed software
BTLDs,32
listing, 76
bus cards, 295-296, 368, 368-372, 376
viewing, 76
cable connections, 432
installpkg(ADM}, installing BTLDs, 286
CD-ROM drives, 307
instbb(ADM), 188
checklist for SCo systems, 20
INT signal, 155
COM ports, 372
intelligent serial adapter, 400
configuring devices during, 276
intent logging, 171
configuring mail system, 34
Interactive disk setup, 105
configuring networks, 32
interleave for hard disks, 341
creating backup, 34
internal memory, adding, 297
Customize option, 42
internal modems, 407, 412
emergency boot floppy disk set, 185
internal network number, IPX/SPX, 518,519
floptical drives, 309
internal system codeset, 228, 230

IS08859-1
International Settings Manager, 221 IP address, 513

Internet See also Internet Protocol address
See also Internet Manager NetBIOS, 523
interface, locking and unlocking, 480 server, Netscape default, 465
modem connection, 456 IPCCT_pipe,97
PPP connection, 456 IPX/SPX
services adding new servers, 518
configuring, 453, 463 configuring, 518
main menu, 463 framing types, 519
network adapters, 455 802.3,520
Internet Manager 802.3 with 802.2 headers, 519
passwords, 464, 472 Ethernet II, 520
remote access and security, 472 Ethernet SNAP, 520
security, 472 Token-Ring, 521, 522
starting, 454 Token-Ring SNAP, 521
remotely, 454 internal network number, 518, 519
Internet Protocol address, 513 LAN segment number, 519
configuration, 513 LLI drivers, 499
Internet Service Provider, 456 NetWare server
Internet services, installing components, 33 native, 522
interrupt key, 140 portable, 522
interrupt trigger level, changing, 370 network number, 519
interrupt vectors node number,519
boot display, 181 numbering conventions, 518
clocks, 504 NVT login banner file, 522
COM ports, 367, 368, 423 NVT logins, 518
conflicts routers, 519
graphics and network adapters, 497 SAP reply delay, 522
network adapters, 495, 504 SAPD,522
PCI/ISA bus machines, 296 Token-Ring
tape drives, 350, 351 source routing, 522
determining usage, 487 ir: ERROR: Tape controller ... not found,
floppy disk controllers, 504 message, 354
hard disk controllers, 504 IRQ (physical interrupt). See interrupt
hardware problems, 62 vectors
interrupt 2 inconsistencies, 497 Irwin
keyboards, 504 mcconfig, 346
mouse,389 mcdaemon, 354
network adapters, 504 tape drive, 353
network card, suggested value, 63 backups, 354
parallel ports, 398, 504 ISA
printers, 401 adapters
serial ports, 504 configuring, 486, 490
tape drives, 345 installation conflicts, 486
typical settings, 275 troub Ie shooting
invoking programs, users, 160 interrupt 2 inconsistencies, 497
1/ 0 base address mixing 16-bit with 8-bit adapters, 497
conflicts, network adapters, 495 ISA PnP Configuration Manager, 311-321
determining usage, 487 ISO 9660, CD-ROM format, 307
network adapters, 505 IS08859-1 character set, 225, 226, 228, 234,
235
561
1808859-1
IS08859-1 character set, 244-246 Korn shell

IS08859-15 character set, 244-246 .profile,440
ISP,456 TERM assignment, 439
J L
jumper settings LAN (Local Area Network), 120,484
bus card, 296 planning, 163
tape drives, 353, 354 segment number
IPX!SPX,519
LAN Manager
K Client
configuring, 524
kernel, 61
transport connections, 524
backing up, 197
LANG environment variable, 200, 208
bitpad driver, 394
languages, specifying, 221, 223
booting from alternate kernel files, 189
Idsysdump(ADM), 262
branding, 49
License Manager, 87, 88
environment, 192
fails to boot, 32, 184
License Policy Manager Daemon
initialization, 539
(ifocpmd) was unable to start, 94
keyboard lockup patch, 197
licenses
mouse driver, 389
parameters
See also License Manager
additional, 13
current values, 260
additional users, 90
tuning, 287
privileges, 266 Certificate of License and Authenticity
(COLA), 98
relinking, 286, 290, 395
checking expiration, 95
startup letters, 539
CPUs,90
unix. safe, 32
expired, 94
Kernel: i/o bufs, message, 195
in use, displaying, 93
keyboards
License Code, 13,89
console, 197
License Data, 13, 89
end input, 141
License Number, 13, 89
installing mouse, 388
no user licenses found, 95,98
not accepted, 93
lockup, 195-197,267
out of streams, 99
setting, 226
policy manager problems, 96
substituting mouse movements, 393
policy manager terminated, 94
test with modem, 422
products, 87, 89
type, 197
Registration Key, 14, 91
UNIX keystrokes, 140
software, 72
XT, non-AT, 197
system not licensed error, 60
keystrokes, 140
terminology, 13
kill key, 140, 141
KILL signal, 155
kill(C), 161 unregistered software messages, 60
Licensing Policy Manager Daemon
killing SCOadmin process, 156
(ifor_pmd) has terminated, 94
line modes, setting in / etc / inittab, 371

mapping
line speed Logical Unit Number, LUN, 304, 353

modem problems, 425 login
setting in / etc /inittab, 429 banner file, NVT, 522
UART limitations, 370 disabling on serial port, 372
line-mode labels, 371, 433 enabling on serial port, 372
Link Level Interface (LLI). See LLI drivers ending session, 141
link_unix, 290,395 instructions, 121
listing login name, 121
patches, 75-77 multiscreen, 142
software packages, 75-77 procedure, 160
software to be installed, 77 prompt, 180
LLI drivers restoring, 191
backward compatibility, 499 security, 160
framing types, 499 system boot, 172
IPX / SPX, 499 troubleshooting, 191, 446
MOl compatibility, 499 LOGIN: ERROR- Failed to initialize policy
MOl functionality not available, 499 manager.(IFOR_PM_FATAL),96
multiple protocol stacks, 499 loop, process in, 267
NetBEU1, 499 low-level format, 104
OSl,499 IpO, 398
TCPIIP, 499 LST_pipe,97
three-protocol stacks, 500
two-protocol stacks, 500
loading M
operating system, 170
MAC address, 507, 513
software, 73
MAC Driver Interface (MOl). See MOl drivers
Local Area Network. See LAN (Local Area
mail
Network)
configuring, 479
local printers, adding, 34
configuring mail system, 34
local rings, Token-Ring, 510
deleting messages, 132
locales
etiquette, 161
administering, 221
Netscape, 463,470
introduced, 222
replying, 131
mail,226
restoring messages, 132
POSIX,225
saving messages, 132
regular expressions, 225
sending, 130
setting for users, 224
translating between locales, 226
settings, 224
using, 129
specifying, 221
Mailbox window, 129
system default, 223
maintenance mode, installation, 32
translating files between, 229
manual pages, 4
location of this system, TCP lIP, 517
mapchan(F), 230, 233, 234
lock file, modem problems, 426
mapchan(M), 229, 230, 232
locked
mapping
See also keyboards
compose sequences, 234
keyboard,195-197
dead key sequences, 234
terminals, 448
devices, 230
log book, 139, 164
function keys, 235
logging out, from the Desktop, 121
input characters, 232
logging SCOadmin events, 158
output escape sequences, 233
logging system events, 159
563
mapsfr(M)
mapstr(M), 444 mice. See mouse

masterboot, 188 Microsoft Windows. See Windows
masterboot block, writing new, 337 minimum matches, in scoadmin(ADM), 144
MAX_DISK parameter, adjusting, 324 mirrored root disk, 85
maximum missing
NetBIOS /etc/group, 176, 186
IP datagram size, 524 /etc/passwd, 176, 186
names per user, 524 files, 49
pending commands per user, 524 mkdev(ADM)
sessions per user, 524 adding device, 305
MCA bitpad, 394, 394
adapters, configuring, 486, 490 cdrom, 308
reference diskette, 297 flopti,309
mcconfig (Irwin), 346 fs, 39, 334
me daemon process, 354 hd, 326, 327
MDI drivers mouse, 389,389, 391
backward compatibility, 499 parallel, 376
LLI compatibility, 499 tape, 344
Media, type. See cabling, type mknod(C), 114
media MNP4,428
administering, 163 mode
available, 12 changing, 140
speed,508 single-user, 172-179
Media Access Control (MAC), 507 system maintenance, 172
mem bootstring, 283 Modem Manager, 408
memory modems, 405, 533-535
adding, 297 adding, 408
cache, 63 adding manually, 410
enabling/ disabling, 283 answering
Corollary high memory, 298 disabling, 411
defining available, 283 enabling, 411
DMA limitations, 283 auto-answer, 408
dump, 262 autodial support, 405
installing, 297-298 cabling
limiting, 283 pin connections, 407
limits, 283 unterminated wire problem, 407
sizing, 283 checking / etc / gettydefs, 371, 429
memory maps cached, not allowed for checking line speed, 425
intelligent serial cards, 265 configuring, 409
memory-mapped peripherals, configuring non-supported, 412
troubleshooting, 265 configuring UUCP, 414
menus connection to Internet, 456
bar, 125 data compression, 428
using, 125 detecting automatically, 409
Merge, 101 dialers, 414
messages dial-in, 424
file, 260, 400 dialing configuration, 534
messages(M), 259 dial-out, 423
on console, many obscure, 265 DIP switches, setting, 407
PANIC, 259 editing /etc/inittab, 413,429
error correction, 428

Netscape
modems (continued) mouse (continued)

FAX detection, 418 double-click, 123
Hayes (and compatible), 533-534 drag-and-drop, 123
incompatible, 428 installing, 387-389, 392
installing, 405-408 keyboard,388
modifying, 411 multi screen, 389
null modem, 407 problems, 391
planning, 164 PS/2. See mouse, keyboard
port, moving, 411 removing, 391
removing, 411 serial,388
removing lock file, 426 installation, 26
replacing, 411 Logitech,531
setting mode, 418 setting up, 32
speed, changing, 410, 411 sharing, 393
speed conversion, 418 slow response, 395
switch settings, 534 testing, 390-391
Telebit Trailblazer, 535 tty,393
testing, 421 using, 123, 392-393
testing phone line, 425 multi-function cards, 372
troubleshooting, 424-430 multiple servers, 61
tty identification, 372 multiport adapter, 368, 400, 406
UUCP use, 412 multiscreens, 141
volume, 535 bitpad,394
monitors diagnosing keyboard lockup, 196
adding, 361, 363 example, 141
changing, 362 mouse, 389, 392
configuring, 355, 361, 363 resetting system parameters, 61
grafmon file, 365 multiuser mode, 172
selecting, 361, 363 cannot enter, 192
selecting resolution for, 361, 363 installation, 33
monochrome cards, 398 no login on console, 197
monochrome monitors, special X server mv: cannot access /tmp/DKINIT21. ..,
problems, 204 message,250
motherboard, 368
switch settings, 368
mount(ADM), 113 N
boot floppy disk, 189
name server, basic configuration, 25
hard disk root filesystem, 191
native NetWare server, 522
/ stand, 188, 189
NBUF parameter, 297
mouse, 387
ndstat(ADM), 498
bus, 387, 389
NetBEUI, LLI drivers, 499
cards, 391
NetBIOs, configuring, 523, 524
installing, 26, 389
netmask, 459, 514
Logitech,531
Netscape
Microsoft, 531
FastTrack Server, 464
Olivetti, 531
home page, 466
specific information, 531
mail,463,470
buttons, 123
Proxy Server, 464,466
changing ports, 390
servers
changing resolution, 391
configuring, 467
click,123
565
netstat(TC)
Netscape (continued) not hanging up, modem problems, 426

servers (continued) NOTICE:
configuring, manually, 469 ct: Tape controller ... not found, message,
document root, 466 350
password, admin utilities, 472 Sdsk: Unrecoverable error reading ...,
performance, 469 message, 341
Web server Stp: Stp_calCoemtab - Inquiry failed on
installing, 465 SCSI ..., message, 352
netstat(TC), 498 NT. See Windows
troubleshooting STREAMS resources, 264 null modem, 407, 432
network number format, 225
accessing, 455 numbering conventions, IPX/SPX, 518
configuring, 485 NVT login banner file, IPX/SPX, 522
concepts, 483 NVT_MAX_LOGINS, 518
interfaces, 481 nvt_max_Iogins, 518
connection, configuring, 455
defined,120
planning, 163
routing, 471
o
.odtpref directory, 206
troubleshooting, 264, 494, 495, 496, 497,
OK button, 123
498
OK message, cu(C), 421,422
network adapters
Olivetti
adding, 489
serial adapters, 528
configuring, 455, 489
tape drive jumper settings, 351
drivers, 485, 487
onscreen buttons, 123
during installation, 24
Open event driver failed, 391
conflict with video card, 63
operating system
DMA channels, 503
See also system, 179
drivers, introduced, 483
loading, 170
graphics adapter conflicts, 497
reinstalling, 186
interrupt 2 inconsistencies, 497
operation modes, 172
II a base address, 505
loptIK/SCO, 96
mixing 16-bit with 8-bit adapters, 497
Orange Book, 142
modifying, 489
OS/2,102
removing, 490,494
removing from hard disk, 111
searching, 491
OSI, LLI drivers, 499
Network Configuration Manager, 482
out of streams error message, 61
starting, 482
network number, IPX/SPX, 519
NFS, effect on other systems, 265 p
No more processes, 267
NO OS, 188 packages, introduced, 73
no response to keyboard input, 195 panics, 253
No user licenses were found on this ma- PANIC messages, 259
chine, 94, 95 PANIC: iinit error message, 58
no utmp entry. You must log in from PANIC: memory parity error, 298
lowestlevel-sh,194 PANIC: Parity error address unknown,
node number, IPX/SPX, 519 299
nonstandard disks, 329 PANIC: Parity error at address Oxxxxxx,
normal operation, 172, 179 299
Not enough space, 354

powering
panics (continued) PCI,508

reboot, 183 adapters, configuring, 485, 490
recovering from, 254 bus
PAP/CHAP authentication, 459 interrupt conflict, 296
parallel ports numbers, 508
adding, 376 setup program, 297
configuring, 398 device, numbers, 508
interrupt vectors, 504 function
printer, 398, 398-400 numbers, 508
parameters PCMCIA adapters, configuring, 486, 490
echoe, 439 performance, Netscape servers, 469
hard disks, 329 permissions
RAM correcting for files, 261
battery failure, 336 serial port, 412
parcels, introduced, 74 phone line
parity,432 checking for noise, 426
error, 298 modem problems, 425
values, modem problems, 426, 430 pin connections
partition boot blocks, 188 modems,407
partitions serial printer, 399
booting, 107 serial terminals, 432
DOS, 63, 64, 102 Plug & Play adapters, configuring, 486
mounting, 113 Plug and Play devices
hard disks, 330 configuring, 311-321
assigning, 106 disabling, 316
DOS, 110 physically installing, 313
installing UNIX on DOS machines, 109 troub leshooting, 318-319
removing, 111 /pmd directory, 97
maximum size of, 330 PMDCT_pipe, 97
OS/2,102 point help, 146
table, 106 policy manager, restarting, 97
Windows, 102 policy manager daemon, 94, 96
passwords explained,94
administration, Netscape, 466 POP
entering, 121 account, 463
Internet Manager, 464, 472 server, 470
Netscape servers, admin utilities, 472 portable NetWare server, 522
root, 180 ports
superuser, 140 changing for mouse, 390
user generating, 160 parallel, 376, 398
patches printer, 398, 398-400
applying, 72 serial, 368, 406, 412
installing, 72, 73 settings changed with stty{ C), 437
introduced, 80 Post Office Protocol. See POP
listing, 75-77 power failures, 182,253,256
loading, 73 power management
managing, 80 control shell, 291
removing, 74 daemon, 291
patch-products, introduced, 80 state, 292
PATH environment variable, 200, 202, 208 power supply, 163
powering on, 170
567
ppp
PPP, configuring, 489 protocols

PPP adding, 492
connection communication, 484
inbound, 459 configuring, 492
outbound, 457 DEC-Net, 507
to Internet, 456 modifying, 492
troubleshooting, 461 multiple stacks with LLI drivers, 499
daemon, 461 removing configuration, 493
Preserve installation, 38, 40, 45 viewing configuration, 492
primary / alternate adapters, Token-Ring, Proxy Server, Netscape, 464,466
509 ps(C),161
printers pseudo-mouse driver, 393
adding, 397 pw_id_map, 177
configuring, 401, 401 pwrd(ADM), PM daemon, 291
files, 160 pwrsh(ADM)
installing, 34, 164 state command, 292
locating, 164 status command, 292
serial,401 using, 291
problem description worksheet, 65
problems
See also error messages Q
common, 264-265
QIC-02 tape drives
installation, 62
base address, 345
Internet Manager, 464
boot time configuration, 279
PPP connection, 461
DMA channel, 345
preventing, 248
installing, 345
Process Manager, 151-155
processes
ISA and EISA controller type, 345
attributes, 152
MC controller type, 346
finding, 154
QIC-40/80 tape drives
in loop, 267
backups, 354
killing, 154, 161
described, 347
Netscape servers, 466
Quadram serial adapters, 529
priority, 154
quitting
removing, 161
Desktop, 121
runaway, 161
login session, 141
signalling, 154
troubleshooting, 267
viewing, 151
products
R
additional, 13 RAM
introduced,73 base address, 509
licensing, 87, 89 base address, conflicts, 495
registering, 87, 90 buffer size, 509
removing licenses, 90 minimum and recommended, 55
.profile, 440 Random Access Memory (RAM). See RAM
program, simultaneous execution, 141 Read Only Memory (ROM). See ROM
prompts reboot. See booting
command line, 120 receive buffer, changing size of, 372
installation responses, 27 receive buffers. See tx/ rx buffers
login, 180 Receive Data, RD,432

SCOadmin
receiving mail, 129 ROM, base address, 509

recovering from problems, 253 root
reference diskette (MCA), 297 See also superuser
reference manual pages, 4 boot, 172
registration file system, 98
not accepted, 93 restoring, 250
products, 87, 90 login, 180
terminology, 13 password,180
Registration Key, 14, 91 installation, 31
regular expressions, locale, 225 root floppy disk
reinstalling, 339 emergency boot floppy disk set, 185, 195
relinking the kernel, 290 restoring / etc / emulator file, 190
relocating software components, 39 restoring / etc / init file, 195
remote, access, and security, 472 root hard disk, 335, 336, 337
removing configuring, 340
mouse, 391 replacing, 339
network adapters, 490 route optimization, Token-Ring, 511
operating system from disk, 111 routers, introduced, 519
product licenses, 90 routing (IP), default routes, 25
protocol configuration, 493 RS-232, printer connection, 401
software, 32, 74 RTS (Request To Send), 401
removing network adapters, 494 runaway process, 267
replacing the root hard disk, 339
reply delay, SAP, 522
replying to mail, 131 5
reset button, 27
safe to power off, 179, 180,298
resolutions, selecting, 361, 363
safety, 163
resource, scologin resource file, 210
SANE, 436
resource database
SAP reply delay, IPX/SPX, 522
loading resources, 207
SAPD, IPX/SPX, 522
removing resources, 207
sar(ADM), 260
RESOURCE_MANAGER property, 207
saving mail messages, 132
resources, insufficient system, 60
scancode terminals, 442
response strings, 225
scanoff(M), 449
restart command, 30
scanon(M), 444, 449
restarting, system, 182
scheduler, problems, 265
restoring
files and packages, 72
seo Merge, 101
SCO Panner, 127
filesystems, 250
SCO Services, 14
from backups, 34
SCO support, contacting with crash dump,
individual files, 186
264
mail messages, 132
SCO System ID, 14, 91
system files, 185-195
SCO systems
user accounts, 43
installation checklist, 20
retaining
installing, 19
system data, 40
SCO Technical Publications, contacting, 9
user data, 39
return key, 140
seo Visual Tel, 145, 156
SCOadmin, Audio Configuration Manager,
ring routing, Token-Ring, 510
380-386
RJ-45 connectors, 506
Rock Ridge, CD-ROM format, 307
569
SeOadmin
SCOadmin scologin display manager (continued)

character buttons, 148 Xreset file, 201, 202
character keys, 147 Xresources file, 210
character mode, 143, 144, 146 Xservers file, 210, 215
command line, 144 Xsession file, 201
scoadmin(AOM), 145 Xstartup file, 201
scoadmin(P), 145 sco_nb connections, 524
desktop mode, 143 scope identifier, NetBIOS, 523
event log, 158 scosession
Event Logs Manager, 159 configuration files, 205, 206
Floppy Manager, 82 configure option, 208
graphical mode, 143 defined, 200, 205
Hardware / Kernel Manager, 286, 287 help option, 208
International Settings Manager, 221 managing sessions, 200, 203
ISA PnP Configuration Manager, 311-321 starting, 207
launcher, 143 stopping, 207, 208
License Manager, 87, 88 screens
minimum matches, 144 blank, 121
Network Configuration Manager, 482 multiple, 141
point help, 146 scroll bars, 125
Process Manager, 151-155 SCSI
refresh, 146 adding secondary host adapter, 303
remote administration, 156 addresses, 304
remote and distributed management, 149 bad block handling, 341
scripts, 145 bootstrings,280
starting, 144 configuring disk, 325
Sysadmsh Legacy, 145 controller 10,304
System Defaults Manager, 150 devices, during installation, 56
System Time Manager, 174 hard disk controllers, 323
toolbar, 146 hard disks
troubleshooting, 156-157 formatting, 275
SCOhelp. See help redefining geometry of, 336
scologin display manager host adapters, 303-310
administration script, 211 configuration, 281
customizing, 210 troubleshooting, 309-310
defined, 199,200 peripherals, boot time, 280
defining sessions, 201 root disk, 340
disabling, 211 tape drive, 347
display problems, 59 recognition, 352
enabling, 211 searching, network adapters, 491
installation, 33 security
managing servers, 199, 200, 210 and remote access, 472
managing X terminals, 211, 217, 218 C2,142
multiple servers, 211, 212 checking, 175
multiple servers with Xservers, 214 database, 175
remote displays, 216 features, 176-177
starting, 211 Internet Manager, 472
startup behavior, 201 level, informing users, 162
stopping, 211 logging in, 160
using XOMCP, 212 profile, 162
Xconfig file, 210 superuser,140

single-user
Security databases are corrupt., message, serial (continued)

176 printers, 398, 398-399, 401
sending mail, 129, 130 pin connections, 399
sendmail, 470 serial(HW), 407
serial Serial Manager, 369
adapters server
adding, 369 default session, 199,202
AMI lamb, 527 document root, Netscape default, 466
Arnet, 527 home, Netscape default, 465
AST,527 IP address, Netscape default, 465
combining, 372 name, Netscape default, 465
configuring, 369 native NetWare, 522
eTe Versanet, 527 Netscape, configuring manually, 469
deleting, 369 Netscape, configuring, 467
Digiboard, 528 POP, 470
installing, 368 port, Netscape default, 465
installing a printer, 400 portable NetWare, 522
multiport, 406 processes, Netscape default, 466
Olivetti, 528 .startxrc file, 203
problems with 8250 UARTs, 377 using scologin, 211, 212
Quadram, 529 video configuration, 355
standard, 368 Service Advertising Protocol daemon. See
Star gate, 529 SAPO
Tandon, 529 services, 14
troubleshooting, 377 setc1ock(ADM), 94
configuring, 489, 512 setenv TERM, 439
consoles, 441 setkey(e),444
line settings
adding terminals, 431 locale, 224
adding terminals. See terminals. switch, 368
connecting, 164 system keyboard, 226
display characteristics, 438 terminal type, 439, 440
settings, standard, 430 setup
terminals, 432 disk,297
mouse program, 297
installation, 26 sh, TERM assignment, 439
setting up, 32 shadow RAM, 63
numbe~change,49 shells
ports Bourne, 440
access error, 368 exiting, 141
adding, 368, 369 Korn,440
choosing, 406 shutdown(ADM), 84, 286
configuring, 369 abnormal, 253
deleting, 369 procedure, 179, 180
disabling logins, 372 Shutdown Manager, 179
enabling logins, 372 Signal Ground, SG, 432
interrupt vectors, 504 signals, 155
multi-function cards, 372 single-user mode, 172
permissions, 412 cannot enter, 193
fixing a bad track, 341
571
sio
single-user mode (continued) starting

installation, 32 Desktop, 121
restoring /unix, 189 DOS, 106
sio file, 413, 429 Graphical Environment, 199
site planning, 162 Internet Manager, remotely, 454
SLIP, configuring, 489 SCOadmin, 144
slot( C), 182 scologin, 211
slots, 296 system, 169, 182
number, 510 system troubleshooting, 184
smart cards, 368 terminal output, 141
smmck script, 175 Starting root shell on console to allow
SMTP, 470 repairs., message, 176
software startx script, 200, 202, 203
administering, 69 .startxrc file, 203
checking, 77 static electricity, 295
configuration worksheet, 66 static file (scosession), 206
dependencies, 75 station address. See MAC address
installing, 72 stop bits, 432
installing SCO system, 29 stopping
listing, 75-77 Desktop, 121
listing installed, 76 installation, 27
loading, 73 login session, 141
packages, errors after adding, 260 program, 140-141
patches, 72, 80 scologin, 211
removing, 74 system, 178, 180
troubleshooting problems, 62 terminal output, 141
verifying, 77 unexpected during booting, 195
verifying on remote machines, 79 straight-through cables, 407
viewing installed, 76 STREAMS, tunable parameters, 264
software flow control, 432 stty sane, 156
Software Manager, 70 stty(C), 437,438
verify,96 su messages
source routing Cannot setgid to auth, no auth entry, 177
Token-Ring, 510 Unknown id: bin, 177
Token-Ring submenus, 125
over IPX/SPX, 522 subsystem, database boot message, 175
speed superuser, 140
changing, 370 See also root
modems, 413 exiting, 180
speed conversion, 418 logging in, 180
speeds, 438 login, 180
19.2Kbps, 432 password, installation, 31
38.4Kbps, 432 security, 140, 180
adding serial terminals, 432 single-user mode, 172-179
terminals, 436 support, contacting, 264
Speedstor, 104 swap space
command,64 adding, 194
srom bootstring, 283 insufficient, 60
sso (software storage object), 187 swap(ADM),194
stacks. See protocols swconfig command, 261
Stargate serial adapters, 529

tape
switch settings system (continued)

hard disk, 325 stopping without warning, 179
modem, 534 time, 173, 174
motherboard, 368 time zone, 174
switching upgrading, 338
operating systems, 106-108 system administration, 138
screens, 141 See also system
symbolic links, repairing, 186,261 administrator, 138
Sysadmsh Legacy, 145 basics, 137
sysdef command, 260 character mode, 143, 146
sysdumpADM,261 hardware issues, 163
System, live dump, 261 log book, 139, 164
system logging SCOadmin events, 158
See also system administration mode, 32
card,368 networking, 163
changing startup, 182 preventing problems, 248
cleaning, 171 remote and distributed systems, 149
clock,94 superuser login, 140
codeset, 228, 230 task list, 164
configuration, checking, 260 tasks, 167
configuration worksheets, 65 training users, 159
crashes, 253 System Administration window, 143
creating backup, 34 System Defaults Manager, 150
data, upgrading, 40 System Shutdown Manager, 286
default configuration, 38 System Time Manager, 174
dump memory image, 170 SYSTTY,441
files, 188-195
hangs, 63
hardware, 181-182 T
installation, 19
-t files, 176
insufficient resources, 60
TAB3, example, 436
insufficient swap space, 60
tabs, changing, 438
keyboard,226
Tandon serial adapters, 529
maintenance, 138, 140, 167
tape drives
maintenance mode, 172
150MB,349
name, 515
Archive, 350
panic, 61, 182
boot string, 346, 347, 348, 349
parameters, 61
changing default drive, 349
planning, 162
extended length mode, 347
problems, third-party drivers, 63
installing, 344
restoring from backups, 34
jumper settings, 354
safety, 163
mcconfig (Irwin), 346
security, 176-177
mcdaemon (Irwin), 354
setting default locale, 223
mini-cartridge (Irwin), 346
shutdown, 180
Olivetti, 351
starting, 169
QIC-02,345
startup troubleshooting, 184
QIC-40/80, 347
stopping, 178
SCSI,347
not recognized, 352
vendor ID string, 348
573
tapes
tape drives (continued) terminals (continued)

supported types, 343 settings, checking, 437
system limits, 343 speed, 436
troubleshooting, 59,349-354 troubleshooting, 446-449
tapes type, setting, 439,440
formatting, 354 terminals(HW), 431
reading high-density, 349 testing a new system, 20
target ID, SCSI, 304 There are discrepancies between the
task list, 164 databases., message, 177
TCB (trusted computing base) There are errors for this user, message, 177
boot message, 175 There may be a system dump memory
checking, 175 image in the swap device, message, 170
restoring files, 186 third-party drivers, 63
Itcb/binl cps pathname, 261 third-party products, upgrading, 49
I tcb /binl fixmog -v, 261 time, setting, 173, 174
tcbck(ADM),175-177 time zone, changing, 174
Itcb/files/auth/r/root,176 time I date format, 224
tclerror log file, 157 Token-Ring
TCP/IP ARE, 511
broadcast address, 515 bridges, 510
configuring, 467,512 gateways, 510
domain name, 516 IPX/SPX framing type, 521, 522
gateways, 517 local rings, 510
host name, 515 primary I alternate adapters, 509
IP address, 513 route optimization, 511
LLI drivers, 499 source routing, 510
NetBIOS. See NetBIOS over IPX / SPX, 522
netmask,514 Token-Ring SNAP, IPX/SPX framing type,
system name, 515 521
Technical Publications, contacting, 9 toolbars,146
Telebit Trailblazer modem, 535 TPI NetBIOS. See NetBIOS
TERM environment variable, 439 tracks
terminal type, 448 and cylinders, 104
Terminal is disabled -- see Account specifying number of, 105
Administrator, message, 448 training, 15
terminals, 431 for new users, 160
adding, 431 transfer, file, 463
bitpad use, 394 translating, files between code sets, 229
cabling, 432 Transmit Data, TD, 432
characteristics, displaying, 438 transmit I receive buffers. See tx I rx buffers
connections, checking, 435 transport connections, LAN Manager
disabling, 441 Client, 524
display, 141 troubleshooting, 53
installing, 432-433 common problems, 264-265
lines, setting, 436 Internet Manager, 464
mouse use, 389, 393 license problems, 93-99
pin connections, 432 moderns, 424-430
removing, 441 network configuration, 494
reset, 161 overview, 247
scancode, 442 Plug and Play cards, 318-319
serial, 393, 431 PPP connection, 461

lusrlbinlhwcon fig
troubleshooting (continued) upgrading, 21

product registration, 93 adding users, 34
recovering from system panic, 254 between sea OpenServer systems, 49
restoring root file system, 250 choices, 36
SCSI host adapters, 309-310 creating backups, 36
serial card, 377 creating boot floppy disk set, 34
system startup, 184 Customize option, 42
trusted system, 142 deferring second hard disk setup, 45
tset command, reinitializing terminal, development system, 48
447-448 failure, 37
tty(e),440 files, 43
ttys Fresh installation type, 31, 36, 38
bitpad,394 init,33
identification, 372 installation checklist, 20
modem, 406 Interactive fdiskl divvy option, 41
mouse, 389 missing files and directories, 49
setting ports with stty(e), 437 multiuser mode, 33
ttyupd(ADM),178 overwriting root disk, 42
tunable parameters, current values, 260 paths, 38
tx/rx buffers, 511 Preserve option, 38,40,45
typographical conventions, 8 responding to prompts, 27
sea Merge, 51
u sea system software, 29

sea systems, 19,36
second hard disk, 45
UART
system, 338
limitations on line speed, 370
system data, 40
receive buffer, 372
third-party products, 49
umount(ADM)
Upgrade option, 37, 45
floppy disk file system, 189-190
Use whole disk for UNIX, 42
hard disk root file system, 191
user account profiles, 43
undelete(e), 161
user data, 39
UNIX
UPS (Uninterruptible Power Source), 163
See also system
us ASCII character set, 226
I dev IhdOa, device name, 106
Use whole disk for UNIX, 42
keyboard, 140
usemouse(e), 390,393
partition on Das systems, 109
user data, upgrading, 39
removing partition, 111
username, administration, 466
I unix, restoring, 189
users
unix not found, message, 189
account profiles, 43
unix.install, 32
adding during installation, 34
lunix.old, alternate kernel file, 184, 189
administrative, virtual domain, 479
unix. safe, 32
licensing additional, 90
unkillable process, removing, 267
setting locale, 224
unlocking
training, 159
console keyboard, 195-197
lusr I adml events, 159
terminals, 448
lusr/adm/messages, 63,260,400
unregistered software, 60
obscure messages, 265
I usr I adm I syslog, 63, 158
lusr Ibinl displaypkg, 261
lusr Ibin/hwconfig -h, 261
575
lusrlbinlswconfig
lusr Ibin/swconfig -p, 261 video (continued)

I usr I lib I grafinfo I grafdev, configuration adapters (continued)
settings in, 365 configuring driver for, 355
lusr I lib I keyboard I strings.d, 445 configuring unsupported, 366
lusr/lib/mkdev/hd: uniq: not found, conflict with network card, 63
message, 250 emulation modes, 56
utilities, 120 incorrect installation, 63
accessing DOS, 111 removing, 365
UUCP understanding configuration, 355
configuring for modems, 414 configuration manager, starting, 356
dialers, 415 configuring
modems, 405, 412 function keys, 364
ports, 412 multi screens, 364
monitors
v adding, 361, 363

configuring resolution for, 361,363
selecting, 361,363
V.42bis, 428
Video Configuration Manager, starting, 356
variables, See also environment variable
viewing
vectors, interrupt. See interrupt vectors
license status, 89
vendor ID string, 348
protocol configuration, 492
ventilation, 163
registration status, 89
verifying
software to be installed, 77
software, 77, 186
virtual disks
software on remote machines, 79
emergency boot floppy set, 85
versioning, 161
mirrored root, 85
VGA adapter, 56, 64
virtual domains
vi
adding, 474
buffers, using, 545
administrative users, 479
commands, summary, 543
configuring, internet interfaces, 476
deleting text, 545
configuring,SYSTEM-WIDE, 475
edit, 160
deleting, 474
inserting text, 544
enabling, 474
leaving, 543
managing, 473
markers, using, 545
modifying, 477
moving the cursor, 543
name, and DNS, 478
pattern matching, 546
remote administration of, 480
quitting, 543
virtual memory, 194
replacing text, 544
volume, modem, 535
saving files, 543
vtcl(TCL), 145, 157
searching for and replacing text, 546
searching for text, 546
starting, 543
vi(C),150
w
video WAN (Wide Area Network), 120,484,512
adapters configuring connections, 489,512
See also graphics adapters wd: ERROR on fixed disk ..., 341
adding, 361 Web, 464
changing monitors, 362 window manager, SCO Panner, 127
compatibility, 274

XT
Windows
installing, partition, 102
removing
from hard disk, 111
windows
active, 124
closing, 124
opening, 124
parts of, 124
scrolling, 125
selecting, 124
wiring, modems, 407
worksheet
configuration, 65, 66
problem description, 65
x
X server, problems exiting, 205
X terminals, 61
running clients, 220
using scologin, 211, 217, 218
XDMCP, 211, 217, 218
X TOOLKIT ERROR message, 60
XO.hosts through X7.hosts files, 216
Xconfig file, 210
xdm, See scologin display manager
XDMCP, 211, 212, 217, 218
XENIX, partition, 107
Xerrors file, 210
xinit,203
xm_vtcld process, 156
XON/XOFF
handshaking, 432
printer, 398
xrdb client, using, 207
xrdbcomp, 205
Xreset file, 201, 202
Xresources file, 210
Xsco
requesting scologin with XDMCP, 212
XDMCP options, 212
Xservers file, 210, 215
managing multiple displays, 214
Xsession file, 201
Xstartup file, 201
XT console keyboard, 197
577
XT

""""flm\W;MU": Ii, iii,; ~ib.;;'''''''_'''''Q#A44I1¥1 \.Ytt.i.;a.~,"WlSn#i¥M.f= "
1 August 2000
AU20017P003
II~I~I~I~~~~IIIII~II~I~I~~~I~I
AU20017P003
2001 PAT 0987654321

SCO OpenServer Handbook

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

SCO OpenServer Handbook

Uploaded by

Copyright:

Available Formats

®

How to install, configure,

Document Version: 5.0.6

Installation and software configuration

Using the system

Reference data appendixes

Table of contents vii

Table of contents xiii

Table of contents xvii

Table of contents xix

Table of contents xxi

Table of contents xxiii

Table of contents xxv

Index .............................................................................................................. 549

How this book is organized

• administer the system (page 137), including:

Appendixes provide additional configuration information.

NOTE When you upgrade or supplement your sea OpenServer software,

4 seQ QpenServer Handbook

Graphical Environment Guide

Operating System Administrator's Reference

Many other useful publications about seQ systems by independent authors

6 seQ QpenServer Handbook

The documentation for the Consolidated Hardware and Driver Development

Example: Used for:

8 seQ QpenServer Handbook

How can we improve this book?

To help us implement your suggestions, include relevant details, such as book

10 seQ QpenServer Handbook

seQ OpenServer systems

12 seo OpenServer Handbook

Additional licenses and products

Licensing and registration terminology

The following items identify the license:

Most of sea's commercial products require registration after installation.

Accessing seQ Services information online

14 seo OpenServer Handbook

Finding seQ training

16 seo OpenServer Handbook

If you encounter problems during the installation, see Chapter 3, "Troub-

Before you begin:

Installation and upgrade checklist

1. Boot-time Loadable Drivers (BTLDs) o No

2. Installation media o ATAPI/EIDE CD-ROM

(Continued on next page)

20 seQ QpenServer Handbook

7. Installation type (page 37) D Fresh

8. System name (page 515)

9. Domain name (page 516)

10. Security profile (page 142) D High (above C2)

(Continued on next page)

11. Time zone Continent or geographic area:

Time zone name:

Daylight savings observed?

13. Initial system profile o Standard system

14. Hard disk setup, first disk o Preserve (if available)

(Continued on next page)

22 seQ QpenServer Handbook

Customized or Interactive layout (page 101)

15. Bad track/block, first disk (page 341) o None

17. Bad track/block, second disk o None

(Continued on next page)

18. Software components o Operating system

19. Network card (page 505) Vendor and model:
