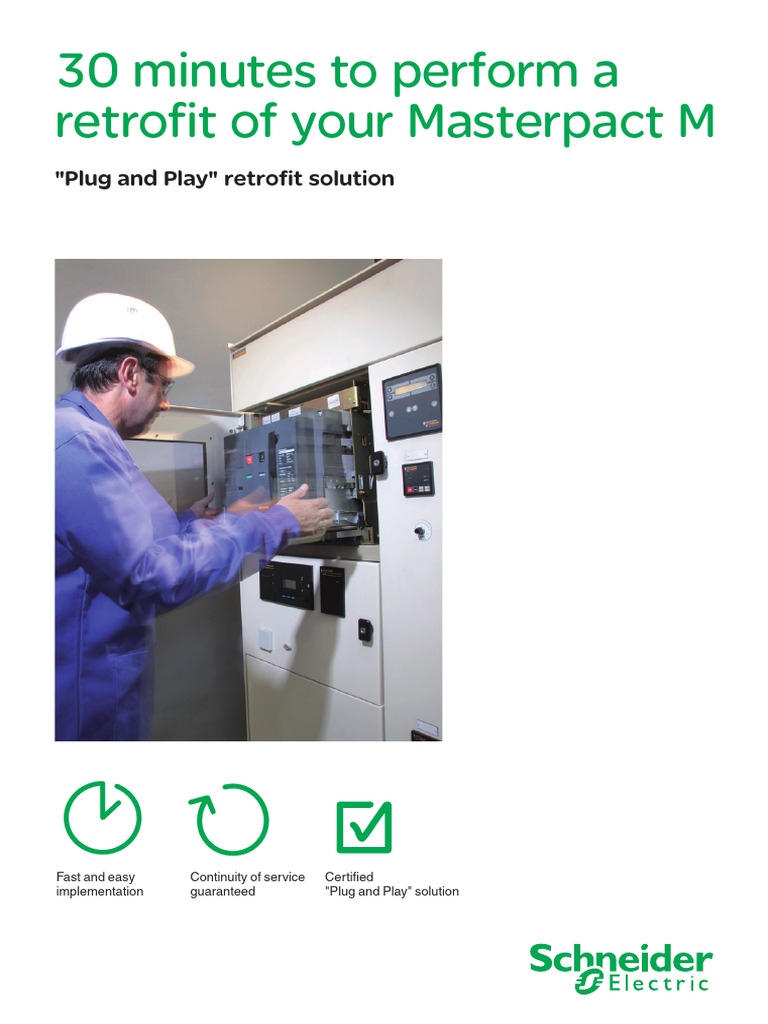

30 minutes to perform a

retrofit of your Masterpact M

"Plug and Play" retrofit solution

Fast and easy Continuity of service Certified

implementation guaranteed "Plug and Play" solution
"Plug and Play" retrofit solution
This solution enables retrofitting of Masterpact M devices with considerable
reduction of on-site intervention time. The existing Masterpact M chassis is
retained. Busbar and cable connections are not disturbed, only the circuit
concerned needs to be isolated (for as little as 30 minutes*).

The original Masterpact M chassis is kept

(no intervention on the switchboard structure)

Masterpact NW adapted
for the "Plug and Play" solution

Masterpact M

Circuit breaker Switch-disconnector

Original device N1 H1 H2 NI HI HF
M08 3P/4P
M10 3P/4P
M12 3P/4P
M16 3P/4P
M20 3P/4P
M25 3P/4P
M32 3P/4P
: Standard offer

Consult us for all devices not included in the standard offer.

The STR control units (except for communication units) are replaced by the corresponding Micrologic
control units according to the specifi cation of the existing STR.
 Fast and simple implementation
which keeps the original chassis

30 minutes* and
* Typical time for simple installations.
2 easy operations
The factory-modified and adapted "Plug and Play" Masterpact NW is designed for installation
in the original Masterpact M chassis.
On-site implementation is very simple:
Replacement of original racks Wire guide support replacement

Two new racks are installed in place of the original All Masterpact NW functions are pre-wired;
racks in the Masterpact M chassis. our technician has only to connect the functions
required according to the accessories fitted.

Chassis spare parts High performance of

replacement warranty
With the "Plug and Play" retrofit solution
we guarantee the availability of spare parts
for the Masterpact M chassis (plug-in
clamps, shutter, wire guide support spring,
auxiliary contacts).
the Masterpact NW
The monitoring and diagnostic functions
(Micrologic control unit) of the
Masterpact NW circuit breaker enables you
to optimise the maintenance of your
equipment.
The electrical performance characteristics of
the Masterpact NW offer equal or greater
performance than Masterpact M (selectivity
remains unchanged) in the event of a
network fault.

Options
@ Mismatch Protection
The mismatch protection ensures that a circuit breaker is installed only in a cradle with compatible
characteristics. The kit can be ordered separately.

@ Mechanical interlock
Mechanical interlock of two or three buncked devices using
Mechanical connecting rods and 2 devices installed side by side using cables
interlock using are available with the Plug&Play.
connecting rods The kit has to be ordered with the device.
for 2 or 3 buncked Mechanical interlock using cable for
devices. 2 devices installed side by side.
"Plug and Play" retrofit solution
The retrofit solutions use a factory modified and adapted Masterpact NW
which is installed in Masterpact M’s original chassis.

Merchant Marine
"The Plug&Play is compliant with Merchant Marine standards. The breaking capacity test and the
steady-state sinusoidal vibration tests in accordance with IACS rules and standard IEC 60068.2.6 have
been successfully performed on a circuit breaker NW32H1 – 3 poles –draw out version mounted in a
chassis of Masterpact M32. The technical documents that show the results of the tests are available."

Standards
@ The "Plug and Play" retrofit solutions keeps all Masterpact NW circuit breaker approvals.
@ All specific parts are certified in compliance with the following standards:
_ IEC 60947 - 1
_ IEC 60947 - 2
@ Conform to marine standards.

More environmentally friendly

@ Masterpact NW units use non-polluting and recyclable materials, and are manufactured in ISO 14001
certified factories.
@ The environmental impact is minimised through eco-design.
