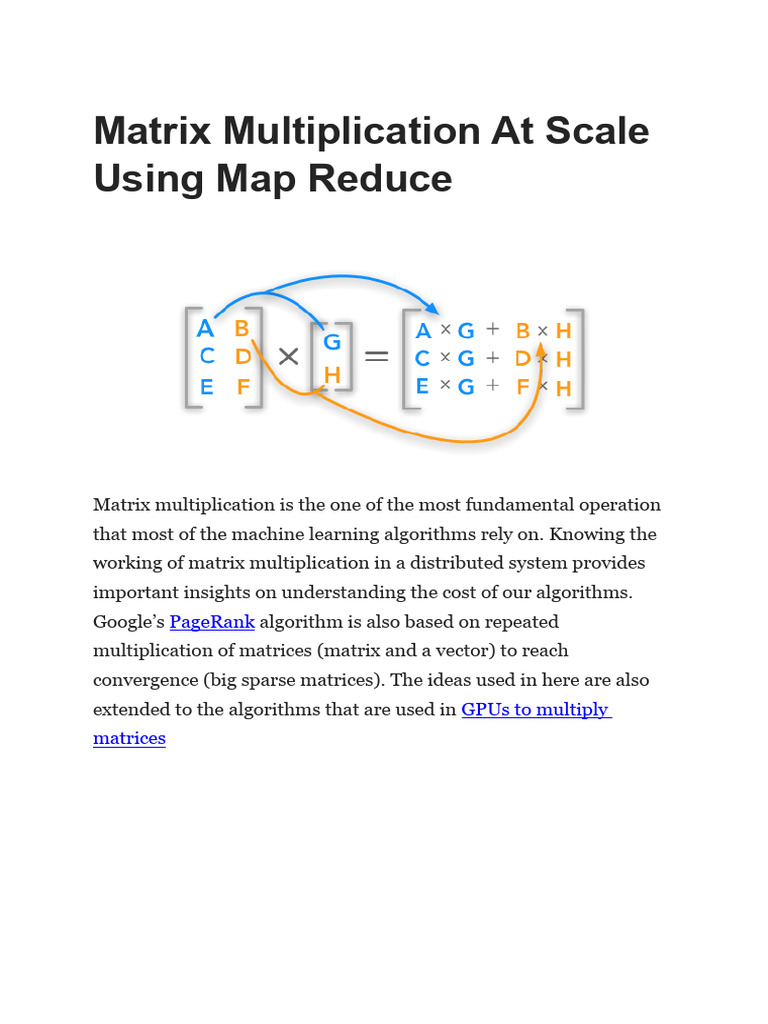

Matrix Multiplication At Scale

Using Map Reduce

Matrix multiplication is the one of the most fundamental operation

that most of the machine learning algorithms rely on. Knowing the
working of matrix multiplication in a distributed system provides
important insights on understanding the cost of our algorithms.
Google’s PageRank algorithm is also based on repeated
multiplication of matrices (matrix and a vector) to reach
convergence (big sparse matrices). The ideas used in here are also
extended to the algorithms that are used in GPUs to multiply
matrices
Contents

 Matrix Representation

 Matrix Multiplication Using Two Passes

 Conclusion

Matrix Representation
To represent matrix we will be using COOrdinate format. We
only store indices of the matrix that have non zero
values and the value associated with that location. The following
diagram shows how matrix looks in its raw form.

Matrices in raw form

By storing only the indices that have non zero values we also end up
saving a lot of space in case matrices are sparse (which is the case
where matrices become way too large). The following image shows
the representation of the above two matrices (matrix 1 and matrix 2)
using the representation discussed above.
Matrices represented using COO format

Matrix Multiplication Using Two Passes

Here two passes symbolises the fact that we will need two map
reduce jobs to compute the matrix multiplication. Let’s first try to
understand the steps taken to multiply matrices. This explanation
will be referred while explaining the operation in the passes.

Elements involved of two matrices to get result for the first element

In above image we see that, to construct first element of result 1 in

our case at position (0, 0) (1 * 1) + (2 * 0) + (0 * 6) = 1, we need
to multiply the elements of first row of matrix 1 with the elements of
first column of the matrix 2 . The colour signifies the elements that
are multiplied together. The orange element is multiplied with
orange element and the same for yellow and green elements.

If we follow the procedure of matrix multiplication we will see that

all the orange elements in matrix 1 needs to be multiplied with the
orange elements of matrix 2 and same for yellow and green ones.

To obtain value at an index i, k in the resultant matrix, we need to

sum over the multiplication of the elements of ith row in matrix 1
and kth column in matrix 2.

Based on the above understanding we will design our first map

reduce job to compute these multiplications. And the second job will
be responsible to compute the sums.

Lets first take a look on how the data looks at the Map Workers (we
will consider having 2 map workers and 2 reduce workers) when it is
stored as the representation discussed in the previous section.

Data at map workers

The above represented matrices can be seen as two relational tables
with columns (i, j, v) and (j, k, v). Matrix multiplication does
resemble a lot to a natural join over the j column, followed by a sum
aggregation.

 Map Function Pass 1: We want to achieve the same key

for all the orange elements in the matrix used for
explanation and same for yellow and green coloured
elements, so that we can then take all the values and
multiply those together to form the partial multiplication
results as discussed in the explanation above. For each row
of matrix 1 create key-value pair of form j:(M1, i, vij) .
Where M1 represents that fact that this value came from
matrix 1, and vij represents the value for row for given i,
j values in the relation. For each row of matrix 2 create key-
value pair of form j: (M2, k, vjk). We need to keep track of
from which matrix the value came from as we don’t want to
multiply the elements of the same matrix.

 Reduce Function Pass 1: Once we have the same

coloured elements of a matrix in one place we just need to
multiply those and output the result in key-value form
which can be fed to the next map reduce job. For a
key j take each value that comes from M1 of form(M1, i,

vij) and take each value that comes from M2 of the

form (M2, k, vjk) and produce a key-value pair of
form i,k: vij * vjk.
After application of map function and grouping of keys at map
workers the data looks like the following figure, notice that each key
has different number of values, this is the case because we don’t
store data about the location where value is zero

Data at Map workers after applying map function and grouping keys

Files for reduce workers will be created at the map workers, the
following figures shows the content in those files

Files for reduce workers at map workers

The files are sent to reduce workers where the files will be as follows:
Data at reduce workers

After this we apply the reduce function which will generate

intermediate output in this case for the next pass of map reduce.
Which involves multiplication of the values which came from Matrix
1 with all the values that came from Matrix 2.

For example for j value 1 we generate the keys as follows

Key: 1
Index: [ 0 1 2 3 4
]
Values: [(M1, 0, 2), (M1, 2, 7), (M1, 4, 8), (M2, 1, 4), (M2, 3,
1)]For value at index 0, 1, 2 which are from matrix 1, we need
to multiply the values from index 3 and 4 as those are from
matrix 2
Forming the key, values in yellow colour in the below imagee.g.
the key (0, 1) for reducer worker 2 is formed by multiplying
values from index 0 and index 3. Which are 2, 4 in this case
resulting in output tuple {(0, 1): 8}.
Data after reduce operation

Now with the multiplication done and all we want to do is group by

the key and apply sum aggregation and output data in the form i, k,

value Where i, k are the indices of the resultant matrix and value is
the value at those indices.

 Map Function Pass 2: Map function doesn’t need to do

anything as we have the input in a key value form.

 Reduce Function Pass 2: Reduce function just needs to

sum for values associated with the same key.

Assuming that data at reduce workers is sent back to map workers,

we will have to create files for reduce workers to consume based on
some hash function that make sure that same keys goes to one
reduce worker. The files will look like:
Files for reduce workers at map workers

The files are sent to reduce workers where these look like:

Files at reduce workers

Finally reduce function is applied which adds up the values for a

common key within all the files in reduce worker and output is
generated in form i, k, value
Final result at reduce workers

Above is the result of matrix multiplication of the two matrices

represented in COO format. This can be stored to files in some
storage system if required.

Conclusion
we saw the nature of matrix multiplication to be really great for
parallel processing, but also saw how it generated a few keys but a
lot of values, this can be troublesome in case the matrix is huge and
list of values become so huge that it doesn’t fit on a single machine.
In such a case we can either increase the memory size of the worker
nodes or even separate the matrix into small rectangular chunks.
