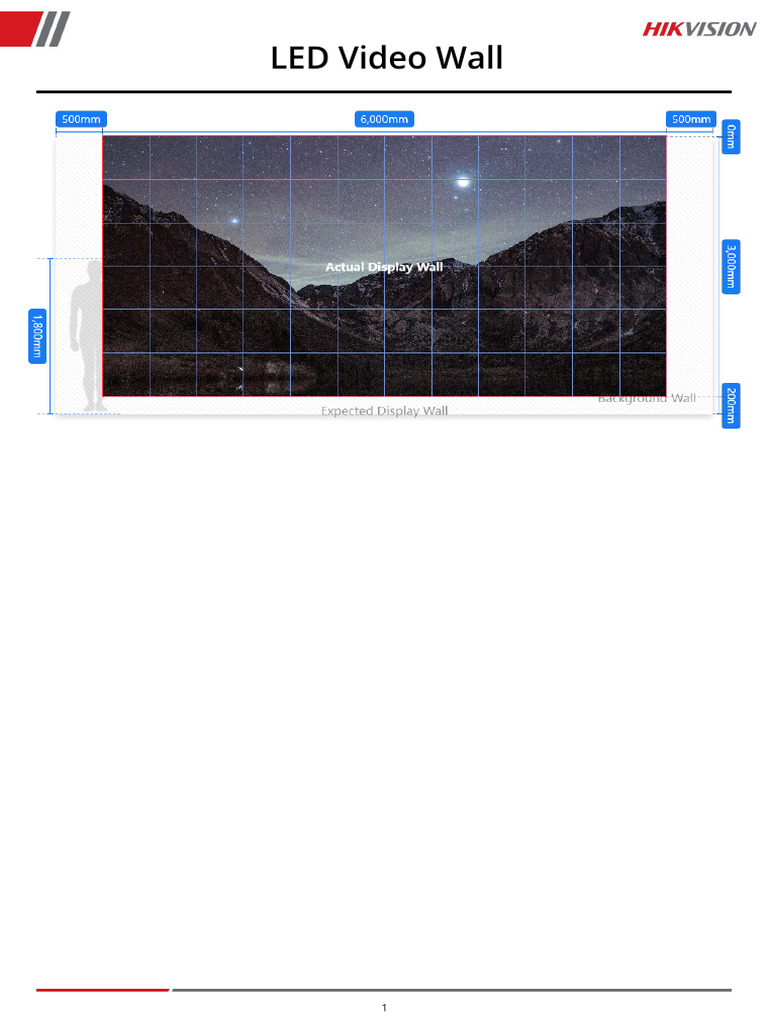

LED Video Wall

1
 Solution
SAP Item Model Quantity Unit Remarks

2.5, Screen Size: 6 * 3 = 18m², Screen Resolution: 2400 * 1200, Cabinet

317001568 LED Display DS-D4225FO-BGF 72 PCS
Quantity: 72 set ( 6row * 12col) PCS

Hikvision does not provide outdoor LED brackets; Customers need to design
LED Bracket SI Scope --- m²
and produce it by themselves.

LED Controller DS-D42V06-N 1 PCS Support up to 3.9 MP resolution and 6 RJ45 ports.

Software Hikvision 1 set Free debugging and operation software for the LED controller.

Users can design advertising programs and release them to the digital signage
302504388 Digital Signage Box DS-D60C-B 1 PCS
box to keep playing.

Specifications
Rows and Columns (Rows × Columns) 6 x 12
Video Wall Scale
Number of Cabinets 72

Screen Configuration (W × H) 6000mm x 3000mm

Display Area 18m²

Video Wall Dimensions
Diagonal 264.03in

Total Weight 594 kg

Resolution (W × H) 2400 × 1200

Other Information Display Controller Model DS-D42V06-N

Number of Display Controllers 1

Max. Power 13500W

Power Requirements
Average Power 4500W

2
 Product Spec
DS-D4225FO-BGF
Pixel Configuration SMD 3-IN-1 LED

Pixel Pitch Category P2.5

Pixel Pitch 2.5 mm

Lamp Dimensions 1.4 × 1.5 mm

Modules Component 2×2

Dimensions (W × H × D) 500 mm × 500 mm × 85.1 mm (19.7" × 19.7" × 3.35")

Resolution 200 × 200

Cabinet Area 0.25 m²

Weight 8.25 Kg (18.2 lb)

Pixel Density 160000 dots/m²

Lamp Board Housing With housing

Cabinet Material aluminum

Maintenance Method Front maintenance

Cabinet Flatness 0.2 mm

Protection Level IP65 both front and back

Lamp Encapsulation Nationstar 1415

Key Material Driver IC ICN2053

Control System DS-D42C04-N

White Balance Brightness 5000 cd/m²

Color Temperature 2000 K to 9300 K adjustable

Viewing Angle Horizontal 140°, vertical 140°

Display
Contrast Ratio ≥ 5000:1

Color Uniformity ≤ ± 0.003CxCy

Brightness Uniformity ≥ 97

Driving Method Constant current driving

Frame Frequency 60 Hz

Processing Performance Refresh Rate Up to 3840 Hz

Grey Level Up to 16 bit

Display Color 281 trillion

Power Supply 110~220 VAC ± 15%

Power Max Consumption ≤ 750 W/m²

Average Consumption ≤250 W/m²

Working Temperature -10-55

Working Humidity 10%~80%RH

Working Environment
Storage Humidity 10%~85%RH

Storage Temperature -20~60

Gross Weight 100 Kg (220 lb) /8 in 1

General Package Dimension (W × H × D) 1260 mm × 610 mm × 750 mm (49.6" × 24.0" ×29.53")

Lifespan Lamp 100,000 hours

3
Cabinet Dimensions Picture

4
System Topology Picture
