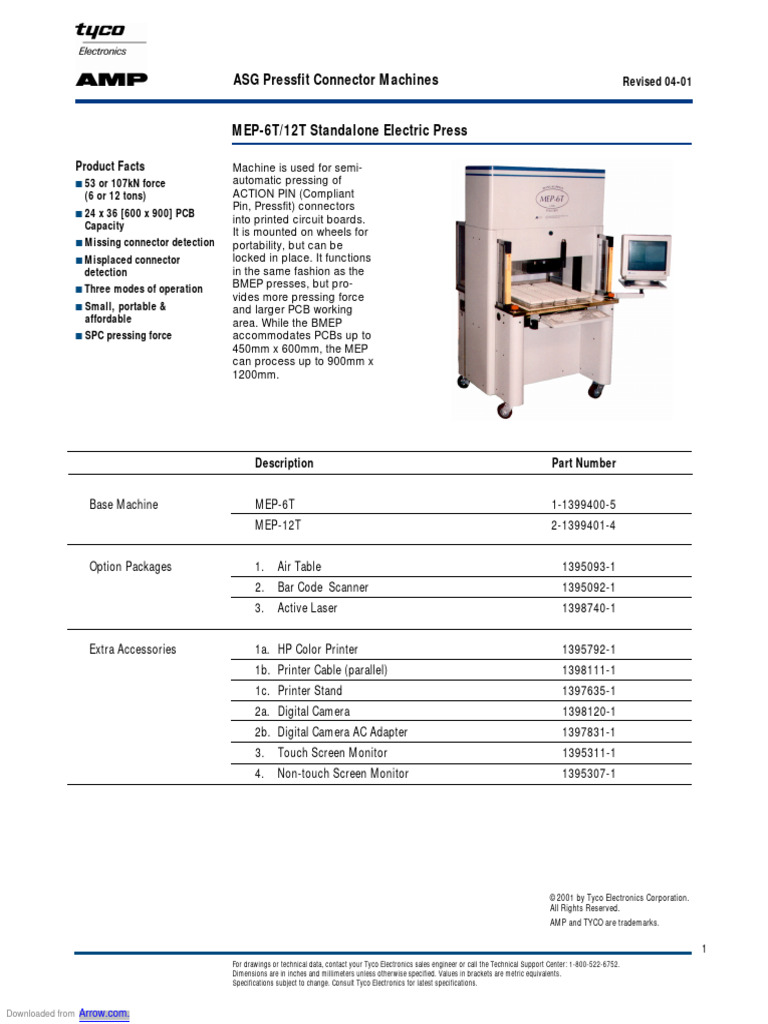

ASG Pressfit Connector Machines Revised 04-01

MEP-6T/12T Standalone Electric Press

Product Facts Machine is used for semi-


■ 53 or 107kN force automatic pressing of
(6 or 12 tons) ACTION PIN (Compliant
Pin, Pressfit) connectors
■ 24 x 36 [600 x 900] PCB
into printed circuit boards.
Capacity
It is mounted on wheels for
■ Missing connector detection portability, but can be
■ Misplaced connector locked in place. It functions
detection in the same fashion as the
■ Three modes of operation
BMEP presses, but pro-
vides more pressing force
■ Small, portable & and larger PCB working
affordable area. While the BMEP
■ SPC pressing force accommodates PCBs up to
450mm x 600mm, the MEP
can process up to 900mm x
1200mm.

Description Part Number

Base Machine MEP-6T 1-1399400-5


MEP-12T 2-1399401-4

Option Packages 1. Air Table 1395093-1


2. Bar Code Scanner 1395092-1
3. Active Laser 1398740-1

Extra Accessories 1a. HP Color Printer 1395792-1


1b. Printer Cable (parallel) 1398111-1
1c. Printer Stand 1397635-1
2a. Digital Camera 1398120-1
2b. Digital Camera AC Adapter 1397831-1
3. Touch Screen Monitor 1395311-1
4. Non-touch Screen Monitor 1395307-1

©2001 by Tyco Electronics Corporation.


All Rights Reserved.
AMP and TYCO are trademarks.

1
For drawings or technical data, contact your Tyco Electronics sales engineer or call the Technical Support Center: 1-800-522-6752.
Dimensions are in inches and millimeters unless otherwise specified. Values in brackets are metric equivalents.
Specifications subject to change. Consult Tyco Electronics for latest specifications.
