2.

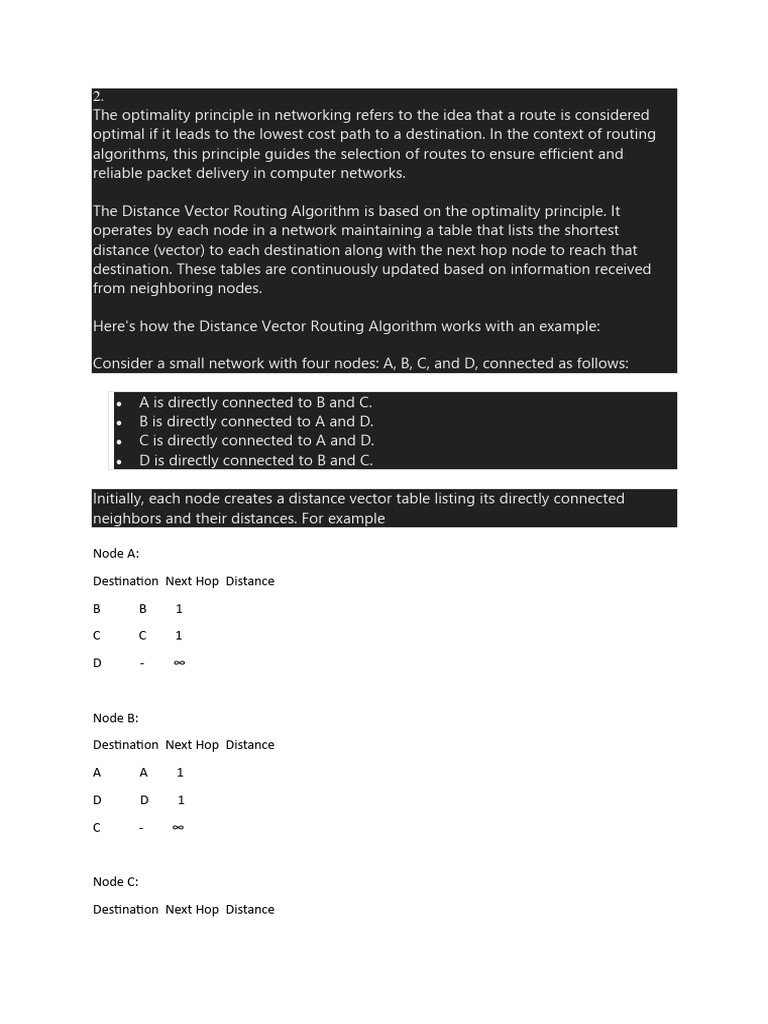

The optimality principle in networking refers to the idea that a route is considered
optimal if it leads to the lowest cost path to a destination. In the context of routing
algorithms, this principle guides the selection of routes to ensure efficient and
reliable packet delivery in computer networks.

The Distance Vector Routing Algorithm is based on the optimality principle. It

operates by each node in a network maintaining a table that lists the shortest
distance (vector) to each destination along with the next hop node to reach that
destination. These tables are continuously updated based on information received
from neighboring nodes.

Here's how the Distance Vector Routing Algorithm works with an example:

Consider a small network with four nodes: A, B, C, and D, connected as follows:

• A is directly connected to B and C.

• B is directly connected to A and D.
• C is directly connected to A and D.
• D is directly connected to B and C.

Initially, each node creates a distance vector table listing its directly connected
neighbors and their distances. For example

Node A:

Destination Next Hop Distance

B B 1

C C 1

D - ∞

Node B:

Destination Next Hop Distance

A A 1

D D 1

C - ∞

Node C:

Destination Next Hop Distance

A A 1

D D 1

B - ∞

Node D:

Destination Next Hop Distance

B B 1

C C 1

A - ∞

Then, each node exchanges its distance vector table with its neighbors. Based on the
received information, each node recalculates its distance vector table and updates it
if it finds a shorter path. This process continues iteratively until convergence, where
no further updates are made.

For example, after the first iteration, the tables might look like this

Node A:

Destination Next Hop Distance

B B 1

C C 1

D B 2

Node B:

Destination Next Hop Distance

A A 1

D D 1

C C 2

Node C:

Destination Next Hop Distance

A A 1
D D 1

B B 2

Node D:

Destination Next Hop Distance

B B 1

C C 1

A A 2

The algorithm continues until convergence. The limitations of the Distance Vector
Routing Algorithm include:

1. Count to Infinity Problem: If there is a change in the network that creates a

loop in the routing path, nodes can mistakenly believe that they have found a
shorter path, leading to incorrect routing decisions and potentially infinite
loops.
2. Slow Convergence: Distance Vector Routing Algorithm can be slow to
converge, especially in large networks or networks with high levels of traffic.
This is because it relies on periodic updates from neighboring nodes to detect
changes in the network topology.
3. Routing Loops: In some scenarios, the algorithm may create routing loops
due to inconsistent or outdated information being propagated through the
network.
4. Suboptimal Routing: Due to its distributed nature and reliance on local
information, the algorithm may not always find the globally optimal path,
leading to suboptimal routing decisions.

3. Explain the steps followed in the Link state routing algorithm with an example.

The Link State Routing Algorithm, also known as Dijkstra's algorithm, is used to find
the shortest path from a source node to all other nodes in a network. Here are the
steps followed in the algorithm:

1. Initialization:
• Each node initializes its own distance from the source node as infinity,
except for the source node itself, which initializes its distance as zero.
• Each node also maintains a list of its neighbors and the cost (distance)
to reach them.
2. Sending Link State Packets:
 • Each node broadcasts information about its neighbors and the cost to
reach them to all other nodes in the network. This information is called
a "link state packet."
• Link state packets include information such as the ID of the sending
node, the ID of the neighbor nodes, and the cost to reach those
neighbors.
3. Building the Link State Database:
• Each node collects the link state packets from all other nodes in the
network and builds a database containing the topology of the entire
network.
• The database includes information about all nodes and their neighbors,
as well as the cost to reach each neighbor.
4. Shortest Path Calculation:
• Using the information in the link state database, each node performs
Dijkstra's algorithm to calculate the shortest path from itself to all other
nodes in the network.
• Dijkstra's algorithm iteratively selects the node with the smallest
distance (cost) from the source node and updates the distances to its
neighbors accordingly.
• This process continues until all nodes in the network have been visited
and their shortest paths have been calculated.
5. Updating Routing Tables:
• Once the shortest paths have been calculated, each node constructs its
routing table based on this information.
• The routing table specifies the next hop for each destination node,
along with the total cost of reaching that destination.
6. Forwarding Packets:
• When a node receives a packet destined for another node, it consults
its routing table to determine the next hop for that destination.
• The packet is then forwarded to the next hop node, which repeats the
process until the packet reaches its final destination.

Example: Let's consider a simple network with five nodes: A, B, C, D, and E, connected
as follows:

• A is directly connected to B and C.

• B is directly connected to A, C, and D.
• C is directly connected to A, B, D, and E.
• D is directly connected to B, C, and E.
• E is directly connected to C and D.

Suppose we want to find the shortest path from node A to all other nodes:
 1. Initialization: A initializes its distance to itself as 0 and to all other nodes as
infinity.
2. Sending Link State Packets: Each node broadcasts information about its
neighbors and the cost to reach them.
3. Building the Link State Database: A collects the link state packets from all
other nodes and builds a database containing the topology of the entire
network.
4. Shortest Path Calculation: A runs Dijkstra's algorithm to calculate the
shortest paths to all other nodes.
5. Updating Routing Tables: A constructs its routing table based on the
shortest paths calculated.
6. Forwarding Packets: When a packet needs to be forwarded from A to
another node, A consults its routing table to determine the next hop for that
destination and forwards the packet accordingly.

4. State the advantage of the Hierarchical Routing algorithm over others and Briefly explain the
various Broadcast routing algorithms.

Hierarchical Routing Algorithm:

The main advantage of the Hierarchical Routing Algorithm over others lies in its
scalability and efficiency in managing large networks. In hierarchical routing, the
network is organized into multiple levels of hierarchy, with each level containing a
subset of nodes. This hierarchical structure reduces the complexity of routing by
partitioning the network into manageable regions. Here are some advantages:

1. Scalability: Hierarchical routing scales well with network size because it

divides the network into smaller regions, reducing the routing overhead
associated with maintaining routing tables and exchanging routing
information.
2. Reduced Routing Overhead: By organizing the network into hierarchical
levels, the number of routing updates and messages exchanged between
nodes is minimized. Only routing information relevant to a specific hierarchical
level needs to be exchanged, reducing the overall routing overhead.
3. Improved Performance: Hierarchical routing can improve network
performance by limiting the scope of routing updates and queries, resulting in
faster convergence and reduced latency.
4. Simplified Management: With hierarchical routing, network management
tasks such as configuration, monitoring, and troubleshooting are simplified
 due to the modular structure of the network. Each level of the hierarchy can
be managed independently, leading to better organization and control.

Overall, hierarchical routing provides a more efficient and scalable approach to

routing in large networks compared to flat routing algorithms.

Broadcast Routing Algorithms:

Broadcast routing algorithms are used to disseminate information or data packets

from a source node to all other nodes in the network. There are several broadcast
routing algorithms, each with its own characteristics and suitability for different
network environments. Here are brief explanations of some common broadcast
routing algorithms:

1. Flooding: In flooding, a source node broadcasts the packet to all of its

neighbors, which in turn rebroadcast the packet to all of their neighbors, and
so on, until all nodes in the network have received the packet. Flooding is
simple and reliable but can lead to redundant transmissions and network
congestion.
2. Reverse Path Forwarding (RPF): RPF is based on the idea of only forwarding
packets along the reverse path from the receiver to the sender. Each node
forwards the packet if it arrived on the shortest path back to the source. RPF is
more efficient than flooding but requires the network to have a routing table
with information about the reverse path.
3. Reverse Path Broadcasting (RPB): RPB is similar to RPF but forwards the
packet along all paths except the one used to receive the packet. This ensures
that each node receives the packet exactly once and avoids looping.
4. Spanning Tree-based Broadcasting: In spanning tree-based broadcasting,
the network constructs a spanning tree rooted at the source node, and
packets are forwarded along branches of the tree. This approach ensures that
each node receives the packet exactly once and minimizes redundant
transmissions.

These are just a few examples of broadcast routing algorithms, each with its own
trade-offs in terms of efficiency, reliability, and complexity. The choice of algorithm
depends on the specific requirements and characteristics of the network.

13. With the help of a State diagram explain the Connection establishment and Connection Release
process of the transport layer.

Hierarchical Routing Algorithm:

The main advantage of the Hierarchical Routing Algorithm over others lies in its
scalability and efficiency in managing large networks. In hierarchical routing, the
network is organized into multiple levels of hierarchy, with each level containing a
subset of nodes. This hierarchical structure reduces the complexity of routing by
partitioning the network into manageable regions. Here are some advantages:

1. Scalability: Hierarchical routing scales well with network size because it

divides the network into smaller regions, reducing the routing overhead
associated with maintaining routing tables and exchanging routing
information.
2. Reduced Routing Overhead: By organizing the network into hierarchical
levels, the number of routing updates and messages exchanged between
nodes is minimized. Only routing information relevant to a specific hierarchical
level needs to be exchanged, reducing the overall routing overhead.
3. Improved Performance: Hierarchical routing can improve network
performance by limiting the scope of routing updates and queries, resulting in
faster convergence and reduced latency.
4. Simplified Management: With hierarchical routing, network management
tasks such as configuration, monitoring, and troubleshooting are simplified
due to the modular structure of the network. Each level of the hierarchy can
be managed independently, leading to better organization and control.

Overall, hierarchical routing provides a more efficient and scalable approach to

routing in large networks compared to flat routing algorithms.

Broadcast Routing Algorithms:

Broadcast routing algorithms are used to disseminate information or data packets

from a source node to all other nodes in the network. There are several broadcast
routing algorithms, each with its own characteristics and suitability for different
network environments. Here are brief explanations of some common broadcast
routing algorithms:

1. Flooding: In flooding, a source node broadcasts the packet to all of its

neighbors, which in turn rebroadcast the packet to all of their neighbors, and
so on, until all nodes in the network have received the packet. Flooding is
simple and reliable but can lead to redundant transmissions and network
congestion.
2. Reverse Path Forwarding (RPF): RPF is based on the idea of only forwarding
packets along the reverse path from the receiver to the sender. Each node
forwards the packet if it arrived on the shortest path back to the source. RPF is
more efficient than flooding but requires the network to have a routing table
with information about the reverse path.
 3. Reverse Path Broadcasting (RPB): RPB is similar to RPF but forwards the
packet along all paths except the one used to receive the packet. This ensures
that each node receives the packet exactly once and avoids looping.
4. Spanning Tree-based Broadcasting: In spanning tree-based broadcasting,
the network constructs a spanning tree rooted at the source node, and
packets are forwarded along branches of the tree. This approach ensures that
each node receives the packet exactly once and minimizes redundant
transmissions.

These are just a few examples of broadcast routing algorithms, each with its own
trade-offs in terms of efficiency, reliability, and complexity. The choice of algorithm
depends on the specific requirements and characteristics of the network.

14. Define all the Berkely socket primitives and explain how the client-server communication
is implemented by using these service primitives.

Berkeley socket primitives are a set of functions provided by the Berkeley Software
Distribution (BSD) Unix operating system for network communication. These
primitives allow programs to create, send, receive, and manage network connections.
Here are the basic socket primitives:

1. socket():
• socket() is used to create a new socket.
• It takes parameters specifying the communication domain (such as
AF_INET for IPv4), the socket type (such as SOCK_STREAM for TCP or
SOCK_DGRAM for UDP), and the protocol (usually 0, which allows the
system to choose the appropriate protocol).
• The function returns a socket descriptor, which is used in subsequent
socket operations.
2. bind():
• bind() associates a socket with a specific network address (IP address
and port number) on the local machine.
• It takes the socket descriptor returned by socket(), a pointer to a
sockaddr structure containing the address information, and the size of
the structure.
• This function is typically used by servers to specify the address on
which they will listen for incoming connections.
3. listen():
• listen() is used by a server to indicate that it is ready to accept
incoming connections.
 • It takes the socket descriptor returned by socket() and a backlog
parameter, which specifies the maximum length of the queue of
pending connections.
• After calling listen(), the server can accept incoming connections using
accept().
4. accept():
• accept() is used by a server to accept a pending connection request.
• It blocks until a connection request arrives, then creates a new socket
for the incoming connection and returns a new socket descriptor.
• The original socket continues to listen for additional connection
requests.
5. connect():
• connect() is used by a client to establish a connection to a server.
• It takes the socket descriptor returned by socket(), a pointer to a
sockaddr structure containing the address of the server, and the size of
the structure.
• This function initiates the three-way handshake for TCP connections
and establishes the connection with the server.
6. send() and recv():
• send() is used to send data over a connected socket.
• recv() is used to receive data from a connected socket.
• Both functions take the socket descriptor, a pointer to the data buffer,
the size of the buffer, and optional flags.
• They return the number of bytes sent or received, or an error code if an
error occurs.
7. close():
• close() is used to close a socket and release its associated resources.
• It takes the socket descriptor as a parameter and frees the socket for
reuse.

Client-Server Communication:

Client-server communication using Berkeley socket primitives typically follows these

steps:

1. The server creates a socket using socket() and binds it to a specific address
using bind().
2. The server listens for incoming connections using listen() and accepts
connections using accept().
3. The client creates a socket using socket() and establishes a connection to the
server using connect().
4. Once the connection is established, the client and server can exchange data
using send() and recv() functions.
 5. After the communication is complete, both the client and server close their
sockets using close().

This basic communication model allows for bidirectional data exchange between
clients and servers over a network using TCP/IP or UDP protocols, depending on the
socket type specified during socket creation

18. Explain all the fields of UDP header and TCP header.

Transmission Control Protocol (TCP) header:

UDP Header:

1. Source Port (16 bits):

• Identifies the port number of the sending application.
2. Destination Port (16 bits):
• Identifies the port number of the receiving application.
3. Length (16 bits):
• Specifies the length of the UDP header and data in bytes. The minimum
value is 8 bytes (the size of the header), and the maximum value is
65,535 bytes.
4. Checksum (16 bits):
• Used for error detection to ensure the integrity of the UDP header and
data. The checksum is optional in IPv4 but mandatory in IPv6.

TCP Header:

1. Source Port (16 bits):

• Identifies the port number of the sending application.
2. Destination Port (16 bits):
• Identifies the port number of the receiving application.
3. Sequence Number (32 bits):
• Used to keep track of the order of the bytes in the data stream. It is the
sequence number of the first data byte in this segment.
4. Acknowledgment Number (32 bits):
• Used to acknowledge the receipt of data. If the ACK flag is set, this field
contains the next sequence number that the sender of the segment is
expecting to receive.
5. Data Offset (4 bits):
• Specifies the length of the TCP header in 32-bit words. This field
indicates where the data begins in the TCP segment.
 6. Reserved (6 bits):
• Reserved for future use and must be set to zero.
7. Flags (6 bits):
• Contains control bits that indicate various options and flags such as
SYN (synchronize sequence numbers), ACK (acknowledgment), PSH
(push function), RST (reset connection), and others.
8. Window Size (16 bits):
• Specifies the size of the receive window. It indicates to the sender how
much data the receiver is willing to accept.
9. Checksum (16 bits):
• Used for error detection to ensure the integrity of the TCP header and
data.
10. Urgent Pointer (16 bits):
• If the URG flag is set, this field points to the last urgent data byte in the
segment.
11. Options (variable):
• Optional field used for various purposes such as specifying maximum
segment size (MSS), window scaling, timestamp options, and others.

These headers are part of the TCP and UDP protocols and provide the necessary
information for communication between networked devices. They help in routing,
error detection, flow control, and other aspects of reliable data transmission over a
network

24. Explain with example the working of persistent and non-persistent HTTP protocol and
also state which one is advantageous and why?

HTTP (Hypertext Transfer Protocol) is the foundation of data communication on the

World Wide Web. It defines how messages are formatted and transmitted, and how
web servers and browsers respond to various commands. Two common types of
HTTP protocols are persistent and non-persistent connections.

Non-Persistent HTTP Protocol:

In a non-persistent HTTP protocol, a separate connection is established for each

resource request and response. After the response is received, the connection is
closed. This means that if a web page contains multiple resources (e.g., HTML file,
CSS file, images), each resource requires a separate connection.

Example:

1. Client Request:
 • The client (web browser) sends an HTTP request to the server for a web
page.
• Let's say the web page contains an HTML file, a CSS file, and three
image files.
2. Server Response:
• The server sends back the requested HTML file.
• The client receives the HTML file and parses it.
• The client discovers that the HTML file references additional resources
(CSS file, images).
3. Additional Requests:
• For each additional resource (CSS file, images), the client sends
separate HTTP requests to the server.
4. Server Responses:
• The server responds to each request by sending the requested
resource.
5. Connection Closure:
• After each response is received, the connection is closed.

Persistent HTTP Protocol:

In a persistent HTTP protocol, a single connection is established between the client

and the server, and multiple resource requests and responses can be sent and
received over that connection. The connection remains open until either the client or
the server decides to close it.

Example:

1. Client Request:
• The client sends an HTTP request to the server for a web page.
• The server responds with the requested web page and leaves the
connection open.
2. Subsequent Requests:
• If the web page contains additional resources, such as CSS files or
images, the client can send additional requests over the same
connection without establishing new connections.
3. Server Responses:
• The server responds to each request with the requested resource.
4. Connection Persistence:
• The connection remains open after each response, allowing for efficient
transmission of subsequent requests and responses.

Advantages:
Persistent HTTP connections offer several advantages over non-persistent
connections:

1. Reduced Overhead: Persistent connections eliminate the overhead associated

with establishing and tearing down multiple connections, such as TCP
connection establishment and teardown.
2. Improved Performance: With persistent connections, subsequent requests
can be sent and responses received more quickly since there is no need to
establish new connections for each resource.
3. Reduced Latency: By avoiding the overhead of connection establishment,
persistent connections can reduce latency, leading to faster page loading
times and a better user experience.
4. Better Resource Utilization: Persistent connections allow for better
utilization of server resources by reducing the number of idle connections and
minimizing the impact of connection setup and teardown on server
performance.

Overall, persistent HTTP connections are advantageous for web applications that
require efficient and high-performance communication between clients and servers,
making them the preferred choice for most modern web applications
