OPTIMISATION
8.1 Introduction

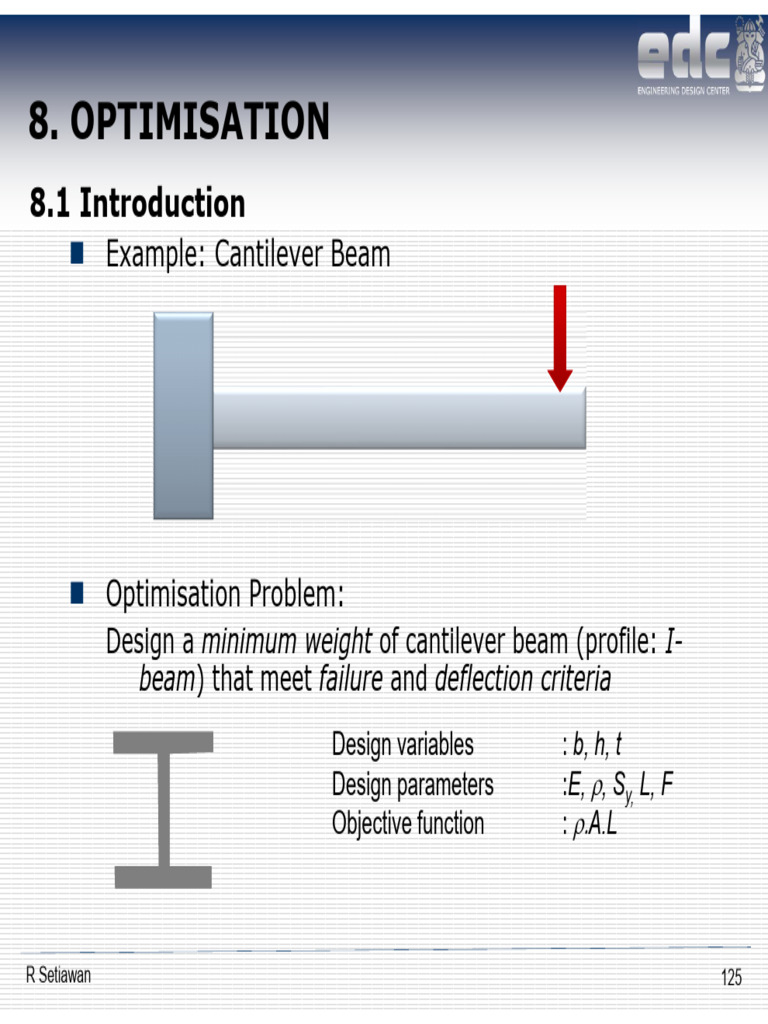

Example: Cantilever Beam
Optimisation Problem:
Design a minimum weight of cantilever beam (profile: I-
beam) that meet failure and deflection criteria
Design variables : b, h, t
Design parameters :E, r, Sy, L, F
Objective function : r.A.L
R Setiawan 125
8. OPTIMISATION
8.1 Introduction
Application
R Setiawan 126
8. OPTIMISATION
8.2 Introduction
Application
Numerical Optimization
Iteration
R Setiawan 127
8. OPTIMISATION
8.1 Introduction
Essentially, similar to root location, optimisation process
seeks for a point on a function.
The difference:
Root location to find a root that gives the function zero:
f x 0
Optimisation to find a root that gives minimum or
maximum value of the function:
f ' x 0
Why minimising/maximising??
Minimising weight of material
Minimising cost
Maximising performance
…
R Setiawan 128
8. OPTIMISATION
Classification:
The presence of Constraints:
Constrained Optimisation
Unconstrained Optimisation
R Setiawan 130
8. OPTIMISATION
8.3 One Dimensional
General Flow Chart
Optimum N
Find next
guess
R Setiawan 131
8. OPTIMISATION
8.3 One Dimensional
Golden-Section Search
l1 l2 5 1
d
l1 l2 l1 2
Quadratic Interpolation
Curve around the extreme is approximated by quadratic
curve, f2(x0, x1, x2, f(x0), f(x1), f(x2))
Find the maximum of the f2, to obtain x3.
Repeat the process with new datapoint, (x3, f(x3))…
R Setiawan 132
8. OPTIMISATION
8.3 One Dimensional
Golden-Section Search
l1 l2 5 1
R 0.61803...
l1 l2 l1 2
Recall: Bisection & False-position
R Setiawan 133
8. OPTIMISATION
8.3 One Dimensional
Golden Section Algorithm:
Initial guess, xu and xl
Find golden section distance:
5 1
d xu xl
2
x1 xl d
x2 xu d
Stopping criteria
R Setiawan 135
8. OPTIMISATION
8.3 One Dimensional
Quadratic Interpolation:
Take three initial guess
Formulate quadratic equation
Find the maximum/minimum
by differentiate it, resulting
in:
x3
f x0 x12 x22 f x1 x22 x02 f x2 x02 x12
2 f x0 x1 x2 2 f x1 x2 x0 2 f x2 x0 x1
Learn Ex. 13.2
R Setiawan 136
8. OPTIMISATION
8.3 One Dimensional
Quadratic Interpolation:
Selection of next point
Sequential
x0 n x1o
x1n x2o
x2 n x3
R Setiawan 137
8. OPTIMISATION
8.3 One Dimensional
Newton Method
Recall Newton-Rhapson method to obtain the root of
equations
Only, now f’(x) = 0, instead of f(x) = 0.
f ' x
xi 1 xi
f " x
Function, f, must be differentiable twice to find non zero f”
R Setiawan 138
8. OPTIMISATION
8.4 Multidimensional, Unconstrained
Most optimisation problems involve multi-dimensional
Classification:
Non-gradient approach (Direct Method), e.g. (Pseudo)
random search, Univariate & Pattern
Gradient Based approach, e.g. Gradient & Hessian,
Steepest Ascent/Descent
R Setiawan 139
8. OPTIMISATION
8.4 Multidimensional, Unconstrained
Pseudo random:
For each design variable, calculate:
R Setiawan 140
8. OPTIMISATION
8.4 Multidimensional, Unconstrained
Univariate:
Set Initial guess
Perform 1D search while fixing the other variables.
Repeat for each variable, once at a time
Repeat he above until reaching the maximum/minimum
R Setiawan 141
8. OPTIMISATION
8.4 Multidimensional, Unconstrained
Gradient, Hessian (2-D):
Directional derivative or Gradient directs us to the
steepest ascend/descend (slope) towards
maximum/minimum for each numerical step
R Setiawan 142
8. OPTIMISATION
8.4 Multidimensional, Unconstrained
Gradient, Hessian (2-D):
The behaviour of ascending or descending can be checked
using Hessian matrix test:
If H 0 and 2
f x 2
0 f has a local minimum
If H 0 and 2 f x 2 0 f has a local maximum
If H 0 f has a saddle point
R Setiawan 143
8. OPTIMISATION
8.4 Multidimensional, Unconstrained
Gradient, Hessian (multi-dimensional):
f x f x f x
T
f x L
x1 x2 xn
??
R Setiawan 144
8. OPTIMISATION
8.4 Multidimensional, Unconstrained
Steepest Ascend/Descend Algorithm:
Set initial guess
Find the directional gradient f x
Check for the maximum/minimum/saddle point existence
from Hessian matrix determinant |H|
Formulate one-dimensional directional function:
f f f
g h f x1 h, x2 h,L, xn h
x1 x2 xn
Find the optimum step size, h by solving g’(h) = 0
Find the next step of xi. f x f x f x
T
xi 1 L h
x1 x2 xn
Calculate error check
Repeat the process, with corrected ‘initial guess’
R Setiawan 145
8. OPTIMISATION
R Setiawan 146
