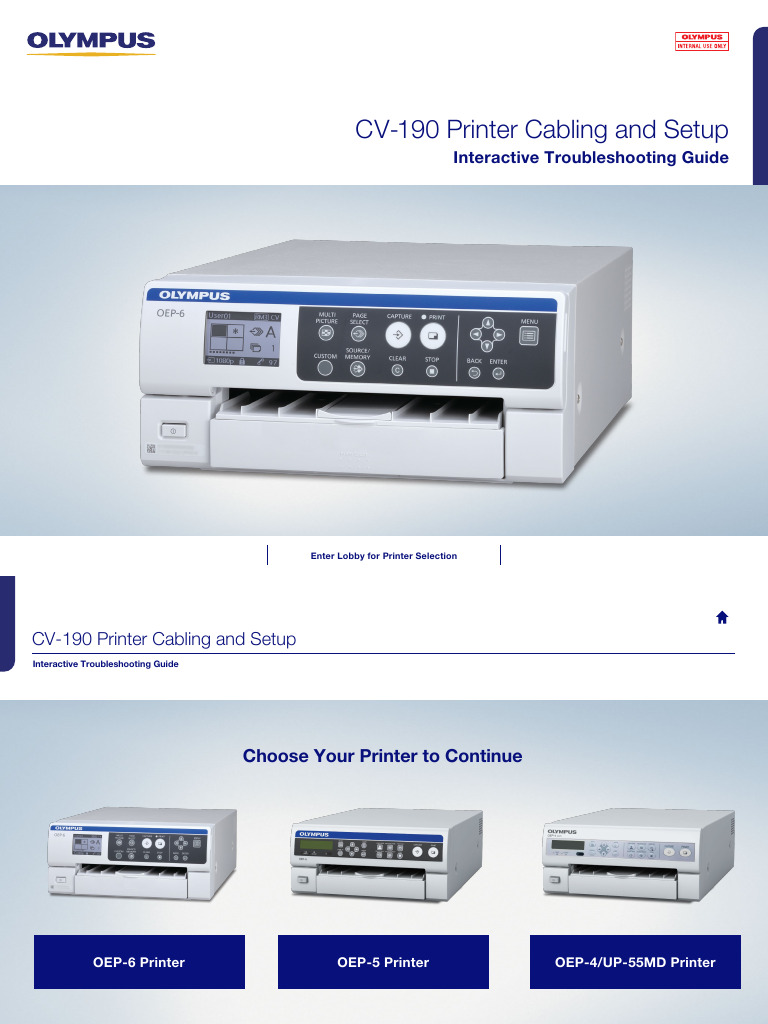

CV-190 Printer Cabling and Setup

Interactive Troubleshooting Guide

Enter Lobby for Printer Selection

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

Choose Your Printer to Continue

OEP-6 Printer OEP-5 Printer OEP-4/UP-55MD Printer

If your printer and/or cabling solution is not listed, please call the
Technical Assistance Center for help cabling your printer correctly.
1-800-848-9024 Option 1
CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-6 Printer

Response:
• Please Choose Cabling or Settings to continue

Back Continue to Cabling Continue to Settings

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-6 Cabling

Response:
• Please choose from Video or Remote cabling

Video Remote

Back Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-6 Video Cable Connection

Response:
• Connect either an MAJ-1912, MAJ-1951 or MAJ-1464 cable to the SDI input terminal

SDI INPUT terminal

MAJ-1912
MAJ-1951
SDI only MAJ-1464

Back Continue Setup

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

CV-190 Video Cable Connection

Response:
• Connect either an MAJ-1912, MAJ-1951 or MAJ-1464 cable to the HD/SD SDI output terminal

Either Out 1 or Out 2

SDI only for OEP-6

MAJ-1912
MAJ-1951
MAJ-1464

Back Continue to Remote Cabling Continue to Settings Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-6 Remote Cables

Response:
• Please choose the remote cable you are using for connection instructions

MAJ-1918 MAJ-854

Back Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-6 Remote Cable Connection MAJ-1918

Response:
• Connect the MAJ-1918 to the Remote 3 port on the back of the printer

MAJ-1918

Back Continue Setup

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

CV-190 Remote Cable Connection MAJ-1918

Response:
• Connect the MAJ-1918 to the Option 1 port on the back of the CV-190

MAJ-1918

Back Continue to Video Cabling Continue to Settings Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-6 Remote Cable Connection MAJ-854

Response:
• Connect the MAJ-854 to the Remote 2 port on the back of the printer

MAJ-854

Back Continue Setup

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

CV-190 Remote Cable Connection MAJ-854

Response:
• Connect the MAJ-854 to the Monitor remote 2 port on the back of the CV-190

MAJ-854

MAJ-854

Back Continue to Video Cabling Continue to Settings Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-6 and CV-190 Settings

Response:
• Choose OEP-6 or CV-190 to see settings

OEP-6 CV-190

Back to Video Cabling Back to Remote Cabling Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-6 Settings

Response:
• Press the “Menu” button on the front of the printer

• Select “Remote Setup” and press the enter key

Back Continue to MAJ-1918 Continue to MAJ-854 Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-6 Settings MAJ-1918

Response:
• Select “RM3 Device Type” and press enter

• Select the “CV” option and then press enter

Back Continue Back to Settings Continue Setup Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-6 Settings MAJ-1918

Response:
• Select “Exam End” and press enter

• Select the function you want to happen upon the exam end

When an examination finishes, the image in

Print
the current memory page is printed

All Images When an examination finishes, all the images

Clear in the memory page are cleared

Print and When an examination finishes, the image in

All Images the current memory page is printed and then
Clear all the images in the memory page are cleared

When an examination finishes, images are not

None
printed or cleared

Back Continue Back to Settings Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-6 Settings MAJ-854

Response:
• Select “Remote 2 Function” and press enter

• Choose the behavior that you would like to happen when the signal is received by the printer,
then press enter

Continue to List of
Back Continue to Printer Select
Remote 2 Options
CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-6 Settings MAJ-854

Mode 1 Captures an image. Mode 8 Stops printing. While pressing the switch,
the source image is displayed
Mode 2 Prints picture. When displaying the source on the monitor. An image
image on the monitor, the will be captured by releasing
source image is captured. Mode 12 the switch. An image might
Captures an image, prints be captured even when the
Mode 9 When displaying the
the picture and feeds the switch is pressed, depending
Mode 3 memory image on the
page after capturing the on the equipment connected
monitor, display is switched
image of the final pointer. to this instrument.
into the source image.

Captures an image and feeds

When displaying the source While pressing the switch,
Mode 4 the page after capturing the
image on the monitor, the the source image is displayed
image of the final pointer.
source image is captured, on the monitor. An image
and the page is fed in the will be captured by releasing
Captures an image, feeds Mode 10 case of the final pointer. the switch. An image might
the page after capturing the When displaying the be captured even when the
Mode 5 image of the final pointer, memory image on the switch is pressed, depending
and stops at the final monitor, display is switched on the equipment connected
Mode 13
pointer of the last page. into the source image. to this instrument. The page
is fed after capturing the
image of the final pointer.
Moves the pointer by one Mode 11 Prints and feeds the page.
Mode 6
space backward.

Moves the pointer by one

Mode 7
space forward.

Back Continue Back to Settings Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

CV-190 Settings

Response:
• Press the “Menu Key” on the keyboard

• Select “#5 Advanced Menu” and press enter

Back Continue Setup Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

CV-190 Settings Setup

Response:
• Select “System Setup” and press enter

• Select “Peripheral Settings” and press enter

Continue to Continue to Continue to

Back Back to Settings
MAJ-1918 MAJ-854 Printer Select
CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

CV-190 Settings MAJ-1918

Response:
• Select “Printer Type” and press enter

• Select “OEP-5” from the list and press enter

• Press the “Menu” key on the keyboard and when prompted to save select “Yes” and press enter

Back Back to Settings Continue to OEP Settings Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

CV-190 Settings MAJ-854

Response:
• Select “Printer Type” and press enter

• Select “Remote” from the list and press enter

• Press the “Menu” key on the keyboard and when prompted to save select “Yes” and press enter

Back Back to Settings Continue to OEP Settings Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-6 Settings

Response:
• Press the “Menu” button on the front of the printer

• Select “Remote Setup” and press the enter key

Back Continue to MAJ-1918 Continue to MAJ-854 Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-6 Settings MAJ-1918

Response:
• Select “RM3 Device Type” and press enter

• Select the “CV” option and then press enter

Back Continue Back to Settings Continue Setup Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-6 Settings MAJ-1918

Response:
• Select “Exam End” and press enter

• Select the function you want to happen upon the exam end

When an examination finishes, the image in

Print
the current memory page is printed

All Images When an examination finishes, all the images

Clear in the memory page are cleared

Print and When an examination finishes, the image in

All Images the current memory page is printed and then
Clear all the images in the memory page are cleared

When an examination finishes, images are not

None
printed or cleared

Back Continue Back to Settings Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-6 Settings MAJ-854

Response:
• Select “Remote 2 Function” and press enter

• Choose the behavior that you would like to happen when the signal is received by the printer,
then press enter

Continue to List of
Back Continue to Printer Select
Remote 2 Options
CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-6 Settings MAJ-854

Mode 1 Captures an image. Mode 8 Stops printing. While pressing the switch,
the source image is displayed
Mode 2 Prints picture. When displaying the source on the monitor. An image
image on the monitor, the will be captured by releasing
source image is captured. Mode 12 the switch. An image might
Captures an image, prints be captured even when the
Mode 9 When displaying the
the picture and feeds the switch is pressed, depending
Mode 3 memory image on the
page after capturing the on the equipment connected
monitor, display is switched
image of the final pointer. to this instrument.
into the source image.

Captures an image and feeds

When displaying the source While pressing the switch,
Mode 4 the page after capturing the
image on the monitor, the the source image is displayed
image of the final pointer.
source image is captured, on the monitor. An image
and the page is fed in the will be captured by releasing
Captures an image, feeds Mode 10 case of the final pointer. the switch. An image might
the page after capturing the When displaying the be captured even when the
Mode 5 image of the final pointer, memory image on the switch is pressed, depending
and stops at the final monitor, display is switched on the equipment connected
Mode 13
pointer of the last page. into the source image. to this instrument. The page
is fed after capturing the
image of the final pointer.
Moves the pointer by one Mode 11 Prints and feeds the page.
Mode 6
space backward.

Moves the pointer by one

Mode 7
space forward.

Back Continue Back to Settings Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-5 Printer

Response:
• Please Choose Cabling or Settings to continue

Back Continue to Cabling Continue to Settings

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-5 Cabling

Response:
• Please choose from Video or Remote cabling

Video Remote

Back Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-5 Video Cabling

Response:
• Please choose the video signal you are using

RGB Video
SDI S-Video
(Component) (Composite)

Back Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-5 SDI

Response:
• Connect either an MAJ-1912, MAJ-1951 or MAJ-1464 cable to the SDI input terminal

MAJ-1912
MAJ-1951
MAJ-1464

Back Continue Setup

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

CV-190 SDI Connection

Response:
• Connect either an MAJ-1912, MAJ-1951 or MAJ-1464 cable to the SDI output terminal

Either Out 1 or Out 2

MAJ-1912
MAJ-1951
MAJ-1464

Back Continue to Remote Cabling Continue to Settings Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-5 Remote Cables

Response:
• Please choose the remote cable you are using for connection instructions

MAJ-1918 MH-995 MAJ-854

Back Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-5 Remote Cable Connection MAJ-1918

Response:
• Connect the MAJ-1918 to the Remote 3 port on the back of the printer

MAJ-1918

Back Continue Setup

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

CV-190 Remote Cable Connection MAJ-1918

Response:
• Connect the MAJ-1918 to the Option 1 port on the back of the CV-190

MAJ-1918

Back Continue to Video Cabling Continue to Settings Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-5 Remote Cable Connection MH-995

Response:
• Connect the MH-995 to the RS-232C Port on the back of the printer

MH-995

Back Continue Setup

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

CV-190 Remote Cable Connection MH-995

Response:
• Connect the MH-995 to the printer terminal on the MAJ-1916 adapter box, and the MAJ-1918 cable to
the CV terminal on the adapter box and the other end to the Adapter port on the back of the CV-190

MAJ-1916

NOTE:
You need the MAJ-1916 MAJ-1918 CV Printer
Adapter Box to use the
MH-995 with the CV-190
Adapter Terminal

Back Continue to Video Cabling Continue to Settings Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-5 Remote Cable Connection MAJ-854

Response:
• Connect the MAJ-854 to the Remote 2 port on the back of the printer

MH-854

Back Continue Setup

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

CV-190 Remote Cable Connection MAJ-854

Response:
• Connect the MAJ-854 to the Monitor remote 2 port on the back of the CV-190

MAJ-854

MAJ-854

Back Continue to Video Cabling Continue to Settings Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-5 Settings

Response:
While there are no remote settings you need to select in the OEP-5 printer menu, you will need to
select the Video input that you have connected. The Default video setting is SDI but you should check
that before testing the printer.

• Press the menu key on the front of the printer

• Use your arrow keys to navigate to the Signal setup choice and press enter and you should see
Input Setup

• Press the Down arrow 1 time to see Input select then press enter

• You can now use your arrow keys to select the correct input (S-video, Video, Component, SDI)

• Once the correct input is selected then press enter and the unit will return to the ready state

Back to Settings Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-5 RGB (Component)

Response:
• Connect one of the cables MH-984,MD-445+MAJ-849 to the RGB input on the back of the OEP-5

MH-984,
MD-445 + MAJ-849

Back Continue Setup

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

CV-190 RGB (Component)

Response:
• Connect one of the cables MH-984, MD-445 + MAJ-849 to the back of the CV-190 in the printer out port

MH-984,
MD-445 +
MAJ-849

Back Continue to Remote Cabling Continue to Settings Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-5 S-Video

Response:
• Connect either MH-985 or MAJ-987 to the S-Video in on the back of the OEP-5

MH-985 or
MAJ-987

Back Continue Setup

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

CV-190 S-Video

Response:
• Connect either MH-985 or MAJ-987 to the Y/C out on the back of the CV-190

MH-985 or
MAJ-987

Back Continue to Remote Cabling Continue to Settings Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-5 Video (Composite)

Response:
• Connect MB-677 or any BNC cable into the Video in on the back of the OEP-5

MB-677 or any
BNC cable

Back Continue Setup

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

CV-190 Video (Composite)

Response:
• Connect MB-677 or any BNC cable into the Comp out port on the back of the CV-190

MB-677 or any
BNC cable

Back Continue to Remote Cabling Continue to Settings Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-5 and CV-190 Settings

Response:
• Choose OEP-5 or CV-190 to see settings

OEP-5 CV-190

Back Back to Video Cabling Back to Remote Cabling Continue to Printer Select
CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

CV-190 Settings

Response:
• Press the “Menu Key” on the keyboard

• Select “#5 Advanced Menu” and press enter

Back Continue Setup Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

CV-190 Settings Setup

Response:
• Select “System Setup” and press enter

• Select “Peripheral Settings” and press enter

Continue to Continue to Continue to Continue to

Back Back to Settings
MH-995 MH-1918 MAJ-854 Printer Select
CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

CV-190 Settings MH-995

Response:
• Select “Printer Type” and press enter

• Select “OEP-4” from the list and press enter

• Press the “Menu” key on the keyboard and when prompted to save select “Yes” and press enter

Back Back to Settings Continue to OEP Settings Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

CV-190 Settings MAJ-1918

Response:
• Select “Printer Type” and press enter

• Select “OEP-5” from the list and press enter

• Press the “Menu” key on the keyboard and when prompted to save select “Yes” and press enter

Back Back to Settings Continue to OEP Settings Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

CV-190 Settings MAJ-854

Response:
• Select “Printer Type” and press enter

• Select “Remote” from the list and press enter

• Press the “Menu” key on the keyboard and when prompted to save select “Yes” and press enter

Back Back to Settings Continue to OEP Settings Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-4/UP-55MD Printer

Response:
• Please Choose Cabling or Settings to continue

Back Continue to Cabling Continue to Settings

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-4/UP-55MD Cabling

Response:
• Please choose from Video or Remote cabling

Video Remote

Back Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-4/UP-55MD Video Cabling

Response:
• Please choose the video signal you are using

RGB Video
S-Video
(Component) (Composite)

Back Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-4/UP-55MD RGB (Component)

Response:
• Connect one of the cables MH-984, MD-445 + MAJ-849 to the RGB input on the back of the
OEP-4/UP-55MD

MH-984,
MD-445 + MAJ-849

Back Continue Setup

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

CV-190 RGB (Component)

Response:
• Connect one of the cables MH-984, MD-445 + MAJ-849 to the back of the CV-190 in the printer out port

MH-984,
MD-445 +
MAJ-849

Back Continue to Remote Cabling Continue to Settings Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-4/UP-55MD S-Video

Response:
• Connect either MH-985 or MAJ-987 to the S-Video in on the back of the OEP-4/UP-55MD

MH-985 or
MAJ-987

Back Continue Setup

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

CV-190 S-Video

Response:
• Connect either MH-985 or MAJ-987 to the Y/C out on the back of the CV-190

MH-985 or
MAJ-987

Back Continue to Remote Cabling Continue to Settings Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-4/UP-55MD Video (Composite)

Response:
• Connect MB-677 or any BNC cable into the Video in on the back of the OEP-4/UP-55MD

MB-677 or any
BNC cable

Back Continue Setup

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

CV-190 Video (Composite)

Response:
• Connect MB-677 or any BNC cable into the Comp out port on the back of the CV-190

MB-677 or any
BNC cable

Back Continue to Remote Cabling Continue to Settings Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-4/UP-55MD Remote Cables

Response:
• Please choose the remote cable you are using for connection instructions

MH-995 MAJ-854

Back Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-4/UP-55MD Remote Cable Connection MH-995

Response:
• Connect the MH-995 to the RS-232C Port on the back of the printer

MH-995

Back Continue Setup

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

CV-190 Remote Cable Connection MH-995

Response:
• Connect the MH-995 to the printer terminal on the MAJ-1916 adapter box, and the MAJ-1918 cable to
the CV terminal on the adapter box and the other end to the Adapter port on the back of the CV-190

MAJ-1916

NOTE:
You need the MAJ-1916 MAJ-1918 CV Printer
Adapter Box to use the
MH-995 with the CV-190
Adapter Terminal

Back Continue to Video Cabling Continue to Settings Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-4/UP-55MD Remote Cable Connection MAJ-854

Response:
• Connect the MAJ-854 to the Remote 2 port on the back of the printer

MH-854

Back Continue Setup

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

CV-190 Remote Cable Connection MAJ-854

Response:
• Connect the MAJ-854 to the Monitor remote 2 port on the back of the CV-190

MAJ-854

MAJ-854

Back Continue to Video Cabling Continue to Settings Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-4/UP-55MD and CV-190 Settings

Response:
• Choose OEP-4 or CV-190 to see settings

OEP-4 CV-190

Back Back to Video Cabling Back to Remote Cabling Continue to Printer Select
CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

OEP-4 Settings

Response:
While there are no remote settings you need to select in the OEP-4 printer menu, you will need to select
the Video input that you have connected. The Default video setting is SDI but you should check that
before testing the printer.

• Press the “Menu” key on the front of the printer

• Using your arrow keys move to the input setup section and press “Enter”

• Then press “Enter” to enter the input select

• Then choose the video signal that you have connected (S-Video, Video, Component) and press “Enter”

• If the printer does not go to the main screen you can press the “Menu” key to return there to the
ready state

Back to Settings Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

CV-190 Settings

Response:
• Press the “Menu Key” on the keyboard

• Select “#5 Advanced Menu” and press enter

Back Continue Setup Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

CV-190 Settings Setup

Response:
• Select “System Setup” and press enter

• Select “Peripheral Settings” and press enter

Continue to Continue to Continue to

Back Back to Settings
MH-995 MAJ-854 Printer Select
CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

CV-190 Settings MH-995

Response:
• Select “Printer Type” and press enter

• Select “OEP-4” from the list and press enter

• Press the “Menu” key on the keyboard and when prompted to save select “Yes” and press enter

Back Back to Settings Continue to OEP Settings Continue to Printer Select

CV-190 Printer Cabling and Setup
Interactive Troubleshooting Guide

CV-190 Settings MAJ-854

Response:
• Select “Printer Type” and press enter

• Select “Remote” from the list and press enter

• Press the “Menu” key on the keyboard and when prompted to save select “Yes” and press enter

Back Back to Settings Continue to OEP Settings Continue to Printer Select

Customer Service

If You Need Additional Assistance

Contact the Technical Assistance Center (TAC) at:
1-800-848-9024, Option 1

Please Exit the Interactive

Troubleshooting Guide
 Olympus is a registered trademark of Olympus Corporation, Olympus America Inc., and/or their affiliates. I Medical devices listed may not be available for sale in all countries.

For more information, contact your Olympus

sales representative, or call 800-848-9024.
3500 Corporate Parkway, PO Box 610, Center Valley, PA 18034 www.medical.olympusamerica.com

©2021 Olympus America Inc. All rights reserved.

Printed in USA LCR43132V01
