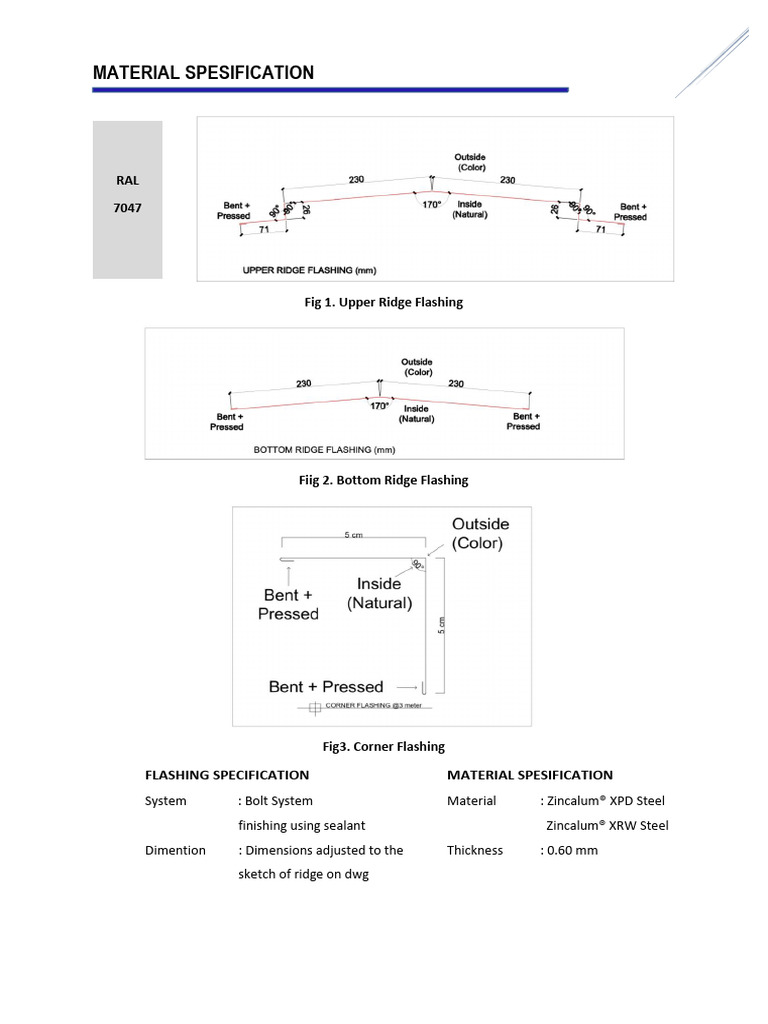

MATERIAL SPESIFICATION
RAL
7047
Fig 1. Upper Ridge Flashing
Fiig 2. Bottom Ridge Flashing
Fig3. Corner Flashing
FLASHING SPECIFICATION MATERIAL SPESIFICATION
System : Bolt System Material : Zincalum® XPD Steel
finishing using sealant Zincalum® XRW Steel
Dimention : Dimensions adjusted to the Thickness : 0.60 mm
sketch of ridge on dwg
MATERIAL SPESIFICATION
Zincalume Colorbond XRW Data Sheet
Clean Colorbond XRW Prepainted Steel, Specifially designed by Bluescope Steel, combines long term
durability and exceptional corrosion resistance. Its substrate conforms to Australia Standard AS1397
whilst its paint coating conforms to AS/NZS 2728: 1997 Type 4
Typical Properties
Substrate : Zincalume® XRW Steel
Coating Class : AZ 200
Nominal Coating Mass : 200 gr/sqm both surface
Primer Coat : Universal Corrosion inhibitive primer
Finish Coat : Custom formulated super polyester paint system with high
performance pigments finish system
Coating Thickness : 35 micron (Weather side + backside)
Surface Condition : Painted
Standard
Paint Coating : AS/NZS 2728:2013 Type 4
Substrate : AS 1397:2011 ; SNI 4096:2007
Mechanical Properties
GUARANTEED
Parameter
G550’ G300’
Yield Strength (Mpa) 550 300
Tensile Strength (Mpa) 550 340
Elongation in 50 mm (% EL) 2 20
Chemical Properties mass(%)
C P Mn S
(Carbon) (Phosporus) (Mangan) (Sulphur)
G550’ 0.20 0.04 1.20 0.03
G300’ 0.03 0.04 1.60 0.035
MATERIAL SPESIFICATION
Zincalume Colorbond XPD Steel Data Sheet
Clean Colorbond XPD Steel, Specifially designed by Bluescope Steel, combines long term durability
and exceptional corrosion resistance. Its substrate conforms to Australia Standard AS1397 whilst its
paint coating conforms to AS/NZS 2728: 1997 Type 3
Typical Properties
Substrate : Zincalume® XPD Steel G300
Coating Class : AZ 200
Primer Coat : Corrosion inhibitive primer
Finish Coat : Custom formulated system – PVDF (Polyvinylidene Fluoride) coating system
Coating Thickness : 35 micron
Surface Condition : Painted
Gloss : Nominal 25% (600)
Standard
Paint Coating : AS/NZS 2728:2013 Type 3
Substrate : AS 1397:2011, SNI 4096:2007
Mechanical Properties
GUARANTEED
Parameter
G550’ G300’ 340”
Yield Strength (Mpa) 550 300 340
Tensile Strength (Mpa) 550 340 -
Elongation in 50 mm (% EL) 2 20 12
1800 transverse bend (L axis) - 2t -
Chemical Properties mass(%)
C Mn S P
(Carbon) (Mangan) (Sulphur) (Phosporus)
G550’ 0.20 1.20 0.03 0.04
G300’ 0.30 1.60 0.035 0.10
340” 0.25 1.35 0.04 0.20
