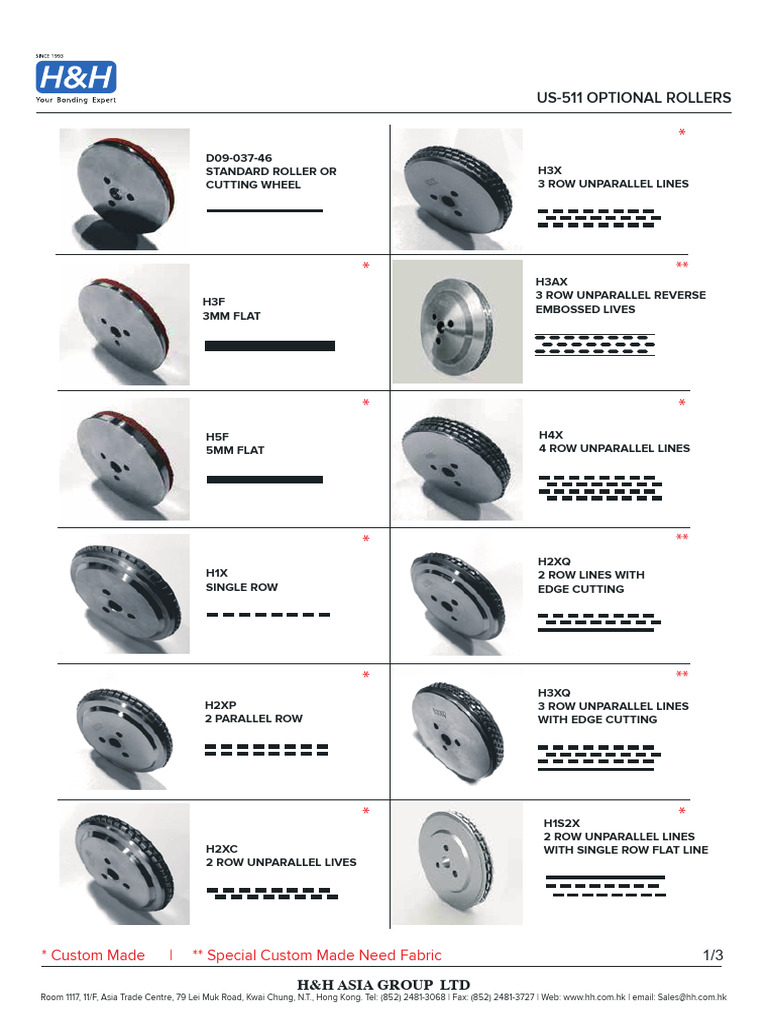

US-511 OPTIONAL ROLLERS
*
D09-037-46
STANDARD ROLLER OR H3X
CUTTING WHEEL 3 ROW UNPARALLEL LINES
* **
H3AX
3 ROW UNPARALLEL REVERSE
H3F
EMBOSSED LIVES
3MM FLAT
* *
H5F H4X
5MM FLAT 4 ROW UNPARALLEL LINES
* **
H2XQ
H1X 2 ROW LINES WITH
SINGLE ROW EDGE CUTTING
* **
H3XQ
H2XP 3 ROW UNPARALLEL LINES
2 PARALLEL ROW WITH EDGE CUTTING
* H1S2X
*
2 ROW UNPARALLEL LINES
H2XC WITH SINGLE ROW FLAT LINE
2 ROW UNPARALLEL LIVES
* Custom Made | ** Special Custom Made Need Fabric 1/3
H&H ASIA GROUP LTD
Room 1117, 11/F, Asia Trade Centre, 79 Lei Muk Road, Kwai Chung, N.T., Hong Kong. Tel: (852) 2481-3068 | Fax: (852) 2481-3727 | Web: www.hh.com.hk | email: Sales@hh.com.hk
US-511 OPTIONAL ROLLERS
H1S3X
*
3 ROW UNPARALLEL LINES
WITH SINGLE ROW FLAT LINE
*
H3D
3 ROW DIAMOND
**
H20H
LADDER WITH CONCAVE
SCALEING (MEDIUM)
EDGE CUTTING
*
HBL+Y
LADDER WITH WAVES
H40H
**
SLANT LADDER WITH
CONCAVE SCALEING (SMALL)
EDGE CUTTING
H3XP2
*
ALTERNATE 3 ROW FLAT
WITH 2 PARALLEL LINES
* Custom Made | ** Special Custom Made Need Fabric 2/3
H&H ASIA GROUP LTD
Room 1117, 11/F, Asia Trade Centre, 79 Lei Muk Road, Kwai Chung, N.T., Hong Kong. Tel: (852) 2481-3068 | Fax: (852) 2481-3727 | Web: www.hh.com.hk | email: Sales@hh.com.hk
US-511 OPTIONAL ROLLERS
Note : -
• The custom made rollers with edge cutting has two different surface
( a ) welding surface
( b ) edge cutting surface
• so the fabric thickness plays a very important role to balance the welding strength
and edge cutting
• when we order these rollers it is most important that customer should provide the
fabrics to make the suitable roller.
• If customer insist us to ship the standard roller what we made for others following
things can happen
-If ( b - a ) < fabric thickness
-The welding strength is good
-Roller pattern impression is good for welding surface ( a )
-Edge cutting is poor or it may not cut the fabric - and if we increase more manual
pressure of roller on fabric to improve edge cutting
• The welding surface ( a ) impression will increase and may tear the fabric or make
holes same time the roller welding surface ( a ) life will be low also it will damage
the horn surface ( roller and hot both are made with hard material )
-If ( b - a ) > fabric thickness
-Edge cutting is very good
-The welding strength is poor
-Roller pattern impression is poor for welding surface ( a )
-Welding is poor or it may not weld the fabric - and if we increase more manual
pressure of roller on fabric to improve welding
• The welding surface ( a ) impression will increase and we may get good impression
and also welding strength but the edge cutting surface ( b ) life will be low also it will
damage the horn surface ( roller and hot both are made with hard material )
(b)
(a)
* Custom Made | ** Special Custom Made Need Fabric 3/3
