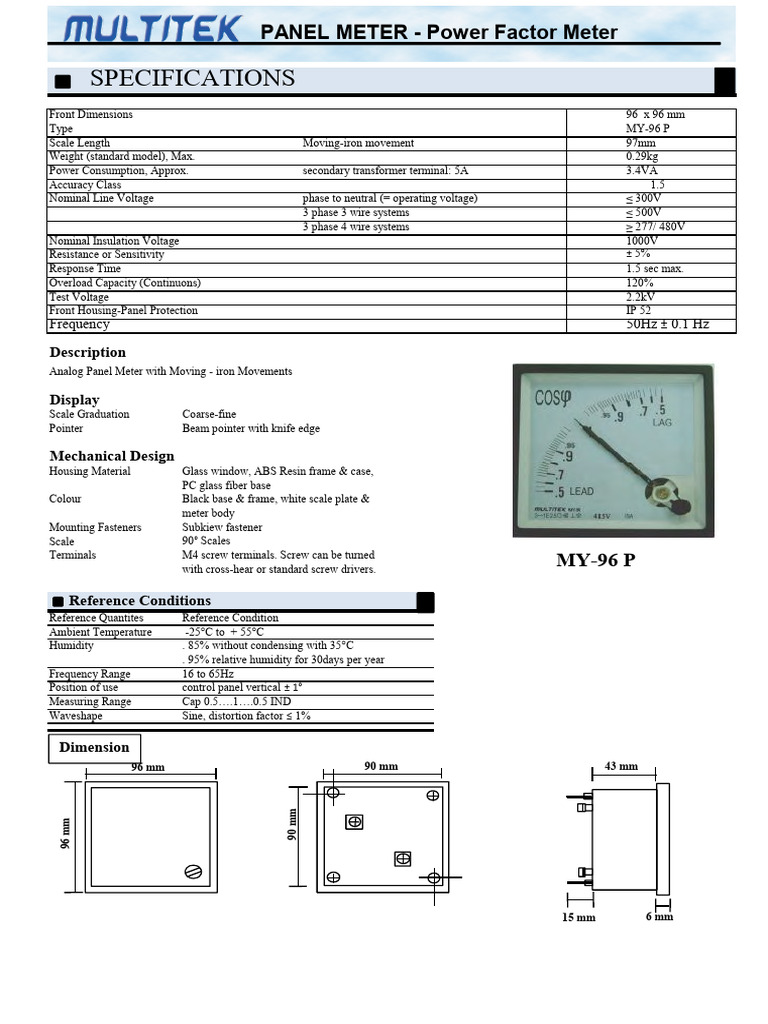

PANEL METER - Power Factor Meter

SPECIFICATIONS
Front Dimensions 96 x 96 mm
Type MY-96 P
Scale Length Moving-iron movement 97mm
Weight (standard model), Max. 0.29kg
Power Consumption, Approx. secondary transformer terminal: 5A 3.4VA
Accuracy Class 1.5
Nominal Line Voltage phase to neutral (= operating voltage) ≤ 300V
3 phase 3 wire systems ≤ 500V
3 phase 4 wire systems ≥ 277/ 480V
Nominal Insulation Voltage 1000V
Resistance or Sensitivity ± 5%
Response Time 1.5 sec max.
Overload Capacity (Continuons) 120%
Test Voltage 2.2kV
Front Housing-Panel Protection IP 52
Frequency 50Hz ± 0.1 Hz

Description
Analog Panel Meter with Moving - iron Movements

Display
Scale Graduation Coarse-fine
Pointer Beam pointer with knife edge

g
Mechanical Design
Housing Material Glass window, ABS Resin frame & case,
PC glass fiber base
Colour Black base & frame, white scale plate &
meter body
Mounting Fasteners Subkiew fastener
Scale 90° Scales
Terminals M4 screw terminals. Screw can be turned
with cross-hear or standard screw drivers.
MY-96 P

Reference Conditions
Reference Quantites Reference Condition
Ambient Temperature -25°C to + 55°C
Humidity . 85% without condensing with 35°C
. 95% relative humidity for 30days per year
Frequency Range 16 to 65Hz
Position of use control panel vertical ± 1°
Measuring Range Cap 0.5….1….0.5 IND
Waveshape Sine, distortion factor ≤ 1%

Dimension
96 mm 90 mm 43 mm
90 mm
96 mm

15 mm 6 mm
