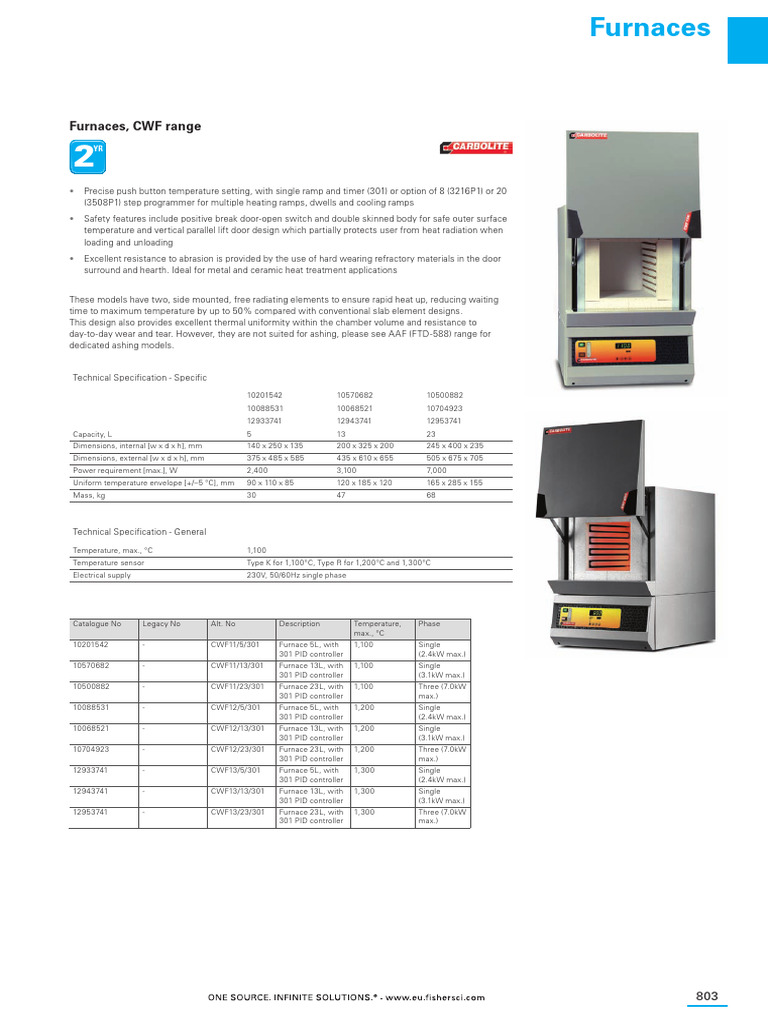

Furnaces
Furnaces, CWF range
2
YR
• Precise push button temperature setting, with single ramp and timer (301) or option of 8 (3216P1) or 20
(3508P1) step programmer for multiple heating ramps, dwells and cooling ramps
• Safety features include positive break door-open switch and double skinned body for safe outer surface
temperature and vertical parallel lift door design which partially protects user from heat radiation when
loading and unloading
• Excellent resistance to abrasion is provided by the use of hard wearing refractory materials in the door
surround and hearth. Ideal for metal and ceramic heat treatment applications
These models have two, side mounted, free radiating elements to ensure rapid heat up, reducing waiting
time to maximum temperature by up to 50% compared with conventional slab element designs.
This design also provides excellent thermal uniformity within the chamber volume and resistance to
day-to-day wear and tear. However, they are not suited for ashing, please see AAF (FTD-588) range for
dedicated ashing models.
Technical Specification - Specific
10201542 10570682 10500882
10088531 10068521 10704923
12933741 12943741 12953741
Capacity, L 5 13 23
Dimensions, internal [w x d x h], mm 140 x 250 x 135 200 x 325 x 200 245 x 400 x 235
Dimensions, external [w x d x h], mm 375 x 485 x 585 435 x 610 x 655 505 x 675 x 705
Power requirement [max.], W 2,400 3,100 7,000
Uniform temperature envelope [+/–5 °C], mm 90 x 110 x 85 120 x 185 x 120 165 x 285 x 155
Mass, kg 30 47 68
Technical Specification - General
Temperature, max., °C 1,100
Temperature sensor Type K for 1,100°C, Type R for 1,200°C and 1,300°C
Electrical supply 230V, 50/60Hz single phase
Catalogue No Legacy No Alt. No Description Temperature, Phase Price
max., °C
10201542 - CWF11/5/301 Furnace 5L, with 1,100 Single 1,922.59
301 PID controller (2.4kW max.)
10570682 - CWF11/13/301 Furnace 13L, with 1,100 Single 2,336.36
301 PID controller (3.1kW max.)
10500882 - CWF11/23/301 Furnace 23L, with 1,100 Three (7.0kW 3,232.58
301 PID controller max.)
10088531 - CWF12/5/301 Furnace 5L, with 1,200 Single 2,143.60
301 PID controller (2.4kW max.)
10068521 - CWF12/13/301 Furnace 13L, with 1,200 Single 2,601.96
301 PID controller (3.1kW max.)
10704923 - CWF12/23/301 Furnace 23L, with 1,200 Three (7.0kW 3,605.66
301 PID controller max.)
12933741 - CWF13/5/301 Furnace 5L, with 1,300 Single 2,596.66
301 PID controller (2.4kW max.)
12943741 - CWF13/13/301 Furnace 13L, with 1,300 Single 3,237.64
301 PID controller (3.1kW max.)
12953741 - CWF13/23/301 Furnace 23L, with 1,300 Three (7.0kW 4,789.52
301 PID controller max.)
803
