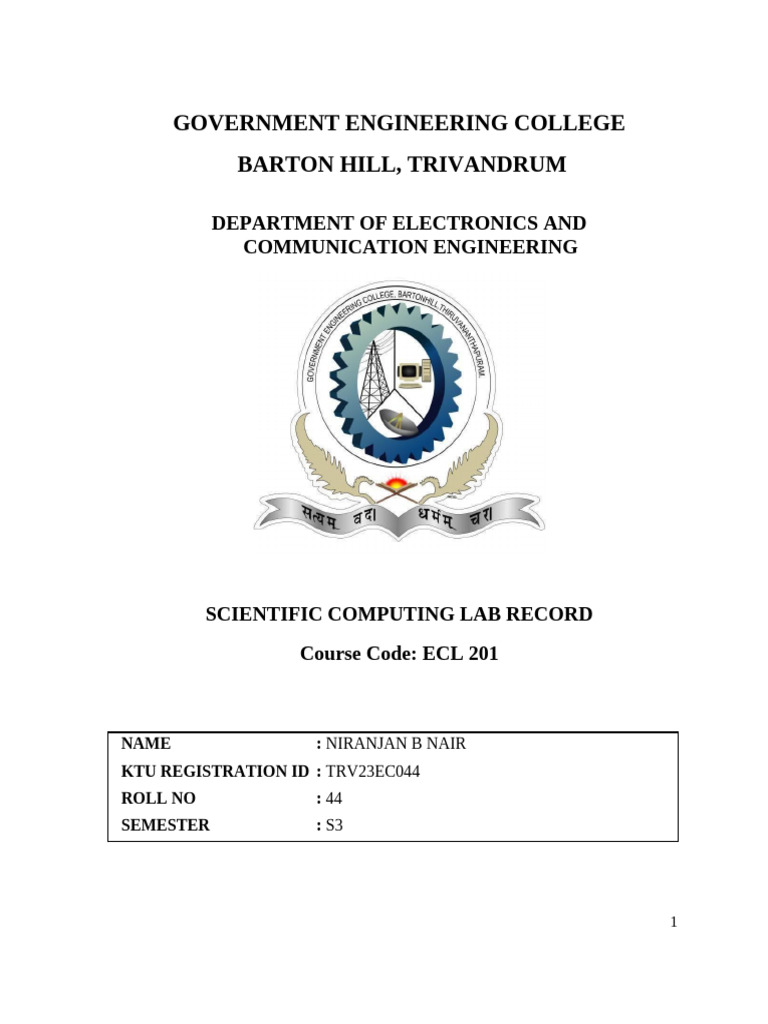

GOVERNMENT ENGINEERING COLLEGE

BARTON HILL, TRIVANDRUM

DEPARTMENT OF ELECTRONICS AND

COMMUNICATION ENGINEERING

SCIENTIFIC COMPUTING LAB RECORD

Course Code: ECL 201

NAME : NIRANJAN B NAIR

KTU REGISTRATION ID : TRV23EC044
ROLL NO : 44
SEMESTER : S3

1
 LIST OF EXPERIMENTS
Expt. No Date Experiment Name Page Signature
No
1. FAMILIARISATION WITH 1-12
PYTHON
1.1 19-07-24 Assign values to different variables 1
and find their data types.

1.2 19-07-24 Read input of different types from the 2

user and convert them into
corresponding data types.

1.3 19-07-24 Perform arithmetic operations. 3

1.4 19-07-24 Find the logarithm of the sum of two 4

numbers taken as input from the user.
1.5 19-07-24 Check whether a number is odd or 5
even.
1.6 19-07-24 Check if a number is between 0 to 50 6
or 50 to 100 or negative using nested
if.

1.7 26-07-24 Print the multiplication table of a 7

number given by the user using a
while loop.

1.8 26-07-24 Find the sum of first n natural 8

numbers using loop

1.9 26-07-24 Find the frequency of a character in a 9

string using for loop.

1.10 26-07-24 Find the factorial of a number using i) 9

loop ii) built-in function iii) recursion

2. 13-21
INTRODUCTION TO
VECTORISED
COMPUTING AND

2
 PLOTTING
2.1 02-08-24 Understanding indexing and basic 13
operations with python list

2.2 02-08-24 Understanding indexing and 16

vectorised computations with numpy
arrays

2.3 02-08-24 Introduction to matplotlib and plots 20

3. 22-27
SYSTEM OF LINEAR
EQUATIONS AND
EIGENVALUES
3.1 09-08-24 Solving system of linear equations 22

3.2 09-08-24 Generating and plotting maximum 25

eigenvalues of random matrices

4. SINGULAR VALUE 28-30

DECOMPOSITION
4.1 16-08-24 Find singular value decomposition 28

5. NUMERICAL 31-36
DIFFERENTIATION AND
INTEGRATION
5.1 23-08-24 Compute and plot derivatives of sin, 31
cos, sinh, cosh functions
5.2 23-08-24 Numerical integration of 4t2+3 using 34
i) Trapezoidal rule ii) Simpson's rule

6. SIMPLE DATA 37-42

VISUALISATION
6.1 06-09-24 Draw stem plots, line plots, bar plots, 37
scatter plots and histogram

3
 6.2 06-09-24 Implement and plot the functions f(t) 40
= cos t and f(t) = cos [Link] 5t + cos5t

7. DATA ANALYSIS 43-47

7.1 06-09-24 Read a .csv file as an array and plot it 43

7.2 06-09-24 Compute mean and standard 45

deviation of the signal and plot its
histogram

8. SOLUTION OF ORDINARY 48-57

DIFFERENTIAL
EQUATION
8.1 27-09-24 Solve first order and second order 48
differential equation
8.2 27-09-24 Solve differential equations 52
associated with RC and RLC circuit

9. CONVERGENCE OF 58-61
FOURIER SERIES
9.1 04-10-24 4 1 2π 3t 1 58
[1- cos
Plot f(t) = + cos
π 3 T 5
2π 5t 1 2π 7t
- cos +.....]
T 7 T
9.2 04-10-24 Verify the Madhava series for π = 60
1 1 1
4[1 - + - + …..]
3 5 7

4
 EXPERIMENT NO. 1
FAMILIARISATION WITH PYTHON

AIM:

To write python code snippets so as to:

i) Familiarise with the data types - int, float, string and list

ii) Understand syntax of if, while and for statements

iii) Define functions and call functions

PROGRAMS:

[Link] values to different variables and find their data types

a) Algorithm

● Start
● Initialise variables a, b, c, d with an integer, float, string and list value
respectively
● Print the variable name along with the data type of the variables using
type(variable) function
● Stop

b) Code

a=3

b=10.23

c='sample'

d=[1,3,5,7]

1
 print("a=",a)

print("b=",b)

print("c=",c)

print("d=",d)

print("data type of a=",type(a))

print("data type of b=",type(b))

print("data type of c=",type(c))

print("data type of d=",type(d))

c) Output
a= 3
b= 10.23
c= sample
d= [1, 3, 5, 7]
data type of a= <class 'int'>
data type of b= <class 'float'>
data type of c= <class 'str'>
data type of d= <class 'list'>

[Link] input of different types from user and convert them into
corresponding data types

a) Algorithm
● Start
● Declare variables a, b, c, d with an integer, float, string and list value
respectively.
● Prompt the user to enter an integer, float, string and list values
and store the inputted values to a,b,c and d respectively.
● Print the data type of the variables using type(variable) function.
● Stop

2
b) Code

print("Enter an integer")

a=int(input())

print("Enter a floating point number")

b=float(input())

print("Enter a string")

c=input()

print("Enter a list")

d=list(input())

print(type(a))

print(type(b))

print(type(c))

print(type(d))

c) Output

3
 Enter an integer

Enter a floating point number

2.5

Enter a string

Hello world

Enter a list

[a,b,c,d]

<class 'int'>

<class 'float'>

<class 'str'>

<class 'list'>

3. Perform arithmetic operations

a) Algorithm
● Start
● Declare two variables a and b to store user input values.
● Prompt the user to enter the two values and store them in a and b
respectively.
● Calculate the sum, difference, product, quotient and remainder using
arithmetic operators and print the results.
● Stop

b) Code

print("Enter two numbers")

a=float(input())

4
 b=float(input())

print("Sum = ",a+b)

print("Difference = ",a-b)

print("Product = ",a*b)

print("Quotient = ",a/b)

print("Remainder = ",a%b)

c) Output

Enter two numbers

6,4

Sum = 10.0

Difference = 2.0

Product = 24.0

Quotient = 1.5

Remainder = 2.0

4. Find the logarithm of the sum of two numbers taken as input from the
user.

a) Algorithm
● Start
● Import the ‘math’ library in python.
● Declare three variables a,b and sum to store user input values.
● Prompt the user to enter two values and store them in a and b.
● Add the values of a and b and store the result in sum.
● Use log( ) function to find logarithm of the sum and display the result

5
 ● Stop

b) Code

import math

print("Enter two numbers")

a=float(input())

b=float(input())

sum=a+b

print("Logarithm of sum of numbers = ",[Link](sum))

c) Output

Enter two numbers

50,50

Logarithm of sum of numbers = 4.605170185988092

5. Check whether a number is odd or even

a) Algorithm
● Start
● Declare a variable num.
● Prompt the user to enter an integer value and store in num.
● If the modulus of num by 2 gives remainder as zero,display that the
number is even.
● Otherwise, if the remainder is not zero, display that the number is odd.
● Stop.

b) Code

print("Enter a number")

6
 num=int(input())

if num%2==0:

print(num," is even.")

else:

print(num," is odd.")

c) Output
Enter a number
22
22 is even.

6. Check if a number is between 0 to 50 or 50 to 100 or negative using

nested if.

a) Algorithm
● Start
● Declare a variable num to store the user input
● Prompt the user to enter a number and store it in num
● Check if num is greater than 0, and if it is greater than 0 proceed to
further steps, otherwise display that the number is negative.
● If the number is less than or equal to 100 and greater than 50, display
that the number is in between 50 and 100
● If the number is less than 100 and less than or equal to 50, display
that the number is in between 0 and 50
● Stop

b) Code

print("Enter a number")

num=int(input())

if num>=0:

if num<=100:

7
 if num>50:

print(num,"is in between 50 and 100")

else:

print(num,"is in between 0 and 50")

else:

print(num," is above 100")

else:

print(num," is negative")

c) Output
Enter a number
25
25 is in between 0 and 50

7. Print the multiplication table of a number given by the user using while
loop

a) Algorithm

● Start
● Declare a variable num to store the value entered by user
● Prompt the user to enter a number
● Initialise a counter variable ‘i’ to the value 1
● Check if i is less than or equal to 10, if true print the value of product
of num and i
● Increment the value of i and go back to the previous step until the
value of i is greater than 10
● Stop

8
b) Code

print("Enter a number")

num=int(input())

i=1

while i<=10:

print(num," x ",i," = ",num*i)

i=i+1

c) Output

Enter a number

5 x 1 = 5

5 x 2 = 10

5 x 3 = 15

5 x 4 = 20

5 x 5 = 25

5 x 6 = 30

5 x 7 = 35

5 x 8 = 40

5 x 9 = 45

5 x 10 = 50

9
8. Find the sum of first n natural numbers using loop

a) Algorithm
● Start
● Declare a variable n to store the number up to which sum is to be
found
● Prompt the user to enter the value of n
● Initialize two variables; sum, to store the sum, to zero and i ,as a
counter variable, to 1
● Check if i is less than or equal to n and if true, add the value of sum
to i
● Increment the value of i by 1 until i is greater than n
● Print the value of sum when i greater than na
● Stop

b) Code

print("Enter the number upto which sum is to be found")

n = int(input())

sum=0

i=1

for i in range(n):

sum=sum+i

i+=1

print("Sum = ",sum)

c) Output

Enter the number upto which sum is to be found

5
Sum = 15

9. Find the frequency of a character in a string using for loop

10
a) Algorithm
● Start
● Declare variables ‘s’ to store the string inputted by user, ‘ch’ to store
the character to be searched and ‘count’ to store the frequency of the
searched character
● Prompt the user to enter the string and the character whose frequency
is to be found
● Check if each character in the string matches the character inputted
by the user
● When encountering a match, increment count by 1 each time
● Display the frequency of the searched character by printing the value
of count
● Stop
b) Code

print("Enter the string")

s=input()

print("Enter the character to be found")

ch=input()

count=0

for i in s:

Xxx if i==ch:

count+=1

print("Frequency of searched character = ",count)

c) Output

Enter the string

entertainment

11
 Enter the character to be found

Frequency of searched character = 3

10. Find the factorial of a number using i) loop ii) built-in function iii)
recursion

[Link] Loop

a) Algorithm
● Start
● Declare variables ‘num’, to store user input, ‘factorial’ to store the
result and ‘i’ as counter variable
● Initialise factorial and i to 1
● For each value of i less than or equal to num, multiply the value of i
with factorial and increment i by 1
● Repeat the previous step until i is equal to num and stop once i is
greater than num
● Display the result stored in the variable factorial as the factorial of
the number
● Stop

b) Code

print("Enter a number")

num=int(input())

factorial=1

i=1

for i in range(1,num+1):

factorial*=i

i+=1

12
 print("The factorial of the number =",factorial)

c) Output

Enter a number

The factorial of the number = 120

[Link] Built in function

a) Algorithm
● Start
● Import the math library in python
● Declare a variable num to store user input
● Prompt the user to enter a number and store it in num
● Print the factorial of the number using factorial( ) function in the
math library
● Stop

b) Code

import math

print("Enter a number")

num=int(input())

print("The factorial of the number =",[Link](num))

c) Output

13
Enter a number

The factorial of the number = 720

[Link] Recursion

a) Algorithm
● Start
● Define a function ‘factorial with parameter n
● If n is 0 or 1, return 1
● Else return n*factorial(n-1)
● Declare variables ‘num’ to store user input and ‘result’ to store value
from function call.
● Prompt the user to enter the value of num
● Using function call statement, store the returned value in result
● Print the result
● Stop
b) Code

def factorial(n):

if n==0:

return 1

else:

return n * factorial(n-1)

print("Enter a number")

num=int(input())

result= factorial(num)

14
 print("The factorial of the number = ",result)

c) Output

Enter a number

The factorial of the number = 5040040

RESULT:

Familiarised with data types -int, float, string and list, understood and learned
the syntax of if, while and for statements and how to define and call functions.

EXPERIMENT NO. 2
INTRODUCTION TO VECTORISED COMPUTING
AND PLOTTING

AIM:

To write python code snippets so as to:

1) Understand basic indexing and operations with python list

2) Understand indexing and vectorized computations with numpy
arrays

15
 3) Introduction to matplotlib and plots

1. Understanding indexing and basic operations with python list

a) Algorithm:
● Start
● Initialize two python lists with variable number of elements.
● Print the length of each python list using the function len(array_name)
● Print the elements of the initialised list using positive and negative
indexing
● Print a set of elements from the initialised list.
○ Object name[start:stop:step]
○ Start indicates the starting range and the list includes this value.
○ Stop indicates the stop range and the list excludes this value.
○ Step represents the spacing between values
● Concatenate two lists using ‘+’ operator
● Check whether an element is a member of the defined python list.
● Perform iterations for loop and print each element in any if the
defined python list.
● Stop

b) Code:

import numpy as np

a=[1,2,3,4,5,6,7]

print(a[0])

print(a[1])

print(a[2])

print(a[3])

16
print(a[4])

print(a[5])

print(a[6])

print(a[0:6])

print(a[0:7])

print(a[Link])

print(a[Link])

print(a[0:-1])

print(a[3:7])

print(a[6:7])

print(a[Link])

print(a[0:-2])

a=[1,2,3,4,5,6,7]

for i in range(len(a)):

print(i)

print()

for i in range(len(a)):

print(a[i])

print("Length = ",len(a))

print()

17
for i in a:

print(i)

a=[1,2,3,4,5,6,7]

b=[8,9,10,11,12,13,14]

#membership

m=1.33 in a

print(m)

n=10 in b

print(n)

print()

#concatenation

y=a+b

sum=0

for i in range(len(y)):

print(y[i])

sum+=y[i]

print("The sum=",sum)

print()

for i in range(len(a)):

18
 print(a[i]+b[i])

c) Output:

[1, 2, 3, 4, 5, 6]

[1, 2, 3, 4, 5, 6, 7]

[1, 3, 5, 7]

[1, 3]

[1, 2, 3, 4, 5, 6]

[4, 5, 6, 7]

[7]

[2, 5]

[1, 2, 3, 4, 5]

19
2

22

45

24

243

223

533

34

Length = 7

22

45

24

243

223

533

34

20
False

True

10

11

12

13

14

The sum= 105

11

13

15

21
 17

19

21

2. Understanding indexing and vectorized computations with numpy

arrays

a) Algorithm
● Start
● Import numpy module as np
● Define 1D,2D and 3D arrays.
● Print the dimensions of all the arrays using print(array_name.ndim)
● Use(array_name.shape) to print the number of rows and columns of
all the arrays.
● Print a set of elements from the initialised array.
● Print the rows and columns elements of the 2D array using
array_name[row_index,column_index]
● Concatenate the arrays using the append function
● Perform iteration using for loop and print each element in any of the
defined numpy array
● Perform arithmetic operations such as abs, sin, sinc,etc. And print
zeros and ones matrix
● Stop

b) Code:

import numpy as np

a=[Link]([1,2,3])

b=[Link]([[1,2,3],[4,5,6],[7,8,9]])

c=[Link]([[[1,2,3],[4,5,6]],[[7,8,9],[10,11,12]]])

22
print(a)

print()

print(b)

print()

print(u)

print()

print("Dimension of a = ", [Link](a))

print("Size of a = ",[Link](a))

print("Shape of a = ",[Link](a))

print()

print("Dimension of b = ", [Link](b))

print("Size of b = ",[Link](b))

print("Shape of b = ",[Link](b))

print()

print("Dimension of c = ", [Link](c))

print("Size of c = ",[Link](c))

print("Shape of c = ",[Link](c))

print()

23
a=[Link]([[1,2,3],[4,5,6],[7,8,9]])

print(a)

print()

print(a[0:1,:])

print()

print(a[1:2,:])

print()

print(a[2:3,:])

print()

print(a[:,0:1])

print()

print(a[:,1:2])

print()

print(a[:,2:3])

print()

print(a[0:2,0:3])

print()

print(a[0:3,0:2])

print()

24
 a=[Link]([[1,2,3],[4,5,6],[7,8,9]])

b=[Link]([[4,5,6],[7,8,9],[10,11,12]])

c=[Link]([[-1,2,-3],[-3,-4,5],[6,-7,-8]])

print([Link](a,b))

print([Link](5))

print([Link](5))

print([Link](a))

print([Link](a))

print([Link](a))

c) Output

[1 2 3]

[[1 2 3]

[4 5 6]

[7 8 9]]

[[[ 1 2 3]

[ 4 5 6]]

25
[[ 7 8 9]

[10 11 12]]]

Dimension of a = 1

Size of a = 3

Shape of a = (3,)

Dimension of b = 2

Size of b = 9

Shape of b = (3, 3)

Dimension of c = 3

Size of c = 12

Shape of c = (2, 2, 3)

[[1 2 3]

[4 5 6]

[7 8 9]]

[[1 2 3]]

[[4 5 6]]

26
[[7 8 9]]

[[1]

[4]

[7]]

[[2]

[5]

[8]]

[[3]

[6]

[9]]

[[1 2 3]

[4 5 6]]

[[1 2]

[4 5]

[7 8]]

[ 1 2 3 4 5 6 7 8 9 4 5 6 7 8 9 10 11 12]

[0. 0. 0. 0. 0.]

27
 [1. 1. 1. 1. 1.]

[[1 2 3]

[4 5 6]

[7 8 9]]

[[ 0.84147098 0.90929743 0.14112001]

[-0.7568025 -0.95892427 -0.2794155 ]

[ 0.6569866 0.98935825 0.41211849]]

[[ 3.89817183e-17 -3.89817183e-17 3.89817183e-17]

[-3.89817183e-17 3.89817183e-17 -3.89817183e-17]

[ 3.89817183e-17 -3.89817183e-17 3.89817183e-17]]

3. Introduction to matplotlib and plots

a) Algorithm
● Start
● Import numpy as np
● Import [Link] as plt to perform plotting.
● Define another array b using the function [Link]
● Obtain graph of x against y
● Provide proper title and axis labels
● Stop
b) Code

import numpy as np

import [Link] as plt

28
 a=[Link]([1,1.5,2,2.5,3,3.5,4])

b=[Link](7)

[Link](b,a)

[Link]('x axis')

[Link]('y axis')

[Link]('sample graph')

[Link]('[Link]')

[Link]()

print()

[Link](b,a)

[Link]('x axis')

[Link]('y axis')

[Link]('sample stem')

[Link]('[Link]')

[Link]()

c) Output

29
 RESULT:

Familiarised with indexing and operations on python lists, arrays using

numpy and plotting using matplotlib.

EXPERIMENT NO. 3
SYSTEM OF LINEAR EQUATIONS AND
EIGENVALUES

AIM:

Using python code to:

1) Understand solving system of linear equations

2) Generating and plotting maximum eigen values of random matrices

1) Understand solving system of linear equations:

a) Algorithm

30
● Start
● Import numpy as np and linalg from scipy as la
● Create matrix a and vector b.
● Reshape vector b into a column vector b1.
● Compute the determinant of matrix a.
● If the determinant is not zero, the matrix is invertible:
○ Calculate the inverse of matrix a.
○ Multiply the inverse of a by b1 to find the solution vector
x.
○ Print the solution x.
● If the determinant is zero, print "No solution found."

OR

● Compute the rank of matrix a.

● Determine the number of rows and columns in matrix a.
● Check if the matrix a is square (number of rows equals the number of
columns) and the rank of a equals the number of rows:
○ If true, use the solve method to find the solution vector x.
○ Print the solution x.
● If the conditions are not met, print "No solution found."
● Stop

b) Code

import numpy as np

from scipy import linalg as la

a=[Link]([[1,2,3],[0,4,5],[0,0,1]])

b=[Link]([1,2,3])

b1=[Link](b,(3,1))

if [Link](a)!=0:

31
 i=[Link]([Link](a))

x=i@b1

print('Solution')

print(x)

else:

print("No solution found")

rank_a=[Link].matrix_rank(a)

rows=[Link](a)[0]

columns=[Link](a)[1]

if rows==columns and rank_a==rows:

x=[Link](a,b1)

print('Solution')

print(x)

else:

print("No solution found")

c) Output

Solution
[[-1.5 ]
[-3.25]
[ 3. ]]

32
 Solution
[[-1.5 ]
[-3.25]
[ 3. ]]
2) To find eigenvalues, eigenvectors and generate random matrices

a) Algorithm
● Start
● Import numpy as np and linalg as la from scipy
● Create a 3x3 matrix ‘a’ using numpy.
● Use [Link]() from the [Link] module to compute the eigenvalues
and eigenvectors of matrix a.
● Store the result in eig_a.
● Print the entire eig_a tuple, which contains:
○ Eigenvalues of the matrix.
○ Corresponding eigenvectors.
● Print Eigenvalues and Eigenvectors Separately:
○ eig_a[0] contains the eigenvalues.
○ eig_a[1] contains the eigenvectors, which are printed.
● Generate Random Matrices:
○ rand_1: Generate a 2x3 matrix with random float values
between 0 and 1 using [Link](2, 3).
○ rand_2: Generate a 2x3 matrix with random integer
values between 1 and 4 using [Link](1, 5, (2,
3)).
● Print both rand_1 and rand_2.
● Stop

b) Code

#printing eigen values and eigen vectors of a matrix

a=[Link]([[1,2,3],[4,5,6],[7,8,9]])

33
 eig_a=[Link](a)

print(eig_a)

print('\n',eig_a[0])

print('\n',eig_a[1])

#generating random matrices

rand_1=[Link](2,3)

rand_2=[Link](1,5,(2,3))

print('\n',rand_1)

print('\n',rand_2)

c) Output
(array([ 1.61168440e+01+0.j, -1.11684397e+00+0.j, -1.30367773e-
15+0.j]), array([[-0.23197069, -0.78583024, 0.40824829],
[-0.52532209, -0.08675134, -0.81649658],
[-0.8186735 , 0.61232756, 0.40824829]]))

[ 1.61168440e+01+0.j -1.11684397e+00+0.j -1.30367773e-15+0.j]

[[-0.23197069 -0.78583024 0.40824829]

[-0.52532209 -0.08675134 -0.81649658]
[-0.8186735 0.61232756 0.40824829]]

[[0.43698544 0.40947724 0.16257284]

34
 [0.41094141 0.60664534 0.64402541]]

[[1 2 1]
[1 2 3]]

3) Generating and plotting maximum eigen values of random matrices

a) Algorithm
● Start
● Create an empty list y to store the maximum absolute eigenvalues.
● Loop to Generate Random Matrices and Compute Eigenvalues:
○ Loop over the range from 1 to 50 (inclusive):
○ For each i, generate an i x i random matrix rand_mat
using [Link](i, i).
○ Compute the eigenvalues of rand_mat using
[Link](rand_mat)[0].
○ Find the maximum eigenvalue max_eig from the list of
eigenvalues.
○ Compute the absolute value abs_max of this maximum
eigenvalue.
○ Append abs_max to the list y.
● Plot the Maximum Absolute Eigenvalues:
● Create an array x representing the x-axis values (from 0 to 49).
● Plot the data x versus y using [Link](x, y).
● Label the x-axis as "x axis" and the y-axis as "y axis".
● Add a title "Eigen Value Sample" to the plot.
● Save the plot as a PDF file named [Link].
● Display the plot using [Link]().
● Stop
b) Code

import numpy as np

from scipy import linalg as la

import [Link] as plt

35
 y=[]

for i in range(1,51):

rand_mat=[Link](i,i)

eig_mat=[Link](rand_mat)[0]

max_eig=[Link](eig_mat)

abs_max=[Link](max_eig)

[Link](abs_max)

x=[Link](50)

[Link](x,y)

[Link]('x axis')

[Link]('y axis')

[Link]('Eigen Value Sample')

[Link]('[Link]')

[Link]()

c) Output

36
RESULT:

Familiarised solving system of linear equations and generating and plotting

maximum eigen values of random matrices using python functions.

EXPERIMENT NO.4
SINGULAR VALUE DECOMPOSITION

AIM:

37
 Using python code to understand the process of singular value decomposition
of a matrix and plot it.

1) Find singular value decomposition

a) Algorithm
● Import required libraries:
○ numpy as np, [Link] as la, and [Link] as plt.
● Prompt the user to input the size of the matrix, N.
● Create a random N x N matrix a using [Link](N, N).
● Perform Singular Value Decomposition (SVD):
○ Compute the Singular Value Decomposition (SVD) of matrix a,
resulting in matrices u, s, and v using [Link](a).
● Prepare Singular Values Matrix:
○ Convert the vector s of singular values into a diagonal matrix
using [Link](s).
● Initialize Error Array:
○ Create an empty array error of size N to store the errors for
different approximations.
● Calculate Approximation Errors:
○ For each integer i from 1 to N
○ Compute the absolute value of the difference between the
original matrix and the approximation and store it in.
● Plot and Save Error Analysis:
● Create an array p with values ranging from 0 to N-1.
○ Plot the error values using a stem plot with p on the x-axis and
error on the y-axis.
○ Label the x-axis as 'x axis' and the y-axis as 'y axis'.
○ Then add title 'Error' to the plot.
○ Save the plot as '[Link]' using [Link]('[Link]').
○ Display the plot using [Link]().
● Stop
b) Code

38
 import numpy as np
from scipy import linalg as la
print(‘Input the size of the matrix’)
N=int(input())
a=[Link](N,N)
print(a)

u,s,v=[Link](a)
s=[Link](s)
error=[Link](N)

for i in range(1,N+1):
Anew=u[:,0:i]@s[0:i,0:i]@v[0:i,:]
error[i-1]=[Link](a-Anew)
import [Link] as plt
print(error)
p=[Link](N)
[Link](error,p)
[Link](‘x axis’)
[Link](‘y axis’
[Link](‘Error’)
[Link](‘[Link]’)
[Link]()

c) Output

Input the size of the matrix

50

[[0.79282895 0.88882734 0.56765869 ... 0.43552159 0.39751964 0.33579718]

[0.7772953 0.54964085 0.93925334 ... 0.5580148 0.62273976 0.64477365]
[0.96987085 0.830632 0.98889652 ... 0.10825047 0.91058416 0.85967667]
...
[0.98665376 0.3841148 0.07591141 ... 0.44035771 0.41083813 0.00708654]

39
 [0.39314146 0.66240721 0.20721581 ... 0.60825855 0.35654249 0.07319268]
[0.32893588 0.45232162 0.42729811 ... 0.21318801 0.80854367 0.9297369 ]]
[1.41108125e+01 1.35355494e+01 1.29928912e+01 1.25007418e+01
1.20340612e+01 1.15654729e+01 1.10994599e+01 1.06432855e+01
1.01983242e+01 9.78071216e+00 9.35991585e+00 8.94447773e+00
8.54962109e+00 8.18578074e+00 7.80864696e+00 7.43661084e+00
7.07929883e+00 6.71892440e+00 6.38864548e+00 6.08212920e+00
5.77435896e+00 5.45511570e+00 5.14527107e+00 4.84668838e+00
4.54597837e+00 4.24664795e+00 3.98336890e+00 3.71158478e+00
3.45993514e+00 3.19877082e+00 2.95306731e+00 2.69179148e+00
2.44883685e+00 2.22466844e+00 2.01390820e+00 1.79679559e+00
1.58039634e+00 1.39468381e+00 1.23144393e+00 1.06897899e+00
9.16977771e-01 7.73658205e-01 6.22639141e-01 4.70701602e-01
3.49780916e-01 2.43825794e-01 1.56428402e-01 4.64951756e-02
2.40433297e-02 5.80449423e-14]

RESULT
Understood the singular value decomposition of a matrix and how to plot it
using python.

EXPERIMENT NO. 5
NUMERICAL DIFFERENTIATION AND
INTEGRATION

40
AIM:

Using Python and libraries

i) Compute and plot derivatives of sin, cos, sinh, cosh functions.

ii) Numerical integration of 4t2+ 3 using (a) Trapezoidal rule and

(b)Simpson’s rule.

1) Compute and plot derivatives of sin, cos, sinh, cosh functions.

a) Algorithm
● Start
● Import necessary libraries
○ numpy for numerical calculations
○ [Link] for plotting.
● Define Time Array:
○ Create an array t using [Link], which
generates 1000 evenly spaced points between
−2π and 2π.
● Compute Function Values:
○ Compute the values of sine, cosine, sinh, and cosh functions at
each point in the time array t.
○ Store the results in y_sin, x_cos, y_sinh, and x_cosh
respectively.
● Compute Derivatives:
○ Use [Link] to compute the numerical derivatives of
each function.
○ Store the results in y_sin_der, x_cos_der, y_sinh_der, and
x_cosh_der.
● Set Up Subplots:
○ Create a figure and 4x2 grid of subplots using [Link].
○ The first column of plots will show the original functions, and
the second column will show their derivatives.
● Plot Each Function and Its Derivative:
○ For each function (sine, sinh, cosine, cosh):

41
 ■ Plot the original function in the left column.
■ Plot the derivative in the right column.
■ Set appropriate titles, labels, and grid lines for each
subplot.
● Display the Plots
○ Use [Link]() to display the plot grid with all the subplots.
● Stop

b) Code

#Compute and plot derivatives of sin,cos,sinh,cosh functions

import numpy as np

import [Link] as plt

t=[Link](-2*[Link],2*[Link],1000)

y_sin=[Link](t)

y_sin_der=[Link](y_sin)

y_sinh=[Link](t)

y_sinh_der=[Link](y_sinh)

x_cos=[Link](t)

x_cos_der=[Link](x_cos)

x_cosh=[Link](t)

42
x_cosh_der=[Link](x_cosh)

fig,axs=[Link](4,2,constrained_layout=True)

axs[0,0].plot(t,y_sin)

axs[0,0].set_title('Sine wave')

axs[0,0].set(xlabel='time t',ylabel='sine')

axs[0,0].grid()

axs[0,1].plot(t,y_sin_der)

axs[0,1].set_title('Der. sine wave')

axs[0,1].set(xlabel='time t',ylabel='sine derivative')

axs[0,1].grid()

axs[1,0].plot(t,y_sinh)

axs[1,0].set_title('Sinh wave')

axs[1,0].set(xlabel='time t',ylabel='sinh')

axs[1,0].grid()

axs[1,1].plot(t,y_sinh_der)

axs[1,1].set_title('Der. sinh wave')

axs[1,1].set(xlabel='time t',ylabel='sinh derivative')

43
axs[1,1].grid()

axs[2,0].plot(t,x_cos)

axs[2,0].set_title('Cosine wave')

axs[2,0].set(xlabel='time t',ylabel='cos')

axs[2,0].grid()

axs[2,1].plot(t,x_cos_der)

axs[2,1].set_title('Der. Cosine wave')

axs[2,1].set(xlabel='time t',ylabel='cosine derivative')

axs[2,1].grid()

axs[3,0].plot(t,x_cosh)

axs[3,0].set_title('Cosh wave')

axs[3,0].set(xlabel='time t',ylabel='cosh')

axs[3,0].grid()

axs[3,1].plot(t,x_cosh_der)

axs[3,1].set_title('Der. cosh wave')

axs[3,1].set(xlabel='time t',ylabel='cosh derivative')

axs[3,1].grid()

44
c) Output

2) Numerical integration of 4t2+ 3 using (a) Trapezoidal rule and

(b)Simpson’s rule.

a) Algorithm
● Import Necessary Libraries:
○ numpy for numerical calculations.
○ [Link] for numerical integration using Simpson's rule.
○ [Link] for plotting the function.
● Define the Function and Its Analytical Integral:
○ Define the function
○ 𝑓(𝑡)=4𝑡^2+3.
○ Define its integral
○ i(t)= 4/3t +3t for comparison with the numerical method.

45
● Plot the Function:
○ Use [Link] to create a time array from -2 to 2
(correcting its placement).
○ Plot the function using matplotlib and label the axes.
● Calculate the Analytical Area:
○ Find the area under the curve analytically using the integral i(t).
○ Subtract the values at the bounds (-2 to 2) to find the area.
● Apply the Trapezoidal Rule:
○ Use [Link] to compute the area under the curve using the
trapezoidal rule.
○ Calculate the error by taking the absolute difference between the
analytical area and the trapezoidal area.
● Apply Simpson's Rule:
○ Use [Link] to compute the area under the curve
using Simpson's rule.
○ Calculate the error by taking the absolute difference between the
analytical area and the Simpson area.
● Output the Results:
○ Print the calculated areas and the associated errors for both
numerical methods.
b) Code

import numpy as np

import [Link] as intg

import [Link] as plt

def f(t):

return (4*(t**2)+3)

def i(t):

return(4*((t**3)/3)+(3*t))

#To plot the function

46
[Link](time,f(time))

[Link]('Time(t)')

[Link]('f(t)')

[Link]('Function')

[Link]('[Link]')

[Link]()

#Find area using analytical method

area=i(2)-i(-2)

print('Area = ',area)

time=[Link](-2,2)

#trapezoidal

area1=[Link](f(time),time)

error1=[Link](area-area1)

print('Area using Trapezoidal method = ',area1)

print('Error in Trapezoidal method = ',error1)

#Simpson

area2=[Link](f(time),time)

error2=[Link](area-area2)

47
 print('Area using Simpson method = ',area2)

print('Error in Simpson method = ',error2)

c) Output

Area = 33.33333333333333
Area using Trapezoidal method = 33.351103706788834
Error in Trapezoidal method = 0.01777037345550525
Area using Simpson method = 33.333333333333336
Error in Simpson method = 7.105427357601002e-15

RESULT:

Understood
computing computing derivatives of functions and plotting it and
the integral of functions using analytic, trapezoidal and Simpson’s
method.

48
 EXPERIMENT NO. 6
SIMPLE DATA VISUALISATION

AIM:

Using Python and libraries to

1) Draw stem plots, line plots, bar plots, and scatter plots and
histogram.
2) Implement and plot the functions f(t)= cos t and f(t)= cos t. cos
5t + cos 5t

1) To draw stem plots, line plots, bar plots, and scatter plots and
histogram
a) Algorithm
● Import libraries: Import numpy for numerical operations and
[Link] for plotting
● Create x-axis: Generate an array x containing 25 evenly spaced
values from 0 to 24.
● Generate random y-axis: Generate an array y containing 25
random floating-point numbers between 0 (inclusive) and 1
(exclusive) using a uniform distribution
● Create line plot
○ Plot the data points x and y using [Link].
○ Label the x-axis and y-axis using [Link] and
[Link]. Add a title to the plot using [Link].
○ Save the plot as "[Link]" using [Link].
○ Display the plot using [Link].
● Generate and Plot Random Data (Stem Plot)
○ Plot the data points x and y using [Link]. This
emphasises individual data points.
○ Label axes and add title: Label the x-axis and y-axis
using [Link] and [Link]. Add a title to the plot
using [Link].
○ Save the plot as “[Link]” and display the plot using
[Link]

49
 ● Generate and Plot Random Data (Scatter Plot)
○ Create scatter plot: Plot the data points x and y using
[Link]. This shows the relationship between
individual data points.
○ Label axes and add title: Label the x-axis and y-axis
using [Link] and [Link]. Add a title to the plot
using [Link].
○ Save the plot as “[Link]” and display the plot using
[Link]

b) Code

import numpy as np

import [Link] as plt

x=[Link](25)

y=[Link](25)

[Link](x,y)

[Link]('X-axis')

[Link]('Y-axis')

[Link]('Line Plot')

[Link]('[Link]')

[Link]()

[Link](x,y)

50
[Link]('X-axis')

[Link]('Y-axis')

[Link]('Stem Plot')

[Link]('[Link]')

[Link]()

[Link](x,y)

[Link]('X-axis')

[Link]('Y-axis')

[Link]('Scatter Plot')

[Link]('[Link]')

[Link]()

[Link](y)

[Link]('X-axis')

[Link]('Y-axis')

[Link]('Box Plot')

[Link]('[Link]')

[Link]()

[Link](x,y)

[Link]('X-axis')

51
 [Link]('Y-axis')

[Link]('Bar Plot')

[Link]('[Link]')

[Link]()

[Link](y)

[Link]('X-axis')

[Link]('Y-axis')

[Link]('Histogram')

[Link]('[Link]')

[Link]()

c) Output

52
2) Implement and plot the functions f(t)= cos t and f(t)= cos t. cos 5t + cos
5t
a) Algorithm
● Import Libraries:
○ Import numpy for numerical operations.
○ Import [Link] for plotting.
● Create Time Array:
○ Generate an array t containing values from -10 to 10
(inclusive) with a step size of 0.01 . This creates a high-
resolution time axis for the plot.
● Calculate Functions:
○ Calculate the cosine of t and store it in the array cos_t
using [Link](t).
○ Define a new function ft by combining cosine terms:
○ ft = [Link](t) * [Link](5*t) + [Link](5*t).
○ This combines two cosine terms: one with frequency 1
and another with frequency 5.

53
 ● Create the Plot:
○ Plot the function ft with a black line using [Link](t, ft,
color='black').
○ Plot the reference cosine function (cos_t) with a red line
for comparison using [Link](t, cos_t, color='red').
○ Label the x-axis and y-axis using [Link] and
[Link].
○ Add a legend to distinguish the lines using
[Link](['F(t)', 'Cos(t)']). This clarifies which line
represents ft and cos_t.
○ Add a title to the plot using [Link]('Function Plot of').
○ Save and Display the Plot:
■ Save the plot as "[Link]" using
[Link]('[Link]')
■ Display the plot using [Link]().

b) Code

import numpy as np

import [Link] as plt

t= [Link](-10,11,0.01)

cos_t=[Link](t)

ft= [Link](t)*[Link](5*t)+[Link](5*t)

[Link](t,ft, color='black')

[Link](t,cos_t, color='red')

[Link]('X-axis')

54
[Link]('Y-axis')

[Link](['F(t)','Cos(t)'])

[Link]('Function Plot of')

[Link]('[Link]')

[Link]()

c) Output

55
RESULT:

● Various types of plots - stem, line, bar and scatter have been familiarised.
● f(t) = cos t and f(t) = cos [Link] 5t +cos5t have been implemented and plotted.

EXPERIMENT NO. 7
DATA ANALYSIS

AIM:

Using Python and libraries to:

i) Read a .csv file as an array and plot i.

ii) Compute mean and standard deviation of the signal, plot its
histogram

PROGRAMS

1) Read a .csv file as an array and plot i.

a) Algorithm

56
 ● Import numpy for numerical operations and [Link]
for plotting.
● Read data from CSV file:
○ Use [Link] to read the "[Link]" file, assuming a
comma delimiter.
○ Extract voltage and time data from the CSV, skipping
header rows if present.
● Plot voltage vs. time:
○ Create a line plot using [Link](time, volt).
○ Set appropriate labels for x-axis ("Time"), y-axis
("Voltage"), and title ("Voltage vs. Time").
○ Save the plot as "[Link]" and display it.
● Calculate and print voltage statistics:
○ Calculate the mean and standard deviation of voltage
using [Link](volt) and [Link](volt), respectively.
○ Print the calculated values.
● Plot voltage histogram:
○ Create a histogram of the voltage data with 25 bins and
black edges using [Link](volt, bins=25,
edgecolor='black').
○ Set appropriate labels and title for the histogram.
○ Save the histogram as "[Link]" and display it.
● Calculate and print time statistics:
○ Calculate the mean and standard deviation of time using
[Link](time) and [Link](time), respectively.
○ Print the calculated values.
● Plot time histogram:
○ Create a histogram of the time data with 25 bins and
black edges.
○ Set appropriate labels and title for the time histogram.
○ Save the histogram as "[Link]" and display it.

b) Code

57
 import numpy as np

import [Link] as plt

csv=[Link]("[Link]",delimiter=',')

volt=csv[2:27,1:2]

time=csv[2:27,2:3]

[Link](time,volt)

[Link]('Time')

[Link]('Voltage')

[Link]('Voltage vs. Time')

[Link]('[Link]')

[Link]()

c) Output

58
 Mean voltage = 11.48
Standard Deviation = 6.664052820919114

2) Compute mean and standard deviation of the signal, plot its histogram

a) Algorithm
● Calculate and print voltage statistics:
○ Calculate the mean and standard deviation of voltage
using [Link](volt) and [Link](volt), respectively.
○ Print the calculated values.
● Plot voltage histogram:
○ Create a histogram of the voltage data with 25 bins and
black edges using [Link](volt, bins=25,
edgecolor='black').
○ Set appropriate labels and title for the histogram.
○ Save the histogram as "[Link]" and display it.
● Calculate and print time statistics:
○ Calculate the mean and standard deviation of time using
[Link](time) and [Link](time), respectively.
○ Print the calculated values.
● Plot time histogram:
○ Create a histogram of the time data with 25 bins and
black edges.

59
 ○ Set appropriate labels and title for the time histogram.
○ Save the histogram as "[Link]" and display it.

b) Code

import numpy as np

import [Link] as plt

mean_volt=[Link](volt)

sd_v=[Link](volt)

print('Mean voltage = ',mean_volt)

print('Standard Deviation = ',sd_v)

[Link](volt,bins=25, edgecolor = 'black')

[Link]('X-axis')

[Link]('Y-axis')

[Link]('Voltage Histogram')

[Link]('[Link]')

[Link]()

mean_time=[Link](time)

sd_t=[Link](time)

60
 print('Mean time = ',mean_time)

print('Standard Deviation = ',sd_t)

[Link](time,bins= 25, edgecolor = 'black')

[Link]('X-axis')

[Link]('Y-axis')

[Link]('Time Histogram')

[Link]('[Link]')

[Link]()

c) Output

Mean time = 47.16

Standard Deviation = 30.68378073184594

61
 RESULT:

● [Link] file with multiple columns of numerical entries has been read as a
numpy array.
● Histogram of entries in a given column was plotted.
● The mean and standard deviation of entries in a given column was
calculated.

EXPERIMENT NO. 8
SOLUTION OF ORDINARY DIFFERENTIAL
EQUATIONS

AIM:

Using Python and libraries to:

a) Solve first order and second order differential equation

(i) Solve the first order differential equation 𝑑𝑥/𝑑𝑡 + 2𝑥 = 0 with the
initial condition 𝑥(0) = 1

62
 (ii) Solve the second order differential equation d 2x/dt2+ 2 𝑑𝑥/𝑑𝑡 +
2𝑥 = 𝑒-t with initial condition (0,1)

b) Solve differential equations associated with RC and RLC Circuit

(i) Solve the equation for the transient current through the RC circuit
with initial current 5A that is driven by

1) 5V 2) 5𝑒-t𝑢(𝑡)

(ii) Solve the equation of transient current through a RLC circuit with
R=1 ohm, L=1 mHandC=1μF that is driven by

1) 5V 2) 5𝑒-t 𝑢(𝑡)

PROGRAMS:

1) Solve the first order differential equation 𝑑𝑥/𝑑𝑡 + 2𝑥 = 0 with the

initial condition 𝑥(0) = 1

a) Algorithm
● Start
● Import the numpy module as np, [Link] module as
plt, and odeint function from [Link] module.
● Define a function f with x and t as parameters, which returns
the value-2*x 4. The initial condition x0 is assigned as
● Using the function [Link], initialise the time points t as a
numpy array (0,5) with 100 intervals.
● Solve the ordinary differential equation using the function
odeint with f, x0, and t as arguments, to obtain x as result.
● With appropriate title, legend and axis labels, plot x against t.
● Stop
b) Code

import numpy as np
import [Link] as plt
from [Link] import odeint
def f(x, t):
return-2*x

63
 x0 = 1
t = [Link](0, 5, 100)
x =odeint(f, x0, t)
[Link](t,x, label="x(t) = e^(-2t)")
[Link]("Graph of x(t)") [Link]("t") [Link]("x(t)")
[Link]()
[Link]()
[Link]()

c) Output

2) Solve the second order differential equation 𝑑2𝑥/𝑑𝑡2+ 2 𝑑𝑥/𝑑𝑡 + 2𝑥

= 𝑒-t with initial condition (0,1)

64
a) Algorithm
● Start
● Import the numpy module as np, [Link] module as
plt, and odeint function from [Link] module
● Define a function equation with y and t as parameters which
returns two values dxdt and d2xdt2 , where dxdt is assigned as
y[1] (which is dx/dt) and d2xdt2 is assigned as-2 * dxdt- 2 * x +
[Link](-t). These two values are returned
● The initial condition x0 is assigned as [0,1]
● Using the function [Link], initialise the time points t as a
numpy array (0,5) with 100 intervals.
● Solve the ordinary differential equation using the function
odeint with equation, x0, and t as arguments, to obtain x and
dx/dt as result.
● By appropriate slicing, plot the graph of x against t and dx/dt
against t. Provide proper legend, x label, y label and title.
● Stop

b) Code

import numpy as np

from [Link] import odeint

import [Link] as plt

def equation(y, t):

x, dxdt = y[0], y[1] d2xdt2 =-2 * dxdt- 2 * x + [Link](-t)

return [dxdt, d2xdt2] x0 = [0,1]

t = [Link](0, 5, 100)

x =odeint(equation, x0, t)

[Link](t, x[:, 0], label="x(t)")

[Link](t, x[:, 1], label="dx/dt")

65
 [Link]("Graph of x(t)")

[Link]("t")

[Link]("x(t)")

[Link]()

[Link]()

[Link]()

c) Output

3) To solve differential equations associated with an RC and an RLC

circuit

I) Solve the equation for the transient current through the RC circuit
with initial current 5A that is driven by (i) 5V

66
a) Algorithm
● Start
● Import the numpy module as np, matplotlib module as plt, and
odeint function from [Link] module
● Initialise RC = 3
● Define a function f with i and t as parameters, which returns a
value dxdt, where dxdt is assigned as-i/RC
● Using the function [Link], initialise the time points t as a
numpy array (0,10) with 100 intervals.
● Solve the ordinary differential equation using the function
odeint with f, i0, and t as arguments, to obtain i as result.
● With appropriate title, legend and axis labels, plot transient
current i against t
● Stop

b) Code

import numpy as np

from [Link] import odeint

import [Link] as plt

RC=3

def f(i, t):

dxdt =-(i/RC)

return dxdt

t = [Link](0, 10, 100)

i0 = 5

i = odeint(f, i0, t)

[Link](t, i, label="i(t) in V = 5")

[Link]("Graph of i(t)")

67
 [Link]("t")

[Link]("i(t)")

[Link]()

[Link]()

[Link]()

c) Output

II) Solve the equation for the transient current through the RC circuit
with initial current 5A that is driven by 5𝑒-t𝑢(𝑡)

a) Algorithm
● Start
● Import the numpy module as np, matplotlib module as plt,and
odeint function from [Link] module.
● Initialise R=1 and C=10-6
● Define a function f with i and t as parameters,which returns
dxdt, where dxdt is assigned value–i/𝑅𝐶−5 𝑒-t/R
● Using the function [Link],initialise the time points t as a
numpy array (0,10-5) with 100 intervals
● The initial condition i0 is assigned as 5.
● Solve the ordinary differential equation using the function
odeint with f,i0,and as arguments,to obtain i as result

68
 ● With appropriate title,legend and axis labels, plot transient
current against t.
● Stop
b) Code

importnumpyasnp

[Link]

[Link]

R=1

C=10**-6

deff(i,t):

dxdt=-((5*[Link](-t)/R)+(i/(R*C)))

returndxdt

t=[Link](0,10**-5,100)

i0=5

i=odeint(f,i0,t)

[Link](t,i,label="i(t)inV=5e^-t")

[Link]("Graphofi(t)")

[Link]("t")

[Link]("i(t)")

[Link]()

[Link]()

[Link]()

69
 c) Output

III) Solve the equation of transient current through a RLC circuit with
R=1 ohm, L=1 mHandC=1μFthat is driven by : (i) 5V , (ii) 5𝑒-t 𝑢(𝑡)

a) Algorithm
● Start
● Import the numpy module as np, matplotlib module as plt, and
odeint function from [Link] module.
● Initialise R = 1, L= 10-3 , and C = 10-6
● Define two functions v_func_constant and v_func_exponential
for the two cases.
○ Both functions will have t as the parameter and returns
the value 5 and 5*e-t respectively
● Define a function rlc_circuit with i, t, v_func as parameters and
returns two values didt and d2idt2.
○ didt is assigned as i[1] and d2idt2 is assigned the value-
v_func(t)- (R/L) * didt- (1/(L*C)) * i[0])

70
 ● Using the function [Link], initialise the time points t as a
numpy array (0,0.01) with 1000 intervals.
● The initial condition i0 is assigned as [0,5]
● Solve the differential equations
○ For the circuit driven by 5V supply, use the function
odeint withrlc_circuit, i0, t and v_func_constant as
arguments to obtain i_constant.
○ For the circuit driven by 5𝑒-t𝑢(𝑡), use the function odeint
with rlc_circuit, i0, t and v_func_exponential as
arguments to obtain i_exponential
● With appropriate title, legend, xlabel and ylabel, plot the graph
of transient current i against time for both the cases.
● Stop
b) Code

importnumpyasnp

[Link]

[Link]

R=1

L=1e-3

C=1e-6

defrlc_circuit(i,t,v_func):

didt=i[1]

d2idt2=(-v_func(t)-(R/L)*didt-(1/(L*C))*i[0])

return[didt,d2idt2]

defv_func_constant(t):

return5

defv_func_exponential(t):

71
 return5*[Link](-t)

t=[Link](0,0.01,1000)

i0=[0,5]

i_constant=odeint(rlc_circuit,i0,t,args=(v_func_constant,))

i_exponential=odeint(rlc_circuit,i0,t,args=(v_func_exponential,
))

fig,(ax1,ax2)=[Link](2,1,constrained_layout='True',

figsize=(10,6))

[Link](t, i_constant[:, 0], label="Current with 5V")

ax1.set_ylabel("Current (A)")

ax1.set_title("Current in RLC Circuit")

[Link]()

[Link](True)

[Link](t, i_exponential[:, 0], label="Current with 5e^-t",

alpha=0.8)

ax2.set_xlabel("Time (s)")

ax2.set_ylabel("Current (A)")

[Link]()

[Link](True)

[Link]()

c) Output

72
RESULT:

● A python program to solve a first order homogeneous ordinary

differential equation was written and executed for 𝑑𝑥/𝑑𝑡 + 2𝑥 =
0 with the initial condition 𝑥(0) = 1.
● A python program to solve a second order ordinary differential
equation was written and executed for 𝑑2𝑥/𝑑𝑡2 + 2 𝑑𝑥/𝑑𝑡 + 2𝑥
= 𝑒-t , with initial conditions x(0)=0 and dx/dt=0.
● A python program to calculate transient current through an RC
circuit with RC=3 and initial current 5A was written and
executed for a 5V dc supply and the signal 5(𝑒-t)u(t) and the
graph of transient current against time was plotted.
● A python program to calculate transient current through an
RLC circuit was written and executed, and the graph of
transient current against time was plotted.

73
 EXPERIMENT NO. 9
CONVERGENCE OF FOURIER SERIES

AIM:

To write python program to simulate convergence of Fourier series

i) Realise the Fourier series f(t) with the vector t= [-10,10], T=20 for
n=3,5,10,100 terms and observe the lack of convergence at the points of
discontinuity.

𝑓(𝑡) = 4/𝜋 (1 − 1/ 3 𝑐𝑜𝑠(2𝜋 3𝑡/ 𝑇) + 1/ 5 𝑐𝑜𝑠( 2𝜋 5𝑡 /𝑇) − 1/7 𝑐𝑜𝑠

(2𝑡 7𝑇/𝑇)
⋯ + ⋯)

ii) Use Madhava series to compute the value of 𝜋

π =4[1- (1/3) + (1/5)- (1/7) + …..]

PROGRAMS:

1) Realise the Fourier Series with the vector t=[-10,10] and T=20 for
n=3,5,10,100 terms and observe the lack of convergence at the points of
discontinuity.

f(t)=4/π[1-(1/3)cos(2𝜋 3𝑡 / 𝑇 ) + 1/ 5 𝑐𝑜𝑠 ( 2𝜋 5𝑡 /𝑇 ) − 1/7 𝑐𝑜𝑠 (2𝜋 7𝑡 /𝑇 )

+⋯ )

a) Algorithm
● Start
● Import numpy module as np and [Link] as plt
● Initialise t as [-10,10] with 1000 intervals using
[Link](start,stop,interval)
● Initialise T=20

74
 ● Define a function fourier_series with t, T and n as arguments to
compute the Fourier series.
○ Initialise an array f_t of zeros with the same length as t
○ Run a for loop from i=0 to n-1. For each iteration,
compute the cosine term, ((-1i) /(2i+1))*
(cos((2i+1)*2𝜋*(t/T))) and add this term to f_t . After
the end of the loop, return the value of (4/𝜋)*f_t 6. Use a
for loop to compute the Fourier series for each value of n
(number of terms) and plot the result.
● Provide appropriate x label, y label title, legend and display the
graph
● Stop
b) Code

import numpy as np

import [Link] as plt

t = [Link](-10, 10, 1000)

T =20

def fourier_series(t, T, n):

f_t = [Link](len(t))

for i in range(n):

f_t += ((-1)**i) / (2*i + 1) * [Link]((2*i + 1) * 2 * [Link]

* t / T)

return (4 / [Link]) * f_t

for n in [3, 5, 10, 100,100000]:

f = fourier_series(t, T, n)

[Link](t, f, label=f'n = {n}')

[Link]('t')

75
 [Link]('f(t)')

[Link]("Convergence of Fourier Series")

[Link]()

[Link]()

[Link]()

c) Output

2) Use Madhava series to compute the value of 𝜋

π =4[1- (1/3) + (1/5)- (1/7) + …..]

a) Algorithm
● Start
● Import the numpy module as np
● Define a function madhava_series with t,T and n as arguments
to
calculate the Madhava series
● Initialise f_t as 0
● Run a for loop in the
range i=0 to n-1. For each iteration,
calculate the term ((-1i) /(2i+1))* (cos((2i+1)*2𝜋*(t/T))) and
add this term to f_t . Return the value of 4*f_t
● Make the value of t=0 and T=20

76
 ● Run a for loop to iterate over values of n=3,5,10,100,100000
and 10000000. For each n, call the function madhava_series
● Calculate the value of 𝜋 for each value of n and print the value
● Stop

b) Code

import numpy as np

def madhava_series(t, T, n):

f_t = 0

for i in range(n):

f_t += ((-1)**i) / (2*i + 1)*

[Link]((2*i + 1) * 2 * [Link] * t / T)

return 4 * f_t

t=0

T = 20

for n in [3, 5, 10, 100, 100000,10000000]:

f = madhava_series(t, T, n)

print(f"n= {n}: pi = {f}")

c) Output
n= 3: pi = 3.466666666666667
n= 5: pi = 3.3396825396825403
n= 10: pi =3.0418396189294032
n= 100: pi = 3.1315929035585537
n= 100000: pi = 3.1415826535897198
n= 10000000: pi = 3.1415925535897915

77
RESULT:

● Realised the Fourier series f(t) with the vector t=[-10,10], T=20 for
n=3,5,10,100,100000 terms and observed the lack of convergence at the
points of discontinuity.
𝑓(𝑡) = 4/𝑐 [ (1 − 1/ 3 𝑜𝑠 (2𝑡 3𝑇/ 𝑐 ) + 1/ 5 𝑜𝑠 ( 2𝑡 5𝑇/𝑐 ) − 1/7 𝑜𝑠
(2𝑡 7𝑇/𝑇)
⋯ + ⋯]
● With t made as a zero vector , f(0)=1, resulting in the Madhava series
for 𝜋
and computed the value of 𝜋 for the first 3, 5, 10, 100, 100000,10000000
terms
π = 4[1- (1/3) + (1/5) - (1/7) + …..]

78
