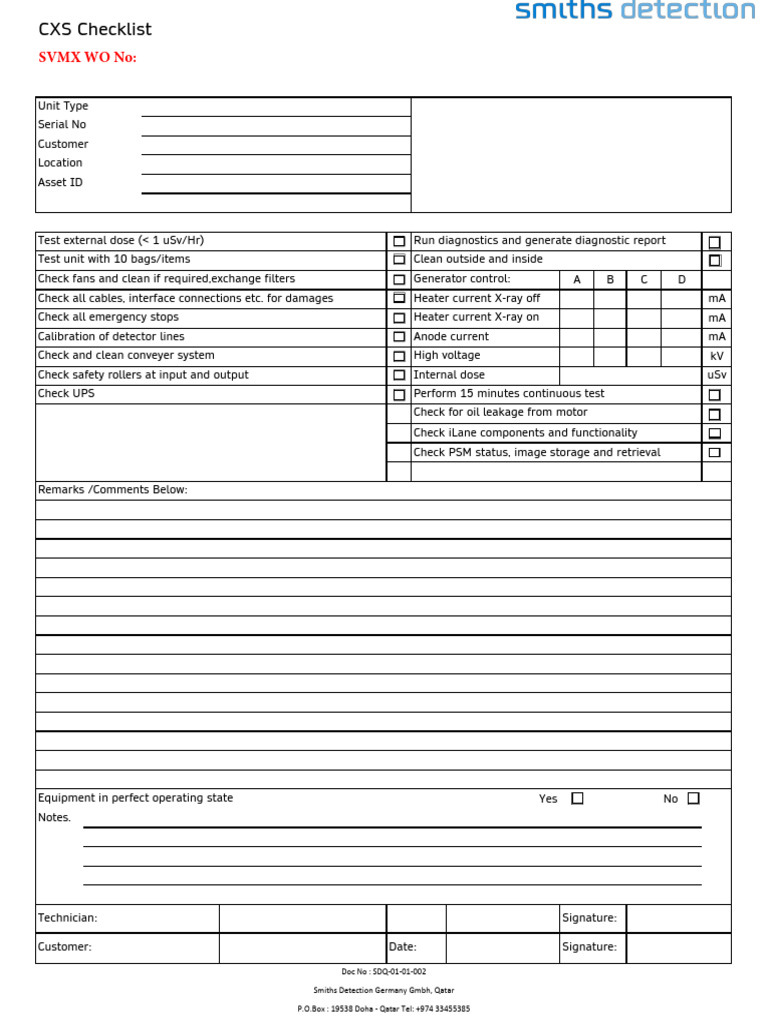

CXS Checklist
SVMX WO No: WO00205358 (Sample)
Unit Type
Serial No
Customer HAMAD INTERNATIONAL AIRPORT
Location
Asset ID
Test external dose (< 1 uSv/Hr) Run diagnostics and generate diagnostic report
Test unit with 10 bags/items Clean outside and inside
Check fans and clean if required,exchange filters Generator control: A B C D
Check all cables, interface connections etc. for damages Heater current X-ray off mA
Check all emergency stops ✔ Heater current X-ray on mA
Calibration of detector lines Anode current mA
Check and clean conveyer system High voltage kV
Check safety rollers at input and output Internal dose uSv
Check UPS Perform 15 minutes continuous test
Check for oil leakage from motor
Check iLane components and functionality
Check PSM status, image storage and retrieval
Remarks /Comments Below:
Equipment in perfect operating state Yes No
Notes.
Technician: Signature:
Customer: HAMAD INTERNATIONAL AIRPORT Date: Signature:
Doc No : SDQ-01-01-002
Smiths Detection Germany Gmbh, Qatar
P.O.Box : 19538 Doha - Qatar Tel: +974 33455385
Smiths Detection Germany GmbH Edition 6
Z5579287-E Test Protocol 30-08-2004
ECAC -Standard-Testpiece (STP) 34426808 Page 1/2
NAME : DATE : 21-Mar-23 SIGNATURE :
UNIT TYP : SERIAL No :
SW-VERSION : ECAC-PE-NO :
BELTSPEED : WORK ORDER :
VIEW :
Test no. ECAC minimum requirements
TEST 1 30 AWG - not covered by aluminium step wedge
TEST 2 24 AWG - visible behind 5/16 " aluminium step wedge
TEST 3 2mm gratings horizontal/vertical visible
TEST 4a 0.10 mm steel plate visible
TEST 4b Lead strip behind 14mm steel wedge visible
Salt and sugar are displayed in different colours
TEST 5
(organic / nonorganic)
TEST 1 & 2 TEST 5
24 30 32 36
Salt
✔
AWG
## ##### ## Sugar
3/16"
5/16"
TEST 4b
7/16"
14 mm
TEST 3 16 mm
2.0mm 18 mm
20 mm
22 mm
2.0 mm 24 mm
1.0mm 1.5mm
26 mm
TEST 4a 28 mm
30 mm
0.15 mm 0.10 mm 0.05 mm
Customer : Hamad International Airport
Smiths Detection Germany GmbH Edition 6
Z5579287-E Test Protocol 30-08-2004
ECAC -Standard-Testpiece (STP) 34426808 Page 1/2
NAME : DATE : SIGNATURE :
UNIT TYP : SERIAL No :
SW-VERSION : ECAC-PE-NO :
BELTSPEED : WORK ORDER :
VIEW :
Test no. ECAC minimum requirements
TEST 1 30 AWG - not covered by aluminium step wedge
TEST 2 24 AWG - visible behind 5/16 " aluminium step wedge
TEST 3 2mm gratings horizontal/vertical visible
TEST 4a 0.10 mm steel plate visible
TEST 4b Lead strip behind 14mm steel wedge visible
Salt and sugar are displayed in different colours
TEST 5
(organic / nonorganic)
TEST 1 & 2 TEST 5
24 30 32 36
Salt
✔
AWG
## ##### ## Sugar
3/16"
5/16"
TEST 4b
7/16"
14 mm
TEST 3 16 mm
2.0mm 18 mm
20 mm
22 mm
2.0 mm 24 mm
1.0mm 1.5mm
26 mm
TEST 4a 28 mm
30 mm
0.15 mm 0.10 mm 0.05 mm
Customer : Hamad International Airport
