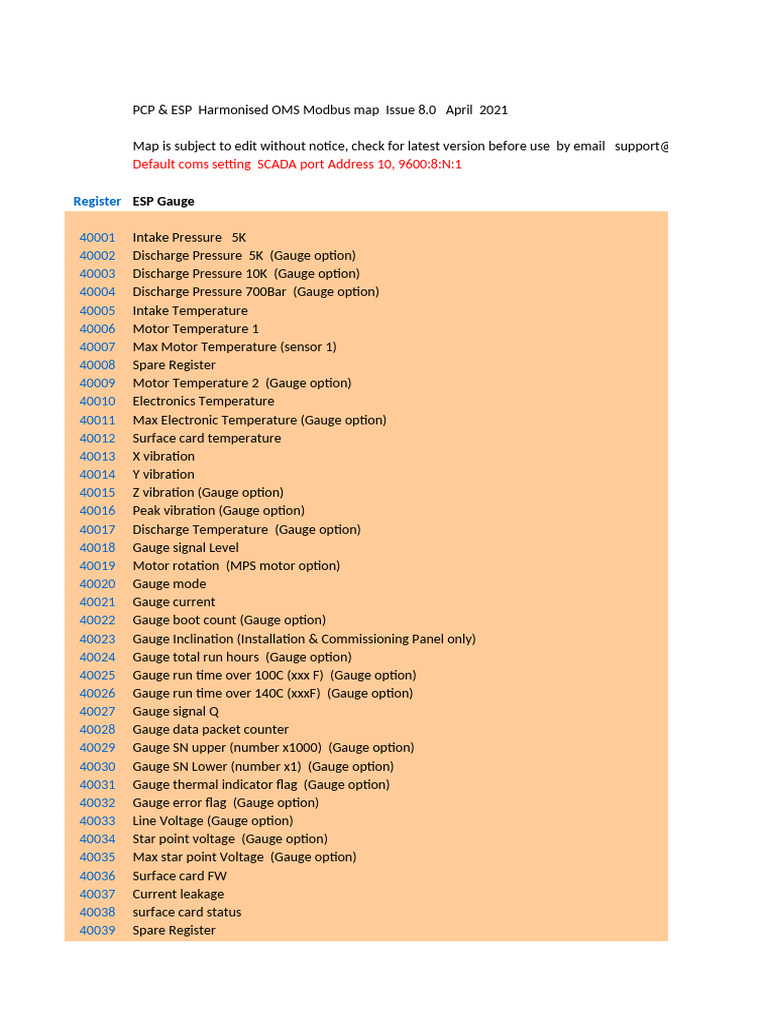

PCP & ESP Harmonised OMS Modbus map Issue 8.
0 April 2021
Map is subject to edit without notice, check for latest version before use by email support@oxmos.com
Default coms setting SCADA port Address 10, 9600:8:N:1
Register ESP Gauge
40001 Intake Pressure 5K
40002 Discharge Pressure 5K (Gauge option)
40003 Discharge Pressure 10K (Gauge option)
40004 Discharge Pressure 700Bar (Gauge option)
40005 Intake Temperature
40006 Motor Temperature 1
40007 Max Motor Temperature (sensor 1)
40008 Spare Register
40009 Motor Temperature 2 (Gauge option)
40010 Electronics Temperature
40011 Max Electronic Temperature (Gauge option)
40012 Surface card temperature
40013 X vibration
40014 Y vibration
40015 Z vibration (Gauge option)
40016 Peak vibration (Gauge option)
40017 Discharge Temperature (Gauge option)
40018 Gauge signal Level
40019 Motor rotation (MPS motor option)
40020 Gauge mode
40021 Gauge current
40022 Gauge boot count (Gauge option)
40023 Gauge Inclination (Installation & Commissioning Panel only)
40024 Gauge total run hours (Gauge option)
40025 Gauge run time over 100C (xxx F) (Gauge option)
40026 Gauge run time over 140C (xxxF) (Gauge option)
40027 Gauge signal Q
40028 Gauge data packet counter
40029 Gauge SN upper (number x1000) (Gauge option)
40030 Gauge SN Lower (number x1) (Gauge option)
40031 Gauge thermal indicator flag (Gauge option)
40032 Gauge error flag (Gauge option)
40033 Line Voltage (Gauge option)
40034 Star point voltage (Gauge option)
40035 Max star point Voltage (Gauge option)
40036 Surface card FW
40037 Current leakage
40038 surface card status
40039 Spare Register
40040 Discharge Temperature (Gauge option)
40041 Intake Temperature
40042 Motor Temperature 1
40043 Max Motor Temperature (sensor 1 - Gauge option)
40044 Electronics Temperature (Gauge option)
40045 Max Electronic Temperature (Gauge option)
40046 Discharge Temperature (Gauge option)
40047 Motor Temperature 2 (Gauge option)
40048 Surface card temperature
40049 Intake Pressure 400 Bar
40050 Discharge Pressure 400 Bar (Gauge option)
l support@oxmos.com
Modbus RTU
ID Scale Unit Signed Example data Register
Pi x10 Psi No 156 40001
Pd x10 Psi No 155 40002
Pd10 x1 Psi No 7890 40003
Pd700 x10 Bar No 138 40004
Ti x100 °C No 1700 40005
TM x100 °C No 2000 40006
Tm(max) x100 °C No 13000 40007
40008
TM2 x100 °C No 2000 40009
Te x100 °C No 1900 40010
Te(max) x100 °C No 12500 40011
SCT x100 °C No 335 40012
Vx x1000 g Yes 53 40013
Vy x1000 g Yes 13 40014
Vz x1000 g Yes 19 40015
Vpk x1000 g Yes 200 40016
Td x100 °C No 40017
SL x100 % No 10100 40018
40019
Type x1 - No 3 40020
Ct x100 mA No 1600 40021
GBC x1 - No 20 40022
Inc x10 deg No 445 40023
GRH x1 - No 700 40024
Gt(100) x1 - No 200 40025
Gt(140) x1 - No 30 40026
SQ x100 % No 10000 40027
GPK 1 x1 - No 22 40028
SN H x1 - No 10 40029
SN L x1 - No 70 40030
Flag1 x1 - - 40031
Flag 2 x1 - - 40032
Vt x100 V No 7789 40033
Vsp x1 V no 120 40034
Vsp1 x1 V no 200 40035
SFW x1 - No 54 40036
Cl x100 mA see note 12 40037
CS x1 - No 0 40038
40039
Td x100 °F No 40040
Ti x100 °F No 1700 40041
TM x100 °F No 2000 40042
Tm(max) x100 °F No 13000 40043
Te x100 °F No 1900 40044
Te(max) x100 °F No 12500 40045
x100 °F No 2000 40046
TM2 x100 °F No 2000 40047
SCT x100 °F No 335 40048
Pi x100 Bar No 156 40049
Pd x100 Bar No 155 40050
PG Gauge ID Scale
P1 - Annulus ( 0 to 5800 Psi) - Dual gauge. Annulus or Tubing single gauge P1 x10
P2 - Tubing (0 to 5800 Psi) Dual gauge P2 x10
P1 Floating reading ( 0 to 10000 Psi Gauge option) P1 float
P1 supplementary support register for float number - -
P2 Floating reading ( 0 to 10000 Psi Gauge option) P2 float
P2 supplementary support register for float number - -
T1 - Annulus - Dual gauge. Annulus or Tubing single gauge T1 x100
Spare Register
Spare Register
Electronics Temperature Te x100
Max Electronics Temperature (Reserved for future gauge option) Te(max) x100
Surface card temperature SCT x100
X vibration Vx x1000
Y vibration Vy x1000
Z vibration Vz x1000
Peak vibration Vpk x1000
T2 - Tubing Dual gauge T2 x100
Gauge signal Level SL x100
Spare Register
Spare Register
Gauge current Ct x100
Gauge boot count (Reserved for future gauge option) GBC x1
Gauge Inclination (Installation & Commissioning Panel only) Inc x10
Total run hours (Reserved for future gauge option) GRH x1
Gauge hours >100C (Reserved for future gauge option) Gt(100) x1
Gauge hours >140C (Reserved for future gauge option) Gt(140) x1
Gauge signal Q SQ x100
Gauge data packet counter PK1 GPK 1 x1
Spare Register
Serial number SN x1
Thermal indicator (Reserved for future gauge option) Flag1 x1
Total run hours (Reserved for future gauge option) Flag 2 x1
Line supply Voltage Vs x100
Line Voltage at gauge Vt x100
Spare Register
Surface card FW SFW x1
Spare Register
surface card status CS x1
Gauge data packet counter (PK2 leggacy support MK1 PG) GPK 2 x1
Tubing Temperature - Dual gauge T2 x100
Intake Temperature T1 x100
Spare Register
Spare Register
Electronics Temperature Te x100
Max Electronic Temperature (Reserved for future gauge option) Te(max) x100
Spare Register
Spare Register
Surface card temperature SCT x100
Annulus - Dual gauge. Annulus or Tubing single gauge - 0 to 400 Bar P1 x100
Tubing- dual gauge - 0 to 400 Bar P2 x100
Unit Signed Example data
Psi No 156
Psi No 155
Psi Yes 210.11
- - -
Psi Yes 1138.201
- - -
°C No 1700
°C No 1900
°C No 12500
°C No 335
g Yes 53
g Yes 13
g Yes 19
g Yes 200
°C No
% No 10100
mA No 1600
- No 20
deg No 445
- No 700
- No 200
- No 30
% No 10000
- No 22
- No 10001
- -
- -
V No 2018
V No 1799
- No 75
- No 0
- No 21
°F No 11899
°F No 11900
°F No 12000
°F No 19000
°F No 7890
Bar No 101
Bar No 99
Notes
In single mode the gauge can be either depending on a SUB being fitted for tube pressure or not. Gauge is the sa
Big Endian 40003 + 40004
Big Endian 40005 + 40006
