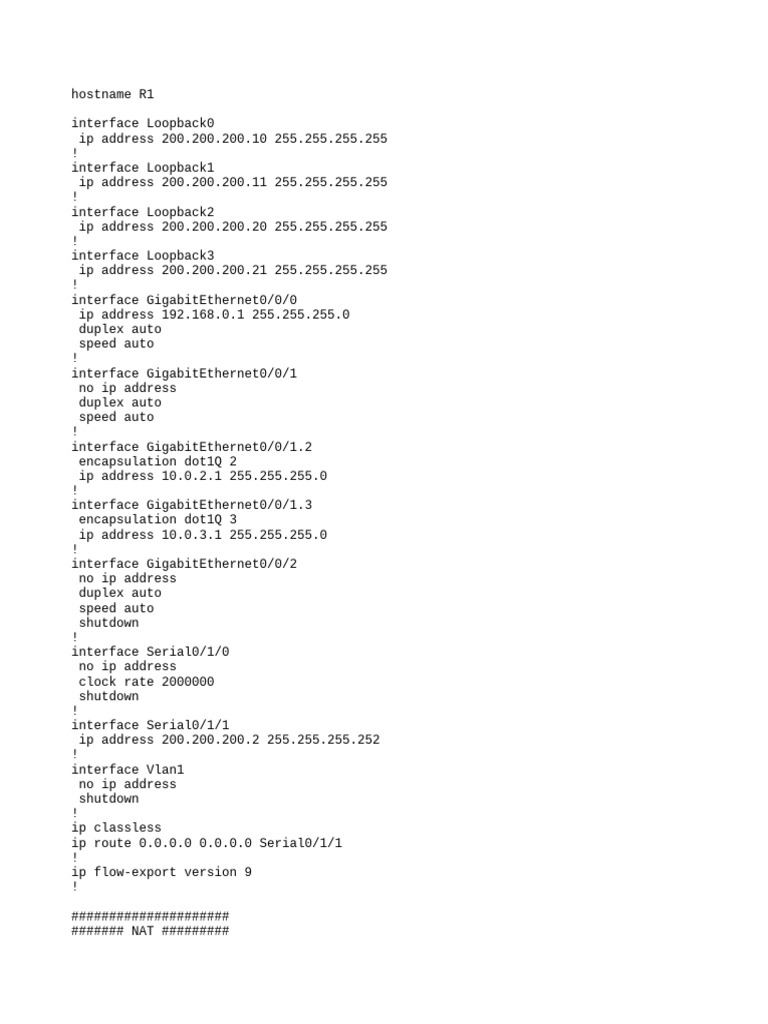

hostname R1

interface Loopback0
ip address 200.200.200.10 255.255.255.255
!
interface Loopback1
ip address 200.200.200.11 255.255.255.255
!
interface Loopback2
ip address 200.200.200.20 255.255.255.255
!
interface Loopback3
ip address 200.200.200.21 255.255.255.255
!
interface GigabitEthernet0/0/0
ip address 192.168.0.1 255.255.255.0
duplex auto
speed auto
!
interface GigabitEthernet0/0/1
no ip address
duplex auto
speed auto
!
interface GigabitEthernet0/0/1.2
encapsulation dot1Q 2
ip address 10.0.2.1 255.255.255.0
!
interface GigabitEthernet0/0/1.3
encapsulation dot1Q 3
ip address 10.0.3.1 255.255.255.0
!
interface GigabitEthernet0/0/2
no ip address
duplex auto
speed auto
shutdown
!
interface Serial0/1/0
no ip address
clock rate 2000000
shutdown
!
interface Serial0/1/1
ip address 200.200.200.2 255.255.255.252
!
interface Vlan1
no ip address
shutdown
!
ip classless
ip route 0.0.0.0 0.0.0.0 Serial0/1/1
!
ip flow-export version 9
!

#####################
####### NAT #########
#####################

## Conf interfaces

interface Serial0/1/1
ip nat outside
!
interface GigabitEthernet0/0/0
ip nat inside
!
interface GigabitEthernet0/0/1.2
ip nat inside
!
interface GigabitEthernet0/0/1.3
ip nat inside
!

## Conf 01
ip nat inside source static 192.168.0.2 200.200.200.10
!

## Conf 02
ip nat inside source static tcp 192.168.0.2 80 200.200.200.11 8080
!

## Conf 03
ip access-list standard vlan3
permit 10.0.3.0 0.0.0.255
!
ip nat inside source list vlan3 interface Serial0/1/1 overload

## Conf 04
ip access-list standard vlan2
permit 10.0.2.0 0.0.0.255
!
ip nat pool NAT-POOL 200.200.200.20 200.200.200.21 netmask 255.255.255.0
!
ip nat inside source list vlan2 pool NAT-POOL
