AMIS Electricals

Ayaz S. Shaikh ( B. E. Electrical ) - +91 - 96625 43881


E-mail :- amis.electricals@yahoo.com

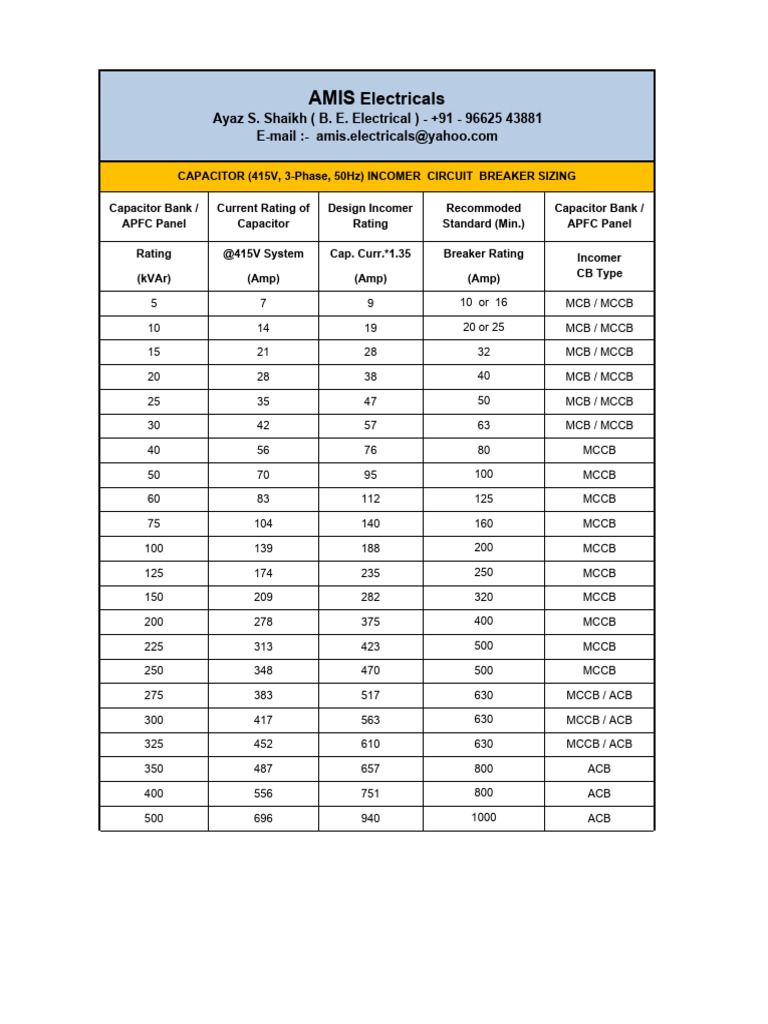

CAPACITOR (415V, 3-Phase, 50Hz) INCOMER CIRCUIT BREAKER SIZING

Capacitor Bank / Current Rating of Design Incomer Recommoded Capacitor Bank /


APFC Panel Capacitor Rating Standard (Min.) APFC Panel

Rating @415V System Cap. Curr.*1.35 Breaker Rating Incomer


(kVAr) (Amp) (Amp) (Amp) CB Type

5 7 9 10 or 16 MCB / MCCB

10 14 19 20 or 25 MCB / MCCB

15 21 28 32 MCB / MCCB

20 28 38 40 MCB / MCCB

25 35 47 50 MCB / MCCB

30 42 57 63 MCB / MCCB

40 56 76 80 MCCB

50 70 95 100 MCCB

60 83 112 125 MCCB

75 104 140 160 MCCB

100 139 188 200 MCCB

125 174 235 250 MCCB

150 209 282 320 MCCB

200 278 375 400 MCCB

225 313 423 500 MCCB

250 348 470 500 MCCB

275 383 517 630 MCCB / ACB

300 417 563 630 MCCB / ACB

325 452 610 630 MCCB / ACB

350 487 657 800 ACB

400 556 751 800 ACB

500 696 940 1000 ACB


550 765 1033 1250 ACB

600 835 1127 1250 ACB

650 904 1220 1600 ACB

700 974 1315 1600 ACB

750 1043 1408 1600 ACB

800 1113 1503 1600 ACB

850 1183 1597 2000 ACB

900 1252 1690 2000 ACB

950 1322 1784 2000 ACB

1000 1391 1878 2000 ACB

1050 1461 1972 2500 ACB

1100 1530 2066 2500 ACB

1150 1600 2160 2500 ACB

1200 1669 2254 2500 ACB

1250 1739 2348 2500 ACB

1300 1809 2442 3200 ACB

1350 1878 2536 3200 ACB

1400 1948 2629 3200 ACB

1450 2017 2723 3200 ACB

1500 2087 2817 3200 ACB

As a General Thumb rule (Approx):

Capacitor Rated kVAr


Capacitor Current, I (FLC) =
1.732 x kV

Capacitor Current (415V) = 1.391 x Capacitor kVAr rating

SCPD for Capacitor unit (415V) = ≥2 x Capacitor kVAr rating

SCPD = Short circuit Protection Device (SFU / Circuit Breaker (MCB / MCCB / ACB))
