NOTES
1. FOUNDATIONS
They shall generally be taken 1500mm
min. below existing ground level after
removal of organic layer and all
excavations to be confirmed by the
Engineer before concrete blinding is
laid.
Weak pockets of bearing strata to be
dug out and filled with 1:4:8 mass
concrete.
2. CONCRETE MIXES
Reinforced concrete to have a min.
works cube strength of 25N/mm² at
28 days with 20mm max.aggregate size
3. REINFORCEMENT
(a) High yield bars (>500N/mm²) to be
square twisted cold formed bars to
BS4461and are marked "H" on these
dwgs
(b) Mild steel bars (250N/mm²) marked "R"
on these dwgs to be round bars to

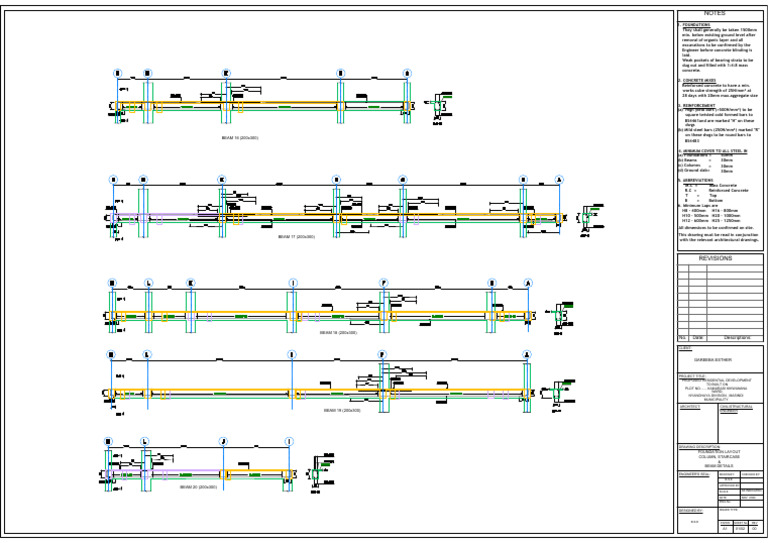

BEAM 16 (200x300)
BS4483
4. MINIMUM COVER TO ALL STEEL IN
(a) Foundations = 50mm
(b) Beams = 30mm
(c) Columns = 30mm
(d) Ground slab= 30mm
5. ABBREVIATIONS
M.C = Mass Concrete
R.C = Reinforced Concrete
T = Top
B = Bottom
6. Minimum Laps are
H8 - 400mm H16 - 800mm
H10 - 500mm H20 - 1000mm
H12 - 600mm H25 - 1250mm
All dimensions to be confirmed on site.
This drawing must be read in conjunction
BEAM 17 (200x300)
with the relevant architectural drawings.
REVISIONS
BEAM 18 (200x300)
No. Date: Descriptions:
CLIENT:
GAREEBA ESTHER
PROJECT TITLE:
PROPOSED RESIDENTIAL DEVELOPMENT
TO BUILT ON
PLOT NO......, KAMURASI KIKWANANA
WARD,
NYANGHAYA DIVISION , MASINDI
MUNICIPALITY
ARCHITECT: CIVIL/STRUCTURAL
BEAM 19 (200x300) ENGINEER
DRAWING DESCRIPTION:
FOUNDATION LAYOUT
COLUMN, STAIRCASE
&
BEAM DETAILS
ENGINEER'S SEAL: DRAWN BY: CHECKED BY:
B.S.E
APPROVED BY:
BEAM 20 (200x300)
SCALE AS INDICATED
DATE NOV 2024
DWG No.
DESIGNED BY: ISSUED TYPE:
B.S.E PAPER: SHEET No. REV
A1 01/02 00
