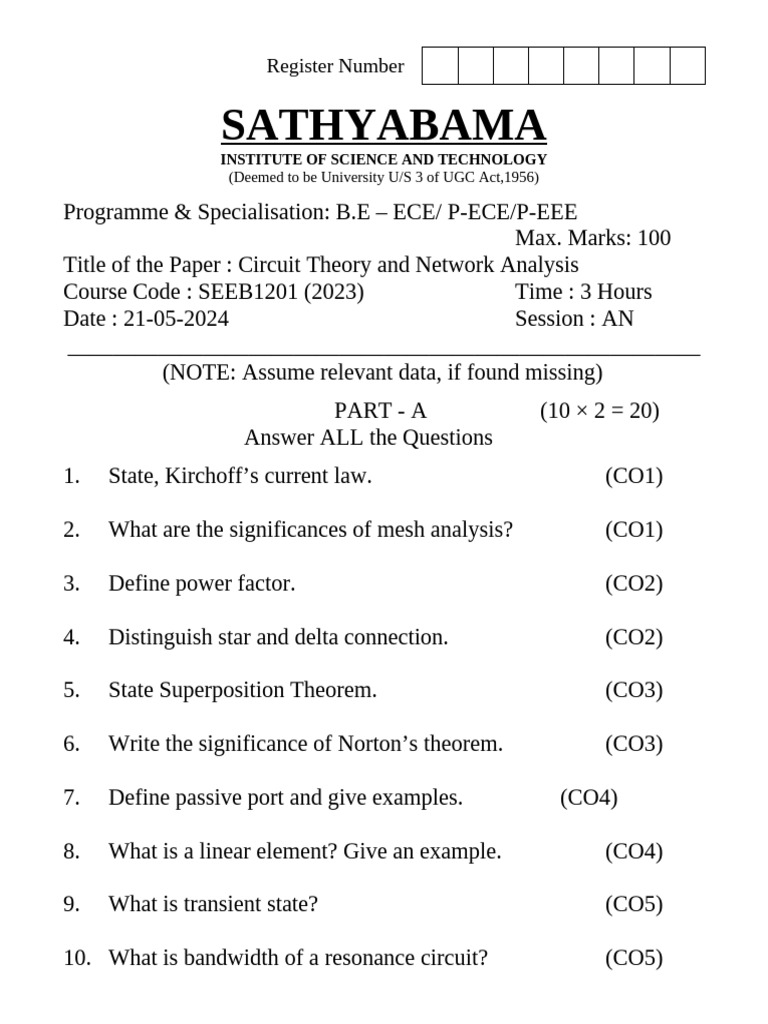

Register Number

SATHYABAMA
INSTITUTE OF SCIENCE AND TECHNOLOGY
(Deemed to be University U/S 3 of UGC Act,1956)

Programme & Specialisation: B.E – ECE/ P-ECE/P-EEE


Max. Marks: 100
Title of the Paper : Circuit Theory and Network Analysis
Course Code : SEEB1201 (2023) Time : 3 Hours
Date : 21-05-2024 Session : AN
________________________________________________________
(NOTE: Assume relevant data, if found missing)
PART - A (10 × 2 = 20)
Answer ALL the Questions
1. State, Kirchoff’s current law. (CO1)

2. What are the significances of mesh analysis? (CO1)

3. Define power factor. (CO2)

4. Distinguish star and delta connection. (CO2)

5. State Superposition Theorem. (CO3)

6. Write the significance of Norton’s theorem. (CO3)

7. Define passive port and give examples. (CO4)

8. What is a linear element? Give an example. (CO4)

9. What is transient state? (CO5)

10. What is bandwidth of a resonance circuit? (CO5)


PART - B (5 × 16 = 80)
Answer ALL the Questions

11. Using mesh analysis, find the current IL in the given circuit
shown in figure 1. (CO1)

Figure 1
(or)
12. Find value of current flowing through the 10V battery using
nodal analysis shown in figure 2. (CO1)

Figure 2
13. A series RC load takes a power of 6400 watts when connected to
250 volts 25cycles mains. The voltage drop across resistor is 160
volts. Calculate, (a) current, (b) power factor, (c) impedance, (d)
Capacitance. (CO2)
(or)
14. Discuss the effect of R-C series circuit of V, I, power and power-
factor in a single phase AC circuit with relevant expression.
(CO2)

15. Find Vcg and Iab in the given circuit shown in figure 3 using
superposition theorem. (CO3)

Figure 3
(or)
16. Determine the Thévenin equivalent of the given circuit shown in
figure 4. (CO3)

Figure 4

17. Determine transmission (ABCD) parameters of the given circuit


shown in figure 5. (CO4)
Figure 5
(or)
18. The Z–parameters of the 2-port network are
z11 = 6Ω, z22 = 4Ω z21 = 6Ω z12 = 3Ω.
Find Y & ABCD parameters.
(CO4)

19. In the coupled circuit shown in figure 6, find the voltage across
5Ω resistor. (CO5)
Figure 6
(or)
20. A series resonant circuit has a bandwidth of 100 Hz and contains
a 20 mH inductance and a 2 μF capacitance. Determine (a) f0; (b)
Q0; (c) Zin at resonance; (d) f2. (CO5)
