PROJECTION OF SOLIDS

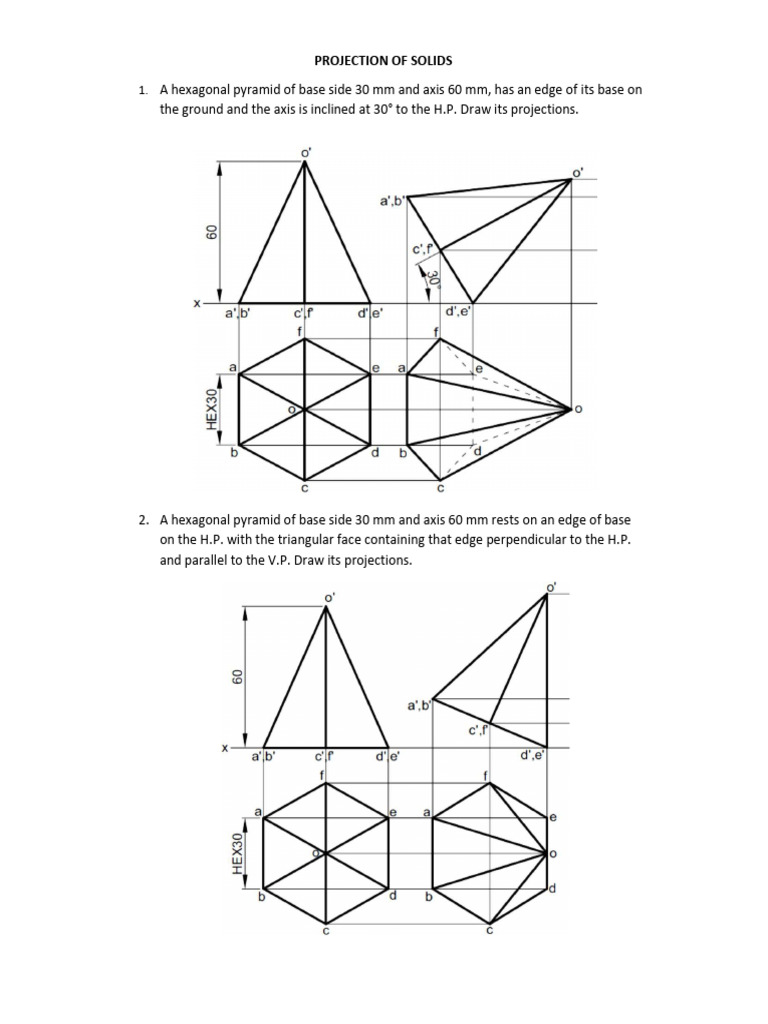

1. A hexagonal pyramid of base side 30 mm and axis 60 mm, has an edge of its base on
the ground and the axis is inclined at 30° to the H.P. Draw its projections.

2. A hexagonal pyramid of base side 30 mm and axis 60 mm rests on an edge of base


on the H.P. with the triangular face containing that edge perpendicular to the H.P.
and parallel to the V.P. Draw its projections.
3. A hexagonal pyramid of base side 30 mm and axis 50 mm, rests on one of its base corners
on the ground with axis inclined at 45° to the H.P. Draw its projections

4. A cylinder of base diameter 50 mm and axis 65 mm rests on a point of its base circle
on the H.P. Draw its projections when the axis is inclined at 30° to the H.P.
5. A cone of base diameter 50 mm and axis 60 mm has a generator in the V.P. and the axis
parallel to the H.P. Draw its projections.

6. A pentagonal pyramid of base side 30 mm and axis 60 mm has an edge of base


parallel to H.P. Its axis is parallel to V.P. and inclined at 45° to the H.P. Draw its
projections when the apex lies in the H.P.
7. A hexagonal pyramid of base side 30 mm and axis 60 mm has one of its slant edges on the
H.P. Draw its projections.

8. A pentagonal prism of base side 30 mm and height 60 mm rests on one of its base
side on the H.P. Its axis is inclined at 45° to the H.P. Draw its projections.
9. A pentagonal pyramid of base side 30 mm and axis 60 mm rests on a corner of its
base on the H.P. such that its apex is 55 mm above the ground. A vertical plane containing the
corner of the base that lies on the H.P. Draw its projections.

10. A pentagonal pyramid of base side 30 mm and axis 60 mm rests on an edge of its base
on the ground so that the highest point of the base is 20 mm above the ground. Draw its
projections.
