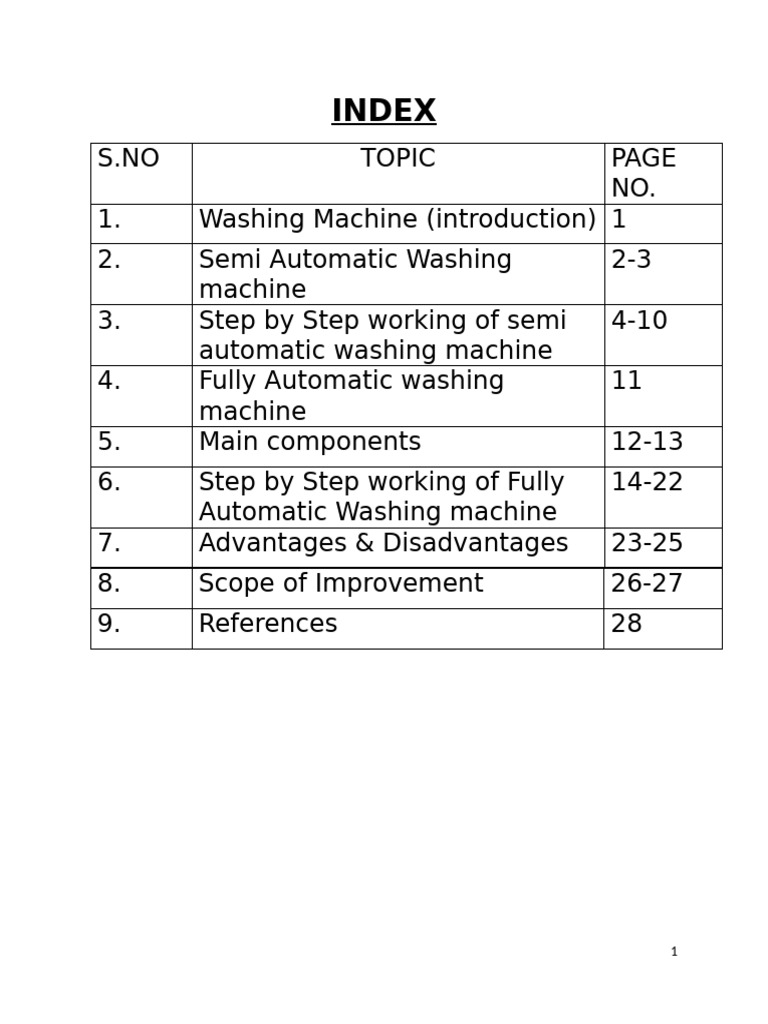

INDEX

S.NO TOPIC PAGE

NO.
1. Washing Machine (introduction) 1
2. Semi Automatic Washing 2-3
machine
3. Step by Step working of semi 4-10
automatic washing machine
4. Fully Automatic washing 11
machine
5. Main components 12-13
6. Step by Step working of Fully 14-22
Automatic Washing machine
7. Advantages & Disadvantages 23-25
8. Scope of Improvement 26-27
9. References 28

1
WASHING MACHINE
Washing machines have become an
indispensable part of modern households.
There are two primary types: semi-
automatic and fully automatic. Both work
on the same fundamental principles but
differ in the extent of automation and
user control.
In this project, we will explore how
physics governs the operations of these
machines and compare their
mechanisms.

1
 SEMI AUTOMATIC WASHING
MACHINE
A semi-automatic washing machine
consists of two separate compartments:
one for washing and the other for
spinning. Unlike fully automatic machines,
it requires manual intervention to move
clothes between the two compartments.
However, it still incorporates several
physical principles like rotational motion,
fluid dynamics, and electromagnetism to
function efficiently.
Main Components:
1. Washing Drum: A drum where
clothes are washed using water and
detergent.
2. Spinning Drum: A separate drum
for spinning clothes to remove excess
water.

2
3. Motor: Provides the rotational
motion needed for both washing and
spinning.
4. Agitator/Pulsator: A mechanism
in the washing drum that moves
clothes in water to clean them.
5. Water Inlet: Allows water to be
added manually or automatically.
6. Drain Pipe: Used to drain out dirty
water after washing.

3
Step-by-Step Working of a Semi-
Automatic Washing Machine:
1. Manual Water Filling:

4
 In a semi-automatic machine, water is
added manually to the washing drum.
The user can control the level of water
based on the amount of clothes to be
washed.
 Physics Concept: Fluid dynamics is
at play here, as water fills the drum,
creating a system where clothes will
later be agitated.

2. Adding Detergent:
The user adds detergent to the water,
which mixes with the water due to the
motion of the agitator or pulsator.
 Physics Concept: The solubility of
detergent in water and the action of

5
 surfactants, which reduce surface
tension, allows the detergent to break
down dirt and grease on clothes.
3. Washing Process:
Once the machine is turned on, the
motor activates the agitator (in top-
loading machines) or the pulsator (in
some machines). This component
creates a back-and-forth or circular
motion, which scrubs the clothes
against each other and the drum,
cleaning them.
 Rotational Motion: The motor drives
the agitator/pulsator, which moves in
alternating directions. This movement
forces the clothes to rub against each
other, helping to loosen dirt particles.
 Friction: The movement creates
friction between clothes, which assists
in removing stains and dirt.
 Water Circulation: The washing
process relies on efficient water
6
 circulation, so that the detergent is
evenly distributed around the clothes.
This involves the study of fluid
mechanics in the confined space of
the drum.

4. Draining Water:
After the washing cycle, the machine
needs to drain the dirty water. The
user manually switches the machine
to drain mode, and water is expelled
through the drain pipe by gravity or an
internal pump.
 Physics Concept: The principle of
gravity helps in draining the water. In
some models, a pump driven by the
motor might assist in draining water
faster.
7
 5. Manual Transfer of Clothes:
Once the washing cycle is completed,
the user manually transfers the
clothes from the washing drum to the
spinning drum.
 Physics Concept: This part requires
manual effort but is crucial for the
separation of the cleaning and drying
processes in a semi-automatic
machine.

8
 6. Spinning Process:
The spinning drum, driven by the
same or a separate motor, spins at a
very high speed. This creates a
centrifugal force that pushes water out
from the clothes.
 Centrifugal Force: The fast rotation
of the drum causes the clothes to be
pressed against the drum’s walls.
Water, being lighter and less cohesive
with fabric, is forced out through the
small holes in the drum.
 Angular Velocity: The speed of the
spinning drum is crucial for
determining how much water can be
removed from the clothes. The higher
the angular velocity, the more water is
removed.
9
 7. Drying the Clothes:
After the spinning cycle, most of the
water is removed from the clothes,
and they are ready for air drying.
However, semi-automatic machines do
not have a heating mechanism to dry
clothes completely.
Physics Principles Involved:
1. Rotational Motion: The motor
converts electrical energy into
mechanical energy, which rotates the
agitator or pulsator in the washing
drum and spins the clothes in the
spinning drum. This motion is central
to cleaning clothes.
10
2. Friction: The rubbing action
between clothes as they move against
each other and the drum during
agitation helps to scrub away dirt.
3. Centrifugal Force: During the
spin cycle, centrifugal force pushes
water out of the fabric, helping the
clothes dry faster by extracting
moisture.
4. Fluid Dynamics: During the
washing process, the movement of
water (a fluid) around the clothes and
within the drum follows the principles
of fluid dynamics. Proper agitation
ensures uniform cleaning.
5. Electricity and Magnetism: The
motor that powers the machine
operates based on electromagnetism.
Electrical energy drives the motor,
creating a magnetic field that causes
the rotor to spin, translating electrical
input into mechanical output.
11
Fully Automatic Washing Machine
A fully automatic washing machine is a
modern appliance designed to perform
the entire washing, rinsing, and
spinning process without manual
intervention. It is equipped with
sensors, control systems, and a single
drum that handles both washing and
spinning. Fully automatic machines
come in two variants: top-loading
and front-loading, though both work
on similar principles with minor
differences in design and operation.
12
Main Components:
1. Single Drum: Used for both
washing and spinning clothes.
2. Motor: Powers the rotation of the
drum during the wash and spin cycles.
3. Control Panel: A user interface to
select different washing modes
(normal, delicate, heavy, etc.).
4. Water Inlet Valve: Controls the
flow of water into the drum.

13
5. Detergent Dispenser:
Automatically releases detergent
during the wash cycle.
6. Drain Pump: Drains out dirty
water after washing and rinsing.
7. Water Level Sensor: Detects the
amount of water in the drum and
adjusts accordingly.
8. Heating Element (in some
models): Heats water for enhanced
cleaning.
9. Suspension System: Absorbs
vibrations during the spin cycle to
prevent the machine from shaking
excessively.

14
Step-by-Step Working of a Fully
Automatic Washing Machine:
1. Loading the Clothes:

15
 The user places the clothes inside the
drum and adds detergent (if the
machine doesn’t have an automatic
detergent dispenser). After setting the
desired wash mode using the control
panel, the machine automatically
starts the process.
 Top-loading machines: The door is
at the top, and clothes are loaded
vertically into the drum.
 Front-loading machines: The door is
on the front, and clothes are loaded
horizontally.
2. Filling Water:
The machine opens the water inlet
valve, allowing water to enter the
drum. The amount of water is
determined by the water level
sensor, which detects the load size
and adjusts the water level
accordingly.

16
 Physics Concept – Pressure
Sensors: The water level sensor often
works by measuring the pressure
inside a tube connected to the drum.
As the water level rises, the pressure
increases, and once it reaches a set
threshold, the valve shuts off.
3. Mixing Detergent and Water:
The machine mixes the water with
detergent (either manually added or
dispensed automatically) to form a
cleaning solution. In machines with a
heating element, the water may be
heated to a specific temperature
depending on the selected wash cycle
(e.g., cold wash, warm wash, hot
wash).

17
 Physics Concept – Heat Transfer: In
models with heating elements, heat
energy is transferred to the water,
increasing its temperature. Hot water
increases the effectiveness of the
detergent by dissolving it faster and
improving the removal of dirt and
grease.
4. Agitation (Washing Process):
Once the water is filled and the
detergent is mixed, the motor starts
rotating the drum. In front-loading
machines, the drum rotates both
clockwise and counterclockwise,
tumbling clothes inside. In top-
loading machines, the agitator or
impeller in the drum swirls clothes
18
 back and forth, creating a cleaning
action.
 Rotational Motion: The motor
applies rotational motion to the drum
or agitator. For front-loaders, the
drum rotates around a horizontal axis,
allowing clothes to tumble and rub
against each other. For top-loaders,
the agitator or impeller rotates to
create a turbulent flow of water and
detergent, pushing clothes through
the cleaning solution.
 Friction and Agitation: The agitation
process relies on friction between the
clothes and the drum or agitator. This
scrubbing action dislodges dirt
particles and stains from the fabric.

19
 5. Rinsing Process:
After the washing cycle, the machine
automatically drains the dirty water
using the drain pump. Fresh water is
added again to rinse the clothes,
removing detergent and dirt.
 Fluid Dynamics: The machine
ensures efficient water movement
during the rinsing process to
thoroughly clean the clothes.
 Automatic Water Adjustment: The
water level sensor again detects the
required amount of water based on
the clothes inside and adjusts
accordingly.

20
 6. Spinning Process:
Once the rinsing is complete, the
machine enters the spin cycle. The
drum starts spinning at a high speed
to remove excess water from the
clothes. The centrifugal force
generated during the spin cycle
pushes water out through the small
holes in the drum.

 Centrifugal Force: When the drum

spins, the clothes are pushed against
the drum's walls due to centrifugal
21
 force. Water, being lighter, escapes
through the perforations in the drum
and is pumped out by the drain pump.
 High RPM: Fully automatic machines
often spin at high revolutions per
minute (RPM), typically between 800–
1600 RPM, to extract maximum
moisture from clothes.

7. Automatic Drainage:
The water expelled during the spin
cycle is automatically drained by the
machine's drain pump. The process
is completely automatic, and no
manual intervention is required.

8. Drying:

22
 Although fully automatic machines
don’t completely dry clothes like a
dryer, they reduce moisture content
significantly through spinning. Some
advanced models have heating or
air-drying options for further
moisture reduction.

Physics Principles Involved:

1. Rotational Motion:
o During the washing and spin
cycles, the drum rotates due to the
motor's action. In the washing
cycle, rotational motion creates
friction between the clothes, while
in the spin cycle, it generates
centrifugal force to remove water.
2. Centrifugal Force:
o In the spin cycle, centrifugal force
is applied to the clothes. As the
drum spins at high speed, the

23
 clothes are pressed against the
drum walls, and water is ejected
through the perforations in the
drum.
3. Fluid Dynamics:
o The flow of water through the drum
during washing and rinsing follows
the principles of fluid dynamics.
Efficient water movement is
essential for thorough cleaning and
rinsing.
4. Electromagnetism:
o The motor, which is a key
component in a fully automatic
washing machine, works based on
electromagnetism. Electrical
energy powers the motor,
generating magnetic fields that
induce rotation in the drum.
5. Pressure Sensors:

24
 o The machine’s water level sensor
operates on pressure principles. As
the water fills the drum, the
pressure inside a connected tube
rises, triggering the sensor to close
the inlet valve once the correct
level is reached.
6. Heat Transfer (in some
models):
o The heating element transfers heat
to the water, raising its
temperature and enhancing the
detergent’s effectiveness in
removing stains.
Automatic Features:
1. Water Level Control:
Automatically adjusts water levels
based on the load size, optimizing
water usage.
2. Load Sensing: Some machines
have sensors that detect the weight of

25
 the clothes and adjust the washing
cycle accordingly.
3. Time and Speed Control:
Depending on the type of clothes and
the selected mode, the machine
adjusts the washing time and the
drum’s rotational speed.
4. Energy Efficiency: Many modern
fully automatic machines use inverter
motors that optimize the speed based
on the load, improving energy
efficiency and reducing noise.

ADVANTAGES & DISADVANTAGES

Advantages of Semi-Automatic
Washing Machines:

26
1. Water Saving: Since you
manually control the water input, it
uses less water compared to fully
automatic machines.
2. Energy Efficiency: Semi-
automatic washing machines consume
less power as they have fewer
automatic components.
3. Control over Process: Users have
more control over the washing
process, which is beneficial for
different types of fabrics.
4. Affordability: They are generally
cheaper than fully automatic
machines.

Disadvantages:
1. Manual Intervention: It requires
the user to manually transfer clothes
from the washing drum to the spinning
drum, increasing effort.

27
 2. Time Consumption: The need for
manual switching between washing
and spinning makes the process
longer.
3. Limited Automation: It lacks
advanced sensors and automation
features found in fully automatic
machines.
Advantages of Fully Automatic
Washing Machines:
1. Convenience: Fully automatic
machines handle the entire process
without user intervention, from
washing to spinning and even partially
drying.
2. Water Efficiency: They
automatically adjust water levels,
reducing water wastage.
3. Time-Saving: The process is faster
and requires no manual effort.

28
 4. Advanced Features: They offer a
variety of wash cycles for different
fabrics, and some even have smart
features like delayed start or mobile
app control.

Disadvantages:
1. Higher Cost: Fully automatic
machines are more expensive than
semi-automatic models.
2. Water Pressure Dependency:
They often require a steady water
supply at a certain pressure to
function efficiently, which can be an
issue in areas with low water pressure.
3. Energy Consumption: While
energy-efficient models exist, some
machines may consume more
electricity due to their advanced
features and higher spin speeds.

29
 SCOPE OF IMPROVEMENT:
1. Energy Efficiency
 Inverter Technology: Implementing
advanced inverter motors to reduce
energy consumption.
 Eco Modes: Enhancing eco-friendly
washing modes that use less water
and energy.
2. Water Usage
 Water Recycling Systems:
Introducing systems that recycle rinse
water for subsequent washes.

30
  Smart Sensors: Utilizing sensors to
determine the optimal amount of
water needed based on load size and
fabric type.
3. Washing Performance
 Improved Agitation Mechanisms:
Developing better drum designs for
more effective cleaning without
damaging fabrics.
 Advanced Detergent
Compatibility: Designing machines
that optimize the use of various
detergent types for improved cleaning.
4. Smart Technology Integration
 IoT Connectivity: Enabling remote
control and monitoring through
smartphones.
 AI-Based Wash Programs:
Implementing AI to customize wash
cycles based on user habits and fabric
types.

31
5. Noise Reduction
 Quieter Motors: Using quieter motor
designs and sound-dampening
materials to reduce operational noise.

REFRENCES
 https://www.youtube.com/watch?
v=6IQ9cghaxzc
 https://en.wikipedia.org/wiki/
Washing_machine
 https://www.wikihow.com/Work-a-
Semi-Automatic-Washing-Machine
32
 https://orient.com.pk/blogs/
updates/how-do-automatic-
washing-machines-work-
1#:~:text=Automatic%20washing
%20machines%20work%20on,the
%20clothes%2C%20making
%20them%20clean.
 MANUEL OF SAMSUNG FULLY
AUTOMATIC WASHING MACHINE
 MANUEL OF LG SEMI AUTOMATIC
WASHING MACHINE

33
34
