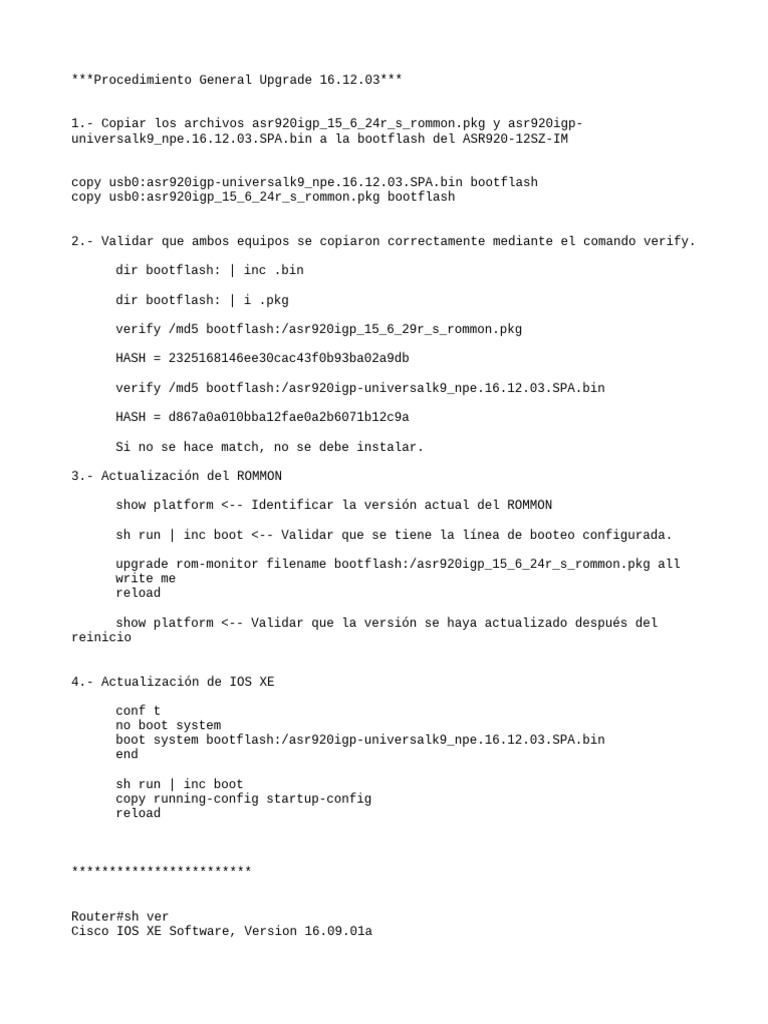

***Procedimiento General Upgrade 16.12.

03***

1.- Copiar los archivos asr920igp_15_6_24r_s_rommon.pkg y asr920igp-

universalk9_npe.16.12.03.SPA.bin a la bootflash del ASR920-12SZ-IM

copy usb0:asr920igp-universalk9_npe.16.12.03.SPA.bin bootflash

copy usb0:asr920igp_15_6_24r_s_rommon.pkg bootflash

2.- Validar que ambos equipos se copiaron correctamente mediante el comando verify.

dir bootflash: | inc .bin

dir bootflash: | i .pkg

verify /md5 bootflash:/asr920igp_15_6_29r_s_rommon.pkg

HASH = 2325168146ee30cac43f0b93ba02a9db

verify /md5 bootflash:/asr920igp-universalk9_npe.16.12.03.SPA.bin

HASH = d867a0a010bba12fae0a2b6071b12c9a

Si no se hace match, no se debe instalar.

3.- Actualización del ROMMON

show platform <-- Identificar la versión actual del ROMMON

sh run | inc boot <-- Validar que se tiene la línea de booteo configurada.

upgrade rom-monitor filename bootflash:/asr920igp_15_6_24r_s_rommon.pkg all

write me
reload

show platform <-- Validar que la versión se haya actualizado después del
reinicio

4.- Actualización de IOS XE

conf t
no boot system
boot system bootflash:/asr920igp-universalk9_npe.16.12.03.SPA.bin
end

sh run | inc boot

copy running-config startup-config
reload

************************

Router#sh ver
Cisco IOS XE Software, Version 16.09.01a
Router#sh inv
NAME: "Chassis", DESCR: "Cisco ASR920 Series - 12 port dual rate 10G/1G DC Power
Supply"
PID: ASR-920-12SZ-D , VID: V01 , SN: CAT2327U3K7

% Unfortunately EULA is not detected for following feature/features:

% advancedmetroipaccess
% Please configure 'license accept end user agreement' and
% use 'write' command to ensure license configurations take effect
% Continue reload will cause functionality loss for above feature/features.

Continue to reload? (yes/[no]): y

Continue to reload? (yes/[no]): y
Continue to reload? (yes/[no]): yes
Proceed with reload? [confirm]

Restricted Rights Legend

Use, duplication, or disclosure by the Government is

subject to restrictions as set forth in subparagraph
(c) of the Commercial Computer Software - Restricted
Rights clause at FAR sec. 52.227-19 and subparagraph
(c) (1) (ii) of the Rights in Technical Data and Computer
Software clause at DFARS sec. 252.227-7013.

Cisco Systems, Inc.

170 West Tasman Drive
San Jose, California 95134-1706

Cisco IOS Software [Gibraltar], ASR920 Software (PPC_LINUX_IOSD-UNIVERSALK9_NPE-M),

Version 16.12.3, RELEASE
SOFTWARE (fc5)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2020 by Cisco Systems, Inc.
Compiled Mon 09-Mar-20 17:26 by mcpre

PLEASE READ THE FOLLOWING TERMS CAREFULLY. INSTALLING THE LICENSE OR

LICENSE KEY PROVIDED FOR ANY CISCO SOFTWARE PRODUCT, PRODUCT FEATURE,
AND/OR SUBSEQUENTLY PROVIDED SOFTWARE FEATURES (COLLECTIVELY, THE
"SOFTWARE"), AND/OR USING SUCH SOFTWARE CONSTITUTES YOUR FULL
ACCEPTANCE OF THE FOLLOWING TERMS. YOU MUST NOT PROCEED FURTHER IF YOU
ARE NOT WILLING TO BE BOUND BY ALL THE TERMS SET FORTH HEREIN.

Your use of the Software is subject to the Cisco End User License Agreement
(EULA) and any relevant supplemental terms (SEULA) found at
http://www.cisco.com/c/en/us/about/legal/cloud-and-software/software-terms.html.

You hereby acknowledge and agree that certain Software and/or features are
licensed for a particular term, that the license to such Software and/or
features is valid only for the applicable term and that such Software and/or
features may be shut down or otherwise terminated by Cisco after expiration
of the applicable license term (e.g., 90-day trial period). Cisco reserves
the right to terminate any such Software feature electronically or by any
other means available. While Cisco may provide alerts, it is your sole
responsibility to monitor your usage of any such term Software feature to
ensure that your systems and networks are prepared for a shutdown of the
Software feature.

All TCP AO KDF Tests Pass

cisco ASR-920-12SZ-D (Freescale T1042) processor (revision 1.2 GHz) with
888923K/6147K bytes of memory.
Processor board ID CAT2327U3K7
12 Ten Gigabit Ethernet interfaces
32768K bytes of non-volatile configuration memory.
3670016K bytes of physical memory.
3089999K bytes of eMMC flash at bootflash:.
30239744K bytes of USB flash at usb0:.

line aux 0
^
% Invalid input detected at '^' marker.

stopbits 1
^
% Invalid input detected at '^' marker.

HARSA_SUDI Authentication passed

Press RETURN to get started!

*Sep 4 10:44:08.099: %SMART_LIC-6-EXPORT_CONTROLLED: Usage of export controlled

features is not allowed
*Sep 4 10:44:08.673: %IOS_LICENSE_IMAGE_APPLICATION-6-LICENSE_LEVEL: Module name =
ASR-920-12SZ-D Next reboo
t level = advancedmetroipaccess and License = advancedmetroipaccess
*Sep 4 10:44:14.209: %IOSD_INFRA-6-IFS_DEVICE_OIR: Device usb0 added
*Sep 4 10:44:15.243: %SMART_LIC-6-AGENT_READY: Smart Agent for Licensing is
initializedAllocate serdes lanes
for 0/0
*Sep 4 10:44:22.093: %SPANTREE-5-EXTENDED_SYSID: Extended SysId enabled for type
vlanCannot Get the number o
f ports in MAC notification

*Sep 4 10:44:24.340: %LINK-3-UPDOWN: Interface Lsmpi0, changed state to up

*Sep 4 10:44:24.345: %LINK-3-UPDOWN: Interface EOBC0, changed state to up
*Sep 4 10:44:24.346: %LINEPROTO-5-UPDOWN: Line protocol on Interface LI-Null0,
changed state to up
*Sep 4 10:44:24.347: %LINK-3-UPDOWN: Interface GigabitEthernet0, changed state to
down
*Sep 4 10:44:24.350: %IOSXE_RP_ALARM-6-INFO: asserted CRITICAL GigabitEthernet0:
Physical Port Link Down
*Sep 4 10:44:24.392: %LINK-3-UPDOWN: Interface LIIN0, changed state to up
*Sep 4 10:44:26.622: %LINEPROTO-5-UPDOWN: Line protocol on Interface Lsmpi0,
changed state to up
*Sep 4 10:44:26.623: %LINEPROTO-5-UPDOWN: Line protocol on Interface EOBC0,
changed state to up
*Sep 4 10:44:26.623: %LINEPROTO-5-UPDOWN: Line protocol on Interface
GigabitEthernet0, changed state to down
*Sep 4 10:44:26.624: %LINEPROTO-5-UPDOWN: Line protocol on Interface LIIN0,
changed state to up
*Sep 4 10:44:29.368: %SYS-7-NVRAM_INIT_WAIT_TIME: Waited 0 seconds for NVRAM to be
available
*Sep 4 10:44:29.752: %SYS-5-CONFIG_P: Configured programmatically by process MGMT
VRF Process from console a
s vty0
*Sep 4 10:44:29.949: %IOSXE_MGMTVRF-6-CREATE_SUCCESS_INFO: Management vrf Mgmt-
intf created with ID 1, ipv4
table-id 0x1, ipv6 table-id 0x1E000001
*Sep 4 10:44:29.951: %SYS-5-CONFIG_P: Configured programmatically by process MGMT
VRF Process from console a
s vty0
*Sep 4 10:44:31.736: %SYS-5-CONFIG_I: Configured from memory by console
*Sep 4 10:44:31.763: %IOSXE_OIR-6-REMSPA: SPA removed from subslot 0/0, interfaces
disabled
*Sep 4 10:44:31.835: %SPA_OIR-6-OFFLINECARD: SPA (12xGE-10GE-FIXED) offline in
subslot 0/0
*Sep 4 10:44:31.765: %IOSXE-3-PLATFORM: R0/0: linux_iosd-image: POE_LOG: POE could
not be enabled asthere is
no power detected
*Sep 4 10:44:31.789: %IOSXE-3-PLATFORM: R0/0: linux_iosd-image: POE_LOG: POE could
not be enabled asthere is
no power detected
*Sep 4 10:44:31.791: %IOSXE-3-PLATFORM: R0/0: linux_iosd-image: POE_LOG: POE could
not be enabled asthere is
no power detected
*Sep 4 10:44:31.792: %IOSXE-3-PLATFORM: R0/0: linux_iosd-image: POE_LOG: POE could
not be enabled asthere is
no power detected
*Sep 4 10:44:31.794: %IOSXE-3-PLATFORM: R0/0: linux_iosd-image: POE_LOG: POE could
not be enabled asthere is
no power detected
*Sep 4 10:44:31.796: %IOSXE-3-PLATFORM: R0/0: linux_iosd-image: POE_LOG: POE could
not be enabled asthere is
no power detected
*Sep 4 10:44:31.798: %IOSXE-3-PLATFORM: R0/0: linux_iosd-image: POE_LOG: POE could
not be enabled asthere is
no power detected
*Sep 4 10:44:31.800: %IOSXE-3-PLATFORM: R0/0: linux_iosd-image: POE_LOG: POE could
not be enabled asthere is
no power detected
*Sep 4 10:44:33.104: %IOSXE_OIR-6-INSCARD: Card (fp) inserted in slot F0
*Sep 4 10:44:33.104: %IOSXE_OIR-6-ONLINECARD: Card (fp) online in slot F0
*Sep 4 10:44:33.119: %IOSXE_OIR-6-INSCARD: Card (cc) inserted in slot 0
*Sep 4 10:44:33.119: %IOSXE_OIR-6-ONLINECARD: Card (cc) online in slot 0
*Sep 4 10:44:33.159: %SYS-5-RESTART: System restarted --
Cisco IOS Software [Gibraltar], ASR920 Software (PPC_LINUX_IOSD-UNIVERSALK9_NPE-M),
Version 16.12.3, RELEASE
SOFTWARE (fc5)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2020 by Cisco Systems, Inc.
Compiled Mon 09-Mar-20 17:26 by mcpre
*Sep 4 10:44:33.699: %IOSXE_OIR-6-INSSPA: SPA inserted in subslot 0/0Allocate
serdes lanes for 0/0
*Sep 4 10:44:37.166: %IOSXE_RP_ALARM-6-INFO: asserted MAJOR FIXED IM subslot 0/0:
Boot state
*Sep 4 10:44:39.267: %PNP-6-PNP_DISCOVERY_STOPPED: PnP Discovery stopped (Startup
Config Present)
*Sep 4 10:44:40.881: %ONEP_BASE-6-SS_ENABLED: ONEP: Service set Base was enabled
by Default
*Sep 4 10:44:43.335: %PKI-2-NON_AUTHORITATIVE_CLOCK: PKI functions can not be
initialized until an authorita
tive time source, like NTP, can be obtained.
Router>
Router>
Router>ena
Router#sh ver
Cisco IOS XE Software, Version 16.12.03
Cisco IOS Software [Gibraltar], ASR920 Software (PPC_LINUX_IOSD-UNIVERSALK9_NPE-M),
Version 16.12.3, RELEASE
SOFTWARE (fc5)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2020 by Cisco Systems, Inc.
Compiled Mon 09-Mar-20 17:26 by mcpre

Cisco IOS-XE software, Copyright (c) 2005-2020 by cisco Systems, Inc.

All rights reserved. Certain components of Cisco IOS-XE software are
licensed under the GNU General Public License ("GPL") Version 2.0. The
software code licensed under GPL Version 2.0 is free software that comes
with ABSOLUTELY NO WARRANTY. You can redistribute and/or modify such
GPL code under the terms of GPL Version 2.0. For more details, see the
documentation or "License Notice" file accompanying the IOS-XE software,
or the applicable URL provided on the flyer accompanying the IOS-XE
software.

ROM: IOS-XE ROMMON

Router uptime is 1 minute

Uptime for this control processor is 6 minutes
System returned to ROM by reload
System image file is "bootflash:/asr920igp-universalk9_npe.16.12.03.SPA.bin"
Last reload reason: PowerOn

This product contains cryptographic features and is subject to United

States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.

A summary of U.S. laws governing Cisco cryptographic products may be found at:
http://www.cisco.com/wwl/export/crypto/tool/stqrg.html

If you require further assistance please contact us by sending email to

export@cisco.com.

License Level: advancedmetroipaccess

License Type: Permanent
Next reload license Level: advancedmetroipaccess
Smart Licensing Status: Smart Licensing is DISABLED

cisco ASR-920-12SZ-D (Freescale T1042) processor (revision 1.2 GHz) with

888923K/6147K bytes of memory.
Processor board ID CAT2327U3K7
12 Ten Gigabit Ethernet interfaces
32768K bytes of non-volatile configuration memory.
3670016K bytes of physical memory.
3089999K bytes of eMMC flash at bootflash:.
30239744K bytes of USB flash at usb0:.

Configuration register is 0x2102

Router# sh inv
NAME: "Chassis", DESCR: "Cisco ASR920 Series - 12 port dual rate 10G/1G DC Power
Supply"
PID: ASR-920-12SZ-D , VID: V01 , SN: CAT2327U3K7

NAME: " FIXED IM subslot 0/0", DESCR: "FIXED : 12-port Gig & Ten Gig dual Ethernet
Interface Module"
PID: , VID: V00 , SN: N/A

Router#sh ver
Cisco IOS XE Software, Version 16.12.03
Cisco IOS Software [Gibraltar], ASR920 Software (PPC_LINUX_IOSD-UNIVERSALK9_NPE-M),
Version 16.12.3, RELEASE
SOFTWARE (fc5)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2020 by Cisco Systems, Inc.
Compiled Mon 09-Mar-20 17:26 by mcpre

Cisco IOS-XE software, Copyright (c) 2005-2020 by cisco Systems, Inc.

All rights reserved. Certain components of Cisco IOS-XE software are
licensed under the GNU General Public License ("GPL") Version 2.0. The
software code licensed under GPL Version 2.0 is free software that comes
with ABSOLUTELY NO WARRANTY. You can redistribute and/or modify such
GPL code under the terms of GPL Version 2.0. For more details, see the
documentation or "License Notice" file accompanying the IOS-XE software,
or the applicable URL provided on the flyer accompanying the IOS-XE
software.

ROM: IOS-XE ROMMON

Router uptime is 2 minutes

Uptime for this control processor is 6 minutes
System returned to ROM by reload
System image file is "bootflash:/asr920igp-universalk9_npe.16.12.03.SPA.bin"
Last reload reason: PowerOn

This product contains cryptographic features and is subject to United

States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.

A summary of U.S. laws governing Cisco cryptographic products may be found at:
http://www.cisco.com/wwl/export/crypto/tool/stqrg.html

If you require further assistance please contact us by sending email to

export@cisco.com.

License Level: advancedmetroipaccess

License Type: Permanent
--More--
*Sep 4 10:46:49.901: %SPA_OIR-6-ONLINECARD: SPA (12xGE-10GE-FIXED) online in
subslot 0/0
*Sep 4 10:46:49.658: %IOSXE-3-PLATFORM: R0/0: linux_iosd-image: POE_LOG: POE could
not be enabled asthere is no power detected
*Sep 4 10:46:49.729: %IOSXE-3-PLATFORM: R0/0: linux_iosd-image: POE_LOG: POE could
not be enabled asthere is no power detected
*Sep 4 10:46:49.760: %IOSXE-3-PLATFORM: R0/0: linux_iosd-image: POE_LOG: POE could
not be enabled asthere is no power detected
*Sep 4 10:46:49.783: %IOSXE-3-PLATFORM: R0/0: linux_iosd-image: POE_LOG: POE could
not be enabled asthere is no power detected
*Sep 4 10:46:49.796: %IOSXE-3-PLATFORM: R0/0: linux_iosd-image: POE_LOG: POE could
not be enabled asthere is no power detected
*Sep 4 10:46:49.808: %IOSXE-3-PLATFORM: R0/0: linux_iosd-image: POE_LOG: POE could
not be enabled asthere is no power detected
*Sep 4 10:46:49.815: %IOSXE-3-PLATFORM: R0/0: linux_iosd-image: POE_LOG: POE could
not be enabled asthere is no power detected
*Sep 4 10:46:49.828: %IOSXE-3-PLATFORM: R0/0: linux_iosd-image: POE_LOG: POE could
not be enabled asthere is no power detected
*Sep 4 10:46:51.644: %LINK-3-UPDOWN: Interface TenGigabitEthernet0/0/0, changed
state to down
*Sep 4 10:46:51.725: %LINK-3-UPDOWN: Interface TenGigabitEthernet0/0/1, changed
state to down
*Sep 4 10:46:51.752: %LINK-3-UPDOWN: Interface TenGigabitEthernet0/0/2, changed
state to down
*Sep 4 10:46:51.777: %LINK-3-UPDOWN: Interface TenGigabitEthernet0/0/3, changed
state to down
*Sep 4 10:46:51.787: %LINK-3-UPDOWN: Interface TenGigabitEthernet0/0/4, changed
state to down
*Sep 4 10:46:51.796: %LINK-3-UPDOWN: Interface TenGigabitEthernet0/0/5, changed
state to down
*Sep 4 10:46:51.812: %LINK-3-UPDOWN: Interface TenGigabitEthernet0/0/6, changed
state to down
*Sep 4 10:46:51.824: %LINK-3-UPDOWN: Interface TenGigabitEthernet0/0/7, changed
state to down
*Sep 4 10:46:51.832: %LINK-3-UPDOWN: Interface TenGigabitEthernet0/0/8, changed
state to down
*Sep 4 10:46:51.840: %LINK-3-UPDOWN: Interface TenGigabitEthernet0/0/9, changed
state to down
*Sep 4 10:46:51.845: %LINK-3-UPDOWN: Interface TenGigabitEthernet0/0/10, changed
state to down
*Sep 4 10:46:51.852: %LINK-3-UPDOWN: Interface TenGigabitEthernet0/0/11, changed
state tNext reload license Level: advancedmetroipaccess
Smart Licensing Status: Smart Licensing is DISABLED

cisco ASR-920-12SZ-D (Freescale T1042) processor (revision 1.2 GHz) with

888923K/6147K bytes of memory.
Processor board ID CAT2327U3K7
12 Ten Gigabit Ethernet interfaces
32768K bytes of non-volatile configuration memory.
3670016K bytes of physical memory.
3089999K bytes of eMMC flash at bootflash:.
30239744K bytes of USB flash at usb0:.

Configuration register is 0x2102

Router# sh inv
NAME: "Chassis", DESCR: "Cisco ASR920 Series - 12 port dual rate 10G/1G DC Power
Supply"
PID: ASR-920-12SZ-D , VID: V01 , SN: CAT2327U3K7

NAME: " FIXED IM subslot 0/0", DESCR: "FIXED : 12-port Gig & Ten Gig dual Ethernet
Interface Module"
PID: , VID: V00 , SN: N/A

Router#
*Sep 4 10:47:31.208: %IOSXE_RP_ALARM-6-INFO: cleared MAJOR FIXED IM subslot 0/0:
Boot state
*Sep 4 10:47:31.210: %IOSXE_RP_ALARM-6-INFO: asserted CRITICAL xcvr container
0/0/0: Transceiver Missing - Link Down
*Sep 4 10:47:31.211: %IOSXE_RP_ALARM-6-INFO: asserted CRITICAL xcvr container
0/0/1: Transceiver Missing - Link Down
*Sep 4 10:47:31.211: %IOSXE_RP_ALARM-6-INFO: asserted CRITICAL xcvr container
0/0/2: Transceiver Missing - Link Down
*Sep 4 10:47:31.212: %IOSXE_RP_ALARM-6-INFO: asserted CRITICAL xcvr container
0/0/3: Transceiver Missing - Link Down
*Sep 4 10:47:31.213: %IOSXE_RP_ALARM-6-INFO: asserted CRITICAL xcvr container
0/0/4: Transceiver Missing - Link Down
*Sep 4 10:47:31.214: %IOSXE_RP_ALARM-6-INFO: asserted CRITICAL xcvr container
0/0/5: Transceiver Missing - Link Down
*Sep 4 10:47:31.215: %IOSXE_RP_ALARM-6-INFO: asserted CRITICAL xcvr container
0/0/6: Transceiver Missing - Link Down
*Sep 4 10:47:31.215: %IOSXE_RP_ALARM-6-INFO: asserted CRITICAL xcvr container
0/0/7: Transceiver Missing - Link Down
*Sep 4 10:47:31.216: %IOSXE_RP_ALARM-6-INFO: asserted CRITICAL xcvr container
0/0/8: Transceiver Missing - Link Down
*Sep 4 10:47:31.217: %IOSXE_RP_ALARM-6-INFO: asserted CRITICAL xcvr container
0/0/9: Transceiver Missing - Link Down
*Sep 4 10:47:31.218: %IOSXE_RP_ALARM-6-INFO: asserted CRITICAL xcvr container
0/0/10: Transceiver Missing - Link Down
*Sep 4 10:47:31.219: %IOSXE_RP_ALARM-6-INFO: asserted CRITICAL xcvr container
0/0/11: Transceiver Missing - Link Down
*Sep 4 10:49:24.968: %IOSXE-1-PLATFORM: R0/0: linux_iosd-image: GNSS PRESENCE
STATUS TRAP : RP0 RP_STATE:0 PRESENCE_STATUS:1
*Sep 4 10:49:24.974: %IOSXE-1-PLATFORM: R0/0: linux_iosd-image: GNSS LOCK STATUS
TRAP : RP0 RP_STATE:0 LOCK_STATUS:1
Router# sh ?
aaa Show AAA values
access-expression List access expression
access-group Access group information
access-lists List access lists
access-session Show access-session Information
accounting Show accounting
acircuit Access circuit info
acr ACR information
adjacency Adjacent nodes
alarm display alarm profile(s)
aliases Display alias commands
alignment Show alignment information
app-hosting Application hosting related informations
application Application Routing
aps APS information
archive Archive functions
arp ARP table
async Information on terminal lines used as router
interfaces
audit Router Audit
authentication Show authentication (access-session) Information
auto Show Automation Template
auto-ip-ring Auto-IP-Ring information
autonomic Autonomic Networking
avc Application visibility and control
banner Display banner information
beep Show BEEP information
bfd BFD protocol info
bgp BGP information
bootflash: display information about bootflash: file system
bootlog Show bootlog contents
bootvar Boot and related environment variable
bridge Bridge Forwarding/Filtering Database [verbose]
bridge-domain Bridge-domain
buffers Buffer pool statistics
bulkstat Bulkstat show commands
call Show call
call-home Show command for call home
capability Capability Information
cca CCA information
cce Common Classification Engine (CCE)
ccm CCM HA Information
cdp CDP information
cef CEF address family independent status
cem CEM information
checkpoint Checkpoint Facility (CF)
chunk chunk
cisp Show CISP Information
class Cem class information
class-map Show CPL Class Map
clns CLNS network information
clock Display the system clock
cns CNS agents
compress Show compression statistics
configuration Contents of Non-Volatile memory
connection Show Connection
controllers Interface controller status
cops COPS information
crypto Encryption module
dampening Display dampening information
data-corruption Show data errors
database Show Database
dcm Data Collection Manager Core Details
debugging State of each debugging option
derived-config Derived operating configuration
dhcp Dynamic Host Configuration Protocol status
diag Show diagnostic and eeprom information
diagnostic Show command for diagnostic
dialer Dialer parameters and statistics
dot1x Dot1x information
drip DRiP DB
dwnld_mgr Download Manager
eap Shows EAP registration/session information
eigrp EIGRP show commands
em Event Manager Show
end-user-license-agreement End User License Agreement (EULA)
environment Environmental Monitoring
eobc Cat 6000 out of band (EOBC) interface show
commands
epm Show EPM information
errdisable Error disable
esmc Ethernet Synchronization Messaging Channel
etherchannel EtherChannel Parameters
ethernet Ethernet parameters
event Embedded event related commands
event-manager Event manager information
exception exception informations
facility-ains Show All AINS status
facility-alarm Show Facility Alarms
facility-condition Show facility condition states
fhrp FHRP information
file Show filesystem information
flash: display information about flash: file system
flow Flow information
format Show format information
frr-manager IP FRR manager
glbp GLBP information
gnss Show GNSS information
history Display the session command history
hosts IP domain-name, lookup style, nameservers, and
host table
hspw-aps-icrm HSPW-APS groups and details
html HTML helper commands
hw-module Show hardware module commands
hw-programmable Show hw-programmable information
id-manager ID pool manager
idb List of Interface Descriptor Blocks
idmgr IDMGR interaction
if-mgr if-mgr information
ifnum IDB Interface Index (Number)
ima Display IMA Interfaces
install Install Manager Information
interfaces Interface status and configuration
inventory Show the physical inventory
iosp-server iosp-server information
ip IP information
ipam IP Addr Mgr (IPAM) information
ipc Interprocess communications commands
ipv6 IPv6 information
isis IS-IS routing information
issu ISSU Information
kerberos Show Kerberos Values
key Key information
kron Kron Subsystem
l2fib Layer 2 Forwarding Information Base
l2rib L2 Routing Information Base
l2route Show L2 routes
l2vpn Show information about Layer2 VPN
l3vpn l3vpn encapsulation ip commands
lacp Port channel information
license Show license information
line TTY line information
link-protection 1+1 Hot Standby Link Protection (HSBY)
lisp Locator/ID Separation Protocol
lldp LLDP information
llp NHRP multicast map for link layer protocols
location Display the system location
logging Show the contents of logging buffers
login Display Secure Login Configurations and State
mab MAB information
mac MAC configuration
macdb show MAC database
management Display the management applications
management-interface Host management-interface information
mcsa mcsa info
mdns-sd mDNS Gateway
memory Memory statistics
mfib MFIB address family independent status
mlrib Multi Layer RIB information
monitor Monitoring different system events
mpls MPLS information
mtm MTM
mvpn Multicast VPN Information
mvr Show mvr global parameters
netconf Show NETCONF information
netconf-yang netconf-yang information
netdr Show NetDriver commands
network-clocks Network Clock
network-clocks Network clocks information
nhrp Display NHRP related information
nid NID Configuration
ntp Network time protocol
object-group List object groups
odb Opaque Database
odm-format Show the schema used for ODM input file
ospfv3 OSPFv3 information
otv Display OTV information
packet-debug Packet debug information
parameter-map Show parameter map of type
parameter-map parameter map information
parser Display parser information
pce Path Computation Element Protocol information
persistent Show persistent information
platform Show platform information
pnp Display PNP information
policy-firewall show firewall statistics
policy-manager Policy Manager
policy-map Show Policy Map
power Power
ppp PPP parameters and statistics
pppatm PPP over ATM
pppoe PPPoE information
pre Show PRE (Policy Rule Engine) Information
privilege Show current privilege level
processes Active process statistics
protocols Active network routing protocols
ptp Precision Time Protocol (IEEE 1588)
pw-udp Pseudowire UDP Information
qbm QoS Bandwidth Manager information
qos Quality of Service show commands
radius Shows radius information
raw-socket Information for raw socket
recovered-clock Clock recovery information
redirect Show L4 redirect information
redundancy Redundancy Facility (RF) information
region Region Manager Status
registry Function registry information
reload Scheduled reload information
rep Resilient Ethernet Protocol
resource Display Resource Usage/Relations and more details
resource-group Resource group statistics
rgf RGF groups and statistics
rhosts Remote-host+user equivalences
rib Routing Information Base
rmon rmon statistics
rom-monitor Show ROMMON version information
romvar All ROMMON environment variables
route-map route-map information
route-tag route-tag information
rpl RPL protocol status
running-config Current operating configuration
sampler Sampler information
sasl show SASL information
sdm switch database management
segment-routing SR Info
service-group Show service group information
service-overlay Service Overlay show commands
service-routing Service-Routing show commands
session-manager Session-mgr infra CLIs
sessions Information about Telnet connections
sga-binos Cisco Trusted Security information
shell-exec shell-exec information
smf Software MAC filter
snmp snmp statistics
sntp Simple network time protocol
sockets Socket Details
spanning-tree Spanning tree topology
ssh Status of SSH server connections
ssm Segment Switching Manager Status
sss Subscriber Service Switch Information
(deprecated, use "show subscriber ..."
stacks Process stack utilization
standby Hot Standby Router Protocol (HSRP) information
startup-config Contents of startup configuration
storm-control Show storm control configuration
subscriber Subscriber Service Switch Information
subscriber-policy Subscriber policy
subsys Show subsystem information
table-map Show Table Map
tacacs Shows tacacs+ server statistics
 tag-switching Tag Switching information
tcp Status of TCP connections
tech-support Show system information for Tech-Support
telemetry telemetry information
template Template information
tempservice Show template service binos CLI
terminal Display terminal configuration parameters
test_rib_access RIB_ACCESS TEST info
time-range Time range
tod-clock Time-of-Day Clock
topology Topology instance information
track Tracking information
traffic-eng Traffic-engineering
transport-map Transport map information
tunnel Show configured tunnels
udf List User defined Fields (UDFs)
udld UDLD information
udp UDP Details
upgrade Show upgrade commands
usb-devices System USB devices
usb0: display information about usb0: file system
usb_status Show USB enable/disable status on platform
users Display information about terminal lines
vasi VASI information
version System hardware and software status
vfi Virtual Forwarding Instance information
vlans Virtual LANs Information
vnet Virtual NETwork instance information
vpdn VPDN information
vrf VPN Routing/Forwarding instance information
vrrp VRRP information
vrrs VRRS information
vtemplate Virtual Template interface information
whoami Info on current tty line
wsma Show Web Services Management Agents information

Router# sh pla
Router# sh platform
Chassis type: ASR-920-12SZ-D

Slot Type State Insert time (ago)

--------- ------------------- --------------------- -----------------
0/0 12xGE-10GE-FIXED ok 00:08:50
R0 ASR-920-12SZ-D ok, active 00:12:54
F0 ok, active 00:12:54
P0 ASR920-PSU0 ok never
P1 ASR920-PSU1 ok never
P2 ASR920-FAN ok never

Slot CPLD Version Firmware Version

--------- ------------------- ---------------------------------------
R0 19052139 15.6(29r)S
F0 19052139 15.6(29r)S

Router#
*Sep 4 10:54:07.199: %IOSD_INFRA-6-IFS_DEVICE_OIR: Device usb0 removed
Router#sh ip int b
Interface IP-Address OK? Method Status Protocol
Te0/0/0 unassigned YES NVRAM down down
Te0/0/1 unassigned YES NVRAM down down
Te0/0/2 unassigned YES NVRAM down down
Te0/0/3 unassigned YES NVRAM down down
Te0/0/4 unassigned YES NVRAM down down
Te0/0/5 unassigned YES NVRAM down down
Te0/0/6 unassigned YES NVRAM down down
Te0/0/7 unassigned YES NVRAM down down
Te0/0/8 unassigned YES NVRAM down down
Te0/0/9 unassigned YES NVRAM down down
Te0/0/10 unassigned YES NVRAM down down
Te0/0/11 unassigned YES NVRAM down down
GigabitEthernet0 unassigned YES NVRAM down down
Virtual-PPP4001 unassigned YES unset down down
Router#sh int desc
Interface Status Protocol Description
Te0/0/0 down down
Te0/0/1 down down
Te0/0/2 down down
Te0/0/3 down down
Te0/0/4 down down
Te0/0/5 down down
Te0/0/6 down down
Te0/0/7 down down
Te0/0/8 down down
Te0/0/9 down down
Te0/0/10 down down
Te0/0/11 down down
Gi0 down down
Vi4001 down down
Router#
