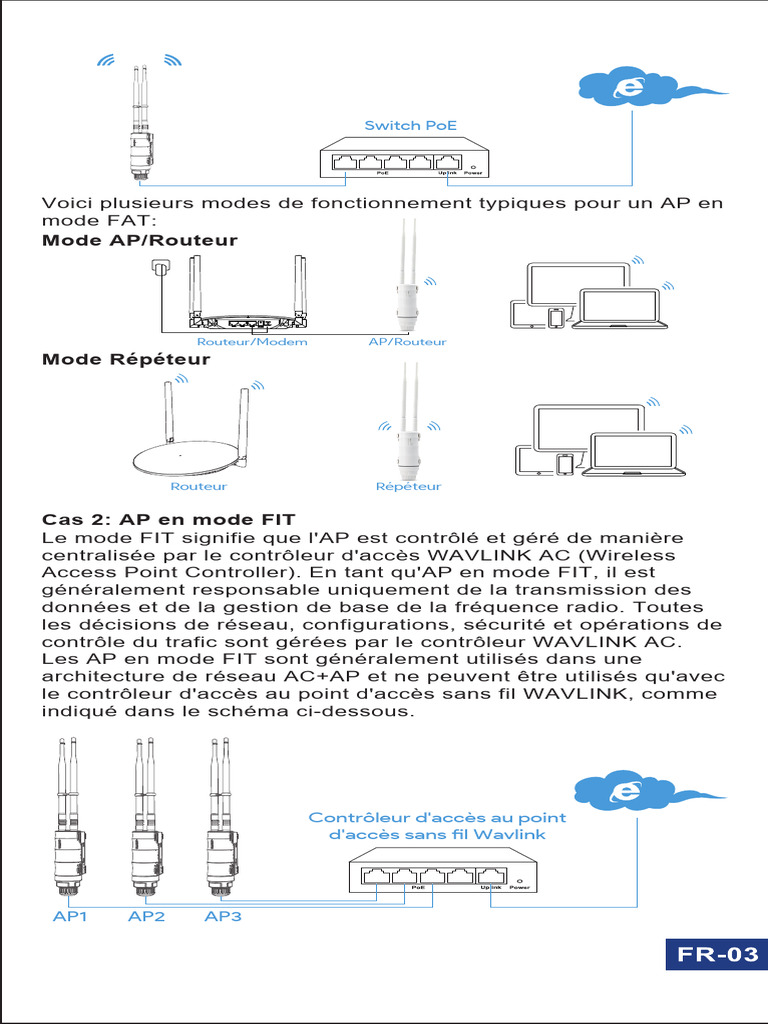

Switch PoE
Voici plusieurs modes de fonctionnement typiques pour un AP en
mode FAT:
Mode AP/Routeur
Routeur/Modem AP/Routeur
Mode Répéteur
Routeur Répéteur
Cas 2: AP en mode FIT
Le mode FIT signifie que l'AP est contrôlé et géré de manière
centralisée par le contrôleur d'accès WAVLINK AC (Wireless
Access Point Controller). En tant qu'AP en mode FIT, il est
généralement responsable uniquement de la transmission des
données et de la gestion de base de la fréquence radio. Toutes
les décisions de réseau, configurations, sécurité et opérations de
contrôle du trafic sont gérées par le contrôleur WAVLINK AC.
Les AP en mode FIT sont généralement utilisés dans une
architecture de réseau AC+AP et ne peuvent être utilisés qu'avec
le contrôleur d'accès au point d'accès sans fil WAVLINK, comme
indiqué dans le schéma ci-dessous.
Contrôleur d'accès au point
d'accès sans fil Wavlink
AP1 AP2 AP3
Terminale di messa a terra
FAQ
Q1. Cosa posso fare se non riesco ad accedere a Internet?
- Assicurati che la tua connessione Internet funzioni normalmente,
contatta il tuo Internet Service Provider (ISP) se non lo è.
- Avvia il tuo browser, inserisci "192.168.10.1" o "http://waplogin.link",
quindi segui la seguente guida rapida per l'installazione.
- Riavvia il dispositivo e riprova.
Q2. Perché non riesco a visitare l'interfaccia web inserendo l'indirizzo
IP 192.168.10.1 o waplogin.link?
- Se non riesci a effettuare l'accesso all'indirizzo IP o all'URL in
modalità AP, controlla l'indirizzo IP impostato dal router upstream,
quindi prova a riavviare il processo.
- Assicurati di essere connesso al WiFi del dispositivo Wavlink.
- Prova a pulire la cache del browser.
- Prova ad accedere alla pagina di gestione tramite un altro browser.
- Prova ad accedere alla pagina di gestione tramite altri dispositivi.
Q3. Cosa posso fare se dimentico la password di gestione
amministrativa?
- Mentre il dispositivo è acceso, premi e tieni premuto il pulsante di
reset finché tutti i LED si accendono brevemente. La password
predefinita è admin.
Direttiva RAEE e smaltimento del prodotto
Alla fine della sua vita utile, questo prodotto non deve essere
considerato come un rifiuto domestico o generale. Deve
essere consegnato al punto di raccolta appropriato per il
riciclaggio di apparecchiature elettriche ed elettroniche o
restituito al fornitore per lo smaltimento.
IT-35
Overview
2 4G/5G RP- SMA Antenna Connectors
Wi-Fi Signal LED
Wi-Fi LED
WAN/LAN LED
POWER LED
Reset Button
WAN/LAN Port (PoE) LED
Grounding Terminal
Basic Info
Official Website: www.wavlink.com
5G SSID: WAVLINK-AC_XXXX
2.4G SSID: WAVLINK-N_XXXX
Default IP: 192. 168.10.1
Login: waplogin.link
Default Password: admin
Technical Support: support@wavlink.com
LED Indicators
ON The device is powered on.
POWER
OFF The device is not receiving electrical power.
ON The Ethernet port is connected.
WAN/LAN OFF The Ethernet port is disconnected.
Flashing Transferring data to/from a network device.
Wi-Fi Signal
Mode
AP/Router ON ON ON Wi-Fi signal output power 100%.
ON ON ON Better reception: signal 81%~100%.
ON ON OFF Good reception: signal 60%~80%.
Repeater
ON OFF OFF Weak reception: signal below 0~59%.
Flashing OFF OFF Disconnected.
EN-37
Installation
2.4G/5G 2.4G/5G
6
3
7
2
8
Pass RJ45 cable through Spin 2.4G/5G antenna into the
the spiral cover. 2.4G/5G external RP-SMA
Pass RJ45 cable through connector.
the rubber seal. Screw up the holder.
Pass RJ45 cable through Plug the rubber seal into the
the holder. holder.
Connect the RJ45 cable to
Screw up the spiral cover.
RJ45 port.
Work Mode
This AP supports two work modes: FAT mode and FIT mode.
Here is a brief introduction to the two work modes:
Case 1: FAT AP
- FAT mode means that the AP can be independently configured
and has a separate management interface, just like a regular
wireless AP.
- FAT mode is primarily used in small networks that do not use
an AC Controller.
EN-38
PoE switch
Here are several typical work modes for Fat AP:
AP/Router Mode
Router/Modem AP/Router
Repeater Mode
Router Repeater
Case 2: FIT AP
FIT mode means that the AP is centrally controlled and managed
by the WAVLINK AC (Wireless Access Point Controller). If it work
as a Fit AP, which is typically responsible only for data
transmission and basic radio frequency management. All network
decisions, configurations, security, and traffic control operations are
handled by the WAVLINK AC Controller.
Fit APs are typically used in an AC+AP network architecture and
can only be utilized with the WAVLINK wireless access point
controller, as shown in the diagram below.
Wavlink Wireless Access
Point Controller
AP1 AP2 AP3
FIT mode is ideal for larger networks with broader coverage, a
higher number of users, and a need for efficient network
performance and enhanced security.
EN-39
Hardware Connection
A1. Fasten the main body holder.
A2. Plug the device into the holder.
A3. Connect one end of an Ethernet cable to “ PoE” port of PoE
converter.
A4. Connect one end of an Ethernet cable to “LAN DATAIN” port
of PoE converter, and connect the other end to a “LAN” port
of your Router.
A5. Plug the Power Adapter into the power outlet.
A6. Push the “ON/OFF” button on the PoE converter to power on.
A1 A2
A6 A5
A3 A4
PoE
Converter
Configuration
1. Connection
1.1 Via Wireless
Router
EN-40
Turn on your Wi-Fi, search SSID of this product on your wireless
devices (smart phone, tablet computer, laptop, etc.) and connect
to it.
Wi-Fi:On
Turn Wi-Fi Off
Not connected
Connections are available
WAVLINK-N_XXXX
WAVLINK-AC_XXXX
Wireless Network Connection
WAVLINK-N_XXXX Join Other Network....
WAVLINK-AC_XXXX Create Network....
Connect automatically Connect Open Network Preferences...
For Windows users For Mac users
1.2 Via Cable
3
4
1 2
Po E
Converter
Connect the Ethernet cable to your PC/Laptop and the LAN DATA
IN port of your PoE converter, then you can start the configuration
of the device.
2.Technically speaking, the product web UI will guide you to the
login page once you have connected to the device successfully
in your first time, but if it doesn't, please manually input
192.168.10.1 or waplogin.link in the address bar of your
browser on PC/laptop or phone, the default password is admin.
EN-41
3.Select your Country/Region and Time Zone. For your network
security, we suggest that you set a new login password.
Note: The three colored bars in “Admin Password” area
indicates the strength of the login password.
4. Mode Selection
This product has 3 modes.
4.1 AP Mode(LAN Bridge)
The system selects AP mode by default, there is no need to
select the AP mode manually. Click on“Next” .
1.Log in to 192.168.10.1 or waplogin.link.
2. You can change the SSID or use the default one, as for the
Encryption Mode, the default is WPA2-PSK. For your network
security, please set a new password according to the rule.
Then click on“Save” and wait for the setting process to
complete.
EN-42
4.2 Repeater Mode
1. Click on “Switch mode”, Please choose “Repeater Mode”.
2. After scanning, please make sure the Wi-Fi you want to select
is listed, and click “Next”, if it isn't, please click“Rescan”.
3. Enter the password for the wireless network you have selected.
Set the wireless network encryption mode and password for this
device. Click “Save”.
Manual Input:
1. Manually add the wireless network you want to relay, enter the
device information, and click “Next” .
EN-43
2.Set the wireless network encryption mode and password for this
device. Click “Save”.
4.3 Router Mode
1. Click on“Switch mode”. Please choose“Router Mode”.
2. Before configuring. please make sure your upper router has
connected to the WAN port of this product. The system will
guide you to select the WAN Type. As for the Encryption Mode,
we recommend you to select WPA2-PSK. For you network
security, we suggest you create a Password.
Which WAN Type am I supposed to choose?
If you use DSL line and you are only provided an account name
and a password by your ISP, choose PPPoE.
If you use cable TV or fiber cable, choose DHCP (Dynamic IP).
If you are provided information such as IP address, Subnet
Mask and Default Gateway, choose Static IP.
EN-44
Wi-Fi Password Management
When you need to change your Wi-Fi password, please click on
“Wireless”.
Firmware Upgrade
If you need to update firmware, please proceed as the following
steps:
Option I
1. Download the latest firmware file from Wavlink website.
2. Extract the firmware from the downloaded file.
3. Log in to waplogin.link or 192.168.10.1, then choose
“Advanced” and select “Firmware Update”.
4. Click on to locate the firmware file.
5. Click on “Upload” and choose “Apply”, and wait for the firmware
upgrade process to complete.
EN-45
Option II
1.Log in to 192.168.10.1 or waplogin.link, then choose “Advanced”
and select “Firmware Update”.
2.Click on “Check New Version” to find the latest version.
3.Click on “Download and Upgrade”, and wait for the firmware
upgrade process to complete.
Note: After updating firmware, please Reset The Device And
Clear Your Browser Cache.
What is firmware upgrade and why do I need it?
Firmware contains fixed for bugs and new features, please keep
the latest firmware to improve the experience of using the product.
Please do not use the wrong firmware, otherwise, it will damage
your device and void the product warranty.
For more details, please visit our website www.wavlink.com
Our Technical Support: support@wavlink.com
Lightning and ESD Protection
Lightning and ESD Protection is important for safety, so proper
grounding is extremely important for outdoor devices.
To reduce potential damage from lightning strikes and ESD,
please use a suitable grounding wire to connect the grounding
terminal to the grounding facility before installing this product.
And the grounding wire should meet the local installation
requirements. You should use screws to secure the grounding
wire to the grounding terminal.
EN-46
Grounding Terminal
FAQ
Q1. What can I do if I can not access the Internet?
- Make sure your Internet works normally, please contact your
ISP(Internet Service Provider) if it doesn't.
- Initiate your browser, enter 192.168.10.1 or http://waplogin.link,
then set up the following quick start guide.
- Reboot your device and try it again.
Q2. Why can't I visit the web UI by inputting the IP address
192.168.10.1 or waplogin.link?
- If you can't log in to the IP address or URL in AP Mode, please
check the IP address arranged by the upstream router, then try to
restart the process.
- Make sure you have connected to the WiFi of the Wavlink device.
- Please try to clean the cache of the browser.
- Try to log in the management page via another browser.
- Try to log in the management page via other devices.
Q3. What can I do if I forget my administration management
password?
- While the device is powered on, press and hold the Reset Button
until all the LEDs turm on momentarily. The default password is
admin.
At the end of its serviceable life, this product
should not be treated as household or general
waste. It should be handed over to the applicable
collection point for the recycling of electrical and
electronic equipment,or returned to the supplier for
disposal.
EN-47
GNU (General Public License Notice)
This product includes software codes developed by third
parties.These software codes are subiect to either the GNU
General Public License (GPL), V June 1991 or the GNU Lesser
General Public License (LGPL)V February 1999.You can
copydistribute,and/or modify in accordance with the terms.
and conditions of GPL or LGPL.
The source code should be complete, if you want us to provide
any additional source code files under GNU General Public
License (GPL), please contact us in these matters.We are
committed to meeting the requirements of the GNU Genera
Public License (GPL). You are welcome to contact our local
office to get the corresponding software and licenses. Please
inform us of your contact details(full address) and the product
code.We will send you a software package with the software
and license for free.
The respective programs are distributed WITHOUT ANY
WARRANTY; without even the implied warranty of MERCHANT
ABILITY Or FITNESS FOR A PARTICULAR PURPOSE
Please refer to the GNU General Public License website for
further informmation.
http://www.gnu.org/licenses/old-licenses/lgpl-2.0.htm
http://www.gnu.org/licenses/gpl.html
EN-48
Thank you
for purchasing
WAVLINK product!
Official website: www.wavlink.com
Technical support: support@wavlink.com
EN-49
