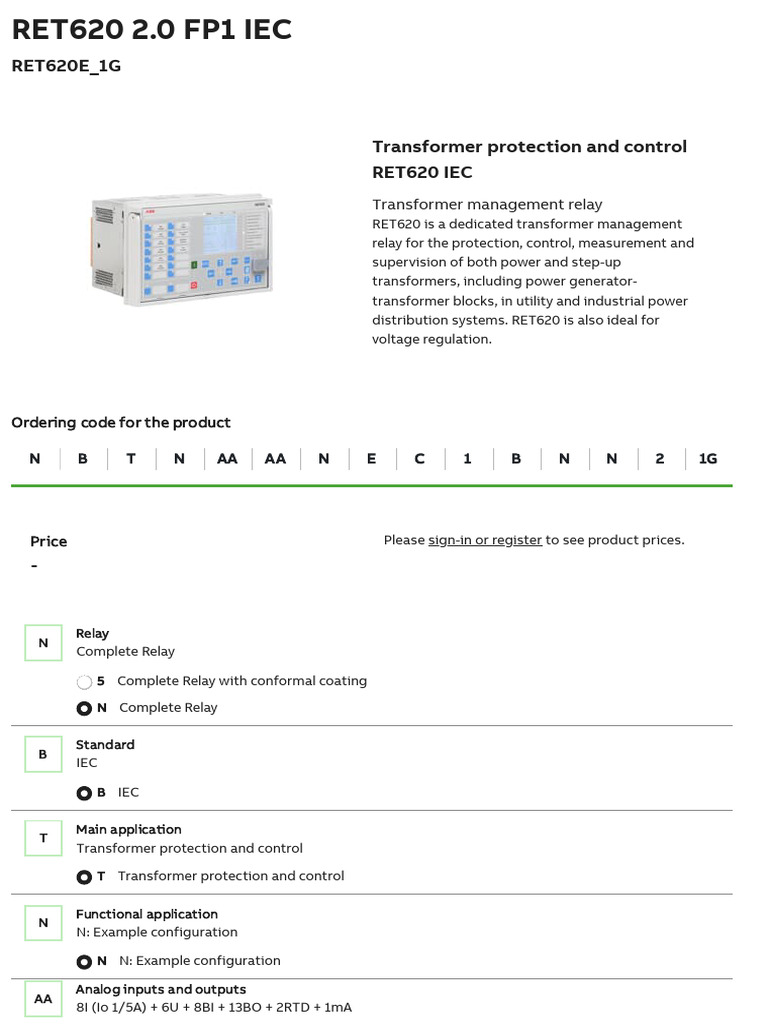

RET620 2.

0 FP1 IEC
RET620E_1G

Transformer protection and control


RET620 IEC
Transformer management relay
RET620 is a dedicated transformer management
relay for the protection, control, measurement and
supervision of both power and step-up
transformers, including power generator-
transformer blocks, in utility and industrial power
distribution systems. RET620 is also ideal for
voltage regulation.

Ordering code for the product

N B T N AA AA N E C 1 B N N 2 1G

Price Please sign-in or register to see product prices.

Relay
N
Complete Relay

5 Complete Relay with conformal coating

N Complete Relay

Standard
B
IEC

B IEC

Main application
T
Transformer protection and control

T Transformer protection and control

Functional application
N
N: Example configuration

N N: Example configuration

Analog inputs and outputs


AA
8I (Io 1/5A) + 6U + 8BI + 13BO + 2RTD + 1mA
AA 8I (Io 1/5A) + 6U + 8BI + 13BO + 2RTD + 1mA

Optional board
AA
Optional I/Os 8BI+ 4BO

AA Optional I/Os 8BI+ 4BO

AB Optional RTDs 6RTD + 2mA

AC Optional Fast I/Os 8BI + 3HSO

NN No optional board

Communication modules (Serial)


N
None

A RS 485 (including IRIG-B)

B Glassfibre ST

C RS 232/485 (including IRIG-B)

N None

Communication modules (Ethernet)


E
Ethernet 100Base FX (2xLC, 1xRJ45) with HSR/PRP

A Ethernet 100Base FX (LC)

B Ethernet 100Base TX (RJ45)

C Ethernet 100Base FX (1xLC, 2xRJ45) with HSR/PRP

D Ethernet 100Base TX (3xRJ45) with HSR/PRP

E Ethernet 100Base FX (2xLC, 1xRJ45) with HSR/PRP

F Ethernet 100Base FX (1xLC, 2xRJ45) with HSR/PRP and IEC61850-9-2LE

G Ethernet 100Base TX (3xRJ45) with HSR/PRP and IEC61850-9-2LE

H Ethernet 100Base FX (2xLC, 1xRJ45) with HSR/PRP and IEC61850-9-2LE

N None

Communication protocols
C
IEC 61850+Modbus

A IEC 61850

B Modbus

C IEC 61850+Modbus

D IEC103

E DNP 3.0

G IEC 61850 + IEC103

H IEC 61850 + DNP 3.0

Language
1
English (IEC) and English (ANSI)

1 English (IEC) and English (ANSI)

2 English (IEC) and Chinese


3 English (IEC) and German

4 English (IEC) and Swedish

5 English (IEC) and Spanish

6 English (IEC) and Russian

7 English (IEC) and Polish

8 English (IEC) and Portuguese (Brasilian)

A English (IEC) and Italian

B English (IEC) and Finnish

C English (IEC) and French

E English (IEC) and Czech

L English (IEC) and Turkish

M English (IEC) and Croatian

P English (IEC) and Hungarian

Front panel
B
Large LCD with Single Line Diagram - IEC

B Large LCD with Single Line Diagram - IEC

Option 1
N
None

B Arc Protection

N None

Option 2
N
None

A Automatic Voltage Regulator

N None

Power supply
2
24-60 Vdc

1 48-250 Vdc; 100-240 Vac

2 24-60 Vdc

Version
1G
Product version 2.0 FP1

1G Product version 2.0 FP1
