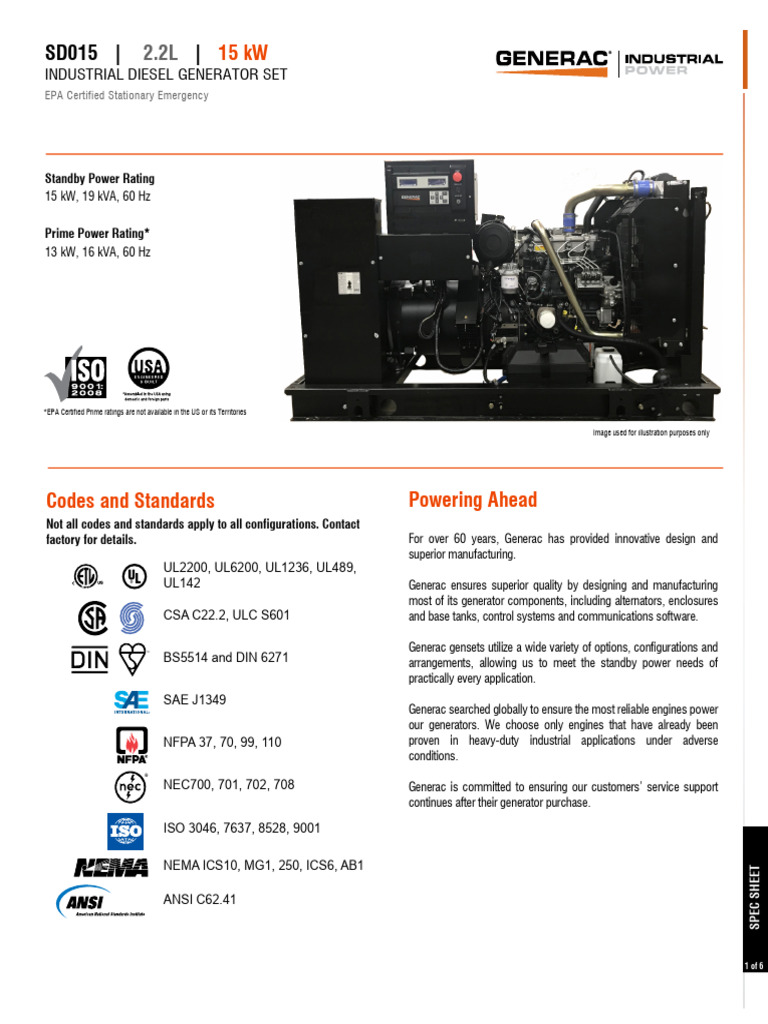

SD015 | 2.

2L | 15 kW
INDUSTRIAL DIESEL GENERATOR SET
EPA Certified Stationary Emergency

Standby Power Rating

15 kW, 19 kVA, 60 Hz

Prime Power Rating*

13 kW, 16 kVA, 60 Hz

*EPA Certified Prime ratings are not available in the US or its Territories

Image used for illustration purposes only

Codes and Standards Powering Ahead

Not all codes and standards apply to all configurations. Contact
factory for details. For over 60 years, Generac has provided innovative design and
superior manufacturing.
UL2200, UL6200, UL1236, UL489,
UL142 Generac ensures superior quality by designing and manufacturing
most of its generator components, including alternators, enclosures
CSA C22.2, ULC S601 and base tanks, control systems and communications software.

Generac gensets utilize a wide variety of options, configurations and

BS5514 and DIN 6271
TM

arrangements, allowing us to meet the standby power needs of

practically every application.
SAE J1349
® Generac searched globally to ensure the most reliable engines power
our generators. We choose only engines that have already been
NFPA 37, 70, 99, 110 proven in heavy-duty industrial applications under adverse
conditions.
®
NEC700, 701, 702, 708 Generac is committed to ensuring our customers’ service support
continues after their generator purchase.

ISO 3046, 7637, 8528, 9001

NEMA ICS10, MG1, 250, ICS6, AB1

SPEC SHEET

ANSI C62.41

1 of 6
SD015 | 2.2L | 15 kW
INDUSTRIAL DIESEL GENERATOR SET
EPA Certified Stationary Emergency

STANDARD FEATURES

ENGINE SYSTEM ALTERNATOR SYSTEM ENCLOSURE (If Selected)

• Oil Drain Extension • UL2200 GENprotect™ • Rust-Proof Fasteners with Nylon Washers to
• Air Filter Restriction Indicator • Class H Insulation Material Protect Finish
• Air Cleaner • 2/3 Pitch • High Performance Sound-Absorbing Material
(Sound Attenuated Enclosures)
• Level 1 Fan and Belt Guards (Open Set Only) • Skewed Stator
• Gasketed Doors
• Stainless Steel Flexible Exhaust Connection • Brushless Excitation
• Upward Facing Discharge Hoods
• Factory Filled Oil and Coolant • Sealed Bearing (Radiator and Exhaust)
• Radiator Duct Adapter (Open Set Only) • Rotor Dynamically Spin Balanced • Stainless Steel Lift Off Door Hinges
• Critical Silencer (Enclosed Units Only) • Amortisseur Winding (3-Phase Only) • Stainless Steel Lockable Handles
• Engine Coolant Heater • Full Load Capacity Alternator • RhinoCoat™ - Textured Polyester Powder Coat Paint
• Protective Thermal Switch
FUEL SYSTEM FUEL TANKS (If Selected)
GENERATOR SET
• Fuel Lockoff Solenoid • UL 142/ULC S601
• Primary Fuel Filter • Internal Genset Vibration Isolation • Double Wall
• Separation of Circuits - High/Low Voltage • Normal and Emergency Vents
COOLING SYSTEM • Separation of Circuits - Multiple Breakers • Sloped Top
• Wrapped Exhaust Piping •
• Closed Coolant Recovery System • Standard Factory Testing
Sloped Bottom
• UV/Ozone Resistant Hoses • Factory Pressure Tested
• 2 Year Limited Warranty (Standby Rated Units) •
• Factory-Installed Radiator • 1 Year Limited Warranty (Prime Rated Units)
Rupture Basin Alarm
• Radiator Drain Extension • Fuel Level
• Silencer Mounted in the Discharge Hood •
• 50/50 Ethylene Glycol Antifreeze (Enclosed Units Only)
Check Valve In Supply and Return Lines
• RhinoCoat™- Textured Polyester Powder Coat Paint
ELECTRICAL SYSTEM • Stainless Steel Hardware

• Battery Charging Alternator

• Battery Cables
• Battery Tray
• Rubber-Booted Engine Electrical Connections
• Solenoid Activated Starter Motor

CONTROL SYSTEM • Auto/Off/Manual Switch Alarms and Warnings

• E-Stop (Red Mushroom-Type) • Oil Pressure
• NFPA110 Level I and II (Programmable) • Coolant Temperature
EMERGENCY
STOP • Customizable Alarms, Warnings, and Events • Coolant Level
• Modbus® Protocol • Engine Overspeed
•
Phase A–B B–C C–A SD EMERGENCY STOP Hi

•
Volts 0 0 0

Predictive Maintenance Algorithm

SD COOLANT LEVEL Lo

Battery Voltage
Amps 0 0 0 Wr*BATTERY VOLTS Hi
Hz = 0.0 kW = 0 ACK More (1–3) COMMON ALARM

• Sealed Boards • Alarms and Warnings Time and Date Stamped

• •
NOT IN

Password Parameter Adjustment Protection

AUTO

Snap Shots of Key Operation Parameters During

MENU

®
AUTO OFF MAN.

•
HOME

ENTER Single Point Ground Alarms and Warnings

• •
ALARM

16 Channel Remote Trending Alarms and Warnings Spelled Out (No Alarm Codes)
• 0.2 msec High Speed Remote Trending
• Alarm Information Automatically Annunciated
Digital H Control Panel- Dual 4x20 Display on the Display

Full System Status Display

Program Functions
• Programmable Crank Limiter
• Power Output (kW)
• 7-Day Programmable Exerciser
• Power Factor
• Special Applications Programmable Logic Controller
• kW Hours, Total, and Last Run
•
SPEC SHEET

Real/Reactive/Apparent Power
• RS-232/485 Communications
• All Phase Sensing Digital Voltage Regulator
• All Phase AC Voltage
• 2-Wire Start Capability
• All Phase Currents
• Date/Time Fault History (Event Log)
• Oil Pressure
• Isochronous Governor Control
• Coolant Temperature
• Waterproof/Sealed Connectors
• Coolant Level
• Audible Alarms and Shutdowns
• Engine Speed
• Not in Auto (Flashing Light)
• Battery Voltage
2 of 6

• Frequency
SD015 | 2.2L | 15 kW
INDUSTRIAL DIESEL GENERATOR SET
EPA Certified Stationary Emergency

CONFIGURABLE OPTIONS

ENGINE SYSTEM CIRCUIT BREAKER OPTIONS CONTROL SYSTEM

○ Oil Heater ○ Main Line Circuit Breaker ○ NFPA 110 Compliant 21-Light Remote Annunciator
○ Critical Silencer (Open Set Only) ○ 2nd Main Line Circuit Breaker ○ Remote Relay Assembly (8 or 16)
○ Radiator Stone Guard ○ Shunt Trip and Auxiliary Contact ○ Oil Temperature Indication and Alarm
○ Level 1 Fan and Belt Guards (Enclosed Units Only) ○ Electronic Trip Breakers ○ Remote E-Stop (Break Glass-Type, Surface Mount)
○ Two Stage Air Cleaner ○ Remote E-Stop (Red Mushroom-Type,
ENCLOSURE Surface Mount)
FUEL SYSTEM ○ Remote E-Stop (Red Mushroom-Type, Flush Mount)
○ Weather Protected Enclosure ○ 100 dB Alarm Horn
○ NPT Flexible Fuel Line ○ Level 1 Sound Attenuated ○ Ground Fault Annunciation
○ Level 2 Sound Attenuated ○ 120V GFCI and 240V Outlets
ELECTRICAL SYSTEM ○ Level 2 Sound Attenuated with Motorized Dampers ○ Remote Communication - Modem
○ 10A UL Listed Battery Charger
○ Steel Enclosure ○ 10A Engine Run Relay
○ Battery Warmer
○ Aluminum Enclosure ○ Damper Alarm Contacts (with Motorized
○ Up to 200 MPH Wind Load Rating (Contact Factory Dampers Only)
for Availability)
ALTERNATOR SYSTEM ○ AC/DC Enclosure Lighting Kit FUEL TANKS (Size On Last Page)
○ Anti-Condensation Heater ○ Door Open Alarm Switch
○ Tropical Coating ○ Enclosure Heater (with Motorized Dampers Only) ○ 8 in (203.2 mm) Fill Extension

○ Permanent Magnet Excitation

○ 13 in (330.2 mm) Fill Extension
WARRANTY (Standby Gensets Only) ○ 19 in (482.6 mm) Fill Extension

GENERATOR SET
○ Overfill Protection Valve
○ 2 Year Extended Limited Warranty ○ 5 Gallon Spill Box Return Hose
○ Extended Factory Testing (3-Phase Only) ○ 5 Year Limited Warranty ○ 5 Gallon Spill Box
○ 8 Position Load Center ○ 5 Year Extended Limited Warranty ○ Tank Risers
○ Pad Vibration Isolation ○ 7 Year Extended Limited Warranty ○ 90% Fuel Level Switch and Alarm
○ Spring Vibration Isolators ○ 10 Year Extended Limited Warranty ○ 12’ Emergency Vent
○ Fire Rated Stainless Steel Fuel Hose
○ Fuel Drop Tube

ENGINEERED OPTIONS

ENGINE SYSTEM ALTERNATOR SYSTEM FUEL TANKS

○ Coolant Heater Isolation Ball Valves ○ 3rd Breaker System ○ UL2085 Tank
○ Fluid Containment Pan ○ Stainless Steel Tanks
GENERATOR SET ○ Special Fuel Tanks
CONTROL SYSTEM ○ Special Testing
○ Vent Extensions
○ Spare Inputs (x4) / Outputs (x4)
○ Battery Disconnect Switch

SPEC SHEET

3 of 6
SD015 | 2.2L | 15 kW
INDUSTRIAL DIESEL GENERATOR SET
EPA Certified Stationary Emergency

APPLICATION AND ENGINEERING DATA

ENGINE SPECIFICATIONS

General Cooling System

Make Perkins Cooling System Type Closed Recovery

EPA Emissions Compliance Stationary Emergency Fan Type Pusher
EPA Emissions Reference See Emission Data Sheet Fan Speed - RPM 1,980
Cylinder # 4 Fan Diameter - in (mm) 18.0 (457.2)
Type In-Line
Displacement - in3 (L) 135 (2.22) Fuel System
Bore - in (mm) 3.3 (84.0) Fuel Type Ultra Low Sulfur Diesel Fuel
Stroke - in (mm) 3.9 (100.0) Fuel Specifications ASTM
Compression Ratio 23.3:1 Fuel Filtering (Microns) 5
Intake Air Method Turbocharged Fuel Inject Pump Distribution Injection Pump
Cylinder Head Cast Iron Fuel Pump Type Engine Driven Gear
Piston Type Aluminum Injector Type Mechanical
Crankshaft Type Forged Steel Fuel Supply Line - in (mm) 0.31 (7.94) ID
Fuel Return Line - in (mm) 0.19 (4.76) ID
Engine Governing
Governor Electronic Isochronous Engine Electrical System
Frequency Regulation (Steady State) ±0.5% System Voltage 12 VDC
Battery Charger Alternator Standard
Lubrication System Battery Size See Battery Index 0161970SBY
Oil Pump Type Gear Driven Battery Voltage 12 VDC
Oil Filter Type Full-Flow Cartridge Ground Polarity Negative
Crankcase Capacity - qt (L) 9.3 (10.6)

ALTERNATOR SPECIFICATIONS

Standard Model K0025124Y21 Standard Excitation Synchronous Brushless

Poles 4 Bearings Single Sealed
Field Type Revolving Coupling Direct via Flexible Disc
Insulation Class - Rotor H Load Capacity - Standby 100%
Insulation Class - Stator H Prototype Short Circuit Test Yes
Total Harmonic Distortion <5% (3-Phase Only) Voltage Regulator Type Digital
Telephone Interference Factor (TIF) < 50 Number of Sensed Phases All
SPEC SHEET

Regulation Accuracy (Steady State) ±0.25%

4 of 6
SD015 | 2.2L | 15 kW
INDUSTRIAL DIESEL GENERATOR SET
EPA Certified Stationary Emergency

OPERATING DATA

POWER RATINGS

Standby
Single-Phase 120/240 VAC @1.0pf 15 kW Amps: 63
Three-Phase 120/208 VAC @0.8pf 15 kW Amps: 52
Three-Phase 120/240 VAC @0.8pf 15 kW Amps: 45
Three-Phase 277/480 VAC @0.8pf 15 kW Amps: 23
Three-Phase 346/600 VAC @0.8pf 15 kW Amps: 18

MOTOR STARTING CAPABILITIES (skVA)

skVA vs. Voltage Dip
120/240 VAC 1Ø 30% 277/480 VAC 3Ø 30% 208/240 VAC 3Ø 30%
A0025044N21 12 K0025124Y21 38 K0025124Y21 28

FUEL CONSUMPTION RATES*

Diesel - gph (Lph)
Fuel Pump Lift- ft (m) Percent Load Standby
3 (1) 25% 0.7 (2.7)
50% 0.9 (3.4)
Total Fuel Pump Flow (Combustion + Return) - gph (Lph) 75% 1.1 (4.2)
16.6 (63.0) 100% 1.4 (5.2)
* Fuel supply installation must accommodate fuel
consumption rates at 100% load.

COOLING
Standby
Coolant Flow gpm (Lpm) 48.9 (56.2)
Coolant System Capacity gal (L) 2.5 (9.5)
Heat Rejection to Coolant BTU/hr (kW) 69,980 (21)
Inlet Air cfm (m3/min) 2,800 (79)
Maximum Operating Ambient Temperature °F (°C) 122 (50)
Maximum Operating Ambient Temperature (Before Derate) See Bulletin No. 0199280SSD
Maximum Additional Radiator Backpressure in H2O (kPa) 0.5 (0.12)

COMBUSTION AIR REQUIREMENTS

Standby
Flow at Rated Power - cfm (m3/min) 80.1 (2.3)

ENGINE EXHAUST
Standby Standby
Rated Engine Speed RPM 1,800 Exhaust Flow (Rated Output) cfm (m3/min) 179.0 (5.1)
Horsepower at Rated kW** hp 23.6 Maximum Allowable Backpressure (Post Turbocharger) inHg (kPa) 1.5 (5.1)
Piston Speed ft/min (m/min) 1,181 (360) Exhaust Temperature (Rated Output) °F (°C) 535 (279.4)
BMEP psi (kPa) 77.9 (537.1)
** Refer to “Emissions Data Sheet” for maximum bHP for EPA and SCAQMD permitting purposes.
SPEC SHEET

Deration – Operational characteristics consider maximum ambient conditions. Derate factors may apply under atypical site conditions.
Please contact a Generac Power Systems Industrial Dealer for additional details. All performance ratings in accordance with ISO3046, BS5514, ISO8528, and DIN6271 standards.
Standby - See Bulletin 0187500SSB
Prime - See Bulletin 0187510SSB

5 of 6
SD015 | 2.2L | 15 kW
INDUSTRIAL DIESEL GENERATOR SET
EPA Certified Stationary Emergency

DIMENSIONS AND WEIGHTS*

OPEN SET
Run Usable
Weight
Time Capacity L x W x H - in (mm)
H
- lbs (kg)
- Hours - Gal (L)
No Tank - 76.0 (1,930) x 37.4 (950) x 44.8 (1,138) 1,456 - 1,641 (661 - 745)
38 54 (204) 76.0 (1,930) x 37.4 (950) x 57.8 (1,468) 1,936 - 2,121 (879 - 963)
L W
94 132 (500) 76.0 (1,930) x 37.4 (950) x 69.8 (1,773) 2,166 - 2,351 (983 - 1,067)
135 190 (719) 76.0 (1,930) x 37.4 (950) x 79.3 (2,014) 2,380 - 2,565 (1,081 - 1,165)
150 211 (799) 76.0 (1,930) x 37.4 (950) x 81.8 (2,078) 2,375 - 2,560 (1,078 - 1,162)
214 300 (1,136) 92.9 (2,360) x 37.4 (950) x 85.3 (2,167) 2,438 - 2,623 (1,106 - 1,190)

WEATHER PROTECTED ENCLOSURE

Run Usable Weight - lbs (kg)
H
Time Capacity L x W x H - in (mm) Enclosure Only
- Hours - Gal (L) Steel Aluminum
No Tank - 94.8 (2,409) x 38.0 (965) x 49.5 (1,258)
38 54 (204) 94.8 (2,409) x 38.0 (965) x 62.5 (1,588)
L W
94 132 (500) 106.0 (2,692) x 38.0 (965) x 84.0 (2,134) 372 241
135 190 (719) 94.8 (2,409) x 38.0 (965) x 84.0 (2,134) (169) (109)
150 211 (799) 76.0 (1,930) x 38.0 (965) x 86.5 (2,198)
214 300 (1,136) 92.9 (2,360) x 38.0 (965) x 90.0 (2,287)

LEVEL 1 SOUND ATTENUATED ENCLOSURE

Usable Weight - lbs (kg)
Run Time Enclosure Only
Capacity L x W x H - in (mm)
H - Hours
- Gal (L) Steel Aluminum
No Tank - 112.5 (2,857) x 38.0 (965) x 49.5 (1,258)
38 54 (204) 112.5 (2,857) x 38.0 (965) x 62.5 (1,588)
L W
94 132 (500) 112.5 (2,857) x 38.0 (965) x 74.5 (1,893) 505 338
135 190 (719) 112.5 (2,857) x 38.0 (965) x 84.0 (2,134) (229) (153)
150 211 (799) 112.5 (2,857) x 38.0 (965) x 86.5 (2,198)
214 300 (1,136) 112.5 (2,857) x 38.0 (965) x 90.0 (2,287)

LEVEL 2 SOUND ATTENUATED ENCLOSURE

Usable Weight - lbs (kg)
H Run Time Enclosure Only
Capacity L x W x H - in (mm)
- Hours
- Gal (L) Steel Aluminum
No Tank - 94.8 (2,409) x 38.0 (965) x 49.5 (1,258)
38 54 (204) 94.8 (2,409) x 38.0 (965) x 62.5 (1,588)
SPEC SHEET

L W
94 132 (500) 94.8 (2,409) x 38.0 (965) x 74.5 (1,893) 510 341
135 190 (719) 106.0 (2,692) x 38.0 (965) x 84.0 (2,134) (231) (155)
150 211 (799) 94.8 (2,409) x 38.0 (965) x 86.5 (2,198)
214 300 (1,136) 94.8 (2,409) x 38.0 (965) x 90.0 (2,287)

* All measurements are approximate and for estimation purposes only. Specification characteristics may change without notice. Please contact a Generac Power Systems Industrial Dealer for detailed installation drawings.
6 of 6

Generac Power Systems, Inc. | P.O. Box 8 | Waukesha, WI 53189 Part No. 10000028443
P: (262) 544-4811 ©2020 Generac Power Systems, Inc. All rights reserved. All specifications are subject to change without notice. Rev. C 10/19/2020
SD020 | 2.2L | 20 kW
INDUSTRIAL DIESEL GENERATOR SET
EPA Certified Stationary Emergency

Standby Power Rating

20 kW, 25 kVA, 60 Hz

Prime Power Rating*

18 kW, 23 kVA, 60 Hz

*EPA Certified Prime ratings are not available in the US or its Territories

Image used for illustration purposes only

Codes and Standards Powering Ahead

Not all codes and standards apply to all configurations. Contact
factory for details. For over 60 years, Generac has provided innovative design and
superior manufacturing.
UL2200, UL6200, UL1236, UL489,
UL142 Generac ensures superior quality by designing and manufacturing
most of its generator components, including alternators, enclosures
CSA C22.2, ULC S601 and base tanks, control systems and communications software.

Generac gensets utilize a wide variety of options, configurations and

BS5514 and DIN 6271
TM

arrangements, allowing us to meet the standby power needs of

practically every application.
SAE J1349
® Generac searched globally to ensure the most reliable engines power
our generators. We choose only engines that have already been
NFPA 37, 70, 99, 110 proven in heavy-duty industrial applications under adverse
conditions.
®
NEC700, 701, 702, 708 Generac is committed to ensuring our customers’ service support
continues after their generator purchase.

ISO 3046, 7637, 8528, 9001

NEMA ICS10, MG1, 250, ICS6, AB1

SPEC SHEET

ANSI C62.41

1 of 6
SD020 | 2.2L | 20 kW
INDUSTRIAL DIESEL GENERATOR SET
EPA Certified Stationary Emergency

STANDARD FEATURES

ENGINE SYSTEM ALTERNATOR SYSTEM ENCLOSURE (If Selected)

• Oil Drain Extension • UL2200 GENprotect™ • Rust-Proof Fasteners with Nylon Washers to
• Air Cleaner • Class H Insulation Material Protect Finish
• Level 1 Fan and Belt Guards (Open Set Only) • 2/3 Pitch • High Performance Sound-Absorbing Material
(Sound Attenuation Enclosures)
• Stainless Steel Flexible Exhaust Connection • Skewed Stator
• Gasketed Doors
• Factory Filled Oil and Coolant • Brushless Excitation
• Upward Facing Discharge Hoods
• Radiator Duct Adapter (Open Set Only) • Sealed Bearing (Radiator and Exhaust)
• Critical Silencer (Enclosed Unit Only) • Rotor Dynamically Spin Balanced • Stainless Steel Lift Off Door Hinges
• Engine Coolant Heater • Amortisseur Winding (3-Phase Only) • Stainless Steel Lockable Handles
• Level 1 Fan and Belt Guards (Open Set Only) • Full Load Capacity Alternator • RhinoCoat™ - Textured Polyester Powder Coat Paint
• Protective Thermal Switch
FUEL SYSTEM FUEL TANKS (If Selected)
GENERATOR SET
• Fuel Lockoff Solenoid • UL 142/ULC S601
• Primary Fuel Filter • Internal Genset Vibration Isolation • Double Wall
• Separation of Circuits - High/Low Voltage • Normal and Emergency Vents
COOLING SYSTEM • Separation of Circuits - Multiple Breakers • Sloped Top
• Wrapped Exhaust Piping •
• Closed Coolant Recovery System • Standard Factory Testing
Sloped Bottom
• UV/Ozone Resistant Hoses • Factory Pressure Tested
• 2 Year Limited Warranty (Standby Rated Units) •
• Factory-Installed Radiator • 1 Year Limited Warranty (Prime Rated Units)
Rupture Basin Alarm
• Radiator Drain Extension • Fuel Level
• Silencer Mounted in the Discharge Hood •
• 50/50 Ethylene Glycol Antifreeze (Enclosed Units Only)
Check Valve In Supply and Return Lines
• RhinoCoat™- Textured Polyester Powder Coat Paint
ELECTRICAL SYSTEM • Stainless Steel Hardware

• Battery Charging Alternator

• Battery Cables
• Battery Tray
• Rubber-Booted Engine Electrical Connections
• Solenoid Activated Starter Motor

CONTROL SYSTEM • Auto/Off/Manual Switch Alarms and Warnings

• E-Stop (Red Mushroom-Type) • Oil Pressure
• NFPA110 Level I and II (Programmable) • Coolant Temperature
EMERGENCY
STOP • Customizable Alarms, Warnings, and Events • Coolant Level
• Modbus® Protocol • Engine Overspeed
•
Phase A–B B–C C–A SD EMERGENCY STOP Hi

•
Volts 0 0 0

Predictive Maintenance Algorithm

SD COOLANT LEVEL Lo

Battery Voltage
Amps 0 0 0 Wr*BATTERY VOLTS Hi
Hz = 0.0 kW = 0 ACK More (1–3) COMMON ALARM

• Sealed Boards • Alarms and Warnings Time and Date Stamped

• •
NOT IN

Password Parameter Adjustment Protection

AUTO

Snap Shots of Key Operation Parameters During

MENU

®
AUTO OFF MAN.

•
HOME

ENTER Single Point Ground Alarms and Warnings

• •
ALARM

16 Channel Remote Trending Alarms and Warnings Spelled Out (No Alarm Codes)
• 0.2 msec High Speed Remote Trending
• Alarm Information Automatically Annunciated
Digital H Control Panel- Dual 4x20 Display on the Display

Full System Status Display

Program Functions
• Programmable Crank Limiter
• Power Output (kW)
• 7-Day Programmable Exerciser
• Power Factor
• Special Applications Programmable Logic Controller
• kW Hours, Total, and Last Run
•
SPEC SHEET

Real/Reactive/Apparent Power
• RS-232/485 Communications
• All Phase Sensing Digital Voltage Regulator
• All Phase AC Voltage
• 2-Wire Start Capability
• All Phase Currents
• Date/Time Fault History (Event Log)
• Oil Pressure
• Isochronous Governor Control
• Coolant Temperature
• Waterproof/Sealed Connectors
• Coolant Level
• Audible Alarms and Shutdowns
• Engine Speed
• Not in Auto (Flashing Light)
• Battery Voltage
2 of 6

• Frequency
SD020 | 2.2L | 20 kW
INDUSTRIAL DIESEL GENERATOR SET
EPA Certified Stationary Emergency

CONFIGURABLE OPTIONS

ENGINE SYSTEM CIRCUIT BREAKER OPTIONS CONTROL SYSTEM

○ Oil Heater ○ Main Line Circuit Breaker ○ NFPA 110 Compliant 21-Light Remote Annunciator
○ Critical Silencer (Open Set Only) ○ 2nd Main Line Circuit Breaker ○ Remote Relay Assembly (8 or 16)
○ Radiator Stone Guard ○ Shunt Trip and Auxiliary Contact ○ Oil Temperature Indication and Alarm
○ Level 1 Fan and Belt Guards (Open Set Only) ○ Electronic Trip Breakers ○ Remote E-Stop (Break Glass-Type, Surface Mount)
○ Remote E-Stop (Red Mushroom-Type,
FUEL SYSTEM ENCLOSURE Surface Mount)
○ Remote E-Stop (Red Mushroom-Type, Flush Mount)
○ NPT Flexible Fuel Line ○ Weather Protected Enclosure ○ 100 dB Alarm Horn
○ Level 1 Sound Attenuation ○ Ground Fault Annunciation
ELECTRICAL SYSTEM ○ Level 2 Sound Attenuation ○ 120V GFCI and 240V Outlets
○ Level 2 Sound Attenuation with Motorized Dampers ○ Remote Communication - Modem
○ 10A UL Listed Battery Charger ○
○ Battery Warmer
Steel Enclosure ○ 10A Engine Run Relay
○ Aluminum Enclosure ○ Damper Alarm Contacts (with Motorized
○ Up to 200 MPH Wind Load Rating (Contact Factory Dampers Only)
ALTERNATOR SYSTEM for Availability)
○ Alternator Upsizing
○ AC/DC Enclosure Lighting Kit FUEL TANKS (Size On Last Page)
○ Anti-Condensation Heater
○ Door Open Alarm Switch
○ Enclosure Heater (with Motorized Dampers Only) ○ 8 in (203.2 mm) Fill Extension
○ Tropical Coating ○ 13 in (330.2 mm) Fill Extension
○ Permanent Magnet Excitation ○ 19 in (482.6 mm) Fill Extension
WARRANTY (Standby Gensets Only)
○ Overfill Protection Valve
GENERATOR SET ○ 2 Year Extended Limited Warranty ○ 5 Gallon Spill Box Return Hose
○ Extended Factory Testing
○ 5 Year Limited Warranty ○ 5 Gallon Spill Box
○ 8 Position Load Center
○ 5 Year Extended Limited Warranty ○ Tank Risers
○ Pad Vibration Isolation
○ 7 Year Extended Limited Warranty ○ Fuel Level Switch and Alarm
○ 10 Year Extended Limited Warranty ○ 12’ Vent System
○ Fire Rated Stainless Steel Fuel Hose
ENGINEERED OPTIONS

ENGINE SYSTEM ALTERNATOR SYSTEM FUEL TANKS

○ Coolant Heater Isolation Ball Valves ○ 3rd Breaker System ○ UL2085 Tank
○ Fluid Containment Pan ○ Stainless Steel Tanks
GENERATOR SET ○ Special Fuel Tanks
CONTROL SYSTEM ○ Special Testing ○ Vent Extensions
○ Spare Inputs (x4) / Outputs (x4)
○ Battery Disconnect Switch

SPEC SHEET

3 of 6
SD020 | 2.2L | 20 kW
INDUSTRIAL DIESEL GENERATOR SET
EPA Certified Stationary Emergency

APPLICATION AND ENGINEERING DATA

ENGINE SPECIFICATIONS

General Cooling System

Make Perkins Cooling System Type Closed Recovery

EPA Emissions Compliance Stationary Emergency Water Pump Type Pre-Lubed, Self Sealing
EPA Emissions Reference See Emission Data Sheet Fan Type Pusher
Cylinder # 4 Fan Speed - RPM 1,980
Type In-Line Fan Diameter - in (mm) 18 (457.2)
Displacement - in3 (L) 135 (2.22)
Bore - in (mm) 3.3 (84) Fuel System
Stroke - in (mm) 3.9 (100) Fuel Type Ultra Low Sulfur Diesel Fuel
Compression Ratio 23.3:1 Fuel Specifications ASTM
Intake Air Method Turbocharged Fuel Filtering (Microns) 5
Cylinder Head Cast Iron Fuel Inject Pump Distribution Injection Pump
Piston Type Aluminum Fuel Pump Type Engine Driven Gear
Crankshaft Type Forged Steel Injector Type Mechanical
Fuel Supply Line - in (mm) 0.31 (7.94) ID
Engine Governing Fuel Return Line - in (mm) 0.19 (4.76) ID
Governor Electronic Isochronous
Frequency Regulation (Steady State) ±0.5% Engine Electrical System
System Voltage 12 VDC
Lubrication System Battery Charger Alternator Standard
Oil Pump Type Gear Battery Size See Battery Index 0161970SBY
Oil Filter Type Full-Flow Cartridge Battery Voltage 12 VDC
Crankcase Capacity - qt (L) 9.3 (10.6) Ground Polarity Negative

ALTERNATOR SPECIFICATIONS

Standard Model K0025124Y21 Standard Excitation Synchronous Brushless

Poles 4 Bearings Single Sealed
Field Type Revolving Coupling Direct via Flexible Disc
Insulation Class - Rotor H Load Capacity - Standby 100%
Insulation Class - Stator H Prototype Short Circuit Test Yes
Total Harmonic Distortion <5% (3-Phase Only) Voltage Regulator Type Digital
Telephone Interference Factor (TIF) <50 Number of Sensed Phases All
SPEC SHEET

Regulation Accuracy (Steady State) ±0.25%

4 of 6
SD020 | 2.2L | 20 kW
INDUSTRIAL DIESEL GENERATOR SET
EPA Certified Stationary Emergency

OPERATING DATA

POWER RATINGS

Standby
Single-Phase 120/240 VAC @1.0pf 20 kW Amps: 83
Three-Phase 120/208 VAC @0.8pf 20 kW Amps: 69
Three-Phase 120/240 VAC @0.8pf 20 kW Amps: 60
Three-Phase 277/480 VAC @0.8pf 20 kW Amps: 30
Three-Phase 346/600 VAC @0.8pf 20 kW Amps: 24

MOTOR STARTING CAPABILITIES (skVA)

skVA vs. Voltage Dip
120/240 VAC 1Ø 30% 277/480 VAC 3Ø 30% 208/240 VAC 3Ø 30%
A0025044N21 12 K0025124Y21 38 K0025124Y21 28
A0035044N21 20 K0035124Y21 61 K0035124Y21 46
A0040044N21 24 K0040124Y21 76 K0040124Y21 58

FUEL CONSUMPTION RATES*

Diesel - gph (Lph)
Fuel Pump Lift- ft (m) Percent Load Standby
3 (1) 25% 0.8 (3.0)
50% 1.06 (4.0)
Total Fuel Pump Flow (Combustion + Return) - gph (Lph) 75% 1.38 (5.2)
16.6 (63) 100% 1.68 (6.4)
* Fuel supply installation must accommodate fuel
consumption rates at 100% load.

COOLING
Standby
Coolant Flow gpm (Lpm) 48.9 (56.2)
Coolant System Capacity gal (L) 2.5 (9.5)
Heat Rejection to Coolant BTU/hr (kW) 83,610 (25)
Inlet Air cfm (m3/min) 2,800 (79)
Maximum Operating Ambient Temperature °F (°C) 122 (50)
Maximum Operating Ambient Temperature (Before Derate) See Bulletin No. 0199280SSD
Maximum Additional Radiator Backpressure in H2O (kPa) 0.5 (0.12)

COMBUSTION AIR REQUIREMENTS

Standby
Flow at Rated Power - cfm (m3/min) 87.9 (2.49)

ENGINE EXHAUST
Standby Standby
Rated Engine Speed RPM 1,800 Exhaust Flow (Rated Output) cfm (m3 /min) 245 (6.9)
Horsepower at Rated kW** hp 32 Max. Allowable Backpressure (Post Turbocharger) inHg (kPa) 1.5 (5.1)
Piston Speed ft/min (m/min) 1,181 (360) Exhaust Temperature (Rated Output) °F (°C) 625 (329.4)
SPEC SHEET

BMEP psi (kPa) 103.9 (716.4)

** Refer to “Emissions Data Sheet” for maximum bHP for EPA and SCAQMD permitting purposes.

Deration – Operational characteristics consider maximum ambient conditions. Derate factors may apply under atypical site conditions.
Please contact a Generac Power Systems Industrial Dealer for additional details. All performance ratings in accordance with ISO3046, BS5514, ISO8528, and DIN6271 standards.
Standby - See Bulletin 0187500SSB
Prime - See Bulletin 0187510SSB 5 of 6
SD020 | 2.2L | 20 kW
INDUSTRIAL DIESEL GENERATOR SET
EPA Certified Stationary Emergency

DIMENSIONS AND WEIGHTS*

OPEN SET
Run Usable
Weight
Time Capacity L x W x H - in (mm)
H
- lbs (kg)
- Hours - Gal (L)
No Tank - 76.0 (1,930) x 37.4 (950) x 44.8 (1,138) 1,456 - 1,641 (661 - 745)
31 54 (204) 76.0 (1,930) x 37.4 (950) x 57.8 (1,468) 1,936 - 2,121 (879 - 963)
L W
77 132 (500) 76.0 (1,930) x 37.4 (950) x 69.8 (1,773) 2,166 - 2,351 (983 - 1,067)
111 190 (719) 76.0 (1,930) x 37.4 (950) x 79.3 (2,014) 2,380 - 2,565 (1,081 - 1,165)
124 211 (799) 76.0 (1,930) x 37.4 (950) x 81.8 (2,078) 2,375 - 2,560 (1,078 - 1,162)
176 300 (1,136) 92.9 (2,360) x 37.4 (950) x 85.3 (2,167) 2,438 - 2,623 (1,106 - 1,190)

WEATHER PROTECTED ENCLOSURE

Run Usable Weight - lbs (kg)
H
Time Capacity L x W x H - in (mm) Enclosure Only
- Hours - Gal (L) Steel Aluminum
No Tank - 94.8 (2,409) x 38.0 (965) x 49.5 (1,258)
31 54 (204) 94.8 (2,409) x 38.0 (965) x 62.5 (1,588)
L W
77 132 (500) 106.0 (2,692) x 38.0 (965) x 84.0 (2,134) 372 241
111 190 (719) 94.8 (2,409) x 38.0 (965) x 84.0 (2,134) (169) (109)
124 211 (799) 76.0 (1,930) x 38.0 (965) x 86.5 (2,198)
176 300 (1,136) 92.9 (2,360) x 38.0 (965) x 90.0 (2,287)

LEVEL 1 SOUND ATTENUATED ENCLOSURE

Usable Weight - lbs (kg)
Run Time Enclosure Only
Capacity L x W x H - in (mm)
H - Hours
- Gal (L) Steel Aluminum
No Tank - 112.5 (2,857) x 38.0 (965) x 49.5 (1,258)
31 54 (204) 112.5 (2,857) x 38.0 (965) x 62.5 (1,588)
L W
77 132 (500) 112.5 (2,857) x 38.0 (965) x 74.5 (1,893) 505 338
111 190 (719) 112.5 (2,857) x 38.0 (965) x 84.0 (2,134) (229) (153)
124 211 (799) 112.5 (2,857) x 38.0 (965) x 86.5 (2,198)
176 300 (1,136) 112.5 (2,857) x 38.0 (965) x 90.0 (2,287)

LEVEL 2 SOUND ATTENUATED ENCLOSURE

Usable Weight - lbs (kg)
H Run Time Enclosure Only
Capacity L x W x H - in (mm)
- Hours
- Gal (L) Steel Aluminum
No Tank - 94.8 (2,409) x 38.0 (965) x 49.5 (1,258)
31 54 (204) 94.8 (2,409) x 38.0 (965) x 62.5 (1,588)
SPEC SHEET

L W
77 132 (500) 94.8 (2,409) x 38.0 (965) x 74.5 (1,893) 510 341
111 190 (719) 106.0 (2,692) x 38.0 (965) x 84.0 (2,134) (231) (155)
124 211 (799) 94.8 (2,409) x 38.0 (965) x 86.5 (2,198)
176 300 (1,136) 94.8 (2,409) x 38.0 (965) x 90.0 (2,287)

* All measurements are approximate and for estimation purposes only. Specification characteristics may change without notice. Please contact a Generac Power Systems Industrial Dealer for detailed installation drawings.
6 of 6

Generac Power Systems, Inc. | P.O. Box 8 | Waukesha, WI 53189 Part No. 10000028470
P: (262) 544-4811 ©2020 Generac Power Systems, Inc. All rights reserved. All specifications are subject to change without notice. Rev. C 10/20/2020
SOUND EMISSIONS DATA
Model G0076880/SDC015

NO-LOAD, dB(A) DISTANCE: 7 METERS

MICROPHONE OCTAVE BAND CENTER FREQUENCY (Hz)
LOCATION 31.5 63 125 250 500 1,000 2,000 4,000 8,000 dB(A)
FRONT 30 48 58 54 55 50 51 45 41 61
2 30 51 55 55 53 50 50 45 41 60
RIGHT 29 52 45 51 49 48 49 43 41 56
4 29 51 50 56 53 50 51 44 41 60
REAR 29 48 56 62 55 51 52 45 41 64
6 30 48 58 58 58 55 57 49 42 64
LEFT 31 51 59 59 56 54 58 52 43 64
8 30 51 60 60 61 54 57 51 42 66
AVERAGE 30 50 55 57 55 52 53 47 41 62

UNIT EXCERCISE, dB(A) DISTANCE: 7 METERS

MICROPHONE OCTAVE BAND CENTER FREQUENCY (Hz)
LOCATION 31.5 63 125 250 500 1,000 2,000 4,000 8,000 dB(A)
FRONT 48 49 50 52 53 47 47 42 40 58
2 48 45 46 47 49 47 46 42 40 54
RIGHT 49 43 43 47 46 45 46 42 40 53
4 47 46 42 48 48 46 47 42 40 54
REAR 50 46 49 52 49 47 47 42 40 56
6 49 50 50 53 53 50 52 45 41 59
LEFT 52 49 55 52 53 50 52 48 41 60
8 47 49 54 54 56 50 52 46 41 60
AVERAGE 49 47 49 51 51 48 49 44 40 57

FULL-LOAD, dB(A) DISTANCE: 7 METERS

MICROPHONE OCTAVE BAND CENTER FREQUENCY (Hz)
LOCATION 31.5 63 125 250 500 1,000 2,000 4,000 8,000 dB(A)
FRONT 30 51 58 56 59 52 51 45 41 63
2 30 48 56 53 56 52 50 45 41 61
RIGHT 30 49 52 51 55 49 48 43 41 58
4 32 49 46 57 56 51 51 44 41 60
REAR 32 50 55 62 57 53 51 44 42 64
SOUND DATA

6 31 52 59 58 58 55 58 49 42 65
LEFT 35 49 61 60 57 56 57 53 43 66
8 30 56 60 61 62 56 57 50 43 67
AVERAGE 31 51 56 57 57 53 53 47 42 63
1 of 2
Part No. A0000860378
Rev. B 5/27/20
SOUND EMISSIONS DATA
Model G0076880/SDC015

70

68

66

64
dB(A)

62

60

58

56

54

52
FRONT 2 RIGHT 4 REAR 6 LEFT 8

FRONT
8 2

LEFT RIGHT

6 4
REAR
SOUND DATA

• All positions at 23 feet (7 meters) from side faces of generator set.

• Test conducted on a 100 foot diameter asphalt surface.
• Sound pressure levels are subject to instrumentation, installation and testing conditions.
• Sound levels are ±2 dB(A).

2 of 2
Generac Power Systems, Inc. | P.O. Box 8 | Waukesha, WI 53187 Part No. A0000860378
P: (262) 544-4811 © 2020 Generac Power Systems, Inc. All rights reserved. All specifications are subject to change without notice. Rev. B 5/27/20
SDC015 | 1.5L | 15 kW
INDUSTRIAL DC DIESEL GENERATOR SET
EPA Certified Stationary Emergency

Standby Power Rating

15 kW, 60 Hz

*Assembled in the USA using

domestic and foreign parts

Image used for illustration purposes only

Codes and Standards Powering Ahead

Not all codes and standards apply to all configurations. Contact
factory for details. For over 60 years, Generac has provided innovative design and
superior manufacturing.
UL2200, UL6200, UL1236, UL489,
UL142 Generac ensures superior quality by designing and manufacturing
most of its generator components, including alternators, enclosures
CSA C22.2, ULC S601 and base tanks, control systems and communications software.

Generac gensets utilize a wide variety of options, configurations and

BS5514 and DIN 6271
TM

arrangements, allowing us to meet the standby power needs of

practically every application.
SAE J1349
® Generac searched globally to ensure the most reliable engines power
our generators. We choose only engines that have already been
NFPA 37, 70, 99, 110 proven in heavy-duty industrial applications under adverse
conditions.
®
NEC700, 701, 702, 708 Generac is committed to ensuring our customers’ service support
continues after their generator purchase.

ISO 3046, 7637, 8528, 9001

NEMA ICS10, MG1, 250, ICS6, AB1

SPEC SHEET

ANSI C62.41

1 of 6
SDC015 | 1.5L | 15 kW
INDUSTRIAL DC DIESEL GENERATOR SET
EPA Certified Stationary Emergency

STANDARD FEATURES

ENGINE SYSTEM Electrical System ENCLOSURE

• Oil Drain Extension • Battery Charging Alternator • Serviceable Items Accessible Through Single Lift-
• Air Cleaner with Service Indicator • Off Side Door
•
AGM Spill Proof Battery
• Level 1 Fan and Belt Guards (Open Set Only) • High Performance Sound-Absorbing Material
•
Battery Cables
•
•
Stainless Steel Flexible Exhaust Connection Gasketed Door
•
Rubber-Booted Engine Electrical Connections
• Silencer with Drain • Single Door Latch Lockable with Key and Padlock
• Factory Filled Oil and Coolant
Solenoid Activated Starter Motor
• RhinoCoat™ - Textured Polyester Powder Coat Paint
• 150 MPH Wind Load Rating
ALTERNATOR SYSTEM
• 36” Snow Rating
Fuel System • Class H Insulated Material
• Aluminum Enclosure
• Primary Fuel Filter • Vented Rotor
• Permanent Magnet Excitation
FUEL TANK
Cooling System • •
Full Load Capacity Alternator
• UL 142/ULC S601 Compliant
• Closed Coolant Recovery System Protective Thermal Switch
• Double Wall Construction
• UV/Ozone Resistant Hoses • Factory Pressure Tested (5 psi)
• Factory-Installed Radiator GENERATOR SET
• Rupture Basin Alarm
• 50/50 Ethylene Glycol Antifreeze • Single Side Service
• Fuel Level Gauge and Sender
• Radiator Drain Extension • Internal Genset Puck Style Vibration Isolators
• Check Valve in Supply Line
• Silencer Heat Shield
• Fire Rated Hose
• High-Heat Wrapped Exhaust Piping
• RhinoCoat™ - Textured Polyester Powder Coat Paint
• Silencer Enclosed within Generator
• Stainless Steel Hardware
• 2 Year Limited Warranty
• Integrated Fork Pockets
• Extended Factory Testing

CONTROL SYSTEM DSE 7310 MKII Alarms

• 4-Line Back-Lit LCD Text Display • Generator Run- Dry Contact
• Multiple Display Languages • Major Alarm- Dry Contact
• 5 Key Menu Navigation • Minor Alarm- Dry Contact
• LCD Alarm Indication • Low Fuel Alarm- Dry Contact
• Internal PLC with Editor • Generator Fluid Spill Alarm- Dry Contact
• Fully Configurable via PC Using USB, RS-232 and
RS-485 Communication
• Generator Current and Power Monitoring (kW, kVAr,
kVA, pf)
• kW and kVAr Overload and Reverse Power Alarms
• Over Current Protection
• Unbalanced Load Protection

MODEL OPTIONS

COOLING SYSTEM ENCLOSURE TANKS

SPEC SHEET

• 48 VDC Coolant Heater • Extreme Cold Weather Kit (-40 °C) - Shipped Loose • MDEQ Fuel Vent - Shipped Loose Kit and Field
Kit and Field Installed Installed
CONTROL SYSTEM • Engine Coolant Heater • 125% System Spill Containment
• External E-Stop - Shipped Loose Kit and Field
• Battery Warmer • 2.5 Gallon Fuel Fill Spill Containment
Installed • Oil Heater • Thermal Valve (Fusible Link)
• Overfill Prevention Valve
2 of 6
SDC015 | 1.5L | 15 kW
INDUSTRIAL DC DIESEL GENERATOR SET
EPA Certified Stationary Emergency

ACCESSORY KITS

Model Number Product Description

Attaches to the existing fuel fill port of the base tank. It captures and contains fuel if there is any spill or over-
G0076300 2.5 Gallon Fuel Spill Box
filling during the fill process.
A valve installed inside the fuel fill spill box with adjustable float that will rise during fuel fill and stop fuel from
G0076990 Overfill Prevention Valve
entering the tank, preventing overfill.
G0079820 Tank Risers Under Tanks A set of additional mounting feet to raise the bottom of the fuel tank off the ground to prevent corrosion.
An extension of the already installed double-wall tank emergency vent system. The External Vent Kit is in-
G0079990 External Vent Kit stalled into the existing tank ports and extends the vent outlet above the top of the generator, rather than at
the top of the fuel tank.
Recommended for generators installed in regions where the temperature regularly falls below 32 °F (0 °C).
The Cold Weather Kit includes a block heater with all necessary mounting hardware, a battery warmer, and
G0076200 Cold Weather Kit
an oil pan heater. The ON/OFF functionality of the heating aids are controlled by a separately mounted control
box with relays.
A0000181910 Decal Pack AT&T Diesel Contains various decals and labels required for AT&T.
A powder coat painted, steel Fuel Fill Drop Tube is required in some municipalities to prevent electrostatic
discharge, which can be caused by the fuel dropping into the tank from the fill area. Using a drop tube also
G0077070 Fuel Fill Drop Tube
results in submerged filling, which increases the fuel delivery flow rate and reduces vapors, foam, and po-
tential tank evaporation.
A valve installed on the engine fuel supply line, typically at the fuel tank fuel supply port. This valve will stop
G0084440 Fusible Link
the supply of fuel to the engine in case of a thermal event.
In certain installation locations, stainless steel fuel lines are required. This kit includes the stainless steel fuel
G0079870 MDEQ Manual Primer
lines, a manual fuel primer, and all necessary fittings.
G0061620 E-Stop (Flush Mount) The E-Stop allows for immediate fuel shutoff and generator shutdown in the event of an emergency.
Installed on top of the fuel tank directly under the engine and cooling package. Intended to contain up to 125%
G0079830 Fluid Containment Tray
of the total capacity of engine oil and/or coolant.
Alerts the fuel fill operator when the tank reaches a 90% fill level by sounding an audible alarm and triggering
0F2903F Remote Alarm 90% Fuel
an LED warning light.

SPEC SHEET

3 of 6
SDC015 | 1.5L | 15 kW
INDUSTRIAL DC DIESEL GENERATOR SET
EPA Certified Stationary Emergency

APPLICATION AND ENGINEERING DATA

ENGINE SPECIFICATIONS

General Fuel System

Make Perkins Fuel Type Ultra Low Sulfur Diesel Fuel

Cylinder # 3 Fuel Specification ASTM
Type In-Line Fuel Pump Type Engine Driven Gear
Displacement - in3 (L) 91.3 (1.496) Injector Type Mechanical
Bore - in (mm) 3.3 (84) Fuel Supply Line - in (mm) 0.375 (9.525)
Stroke - in (mm) 3.5 (90) Fuel Return Line - in (mm) 0.1875 (4.76)
Compression Ratio 22.5:1 Fuel Shut off Solenoid Yes
Intake Air Method Naturally Aspirated
Engine Electrical System
Engine Governing
System Voltage 12 VDC
Governor Mechanical/Electric Control Battery Charger Alternator 12V-50A
Battery Size 650 CCA
Lubrication System Battery Group 35
Battery Voltage 12 VDC
Crankcase Capacity - qt (L) 1.59 (6)
Ground Polarity Negative

Cooling System
Cooling System Type Closed Recovery
Water Pump Flow - gpm (Lpm) 20.7 (78.36)
Fan Speed - RPM 3,250
Fan Diameter - in (mm) 12.6 (320)

ALTERNATOR SPECIFICATIONS

Standard Model NSM Standard Excitation Permanent Magnet

Poles 30 Bearings Bearingless
Insulation Class - Rotor H Coupling Direct
Insulation Class - Stator H Load Capacity - Standby 100%
DC Ripple <100 mV RMS
SPEC SHEET

RATING DEFINITIONS
Standby - Applicable for a varying emergency load for the duration of a utility power outage with no overload capability. 4 of 6
SDC015 | 1.5L | 15 kW
INDUSTRIAL DC DIESEL GENERATOR SET
EPA Certified Stationary Emergency

OPERATING DATA

POWER RATINGS

Standby
57.5 VDC 15 kW Amps: 261 Fuse Size Amps: 350

FUEL CONSUMPTION RATES*

Diesel - gph (Lph)

Voltage Percent Load
Fuel Pump Lift - ft (m) 0% 25% 50% 75% 100%
2.6 (0.8) 48.0 0.42 0.68 0.76 1.10 1.35
52.5 0.34 0.68 0.93 1.35 1.52
Total Fuel Pump Flow (Combustion + Return) - gph (Lph) 55.0 0.51 0.76 0.93 1.24 1.53
16.6 (63) 57.5 0.42 0.68 1.02 1.27 1.61
60.0 0.51 0.76 1.10 1.44 1.69
* Fuel supply installation must accommodate fuel consumption rates at 100% load.

COOLING

Standby
Coolant Flow gpm (Lpm) 20.7 (94.2)
Coolant System Capacity gal (L) 1.6 (6)
Heat Rejection to Coolant BTU/hr (kW) 81,000 (23.7)
Altitude Deration 1% for every 100 m above 914 m or 3% for every 1,000 ft over 3,000 ft

COMBUSTION AIR REQUIREMENTS

Standby
Flow at Rated Power - cfm (m3/min) 61.9 (1.8)

ENGINE EXHAUST
Standby Standby
Rated Engine Speed RPM 2,600 Exhaust Flow (Rated Output) cfm (m3/min) 183.7 (5.2)
Exhaust Temperature (Rated Output) °F (°C) 1,139 (615)

** Refer to “Emissions Data Sheet” for maximum bHP for EPA and SCAQMD permitting purposes.

Deration – Operational characteristics consider maximum ambient conditions. Derate factors may apply under atypical site conditions.
Please contact a Generac Power Systems Industrial Dealer for additional details. All performance ratings in accordance with ISO3046, BS5514, ISO8528, and DIN6271 standards.
SPEC SHEET

5 of 6
SDC015 | 1.5L | 15 kW
INDUSTRIAL DC DIESEL GENERATOR SET
EPA Certified Stationary Emergency

DIMENSIONS AND WEIGHTS*

W L

Run Time - Hours 27

Usable Capacity - gal (L) 54 (204)
Dimensions (L x W x H) - in (mm) 49.1 (1,246) x 34.4 (873) x 75.5 (1,917)
Weight - lbs (kg) 1,455 (660)

* All measurements are approximate and for estimation purposes only. Drawing is for illustration purposes only, not to scale.

YOUR FACTORY RECOGNIZED GENERAC INDUSTRIAL DEALER

SPEC SHEET

Specification characteristics may change without notice. Dimensions and weights are for preliminary purposes only. Please contact a Generac Power Systems Industrial Dealer for detailed installation drawings.

6 of 6

Generac Power Systems, Inc. | P.O. Box 8 | Waukesha, WI 53189 Part No. 10000032139
P: (262) 544-4811 ©2020 Generac Power Systems, Inc. All rights reserved. All specifications are subject to change without notice. Rev. C 07/07/2020
SOUND ATTENUATED ENCLOSURE
D2.2, Generac SDC020

NO-LOAD, dB(A) DISTANCE: 7 METERS

MICROPHONE OCTAVE BAND CENTER FREQUENCY (Hz)
LOCATION 31.5 63 125 250 500 1,000 2,000 4,000 8,000 dB(A)
FRONT 20 40 53 50 50 50 46 44 35 56
2 19 43 50 50 55 51 48 44 38 57
RIGHT 18 50 47 51 56 50 48 46 37 58
4 21 56 49 50 53 53 50 46 38 59
REAR 21 56 51 51 50 50 46 44 35 58
6 20 56 49 50 54 54 48 43 35 60
LEFT 18 53 47 52 59 53 50 47 39 61
8 19 43 54 52 55 54 48 44 38 59
AVERAGE 20 50 50 51 54 52 48 45 37 59

FULL-LOAD, dB(A) DISTANCE: 7 METERS

MICROPHONE OCTAVE BAND CENTER FREQUENCY (Hz)
LOCATION 31.5 63 125 250 500 1,000 2,000 4,000 8,000 dB(A)
FRONT 21 57 65 52 55 53 50 50 40 66
2 19 59 61 52 57 55 51 51 43 65
RIGHT 19 59 59 54 57 54 52 52 44 64
4 21 60 58 54 55 54 52 51 42 64
REAR 23 58 59 52 53 52 49 49 38 62
6 21 60 55 53 57 55 52 49 39 64
LEFT 19 62 58 55 60 55 53 51 43 66
8 19 60 64 55 57 56 52 51 44 67
AVERAGE 20 59 60 53 57 54 51 51 42 65

2 RIGHT 4

69
67
65
63
dB(A)

FRONT REAR 61
59
57
55
FRONT 2 RIGHT 4 REAR 6 LEFT 8
SOUND DATA

6 LEFT 8
• All positions at 23 feet (7 meters) from side faces of generator set.
• Test conducted on a 100 foot diameter asphalt surface.
• Sound pressure levels are subject to instrumentation, installation and testing conditions.
• Sound levels are ±2 dB(A).
1 of 1
Generac Power Systems, Inc. | P.O. Box 8 | Waukesha, WI 53187 Part No. A0001352186
P: (262) 544-4811 © 2021 Generac Power Systems, Inc. All rights reserved. All specifications are subject to change without notice. Rev. A 2/17/21
SDC020 | 2.2L | 20 kW
INDUSTRIAL DIESEL GENERATOR SET
EPA Certified Stationary Emergency

Standby Power Rating

20 kW, 25 kVA, 60 Hz

*EPA Certified Prime ratings are not available in the US or its Territories

Image used for illustration purposes only

Codes and Standards Powering Ahead

Not all codes and standards apply to all configurations. Contact
factory for details. For over 60 years, Generac has provided innovative design and
superior manufacturing.
UL2200, UL6200, UL1236, UL489,
UL142 Generac ensures superior quality by designing and manufacturing
most of its generator components, including alternators, enclosures
CSA C22.2, ULC S601 and base tanks, control systems and communications software.

Generac gensets utilize a wide variety of options, configurations and

BS5514 and DIN 6271
TM

arrangements, allowing us to meet the standby power needs of

practically every application.
SAE J1349
® Generac searched globally to ensure the most reliable engines power
our generators. We choose only engines that have already been
NFPA 37, 70, 99, 110 proven in heavy-duty industrial applications under adverse
conditions.
®
NEC700, 701, 702, 708 Generac is committed to ensuring our customers’ service support
continues after their generator purchase.

ISO 3046, 7637, 8528, 9001

SPEC SHEET

NEMA ICS10, MG1, 250, ICS6, AB1

ANSI C62.41

1 of 6
SDC020 | 2.2L | 20 kW
INDUSTRIAL DIESEL GENERATOR SET
EPA Certified Stationary Emergency

STANDARD FEATURES

ENGINE SYSTEM ALTERNATOR SYSTEM ENCLOSURE

• Oil Drain Extension • UL2200 GENprotect™ • Rust-Proof Fasteners with Nylon Washers to
• Air Cleaner • Class H Insulation Material Protect Finish
• Stainless Steel Flexible Exhaust Connection • 2/3 Pitch • High Performance Sound-Absorbing Material
• Factory Filled Oil and Coolant • Skewed Stator • Gasketed Doors
• Engine Coolant Heater • Permanent Magnet Excitation • Aluminum Enclosure
• Sealed Bearing • Level 2 Sound Attenuated
FUEL SYSTEM • Rotor Dynamically Spin Balanced • Twist-Lock Handle
• Amortisseur Winding (3-Phase Only) • RhinoCoat™ - Textured Polyester Powder Coat Paint
• Fuel Lockoff Solenoid
• Primary Fuel Filter
• Full Load Capacity Alternator
• Protective Thermal Switch FUEL TANKS (If Selected)
COOLING SYSTEM • UL 142/ULC S601
GENERATOR SET • Double Wall
• Closed Coolant Recovery System •
• • Internal Genset Vibration Isolation Normal and Emergency Vents
UV/Ozone Resistant Hoses
• Separation of Circuits - High/Low Voltage • Factory Pressure Tested
• Factory-Installed Radiator •
• • Wrapped Exhaust Piping Rupture Basin Alarm
Radiator Drain Extension
• Standard Factory Testing • Fuel Level
• 50/50 Ethylene Glycol Antifreeze •
• 2 Year Limited Warranty (Standby Rated Units) Check Valve In Supply and Return Lines
• 1 Year Limited Warranty (Prime Rated Units) • RhinoCoat™- Textured Polyester Powder Coat Paint
ELECTRICAL SYSTEM •
• Silencer Mounted in the Discharge Hood Stainless Steel Hardware
• Battery Charging Alternator
• Battery Cables
• Battery Tray
• Rubber-Booted Engine Electrical Connections
• Solenoid Activated Starter Motor

CONTROL SYSTEM • Remote Ports Full System Status Display

• CANbus • Multilingual 128x64 Graphical Display with Heater
• Full Range Standby Operation • Easy Status View LED Screen
®

• 3-Phase AC Volts • Full System Status

• 3-Phase Amps •
AUXILIARY SHUTDOWN

Run Hours
• kW • Service Reminders
POWERZONE® 410 • Power Factor • Fault History (Alarm Log)
• Ruptured Tank Detection • Oil Pressure
• Auxiliary Shutdown Switch • Oil Temperature (Optional/When Equipped)
• Remote Communications • Oil Level (Optional/When Equipped)
• Compatible with NFPA 110, Level 1 or 2 (When • Output for Fuel Level High/Low Warning
Optional Modules Selected) • Water Temperature
Power Zone® 410 Controller • Line Power/Gen Power • Water Level
• I2T Function for Full Generator Protection • Fuel Pressure/Level
Features • Engine Speed
• Programmable Auto Crank • Battery Voltage
• Selectable Low Speed Exercise • Alternator Frequency
• RS-232 x2
SPEC SHEET

• RS-485 x2 Alarms and Warnings

• 3-Phase Sensing Digital Voltage Regulator • Common Alarm Output
• Time
• Date
• On/Off/Manual Switch
• Not in Auto Flashing Light
• Emergency Stop 2 of 6
• Modbus® RTU
SDC020 | 2.2L | 20 kW
INDUSTRIAL DIESEL GENERATOR SET
EPA Certified Stationary Emergency

CONFIGURABLE OPTIONS

ENGINE SYSTEM CIRCUIT BREAKER OPTIONS CONTROL SYSTEM

○ Oil Heater ○ Main Line Circuit Breaker ○ NFPA 110 Compliant 21-Light Remote Annunciator
○ Fluid Containment Pan ○ Shunt Trip and Auxiliary Contact ○ Remote Relay Assembly (8 or 16)
○ Coolant Heater Isolation Ball Valves ○ Electronic Trip Breakers ○ Oil Temperature Indication and Alarm
○ Spare Inputs (x4) / Outputs (x4)
FUEL SYSTEM ENCLOSURE ○ Battery Disconnect Switch

○ NPT Flexible Fuel Line ○ Up to 190 MPH Wind Load Rating (Contact Factory
○ Remote E-Stop (Break Glass-Type, Surface Mount)
for Availability) ○ Remote E-Stop (Red Mushroom-Type,
○ AC/DC Enclosure Lighting Kit Surface Mount)
ELECTRICAL SYSTEM ○ Remote E-Stop (Red Mushroom-Type, Flush Mount)
○ Door Open Alarm Switch
○ 10A UL Listed Battery Charger ○ 100 dB Alarm Horn
○ Battery Warmer WARRANTY (Standby Gensets Only)
○ Ground Fault Annunciation
○ 120V GFCI and 240V Outlets
ALTERNATOR SYSTEM ○ 2 Year Extended Limited Warranty ○ 10A Engine Run Relay
○ 5 Year Limited Warranty
○ Anti-Condensation Heater ○ 5 Year Extended Limited Warranty FUEL TANKS (Size On Last Page)
○ Tropical Coating ○ 7 Year Extended Limited Warranty
○ 10 Year Extended Limited Warranty
○ Overfill Protection Valve
GENERATOR SET ○ Spill Box Return Hose
○ 2.5 Gallon Spill Box
○ Extended Factory Testing ○ Tank Risers
○ Pad Vibration Isolators ○ Fuel Level Switch and Alarm
○ 12’ Vent System
○ Fire Rated Stainless Steel Fuel Hose

ENGINEERED OPTIONS

GENERATOR SET FUEL TANKS

○ Special Testing ○ UL2085 Tank
○ Stainless Steel Tanks
○ Special Fuel Tanks

SPEC SHEET

3 of 6
SDC020 | 2.2L | 20 kW
INDUSTRIAL DIESEL GENERATOR SET
EPA Certified Stationary Emergency

APPLICATION AND ENGINEERING DATA

ENGINE SPECIFICATIONS
General Cooling System
Make Perkins Cooling System Type Pressurized Closed
EPA Emissions Compliance Stationary Emergency Water Pump Type Pre-Lubed, Self Sealing
EPA Emissions Reference See Emission Data Sheet Fan Type Puller
Cylinder # 4 Fan Speed - RPM 3,000
Type In-Line Fan Diameter - in (mm) 11 (279)
Displacement - in3 (L) 135 (2.22)
Bore - in (mm) 3.3 (84) Fuel System
Stroke - in (mm) 3.9 (100)
Fuel Type Ultra Low Sulfur Diesel Fuel
Compression Ratio 23.3:1
Fuel Specifications ASTM
Intake Air Method Naturally Aspirated
Fuel Filtering (Microns) 5
Cylinder Head Cast Iron
Fuel Inject Pump Distribution Injection Pump
Piston Type Aluminum
Fuel Pump Type Cassette
Crankshaft Type Forged Steel
Injector Type Indirect, Pintle Nozzle
Fuel Supply Line - in (mm) 0.31 (7.94) ID
Engine Governing
Fuel Return Line - in (mm) 0.31 (7.94) ID
Governor Electronic Isochronous
Frequency Regulation (Steady State) ±0.5% Engine Electrical System
System Voltage 12 VDC
Lubrication System
Battery Charger Alternator Standard
Oil Pump Type Gear Battery Size See Battery Index 0161970SBY
Oil Filter Type Full-Flow Cartridge Battery Voltage 12 VDC
Crankcase Capacity - qt (L) 11.2 (10.6) Ground Polarity Negative

ALTERNATOR SPECIFICATIONS
Standard Model K0035124Y26 Standard Excitation Permanent Magnet Excitation
Poles 4 Bearings Single Sealed
Field Type Revolving Coupling Direct via Flexible Disc
Insulation Class - Rotor H Load Capacity - Standby 100%
Insulation Class - Stator H Prototype Short Circuit Test Yes
Total Harmonic Distortion <5% (3-Phase Only) Voltage Regulator Type Digital
Telephone Interference Factor (TIF) <50 Number of Sensed Phases All
SPEC SHEET

Regulation Accuracy (Steady State) ±0.25%

4 of 6
SDC020 | 2.2L | 20 kW
INDUSTRIAL DIESEL GENERATOR SET
EPA Certified Stationary Emergency

OPERATING DATA

POWER RATINGS

Standby
Single-Phase 120/240 VAC @1.0pf 20 kW, 20 kVA Amps: 83
Three-Phase 120/208 VAC @0.8pf 20 kW, 25 kVA Amps: 70
Three-Phase 120/240 VAC @0.8pf 20 kW, 25 kVA Amps: 60
Three-Phase 277/480 VAC @0.8pf 20 kW, 25 kVA Amps: 30

MOTOR STARTING CAPABILITIES (skVA)

skVA vs. Voltage Dip
120/240 VAC 1Ø 30% 277/480 VAC 3Ø 30% 208/240 VAC 3Ø 30%
A0035044N26 50 K0035124Y26 68 K0035124Y26 50

FUEL CONSUMPTION RATES*

Diesel - gph (Lph)
Fuel Pump Lift- ft (m) Percent Load Standby
3 (1) 25% 0.6 (2.1)
50% 0.9 (3.5)
Total Fuel Pump Flow (Combustion + Return) - gph (Lph) 75% 1.3 (4.8)
16.6 (63) 100% 1.6 (6.2)
* Fuel supply installation must accommodate fuel
consumption rates at 100% load.

COOLING
Standby
Air Flow (Fan Air Flow Across Radiator) - Compact cfm (m3/min) 1,653 (46.8)
Coolant Flow gpm (Lpm) 15.5 (58.7)
Coolant System Capacity gal (L) 4.2 (16.0)
Heat Rejection to Coolant BTU/hr (kW) 76,090 (22.3)
Inlet Air cfm (m3/min) 1,714 (48.5)
Maximum Operating Ambient Temperature °F (°C) 120 (50)
Maximum Operating Ambient Temperature (Before Derate) See Bulletin No. 0199280SSD
Maximum Additional Radiator Backpressure in H2O (kPa) 0.5 (0.12)

COMBUSTION AIR REQUIREMENTS

Standby
Flow at Rated Power - cfm (m3/min) 61.4 (1.7)

ENGINE EXHAUST
Standby Standby
Rated Engine Speed RPM 1,800 Exhaust Flow (Rated Output) cfm (m3/min) 160.4 (4.5)
Horsepower at Rated kW** hp 32.5 Maximum Allowable Backpressure inHg (kPa) 40.9 (138.5)
Piston Speed ft/min (m/min) 1,182 (360) Exhaust Temperature (Rated Output) °F (°C) 950 (510)
BMEP psi (kPa) 105.8 (729.4)
** Refer to “Emissions Data Sheet” for maximum bHP for EPA and SCAQMD permitting purposes.
SPEC SHEET

Deration – Operational characteristics consider maximum ambient conditions. Derate factors may apply under atypical site conditions.
Please contact a Generac Power Systems Industrial Dealer for additional details. All performance ratings in accordance with ISO3046, BS5514, ISO8528, and DIN6271 standards.
Standby - See Bulletin 0187500SSB
Prime - See Bulletin 0187510SSB

5 of 6
SDC020 | 2.2L | 20 kW
INDUSTRIAL DIESEL GENERATOR SET
EPA Certified Stationary Emergency

DIMENSIONS AND WEIGHTS*

COMPACT VARIANT
Run Usable
Time - Capacity L x W x H - in (mm) Weight - lbs (kg)
Hours - Gal (L)
No Tank - 56.0 (1,422) x 34.5 (876) x 68.9 (1,749) 1,465 (664)
31.9 51 (193) 56.0 (1,422) x 34.5 (876) x 87.3 (2,215) 1,914 (868)
H
64.4 103 (390) 56.0 (1,422) x 34.5 (876) x 99.1 (2,515) 2,090 (948)

L W

SPEC SHEET

* All measurements are approximate and for estimation purposes only. Specification characteristics may change without notice. Please contact a Generac Power Systems Industrial Dealer for detailed installation drawings.
6 of 6

Generac Power Systems, Inc. | P.O. Box 8 | Waukesha, WI 53189 Part No. A0001352184
P: (262) 544-4811 ©2021 Generac Power Systems, Inc. All rights reserved. All specifications are subject to change without notice. Rev. A 04/21/2021
