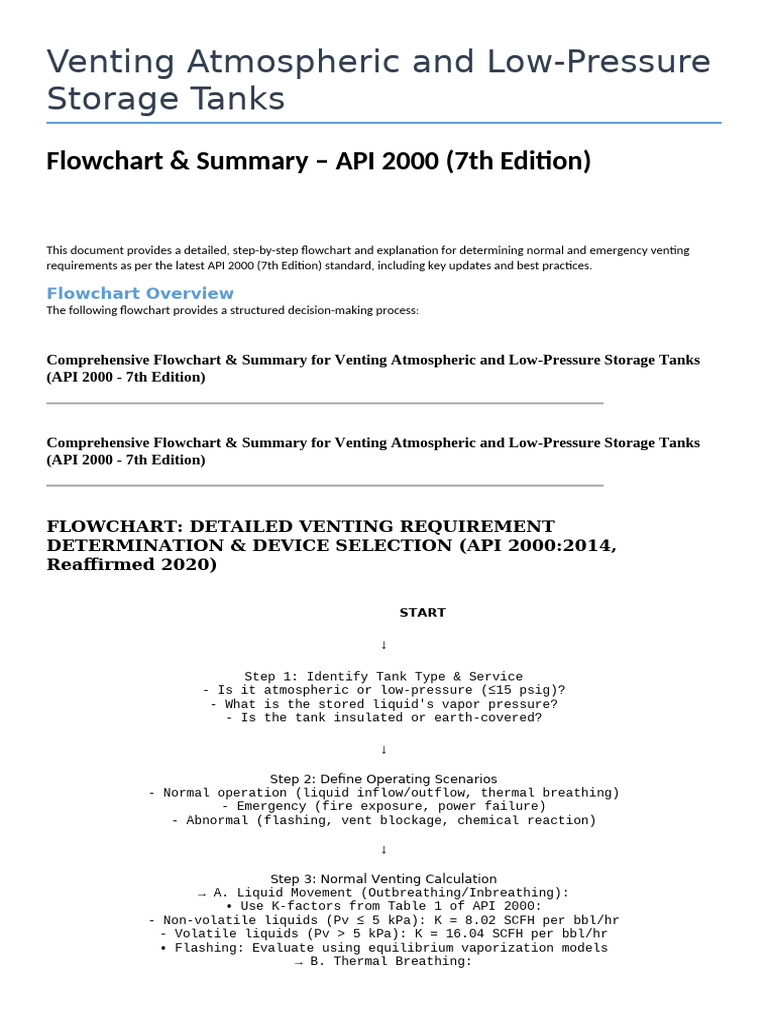

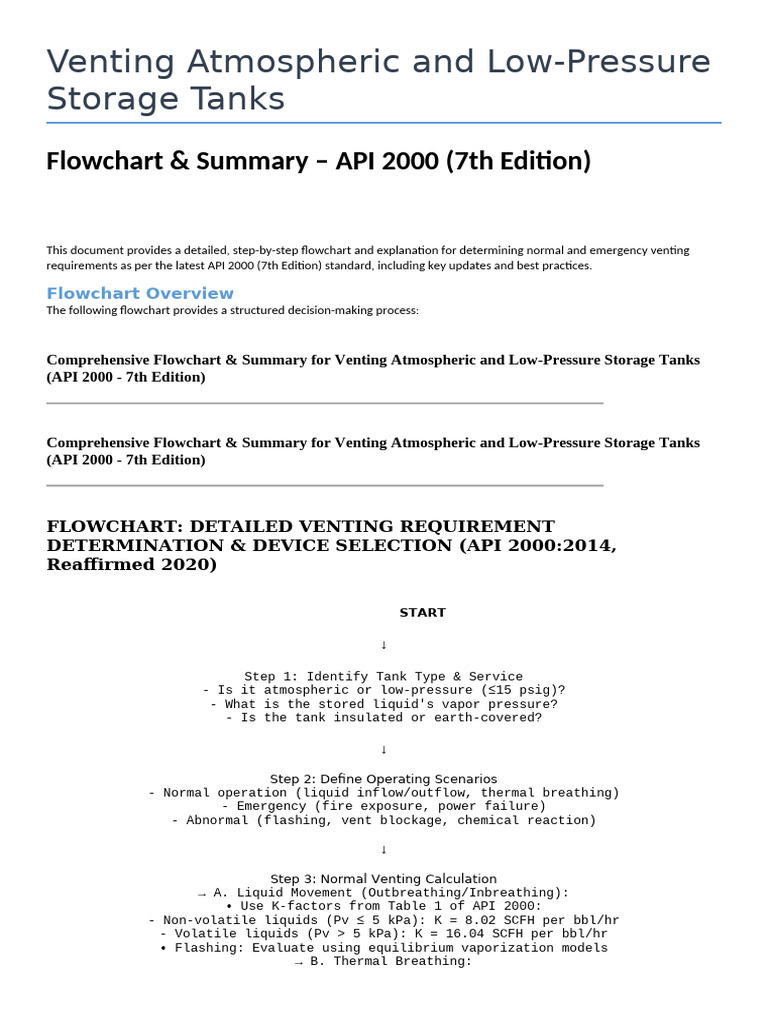

Venting Atmospheric and Low-Pressure
Storage Tanks
Flowchart & Summary – API 2000 (7th Edition)
This document provides a detailed, step-by-step flowchart and explanation for determining normal and emergency venting
requirements as per the latest API 2000 (7th Edition) standard, including key updates and best practices.
Flowchart Overview
The following flowchart provides a structured decision-making process:
Comprehensive Flowchart & Summary for Venting Atmospheric and Low-Pressure Storage Tanks
(API 2000 - 7th Edition)
Comprehensive Flowchart & Summary for Venting Atmospheric and Low-Pressure Storage Tanks
(API 2000 - 7th Edition)
FLOWCHART: DETAILED VENTING REQUIREMENT
DETERMINATION & DEVICE SELECTION (API 2000:2014,
Reaffirmed 2020)
START
Step 1: Identify Tank Type & Service
- Is it atmospheric or low-pressure (≤15 psig)?
- What is the stored liquid's vapor pressure?
- Is the tank insulated or earth-covered?
Step 2: Define Operating Scenarios
- Normal operation (liquid inflow/outflow, thermal breathing)
- Emergency (fire exposure, power failure)
- Abnormal (flashing, vent blockage, chemical reaction)
Step 3: Normal Venting Calculation
→ A. Liquid Movement (Outbreathing/Inbreathing):
• Use K-factors from Table 1 of API 2000:
- Non-volatile liquids (Pv ≤ 5 kPa): K = 8.02 SCFH per bbl/hr
- Volatile liquids (Pv > 5 kPa): K = 16.04 SCFH per bbl/hr
• Flashing: Evaluate using equilibrium vaporization models
→ B. Thermal Breathing:
• Use latitude-based Y-factors (Zones: <42°, 42–58°, >58°)
• Method 1: API 2000 Section 3.3.2 empirical formulas
• Method 2: Annex A – daily mean temperature variation approach
Step 4: Sum Normal Vent Rates
- Total = Inbreathing + Outbreathing + Thermal + Flashing
Step 5: Emergency Venting Requirement
→ Determine wetted surface area (A)
→ Select Environmental Factor (F) from Table 4 (based on insulation, cover)
→ Apply:
- Q = 21,000 × A^0.82 (US units)
- Q = 43,200 × A^0.82 (Metric units)
→ Include additional venting for:
- Power failure
- Steam-out or inert purge events
- Fire-fighting water ingress
Step 6: Venting Device Selection
- Types: weight-loaded, spring-loaded, pilot-operated
- Sizing:
• Normal vent: set ≥ operating pressure
• Emergency vent: set ≥ 10% above normal vent, ≤ MAWP
- Confirm flow rating ≥ required vent rate
Step 7: Testing & Certification
- Test in accordance with ASME PTC 25
- Use actual gas, include configuration & mounting impact
- Mark nameplate with:
• Set pressure
• Rated flow (SCFH/Nm³/h)
• Manufacturer & serial number
Step 8: Installation & Documentation
- Verify inlet/outlet pipe sizes
- Avoid sharp bends or obstructions
- Keep maintenance access clear
- Maintain calibration, test reports, venting datasheets
END
Key Enhancements in API 2000 7th Edition (2014, Reaffirmed 2020)
Latitude-Based Thermal Breathing:
Three climate zones introduced for thermal venting sizing.
Updated factors reflect more accurate heat transfer assumptions.
Flashing Load Consideration:
Explicitly incorporated for volatile liquids at high fill rates.
Device Staging and MAWP Compliance:
Emergency vent set-point must be ≥10% above preserving valve set-point.
Emergency pressure vent must activate ≤ MAWP.
Expanded Definitions:
Includes "bubble point,” “full open position,” and clarification on inerting.
Annex G – Open Vents:
Provided guidance on use and limitations of open vents (atmospheric relief).
Marking & Test Method Alignment:
Harmonized with ASME and included guidance for test rig setup effects.
Comprehensive Flowchart Set by Chapter – API 2000 7th
Edition (2014, Reaffirmed 2020)
Chapter 1: Scope and Definitions
START
Identify Tank Type:
- Atmospheric Tank
- Low-Pressure Tank (≤15 psig / 103.4 kPa)
Check Applicability:
- Is the tank used for petroleum products or other volatile liquids?
- Is it aboveground or underground?
- Is venting managed via fixed roof or open vent?
Refer to Definitions:
- Understand key terms: Bubble Point, Flashing, Wetted Area, MAWP, Fire Exposure
- Clarify venting scenarios: Normal, Emergency, Abnormal
END
Chapter 2: Causes of Overpressure and Vacuum
START
Evaluate Sources of Overpressure:
- Liquid inflow
- Ambient heating or sun exposure
- Fire
- Steam or inert gas entry
- Equipment failure (cooling, valves)
↓
Evaluate Sources of Vacuum:
- Liquid withdrawal
- Cooling of vapor space
- Purging or vent blockage
Identify if scenarios are:
- Normal (expected during operation)
- Emergency (fire, failure)
- Abnormal (blockage, purge error)
END
Chapter 3: Normal Venting Requirements
START
Step 1: Estimate Liquid Movement
- Determine maximum inflow/outflow rates (bbl/hr or m³/hr)
- Classify liquid as volatile or non-volatile
Step 2: Apply Venting Factors (Table 1)
- Non-volatile: 8.02 SCFH/bbl/hr
- Volatile: 16.04 SCFH/bbl/hr
↓
Step 3: Assess Thermal Breathing
- Identify Latitude Zone: <42°, 42–58°, >58°
- Choose Method:
• 3.3.2 (empirical equation)
• Annex A (based on mean daily temperature swing)
Step 4: Flashing Volume (if applicable)
- Use flash calculation (enthalpy/boiling point basis)
Sum all components:
- Inbreathing
- Outbreathing
- Thermal breathing
- Flashing
END
Chapter 4: Emergency Venting Requirements
START
↓
Step 1: Identify Emergency Scenarios
- Fire exposure
- Steam or gas purge
- Control failure
Step 2: Calculate Wetted Surface Area (A)
- Tank shell + bottom up to 7.62 m or liquid level
Step 3: Apply Emergency Venting Formula:
- US Units: Q = 21,000 × A^0.82
- SI Units: Q = 43,200 × A^0.82
↓
Step 4: Apply Environmental Factor (F) from Table 4
- Based on insulation, exposure, cover
↓
Determine Total Emergency Venting Capacity Needed
END
Chapter 5: Venting Devices and Marking
START
↓
Step 1: Select Vent Type
- Direct acting
- Weight-loaded
- Spring-loaded
- Pilot operated
Step 2: Size Device for Flow
- Use manufacturer's test data per ASME PTC 25
- Ensure capacity ≥ calculated requirements
Step 3: Define Set Pressures
- Normal vent ≥ operating pressure
- Emergency vent ≥10% above preserving vent, ≤ MAWP
Step 4: Verify Installation Conditions
- Orientation, inlet loss, piping impact
Step 5: Ensure Proper Marking
- Set pressure, SCFH or Nm³/h rating, manufacturer, model, serial number
END
Chapter 6: Testing and Documentation
START
Prepare for Device Testing
- Use air or inert gas
- Match field configuration: mounting, flow path
Conduct Flow Testing
- ASME PTC 25 method
- Validate relief rate and set pressure
Mark Devices Accordingly
- Include all required data (API 2000 section 5.5)
Document Testing
- Record all flow data, configuration, temperature, gas type
Maintain Records
- Link test data with installation and sizing documents
END
